Chevrolet Malibu mk9 (Ninth Generation) from 2016 – fuse box diagram

Chevrolet Malibu mk9 (Ninth Generation) from 2016 – fuse box diagram

Year of production: 2016

Engine Compartment Fuse Block

The engine compartment fuse block is on the driver side of the engine compartment.

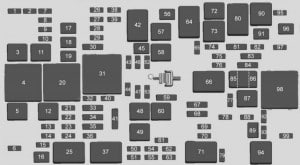

Chevrolet Malibu mk9 - fuse box - engine compartment
Chevrolet Malibu mk9 – fuse box – engine compartment
Fuses Usage
1
2
3 ABS pump
5 AC DC inverter
6 Rear closure
7 ATWS/Horn
8 Window/Mirror/Seats
9 Eboost
10 Left seat lumbar/ Airbag HEV
11 DC DC battery 1
12 Rear defogger
13 Heated mirror
14
15 Passive entry/Passive start
16 Front wiper
17 Passenger power seat
18 ABS valve
19 Driver power seat
21 Sunroof
22 Park light
23 Active headlamp leveling
24
26 Transmission control module/Ignition
27 Instrument panel body/Ignition
28 Fuel pump
29 Regulated voltage control/Ventilation
30 Malfunction indicator lamp/SS
32 CVS
33 Front heated seat
34 Rear heated seat/ BSM/ESS fan
35 Body control module 6/Body control module 7
36 Fuel module
38
39
40 Steering column lock
41
43 Heated steering whee
44 Active headlamp leveling
45
46 Engine control module/Ignition
47
48 Eboost (HEV)
49 DC DC battery 2
50
51
52
53
54
55
56
57 Transmission auxiliary pump
58
59 High-beam headlamps
60 Cooling fan
61
62
63
65 A/C (HEV)
67
68
69 Right low-beam HID headlamp
70 Left low-beam HID headlamp
72 Starter pinion
74 Starter motor
75 Engine control module
76 Powertrain off engine
78 Horn
79 Washer pump
81 Transmission control module/Engine control module
83 Ignition coil
84 Powertrain on engine
85 Engine control module switch 2
86 Engine control module switch 1
87 SAIR pump
88 Aeroshutter
89 Headlamp washer
91
92 TPIM MGU pump
93 Active headlamp leveling
95 SAIR solenoid
96 Fuel heater
99 Coolant pump



Relays Usage
04 AC DC inverter
20 Rear defogger
25 Front wiper control
31 Run/Crank
37 Front wiper speed
42 Transmission auxiliary pump
64 A/C control
66 Powertrain
71 Low-beam HID headlamps
73 Starter motor
80 Starter pinion
90 SAIR solenoid
94 Headlamp washer
98 SAIR pump

Instrument Panel Fuse Block

The instrument panel fuse block is on the driver side of the instrument panel.

Chevrolet Malibu mk9 - fuse box - instrument panel
Chevrolet Malibu mk9 – fuse box – instrument panel
Fuses Amps Usage
F1 30 Left power windows
F2 30 Right power windows
F3
F4 40 HVAC blower
F5 15 Body control module 2
F6
F7
F8 15 Body control module 3
F9 5 Engine control module/Rear battery
F10 15 Body control module 2
F11
F12
F13
F14
F15 20 Transmission control module (Stop/Start)
F16 30 Amplifier
F17 Seat power lumbar
F18
F19
F20 15 Body control module 1
F21 15 Body control module 4
F22
F23 10 Electric steering column lock (China only)
F24 10 Airbag
F25 7,5 Data link connector
F26
F27 30 AC DC inverter
F28
F29 20 Body control module 8
F30 10 Overhead console
F31 2 Steering wheel controls
F32
F33 10 HVAC
F34
F35
F36 5 Wireless charger
F37 20 Front accessory power outlets/ Cigar lighter (China only)
F38 5 OnStar
F39 7,5 Display
F40 10 Obstacle detection
F41 15 Body control module 1 (Stop/Start)
F42 15 Radio
CB1
CB2 15 Console accessory power outlet



Relays Usage
K1
K2 Retained accessory power relay
K3
K4
K5

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
