Year of production: 2013

Engine Compartment Fuse Block

The underhood fuse block is located in the engine compartment, on the passenger side of the vehicle.

Chevrolet Traverse - fuse box diagram - engine compartment
Chevrolet Traverse – fuse box diagram – engine compartment
Fuses Description
A/C CLUTCH Air Conditioning Clutch
ABS MTR Antilock Braking System (ABS) Motor
AIRBAG Airbag System
AUX POWER Auxiliary Power
AUX VAC PUMP Auxiliary Vacuum Pump
AWD All-Wheel-Drive System
BATT 1 Battery 1
BATT 2 Battery 2
BATT 3 Battery 3
CIGAR LIGHTER Cigarette Lighter
ECM 1 Engine Control Module 1
EMISSION 1 Emission 1
EMISSION 2 Emission 2
EVEN COILS Even Injector Coils
FAN 1 Cooling Fan 1
FAN 2 Cooling Fan 2
FSCM Fuel System Control Module
HORN Horn
HTD MIR Heated Outside Rearview Mirror
HTD STR WHL Heated Steering Wheel
HUMIDITY/MAF Humidity Sensor/MAF Sensor
HVAC BLWR Heating, Ventilation and Air Conditioning Blower
LT HI BEAM Left High-Beam Headlamp
LT LO BEAM Left Low-Beam Headlamp
LT PRK Left Parking Lamp
LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal
ODD COILS Odd Injector Coils
PCM IGN Powertrain Control Module Ignition
PWR L/GATE Power Liftgate
PWR OUTLET Power Outlet
RR APO Rear Accessory Power Outlet
RR DEFOG Rear Defogger
RR HVAC Rear Climate Control System
RT HI BEAM Right High-Beam Headlamp
RT LO BEAM Right Low-Beam Headlamp
RT PRK Right Parking Lamp
RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal
RVC SNSR Regulated Voltage Control Sensor
S/ROOF/SUNSHADE Sunroof
SERVICE Service Repair
SPARE Spare
STOP LAMPS Stoplamps
STRTR Starter
TCM Transmission Control Module
TRANS Transmission
TRLR BCK/UP Trailer Back-up Lamps
TRLR BRK Trailer Brake
TRLR PRK LAMP Trailer Parking Lamps
TRLR PWR Trailer Power
WPR/WSW Windshield Wiper/Washer



Relays Usage
A/C CMPRSR CLTCH Air Conditioning Compressor Clutch
AUX VAC PUMP Auxiliary Vacuum Pump
CRNK Switched Power
FAN 1 Cooling Fan 1
FAN 2 Cooling Fan 2
FAN 3 Cooling Fan 3
HI BEAM High-Beam Headlamps
HID/LO BEAM High Intensity Discharge (HID) Low-Beam Headlamps
HORN Horn
IGN Ignition Main
LT TRLR STOP/TRN Trailer Left Stoplamp and Turn Signal Lamp
PRK LAMP Parking Lamp
PWR/TRN Powertrain
RR DEFOG Rear Window Defogger
RT TRLR STOP/TRN Trailer Right Stoplamp and Turn Signal Lamp
STOP LAMP Stop Lamps
TRLR BCK/UP Trailer Back-up Lamps
WPR Windshield Wiper
WPR HI Windshield Wiper High Speed



Instrument Panel Fuse Block

The instrument panel fuse block is located under the instrument panel on the passenger side of the vehicle.

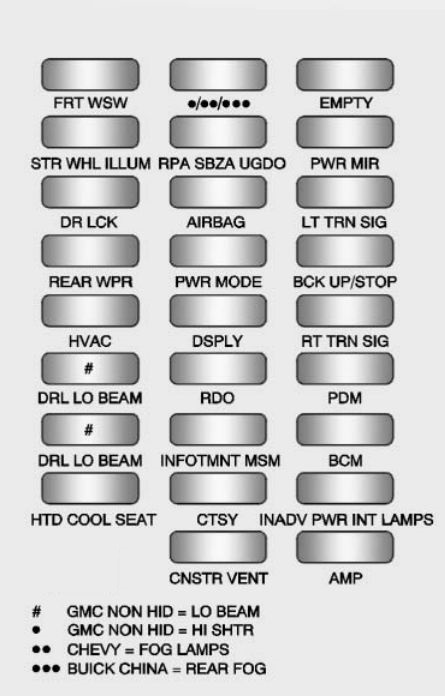

Chevrolet Traverse - fuse box diagram - instrument panel (fuse side)
Chevrolet Traverse – fuse box diagram – instrument panel (fuse side)
Fuses Description
# GMC NON HID = Lo Beam
* GMC NON HID = High Shutter
** Chevy = Fog Lamps
*** Buick China = Rear Fog Lamp
AIRBAG Airbag
AMP Amplifier
BCK UP/STOP Back-up Lamp/Stoplamp
BCM Body Control Module
CNSTR/VENT Canister Vent
CTSY Courtesy Lamps
DR LCK Door Locks
DRL/LO BEAM Daytime Running Lamps Relay/Low Beam Headlamps Relay
DSPLY Display
FRT WSW Front Windshield Washer
HTD/COOL SEAT Heated/Cooling Seats
HVAC Heating, Ventilation and Air Conditioning
INADV/PWR/LED Inadvertent Power/Interior Light Pipe Lamps
INFOTMNT/MSM Infotainment/Memory Seat Module
LT TRN SIG Driver Side Turn Signal
PDM Power Mirrors, Liftgate Release
PWR MODE Power Mode
PWR MIR Power Mirrors
RDO Radio
REAR WPR Rear Wiper
RPA/SBZA/UGDO Rear Park Assist/Side Blind Zone Alert/Universal Garage Door Opener
RT TRN SIG Passenger Side Turn Signal
STR/WHL/ILLUM Steering Wheel Illumination
Chevrolet Traverse - fuse box diagram - instrument panel (relay side)
Chevrolet Traverse – fuse box diagram – instrument panel (relay side)
Relays Description
LT/PWR/SEAT Driver Side Power Seat Relay
RT/PWR/SEAT Passenger Side Power Seat Relay
PWR/WNDW Power Windows Relay
PWR/COLUMN Power Steering Column Relay
L/GATE Liftgate Relay
LCK Power Lock Relay
REAR/WSW Rear Window Washer Relay
UNLCK Power Unlock Relay
DRL/LO BEAM Daytime Running Lamps Relay/Low Beam Headlamps Relay
LT/UNLCK Driver Side Unlock Relay
DRL/LO BEAM Daytime Running Lamps Relay (If Equipped)
FOG LAMPS Fog Lamps Relay (Chevy)
FRT/WSW Front Windshield Washer Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
