KIA Cadenza mk2 from 2016 – fuse box diagram

KIA Cadenza mk2 from 2016 – fuse box diagram

Also called: Kia K7

Year of production: 2014, 2015

Instrument panel (Driver’s side fuse panel)

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

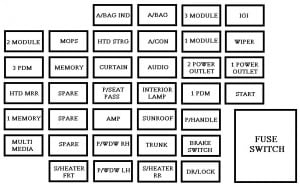

Kia Cadenza mk1 FL - fuse box - instrument panel
Kia Cadenza mk2 – fuse box – instrument panel
No. Fuse rating [A] Description Protected component
MF1 10 MODULE 2 Tilt & Telescopic Module, Instrument cluster, Driver/Passenger Seat Warmer Module, Rear Seat Warmer Module LH/RH, IMS Control Module, Rear Parking Assist Sensor LH/RH, Rear Parking Assist Sensor LH/RH(Center), Driver/Passenger Door Module, LDWS Camera Module, Electro Chromic Mirror, Room Lamp, MTS Module, Driver/Passenger CCS Control Module, Head Lamp Leveling Device Switch, Auto Head Lamp Leveling Device Module, Front Parking Assist Sensor LH/RH, Head Lamp Leveling Device Actuator LH/RH, Console SW, BSD (Blind Spot Detection) Unit LH/RH Rear P/WDW HEATED Module
MF2 10 PDM 3 PDM, Smart Key Control Module
MF3 10 HTD MRR Driver Power Outside Mirror, Passenger Power Outside Mirror, A/C Control Module
MF4 10 MEMORY 1 Auto Light & Photo Sensor, Data Link Connector, Driver/Passenger Foot Lamp, Instrument Cluster, Digital Clock, Rear Curtain Module, A/C Control Module, Room Lamp, Driver/Passenger Door Module
MF5 15 MULTI MEDIA MTS Module, Audio, A/V & Navigation Head Unit, Audio Monitor
MF6 10 MDPS MDPS_SIG
MF7 10 MEMORY RF Receiver
MF8 15 SPARE SPARE
MF9 10 SPARE SPARE
MF10 15 SPARE SPARE
MF11 20 S/HEATER FRT Driver/Passenger Seat Warmer Module, Driver/Passenger CCS Control Module
MF12 10 A/BAG IND Instrument Cluster
MF13 15 HTD STRG Steering Wheel Heater
MF14 10 CURTAIN Rear Curtain Module, Driver/Passenger Door Module
MF15 20 P/SEAT PASS Passenger Manual Switch
MF16 25 AMP AMP
MF17 25 P/WDW RH Passenger Door Module, Rear Power Window Switch RH
MF18 25 P/WDW LH Driver Safety Power Window Switch, Rear Power Window Switch LH
MF19 15 A/BAG SRS Control Module
MF20 10 A/CON Ionizer, Ionizer (IND.), A/C Control Module, E/R Fuse & Relay Box (RLY. 14)
MF21 10 AUDIO Smart Key Control Module, Rear Audio Switch, Amp, Audio Monitor, Overhead Console Lamp Switch, PDM, MTS Module, Audio, A/V & Navigation Head Unit, digital clock
MF22 10 INTERIOR LAMP Garnish Lamp LH/RH/Conter, Room Lamp, Driver/Passenger Vanity Lamp Switch, Overhead Console Lamp Switch, Rear Door Mood Lamp LH/RH, Driver/Passenger Door Mood Lamp, Driver/Passenger Door Scuff Lamp, Driver/Passenger Door Lamp, Trunk Room Lamp
MF23 20 SUNROOF Panorama Sunroof
MF24 10 TRUNK Fuel Filler Door Switch, Trunk Lid Relay
MF25 10 S/HEATER RR Rear Seat Warmer Module LH/RH
MF26 10 MODULE 3 ESP Control Module, ABS Control Module, Electric Parking Brake Module, Steering Angle Sensor, ESP Off Switch, Console Switch
MF27 10 MODULE 1 PDM, ICM Relay Box (Head Lamp Washer Relay), Panorama Sunroof, Rear Curtain Module, Driver Active Seat Module, Rain Sensor
MF28 15 POWER OUTLET Console Power Outlet
MF29 25 PDM Smart Key Control Module, Fob Holder
MF30 15 P/HANDLE Key Solenoid, Tilt & Telescopic Module, Sport Mode Switch
MF31 10 BRAKE SWITCH PDM, Start Stop Button Switch
MF32 20 DR/LOCK Driver Door Module
MF33 20 IG1 E/R Fuse & Relay Box (F12 15A, F11 10A, F10 10A)
MF34 25 WIPER E/R Fuse & Relay Box (RLY. 11, RLY.12), Front Wiper Motor, Multifunction Switch
MF35 20 C/Lighter Front Cigarette Lighter
MF36 10 START Transaxle Range Switch, PCM

Engine compartment main fuse panel

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

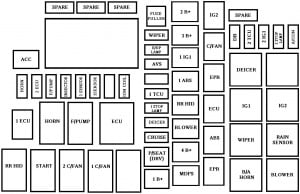

Kia Cadenza - fuse box - engine compartment
Kia Cadenza mk2 – fuse box – engine compartment
No Fuse rating [A] Description Protected component
MULTI

FUSE

F1 60 2 B+ IPM (F7, F8, F9, F10, F11, IPS1, IPS2, IPS3, IPS5, IPS7)
F2 60 3 B+ IPM (F14, F15, F17, F18, F25)
F3 40 IG1 W/O Smart Key : Ignition Switch

With Smart Key : E/R Fuse & Relay Box (RLY. 1, RLY. 9)

F4 40 1 ABS ABS Control,ESP Control
F5 40 RR HTD E/R Fuse & Relay Box (RLY. 2)
F6 40 BLOWER E/R Fuse & Relay Box (RLY. 14)
F7 60 4 B+ IPM (F4, F5, IPS 0, IPS 4, IPS 6)
F8 80 MDPS MDPS_PWR
FUSE

(E/R Fuse & Relay Box)

F9 10 A/CON A/C Control Module
F10 10 STOP LAMP E/R Fuse & Relay Box (RLY. 8), Stop Lamp Switch, Multipurpose Check Connector
F11 10 IG1 Alternator, PCM
F12 15 T2 TCU Transaxle Range Switch
F13 10 IDB IDB_LAG
F14 30 IG2 W/O Smart Key : E/R Fuse & Relay Box (RLY. 3), Ignition Switch

With Smart Key : E/R Fuse & Relay Box (RLY. 3, RLY. 10)

F15 50 C/FAN E/R Fuse & Relay Box (RLY. 4, RLY. 5)
F16 30 1EPB Electric Parking Brake Module
F17 40 3ECU EMS Box (F35, F36, F37, F38)
F18 30 2 ABS ABS Control, ESP Control
F19 30 2EPB Electric Parking Brake Module
F20 10 WIPER IPM (IPS Control Module)
F21 10 B/UP LAMP MTS Module, A/V & Navigation Head Unit, Rear Curtain Module, Electro Chromic Mirror, Rear Combination Lamp(In) LH/RH
F22 10 AMS Not used
F23 20 ICM Relay Box (Head Lamp Washer Realy)
F24 20 1TCU PCM
F25 15 1STOP LAMP E/R Fuse & Relay Box (RLY. 12), Stop Lamp Switch, Stop Lamp Signal Relay
F26 20 DEICER E/R Fuse & Relay Box (RLY. 7)
F27 10 CRUISE SCC (Smart Cruise Control) Radar
F28 30 P/SEAT (DRV) IMS Control Module, Driver Lumbar Support Switch, Driver Cushion Extension Switch, Driver Manual Switch
F29 40 1B+ IPM (F29, F30, F31, F32, IPS 11, Leak Current Autocut Device)
FUSE

(EMS Box)

F30 20 IGN COIL G4KE : Ignition Coil #1, #2, #3, #4, Condenser

G6DC : Ignition Coil #1, #2, #3, #4, #5, #6, Condenser #1, #2

F31 15 1SENSOR G4KE : Immobilizer Module, Camshaft Position Sensor #1, #2, Variable Intake Manifold Valve, Crankshaft Position Sensor, Oil Control Valve #1, #2, Canister Purge Control Solenoid Valve

G6DC : PCM, Immobilizer Module, Oxygen Sensor #1, #2, #3, #4

F32 15 2SENSOR G4KE : E/R Fuse & Relay Box (RLY. 5),Oxygen Sensor (Up, Down)

G6DC : Variable Intake Manifold Valve #1, #2, PCM, E/R Fuse & Relay Box (RLY. 5), Oil Control Valve #1, #2,#3, #4, Canister Purge Control Solenoid Valve,

F33 15 INJECTOR G4KE : Injector #1, #2, #3, #4

G6DC : Injector #1, #2, #3, #4, #5, #6, PCM

F34 20 F/FUEL E/R Fuse & Relay Box (RLY. 16)
F35 10 2ECU PCM
F36 15 HORN E/R Fuse & Relay Box (RLY. 13), EMS Box (RLY. 15)
F37 30 1ECU EMS Box (RLY. 17)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
