Lexus CT200h (2011 – 2017) – fuse box diagram

Lexus CT200h (2011 – 2017) – fuse box diagram

Year of production: 2011, 2012, 2013, 2014, 2015, 2016, 2017

Passenger Compartment

LHD

Lexus CT200h - fuse box diagram - passenger compartment LHD
Lexus CT200h – fuse box diagram – passenger compartment LHD

RHD

Lexus CT200h - fuse box diagram - passenger compartment RHD
Lexus CT200h – fuse box diagram – passenger compartment RHD
  1. Fuse Box No.2
  2. Fuse Box / Main Body ECU
  3. Stop Light Control ECU
  4. Relay Box
  5. Heated Steering Wheel Relay (STRG HTR)
  6. Turn Signal Flasher
  7. Power Steering ECU
  8. Junction Connector (CAN No. 1)
  9. Junction Connector (CAN No. 2)
  10. Seat Belt Control ECU
  11. Driving Support ECU
  12. Clearance Warning ECU
  13. Headlight Leveling ECU
  14. Parking Assist ECU
  15. Transmission Control ECU
  16. Power Management Control ECU
  17. Windshield Wiper Relay
  18. Stereo Component Amplifier
  19. Multi-Media Interface ECU
  20. Multi-Media Module Navigation
  21. Airbag Sensor
  22. A/C Amplifier
  23. RHD: Double Lock Door Control Relay

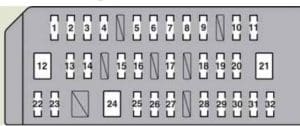

Passenger Compartment Fuse Box

Lexus CT200h - fuse box diagram - passenger compartment fuse box
Lexus CT200h – fuse box diagram – passenger compartment fuse box
No.
Fuse
A
Circuit
1 TAIL 10 Headlights (high beam), stop/tail lights, license plate lights, parking lights
2 PANEL 10 Audio system, intuitive parking assist switch, windshield wiper de-icer switch, navigation system, fuel filler door opener, glove box light, headlight cleaner switch, emergency flasher switch, air conditioning system, outside rear view mirrors, driving mode select switches, P position switch, instrument panel light control dial, shift position indicators, seat heater switches, heated steering wheel switch, pre-collision braking off switch
3 IGN 10 Electronically controlled brake system, smart access system with pushbutton start, multiport fuel injection system/sequential multiport fuel injection system, stop/tail lights, SRS airbags
4 MET 7.5 Gauges and meters
5  –
6 WIP 30 Windshield wipers
7 RR WIP 20 Rear window wiper and washer
8 WASHER 15 Windshield washer
9 A/C 10 Air conditioning system
10 GAUGE 10 Windshield wiper de-icer switch, automatic headlight leveling system
11  –
12 ECU-IG NO.2 10 Windshield wipers, intuitive parking assist, electronically controlled brake system, navigation system, electric power steering system, turn signal lights, emergency flashers, yaw rate and G sensor, headlight cleaner, outside rear view mirrors, driving mode select switches, overhead module, pre-collision seat belts, seat heater switches, heated steering wheel switch, tire pressure warning system, dynamic radar cruise control
13 ECU-IG1 NO.1 10 ABS, air conditioner, automatic light control, back door opener, combination meter, door lock control, double locking, engine immobiliser system, engine immobiliser system, entry & start system, front fog light, headlight, headlight beam level control, headlight cleaner, hill-start assist control, illumination, interior light, light auto turn off system, light reminder, power seat, power window, rear fog light, remote control mirror, sliding roof, taillight, theft deterrent, TRC, VSC, wireless door lock control
14 S/ROOF 30 Moon roof
15 DOOR RL 25 Power windows
16 DOOR RR 25 Power windows
17  –
18 D FR DOOR 25 Power windows, outside rear view mirrors
19 P FR DOOR 25 Power windows, outside rear view mirrors
20  –
21 STOP 10 Stop/tail lights, electronically controlled brake system, pre-collision system
22  –
23 RR FOG 7.5 Rear fog light, stop/tail lights
24 FUEL OPEN 7.5 Fuel filler door opener
25 OBD 7.5 On-board diagnosis system
26 PWR SEAT FL 30 Power seat
PWR SEAT 30 Power seats
27 FR FOG 15 Front fog lights
28 DBL LOCK 25 Double lock door
29 PWR SEAT FR 30 Power seat
30 PSB 30 Pre-collision seat belts
31 STRG HTR 10 Heated steering wheel
32 DOOR NO.1 25 Power door lock system
33 SEAT HTR FL 10 Seat heaters
34  –
35 SEAT HTR FR 10 Seat heaters
36 RAD NO.2 7.5 Audio system, navigation system, overhead module
37 PWR OUTLET 15 Power outlet
38 ECU-ACC 10 Air conditioning system, outside rear view mirror switches
39 PWR OUTLET2 15 Power outlet
41 SPARE 10 Spare fuse
42 SPARE 7,5 Spare fuse
43 EFI MAIN 20 Multiport fuel injection system/sequential multiport fuel injection system, cooling system, EFI NO.2
44 BATT FAN 10 Battery cooling fan
45 IG2 20 Hybrid system, multiport fuel injection system/sequential multiport fuel injection system, MET, IGN, power management system

Passenger Compartment Fuse Box No.2

Lexus CT200h - fuse box diagram - passenger compartment fuse box no. 2
Lexus CT200h – fuse box diagram – passenger compartment fuse box no. 2
No.
Fuse
A
Circuit
1  –
2 WIP NO.3 10 Cruise control, dynamic radar cruise control, engine control, hybrid system, shift control system

Passenger Compartment Relay Box

Lexus CT200h - fuse box diagram - passenger compartment relay box
Lexus CT200h – fuse box diagram – passenger compartment relay box
No.
Relay
R1 Fuel filler door opener (FUEL OPN)
R2 Rear fog light (RR FOG)
Lexus CT200h - fuse box diagram
Lexus CT200h – fuse box diagram
  1. Sliding Roof Control ECU
  2. Outer Mirror Control ECU Assembly RH
  3. Door Control Receiver
  4. Fusible Link Block
  5. HV Battery Junction Block
  6. Battery Voltage Sensor
  7. Outer Mirror Control ECU Assembly LH

Fusible Link Block

Lexus CT200h - fuse box diagram - fusible link block
Lexus CT200h – fuse box diagram – fusible link block
No.
Fuse
A
Circuit
1 MAIN 140 ABS, cruise control, dynamic radar cruise control, engine control, hill-start assist control, hybrid system, pre-crash safety system, shift control system, TRC, VSC

Engine Compartment

Lexus CT200h - fuse box diagram - engine compartment
Lexus CT200h – fuse box diagram – engine compartment
  1. Fuse Box
  2. Inverter Assembly with Converter
  3. Cleaner Control Relay
  4. RHD: Skid Control ECU with Actuator
  5. LHD: Skid Control ECU with Actuator
  6. Engine Control Module

Engine Compartment Fuse box

Lexus CT200h - fuse box diagram - engine compartment fuse box
Lexus CT200h – fuse box diagram – engine compartment fuse box



No.
Fuse
A
Circuit
1 HTR 50 Air conditioning system
2 RDI 30 Electric cooling fans
3 CDS 30 Electric cooling fans
4 RAD NO.1 15 Audio system, navigation system
5 S-HORN 10 Alarm, navigation system
6 ENG W/P 30 Cooling system
7 ABS MAIN NO.2 7.5 Electronically controlled brake system
8  –
9 H-LP CLN 30 Headlight cleaner
10 P CON MTR 30 P position control system
11 AMP NO.2 30 Audio system
12 ETCS 10 Multiport fuel injection system/sequential multiport fuel injection system
13 IGCT 30 Fuse: “PCU”, “IGCT NO.2”, “IGCT NO.3”
14 DC/DC-S 5 Inverter and converter
15 P CON MAIN 7.5 P position control system, P position switch
16 AM2 7.5 Power management system
17 ECU-B2 7.5 Smart access system with push-button star
18 MAYDAY 10 Mayday
19 ECU-B3 10 Air conditioning system
20 TURN & HAZ 10 Turn signal lights, emergency flashers
21 AMP NO.1 30 Audio system
22 ABS MAIN NO.1 20 Electronically controlled brake system
23 P/I 2 40 P position control system, horn, headlights (low beam), back-up lights
24 ABS MTR 1 30 Electronically controlled brake system
25 ABS MTR 2 30 Electronically controlled brake system
26 H-LP HI MAIN 20 Fuse: “H-LP RH HI”, “H-LP LH HI”
27 DRL 7.5 Daytime running light system
28 DOOR NO.2 25 Power door lock system
29 SHORT PIN
30 P/I 1 60 Fuse: “IG2”, “EFI MAIN”, “BATT FAN”
31 EPS 60 Electric power steering system
32 PCU 10 Hybrid system
33 IGCT NO.2 10 Hybrid system, P position control system, power management system
34 IGCT NO.3 10 Cooling system
35  –
36 DOME 10 Luggage compartment light, overhead module, interior lights, personal lights, vanity lights, footwell lights
37 ECU-B 7.5 Smart access system with push-button start, front passenger occupant classification system, gauges and meters, outside rear view mirrors, air conditioning system, driving position memory system, electric power steering system, clock
38 H-LP LH HI 10 Left-hand headlight (high beam)
39 H-LP RH HI 10 Right-hand headlight (high beam)
40 EFI NO.2 10 Multiport fuel injection system/sequential multiport fuel injection system, exhaust system, key off pump module, electric cooling fans
41 M-HTR 10 Outside rear view mirror defoggers
42  –
43 EFI MAIN 20 Multiport fuel injection system/sequential multiport fuel injection system, cooling system, fuse: “EFI NO.2”
44 BATT FAN 10 Battery cooling fan
45 IG2 20 Hybrid system, multiport fuel injection system/sequential multiport fuel injection system, fuse: “MET”, “IGN”, power management system
Relay
R1 Electric cooling fans (FAN NO.2)
R2 Integration Relay
R3 Electric cooling fans (FAN NO.3)
R4 Electric cooling fans (FAN NO.1)
R5 Daytime running light system (DRL)
R6  –
R7  (IGCT)
R8 Dimmer (DIM)
R9  (P CON MTR)
R10  (ENG W/P)



Lexus CT200h - fuse box diagram - engine compartment fuse box
Lexus CT200h – fuse box diagram – engine compartment fuse box
No.
Fuse
A
Circuit
1 DC/DC 125 Inverter and converter

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
