Lexus ES 300 (XV20) – (1996 – 2001) – fuse box diagram

Lexus ES 300 (XV20) – (1996 – 2001) – fuse box diagram

Year of production: 1996, 1997, 1998, 1999, 2000, 2001

Passenger compartment

Lexus ES 300 (XV20) - fuse box diagram - passenger compartment
Lexus ES 300 (XV20) – fuse box diagram – passenger compartment
  1. Fuse Box
  2. Integration Relay
  3. Turn Signal Flasher Relay
  4. Front Fog Light Relay
  5. Cruise Control ECU
  6. Absorber Control ECU
  7. Theft Deterrent ECU
  8. A/C Control Assembly
  9. ABS ECU or ABS and Traction ECU
  10. Stereo Component Amplifier
  11. Engine Control Module
  12. Wireless Door Lock ECU
  13. Shift Lock Control ECU
  14. Airbag Sensor Assembly
  15. Daytime Running Light Relay

Passenger compartment fuse box

Lexus ES 300 (XV20) - fuse box diagram - passenger compartment fuse box
Lexus ES 300 (XV20) – fuse box diagram – passenger compartment fuse box
No. Name A Designation
1 SEAT-HEATER 20 Seat heater system
2 HEATER 10 Air conditioning system
3 GAUGE 10 Gauges and measures, service reminder indicators and warning buzzers, Back-up light, Door courtesy light, Seat heater, Power window system
4 WIPER 20 1996-1998: Windshield wipers and washer
25 1999-2001: Windshield wipers and washer
5 MIRROR-HEATER 10 Outside rear view mirror defogger
6 ECU-IG 15 Cruise control system, Anti-lock brake system, Shift lock system, Power brake antenna, Theft deterrent system, Electronic modulated suspension, Wireless remote control
7 IGN 5 SRS airbag system, Multiport fuel injection
8 STOP 15 Stop lights, High mounted stoplight, Cruise control system, Electronic modulated suspension, Anti-lock brake system, Shift lock system, Power seat system, Multiport fuel injection
9 TAIL 10 Tail light, Side marker lights, License plate lights
10 POWER-OUTLET 15 Power outlet
11 OBD 7.5 On-board diagnosis system
12 FOG 15 Fog lights
13 STARTER 5 Starting system
14 DOOR 25 Door courtesy light, Theft deterrent system, Power door lock system, Trunk lid opener, Fuel filler door opener
15 PANEL 7.5 Instrument panlel lights, Glovebox light
16 TURN 7.5 Emergency flashers, Turn signal lights
17 RAD-NO.2 7.5 Audio System
18 CIG 15 Cigarette lighter, Clock, SRS airbag system, Theft deterrent system
19 Noise filter
20 Noise filter
21 DEF 40 Rear window defogger, Outside rear view mirror defogger
22 PWR 30 Power window, Electronic moon roof, Power seat system
23 AM1 40 Power window, Electronic moon roof, Power seat system



Lexus ES 300 (XV20) - fuse box diagram - passenger compartment fuse box
Lexus ES 300 (XV20) – fuse box diagram – passenger compartment fuse box
No. Designation
R1 Power
R2 Defogger
R3 Taillight
R4 Integration Relay
Lexus ES 300 (XV20) - fuse box diagram
Lexus ES 300 (XV20) – fuse box diagram
  1. Moon Roof Control SW and Relay
  2. Telephone Transceiver and Speaker Relay
  3. Light Failure Sensor

Engine Compartment

Lexus ES 300 (XV20) - fuse box diagram - engine compartment
Lexus ES 300 (XV20) – fuse box diagram – engine compartment
  1. Fuse Box
  2. Additional Fuse Box (Left)
  3. Additional Fuse Box (Right)

Engine Compartment Fuse Box

Lexus ES 300 (XV20) - fuse box diagram - engine compartment fuse box
Lexus ES 300 (XV20) – fuse box diagram – engine compartment fuse box
No. Name A Designation
1 A/F HTR 25 1999-2001: Air fuel ratio sensor
2
3 A/C 10 No circuit
4 10 Spare fuse
5 15 Spare fuse
6 30 Spare fuse
7 CDS 30 Air conditioning system
8 RDI 30 Electric cooling fans
9 ALT-S 5 Charging system
10 H-LP RH

or

H-LP RH HI

15 1996-1998: Right-hand headlight (high beam)
HEAD RH(UPR) 20 1999-2001: Right-hand headlight (high beam)
11 EFI 15 Multiport fuel injection
12 HORN 10 Theft deterrent system
13 HAZ 10 1996-1998: Emergency flashers, Turn signal lights
HAZARD 15 1999-2001: Emergency flashers, Turn signal lights
14 AM2 30 Starting system
15 TEL 5 Telephone
16 H-LP LH

or

H-LP LH HI

15 1996-1998: Left-hand headlight (high beam)
HEAD LH(UPR) 20 1999-2001: Left-hand headlight
17 RADIO NO.1 20 Audio system
18
19 MAIN 40 Headlight, Starting system
20 DOME 7.5 Theft deterrent system, Clock, Door courtesy light, Interior light, Ignition switch light, Vanity light, Wireless remote control system
21 ECU-B 10 Cruise control system, Air conditioning system, Power seat system
22 ALT 100 Charging system
23
24 HTR 50 Air conditioning system, Seat heater
25 T-STK

or

CDS NO.2

30 No circuit
Relay
R1 Magnetic clutch (A/C)
R2 Circuit Opening Relay (C/OPN)
R3 Electric cooling fan (No.2)
R4 Electric cooling fan (No.3)
R5 Air conditioning system (Heater)
R6 Main (Engine)
R7 EFI
R8 Headlight
R9 Starter
R10 Horn
R11 Electric cooling fan (No.1)

Additional Fuse Box (Left)

Lexus ES 300 (XV20) - fuse box diagram - additional fuse box (left)
Lexus ES 300 (XV20) – fuse box diagram – additional fuse box (left)
No. Name A Designation
1 INJ 20 No circuit
2 DRL NO. 2 5 Daytime Running Light System
3 H-LP LH (LO) 10 1996-1998: Left-hand headlight (low beam)
H-LP LH (LWR) 15 1999-2001:
with discharge headlight:
Left-hand headlight (low beam)
H-LP LH (LWR) 10    without discharge headlight: Left-hand headlight (low beam)
4 H-LP RH (LO) 10 1996-1998: Right-hand headlight (low beam)
H-LP RH (LWR) 15 1999-2001:
with discharge headlight: Right-hand headlight (low beam)
H-LP RH (LWR) 10    without discharge headlight: Right-hand headlight (low beam)
Relay
R1 Daytime running light system No.2
R2 Daytime running light system No.4
R3 Daytime running light system No.3

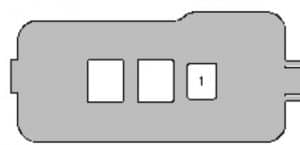

Additional Fuse Box (Engine Compartment (Right))

Lexus ES 300 (XV20) - fuse box diagram - engine comaprtment - additional fuse box (right)
Lexus ES 300 (XV20) – fuse box diagram – engine comaprtment – additional fuse box (right)
No. A Designation
1 60 Anti-lock brake system
Relay
R1 ABS motor
R2 ABS SOL

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
