Lincoln Aviator (2002 – 2005) – fuse box diagram

Lincoln Aviator (2002 – 2005) – fuse box diagram

Year of production: 2002, 2003, 2004, 2005



Passenger compartment fuse panel

Lincol Aviator - fuse box - passenger compartment
Lincol Aviator – fuse box – passenger compartment
Fuse Ampere rating [A] Description
1 30 Moonroof, Driver seat switch
2 10 VAPS module, Memory seat module, Body security module
3 20 Radio, Navigation, Telematics
4 5 Front wiper module
5 15 Flasher relay (turn/hazards)
6 5 Power antenna, Radio, Moonroof motor, Driver window motor, Navigation
7 15 Heated mirrors, DEATC module
8 5 Daytime Running Lamps (DRL) module
9 10 Back-uplamps (DTRS)
10 10 Heated backlight relay coil, Climate seat modules, Auxiliary A/C temperature blend/mode actuator, A/C clutch relay contact
11 20 Not used (spare)
12 15 Restraints module
13 10 Brake shift interlock
14 5 Cornering lamps
15 5 Instrument cluster, Rear wiper module, Telematics
16 15 Cigar lighter, OBD II, Liftgate release relay coil and contacts
17 15 Delayed accessory relay coil, Battery saver relay coil and contacts
18 5 Not used (spare)
19 15 Washer pump
20 5 Shifter, Clock, Power mirror switch, DVD
21 10 Brake pressure switch (ABS), IVD switch, Flasher relay
22 10 ABS module
23 5 Sunload/Autolampsensor (SecuriLock transceiver LED)
24 20 Subwoofer, Navigation
25 5 Puddle lamprelay coil, Trailer tow battery charge relay coil
26 5 SecuriLock transceiver
27 5 Rear park assist, VAPS module, Telematics
28 5 Radio, Navigation
29 10 DTRS, Feed to Fuse 28
30 5 Instrument cluster, Compass module, Auxiliary A/C relay coil

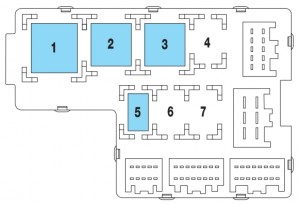

Relay in passeneger compartment (located on the reverse side of the fuse box)

Lincol Aviator - fuse box - passenger compartment (relay)
Lincol Aviator – fuse box – passenger compartment (relay)
Relay Description
Relay 1 Flasher relay
Relay 2 Heated backlight relay
Relay 3 Delayed accessory relay
Relay 4 Open
Relay 5 Battery saver relay
Relay 6 Open
Relay 7 Open

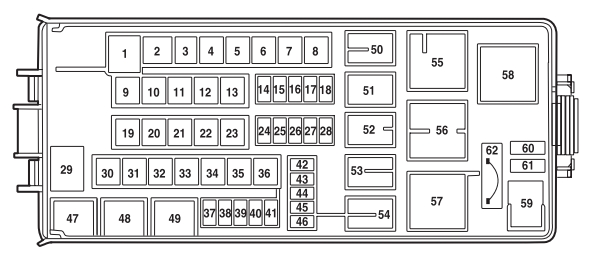

Power distribution box

Lincol Aviator - power distribution box
Lincol Aviator – power distribution box
Fuse Ampere rating [A] Description
1 60** PJB
2 30** Door locks (BSM)
3 Not used
4 40** Heated backlight/mirrors
5 40** Anti-lock Brake System (ABS) module (pump)
6 60** Delayed accessory
7 20** DRL
8 20** Electric cooling fan
9 20** Headlampswitch, Foglampswitch
10 30** ABS module (valves)
11 40** PTEC relay contacts
12 50** Ignition/Starter relay
13 40** Trailer tow relays
14 15* Brake lampfeed
15 10* Keepalive power (PTEC/cluster/DEATC)
16 20* Power point #3
17 20* Rear wiper module
18 20* 4×4 module
19 30** Driver window motor
20 30** Electric trailer brakes
21 30** Memory seat module
22 20** High beam relays fuse
23 30** Ignition switch
24 20* Horn relay
25 20* Power point #1
26 20* Fuel pump relay contacts
27 20* Trailer tow lamps
28 20* Power point #2
29 60** PJB
30 30** Front wiper module
31 30** Climate-controlled seats
32 30** Passenger seat switch
33 30** Auxiliary blower motor
34 20** Right HID relay
35 20** Left HID relay
36 40** Blower motor
37 15* A/C clutch relay, TXV, Transmission, Speed control
38 15* HEGO, VMV, Canister vent, IMCC-LSRC, Heated PCV, EGR module
39 15* Injectors
40 15* PTEC, Mass Air Flow (MAF) Sensor, Fuel pump relay
41 25* Coil on plug, PTEC relay
42 10* Right low beam (halogen)
43 10* Left low beam (halogen)
44 15* Fog lamprelay
45 2* Brake Pressure Switch
46 20* High beam
47 Horn relay
48 Fuel pump relay
49 High beam relay
50 Fog lamp relay
51 DRL relay
52 A/C clutch relay
53 Trailer tow right turn relay
54 Trailer tow left turn relay
55 Blower motor relay
56 Starter motor relay
57 PTEC relay
58 Ignition relay
59 Driver brake applied relay
60 PCM diode
61 A/C clutch diode
62 30*** Power windows
* Mini Fuses

** Maxi Cartridge Fuses

*** Circuit breaker

Auxiliary relay box

Lincol Aviator - auxiliary relay box
Lincol Aviator – auxiliary relay box
Relay Description
Relay 64 Right HID relay
Relay 65 Left HID relay
Relay 66 EDF relay

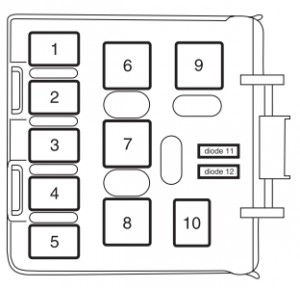

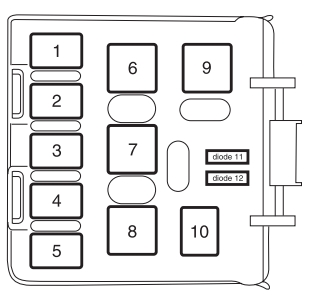

Rear relay box

Lincol Aviator - rear relay box
Lincol Aviator – rear relay box
Relay Description
Relay 1 Liftgate release solenoid
Relay 2 Open
Relay 3 Open
Relay 4 Trailer tow back-uplamps
Relay 5 Open
Relay 6 Open
Relay 7 Trailer tow battery charge
Relay 8 Trailer tow park lamps
Relay 9 Open
Relay 10 Puddle lamps
Diode 11 Open
Diode 12 Open



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
