Peugeot 107 (2005 – 2007) – fuse box diagram

Year of production: 2005, 2006, 2007

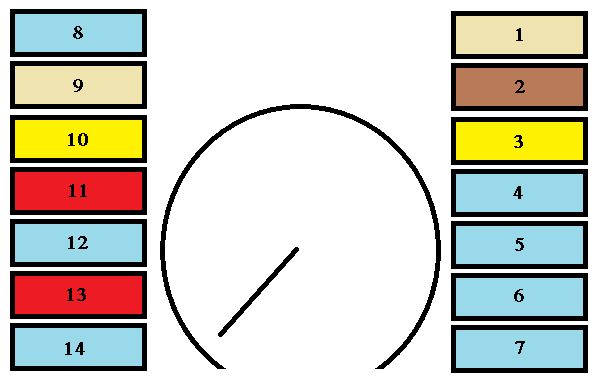

Instrument panel fuse boxes

These are located on each side of the instrument panel under the trim.

Fuse	Ampere rating [A]	Functions
1	10	Brake lights
2	25	Central locking/unlocking
3	20	Demisting
4	7,5	Rear lights
5	7,5	Diagnostic socket
6	7,5	Rear fog lamp – Instrument panel
7	7,5	Demisting
8	7,5	Injection control unit
9	10	Fuel gauge electrical supply
10	20	Wipers
11	15	Accessories – 12 volt socket
12	7,5	Demisting – ABS – Fan assembly relay – Front and rear wipers
13	15	Air bag control unit – Engine control unit – Engine immobiliser control unit – Ignition coil
14	7,5	Air conditioning
15	40	Accessories – Demisting – ABS – Fan assemby relay – Front and rear wipers
16	30	Electric windows
17	40	Heating



Engine compartment fuse box

Fuse	Ampere rating [A]	Functions
1	50	2 Tronic gearbox – Fan assembly (diesel)
2	10	Headlamps
	30	Headlamps with daytime lights
3	25	ABS control unit
4	30	Ignition switch supply
5	10	Hazard warning lights
6	10	Headlamps
7	15	Courtesy light
8	15	Petrol – engine control unit
	25	Diesel – engine control unit
9	10	Horn
10	30	Fan assembly (petrol)
11	40	ABS

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
