Renault Clio 4 (mk4) – fuse box diagram

Renault Clio 4 (mk4) – fuse box diagram



Fuse box

Vehicle is fitted with automatic windscreen wiper and automatic headlights

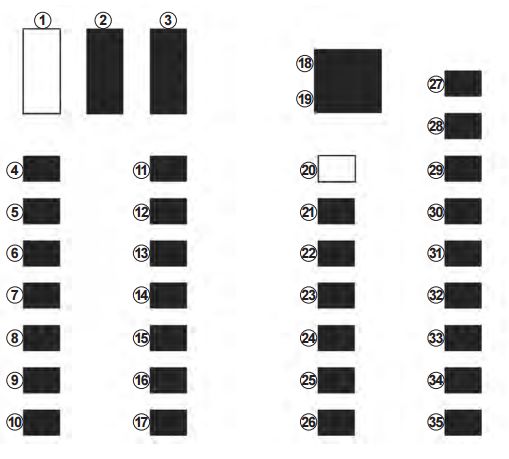

Renault Clio 4 (mk4) - fuse box - vehicle with automatic windscreen wiper and automatic headlights
Renault Clio 4 (mk4) – fuse box – vehicle with automatic windscreen wiper and automatic headlights
Fuse Allocation
1 Front windscreen wiper
2 Front left daytime running light, right side light, lefthand main beam headlight, right-hand dipped beam headlight
3 Interior lighting, registration plate lighting, fog light
4 Empty location
5 Empty location
6 Front right daytime running light, left side light, righthand main beam headlight, left-hand dipped beam headlight
7 Empty location
8 Empty location
9 Empty location
10 Steering column control
11 Door locking, rain and light sensor, steering wheel angle sensor, vehicle start button
12 Courtesy light, boot light, air-conditioning
13 ABS-ESC, brake switch
14 Empty location
15 Horn
16 Empty location
17 Cigarette lighter
18 Radio and multimedia, diagnostic socket
19 Power-assisted steering
20 Empty location
21 Empty location
22 Injection, start-up, fuel pump
23 Brake switch
24 Empty location
25 Headlight beam height adjustment, rear screen, heating, parking distance control, cruise control, radio, heated seat, seat belt alert
26 Automatic gearbox
27 Reversing light, rear wiper, passenger compartment ECU
28 Instrument panel
29 Steering column control, additional equipment
30 Air conditioning
31 Front and rear wipers, reversing light
32 Central locking of opening elements
33 Direction indicator lights
34 Passenger compartment ECU, hands-free access
35 Courtesy light, electric windows, air conditioning, electric wing mirrors, stop lights, ABS

Others vehicles

Renault Clio 4 (mk4) - fuse box - others vehicles
Renault Clio 4 (mk4) – fuse box – others vehicles
Number Allocation
1 Empty location
2 Front fog lights
3 Wipers
4 Right-hand side lights
5 Left-hand side lights
6 Right-hand dipped beam headlight
7 Left-hand dipped beam headlight
8 Right-hand main beam headlight
9 Left-hand main beam headlight
10 Steering column control
11 Rear electric windows, steering wheel angle sensor, vehicle start button
12 Courtesy light, boot light, air-conditioning
13 ABS-ESC, brake switch
14 Steering column control
15 Horn
16 Rear fog lights
17 Cigarette lighter
18 Radio and multimedia, diagnostic socket
19 Power-assisted steering
20 Empty location
21 Airbag, electric steering column lock
22 Injection, start-up, fuel pump
23 Brake switch
24 Daytime running lights
25 Headlight beam height adjustment, rear screen, heating, parking distance control, cruise control, radio, heated seat, seat belt alert
26 Automatic gearbox
27 Reversing light, rear wiper, passenger compartment ECU
28 Instrument panel
29 Steering column control, additional equipment
30 Air conditioning
31 Front and rear wipers, reversing light
32 Central locking of opening elements
33 Direction indicator lights
34 Passenger compartment ECU, hands-free access
35 Courtesy light, electric windows, air conditioning, electric wing mirrors, stop lights, ABS



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
