TATA Nano – fuse box diagram

TATA Nano – fuse box diagram

Year of production:

Fuse rating (non-eps)

TATA Nano - fuse box (NON-EPS)
TATA Nano – fuse box (NON-EPS)
Fuse Function Ampere rating [A]
F1 Window Winding RH 30
F2 Window Winding LH 30
F3 ACC Relay 15
F4 Main Relay 15
F5 Compressor 10
F6 Condensor Fan 15
F7 Horn / Roof / Hazard SW 10
F8 CLU/KLE/Immobilizer/IP 25
F9 HL Flash / Turn / Hazard 20
F10 Blower / HVAC 20
F11 Fuel Pump 15
F12 Fog Lamp 15
F13 Combi park / Stop Lamp 15
F14 Radiator Fan 20
F15 Ignition Relay 25
F16 Ignition (Low current) 5
F17 HL High 15
F18 HL Low 15
F19 Wiper Washer 20
F20 ACC CKTS 5
F21 EMS ECU ( IGN) 15
F22 Combi SW / HL 20
F23 Audio (Batt) 10
F24 Park RH 5
F25 Park LH 5
F26 Starter Solenoid 25
F27 Reverse Lamp / LSS 10

Fuse rating (EPS)

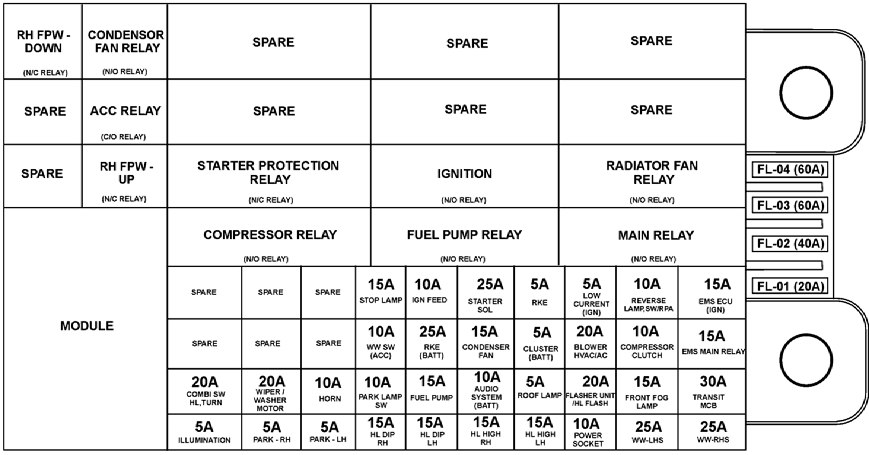

TATA Nano - fuse box (EPS)
TATA Nano – fuse box (EPS)
Fuse Function Ampere rating [A]
FL-01 Radiator Fan 20
FL-02 Vehicle & Ignition Switch 40
FL-03 Vehicle & Ignition Switch 60
FL-04 EPS 60
FS-01 WW RHS Relay 25
FS-02 WW LHS Relay 25
FS-03 Power Outlet Socket 10
FS-04 HL High Beam LHS 15
FS-05 HL High Beam RHS 15
FS-06 HL Dip Beam LHS 15
FS-07 HL Dip Beam RHS 15
FS-08 Park LHS 5
FS-09 Park RHS 5
FS-10 Illumination 5
FS-11 Transit Link 30
FS-12 Front Fog Lamps 15
FS-13 HL Flash / Flasher Unit 20
FS-14 Roof Light 5
FS-15 Audio (Battery) 10
FS-16 Fuel Pump 15
FS-17 Park / Hazard Switch 10
Fs-18 Horn 10
FS-19 Wiper / Wash 20
FS-20 Combi for H/L Supply 20
FS-21 EMS Main Relay 15
FS-22 Compressor Clutch 10
FS-23 Blower HVAC 20
FS-24 Immob./Cluster/OBD (Batt) 5
FS-25 Condenser Fan 15
FS-26 RKE (Battery) 25
FS-27 WW Switch 10
FS-28 Spare Spare
FS-29 Spare Spare
FS-30 Spare Spare
FS-31 EMS ECU / Ignition Coil 15
FS-32 Reverse Lamps/RPA 10
FS-33 Low Current (Ignition) 5
FS-34 RKE (Ignition) 5
FS-35 Starter Circuit 25
FS-36 Cluster/Combi/EPS (IGN) 10
FS-37 Stop (Brake) Light 15
FS-38 Spare Spare
FS-39 Spare Spare
FS-40 Spare Spare

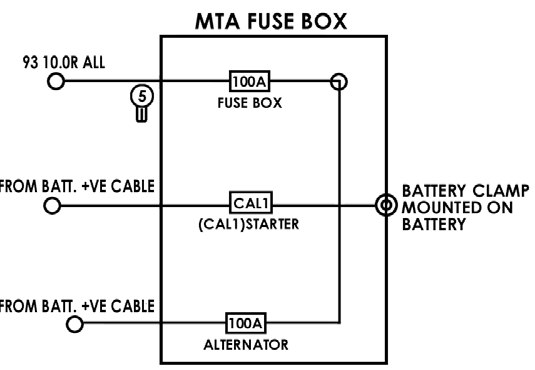

Battery mounted fuse box details-EPS

TATA Nano - fuse box - battery (EPS)
TATA Nano – fuse box – battery (EPS)

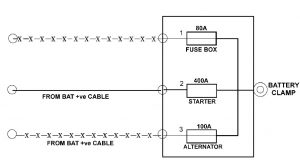

Battery mounted fuse box details-NON-EPS

TATA Nano - fuse box -  battery (NON-EPS)
TATA Nano – fuse box –
battery (NON-EPS)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
