Volvo V60 Plug-in Hybrid (2014 – 2018) – fuse box diagram

Volvo V60 Plug-in Hybrid (2014 – 2018) – fuse box diagram

Year of production: 2014, 2015, 2016, 2017, 2018

Fuses – engine compartment

A – Engine compartment, upper

B – Engine compartment, front

C – Engine compartment, lower

Volvo-V60 - fuse box - engine compartment
Volvo-V60 – fuse box – engine compartment
Position Function Ampere rating [A]
1
2 Primary fuse for the central electronic module (CEM) under the glovebox 50
3 60
4 Primary fuse for relay/fuse box under the glovebox 60
5
6
7
8 2014: Heated windscreen, lefthand side 40
9 Windshield wipers 30
10 Parking heater 25
11
12 2014: Heated windscreen, righthand side 40
13 ABS pump 40
14 ABS valves 20
15 Headlight washers 20
16 Headlamp levelling, Active Xenon headlamps – ABL 10
17 Primary fuse for the central electronic module (CEM) under the glovebox 20
18 ABS 5
19 Speed related power steering 5
20 Engine control module, Transmission control module, Airbags 10
21 Heated washer nozzles 10
22
23 Headlamp control 5
24
25
26
27 Relay coils 5
28 Auxiliary lights 20
29 Horn 15
30 Relay coil in main relay for engine management system, Engine control module 10
31 Transmission control module 15
32
33 Relay coils in central electrical unit in engine compartment cold zone, Relay coil in relay for coolant pump 5
34 Starter relay 30
35 Glow control module 10
36 Engine Control Module (ECM) 15
37 Mass air flow sensor, Control valves 15
38 Valves, Oil level sensor 10
39 Lambda-sonds; Control module, radiator roller cover 15
40 Diesel filter heater 20
41 2014: Crankcase ventilation heater 5
2015-2018: Crankcase ventilation heater 10
42 Glow plugs 70
43 Cooling fan 80
44 Electro-hydraulic power steering 100

Behind the engine

Volvo V60 - fuse box -diagram - behind the engine
Volvo V60 – fuse box -diagram – behind the engine

A. Left-hand drive car
B. Right-hand drive car

Position Function Ampere ratting [A]
1 Monitoring of vacuum pump for brake system 5

Fuse box in  the glovebox

Volvo V60 - fuse box - glove compartment
Volvo V60 – fuse box – glove compartment

Fusebox A: General fuses

Fusebox B: Control module fuses

Positions: fusebox A

Position Function Ampere ratting [A]
1 Primary fuse for audio control module, Primary fuse for fuses 16-20 40
2 2015-2018: Windscreen washers; Rear window washer 25
3
4
5
6 Door handles, keyless system 5
7
8 Control panel, driver’s door 20
9 Control panel, front passenger door 20
10 Control panel, rear passenger door, right 20
11 Control panel, rear passenger door, left 20
12 Keyless 7,5
13 Power seat driver’s side 20
14 Power seat passenger side 20
15 2014: Windscreen washers, Rear window washer 25
16 Infotainment Control Module or Screen 5
17 Audio control module, TV, Digital radio 10
18 Audio control module or Control module Sensus 15
19 Telephone, Bluetooth™ 5
20
21 Sun roof, interior lighting roof, climate sensor, damper motors air intake 5
22 12 V socket, tunnel console 15
23 Seat heating, rear passenger side right 15
24 Seat heating, rear passenger side left 15
25 Electric additional heater 15
26 Seat heating, front passenger side 15
27 Seat heating, front driver’s side 15
28 Parking assistance, Parking camera, Towbar control module, BLIS, Electrically-driven heater 5
29
30

Positions: fusebox B

Position Function Ampere ratting [A]
1 Rear window wiper 15
2
3 Interior lighting, Driver’s door control panel, power windows, Power seats, front, Remote controlled garage door opener 7,5
4 Combined instrument panel 5
5 Adaptive cruise control, ACC; collision warning system 10
6 Interior lighting; Rain sensor 7,5
7 Steering wheel module 7,5
8 Central locking system, fuel filler flap 10
9 Heated steering wheel 15
10 2014-2016: Heated windscreen 15
11 Unlocking, tailgate 10
12 2013-2018: Folding head restraint 10
13 Fuel pump 20
14 Movement detector for alarm, Climate panel 5
15 Steering lock 15
16 Siren, Data link connector OBDII 5
17
18 Airbag 10
19 Collision warning system 5
20 Accelerator pedal sensor; Dimming interior rearview mirror; Seat heating, rear 7,5
21 Infotainment control module (Performance), Audio (Performance) 15
22 Brake lights 5
23 Sunroof 20
24 Immobilizer 5

Fuses – in cargo area (No.1)

Volvo V60 - fuse box - trunk/cargo area
Volvo V60 – fuse box – cargo area
Position Function Ampere ratting [A]
1 Electric parking brake, left 30
2 Electric parking brake, right 30
3 Rear window defroster 30
4 Trailer socket 2 15
5
6 12-volt socket in trunk 15
7
8
9
10
11 Trailer socket 1 40
12

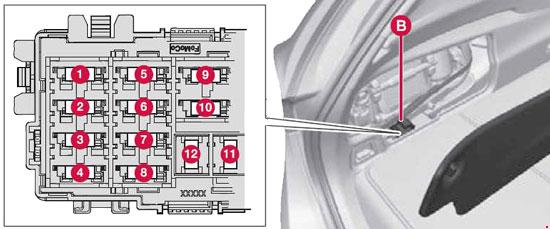

Fuses – in cargo area (No.2)

Volvo V60 - fuse box diagram - in the cargo
Volvo V60 – fuse box diagram – in the cargo
Position Function Ampere ratting [A]
1 Coolant pump 1 for hybrid battery
Valve for coolant pumps 1 and 2
10
2 Coolant pump 2 for hybrid battery 10
3 Charging unit
Voltage converter 400 V-12 V
Control module for hybrid battery
5
4 Coolant pump for the cooling system’s low temperature circuit 15
5 Charging unit
Voltage converter 400 V-12 V
Control module for hybrid battery
10
6 Relay coils; high voltage converter for electric motor and integrated starter generator 10
7 Disengaging the electric motor from the rear axle 15
8
9 High voltage converter for electric motor and integrated starter generator; control module for hybrid battery 10
10 Coolant valves for the cooling system’s low temperature circuit
Electric A/C compressor
Valve for heat exchanger
Valve for climate control system
10
11
12

Fuses – in the engine compartment’s cold zone

Volvo V60 - fuse box - engine compartment (cold zone start/stop only)
Volvo V60 – fuse box – engine compartment (cold zone start/stop only)
Position Function Ampere rating [A]
A1 Circuit breaker: central electrical module in the engine compartment 175
A2 Main fuse for central electronic module (CEM) under the glovebox, relay/fuse box under the glovebox, central electrical unit in cargo area 175
1 Vacuum pump for brake system 40
2 Primary fuse for the central electronic module (CEM) under the glovebox 50
3 Primary fuse for relay/fuse box under the glovebox 60
4 Primary fuse for central electrical unit B in cargo area 60
5 Primary fuse for central electrical unit A in cargo area 60
6 Ventilation fan 40
7
8
9
10
11 Oil pump automatic gearbox 30
12

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
