Volkswagen Golf mk6 GTI – fuse box

VW Golf mk6 GTI – fuse box

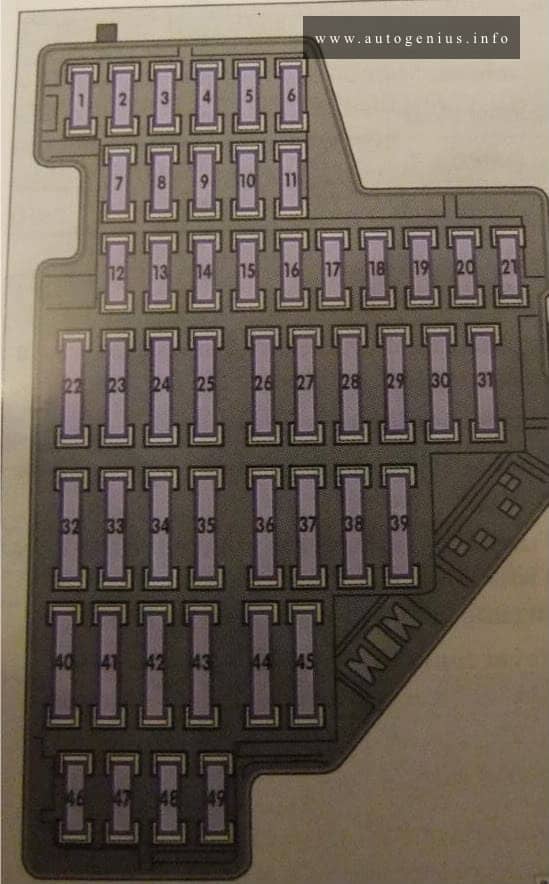

Fuse box in passeneger compartment

Volkswagen Golf mk6 GTI - fuse box - passeneger compartment
Volkswagen Golf mk6 GTI – fuse box – passeneger compartment
Electrical consumers Fuse number (amp rating in brackets)
Electrical socket for trailer 2 (10); 43 (15); 44 (20); 45 (15)
ABS, ESP 2 (10); 4 (5)
Anti-tow alarm 17 (5)
Airbag 3 (5)
Brake light switch 2 (10)
Front electric windows 23 (20)
Rear electric windows 26 (30)
Blower 22 (40); 40 (40)
Rear window heating 25 (25)
Rear wiper 41 (20)
Interior monitoring 17 (10)
Air conditioner operating unit 14 (10)
Combi – instrument 2 (10)
Fuel pump 27 (15)
Lumbar support 34 (15)
Headlight range control 1 (10)
Rain sensor 13 (10)
Selector mechanism for the automatic gearbox 14 (10)
Headlight washer system 36 (20)
Sliding/tilting roof 33 (20)
Seat heating 37 (30)
Socket in front 12V 42 (30)
Socket in luggage compertment 12V 42 (20)
Central electronic control unit 24 (20)
Central locking for front doors 12 (10)
Central locking for rear doors 15 (20)
Cigarette lighter 42 (20)

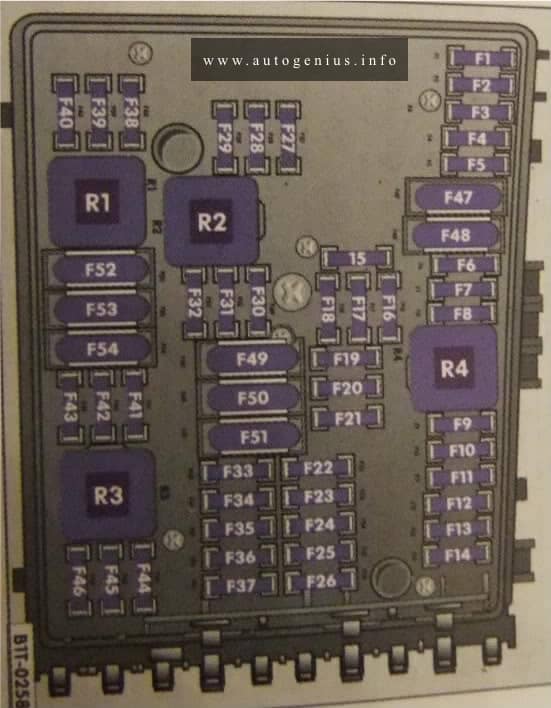

Fuse box in engine compartment

Volkswagen Golf mk6 GTI - fuse box - engine compartment
Volkswagen Golf mk6 GTI – fuse box – engine compartment

Electrical consumers Fuse location (amp rating in brackets)
Horn F17 (15)
Radiator fan F24 (10)
Fog light F26 (30); F16 (30)
Rear fog light F26 (30); F16 (30)
Radio F8(25)/(15)
Windscreen washer jets, heated F26 (30)
Left headlight F26 (30)
Right headlight F16 (30)
Sound system F18 (30)
Left side light F26 (30)
ABS, ESP F4 (20); F25 (40)
Left turn signal F26 (30)
Right turn signal F16 (30)
Brake light, right F16 (30)
Brake light, left F26 (30)
Windscreen wiper F19 (30)



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
