Deawoo Leganza (1999 – 2002) – fuse box diagram
Year of production: 1999, 2000, 2001, 2002

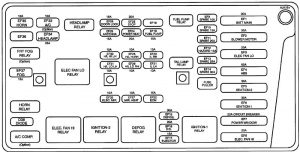

Engine compartment fuse box

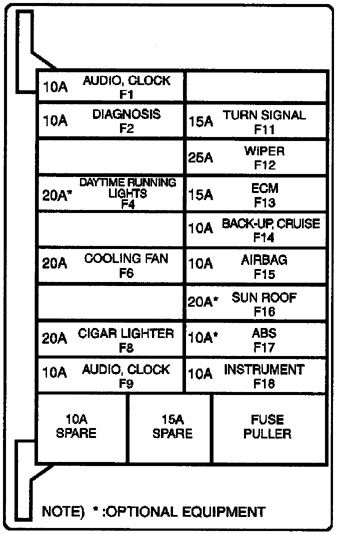

Passenger compartment fuse box
Fuse chart
| Fuse number | Ampere rating [A] | Source | Circuit protected |
| EF1 (Engine Fuse) | 30 | B+ | Fuses F1 , F2, F4 |
| EF2 | 30 | B+ | Blower Motor Relay, Blower Motor, Auto. Temp. Control Relay, ATC Controller |
| EF3 | 20 | B+ | Cooling Fan (Low) Relay, Aux. Cooling Fan, Cooling Fan Control Relay |
| EF4 | 60 | B+ | ABS Relay, Electronic Brake Control Module |
| EF5 | 30 | B+ | lgn 2 (lgn Key}, Starter |
| EF6 | 30 | B+ | lgn 1 (lgn Key), Ace, F17, F18 |
| EF7 | 20 | B+ | lgn 2 Relay, EF 32, Keyless Entry System, Sun Roof, Power Window Main Switch |
| EF8 | 20 | B+ | Cooling Fan (High) Relay, Cooling Fan Control Relay, Main Cooling Fan |
| EF12 | 15 | B+ | Hazard Switch |
| EF15 | 30 | B+ | Rear Window Defogger, Defogger Relay, EF27 |
| EF16 | 20 | B+ | Generator Terminal F, Electronic Ignition System Coil, Evaporativer Emission Canister Purge Solenoid, Engine Control Module |
| EF17 | 15 | B+ | Fuel Injectors, EGA |
| EF19 | 15 | B+ | Fuel Pump, DLC Connector E |
| EF20 | 10 | B+ | RH Parking Lamp, RH Taillamp, Dimmer Control Switch, Chime bell |
| EF21 | 10 | B+ | LH Parking Lamp, LH Taillamp, License Lamp |
| EF22 | 15 | B+ | Engine Control Module |
| EF23 | 20 | B+ | Brake Switch, Brake Lamps, EBCM, Cruise Control, BTSi |
| EF24 | 20 | B+ | Power Seat |
| EF25 | 10 | EF34 | Headlamp High RH |
| EF26 | 10 | EF34 | Headlamp Low RH |
| EF27 | 10 | EF15 | Electric Outside Rearview Mirror Defogger |
| EF28 | 15 | B+ | Auto Door Lock System |
| EF29 | 15 | B+ | Power Antenna, lgn Key Illumination, Luggage Compartment Lamp, Interior Courtesy Lamp, Door Step Lamp, Keyless Entry System Unit |
| EF30 | 10 | EF34 | Headlamp High LH |
| EF31 | 10 | EF34 | Headlamp Low LH |
| EF32 | 10 | EF7 | Electric Outside Rearview Mirror Control, Map Lamp (W/0 Sun Roof), Sun Roof Switch, Keyless Entry Unit |
| EF33 | 10 | B+ | NC Compressor Relay, NC Compressor, NC Diode |
| EF34 | 25 | B+ | Headlamp Relay, EF30, EF25, EF31 , EF26, High Beam Indicator Switch, Illumination Relay, Headlamp Switch, Anti-Theft Siren |
| EF35 | 10 | B+ | Horn System |
| EF37 | 15 | B+ | Fog Lamp Relay, LH and RH Front Fog Lamps |
| F1 (Fuse) | 10 | EF1 | Audio System, Clock, Key Remind Switch, Chime Module, Ashtray Ilium., Door Switch, ATC Controller |
| F2 | 10 | EF1 | DLC |
| F4 | 20 | EF1 | Daytime Running Lamps |
| F6 | 20 | EF5 (Ign 2) | lgn 2 Relay, Cooling Fan (High) Relay, Cooling Fan (Low) Relay, A/C Compressor Relay, A/C Switch, Cooling Fan Control Relay, ECM., Blower Motor Relay, Auto. Temp. Control Relay, Defogger Relay, ATC Controller |
| F8 | 20 | EF6 (Acc) | Cigar Lighter, Glove Box Lamp, Glove Box Switch, Key Interlock Solenoid |
| F9 | 10 | EF6 (Acc) | Audio System, Clock |
| F11 | 15 | EF6 (Ign 1) | Turn Signal/Hazard Switch, Daytime Running Lamps |
| F12 | 25 | EF6 (Ign 1) | Wiper/Washer System |
| F13 | 15 | EF6 (Ign 1) | Engine Control Module, lgn 1 Relay, Vehicle Speed Sensor, Fuel Pump Relay, CMP |
| F14 | 10 | EF6 (Ign 1) | Backup Switch, Backup Lamps, Defogger, ATC Controller, Seat Belt Switch, Cruise Control Systell’ |
| F15 | 10 | EF6 (Ign 1) | Supplemental Inflatable Restraint System |
| F16 | 20 | EF6 (Ign 1) | Sun Roof Module, Sun Roof Motor (if equipped) |
| F17 | 10 | EF6 (Ign 1) | Electronic Brake Control Module |
| F18 | 10 | EF6 (Ign 1) | Instrument Cluster, Chime Module, Brake Switch, ATC. Controller, Vehicle Speed Sensor, ECM, Brake Transaxle Shift Interlock Solenoid, Transmission Range Switch, Speed Sensitive Power Steering Module, EBCM |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
