Genesis G90 (2017 – 2022) – fuse box diagram

Genesis G90 (2017 – 2022) – fuse box diagram

Year of production: 2017

Instrument fuse panel

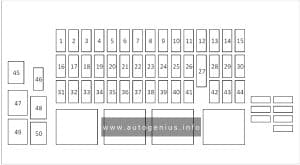

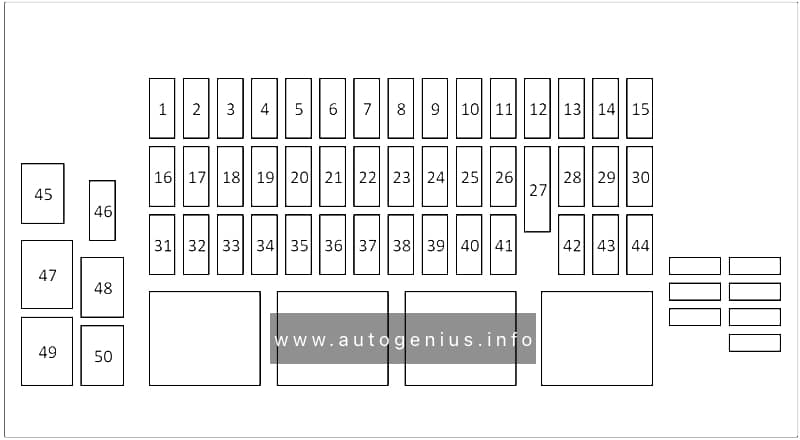

Genesis G90 - fuse box diagram - instrument panel
Genesis G90 – fuse box diagram – instrument panel
Fuse name Amps Circuit protected
MODULE 5 10A Stop Lamp Switch, Driver/Passenger Door Module
MODULE 7 10A Electro Chromic Mirror, A/V & Navigation Head Unit, AMP, A/C Control Module, Front A/C Controller, Air Quality Sensor, Rear Seat Warmer Control Module LH/RH Head Lamp LH/RH Driver/Passenger CCS Module Rear CCS Module LH/RH, Driver/Passenger IMS Control Module, Rear IMS Control Module LH/RH, Rear Seat Console Switch
IBU 3 10A IBU Control Module
E-SHIFTER 2 10A Electronic ATM Shift Lever
MEMORY 1 10A Security Indicator, A/C Control Module, Front A/C Controller, Instrument Cluster, Driver/Passenger IMS Control Module, Rear IMS Control Module LH/RH, Head-Up Display, Analog Clock Driver/Passenger Seat Control Switch, Power Trunk Module, Rear Seat Control Switch LH/RHM Driver/Passenger Smart Key, Outside Handle Rear Smart Key Outside Handle LH/RH
RR LH2 P/SEAT 25A Rear IMS Control Module LH
DRIVER P/SEAT 2 25A Driver IMS Control Module
P/WINDOW RH 30A Passenger Power Window Module Rear Power Window Module RH
MODULE 6 10A Crash Pad Switch, Blind Spot Detection Radar LH/RH ECS Unit, Electric Parking Brake Module, Lane Keeping Assist Module, Front Console Switch, Steering Tilt & Telescopic Module
MODULE 10 10A Cooling Fan Controller (BLDC), Rear Seat Console Switch, Around View Unit, Parking Guide Unit
MODULE3 10A GATEWAY (B+ (MCU)), Data Link Connector, Hazard Switch
SUNROOF 25A Sunroof Motor
PASSENGER P/SEAT 2 25A Passenger IMS Control Module
RR LH1 P/SEAT 30A Rear IMS Control Module LH Rear Electronic Power Seat Relay LH
MODULE 8 15A Head Lamp LH/RH, Adaptive Front Lighting Module
MEMORY 2 10A Driver Power Outside Mirror
POWER HANDLE 15A Steering Tilt & Telescopic Module
PASSENGER P/SEAT 1 30A Passenger IMS Control Module Passenger Lumbar Support Unit
P/WINDOW LH 30A Driver Power Window Module Rear Power Window Module LH
AIR BAG IND. 10A Instrument Cluster, Front A/C Controller
MEMORY 3 10A Passenger Power Outside Mirror
CURTAIN 15A IBU Control Module
MODULE 4 10A Metal Core Block (PCB #1 – Power Outlet Relay), Analog Clock, IBU Control Module, Overhead Console Lamp, AUX & USB Jack AMP, Electronic ATM Shift Lever, Front/Rear Wireless Charger Front Tray Mood Lamp LH/RH, Front/Rear Console Lamp, A/V & Navigation Head Unit, Rear Console Holder Lamp, Around View Unit, Parking Guide Unit, Rear USB Jack, Rear USB Jack (N/A), Power Outlet Relay
ROOM LAMP 10A Overhead Console Lamp, Front/Rear Vanity Lamp LH/RH, Room Lamp, Rear Personal Lamp LH/RH, Glove Box Lamp, Front Foot Lamp LH/RH, Front/Center Mood Lamp LH/RH Luggage Lamp LH/RH, Driver/Passenger Seat Foot Lamp, Driver/Passenger Door Inside Handle Lamp, Driver/Passenger Door Garnish Lamp, Rear Door Garnish Lamp, LH/RH, Rear Door Inside Handle Lamp LH/RH
DRIVER P/SEAT 1 30A Driver IMS Control Module, Driver Lumbar Support Unit
CLUSTER 10A Instrument Cluster, Head-Up Display
PRE-SAFETY SEAT BELT 10A Pre Active Seat Belt Unit
GATEWAY 10A GATEWAY (IG1 (MCU))
BRAKE SWITCH 10A Stop Lamp Switch, IBU Control Module
IBU 2 10A Start/Stop Button Switch
IBU 1 15A IBU Control Module
MODULE 12 10A Driver/Passenger Door Module, Rear Door Module LH/RH
MODULE 9 10A Multifunction Switch
E-SHIFTER 1 10A Electronic ATM Shift Lever
MULTI MEDIA 3 10A Front Monitor, DVD Player, AUX & USB Jack
MODULE 11 10A IBU Control Module
STEERING W/HEATER 20A IBU Control Module
B/ALARM 10A Burglar Alarm Horn Relay
MULTI MEDIA 1 30A Fuse – F42, F51, F52
A/CON 2 10A Metal Core Block (PCB #1 – Blower Relay), Co2 Sensor, Ionizer E/R Junction Lock (RLY.4 – Rear Blower Relay), A/C Control Module, Front Incar Temperature Sensor, Front A/C Controller
MULTI MEDIA 2 15A A/V & Navigation Head Unit
MULTI MEDIA 4 10A Keyboard, Rear Monitor LH/RH, Rear Seat Console Switch, Rear Audio Switch, Rear USB Jack
POWER OUTLET 5 15A Front Power Outlet RH
POWER OUTLET 6 20A Front Power Outlet LH
A/CON1 10 A/C Control Module
FRT BLOWER 40 Front Blower Relay
IGN1 40 IG1 Relay
START 30 E/R Junction Block (RLY. 2 – Start Relay)
ECU1 15 ECM
TCU1 20 TCU
ESC3 10 ESC Control Module
MODULE2 10 4WD ECM, Active Air Flap, Smart Cruse Control Radar
MDPS2 10 MDPS Unit, Steering Angle Sensor
SENSOR5 10 [G6DP] E/R Junction Block (RLY. 3 – Vacuum Pump- Relay), Brake Vacuum Switch
HORN 20 Horn Relay
ECU2 10 ECM
TCU2 15 TCM, B/UP Lamp Relay, P/N Relay
EPB2 15 Electric Parking Brake Module
EPB1 15 Electric Parking Brake Module
B/UP LAMP 10 B/Up Lamp Relay
ACC 40A ACC Relay



Engine compartment fuse box

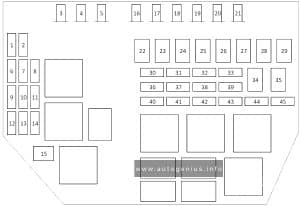

Genesis G90 - fuse box diagram - engine compartment
Genesis G90 – fuse box diagram – engine compartment
Fuse name Amps Circuit protected
ALT 200A Alternator, Multifuse (BATT) – F12/F13/F14/ F15, Fuse -F24/F25/F28/F29/F30/F31/F33/F34/F35/ F36/ F37/F38/F39
B+ 1 60A IGPM (IPS1, Fuse – F36, Leak Current Autocut Device (Fuse – F5/F18/F19/F26/F27/F42/F49/F51 / F52))
B+ 3 60A IGPM (IPS2/IPS3, Fuse – F13/F41)
B+ 5 60A IGPM (Fuse – F7/F8/F9/F14/F15/F16/F46)
B+ 4 60A IGPM (IPS4/IPS5/IPS6/IPS7, Fuse – F37/F38/F39)
B+ 6 60A Metal Core Block (PCB #1 Fuse – F40/F41/ F42)
B+ 7 80A Metal Core Block (PCB #2 Fuse – F65/F68/F69/ F70/F71)
B+ 2 60A IGPM (Fuse – F21/F22/F23/F29/F30)
C/FAN 2 70A Cooling Fan Relay
B+ 8 80A Metal Core Block (PCB #1 Fuse – F51/F53/ F55)
MDPS 125A MDPS Unit
POWER OUTLET 3 20A 5:5 Seat: Rear Power Outlet #1
W/O 5:5 Seat: Front Power Outlet & Cigarette Lighter
POWER OUTLET 2 20A 5:5 Seat: Rear Power Outlet #2
W/O 5:5 Seat: Front Power Outlet & Cigarette Lighter
VACUUM PUMP 40A Lambda 3.3 T-GDI: RLY. 3 (Vacuum Pump Relay)
ESC 1 40A ESC Control Module, Multipurpose Check Connector
ESC 2 40A ESC Control Module, Multipurpose Check Connector
DEICER 20A Front Deicer Relay
POWER OUTLET 1 40A Metal Core Block (PCB #1 – Power Outlet Relay)
RR BLOWER 30A RLY. 4 (Rear Blower Relay)
WIPER 1 30A Wiper Motor
DRIVER CCS 20A Driver CCS Module
PASSENGER CCS 20A Passenger CCS Module
POWER OUTLET 4 20A W/O 5:5 Seat: Power Outlet Relay
4WD 30A 4WD ECM
PRESAFETY SEAT BELT 1 30A Pre Active Seat Belt Unit
PRESAFETY SEAT BELT 2 30A Pre Active Seat Belt Unit
DRIVER P/DOOR 15A Driver Door Latch
PASSENGER P/DOOR 15A Passenger Door Latch
RR LH P/DOOR 15A Rear Door Latch LH
RR RH P/DOOR 15A Rear Door Latch RH
IGN 2 30A IG2 Relay
ECU 3 30A Engine Control Relay
MODULE1 10A 4WD ECM, Active Air Flap, Smart Cruse Control Radar
WIPER 2 10A PCB #2 (Wiper Relay)
WASHER 20A Washer Relay
SENSOR 2 10A Lambda 3.3 T-GDI: Oxygen Sensor #1/#2/#3/#4
Tau 5.0 GDI: Oxygen Sensor #1/#2/#3/#4, Electronic Thermostat
SENSOR 1 10A Lambda 3.3 T-GDI: Oil Controlvalve #1/#2/#3/#4 (Intake/Exhaust), Purge Control Solenoid Valve, Oil Pressure Solenoid Valve, Canister Close Valve
Tau 5.0 GDI: Oil Controlvalve #1/#2/#3/#4 (Intake/ Exhaust), Purge Control Solenoid Valve, Canister Close Valve
SENSOR 3 10A Lambda 3.3 T-GDI: Electronic Thermostat, Rear Sub Junction Block (Fuel Pump Relay)
Tau 5.0 GDI: Rear Sub Junction Block (Fuel Pump Relay)
SENSOR 4 10A Lambda 3.3 T-GDI: E/R Junction Block (RLY. 1 – Cooling Fan Relay)
Tau 5.0 GDI: E/R Junction Block (RLY. 1 – Cooling Fan Relay), Camshaft Position Sensor #1/#2/#3/#4 (Intake/ Exhaust)
IGN COIL 15A Lambda 3.3 T-GDI: Ignition Coil #1/#2/#3/#4/#5/#6
Tau 5.0 GDI: Ignition Coil #1/#2/#3/#4/#5/#6/#7/#8
ECU 4 20A ECM
H/LAMP HI SOL 10A Head Lamp (HI SOL) Relay
H/LAMP WASHER 25A Head Lamp Washer Relay
A/CON 1 10A A/C Control Module
FRT BLOWER 40A Front Blower Relay
IGN 1 40A IG1 Relay
START 30A E/R Junction Block (RLY. 2 – Start Relay)
ECU 1 15A ECM
TCU 1 20A TCM
ESC 3 10A ESC Control Module
M0DULE 2 10A 4WD ECM, Active Air Flap, Smart Cruse Control Radar
MDPS 2 10A MDPS Unit, Steering Angle Sensor
SENSOR 5 10A G6DP: E/R Junction Block (RLY. 3 – Vacuum Pump- Relay), Brake Vacuum Switch
HORN 20A Horn Relay
ECU 2 10A ECM
TCU 2 15A TCM, B/UP Lamp Relay, P/N Relay
EPB 2 15A Electric Parking Brake Module
EPB 1 15A Electric Parking Brake Module
B/UP LAMP 10A B/Up Lamp Relay
ACC 40A ACC Relay

Trunk fuse panel

Genesis G90 - fuse box diagram - trunk compartment
Genesis G90 – fuse box diagram – trunk compartment
Fuse name Amps Circuit protected
REAR DEFOGGER 40A Rear Defogger Relay
POWER TRUNK 30A Power Trunk Module
DOOR LOCK 2 15A Passenger Door Module
RDM LH 15A Rear Door Module LH
RR RH 2 P/SEAT 25A Rear IMS Control Module RH
AIR BAG 15A Air Bag Relay
RDM RH 15A Rear Door Module RH
RR RH HEATER SEAT 20A Rear CCS Module RH, Rear Seat Warmer Control Module RH
AMP 25A AMP (Premium, Premium High)
RR RH 1 P/SEAT 30A Rear IMS Control Module RH, Rear Electronic Power Seat Relay RH
RR RH 3 P/SEAT 15A Rear Seat Lumbar Support Module RH
RR RL 3 P/SEAT 15A Rear Seat Lumbar Support Module LH
ECS 10A ECS Unit
FUEL LID 10A Fuel Lid Open Relay, Fuel Filler Door & Trunk Lid Switch
DOOR LOCK 1 10A Driver Door Module
TRUNK LID 10A Trunk Lid Relay
RR LH HEATER SEAT 20A Rear CCS Module LH, Rear Seat Warmer Control Module LH
FUEL PUMP 20A Fuel Pump Relay

Battery junction  block

Genesis G90 - fuse box diagram - battery junction
Genesis G90 – fuse box diagram – battery junction
Fuse name Amps Circuit protected
B+ 100A Rear Sub Junction Block (Fuse – F55 ~ F73)
B+ 80A Metal Core Block (PCB #2 Fuse – F57/F58/F59/ F60)
AMS 10A Battery Sensor

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.



Genesis G80 (2021 – 2023) US version – fuse box diagram

Genesis G80 (2021 – 2023) US version – fuse box diagram

Year of production: 2021,2022, 2023

Passenger compartment fuse box

The fuse panel is located in the driver’s side panel bolster.

Genesis G80 - fuse box diagram (US version) - passenger compartment
Genesis G80 – fuse box diagram (US version) – passenger compartment
Fuse Name Amps Circuit Protected
M0DULE 9 10A Overhead Console, AMP, Smart Phone Wireless Charger, Low DC-DC Converter (AUX/AMP), Data Link Connector, Driver/Passenger Power Seat Module, Electro Chromic Mirror, Front/Rear A/C controller, Rear Seat Console Remote Control Switch Switch, A/V & Navigation Head Unit, A/C Control Module, Rear Seat LH/RH Heater Unit
SUNROOF 25A Sunroof Control Unit (Master/Slave)
M0DULE 11 10A Head Lamp LH, Head Lamp RH, Multifunction Switch, ADAS Unit (Parking)
M0DULE 12 10A IAU, IBU
A/C 3 10A E/R SUB Junction Block(Blower Relay), Incar Temperature Sensor, A/C Control Module, Front A/C controller, Rear A/C controller
A/BAG IND 10A Instrument Cluster, Overhead Console
E-SHIFTER 2 10A Electronic ATM Shift Lever Dial
SPARE (IG2) 15A Not Used
MODULE 10 10A ICU Junction Block (ESU)
MODULE 7 10A Driver Door Module, IBU, Multifunction Switch, IAU, Stop Lamp Switch
MULTI MEDIA 25A Low DC-DC Converter
MODULE 13 10A Front/Rear A/C controller, Rain Sensor, Head-Up Display, Security Indicator, A/C Control Module, Rear Occupant Alert (ROA) Sensor, Driver/Passenger Power Outside Mirror, ICU Junction Block(ESU), Hazard Switch
CLUSTER 10A Instrument Cluster, Head-Up Display
IBU 2 10A IBU
AIRBAG 2 15A SRS Control Module, Passenger Occupant Detection Sensor
PRESAFETY SEAT BELT 3 10A Pre-Active Seat Belt Unit
M0DULE 8 10A Rear Corner Radar LH/RH, ECS Unit, RWS Module, ADAS Unit (Driving), ADAS Unit (Parking), Crash Pad Switch, Front Console Switch, Steering Tilt & Telescopic Unit, Front View Camera
M0DULE 5 10A PTL Unit, Driver/Passenger Power Seat Module, Driver/ Passenger Power Seat Switch, Driver/Passenger Lumbar Support Unit(3/5/7CELL)
M0DULE 3 10A Rear Seat Console Remote Control Switch Switch, Active Air Flap Module, Clock Spring, Steering Tilt & Telescopic Unit, Multifunction Switch
P/WINDOW LH 30A Driver Power Window Module, Rear Power Window Module LH
CURTAIN 10A IBU
P/SEAT PASS 2 25A Passenger Power Seat Module
TRUNK 10A Trunk Release Relay
AIRBAG 1 15A SRS Control Module
E-SHIFTER 1 10A Electronic ATM Shift Lever Dial
MODULE 4 10A Driver Door Module, Data Link Connector
P/SEAT DRV 1 25A Driver Power Seat Module
P/SEAT 10A Driver/Passenger Lumbar Support Unit (3/5/7CELL)
POWER HANDLE 15A Steering Tilt & Telescopic Unit
IBU 1 10A IAU, IBU, BLE Unit, Driver Door Outside Handle, Passenger Door Outside Handle
POWER OUTLET 20A Armrest Power Outlet
P/SEAT DRV 2 25A Driver Power Seat Module
P/SEAT PASS 1 25A Passenger Power Seat Module
S/HEATER DRV 20A Driver Power Seat Module
S/HEATER PASS 20A Passenger Power Seat Module
DOOR LOCK 20A Center Door Lock/Unlock Relay, Driver Door Unlock Relay
SPARE (B+) 10A Not Used
MODULE 6 10A Armrest Lamp, IBU, Low DC-DC Converter(AUX/AMP), Electronic ATM Shift Lever Dial, Front Tray Lamp, IAU,
BRAKE SWITCH 10A Stop Lamp Switch, IBU

Engine Compartment Fuse Box

Fuse box #1

Genesis G80 - fuse box diagram (US version) - engine compartment (box no. 1)
Genesis G80 – fuse box diagram (US version) – engine compartment (box no. 1)
Fuse Name Amps Circuit Protected
ALT 225A Alternator
MDPS1 125A MDPS Unit
(MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering))
COOLING FAN 100A Cooling Fan Motor
GLOW 100A Not Used
IEB 1 60A IEB Unit
IEB 2 60A IEB Unit
REAR HEATED 50A Rear Heated Relay
IEB 3 50A IEB Unit
OIL PUMP 40A Electronic Oil Pump
E-CVVT 1 40A E-CVVT Relay
4WD 30A 4WD ECU
WIPER 30A Wiper Motor
HEAD LAMP LH 30A Head Lamp LH
START 30A Start Relay
HEAD LAMP RH 30A Head Lamp RH
A/C 15A A/C Relay
HORN 15A PCB Block (Horn Relay)
HTD IND 10A Front A/C controller
E-CVVT 2 20A ECM
E-CVVT 3 20A ECM
MODULE 1 10A Not Used
FUEL PUMP 20A Fuel Pump Relay
ECU 1 15A ECM
TCU 1 20A TCM
IG1 30A IG1 Relay
ECU 3 30A Engine Control Realy
IG2 30A IG2 Relay
ACC 30A ACC Relay
ECU 2 10A ECM
EWP 20A Electronic Water Pump
M0DULE 2 10A Front Radar, Front Corner Radar, LH/RH, 4WD ECU
SENSOR 5 10A Electronic Oil Pump
MDPS 2 10A MDPS Unit
IEB4 10A IEB Unit
ACTIVE HOOD 10A Active Hood Control Unit
TCU 2 15A P/N Relay, TCM
SENSOR 3 10A G4KR: Oxygen Sensor (Up/DOWN)
G6DS: Oxygen Sensor #1~#2
SENSOR 2 10A G4KR: E/R Junction Block(A/C Relay), Oil Control Valve (Exhaust), Oil Pump Solenoid Valve, Purge Control Solenoid Valve RCV Control Solenoid Valve, Canister Close Valve
G6DS: E/R Junction Block(A/C Relay), RCV Control Solenoid Valve #1~#2, Purge Control Solenoid Valve, Oil Pump Solenoid Valve, Oxygen Sensor #3~#4, Oil Control Valve #1~#4, Canister Close Valve
SENSOR 1 10A G4KR: Injector #1~#4, E/R Junction Block(Fuel Pump Relay)
G6DS: Injector #1~#6(MPI), E/R Junction Block(Fuel Pump Relay)
IGN COIL 15A G4KR: Ignition Coil #1~#4
G6DS: Ignition Coil #1~#6
SENSOR 4 15A Cooling Fan Motor
ECU 4 20A ECM
WASHER 15A Washer Relay



Fuse box #2

Genesis G80 - fuse box diagram (US version) - engine compartment (box no. 2)
Genesis G80 – fuse box diagram (US version) – engine compartment (box no. 2)
Fuse Name Amps Circuit Protected
FUEL HEATER 40A Not Used
PTC HEATER 1 50A Not Used
PTC HEATER 2 50A Not Used
PTC HEATER 3 50A Not Used
BLOWER 40A Blower Relay
LDC 10A Front Corner Radar LH/RH, Rear Corner Radar, LH/RH, Smart Phone Wireless Charger, Head-Up Display, Instrument Cluster, Front/Rear A/C controller, Rear Seat Console Remote Control Switch Switch, Front Console Keyboard
A/C 10A A/C Control Module
Trunk Fuse Box Diagram
Genesis G80 - fuse box diagram (US version) - trunk compartment
Genesis G80 – fuse box diagram (US version) – trunk compartment
Fuse Name Amps Circuit Protected
B+ 4 50A ICU Junction Block(Fuse(P/Seat PASS2, Module4, Sunroof, Door Lock, Trunk))
B+ 2 30A ICU Junction Block(Fuse(IBU1, E-Shifterl, Spare(B+), Module5, Air Bag1), IPS2, IPS5)
B+ 1 50A ICU Junction Block(Fuse(Brake Switch)), IPS’!, IPS3, IPS4, IPS7, Long/Short Term Load Latch Relay
B+ 3 50A ICU Junction Block(Fuse(P/Window LH, S/Heater DRV, S/Heater PASS, P/Seat DRV1, P/Seat DRV2, P/Seat PASS1, Curtain, Power Handle, P/Seat))
DCU 3 20A Not Used
DCU 4 10A Not Used
CHILD LOCK 15A Child Lock/Unlock Relay
DCU 1 20A Not Used
P/WINDOW RH 30A Passenger Power Window Module, Rear Power Window Module RH
DCU 2 20A Not Used
AMP 25A Low DC-DC Converter (AMP)
P/DOOR RR LH 15A Rear Door Latch LH
P/DOOR PASS 15A Passenger Door Latch
PRESAFETY SEAT BELT 1 30A Pre-Active Seat Belt Unit
P/DOOR RRRH 15A Rear Door Latch RH
ECS 15A ECS Unit
P/DOOR DRV 15A Driver Door Latch
PRESAFETY SEAT BELT 2 30A Pre-Active Seat Belt Unit
P/SEAT RR 20A Not Used
S/HEATER RR LH 20A Rear Seat LH Heater Unit
POWER TRUNK 30A PTL Unit (Power Trunk Lid)
S/HEATER RR RH 20A Rear Seat RH Heater Unit

Battery junction block

Genesis G80 - fuse box diagram (US version) - battery junction
Genesis G80 – fuse box diagram (US version) – battery junction
Fuse Name Amps Circuit Protected
B+ 5 125A E/R SUB Junction Block (B+)
B+ 6 100A Rear Junction Block(Fuse(B+1, AMP, P/Window RH, P/Seat RR, ECS, Presafety Seat Beltl, Child Lock))
B+ 7 100A Rear Junction Block(Fuse(B+3, S/Heater RR LH, S/Heater RR RH, Power Trunk, P/Door DRV, P/Door PASS))
B+ 8 100A Rear Junction Block(Fuse(B+2, B+4, P/Door RR LH, P/Door RR RH, Presafety Seat Belt2))
AMS 10A Battery Sensor
RWS 100A RWS MODULE

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Genesis G80 (2018 – 2020) – fuse box diagram

Genesis G80 (2018 – 2020) – fuse box diagram

Year of production: 2018, 2019, 2020

Passenger compartment fuse box

The fuse panel is located in the driver’s side panel bolster.

Genesis G80 - fuse box diagram - passenger compartment
Genesis G80 – fuse box diagram – passenger compartment
Fuse Name Amps Circuit Protected
SUNROOF 25A Sunroof Motor
MULTIMEDIA 2 10A A/V & Navigation Head Unit, Keyboard, Front Monitor, l-BOX
MULTIMEDIA 1 15A A/V & Navigation Head Unit
CLUSTER 10A Instrument Cluster, Head-Up Display
MODULE 6 15A Head Lamp LH/RH, Adaptive Front Lighting Module, A/T Shift Lever IND, Auto Head Lamp Leveling Device Module, Auto Hold & Driver Mode Switch
MEMORY 1 10A Steering Tilt & Telescopic Module, External Buzzer, BCM, Tire Pressure Monitoring Module, Security Indicator, A/C Control Module, Digital Clock, Head-Up Display, Instrument Cluster, Driver Lumbar Support Unit, Driver IMS Control Module, Power Trunk Lid Control Module
PRESAFETY SEAT BELT 10A Pre-Active Seat Belt Module
E-SHIFTER 2 10A Electronic ATM Shift Lever
SMART KEY 3 10A Smart Key Control Module
POWER HANDLE 15A Steering Tilt & Telescopic Module
SMART KEY 2 15A Smart Key Control Module
POWER OUTLET 2 20A Front Power Outlet & Cigarette Lighter
MODULE 3 10A Multifunction Switch, BCM, Sport Mode Switch, Stop Lamp Switch, Driver/Passenger Door Module, Rear Door Module LH/RH
A/BAG IND 10A A/C Control Module, Instrument Cluster
P/DOOR DRV 15A Driver Door Latch
MODULE 9 10A BCM
INTERIOR LAMP 10A Front Vanity Lamp LH/RH, Room Lamp, Room Lamp LH/RH, Overhead Console Lamp
B/ALARM HORN 10A Burglar Alarm Horn
HEATED STEERING 15A BCM
POWER OUTLET 120A Front Power Outlet & Cigarette Lighter
MODULE 4 10A Blind Spot Detection Radar LH/RH, Crash Pad Switch, ECS Unit, Front Parking Assist Sensor (Center) LH/RH, Console Switch, Tire Pressure Monitoring Module, Console Switch LH/RH, Steering Tilt & Telescopic Module, Rear Parking Asssist Sensor LH/RH, Rear Parking Assist Sensor (Center) LH/RH, Electric Parking Brake Module, Lane Keeping Assist Module, Front Parking Asssist Sensor LH/RH
POWER OUTLET 3 20A Metal Core Block (PCB #1 – Power Outlet Relay)
P/WDW LH 30A Driver Power Window Module, Rear Power Window Module LH
MODULE 1 10A Electronic Parking Brake Switch, Hazard Switch, Rain Sensor, Data Link Connector, Driver/Passenger Door Module, Rear Door Module LH/RH
MODULE 5 10A Head Lamp LH/RH, A/V Navigation Head Unit, Module, A/C Control Module, Electro Chromic Mirror, l-BOX, Driver/Passenger CCS Module, Driver/Passenger Seat Warmer Control Module, AMP, Rear CCS Module LH/RH, Rear Seat Warmer Control Module LH/RH, Driver IMS Control Module, Driver Power Seat Switch
P/DOOR PASS 15A Passenger Door Latch
S/HEATER PASS 20A Passenger CCS Module, Passenger Seat Warmer Control Module
MODULE 10 10A Driver/Passenger Power side view Mirror
E-SHIFTER 1 10A Electronic ATM Shift Lever
SMART KEY 1 10A Start/Stop Button Switch
MODULE 7 10A Multi-View Camera Module, Sunroof Motor, Head-Up Display, Cooling Fan Controller, Passenger Lumbar Support Unit
MODULE 8 10A Smart Key Control Module, BCM
MODULE 2 20A Smart Key Control Module, Overhead Console Lamp, BCM, AMP Digital Clock, Keyboard, l-BOX, A/V & Navigation Head Unit, Front Monitor, Electronic ATM Shift Lever, Front Wireless Charger, Front Power Outlet & Cigarette Lighter, Multi-View Camera Module, Metal Core Block (PCB #1 – Power Outlet Relay)
P/SEAT DRV 1 30A Driver IMS Control Module, Driver Power Seat Relay Box
P/SEAT PASS 1 30A Passenger Power Seat Relay Box
DOOR LAMP 10A Driver/Passenger Door Module, Rear Door Module LH/RH
BRAKE SWITCH 10A Smart Key Control Module, Stop Lamp Switch
A/CON 20A Metal Core Block (PCB #1 – Blower Relay), Ionizer, C02 Sensor, A/C Control Module

Engine Compartment Fuse Box

Genesis G80 - fuse box diagram - engine compartment
Genesis G80 – fuse box diagram – engine compartment
Fuse Name Amps Circuit Protected
ALT 200A Alternator, Multifuse (BATT) – B+2/ B+5/ MDPS 1, Fuse – P/SEAT DRV 2/ P/SEAT RR/ SEAT LUMBAR/ ESC 1/ ESC 2
B+ 1 60A IGPM (Fuse – BRAKE SWITCH, E-SHIFTER 1 Leak Current Autocut Device (Fuse – INTERIOR LAMP/ MULTI MEDIA 1/ MEMORY 3), IPS 1)
B+ 3 60A IGPM (Fuse – SMART KEY 1/ SMART KEY 2/ MODULE 1/ B/A HORN, IPS 2/IPS 3/IPS 5/IPS 7)
B+ 4 60A IGPM (Fuse – DOOR LAMP/ MODULE 9/ MODULE 10, IPS 4/ IPS6/ IPS)
B+ 6 60A Metal Core Block (PCB #1 Fuse – ECU 3/ IG2/ MODULE 1)
B+ 7 80A Metal Core Block (PCB #2 Fuse – HORN/ ACC/ EPB 1/ EPB 2/ B/UP LAMP)
B+ 2 60A IGPM (Fuse – P/HANDLE/ P/WDW LH/ P/SEAT DRV 1/ P/SEAT PASS 1/ S/HEATER PASS/ POWER OUTLET 3/ SUNROOF/ P/DOOR DRV/ P/DOOR PASS)
B+ 5 80A Metal Core Block (PCB #1 Fuse – BLOWER/ DEICER/ H/LAMP WASHER/ H/LAMP HI SOL)
MDPS 1 125A MDPS Unit
C/FAN 80A Cooling Fan Controller
P/SEAT RR 30A Not Used
ESC 2 40A ESC Module, Multipurpose Check Connector
ESC 1 40A ESC Module, Multipurpose Check Connector
P/SEAT DRV 2 25A Driver IMS Control Module, Driver Power Seat Switch, Driver Power Seat Relay Box
VACUUM PUMP 40A Vacuum Pump Relay
WIPER 1 30A Wiper Motor
S/HEATER DRV 25A Driver CCS Module, Driver Seat Warmer Control Module
4WD 30A 4WD ECM
PRESAFETY SEAT BELT 1 30A Pre-Active Seat Belt Module
PRESAFETY SEAT BELT 2 30A Pre-Active Seat Belt Module
IG2 30A IG2 Relay
ECU 3 30A Engine Control Relay
MODULE 1 10A 4WD ECM, Smart Cruise Control Radar, Active Air Flap
WIPER 2 10A Metal Core Block (PCB #2 – Wiper Relay)
WASHER 20A Washer Relay
SENSOR 2 10A G6DN : Oxygen Sensor #1/#2/#3/#4, Variable Intake Solenoid Valve #1/#2
G8BE : Oxygen Sensor #1/#2/#3/#4, Electronic Thermostat
G6DP : Oxygen Sensor #1/#2/#3/#4, RCV Control Solenoid Valve
SENSOR 1 10A Oil Control Valve #1/#2/#3/#4, Canister Close Valve, Purge Control Solenoid Valve
SENSOR 3 10A Electronic Thermostat, Rear Junction Block (Fuel Pump Relay)
SENSOR 4 10A G8BE : Camshaft Position Sensor #1/#2/#3/#4
IGN COIL 15A G6DN : Ignition Coil #1/#2/#3/#4/#5/#6
G8BE : Ignition Coil #1/#2/#3/#4/#5/#6/#7/#8
G6DP : Ignition Coil #1/#2/#3/#4/#5/#6
ECU 4 20A ECM
H/LAMP HI SOL 10A H/LAMP HI SOL Relay
DEICER 20A Metal Core Block (PCB #2 – Front Deicer Relay)
H/LAMP WASHER 25A Head Lamp Washer Relay
A/CON 2 10A A/C Control Module
BLOWER 40A Blower Relay
IG1 40A IG1 Relay
START 30A E/R Junction Block (RLY. 2 – Start Relay)
ECU 1 15A ECM
TCU 1 20A TCM
ESC 3 10A ESC Module
MODULE 3 10A Smart Cruise Control Radar, Active Air Flap, 4WD ECM
MDPS 2 10A MDPS Unit, Steering Angle Sensor
SENSOR 5 10A G6DP : Brake Boost Vacuum Pressure Sensor Switch
HORN 20A Horn Relay
ECU 2 10A ECM
TCU 2 15A TCM, Transmission Range Switch, P/N Relay, B/UP Lamp Relay
EPB 2 15A Electronic Parking Brake Module
EPB 1 15A Electronic Parking Brake Module
B/UP LAMP 10A B/UP Lamp Relay
ACC 40A ACC Relay
EPB 1 15A Electronic Parking Brake Module
ACC 40A ACC Relay



Trunk Fuse Box Diagram

Genesis G80 - fuse box diagram - trunk fuse box diagram
Genesis G80 – fuse box diagram – trunk fuse box diagram
Fuse Name Amps Circuit Protected
P/TRUNK 30A Power Trunk Lid Control Module
P/DOOR 15A Rear Door Latch RH RR RH
DOOR LOCK 2 15A Passenger Door Module
P/DOOR RR LH 15A Rear Door Latch LH
AIR BAG 15A Air Bag Relay
SPARE 1 10A Spare Fuse
P/SEAT PASS 2 25A Passenger Power Seat Relay Box
F/LID 10A Fuel Lid Open Relay, Crash Pad Switch
ECS 15A ECS Unit
DOOR LOCK 1 10A Driver Door Module
SPARE 6 15A Spare Fuse
TRUNK 10A Trunk Lid Relay, Power Trunk Module Buzzer
S/H EATER RR RH 20A Rear Seat Warmer Control Module RH
FOG LAMP RR 10A Not Used
AMP 25A AMP
S/H EATER RR LH 20A Rear Seat Warmer Control Module LH
P/WDW RH 30A Passenger Power Window Module, Rear Power Window Module RH
F/PUMP 20A Fuel Pump Relay
RR HTD 40A Rear Defogger Relay

Battery box

Genesis G80 - fuse box diagram - battery box
Genesis G80 – fuse box diagram – battery box
Fuse Name Amps Circuit Protected
B+ 9 100A Rear Junction Block (Fuse – RR HTD/ P/TRUNK/ ECS/ F/LID/ P/DOOR RR RH/ DR LOCK 2/ P/DOOR RR LH/ AMP/ P/SEAT PASS 2/ DR LOCK 1/TRUNK/ S/HEATER RR RH/ S/HEATER RR LH/ P/WDW RH/ F/PUMP/ AIR BAG)
B+ 8 80A Metal Core Block (PCB #2 Fuse -TCU/ ECU 1/ START/ IG 1)
AMS 10A Battery Sensor

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Genesis G80 (2017) – fuse box diagram

Genesis G80 (2017) – fuse box diagram

Year of production: 2017

Passenger compartment fuse box

The fuse panel is located in the driver’s side panel bolster.

Genesis G80 - fuse box diagram - passenger compartment
Genesis G80 – fuse box diagram – passenger compartment
Fuse Name Amps Circuit Protected
P/HANDLE 15A Steering Tilt & Telescopic Module
MEMORY 3 10A Passenger Power Outside Mirror
CLUSTER 10A Instrument Cluster, Head-Up Display
GATEWAY 10A Gateway (IG1 (MCU))
A/BAG IND 10A Instrument Cluster, A/C Control Module
SMART KEY 3 10A Smart Key Control Module
MODULE 3 10A BCM, Sport Mode Switch, Stop Lamp Switch, Driver/Passenger Door Module, Rear Door Module LH/RH
S/HEATER PASS 20A Passenger CCS Module, Passenger Seat Warmer Control Module
MEMORY 2 10A Driver Power Outside Mirror
MULTIMEDIA 1 20A Fuse – MULTIMEDIA 2, A/V & Navigation Head Unit
B/A HORN 10A Burglar Alarm Horn Relay
MODULE 9 10A Multifunction Switch
MODULE 4 10A Steering Tilt & Telescopic Module, Blind Spot Detection Radar LH/RH Crash Pad Switch, Tire Pressure Monitoring Module, Console Switch LH/RH, Front Parking Assist Sensor LH/RH, Front Parking Assist Sensor (Center), ECS Unit, Electronic Parking Brake Switch, Rear Parking Assist Sensor LH/RH, Rear Parking Assist Sensor (Center), LKAS Module
MODULE 5 10A Multipurpose Check Connector, A/V & Navigation Head Unit, Electro Chromic Mirror, A/C Control Module, l-Box, AMP, Driver/Passenger CCS Module, Driver Power Seat Switch, Driver/Passenger Seat Warmer Control Module, Rear Seat Warmer Control Module LH/RH, Driver IMS Control Module
MODULE 10 10A BCM
MULTIMEDIA 2 10A Keyboard, l-Box, Front Monitor
MEMORY 1 10A Steering Tilt & Telescopic Module, External Buzzer, BCM, Analog Clock, A/C Control Module, Tire Pressure Monitoring Module, Security Indicator, Head-Up Display, Instrument Cluster, Driver/Passenger Door Module, Rear Door Module LH/RH, Power Trunk Lid Control Module
SMART KEY 1 10A Start/Stop Button Switch
MODULE 8 10A BCM, Smart Key Control Module
A/CON 10A Metal Core Block (PCB #1 – Blower Relay), Ionizer CO2 Sensor, A/C Control Module
P/DOOR PASS 15A Passenger Door Latch
DOOR LAMP 10A Driver/Passenger Door Module, Rear Door Module LH/RH
MODULE 7 10A Parking Guide Unit, Head-Up Display Sunroof, Passenger Lumbar Support Unit, Clock Spring (Steering Wheel Remote Control Switch)
PRESAFETY SEAT BELT 10A Pre-Active Seat Belt Module
POWER OUTLET 3 20A Not Used
STOP LAMP 15A Stop Signal Electronic Module
MODULE 1 10A Gateway (B+ (MCU)), Rain Sensor, Hazard Switch Trunk Lid Main Switch, Electronic Parking Brake Switch
A/BAG 15A SRS Control Module
P/SEAT PASS 1 30A Passenger Power Seat Relay Box
INTERIOR LAMP 10A Room Lamp, Room Lamp LH/RH, Overhead Console Lamp, Glove Box, Front Vanity Lamp LH/RH, Driver/Passenger Foot Lamp, Trunk Room Lamp LH/RH
SMART KEY 2 15A Smart Key Control Module
POWER OUTLET 1 20A Front Power Outlet & Cigarette Lighter
MODULE 6 15A Head Lamp LH/RH, Auto Hold & Drive Mode Switch, Auto Head Lamp Leveling Device Module, A/T Shift Lever IND.
P/WDW LH 30A Driver Power Window Module, Rear Door Module LH, Rear Power Window Module LH
SUNROOF 25 A Sunroof Motor
BRAKE SWITCH 10A Stop Lamp Switch, Smart Key Control Module
POWER OUTLET 2 20A Front Power Outlet & Cigarette Lighter
HTD STRG 15A Clock Spring (Steering Wheel Heated Module)
P/SEAT DRV 1 30A Driver IMS Control Module, Driver Power Seat Relay Box
P/DOOR DRV 15A Driver Door Latch
MODULE 2 10A BCM, Smart Key Control Module, Overhead Console Lamp, Analog Clock, A/V & Navigation Head Unit, Keyboard, l-Box, Front Monitor, Parking Guide Unit

Engine Compartment Fuse Box

Genesis G80 - fuse box diagram - engine compartment
Genesis G80 – fuse box diagram – engine compartment
Fuse Name Amps Circuit Protected
ALT 200A Alternator, Multifuse (BATT) – B+2/ B+5/ MDPS 1/ C/FAN, Fuse – P/SEAT DRV 2/ P/SEAT RR/ SEAT LUMBAR/ ESC 1/ ESC 2
B+ 1 60A IGPM (Fuse – BRAKE SWITCH, Leak Current Autocut Device (Fuse – INTERIOR LAMP / MULTI MEDIA 1 / MEMORY 1 / MEMORY 2 / MEMORY 3), IPS 1)
B+ 3 60A IGPM (Fuse – SMART KEY 1/ SMART KEY 2/ MODULE 1/ B/A HORN, IPS 2/IPS 3/IPS 5/IPS 7)
B+ 4 60A IGPM (Fuse – DOOR LAMP/ STOP LAMP, IPS 4/IPS 6)
B+ 6 60A Metal Core Block (PCB #1 Fuse – ECU 3/ IG2/ MODULE 1)
B+ 7 80A Metal Core Block (PCB #2 Fuse – HORN/ ACC/ EPB 1/ EPB 2)
B+ 2 60A IGPM (Fuse – P/HANDLE/ P/WDW LH/ P/SEAT PASS 1/ S/HEATER PASS/ MODULE 10/ SUNROOF/ P/DOOR DRV/ P/DOOR PASS)
C/FAN 70 A RLY. 1 (C/Fan Relay)
B+ 5 80A Metal Core Block (PCB #1 Fuse – BLOWER/ DEICER/ H/LAMP WASHER)
MDPS 1 125A MDPS Unit
B/UP LAMP 10A TCM, Transmission Range Switch, Rear Combination Lamp (IN) LH/RH, Electro Chromic Mirror, A/V & Navigation Head Unit
P/SEAT RR 30A Not Used
ESC 1 40A ESC Module, Multipurpose Check Connector
ESC 2 40A ESC Module, Multipurpose Check Connector
SEAT LUMBAR 10A Driver/Passenger Power Seat Relay Box, Driver/Passenger Lumbar Support Unit
P/SEAT DRV 2 25A Driver IMS Control Module, Driver Power Seat Switch, Driver Power Seat Relay Box
ACTIVE HOOD LH 30A Not Used
ACTIVE HOOD RH 30A Not Used
WIPER 30A Wiper Motor
S/HEATER DRV 25A Driver CCS Module, Driver Seat Warmer Control Module
4WD 30A 4WD ECM
PRESAFETY SEAT BELT 1 30A Pre-Active Seat Belt Module
PRESAFETY SEAT BELT 2 30A Pre-Active Seat Belt Module
H/LAMP HI SOL 10A Metal Core Block (PCB #2 – Head Lamp High Solenoid Relay)
IG2 30A IG2 Relay
ECU 3 30A Engine Control Relay
MODULE 1 10A 4WD ECM, Smart Cruise Control Radar, Active Air Flap
WIPER 2 10A Metal Core Block (PCB #2 – Wiper Relay)
WASHER 20A Washer Relay
SENSOR 2 10A ECM, Oxygen Sensor #1/#2/#3/#4
SENSOR 1 10A ECM, Oil Control Valve #1/#2/#3/#4, Canister Close Valve, Purge Control Solenoid Valve, Variable Intake Solenoid Valve #1/#2
SENSOR 3 10A ECM, Rear Junction Block (Fuel Pump Relay)
SENSOR 4 10A C/Fan Relay, Camshaft Position Valve (G8BE)
INJECTOR 15A Injector Drive Box
IGN COIL 20A G6DJ : Condenser, Ignition Coil #1/#2/#3/#4/#5/#6, G8BE : Condenser #1/#2, Ignition Coil #1 /#2/#3/#4/#5/#6/#7/#8
DEICER 20A Metal Core Block (PCB #2 – Front Deicer Relay)
H/LAMP WASHER 25A Head Lamp Washer Relay
A/CON 2 10A A/C Control Module
BLOWER 40A Blower Relay
IG1 40A IG1 Relay
START 30A E/R Junction Block (RLY. 2 – Start Relay)
ECU 1 15A ECM, Injector Drive Box
TCU 1 20A TCM
ESC 3 10A ESC Module, Steering Angle Sensor
MODULE 3 10A Smart Cruise Control Radar, Active Air Flap
MDPS 2 10A MDPS Unit
SENSOR 1 10A G6DJ : Oil Pressure Solenoid Velve
HORN 20A Horn Relay
ECU 2 10A ECM, Injector Drive Box, Alternator (G8BE)
TCU 2 15A TCM, Transmission Range Switch, 4WD ECM
EPB 2 15A Electronic Parking Brake Module
EPB 1 15A Electronic Parking Brake Module
ACC 40A ACC Relay



Trunk Fuse Box Diagra

Genesis G80 - fuse box diagram - trunk fuse box diagram
Genesis G80 – fuse box diagram – trunk fuse box diagram
Fuse Name Amps Circuit Protected
P/TRUNK 30A Power Trunk Lid Control Module
P/DOOR RR RH 15A Rear Door Latch RH
DR LOCK 2 15A Passenger Door Module
P/DOOR RR LH 15A Rear Door Latch LH
SPARE 3 15A Spare Fuse
SPARE 1 10A Spare Fuse
P/SEAT PASS 2 25A Passenger Power Seat Relay Box
F/LID 10A Fuel Lid Open Relay, Crash Pad Switch
ECS 15A ECS Unit
DR LOCK 1 10A Driver Door Module
SPARE 5 15A Spare Fuse
TRUNK 10A Trunk Lid Relay, Power Trunk Module Buzzer
S/HEATER RR RH 20A Rear Seat Warmer Control Module RH
FOG LAMP RR 10A Not Used
AMP 25A AMP
S/HEATER RR LH 20A Rear Seat Warmer Control Module LH
P/WDW RH 30A Passenger Power Window Module, Rear Power Window Module RH
F/PUMP 20A Fuel Pump Relay
RR HTD 40A Rear Defogger Relay

Battery box

Genesis G80 - fuse box diagram - battery box

Fuse Name Fuse rating Circuit Protected
B+ 9 100A Rear Junction Block (Fuse – RR HTD/ P/TRUNK/ ECS/ F/LID/ P/DOOR RR RH/ DR LOCK 2/ P/DOOR RR LH/ AMP/ P/SEAT PASS 2/ DR LOCK 1/TRUNK/ S/HEATER RR RH/ S/HEATER RR LH/ P/WDW RH/ F/PUMP)
B+ 8 80A Metal Core Block (PCB #2 Fuse – TCU/ ECU 1/ START/ IG 1)
AMS 10A Battery Sensor

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Genesis G70 (2021 – 2023) – fuse box diagram (UK version)

Genesis G70 (2021 – 2023) – fuse box diagram (UK version)

Year of production: 2021. 2022, 2023

Passenger compartment fuse box

The fuse panel is located in the driver’s side panel bolster.

Genesis G70 - fuse box diagram (UK version) - passanger compartment
Genesis G70 – fuse box diagram (UK version) – passanger compartment
Fuse Name Amps Circuit Protected
MULTI MEDIA 1 20A W/O ISG: Fuse – F11, F12
With ISG: Low DC-DC Converter (Audio)
AIRBAG 1 15A SRS Control Module
ROOM LAMP 10A Overhead Console Lamp, Center Room Lamp, Room Lamp Vanity Lamp Switch LH/RH, Luggage Lamp LH/ RH Glove Box Lamp, Driver/Passenger Foot Lamp
STOP LAMP 10A IBU, Stop Lamp Switch
CLUSTER 10A Instrument Cluster, Head-Up Display
E-SHIFTER 2 10A Electronic ATM Shift Lever
IBU 3 10A IBU
MULTI MEDIA 3 10A With ISG: Instrument Cluster, Head-Up Display, A/C Switch Front Wireless Charger, Around View Monitor [W/O ISG]: Around View Monitor ECU
MULTI MEDIA 2 15A Audio
MEMORY 1 10A A/C Control Module, A/C Switch, Security Indicator Head-Up Display, Power Tail Gate Unit, Power Trunk Module
[W/O ISG] Instrument Cluster
IBU 4 10A IBU
E-SHIFTER 1 10A Electronic ATM Shift Lever
AIRBAG IND. 10A Instrument Cluster, Overhead Console Lamp
IBU 1 15A IBU, Driver/Passenger Smart Key Outside Handle, Driver/Passenger Power Outside Mirror
DRIVER DR MODULE 10A Driver Door Module, Driver/Passenger Power Outside Mirror
E-CALL 10A Emergency Call Module
MODULE 2 10A IBU
MODULE 3 10A Driver Door Module, Stop Lamp Switch
DOOR LOCK 20A Door Lock Relay, Door Unlock Relay, Dead Lock Relay
SEAT HEATER 25A Front Air Ventilation Seat Control Module Front Seat Warmer Control Module
TRUNK 10A Trunk Lid Relay, Fuel Lid Relay, Crash Pad Switch
IBU 2 10A IBU, Rain Sensor
AIRBAG 2 15A SRS Control Module
POWER OUTLET 1 20A Front Power Outlet
MODULE 8 10A Cooling Fan Controller (BLDC Motor)
MODULE 7 10A Dosing Control Module, AWD ECM, Active Air Flap LH, ECS Unit, Front View Camera, Console Switch, Crash Pad Switch, IBU, Console Switch, Front View Camera, Front Wireless Charger, Steering Tilt & Telescopic Module, Surround View Monitor ECU, Electronic Control Engine Mounting Module, Steering Angle Sensor
POWER HANDLE 15A Steering Tilt & Telescopic Module
MODULE 9 10A Driver Air Lumbar Control Unit
MODULE 1 10A Data Link Connector, Console Switch, Hazard Switch,Electronic Control Engine Mounting Module
CHARGER 10A Front/Rear USB Charger, Front Tray USB Charger
MODULE 5 10A A/C Control Module, A/C Switch, A/V & Navigation Head Unit, Low DC-DC Converter (Audio/AMP), Electro Chromic Mirror, AMP, Emergency Module, Driver IMS Control Module, Front Air Ventilation Seat Control Module, Data Link Connector, Front/Rear Seat Warmer Control Module, IFS Module
SUNROOF 20A Sunroof Control Unit (Glass)
PASSENGER P/ WINDOW 25A Passenger Safety Power Window Module, Rear Power Window Switch RH, Rear Safety Power Window Module RH
POWER OUTLET 2 20A [5DR] Rear Power Outlet
WASHER 15A Multifunction Switch
MDPS 10A MDPS Unit
DRIVER P/SEAT 30A Driver IMS Control Module, Driver Seat Manual Switch
PASSENGER P/SEAT 30A Passenger Seat Manual Switch, Passenger Walk In Relay Module
DRIVER P/WINDOW 25A Driver Safety Power Window Module, Rear Safety Power Window Module LH, Rear Power Window Switch LH
MODULE 6 10A Surround View Monitor ECU, IBU, Emergency Call Module, AMP, Electronic ATM Shift Lever, Overhead Console Lamp, A/V & Navigation Head Unit, Low DC-DC Converter (Audio/AMP)
A/CON 10A A/C Control Module, A/C Switch, PM Sensor (A/C), E/R Junction Block (RLY.6), Diesel Junction Block (RLY.3/4)
MODULE 4 10A Head Lamp LH/RH, Auto Head Lamp Leveling Device Module
IF43 Dark current switch Left front seat connector (memory seat module) / GWM / HVAC control unit/mobile phone WCM

Engine Compartment Fuse Box

Left-hand drive vehicles

Genesis G70 - fuse box diagram (UK version) - engine compartment (left-hand drive vehicle)
Genesis G70 – fuse box diagram (UK version) – engine compartment (left-hand drive vehicle)
Fuse Name Symbol Amps Circuit Protected
ALT 175A / 225A Alternator, Fuse – F2, Multi Fuse 1 – F4, F6, F7, F8, F9, F10, F11, F12, F13
C/FAN 3 3 125A G6DP – BLDC Motor: Cooling Fan Controller
GLOW 125A D4HB: Glow Relay Unit
START 30A RLY. 7 (Start Relay)
C/FAN 1 80A BLDC Motor: Cooling Fan Controller
B+ 3 50A ICU Junction Block (Fuse – F5, Leak Current Autocut Device Fuse – F2, F4, F13, F14, F21, F22)
B+ 2 50A ICU Junction Block (Fuse – F27, F35, F43, F51, F52)
B+ 1 50A ICU Junction Block (Fuse – F28, F29, F37, F45, F53)
EOP EOP 50A [With ISG] Electric Oil Pump Module
ESP 1 40A ESP Control Module
ESP 2 40A ESP Control Module
BLOWER 40A RLY. 6 (Blower Relay)
IG2 30A PCB Block (IG2 Relay)
MDPS 100A MDPS Unit
B+ 4 60A PCB Block (Engine Control Relay, Fuse – F4, F5, F13, F22)
C/FAN 2 60A DC Motor: RLY. 9 (Cooling Fan Relay)
E-CVVT 1 40A G4KL: RLY. 8 (E-CVVT Relay)
TRAILER 40A Trailer Connector
FUEL HEATER 40A Diesel Junction Block (RLY.1 (Fuel Filter Heater Relay))
PTC HEATER1 30A Diesel Junction Block (RLY.2 (PTC Heater #1 Relay))
PTC HEATER2 30A Diesel Junction Block (RLY.3 (PTC Heater #2 Relay))
PTC HEATER3 30A Diesel Junction Block (RLY.4 (PTC Heater #3 Relay))
VACUUM PUMP 20A G4KL/G6DP: RLY. 1 (Vacuum Pump Relay)
AWD 20A AWD ECM
A/CON A/C 10A A/C Control Module
E-CVVT 3 20A G4KL: ECM
E-CVVT 2 20A G4KL: ECM

Right-hand drive vehicles

Genesis G70 - fuse box diagram (UK version) - engine compartment (right-hand drive vehicle)
Genesis G70 – fuse box diagram (UK version) – engine compartment (right-hand drive vehicle)
Fuse Name Symbol Amps Circuit Protected
START 30A RLY. 7 (Start Relay)
C/FAN 1 80A BLDC Motor: Cooling Fan Controller
B+ 3 50A ICU Junction Block (Fuse – F5, Leak Current Autocut Device Fuse – F2, F4, F13, F14, F21, F22)
B+ 2 50A ICU Junction Block (Fuse – F27, F35, F43, F51, F52)
B+ 1 50A ICU Junction Block (Fuse – F28, F29, F37, F45, F53)
EOP EOP 50A [With ISG] Electric Oil Pump Module
ESP 1 40A ESP Control Module
ESP 2 40A ESP Control Module
BLOWER 40A RLY. 6 (Blower Relay)
IG2 30A PCB Block (IG2 Relay)
MDPS 100A MDPS Unit
B+ 4 60A PCB Block (Engine Control Relay, Fuse – F4, F5, F13, F22)
C/FAN 2 60A DC Motor: RLY. 9 (Cooling Fan Relay)
E-CVVT 1 40A G4KL: RLY. 8 (E-CVVT Relay)
TRAILER 40A Trailer Connector
AWD 20A AWD ECM
A/CON A/C 10A A/C Control Module
E-CVVT 3 20A G4KL: ECM
E-CVVT 2 20A G4KL: ECM
ESC3 10A ECM
ECU3 10A ESP Control Module
ECU2 15A ECM
HORN 20A Horn Relay
WIPER1 30A Wiper Power Relay
TCU2 15A P/N Relay, TCM
SENSOR4 10A Electronic Oil Pump Module, Brake Vaccum Switch, E/R Junction Block (RLY.1 (Brake Vacuum Relay)
TCU1 20A TCM
WIPER2 10A IBU, ECM
SENSOR1 15A Rear Sub Junction Block (Fuel Pump Relay); [D4HB] Rail Pressure Regulating Valve, Diesel Junction Block (RLY.1 (Fuel Filter Heater Relay)
SENSOR5 20A [G4KL] Ingition Coil #1/#2/#3/#4; [G6DP] Ignition Coil #1/#2/#3/#4/#5/#6; [D4HB] Electronic Water Pump
MODULE MODULE 10 Active Air Flap LH
ACTIVE HOOD 10 Active Hood Lift Control Module
SENSOR1 10A [D4HB] Głów Relay Unit, Fuel Heater & Water Separator Sensor
ECU1 20A ECM
SENSOR3 15A [G4KL] Oxygen Sensor (Up/Down) [G6DP] Oxygen Sensor #1/#2/#3/#4 [D4HB] Lamba Sensor #1/#2. Electronic VGT Actuator, Fuel Metering Unit, EGR Cooing Bypass Solenoid Valve, PTC Heater, Mid Nox Sensor, PM Sensor, Rear Nox Sensor
SENSOR2 10A E/R Junction Block (RLY.9 – Cooling Fan Relay); [G4KL] Electronic Thermostat, Oil Control Valve, Purge Control Solenoid Valve, Recirculation Control Solenoid Valve; [G6DP] Electronic Thermostat Oil Pressure Solenoid Valve; Oil Control Valve #1/#2/#3/#4 (Intake/Exhaust), Recirculation Control Solenoid Valve, Purge Control Solenoid Valve, Variable Exhaust Flap Actuator LH/RH; [D4HB] Oil Pump Solenoid Valve, Air Flow Sensor, Crankshaft Position Sensor, Front Nox Sensor, Oil Level Sensor, Stop Lamp Switch
B/ALARM 10A E/R Junction Block (RLY.2 – Burglar Alarm Horn Relay)

Relay

Type Relay No. Symbol Relay Name
MICRO RLY.1 Vacuum Pump Relay
MICRO RLY.2 Burglar Alarm Horn Relay
MICRO RLY.6 Blower Relay
MICRO RLY.7 Start Relay
MICRO RLY.8 E-CVVT Relay (G4KL)
MINI RLY.9 Cooling Fan Relay

Trunk Fuse Box Diagram

Genesis G70 - fuse box diagram (UK version) - trunk compartment
Genesis G70 – fuse box diagram (UK version) – trunk compartment
Fuse Name Symbol Amps Circuit Protected
DCU 2 15A Dosing Control Module
DCU 3 15A Dosing Control Module
REAR WIPER 15A Wipre RR Relay, Rear Wiper Motor
ECS ECS 15A ECS Unit
POWER TRUNK 30A Power Trunk Module, Power Tailgate Unit
DCU 1 15A Dosing Control Module
FUEL PUMP 20A Fuel Pump Relay
HEAT MIRROR 10A A/C Switch, Driver/Passenger Power Outside Mirror
AMP 2 25A AMP
REAR S/HEAT 20A Rear Seat Warmer Control Module
AMP 1 30A W/O ISG: Fuse – F9
With ISG: Low DC-DC Converter (AMP)
IG1 15A PCB Block (IG1 Relay)
ACC ACC 30A ICU Junction Block (Fuse – F32, F40, F54)
B+ 1 40A ICU Junction Block (IPS5, IPS6, IPS7, IPS8, IPS9, IPS10, Fuse – F20, 30F)
B+ 2 40A ICU Junction Block (IPS1, IPS2, Fuse – F15, F39)
REAR HEATED 30A Rear Heated Relay

Battery junction block

Genesis G70 - fuse- box diagram (UK version) -battery junction block
Genesis G70 – fuse- box diagram (UK version) -battery junction block
Fuse Name Symbol Amps Circuit Protected
B+ 1 100A Rear Sub Junction Block (ACC Relay, Fuse – F7, F12, F13, F16, F17)
B+ 2 100A Rear Sub Junction Block (DCU Relay, Fuse – F3, F5, F4, F11, F15)
START 40A E/R Junction Block (Fuse – F3), PCB Block (Fuse – F3, F9)
AMS 10A Battery Sensor

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Genesis G70 (2021 – 2023) – fuse box diagram (US version)

Genesis G70 (2021 – 2023) – fuse box diagram (US version)

Year of production: 2021. 2022, 2023

Passenger compartment fuse box

The fuse panel is located in the driver’s side panel bolster.

Genesis G70 - fuse box diagram (Us version) - passanger compartment
Genesis G70 – fuse box diagram (Us version) – passanger compartment
Fuse Name Amps Circuit Protected
MULTI MEDIA 1 20A W/O ISG: Fuse – F11, F12
With ISG: Low DC-DC Converter (Audio)
AIRBAG 1 15A SRS Control Module
ROOM LAMP 10A Overhead Console Lamp, Center Room Lamp, Room Lamp Vanity Lamp Switch LH/RH, Luggage Lamp LH/ RH Glove Box Lamp, Driver/Passenger Foot Lamp
STOP LAMP 10A IBU, Stop Lamp Switch
CLUSTER 10A Instrument Cluster, Head-Up Display
E-SHIFTER 2 10A Electronic ATM Shift Lever
IBU 3 10A IBU
MULTI MEDIA 3 10A With ISG: Instrument Cluster, Head-Up Display, A/C Switch Front Wireless Charger, Surround View Monitor ECU
W/O ISG: Surround View Monitor ECU, Rear Corner Radar LH/RH
MULTI MEDIA 2 15A Audio
MEMORY 1 10A A/C Control Module, A/C Switch, Security Indicator Head-Up Display, Power Tail Gate Unit, Power Trunk Module
W/O ISG: Instrument Cluster
IBU 4 10A IBU
E-SHIFTER 1 10A Electronic ATM Shift Lever
AIRBAG IND. 10A Instrument Cluster, Overhead Console Lamp
IBU 1 15A IBU, Driver/Passenger Smart Key Outside Handle, Driver/Passenger Power Outside Mirror
DRIVER DR MODULE 10A Driver Door Module, Driver/Passenger Power Outside Mirror
E-CALL 10A Emergency Call Module
MODULE 2 10A IBU
MODULE 3 10A Driver Door Module, Stop Lamp Switch
DOOR LOCK 20A Door Lock Relay, Door Unlock Relay, Dead Lock Relay
SEAT HEATER 25A Front Air Ventilation Seat Control Module Front Seat Warmer Control Module
TRUNK 10A Trunk Lid Relay, Fuel Lid Relay, Crash Pad Switch
IBU 2 10A IBU, Rain Sensor
AIRBAG 2 15A SRS Control Module
POWER OUTLET 1 20A Front Power Outlet
MODULE 8 10A Cooling Fan Controller (BLDC Motor)
MODULE 7 10A Dosing Control Module, AWD ECM, Active Air Flap LH, ECS Unit, Front View Camera, Console Switch, Crash Pad Switch, IBU, Console Switch, Front View Camera, Front Wireless Charger, Steering Tilt & Telescopic Module, Surround View Monitor ECU, Electronic Control Engine Mounting Module, Steering Angle Sensor
POWER HANDLE 15A Steering Tilt & Telescopic Module
MODULE 9 10A Driver Air Lumbar Control Unit
MODULE 1 10A Data Link Connector, Console Switch, Hazard Switch,Electronic Control Engine Mounting Module
CHARGER 10A Front/Rear USB Charger, Front Tray USB Charger
MODULE 5 10A A/C Control Module, A/C Switch, A/V & Navigation Head Unit, Low DC-DC Converter (Audio/AMP), Electro Chromic Mirror, AMP, Emergency Module, Driver IMS Control Module, Front Air Ventilation Seat Control Module, Data Link Connector, Front/Rear Seat Warmer Control Module, IFS Module
SUNROOF 20A Sunroof Control Unit (Glass)
PASSENGER P/ WINDOW 25A Passenger Safety Power Window Module, Rear Power Window Switch RH, Rear Safety Power Window Module RH
POWER OUTLET 2 20A 5DR: Rear Power Outlet
WASHER 15A Multifunction Switch
MDPS 10A MDPS Unit
DRIVER P/SEAT 30A Driver IMS Control Module, Driver Seat Manual Switch
PASSENGER P/SEAT 30A Passenger Seat Manual Switch, Passenger Walk In Relay Module
DRIVER P/WINDOW 25A Driver Safety Power Window Module, Rear Safety Power Window Module LH, Rear Power Window Switch LH
MODULE 6 10A Surround View Monitor ECU, IBU, Emergency Call Module, AMP, Electronic ATM Shift Lever, Overhead Console Lamp, A/V & Navigation Head Unit, Low DC-DC Converter (Audio/AMP)
A/CON 10A A/C Control Module, A/C Switch, PM Sensor (A/C), E/R Junction Block (RLY.6), Diesel Junction Block (RLY.3/4)
MODULE 4 10A Head Lamp LH/RH, Auto Head Lamp Leveling Device Module
IF43 Dark current switch Left front seat connector (memory seat module) / GWM / HVAC control unit/mobile phone WCM
IF44 30A PLGM
IF45 30A Right front door control module
IF46 30A Left front door control module
IF47 10A Right rear combination lamp A1
IF48 20A ACU
IF49 20A 3rd row right connector (3rd row seat controller)
IF50 10A IG2 power supply
IF51 20A Left front seat connector (front seat controller/ seat adjusting switch)
IF52 20A Right front seat connector (seat adjusting switch power supply)
IF53 15A Integrated BCM (windshield washer motor power supply)
IF54 30A 3rd row right connector (3rd row seat controller)
IF55 20A Panorama sunroof ECU
IF56 20A Panorama sunroof sunshade
IF57
IF58 10A Left rear combination lamp A1
IR01 ACC relay
IR02 Lock-up relay 1
IR03 Lock-up relay 2
IR04 IG1 relay
IR05 Fuel filler cap lock relay
IR06
IR07 IG2 relay

Engine Compartment Fuse Box

Genesis G70 - fuse box diagram (Us version) - engine compartment
Genesis G70 – fuse box diagram (Us version) – engine compartment
Fuse Name Amps Circuit Protected
ALT 175A / 225A Alternator, Fuse – F2, Multi Fuse 1 – F4, F6, F7, F8, F9, F10, F11, F12, F13
C/FAN 3 125A G6DP – BLDC Motor: Cooling Fan Controller
GLOW 125A D4HB: Glow Relay Unit
START 30A RLY. 7 (Start Relay)
C/FAN 1 80A BLDC Motor: Cooling Fan Controller
B+ 3 50A ICU Junction Block (Fuse – F5, Leak Current Autocut Device Fuse – F2, F4, F13, F14, F21, F22)
B+ 2 50A ICU Junction Block (Fuse – F27, F35, F43, F51, F52)
B+ 1 50A ICU Junction Block (Fuse – F28, F29, F37, F45, F53)
EOP 50A With ISG: Electric Oil Pump Module
ESP 1 40A ESP Control Module
ESP 2 40A ESP Control Module
BLOWER 40A RLY. 6 (Blower Relay)
IG2 30A PCB Block (IG2 Relay)
MDPS 100A MDPS Unit
B+ 4 60A PCB Block (Engine Control Relay, Fuse – F4, F5, F13, F22)
C/FAN 2 60A DC Motor: RLY. 9 (Cooling Fan Relay)
E-CVVT 1 40A G4KL: RLY. 8 (E-CVVT Relay)
TRAILER 40A Trailer Connector
VACUUM PUMP 20A G4KL/G6DP: RLY. 1 (Vacuum Pump Relay)
AWD 20A AWD ECM
A/CON 10A A/C Control Module
E-CVVT 3 20A G4KL: ECM
E-CVVT 2 20A G4KL: ECM
ESC 3 10A ESP Control Module
ECU 3 10A ECM
ECU 2 15A ECM
HORN 20A Horn Relay
WIPER 1 30A Wiper Power Relay
TCU 2 15A P/N Relay, TCM
SENSOR 4 10A Electronic Oil Pump Module, Brake Vacuum Switch, E/R Junction Block (RLY.1 (Brake Vacuum Relay))
TCU 1 20A TCM
WIPER 2 10A IBU, ECM
SENSOR 1 15A Rear Sub Junction Block (Fuel Pump Relay),
D4HB: Rail Pressure Regulating Valve, DieseL Junction Block (RLY.1 (Fuel Filter Heater Relay))
SENSOR 5 20A G4KL: Ignition Coil #1/#2/#3/#4
G6DP: Ignition Coil #1/#2/#3/#4/#5/#6
D4HB: Electronic Water Pump
MODULE 10A Active Air Flap LH
SENSOR 1 10A D4HB: Glow Relay Unit, Fuel Heater & Water Separator Sensor
ECU 1 20A ECM
SENSOR 3 15A G4KL: Oxygen Sensor (Up/Down)
G6DP: Oxygen Sensor #1/#2/#3/#4
D4HB: Lambda Sensor #1/#2, Electronic VGT Actuator, Fuel Metering Unit, EGR Cooing Bypass Solenoid Vlave, PTC Heater, Mid Nox Sensor, PM Sensor, Rear Nox Sensor
SENSOR 2 10A E/R Junction Block (RLY. 9 – Cooling Fan Relay),
G4KL: Electronic Thermostat, Oil Control Valve, Purge Control Solenoid Valve, Recirculation Control Solenoid Valve
G6DP: Electronic Thermostat, Oil Pressure Solenoid Valve, Oil Control Valve #1/#2/#3/#4 (Intake/ Exhaust), Recirculation Control Solenoid Valve, Purge Control Solenoid Valve, Variable Exhaust Flap Actuator LFH/RFH
D4FHB: Oil Pump Solenoid Valve, Air Flow Sensor, Crankshaft Position Sensor, Front Nox Sensor, Oil Level Sensor, Stop Lamp Switch
B/ALARM 10A E/R Junction Block (RLY. 2 – Burglar Alarm Horn Relay)
Relay
RLY. 1 Vacuum OIK090033
RLY. 2 Burglar Alarm Horn Relay
RLY. 6 Blower Relay
RLY. 7 Start Relay
RLY. 8 E-CVVT Relay (G4KL)
RLY. 9 Cooling Fan Relay

Trunk Fuse Box Diagram

Genesis G70 - fuse box diagram (Us version) - trunk compartment
Genesis G70 – fuse box diagram (Us version) – trunk compartment
Fuse Name Amps Circuit Protected
DCU 2 15A Dosing Control Module
DCU 3 15A Dosing Control Module
REAR WIPER 15A Wipre RR Relay, Rear Wiper Motor
ECS 15A ECS Unit
POWER TRUNK 30A Power Trunk Module, Power Tailgate Unit
DCU 1 15A Dosing Control Module
FUEL PUMP 20A Fuel Pump Relay
HEAT MIRROR 10A A/C Switch, Driver/Passenger Power Outside Mirror
AMP 2 25A AMP
REAR S/HEAT 20A Rear Seat Warmer Control Module
AMP 1 30A W/O ISG: Fuse – F9
With ISG: Low DC-DC Converter (AMP)
IG1 15A PCB Block (IG1 Relay)
ACC 30A ICU Junction Block (Fuse – F32, F40, F54)
B+ 1 40A ICU Junction Block (IPS5, IPS6, IPS7, IPS8, IPS9, IPS10, Fuse – F20, 30F)
B+ 2 40A ICU Junction Block (IPS1, IPS2, Fuse – F15, F39)
REAR HEATED 30A Rear Heated Relay

Battery junction block

Genesis G70 - fuse box diagram (US version) - battery junction block
Genesis G70 – fuse box diagram (US version) – battery junction block
Fuse Name Amps Circuit Protected
B+ 1 100A Rear Sub Junction Block (ACC Relay, Fuse – F7, F12, F13, F16, F17)
B+ 2 100A Rear Sub Junction Block (DCU Relay, Fuse – F3, F5, F4, F11, F15)
START 40A E/R Junction Block (Fuse – F3), PCB Block (Fuse – F3, F9)
AMS 10A Battery Sensor

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

GAC GS8 (2021 – 2023) – fuse box diagram

GAC GS8 (2021 – 2023) – fuse box diagram

Year of production: 2021. 2022, 2023

Passenger compartment fuse box

GAC GS5 - fuse box diagram - passenger compartment
GAC GS5 – fuse box diagram – passenger compartment
Amps Function / Component
IF01 20A Cigarette lighter
IF02 7.5A Integrated BCM / GWM
IF03 7.5A ACU / DSM ECU
IF04 7.5A Rear USB port/mobile phone WCM / DVR USB port / 2nd-row left seat (USB port)
IF05 20A Trunk 12V auxiliary power supply
IF06
IF07 7.5A GWM / T-BOX ECU
IF08
IF09 20A Left front seat connector (front seat controller)
IF10
IF11 10A GWM / HVAC control unit / left front seat connector (front seat controller) / mobile phone WCM
IF12 15A 8AT TCU
IF13 7.5A Electronic anti-dazzling interior rearview mirror / defogger relay (ER07) / integrated BCM / rear blower relay (ER08)
IF14 20A Integrated BCM
IF15 10A Instrument cluster / HUD
IF16
IF17 10A SRS ECU
IF18 7.5A ECM / 8AT TCU
IF19 7.5A T-BOX ECU / instrument cluster / GWM / integrated BCM
IF20 7.5A 4WD electronic control unit / brake switch
IF21 7.5A ESPI
IF22 7.5A EPS ECU / GSM / shift-by-wire actuator module / HVAC control unit
IF23 7.5A RCP / left front seat connector (front seat controller) / panorama sunroof ECU / front dome lamp assembly
IF24 7.5A 3rd row right connector (3rd row seat controller)
IF25 7.5A ALS switch lighting controller / front combination lamp 1 / rear combination lamp A1 / right front combination lamp (ALS motor) / left front combination lamp (ALS motor) / air quality sensor
IF26 7.5A ACU / HUD / RPA ECU / AVM ECU / APA ECU
IF27
IF28
IF29
IF30 30A 4WD electronic control unit
IF31 20A Integrated BCM (door lock power supply)
IF32 10A Lighting controller / RF receiver module / DSM ECU
IF33 20A Integrated BCM (rear wiper power supply)
IF34 7.5A RLS / right rear BSD ECU / left rear BSD ECU / APA ECU / AVM ECU / clock spring / GSM
IF35 7.5A GWM
IF36 15A Integrated BCM (turn signal lamp power supply)
IF37 30A 8AT TCU / integrated BCM / instrument cluster / HUD
IF38 10A IAL / EPB switch / AV display / RCP
IF39 30A 3rd row right connector (3rd row seat controller)
IF40 20A Integrated BCM (main lighting power supply 1)
IF41 10A OBD DLC / fuel filler cap lock motor / fuel filler cap lock relay (IR05) / OBD DLC 1
IF42 20A Integrated BCM (main lighting power supply 2)
IF43 Dark current switch Left front seat connector (memory seat module) / GWM / HVAC control unit/mobile phone WCM
IF44 30A PLGM
IF45 30A Right front door control module
IF46 30A Left front door control module
IF47 10A Right rear combination lamp A1
IF48 20A ACU
IF49 20A 3rd row right connector (3rd row seat controller)
IF50 10A IG2 power supply
IF51 20A Left front seat connector (front seat controller/ seat adjusting switch)
IF52 20A Right front seat connector (seat adjusting switch power supply)
IF53 15A Integrated BCM (windshield washer motor power supply)
IF54 30A 3rd row right connector (3rd row seat controller)
IF55 20A Panorama sunroof ECU
IF56 20A Panorama sunroof sunshade
IF57
IF58 10A Left rear combination lamp A1
IR01 ACC relay
IR02 Lock-up relay 1
IR03 Lock-up relay 2
IR04 IG1 relay
IR05 Fuel filler cap lock relay
IR06
IR07 IG2 relay

Engine Compartment Fuse Box

GAC GS8 - fuse box diagram - engine compartment
GAC GS8 – fuse box diagram – engine compartment
Amps Function
EF01
EF02
EF03
EF04 7.5A ECM
EF05
EF06
EF07
EF08
EF09
EF10
EF11
EF12 15A Horn relay (ER03) / horn
EF13
EF14 7.5A MRR module / LDW ECU
EF15 30A Shift-by-wire actuator module
EF16 20A Main fuel pump
EF17 20A Wiper/wiper speed control relay (ER11) / wiper relay (ER12)
EF18 7.5A Brake switch
EF19 7.5A Main relay (ER17) / ECM
EF20 30A Shift-by-wire actuator module
EF21 30A Amplifier module
EF22 60A To instrument panel PDU
EF23 40A ESPI
EF24 30A IG1 On
EF25 30A Starter excitation coil
EF26 40A ACC power supply
EF27 40A Front blower
EF28 40A Rear windshield defogger heater
EF29 50A Front seat connector (front seat controller) / GWM / T-BOX ECU / HVAC control unit / mobile phone WCM
EF30
EF31
EF32 60A To instrument panel PDU
EF33
EF34
EF35 10A Cooling fan control module / fuel pump relay (ER14)
EF36 15A Ignition coil 1 / ignition coil 2 / ignition coil 3 / igni-tion coil 4
EF37 15A ECM (main relay power supply)
EF38 10A Upstream oxygen sensor / downstream oxygen sensor / compressor relay (ER04) / starter relay 1 (ER15) / starter relay 2 (ER16)
EF39 10A PCV heater relay (ER10) / PCV heater / canister vent valve / electronic intake air recirculation valve / canister solenoid valve / oil control valve (intake) / oil control valve (exhaust) / electronic thermostat
EF40
EF41
EF42 20A Right front combination lamp 1
EF43
EF44 20A Left front combination lamp 1
EF45 7.5A A/C compressor / blower relay (ER05)
EF46
EF47 15A 2nd row right seat connector (slider motor switch power supply)
EF48 40A/60A ESPI
EF49
EF50 40A Rear blower
ER01
ER02
ER03 Horn relay
ER04 Compressor relay
ER05 Blower relay
ER06
ER07 Defogger relay
ER08 Rear blower relay
ER09
ER10 PCV heater relay
ER11 Wiper speed control relay
ER12 Wiper relay
ER13
ER14 Fuel pump relay
ER15 Starter relay 1
ER16 Starter relay 2
ER17 Main relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

GAC GS8 (2016 – 2021) – fuse box diagram

GAC GS8 (2016 – 2021) – fuse box diagram

Year of production: 2016, 2017, 2018, 2019, 2020. 2021

Passenger compartment fuse box

GAC GS5 - fuse box diagram - passenger compartment
GAC GS5 – fuse box diagram – passenger compartment
Amps Function / Component
IF01 SHORT PIN Short splice
IF02 20A Body control module (lamplight power supply)
IF03 7.5A Gateway Control Unit
IF04 10A Body control module (turn signal power supply)
IF05 15A Four-wheel drive ECU (4WD)
IF06 15A Electric Sunroof / Panorama Sunroof / Seat Motor on Front Passenger’s Side
IF07 10A Rear courtesy lamp / sunroof visor / front left courtesy lamp / rearview mirror folding relay
IF08 10A Filler cap locking relay
IF09 20A Sound System Control Unit
IF10 10A Brake Switch / TCU / Gearshift Lever
IF11 30A DC-DC Converter
IF12
IF13 20A Front right window lifting motor / rear right window lifting motor
IF14 30A ACC Relay / IG1 Relay
IF15 15A Front Left Seat Control Unit
IF16 7.5A OBD Diagnosis Interface
IF17 10A Instrument Cluster / Front Central Console Panel / T-Box Control Unit / Memory Seat Control Unit / Panorama Parking Control Unit
IF18 20A Electric hatchback door control unit
IF19 15A Body Control Module
IF20 20A Front left door window lifting motor / front rear door window lifting motor / left courtesy lamp
IF21 7.5A Electronic stability and parking control module / tire pressure control unit / high brake light / all-terrain selector switch
IF22 20A Body control module (door lock power)
IF23 25A Gearshift Lever, AT Control Unit
IF24 25A Power Amplifier
IF25 7.5A Front 12V auxiliary power supply / rear 12V auxiliary power supply / cigarette lighter
IF26 10A Smart phone wireless charging module / memory seat control unit / front central console panel/ exterior rear-view mirror regulating switch / auxiliary dashboard switch / audio control unit
IF27 20A 220V auxiliary power supply
IF28 7.5A Anion Generator
IF29 10A Air quality sensor / front blower relay / rear blower relay / interior rear-view mirror / PEPS control unit / defog relay
IF30 7.5A Lane Departure Pre-warning Control Unit / Front Left Combination Headlight / Front Right Combination Headlight / Front Pre-warning Brake Control Unit / Steering Wheel Heating Relay / Panorama Parking Control Unit / Radar Reversing Control Unit
IF31 10A Rainfall and light intensity sensor / sunroof control unit / sun shade motor / headlight automatic adjustment control unit / T-BOX control unit / combination instrument / front air conditioner control unit / rear air conditioner control unit / electric hatchback door / front left seat control unit / auxiliary dashboard switch block
IF32 7.5A Instrument Cluster, Front Central Console Panel Switch, Rear Central Console Panel, Body Control Module
IF33 7.5A Air bag restraint system control unit / all-terrain selector switch / tire pressure control unit / electric power steering control unit / electronic stability system and parking control module / brake switch / left instrument panel switch block
IF34 10A Airbag Control Unit
IF35 7.5A Gearshift Lever / Engine Control Unit / AT Control Unit
IF36
IF37 7.5A PEPS Control Unit
IF38 7.5A PEPS Control Unit / Front Left Door Handle / Front Left Door Window Movement Switch / Front Right Door Handle
IF39 7.5A Smart ambient light control unit / front air conditioner control unit / trunk light / electric hatchback door closing switch / electric hatchback door control unit / headlight automatic adjustment control unit / multi-function touch display screen
IF40 20A Front left seat control unit (seat heating power supply)
IF41 15A Body Control Module
IF42
IF43 7.5A Exterior rear-view mirror Heater
IF44 30A Rear defogger
IR01 IG2 Relay
IR02 ACC Relay
IR03 IG1 Relay
IR04 ACC Relay
IR05 Defogging Relay
IR06 Exterior Rear-view Foldable Relay
IR07 Exterior Rear-view Adjusting Relay

Engine Compartment Fuse Box

GAC GS8 - fuse box diagram - engine compartment
GAC GS8 – fuse box diagram – engine compartment
Amps Function
EF01 150A Main Fuse
EF02 80A Electrical Power Steering (EPS) Control Unit
EF03 80A Instrument panel fuse box 2
EF04 50A Electric Fan
EF05 30A Rear Blower
EF06
EF07
EF08 20A Front Blower
EF09 40A Electronic Stability Program and Parking Control Unit 2
EF10 50A Instrument panel fuse box 1
EF11 40A Electronic Stability Program and Parking Control Unit 1
EF12 30A Starter
EF13
EF14
EF15
EF16 15A Steering Wheel Heating Relay
EF17 7.5A A/C Compressor
EF18
EF19
EF20 15A Fuel Pump
EF21 20A Front Wiper
EF22 7.5A Engine Control Unit
EF23 15A Horn
EF24 7.5A Battery Sensor
EF25
EF26 15A High beam light
EF27
EF28 SHORT PIN Short splice
EF29 SHORT PIN Short splice
EF30 10A Fuel Injector
EF31 15A Ignition Coil / Fuel Pump
EF32 10A Engine Control Unit
EF33 10A Oxygen Sensor / A/C Compressor Relay / Electronic Fan Relay / Starter Relay 1
EF34 10A Front Left Low-beam Light
EF35 10A Front Right Low-beam Light
EF36 7.5A Engine Control Unit / DC-DC Converter
EF37 10A Eduction valve / throttle valve / carbon canister solenoid valve / variable cam timing (air inlet end) / variable cam timing (exhaust end)
ER01 Wiper Relay
ER02 Wiper speed regulation relay
ER03 Fuel Pump Relay
ER04 Steering Wheel Heating Relay
ER05
ER06 Horn Relay
ER07 Low-beam Light Relay
ER08 A/C Compressor Relay
ER09 High-beam Light Relay
ER10 Starter Relay 2
ER11 Main Relay
ER12 Electronic Fan Relay
ER13
ER14 Front Blower Relay
ER15 Rear Blower Relay
ER16 Starter Relay 1

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

GAC GS5 (2018 – 2021) – fuse box diagram

GAC GS5 (2018 – 2021) – fuse box diagram

Year of production: 2018, 2019, 2020. 2021

Passenger compartment fuse box

GAC GS5 - fuse box diagram - passenger compartment
GAC GS5 – fuse box diagram – passenger compartment
Amps Function / Component
IF01 20A Front passenger side seat connector (electric adjustment)
IF02 20A Driver side seat connector (electric adjustment)
IF03 20A Power sunroof control unit / panoramic sunroof control unit / sunroof sunshade motor
IF04
IF05 20A Body control module (front right window regulator) / front right window regulator motor
IF06 20A Front left window regulator motor
IF07 20A Body control module (rear right window regulator) / rear right window regulator motor
IF08 20A Body control module (rear left window regulator) / rear left window regulator motor
IF09 7.5A Smartphone wireless charging module
IF10
IF11 15A Body control module (wiper cleaning and rear wiper motor)
IF12 10A Rear-view mirror folding relay / rear-view mirror unfolding relay / memory seat and memory rear-view mirror control unit
IF13
IF14
IF15 30A DCDC Converter
IF16 30A DCDC converter / instrument panel fuse box
IF17 7.5A OBD Diagnosis Interface
IF18 20A Body control module (main light)
IF19 7.5A Gateway Control Unit
IF20
IF21 10A Body control module (turn signal)
IF22
IF23 7.5A PEPS control unit / ignition switch
IF24 20A Body control module (main light)
IF25 7.5A High brake light
IF26 20A Body control module (door lock)
IF27
IF28 SHORT PIN Short pin
IF29 10A Supplemental Restraint System Control Unit
IF30 7.5A 1.5T engine control unit / 1.5T GDI engine control unit / 6AT transmission control unit
IF31 7.5A Gateway control unit / body control module / PEPS control unit / DCDC converter
IF32
IF33 7.5A Steering angular speed sensor / EPS control unit / shift lever module
IF34 7.5A Brake switch / ESP and EPB control module
IF35 7.5A Reversing radar control unit / panoramic parking control unit / forward collision warning braking control module / AUDIO control unit / instrument cluster / T-BOX control unit / front left seat heating module
IF36 7.5A Air quality sensor / anion generator
IF37 7.5A Front left combination light (height adjustment motor) / front right combination light (height adjustment motor) / headlight height adjustment switch
IF38 7.5A Rain and light sensor / electronic anti-glare interior rearview mirror / power sunroof control unit / panoramic sunroof control unit / sunroof sunshade / lane departure warning module / A/C control panel / A/C control unit / instrument panel left switch group / front central console panel
IF39 15A 6AT Transmission control unit
IF40 15A AUDIO control unit
IF41 7.5A Body control module / PEPS control unit
IF42 7.5A USB charging interface / smartphone wireless charging module
IF43 25A Right trunk 12V power supply interface
IF44 7.5A Memory seat and memory rear-view mirror control unit / electric anti-glare interior rear-view mirror / audio control unit / rear-view mirror adjustment switch
IF45 25A Front 12V power supply interface
IF46
IF47 7.5A Blower relay / defogging relay / PEPS control unit
IF48
IF49
IF50 7.5A Body control module / PEPS control unit / 1.5T engine control unit / 1,5T GDI engine control unit / starter relay 1
IF51 7.5A Panoramic parking control unit / blind spot detection main control unit / blind spot detection second control unit
IF52 7.5A T-BOX control unit
IF53 7.5A Front left door handle switch / front right door handle switch
IF54 7.5A Electric hatchback door control unit / electronic anti-glare interior rear-view mirror / electric hatchback door closing switch / A/C control unit / PM2.5 sensor / front left window regulator control unit
IF55 15A Body Control Module
IF56 7.5A A/C control unit / front central console panel / AUDIO display screen / instrument cluster
IR01 IG1 Relay
IR02 IG2 Relay
IR03
IR04
IR05 ACC Relay
IR06 Rear-view mirror folding relay
IR07 Rear-view mirror unfolding relay

Engine Compartment Fuse Box

GAC GS4 - fuse box diagram - engine compartment
GAC GS4 – fuse box diagram – engine compartment
Amps Function
EF01
EF02
EF03
EF04 60A ESP and EPB control module
EF05
EF06 30A Electric Hatchback Door Control Unit
EF07 7.5A A/C Compressor
EF08
EF09
EF10 20A Driver side seat connector (seat heating)
EF11 20A High beam / high beam relay
EF12
EF13 15A Front Left Low Beam
EF14 15A Front Right Low Beam
EF15 7.5A 1.5T engine control unit / 1.5T GDI engine control unit / DCDC converter
EF16 7.5A Left rear-view mirror defogger / right rear-view mirror defogger
EF17
EF18 40A ACC relay / ignition switch / IG1 relay
EF19 7.5A Low Beam Relay
EF20
EF21
EF22
EF23 20A Fuel pump
EF24 25A Wiper
EF25 7.5A Brake switch / 1.5T engine control unit / main relay / starter relay 1 / starter relay 2 / 1.5T GDI engine control unit
EF26 15A Speaker/speaker relay
EF27
EF28
EF29
EF30 10A CSV / variable camshaft timing (intake end) / variable camshaft timing (exhaust end) / discharge valve / throttle valve / carbon canister solenoid valve / oil pump solenoid valve
EF31 10A Compressor relay / front oxygen sensor / rear oxygen sensor
EF32 15A 1.5T engine control unit / 1.5T GDI engine control unit / Clutch position sensor / starter relay 1 / starter relay 2
EF33 15A Ignition coil 1 / ignition coil 2 / ignition coil 3 / ignition coil 4
EF34 10A Electronic fan relay / fuel pump relay / injector 1 / injector 2 / injector 3 / injector 4
EF35 80A EPS control unit
EF36 40A Instrument panel fuse box
EF37 40A Air blower
EF38 40A ESP and EPB control module
EF39 40A Rear defogging heater / rear-view heater
EF40 150A Main fuse
EF41 30A Starter relay 1 / ignition switch / IG2 relay
EF42
EF43 50A Instrument panel fuse box
ER01 Blower Relay
ER02
ER03 Fuel Pump Relay
ER04
ER05 Electronic fan relay
ER06 Wiper speed regulation relay
ER07 Wiper relay
ER08 High Beam Relay
ER09 Defogging relay
ER10
ER11 Low Beam Relay
ER12 Main Relay
ER13 Compressor Relay
ER14
ER15 Starter Relay 1
ER16 Starter Relay 2
ER17
ER18
ER19 Speaker Relay
ER20
ER15 Starter relay 1
ER16 Starter relay 2
ER17 Blower relay
ER18
ER19 Horn relay
ER20 High beam relay

Fuses in battery PDU

GAC GS5 - fuse box - diagram fuse in battery PDU
GAC GS5 – fuse box – diagram fuse in battery PDU
Amps Feature/component
MF1 60A Radiation Fan
MF2 25A Battery Sensor

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

GAC GS4 (2019 – 2023) – fuse box diagram

GAC GS4 (2019 – 2023) – fuse box diagram

Year of production: 2019, 2020. 2021, 2022, 2023

Passenger compartment fuse box

GAC GS4 - fuse box diagram - passenger compartment
GAC GS4 – fuse box diagram – passenger compartment
Amps Function / Component
IF01
IF02 20A Left/right front seat adjustment
IF03 20A Ordinary sunroof / Panoramic sunroof, sunroof sunshade motor
IF04
IF05 20A Right front window
IF06 20A Left front window
IF07 20A Right rear window
IF08 20A Left rear window
IF09 7.5A Wireless control module
IF10
IF11 15A Rear wiper
IF12 10A Rearview mirror folding relay / rearview mirror unfolding relay
IF13
IF14
IF15 30A DC-DC converter
IF16 30A DC-DC converter
IF17 7.5A OBD (on-board diagnostic) interface
IF18 20A Body control module B2
IF19 7.5A PEPS control unit 2, gateway control unit
IF20 7.5A Shift lever control unit
IF21 10A Trunk lamp
IF22
IF23 7.5A PEPS ECU / PEPS switch
IF24 20A Body control module
IF25
IF26 20A Door lock
IF27
IF28 Shunt
IF29 10A Airbag control unit
IF30 7.5A ECM / 6AT TCU
IF31 7.5A Gateway control unit, body control unit / DC-DC converter, PEPS control unit
IF32
IF33 7.5A Gearshift lever control unit / SAS / electric power steering control unit
IF34 7.5A Brake switch, ESP control unit
IF35 7.5A Left headlamp, right headlamp, headlamp leveling switch, AFS control unit
IF36
IF37 7.5A Left/right headlamp, headlamp leveling switch, AFS control unit
IF38 7.5A General sunroof ECU / left front seat electric adjustment / RLS / central control module / plasma generator / left instrument panel switch block / front control panel
IF39 15A 6AT control unit
IF40 15A AV system USB2
IF41 7.5A PEPS ECU / BCM
IF42 7.5A Wireless control module, USB charging
IF43
IF44 7.5A Left front seat electric adjustment, AV system control unit, left exterior rearview mirror
IF45
IF46 20A Cigar lighter
IF47 7.5A Blower relay/defogger relay / auto dimming interior rearview mirror
IF48
IF49
IF50 7.5A Body control module, engine control unit
IF51
IF52 7.5A AFS control unit
IF53 7.5A Left/right front door handle switch
IF54 7.5A Front left seat electric adjustment, automatic lift door system 24V, power tailgate switch, central control module, left front door centralized control switch, PM2.5 sensor
IF55 15A Body control module
IF56 7.5A HCP / AV system / instrument cluster / AVM ECU / LDW ECU / FCP
IR01 IG1 relay
IR02 IG2 relay
IR03
IR04
IR05 ACC relay
IR06 Rearview mirror folding relay
IR07 Rearview mirror unfolding relay
IR06
IR07 IG2 relay

Engine Compartment Fuse Box

GAC GS4 - fuse box diagram - engine compartment
GAC GS4 – fuse box diagram – engine compartment
Amps Function
EF01 50A Left radiator fan relay
EF02
EF03
EF04 40A/60A Electronic stability and parking control module
EF05
EF06 30A Power tailgate control unit
EF07 7.5A Compressor relay
EF08
EF09
EF10 20A Left front VSM
EF11 7.5A Forward radar module
EF12
EF13 15A Left front low beam
EF14 15A Right front low beam
EF15 7.5A Engine control unit, DC-DC converter
EF16 7.5A Left and right rearview mirrors
EF17 40A TCU
EF18 40A IG1, ACC
EF19 7.5A Low beam relay
EF20
EF21
EF22
EF23 20A Fuel pump relay
EF24 20A Wiper relay 1, wiper relay 2
EF25 7.5A Engine control unit, brake switch
EF26 15A Horn relay
EF27 10A TCU, AGS
EF28 15A High beam relay
EF29 7.5A Electronic water pump
EF30 10A Oil pump solenoid valve, intake and exhaust solenoid valve, waste gas valve, relief valve, clutch switch, canister control valve, canister shut-off valve
EF31 10A Upstream oxygen sensor, downstream oxygen sensor
EF32 15A ECM
EF33 15A Ignition coil 1 / ignition coil 2 / ignition coil 3 / ignition coil 4
EF34 10A Fuel pump relay / left cooling fan / right cooling fan
EF35 80A Electric power steering control unit
EF36 40A Instrument panel PDU
EF37 40A Blower relay
EF38 40A ESPI
EF39 40A Defogger relay
EF40 150A Alternator
EF41 30A Starter relay 1, starter relay 2
EF42 50A Right radiator fan relay
EF43 50A Instrument panel PDU
EF44
EF45
EF46
EF47
EF48
EF49
ER01 Left cooling fan
ER02 Right cooling fan
ER03 Fuel pump relay
ER04
ER05 High-speed radiator fan relay
ER06 Wiper relay 1
ER07 Wiper relay 2
ER08
ER09 Defogger relay
ER10
ER11 Low beam relay
ER12 Main relay
ER13 Compressor relay
ER14
ER15 Starter relay 1
ER16 Starter relay 2
ER17 Blower relay
ER18
ER19 Horn relay
ER20 High beam relay

Fuses in battery PDU

GAC GS4 - fuse box - diagram fuse in battery PDU
GAC GS4 – fuse box – diagram fuse in battery PDU
Amps Feature/component
PF01 300A Starter / engine compartment PDU, alternator
PF02 7.5A Battery sensor

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
