Oldsmobile Eighty Eight (1998) – fuse box diagram

Posted on 28 July 201719 August 2019 by admin

Oldsmobile Eighty Eight (1998) – fuse box diagram

Year of production: 1998

Driver’s Side Fuse Block

The left side fuse panel is located to the left of the steering wheel, under the instrument panel.

Oldsmobile Eighty Eight - fuse box - driver's side fuse panel — Oldsmobile Eighty Eight –
fuse box – driver’s side fuse panel

Position	Description
1	Circuit Breaker
2	Not Used
3	Power Seats
4	Not Used
5	Not Used
1A	PASS-Key
2A	Spare
3A	Not Used
4A	Not Used
5A	Ignition (Run), Automatic A/C Control, Cruise Control
6A	Courtesy Lights, Power Mirrors
7A	Not Used
8A	Not Used
9A	Not Used
1B	Turn Signal, Back-up Lamps, Brake-Transaxle Shift Interlock
2B	Spare
3B	Not Used
4B	Not Used
5B	Anti-Lock Brake System, Electronic Level Control
6B	Brake and Hazard Lamps
7B	Not Used
8B	Interior Lighting
9B	Electronic Level Control
1C	Air Bag System
2C	Spare
3C	Not Used
4C	Not Used
5C	Cooling Fans, Transaxle
6C	Parking Lamps
7C	Not Used
8C	Not Used
9C	Battery, Radio, Cluster
1D	Ignition (Run/Crank), Chime, Cluster
2D	Spare
3D	Not Used
4D	Not Used
5D	Base A/C
6D	Fog Lamps
7D	Transaxle
8D	Radio
9D	Not Used
1E	Auxiliary Outlet(s)
2E	Air Bag System, PASS-Key
3E	Ignition (Off/Unlock)
4E	Not Used
5E	Rear Defog
6E	Misc Engine Non-OBDI I
7E	Not Used
8E	Wipers, Washer
9E	Not Used

Passenger’s Side Fuse Block

Additional fuses are located in the relay center, on the far right side, below the instrument panel.

Oldsmobile Eighty Eight - fuse box - passenger's side fuse panel — Oldsmobile Eighty Eight –
fuse box – passenger’s side fuse panel

Fuse	Usage
1	Door Locks
2	Tmnk Release, RAC
3	Horns
4	Not Used
5	Miscellaneous Engines Controls
6	Fuel Pump
7	Injectors
8	Powertrain Control Module
9	Not Used
10	Not Used
11	A/C Programmer
12	Not Used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Eighty Eight (1996 – 1997) – fuse box diagram

Posted on 28 July 201719 August 2019 by admin

Oldsmobile Eighty Eight (1996 – 1997) – fuse box diagram

Year of production: 1996, 1997

Driver’s Side Fuse Block

The left side fuse panel is located to the left of the steering wheel, under the instrument panel.

Position	Description
1	Circuit Breaker
2	Not Used
3	Power Seats
4	Not Used
5	Not Used
1A	PASS-Key
2A	Spare
3A	Not Used
4A	Not Used
5A	Ignition (Run), Automatic A/C Control, Cruise Control
6A	Courtesy Lights, Power Mirrors
7A	Not Used
8A	Not Used
9A	Cigar Lighter
1B	Turn Signal, Back-up Lamps, Brake-Transaxle Shift Interlock
2B	Spare
3B	Not Used
4B	Not Used
5B	Anti-Lock Brake System, Electronic Level Control
6B	Brake and Hazard Lamps
7B	Not Used
8B	Interior Lighting
9B	Electronic Level Control
1C	Air Bag System
2C	Spare
3C	Not Used
4C	Not Used
5C	Cooling Fans, Transaxle
6C	Parking Lamps
7C	Not Used
8C	Not Used
9C	(Battery) Chime, Radio, Cluster
1D	Ignition (Run/Crank), Chime, Cluster
2D	Spare
3D	Not Used
4D	Not Used
5D	Base A/C
6D	Fog Lamps
7D	Not Used
8D	Radio
9D	Not Used
1E	Auxiliary Outlet(s)
2E	Air Bag System, PASS-Key
3E	Ignition (Off/Unlock)
4E	Not Used
5E	Rear Defog
6E	Not Used
7E	Not Used
8E	Wipers, Washer
9E	Not Used

Passenger’s Side Fuse Block

Additional fuses are located in the relay center, on the far right side, below the instrument panel.

Fuse	Usage
1	Door Locks
2	Tmnk Release, RAC
3	Horns
4	Not Used
5	Miscellaneous Engines Controls
6	Fuel Pump
7	Injectors
8	Powertrain Control Module
9	Not Used
10	Not Used
11	A/C Programmer
12	Not Used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Eighty Eight (1995) – fuse box diagram

Posted on 28 July 201719 August 2019 by admin

Oldsmobile Eighty Eight (1995) – fuse box diagram

Year of production: 1995

Left Side Fuse Panel

The left side fuse panel is located to the left of the steering wheel, under the instrument panel.

Position	Description
A	Circuit Breaker-Power Windows
B	Not Used
C	Power Seats
D	Not Used
E	Not Used
1A	Start-up Signal – Air Bag
2A	Spare
3A	Not Used
4A	Interior Lamps
5A	Ignition (Run), Automatic A/C Control, Base Cluster
6A	Courtesy Lights, Power Mirrors
7A	Not Used
8A	Not Used
9A	Cigar Lighter
1B	Turn Signal, Back-up Lights, Cornering Lights, Brake- Transaxle Shift Interlock
2B	Spare
3B	Not Used
4B	Not Used
5B	Anti-Lock Brake System
6B	Brake and Hazard Lamps
7B	Not Used
8B	Not Used
9B	Electronic Level Control
1C	Air Bag
2C	Spare
3C	Not Used
4C	Not Used
5C	Cooling Fans, Transaxle
6C	Parking Lamps
7C	Not Used
8C	Not Used
9C	(Battery) Chime, Radio, Cluster
1D	Ignition (Run/Crank), Chime, Cluster
2D	Spare
3D	Heater Mirror
4D	Not Used
5D	Base A/C
6D	Fog Lamps
7D	Not Used
8D	Radio
9D	Not Used
1E	Auxiliary Outlet(s)
2E	Not Used
3E	Ignition (Off/Unlock)
4E	Not Used
5E	Not Used
6E	Not Used
7E	Not Used
8E	Wipers, Washer
9E	Rear Defog

Right Side Fuse Panel

Additional fuses are located in the relay center, on the far right side, below the instrument panel.

Fuse	Usage
1	Door Locks
2	Antenna, Lock Switch, Trunk Release
3	Horns
4	Not Used
5	Cruise Control, Misc. Engines Controls
6	Fuel Pump
7	Injectors
8	Powertrain Control Module, PASS-Key II
9	A/C Programmer
10	Not Used
11	Not Used
12	Not Used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Eighty Eight (1994) – fuse box diagram

Posted on 27 July 201719 August 2019 by admin

Oldsmobile Eighty Eight (1994) – fuse box diagram

Year of production: 1994

Left Side Fuse Panel

Position	Ampere rating [A]	Description
A	30	Circuit Breaker-Power Windows
B	—	Not Used
C	25	Power Seats
D	—	Not Used
E	—	Not Used
1A	10	Start-up Signal – Air Bag
2A	10	Spare
3A	—	Not Used
4A	10	Interior Lamps
5A	10	Ignition (Run), Automatic A/C Control
6A	15	Courtesy Lights, Power Mirrors
7A	—	Not Used
8A	—	Not Used
9A	15	Cigar Lighter
1B	20	Turn Signal, Back-up Lights, Cornering Lights, Brake- Transaxle Shift Interlock
2B	15	Spare
3B	—	Not Used
4B	—	Not Used
5B	10	Anti-Lock Brake System
6B	20	Brake and Hazard Lamps
7B	—	Not Used
8B	—	Not Used
9B	—	Not Used
1C	10	Air Bag
2C	20	Spare
3C	—	Not Used
4C	—	Not Used
5C	10	Cooling Fans, Transaxle
6C	15	Parking Lamps
7C	—	Not Used
8C	—	Not Used
9C	10	(Battery) Chime, Radio, Cluster
1D	15	Ignition (Run/Crank), Chime, Cluster
2D	25	Spare
3D	—	Not Used
4D	—	Not Used
5D	25	Base A/C
6D	—	Not Used
7D	—	Not Used
8D	10	Radio
9D	—	Not Used
1E	20	Auxiliary Outlet(s)
2E	—	Not Used
3E	10	Ignition (Off/Unlocl<)
4E	—	Not Used
5E	—	Not Used
6E	—	Not Used
7E	—	Not Used
8E	25	Wipers, Washer
9E	30	Rear Defog

Right Side Fuse Panel

Additional fuses are located in the relay center, on the far right side, below the instrument panel.

Fuse	Ampere rating [A]	Usage
1	20	Door Locks
2	15	Cruise Control, Misc. Engine Controls
3	—	Not Used
4	15	Power Antenna, Lock Switch
5	20	Fuel Pump
6	—	Not Used
7	15	Horns
8	10	Injectors
9	10	A/C Programmer-
10	—	Not Used
11	10	Powertrain Control Module, PASS-Key II
12	—	Not Used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Eighty Eight (1993) – fuse box diagram

Posted on 27 July 201719 August 2019 by admin

Oldsmobile Eighty Eight (1993) – fuse box diagram

Year of production: 1993

Left Side Fuse Panel

Fuse	Ampere rating [A]	Description
1	10	Start-up Signal-Air Bag
2	20	Trunk ReleaseIBack-up Lights/Brake-Shift Interlock (with Retained Accessory Power Option)
3	30	Breaker-Power Window
4	30	Breaker-Power Accessory
5	—	Not Used
6	15	Ignition/Illuminated Entry/Keyless Entry/Retained Accessory Controlhstrument Cluster
7	10	Supplemental Inflatable Restraint( Air Bag)
8	20	Cornering Lights/- Signals/(Back-up Lightshake-Shift Interlock without Retained Accessory Power Option)
9	10	Spare
10	15	Spare
11	15	Battery/Radiohstrument Panel/Oil Level
12	20	Electronic Level Control
13	20	Brake/Hazard Warning Flashers
14	15	parking Lights
15	15	Courtesy LightdPower Mirrors
16	10	Cooling FadTransaxle
17	25	Air Conditioning
18	—	Not Used
19	10	Anti-Lock Brake System
20	10	Low Coolant/Light MonitodOil Level
21	10	Instrument Panel Lighting
22	20	Spare
23	25	Spare
24	10	Ignition/Radio
25	25	WipedWasher

Right Side Fuse Panel

Additional fuses are located in the relay center, on the far right side, below the instrument panel.

Fuse	Ampere rating [A]	Usage
1	10	A/C Programmer
2	—	Blank
3	15	Power AntenndDoor Locks, Accessory Power Outlets
4	20	Horns
5	15	Engine Relays and Miscellaneous Engine Content
6	20	Fuel Pump
7	10	Fuel Injectors
8	10	Engine Control Module/PASS-Key II

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Cutlass Supreme (1997) – fuse box diagram

Posted on 27 July 201719 August 2019 by admin

Oldsmobile Cutlass Supreme (1997) – fuse box diagram

Year of production: 1997

Instrument Panel Fuse Block

Oldsmobile Cutlass Supreme - fuse box - instrument panel — Oldsmobile Cutlass Supreme – fuse box –
instrument panel

Circuit Breaker	Description
C	Power, Windows
D	Power Seats

Fuse	Description
1	CIGAR LIGHTER — Instrument Panel Cigar Lighter
3	DRL MDL
4	HVAC#2– HVAC Control Assembly, Solenoid Box
5	HAZARD FLASHER
6	POWER ACCESSORY #2 — Sunroof Control Unit
7	LOCK CONTROL — Door Lock Relay
10	I/P ELECTRONICS BATTERY FEED — Chime Module, Electronic Brake Control Module (EBCM), Theft Deterrent Module, Radio, Radio Amplifier, Trip Computer
11	STARTER MOTOR
12	ANTI-THEFT — Theft Deterrent Module
13	AHS– Electronic Brake Control Module (EBCM), ABS Relay
14	HVAC BLOWER-MOTOR — Blower Motor Relay
15	HVAC #1 — Air Temperature Valve Motor, Trip Computer, Daytime Running Lamps Module (with DRL), HVAC Control Assembly, Multifunction Lever Cruise Control Switch
16	REAR DEFOG — HVAC Control Assembly Rear Window Defogger Switch
19	POWER ACCESSORY #1– Antenna Relay, Power Mirror Switch, Door Lock Switches, Door Handle Switches
21	AIRB AG — Sensing and Diagnostic Module (SDM)
23	STOPLAMPS — TCCBrake Switch
24	CRUISE CONTROL
28	CTSY LAMPS — Vanity Mirrors, I/P Courtesy Lamps, I/P Compartment Lamp, and Reading Lamp, US Lighted Rearview Mirror, Dome and Reading Lamp, Quarter Courtesy Lamps
29	WIPER — Wiper Switch
30	TURN SIGNAL — Turn, Signal Flasher
32	POWER LOCKS — Door Lock-Relay
37	AUXILIARY POWER
38	RADIO — Radio, Steering Wheel Radio Switches
39	I/P ELECTRONICS IGNITION FEED — Headlamp Switch, Cruise Control Cut-Out Switch, Sensing and Diagnostic Module – (SDM), TCCBrake Switch, Instrument Cluster, Chime Module, Second Gear Start Switch, Head-Up Display (HUD) Switch, Daytime Running Lamps Module (with DRL)

Underhood Electrical Center – Passenger Side

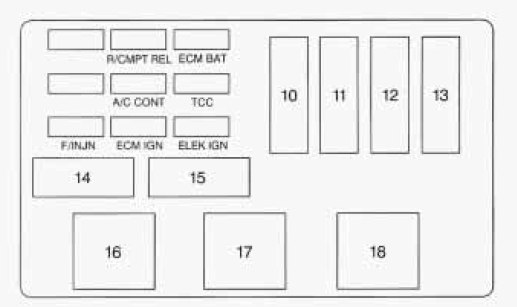

Oldsmobile Cutlass Supreme - fuse box - passengers side underhood electrical center — Oldsmobile Cutlass Supreme – fuse box –
passengers side underhood electrical center

Fuse	Usage
R/CMPT REL	Remote Trunk Release, Back-up Lamps
ECM BAT	Powertrain ConuoJ Module (PCM) Fuel Pump, Fud Pump Relay, Fan Cont#1 Relay
ENG EMIS	Fan Cont #2 Relay, A/C CMPR Relay (VIN M only)
TCC	Automatic Transaxle, Transaxle Range Switch (VIN M only)
F/INJN	Fuel Injectors
ECM IGN	Powertrain Control Module (PCM), Mass Air Flow (MAF) Sensor (VIN X only), EGR, CCP, Oxygen Sensor, VAC CAN SW
ELEK IGN	Electronic Ignition (El) Control Module
10	I/P Fuse Block
11	FAN CONT #1 Relay
12	Passenger Side Underhood Electrical Center and UP Fuse Blocks: Fuses 5, 14,23 and 32
13	FAN CONT #2:Relay andIT P Fuse Block Fuse 16, Power Seat Circuit Breaker “D”

Relay	Usage
14	FUEL PUMP
15	A/C CMPR
16	FAN CONT #2 — Secondary Cooling Fan (Passenger Side)
17	FAN CONT #1 — Primary Cooling Fan (Driver Side)
18	Ignition Switch Relay

Underhood Electrical Center — Driver Side

Oldsmobile Cutlass Supreme - fuse box - driver side underhood electrical center — Oldsmobile Cutlass Supreme – fuse box –
driver side underhood electrical center

Fuse	Usage
FOG LPS	Fog L.amps
PARK LPS	Headlamp Switch
HORN	Horn Relay, Underhood Lamp
VA_R PIS	EVO Steering
10	IGN SW2 — I/P Fuse Block: PWR WDO and Circuit Breaker ”D”‘; Passenger Side Underhood Electrical Center: TCC and ENG EMIS Fuses
11	IGN SW1 — I/P Fuse Block: Radio, Wiper, HVAC, ABS and Turn Signal Fuses; Passenger Side Underhood Electrical Center: F/IJN, ECM IGN and ELEK IGN Fuses
12	HD L PS — Circuit Breaker to Headlamp Switch
13	ABS — ABS Relay

Relay	Circuity
14	ABS — Anti-lock Brake System
15	POG LPS
16	HORN

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Cutlass Supreme (1996) – fuse box diagram

Posted on 27 July 201719 August 2019 by admin

Oldsmobile Cutlass Supreme (1996) – fuse box diagram

Year of production: 1996

Instrument Panel Fuse Block

Circuit Breaker	Description
C	Power, Windows
D	Power Seats

Fuse	Description
1	CIGAR LIGHTER — Instrument Panel Cigar Lighter
3	DRL MDL
4	HVAC#2– HVAC Control Assembly, Solenoid Box
5	HAZARD FLASHER
6	POWER ACCESSORY #2 — Sunroof Control Unit
7	LOCK CONTROL — Door Lock Relay
10	I/P ELECTRONICS BATTERY FEED — Chime Module, Electronic Brake Control Module (EBCM), Theft Deterrent Module, Radio, Radio Amplifier, Trip Computer
11	STARTER MOTOR
12	ANTI-THEFT — Theft Deterrent Module
13	AHS– Electronic Brake Control Module (EBCM), ABS Relay
14	HVAC BLOWER-MOTOR — Blower Motor Relay
15	HVAC #1 — Air Temperature Valve Motor, Trip Computer, Daytime Running Lamps Module (with DRL), HVAC Control Assembly, Multifunction Lever Cruise Control Switch
16	REAR DEFOG — HVAC Control Assembly Rear Window Defogger Switch
19	POWER ACCESSORY #1– Antenna Relay, Power Mirror Switch, Door Lock Switches, Door Handle Switches
21	AIRB AG — Sensing and Diagnostic Module (SDM)
23	STOPLAMPS — TCCBrake Switch
24	CRUISE CONTROL
28	CTSY LAMPS — Vanity Mirrors, I/P Courtesy Lamps, I/P Compartment Lamp, and Reading Lamp, US Lighted Rearview Mirror, Dome and Reading Lamp, Quarter Courtesy Lamps
29	WIPER — Wiper Switch
30	TURN SIGNAL — Turn, Signal Flasher
32	POWER LOCKS — Door Lock-Relay
33	ABS – Electronic Brake Control Module(EBCM), ABS Relay
37	AUXILIARY POWER
38	RADIO — Radio, Steering Wheel Radio Switches
39	I/P ELECTRONICS IGNITION FEED — Headlamp Switch, Cruise Control Cut-Out Switch, Sensing and Diagnostic Module – (SDM), TCCBrake Switch, Instrument Cluster, Chime Module, Second Gear Start Switch, Head-Up Display (HUD) Switch, Daytime Running Lamps Module (with DRL)

Underhood Electrical Center – Passenger Side

Fuse	Usage
A.I.R. PMP	A.I.R. Relay
R/CMPT REL	Remntl! Trunk Release, Backup Lamps
ECM BAT	Powertrain ConuoJ Module (PCM) Fuel Pump, Fud Pump Relay, Fan Cont#1 Relay
A/C CONT	A/C CMPR Relay (VIN M only)
TCC	Automatic Transaxle, Transaxle Range Switch (VIN M only)
F/INJN	Fuel Injectors
ECM IGN	Powertrain Control Module (PCM), Mass Air Flow (MAF) Sensor (VIN X only), EGR, CCP, Oxy Sensor, Vac. Can. Switch
ELEK IGN	Electronic Ignition (El) Control Module
10	I/P Fuse Block
11	FAN CONT #1 Relay
12	Passenger Side Underhood Electrical Center and UP Fuse Blocks: Fuses 5, 14,23 and 32
13	FAN CONT #2:Relay andIT P Fuse Block Fuse 16, Power Seat Circuit Breaker “D”

Relay	Usage
14	FUEL PUMP
15	A/C CMPR
16	FAN CONT #2 — Secondary Cooling Fan (Passenger Side)
17	FAN CONT #1 — Primary Cooling Fan (Driver Side)
18	Ignition Switch Relay

Underhood Electrical Center — Driver Side

Fuse	Usage
FOG LPS	Fog L.amps
PARK LPS	Headlamp Switch
HORN	Horn Relay, Underhood Lamp
VA_R PIS	EVO Steering
ABS	Anti-Lock Brake System
10	IGN SW2 — I/P Fuse Block: PWR WDO and Circuit Breaker ”D”‘; Passenger Side Underhood Electrical Center: TCC and ENG EMIS Fuses
11	IGN SW1 — I/P Fuse Block: Radio, Wiper, HVAC, ABS and Turn Signal Fuses; Passenger Side Underhood Electrical Center: F/IJN, ECM IGN and ELEK IGN Fuses
12	HD L PS — Circuit Breaker to Headlamp Switch
13	ABS — ABS Relay

Relay	Circuity
14	ABS — Anti-lock Brake System
15	POG LPS
16	HORN

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Cutlass Supreme (1995) – fuse box diagram

Posted on 27 July 201719 August 2019 by admin

Oldsmobile Cutlass Supreme (1995) – fuse box diagram

Year of production: 1995

Instrument Panel Fuse Block

Circuit Breaker	Description
C	Power, Windows
D	Power Seats

Fuse	Description
1	CIGAR LIGHTER — Instrument Panel Cigar Lighter
5	HAZARD FLASHER
6	POWER ACCESSORY #2 — Sunroof Control Unit
7	LOCK CONTROL — Door Lock Relay
10	I/P ELECTRONICS BATTERY FEED — Chime Module, Electronic Brake Control Module (EBCM), Theft Deterrent Module, Radio, Radio Amplifier, Trip Computer
11	STARTER MOTOR
12	ANTI-THEFT — Theft Deterrent Module
14	HVAC BLOWER-MOTOR — Blower Motor Relay
15	HVAC #1 — Air Temperature Valve Motor, Trip Computer, Daytime Running Lamps Module (with DRL), HVAC Control Assembly, Multifunction Lever Cruise Control Switch
16	REAR DEFOG — HVAC Control Assembly Rear Window Defogger Switch
19	POWER ACCESSORY #1– Antenna Relay, Power Mirror Switch, Door Lock Switches, Door Handle Switches
21	AIRB AG — Sensing and Diagnostic Module (SDM)
23	STOPLAMPS — TCCBrake Switch
24	HVAC #2 .– HVAC Control Assembly, Solenoid Box
28	CTSY LAMPS — Vanity Mirrors, I/P Courtesy Lamps, I/P Compartment Lamp, and Reading Lamp, US Lighted Rearview Mirror, Dome and Reading Lamp, Quarter Courtesy Lamps
29	WIPER — Wiper Switch
30	TURN SIGNAL — Turn, Signal Flasher
32	POWER LOCKS — Door Lock-Relay
33	ABS – Electronic Brake Control Module(EBCM), ABS Relay
37	AUXILIARY POWER
38	RADIO — Radio, Steering Wheel Radio Switches
39	I/P ELECTRONICS IGNITION FEED — Headlamp Switch, Cruise Control Cut-Out Switch, Sensing and Diagnostic Module – (SDM), TCCBrake Switch, Instrument Cluster, Chime Module, Second Gear Start Switch, Head-Up Display (HUD) Switch, Daytime Running Lamps Module (with DRL)

Underhood Electrical Center – Passenger Side

Fuse	Usage
R/CMPT REL	Remntl! Trunk Release, Backup Lamps
ECM BAT	Powertrain ConuoJ Module (PCM) Fuel Pump, Fud Pump Relay, Fan Cont#1 Relay
TCC	Automatic Transaxle, Transaxle Range Switch (VIN M only)
ENG EMIS	Fan Cont #2 Relay A/C CMPR Relay (VIN M only)
F/INJN	Fuel [njcctoi!’S
ECM IGN	Powertrain Control Module (PCM), Mass Air Flow (MAF) Sensor (VIN X only), EGR, CCP, Oxy Sensor, Vac. Can. Switch
ELEK IGN	Electronic Ignition (El) Control Module
10	I/P Fuse Block
11	FAN CONT #1 Relay
12	Passenger Side Underhood Electrical Center and UP Fuse Blocks: Fuses 5, 14,23 and 32
13	FAN CONT #2:Relay andIT P Fuse Block Fuse 16, Power Seat Circuit Breaker “D”

Relay	Usage
14	FUEL PUMP
15	A/C CMPR
16	FAN CONT #2 — Secondary Cooling Fan (Passenger Side)
17	FAN CONT #1 — Primary Cooling Fan (Driver Side)
18	Ignition Switch Relay

Underhood Electrical Center — Driver Side

Fuse	Usage
FOG LPS	Fog L.amps
PARK LPS	Headlamp Switch
HORN	Horn Relay, Underhood Lamp
VA_R PIS	EVO Steering
10	IGN SW2 — I/P Fuse Block: PWR WDO and Circuit Breaker ”D”‘; Passenger Side Underhood Electrical Center: TCC and ENG EMIS Fuses
11	IGN SW1 — I/P Fuse Block: Radio, Wiper, HVAC, ABS and Turn Signal Fuses; Passenger Side Underhood Electrical Center: F/IJN, ECM IGN and ELEK IGN Fuses
12	HD L PS — Circuit Breaker to Headlamp Switcb
13	ABS — ABS Relay

Relay	Circuity
14	ABS — Anti-lock Brake System
15	POG LPS
16	HORN

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Cutlass Supreme (1994) – fuse box diagram

Posted on 25 July 201719 August 2019 by admin

Oldsmobile Cutlass Supreme (1994) – fuse box diagram

Year of production: 1994

Glove Box Fuse Block

Fuse	Ampere rating [A]	Usage
1	10	Radio & Clock
2	10	Rear Defogger Timer Relay; Instrument Cluster; Chime Module; Cruise Control; DIU Module (Canada); ABS Lamp Driver Module; SIR
3	20	Blower Motor
4	25	Windshield Wiper & Washer
5	10	Turn Signals/Flasher
6	15	Brake Lights
7	10	Courtesy, Glove Box, Underhood, Trunk, Header Lights; Lighted Inside Rearview Mirror
8	15	SIR
9	20	Door Locks
10	15	Cigar Lighter
11	5	Vehicle Anti-Theft System (Pass-I Key I)
12	15	Blower Control Switch; Solenoid
13	15	Radio & Clock; Passive Restraint Lockout, Passive Restraint Timer; Chime Module; ABSV; ATS
14	15	Cluster; HVAC Controls; HUD; DRL
15	5	ABS Control Module
16	10	Power Door Lock Switch; Seat Belts; Power Outside Mirrors; Power Antenna
17	—	Not Used
18	5	SIR (crank)

Component Center

Fuse	Ampere rating [A]	Usage
1		Defogger Timer Relay
2		Air Conditioner Blower Relay (HI) (Electronic AC only)
3		Air Conditioner Blower Relay (LO) (Electronic AC only)
4	30	Rear Defogger Circuit Breaker
5	30	Power Accessories Circuit Breaker
6	30	Power Windows and Sunroof Circuit Breaker
7		Not Used
8	20	Lock Control
9		Chime Module
10		Hazard Flasher

Passenger Side Underhood Electrical Center

Fuse	Ampere rating [A]	Usage
1	60	Instrument Panel
2	60	Instrument Panel
3	60	Cooling Fan
4	60	Instrument Panel
5	20	ECM; Fuel Pump
6	15	Trunk Release
7		Not Used
8	15	Cruise Control; Air Conditioner (3.4L Only)
9	15	Engine Emission Controls
10	15	Transmission Torque Converter Clutch
11	15	Electronic Ignition System
12	15	ECM
13	15	Fuel Injectors

Relay	Usage
14	Air Conditioner Compressor
15	Fuel Pump
16	Not Used
17	Driver Side Engine Cooling Fan Control
18	Passenger Side Engine Cooling Fan Control

Driver Side Underhood Electrical Center

Fuse	Ampere rating [A]	Usage
1	60	ABS
2	30	Headlamp Circuit Breaker
3	40	Ignition Switch
4	40	Ignition Switch
5		Not Used
6		Not Used
7		Not Used
8	15	Horn
9	25	Park Lamps
10	200	Fog Lamps
11		Not Used
12		Not Used
13		Not Used

Relay	Circuity
15	Horn
16	Fog Lights
17	ABS

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Cutlass Supreme (1993) – fuse box diagram

Posted on 25 July 201719 August 2019 by admin

Oldsmobile Cutlass Supreme (1993) – fuse box diagram

Year of production: 1993

Glove Box Fuse Block

Fuse	Ampere rating [A]	Usage
1	10	Radio & Clock
2	15	Radio & Clock; Passive Restraint Lockout, Passive Restraint Timer; DID, Cluster
3	10	Door Lock; Courtesy, Glove Box, Underhood, Trunk, Header Lights; Lighted Inside Rearview Mirror, Outside Power Mirrors
4	25	Windshield Wiper & Washer
5	10	Temp Door Motor; DRL Module (Canada) ; Instrument Cluster, HUD Dimmer, HUD Module
6	15	Brake Lights; ABS Control Module; Chime Module
7	15	ECM
8	20	Taillights; HVAC; Chime Module; DRL Module( Canada)
9	15	Hazard Warning Flasher
10	10	Rear Defogger Timer RelayI;n strument Cluster; Chime Module; Cruise Control; DRL Module (Canada); Lamp Driver Module; ABS Lamp Driver
11	5	Instrument Panel, Console, Switch Lights
12	15	Cigarette Lighter
13	10	Turn Signals/Flasher; Computer Center
14	—	Not Used
15	10	ABS Control Module
16	—	Not Used
17	—	Not Used
18	20	Blower Motor, SOL Box

Component Center

Fuse	Ampere rating [A]	Usage
1		Defogger Timer Relay
2		Air Conditioner Blower Relay (HI
3		onditioner Blower Relay (LO)
4	30	Rear Defogger Circuit Breaker
5	30	Power Accessories Circuit Breaker
6	30	Power Windows and Sunroof Circuit Breaker
7	20	Headlight Circuit Breaker
8		Not Used
9		Chime Module
10		Hazard Flasher

Passenger Side Underhood Electrical Center

Fuse	Ampere rating [A]	Usage
1		Not Used
2	15	Trugk Release (Auto)
3	20	ECM; Fuel Pump
4		Not Used
5		Not Used
6		Not Used
7	10	Direct Ignition System
8	10	Fuel Injectors
9		Not Used
10	15	NC Coil, Secondary Cooling Fan, Generator, Digital EGR, Purge Canister
11	10	TCC, Primary Cooling Fan (3.1L)

Relay	Ampere rating [A]	Usage
12		Fuel Pump
13		AIR Pump (3.4L)
14		Secondary Cooling Fan
15		Primary Cooling Fan
16		A/C Clutch Coil

Fusible element	Ampere rating [A]	Usage
17	60	Starter Solenoid
18	30	Cooling Fan (3.1L)
18	60	Cooling Fan (3.4L)
19	60	Blower Motor
20	60	Cooling Fan
21	30	Fuse Block

Driver Side Underhood Electrical Center

Fuse	Ampere rating [A]	Usage
1	—	Not Used
2	—	Not Used
3	60	ABS Controller
4	50	Exterior Lights
5	15	Horn
6	5	ABS Control Module
7	—	Not Used
8	—	Not Used
9	—	Not Used
10	15	Fog Lights
11	—	Not Used
12	—	Not Used
13	—	Not Used
14	—	Not Used

Relay	Ampere rating [A]	Usage
15		Horn
16		Fog Lights
17		ABS

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
