Honda Accord (2006) – fuse box diagram

Posted on by admin

Honda Accord (2006) – fuse box diagram

Year of production: 2006

Fuse block (Engine compartment)

Honda Accord - fuse box - engine compartment
Honda Accord – fuse box –
engine compartment
Number Ampere rating [A] Circuits Protected
1 10 Left Headlight Low
2 (30) (Rear Defroster Coil)*1
3 10 Left Headlight Hi
4 15 Small Light
5 10 Right Headlight Hi
6 10 Right Headlight Low
7 7,5 Back Up
8 15 FI ECU
9 20 Condenser fan
10 — Not Used
11 20 Cooling Fan*2
30 Cooling Fan*3
12 7,5 MG. Clutch
13 20 Horn, Stop
14 40 Rear Defroster
15 40 Back Up, ACC
16 15 Hazard
17 30 ABS Motor*2
30 TCS Motor*3
18 20 ABS F/S*2
40* TCS Motor*3
19 40 Driver’s Power Seat
20 40 Passenger’s Power Seat*4
21 40 Heater Motor
22 100 Battery
— Not Used
23 50 +B IGI Main
50 Power Window Main
*1 – U.S. EX, EX-L LX-V6 and EX-V6 Canadian SE, EX-L, SE-V6 and EX-V6
*2 – U.S. VP, LX, SE, EX and EX-L Canadian DX-G, SE and EX-L
*3 – U.S. LX-V6 and EX-V6 Canadian SE-V6 and EX-V6
*4 – Except Canadian DX-G

Interior fuse panel

Honda Accord - fuse box - interior panel
Honda Accord – fuse box –
interior panel
Description Ampere rating [A] Circuits Protected
1 (15) Drive by Wire
2 15 Ignition Coil
3 (10) Day Light
4 15 Laf Heater
5 10 Radio
6 7,5 Interior Light
7 10 Back-Up Lights
8 20 Door Lock
9 15 Front Accessory Sockets
10 7,5 IG OPDS
11 30 IG Wiper
12 — Not Used
13 (20) Passenger’s Power Seat Recline*2
14 (20) Driver’s Power Seat Slide*2
15 (20) Heated Seat*2
16 (20) Driver’s Power Seat Recline*2
17 (20) Passenger’s Power Seat Slide*2
18 15 IG ACG
19 15 IG Fuel Pump
20 7,5 IG Washer
21 7,5 IG Meter
22 10 IG SRS
23 7,5 IGP (PGM-FI ECU)
24 20 Left Rear Power Window
25 20 Right Rear Power Window
26 20 Passenger’s Power Window
27 20 Driver’s Power Window
28 (20) Moonroof*3
29 — Not Used
30 7,5 IG HAC
31 — Not Used
32 7,5 ACC
33 7,5 HAC OP
*1  :  U.S. models
*2 : U.S. EX, EX-L, LX-V6 and EX-V6 Canadian EX-L, SE-V6 and EX-V6
*3 : U.S. EX, EX-L, LX-V6 and EX-V6 Canadian SE, EX-L, SE-V6 and EX-V6

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Honda Accord (2005) – fuse box diagram

Posted on by admin

Honda Accord (2005) – fuse box diagram

Year of production: 2005

Fuse block (Engine compartment)

Honda Accord - fuse box - engine compartment
Honda Accord – fuse box –
engine compartment
Number Ampere rating [A] Circuits Protected
1 10 Left Headlight Low Beam
2 (30) (Rear Defroster Coil)
3 10 Left Headlight High Beam
4 15 Small Light
5 10 Right Headlight High Beam
6 10 Right Headlight Low Beam
7 7,5 Back Up
8 15 FI ECU
9 20 Condenser fan
10 — Not Used
11 20 Cooling Fan
30* Cooling Fan
12 7,5 MG. Clutch
13 20 Horn, Stop
14 40 Rear Defroster
15 40 Back Up, ACC
16 15 Hazard
17 30 ABS Motor
30* TCS Motor
18 20 ABS F/S
40* TCS
19 40 Option
20 (40) Option
21 40 Heater Motor
22 100 Battery
— Not Used
23 50 +B IGI Main
50 Power Window Main
* 6-cylinder models

Interior fuse panel

Honda Accord - fuse box - interior panel
Honda Accord – fuse box –
interior panel
Description Ampere rating [A] Circuits Protected
1*1 (15) DBW
2 15 Ignition Coil
3*2 (10) Daytime Running Light*
4 15 Laf Heater
5 10 Radio
6 7,5 Interior Light
7 10 Back-Up Lights
8 20 Door Lock
9 15 Front Accessory Sockets
10 7,5 IG OPDS (Occupant Position Detection System)
11 30 IG Wiper
12 — Not Used
13 — Not Used
14 (20) Driver’s Power Seat Slide
15 (20) Heated Seat
16 (20) Driver’s Power Seat Recline
17 — Not Used
18 15 IG ACG
19 15 IG Fuel Pump
20 7,5 IG Washer
21 7,5 IG Meter
22 10 IG SRS
23 7,5 IGP (PGM-FI ECU)
24 — Not Used
25 — Not Used
26 20 Passenger’s Power Window
27 20 Driver’s Power Window
28 (20) Moonroof
29 — Not Used
30 7,5 IG HAC
31 — Not Used
32 7,5 ACC
33 — Driver’s Power Window
* – On Canadian models

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Honda Accord (2004) – fuse box diagram

Posted on by admin

Honda Accord (2004) – fuse box diagram

Year of production: 2004

Fuse block (Engine compartment)

Honda Accord - fuse box - engine compartment
Honda Accord – fuse box –
engine compartment
Number Ampere rating [A] Circuits Protected
1 10 Left Headlight Low
2 (30) (Rear Defroster Coil)
3 10 Left Headlight Hi
4 15 Small Light
5 10 Right Headlight Hi
6 10 Right Headlight Low
7 7,5 Back Up
8 15 FI ECU
9 20 Condenser fan
10 — Not Used
11 20 Cooling Fan
30* Cooling Fan
12 7,5 MG. Clutch
13 20 Horn, Stop
14 40 Rear Defroster
15 40 Back Up, ACC
16 15 Hazard
17 30 ABS Motor
30* TCS Motor
18 20 ABS F/S
40* TCS
19 40 Heated Seats
20 (40) Condenser Fan
21 40 Heater Motor
22 100 Battery
— Not Used
23 50 +B IGI Main
50 Power Window Main
* 6-cylinder models

Interior fuse panel

Honda Accord - fuse box - interior panel
Honda Accord – fuse box –
interior panel
Description Ampere rating [A] Circuits Protected
1*1 (15) Drive by Wire
2 15 Ignition Coil
3*2 (10) Day Light
4 15 Laf Heater
5 10 Radio
6 7,5 Interior Light
7 10 Back-Up Lights
8 20 Door Lock
9 15 Front Accessory Sockets
10 7,5 IG OPDS
11 30 IG Wiper
12 — Not Used
13 (20) Passenger’s Power Seat Recline
14 (20) Driver’s Power Seat Slide
15 (20) Heated Seat
16 (20) Driver’s Power Seat Recline
17 (20) Passenger’s Power Seat Slide
18 15 IG ACG
19 15 IG Fuel Pump
20 7,5 IG Washer
21 7,5 IG Meter
22 10 IG SRS
23 7,5 IGP (PGM-FI ECU)
24 20 Left Rear Power Window
25 20 Right Rear Power Window
26 20 Right Front Power Window
27 20 Driver’s Power Window
28 (20) Moonroof
29 — Not Used
30 7,5 IG HAC
31 — Not Used
32 7,5 ACC
33 7,5 HAC OP
*1 – 6-cylinder models
*2 – On Canadian models

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Honda Accord (2003) – fuse box diagram

Posted on by admin

Honda Accord (2003) – fuse box diagram

Year of production: 2003

Fuse block (Engine compartment)

Honda Accord - fuse box - engine compartment
Honda Accord – fuse box –
engine compartment
Number Ampere rating [A] Circuits Protected
1 10 Left Headlight Low
2 (30) (Rear Defroster Coil)
3 10 Left Headlight Hi
4 15 Small Light
5 10 Right Headlight Hi
6 10 Right Headlight Low
7 7,5 Back Up
8 15 FI ECU
9 20 Condenser fan
10 — Not Used
11 20 Cooling Fan
30* Cooling Fan
12 7,5 MG. Clutch
13 20 Horn, Stop
14 40 Rear Defroster
15 40 Back Up, ACC
16 15 Hazard
17 30 ABS Motor
30* TCS Motor
18 20 ABS F/S
40* TCS
19 40 Heated Seats
20 (40) Condenser Fan
21 40 Heater Motor
22 100 Battery
— Not Used
23 50 +B IGI Main
50 Power Window Main
* 6-cylinder models

Interior fuse panel

Honda Accord - fuse box - interior panel
Honda Accord – fuse box –
interior panel
Description Ampere rating [A] Circuits Protected
1 (15) Drive by Wire
2 15 Ignition Coil
3 (10) Day Light*
4 15 Laf Heater
5 10 Radio
6 7,5 Interior Light
7 10 Back-Up Lights
8 20 Door Lock
9 15 Front Accessory Sockets
10 7,5 IG OPDS
11 30 IG Wiper
12 — Not Used
13 (20) Passenger’s Power Seat Recline
14 (20) Driver’s Power Seat Slide
15 (20) Heated Seat
16 (20) Driver’s Power Seat Recline
17 (20) Passenger’s Power Seat Slide
18 15 IG ACG
19 15 IG Fuel Pump
20 7,5 IG Washer
21 7,5 IG Meter
22 10 IG SRS
23 7,5 IGP (PGM-FI ECU)
24 20 Left Rear Power Window
25 20 Right Rear Power Window
26 20 Right Front Power Window
27 20 Driver’s Power Window
28 (20) Moonroof
29 — Not Used
30 7,5 IG HAC
31 — Not Used
32 7,5 ACC
33 7,5 HAC OP
* On Canadian models

Fuse panel (Passenger’s side)

Honda Accord - fuse box - passenger's side
Honda Accord – fuse box –
passenger’s side
Description Ampere rating [A] Circuits Protected
1 30 Moonroof
2 20 Driver Power Seat Recline
3 20 Assistant Power Seat Recline
4 20 Driver Power Seat Slide
5 20 Assistant Power Seat Slide
6 10 Daytime Running Light*
7 20 Rear Left Power Window
8 20 Front Right Power Window
9 20 Radio, Cigarette Lighter
10 10 Small Lights
11 7,5 Interior Light, Courtesy Lights
12 20 Power Door Locks
13 7,5 Clock
14 7,5 ABS Motor Check
15 20 Front Left Power Window
16 20 Rear Right Power Window
* On Canadian models

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Honda Accord (2001) – fuse box diagram

Posted on by admin

Honda Accord (2001) – fuse box diagram

Year of production: 2001

Fuse block (Engine compartment)

Honda Accord - fuse box - engine compartment
Honda Accord – fuse box –
engine compartment
Number Ampere rating [A] Circuits Protected
1 20 Left Headlight
2 (7,5) (DIMMER RELAY)
3 20 Right Headlight
4 20 ABS F/S
5 20 Stop
6 15 ACG
7 30 ABS Motor
8 15 Hazard
9 — Spare Fuse
10 100 Battery
11 20 Cooling Fan
12 40 Back Up, ACC
13 40 Power Window Motor
14 — Spare Fuse
15 40 Power Seat
16 20 BSC
17 40 Heater Motor
18 40 Rear Defroster
19 20 Heated Seat
20 20 Condenser Fan
21 50 IG1 Main

Fuse panel (Driver’s side)

Honda Accord - fuse box -driver's side
Honda Accord – fuse box -driver’s side
Description Ampere rating [A] Circuits Protected
1 15 IG1 Fuel Pump
2 10 IG1 SRS
3 7,5 IG2 HAC
4 7,5 R/C Mirror
5 7,5 IG2 Day Light*
6 15 ECU (ECM/PCM), Cruise Control
7 7,5 IG1 Moonroof, Washer
8 7,5 ACC
9 7,5 Instrument Panel, Back-up
Lights
10 7,5 IG1 Turn Signals
11 15 IG1 Coil
12 30 IG1 Wiper
13 7,5 STS
* On Canadian models

Fuse panel (Passenger’s side)

Honda Accord - fuse box - passenger's side
Honda Accord – fuse box –
passenger’s side
Description Ampere rating [A] Circuits Protected
1 30 Moonroof
2 20 Driver Power Seat Recline
3 20 Assistant Power Seat Recline
4 20 Driver Power Seat Slide
5 20 Assistant Power Seat Slide
6 10 Daytime Running Light*
7 20 Rear Left Power Window
8 20 Front Right Power Window
9 20 Radio, Cigarette Lighter
10 10 Small Lights
11 7,5 Interior Light, Courtesy Lights
12 20 Power Door Locks
13 7,5 Clock
14 7,5 ABS Motor Check
15 20 Front Left Power Window
16 20 Rear Right Power Window
* On Canadian models

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Mazda Millenia (2000) – fuse box diagram

Posted on by admin

Mazda Millenia (2000) – fuse box diagram

Year of production: 2000

Fuse block (Engine compartment)

Mazda Millenia - fuse box - engine compartment
Mazda Millenia – fuse box – engine compartment
Number Ampere rating [A] Description
1 MAIN 120 For protection of all circuits
2 AD.FAN 30 Additional cooling fan for air conditioner
3 EGIINJ 30 Fuel injection system
4 HEAD 40 Headlights
5 IG KEY 60 RADIO, TURN, METER, ENGINE, S/ROOF* and P/WIND fuses, Ignition system
6 COOLING FAN 30 Cooling fan
7 ABS* 60 Antilock brake system
8 HEATER 40 Heater, Air conditioner
9 DEFOG 40 Rear window defroster
10 BTN 60 STOP, ROOM and D/LOCK fuses, Fuel lid opener, Power door lock
11 AUDIO* 20 Audio system
12 HORN 10 Horn
13 P.SEAT* 30 Power seat
14 — — —
15 IDLUP 10 Engine control system
16 ST.SIGN 10 Engine control unit
17 FOG* 15 Fog lights
18 S.WARM* 20 Seat warmer
19 TAIL 15 Taillights, Parking lights, License plate lights, Instrument panel illumination, Glove box light, Clock
20 — — —
21 — — —
22 — — —
* Some models

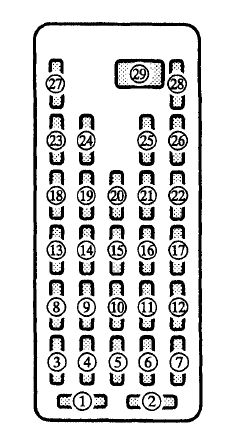

Fuse panel (Driver’s side)

Mazda Millenia - fuse box - driver's side
Mazda Millenia – fuse box – driver’s side
Description Ampere rating [A] Description
1 HAZARD 15 Hazard warning light
2 ROOM 15 Clock, Interior light
3 SIROOF 15 Sunroof
4 METER 15 Gauges, Back-up lights Tum signals, Cruise control
5 STOP 20 Brake lights
6 — — —
7 IIA 15 IIA
8 R.DEF 15 Rear window defroster
9 A!C 10 Air conditioner
10 WIPER 20 Windshield wipers and washer
11 M.DEF 10 Mirror defroster
12 START 15 Starter
13 TURN 10 Tum signal lights
14 BLOWER 15 Air conditioner
15 P/WIND 30 Power windows
16 — — —
17 — — —
18 RADIO 10 Radio (cassette tape player)
19 ENGINE 15 Engine control system
20 ILLUMI 10 Dashboard illumination
21 OPENER 15 Trunk lid opener, Fuel-lid opener
22 — — —
23 CIGAR 15 Cigar lighter
24 — — —
25 — — —
26 SPARE 30 —
27 — — —
28 — — —
29 D/LOCK 30 Power door lock

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Mazda B-Series (2001) – fuse box diagram

Posted on by admin

Mazda B-Series  (2001) – fuse box diagram

Year of production: 2001

Interior fuse panel

Mazda B2300 - fuse box - interior fuse panel
Mazda B-Series – fuse box –
interior fuse panel
Number Ampere rating [A] Description
1 5 Power Mirror
2 10 Blower Motor Relay, Air Bag Diagnostic Monitor, Passive Deactivation (PAD) Module
3 7,5 Trailer Tow Connector (LH Stop/Turn)
4 — —
5 10 4×4 Control Module
6 — —
7 7,5 Trailer Tow Connector (LH Stop/Turn)
8 — —
9 7,5 Stoplamp Switch
10 7,5 Cruise Control Servo/Amplifier Assy., GEM/CTM, Shift Lock Actuator, Blend Door Actuator, A/C Heater Control Assy., Turn Signals
11 7,5 Instrument Cluster, Main Light Switch, RABS Resistor
12 — —
13 20 Brake Pedal Position Switch
14 20 RABS Module
10 4WABS Mod., 4WABS Main Relay
15 — —
16 30 W/W Motor, Wiper Hi-Lo Relay, Wiper Run/Park Relay, Washer Pump Relay
17 25 Cigar Lighter, Data Link Connector (DLC)
18 — —
19 25 PCM Power Diode, Ignition, PATS
20 7,5 GEM/CTM, Radio
21 20 Flasher
22 20 Auxiliary Power Point
23 — —
24 7,5 Clutch Pedal Position (CPP) Switch, Starter Interrupt Relay
25 — —
26 10 Battery Saver Relay, 4×4 Electronic Shift Relay, Interior Lamp Relay, 4×4 Elec. Shift Control Module, Dome/Map Lamp, Instrument Illumination Dimming Module, Restraint Control Module, GEM/CTM, Instrument Cluster
27 — —
28 7,5 GEM/CTM System, Radio
29 15 Radio
30 — —
31 — —
32 — —
33 15 Headlights, DRL Module, Instrument Cluster
34 — —
35 15 ISA Horn Relay if not Equipped with Truck Security Module
— —
36 — —

Engine compartment fuse block

Mazda B2300 - fuse box - engine compartment
Mazda B-Series – fuse box –
engine compartment
Number Ampere rating [A] Description
1 50 I/P Fuse Panel
2 — —
3 — —
4 — —
5 — —
6 50 ABS Pump Motor
7 30 Powertrain Control Module
8 20 Power Door Locks and Remote Entry
9 — —
10 — —
11 50 Starter Relay Ignition Switch
12 10 PCM Memory
13 20 4×4 Motor
14 — —
15 — —
16 40 Blower Motor
17 — —
18 — —
19 — —
20 — —
21 10 PCM Memory
22 — —
23 20 Fuel Pump Motor
24 30 Headlights
25 10 A/C Clurtch
26 — —
27 — —
28 30 4WABS Module
29 — —
30 15 Trailer Tow
31 20 Fog Lamps, Day Time Running Lamps (DRL)
32 — —
33 15 Park Lamp
34 — —
35 — —
36 — —
37 — —
38 10 Left Headlamp Low Beam
39 — —
40 — —
41 — Heated Oxygen Sensors
42 10 Right Headlamp Low Beam
43 — —
44 — —
45A — Wiper High/Low
45B — Wiper Park/Run
46A — —
46B — Front Washer Pump
47A — —
47B — —
48A — Fog Lamp
48B — Fog Lamp Relay
49 — Full Starter
50A — —
50B — Fuel Pump
51 — —
52 — —
53 — Powertrain Control Module (PCM) Diode
54 — Powertrain Control Module (PCM) Diode
55 — Blower
56A — A/C Clutch Solenoid
56B — Trailer Tow

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Mazda B-Series (2010) – fuse box diagram

Posted on by admin

Mazda B-Series  (2010) – fuse box diagram

Year of production: 2010

Passenger compartment fuse panel

The fuse panel is located under the right-hand side of the instrument panel behind the kick panel.

Mazda B-Series - fuse box - passenger compartment
Mazda B-Series – fuse box – passenger compartment
Description Ampere rating [A] Description
1 5 Instrument panel dimmer switch
2 10 Trailer tow park lamps
3 10 Right low beam headlamp
4 10 Left low beam headlamp
5 30 Windshield wiper module (RUN/ACCY)
6 10 Radio (RUN/ACCY), Door switch illumination
7 — Not used
8 10 Restraints Control Module (RCM), PADI (Passenger Air bag Deactivation Indicator), Occupant Classification Sensor (OCS)
9 5 Cluster air bag indicator
10 10 Cluster (RUN/START), 4×4 module (RUN/START)
11 10 Passenger compartment fuse panel (Logic power)
12 15 Satellite radioAudiophile subwoofer amplifier, Satellite radio
13 15 Horn, Interior lamps
14 15 High beam headlamp, High beam indicator (cluster)
15 — Not Used
16 30 cartridge fuse Power windows
17 15 Turn signals/Hazards
18 — Not used
19 20 Center High-Mounted Stop Lamp (CHMSL)/Stop lamps
20 10 Anti-lock brake system (ABS) module, Speed control module, Back-up lamps, Overdrive cancel switch, Electronic flasher (turn)
21 5 Starter relay coil
22 5 Radio (START)
23 30 Headlamps (low and high beam)
24 20 Radio battery feed (B+)
25 — Accessory relay (power windows)
26 2 Redundant cruise switch
27 10 Climate control blower relay/blend doors
28 15 4×4 module battery feed (B+)
29 20 Cigar lighter, Diagnostic connector (OBD II)
30 5 Power mirrors
31 20 Front park lamps, Rear park lamps, License plate lamps, Dimmer switch, Trailer tow park lamps
32 5 Brake switch (logic)
33 5 Instrument cluster battery feed (B+)
34 20 Power point
35 15 Power locks

Power distribution box

The power distribution box is located in the engine compartment.

2.3L engine (if equipped)

Mazda B-Series - fuse box - power distribution box (2.3L engine)
Mazda B-Series – fuse box – power distribution box (2.3L engine)
Description Ampere rating [A] Description
1 40** Passenger compartment fuse panel
2 — Not Used
3 40** Passenger compartment fuse panel
4 — Not Used
5 50** Passenger compartment fuse panel
6 — Not Used
7 30** Starter solenoid
8 — Not Used
9 40** Ignition switch
10 — Not Used
11 30** Powertrain Control Module (PCM)
12 — Not Used
13 30** Blower motor (climate control)
14 — Not Used
15 — Not Used
16 — Not used
17 40** Anti-lock Brake System (ABS) module
18 — Not Used
19 20** Engine fan
20 — Not Used
21 10* PCM keep alive power, Canister purge valve solenoid
22 — Not Used
23 30* Fuel pump motor, Fuel injectors
24 — Not used
25 10*  A/C clutch solenoid
26 — Not Used
27 — Not Used
28 — Not used
29 30* Wipers/washer
30 — Not used
31 — Not used
32 — Not Used
33 30* Anti-lock brake system (ABS) module
34 — Not Used
35 — Not Used
36 — Not Used
37 — Not Used
38 7,5* Trailer tow (right turn)
39 15* PCM power
40 — Not Used
41 10* Automatic transmission
42 7,5* Trailer tow (left turn)
43 20* Engine fan relay coil, A/C relay, Engine sensors, Vapor management valve solenoid
44 15* Ignition coil, Capacitor
45A — Not used
45B — Not used
46A — Fuel pump relay, Fuel injectors relay
46B — Not used
47 — Engine fan relay
48 — Starter relay
49 — Not Used
50 — Not Used
51 — Not Used
52 — Not Used
53 — Not Used
54 — PCM Relay
56 — Blower Relay
56A — A/C clutch solenoid relay
56B — Not used
* Mini Fuses ** Maxi Fuses

3.0L and 4.0L engines (if equipped)

Mazda B-Series - fuse box - power distribution box (3.0L and 4.0L engine)
Mazda B-Series – fuse box – power distribution box (3.0L and 4.0L engine)
Description Ampere rating [A] Description
1 40** Passenger compartment fuse panel
2 — Not Used
3 40** Passenger compartment fuse panel
4 — Not Used
5 50** Passenger compartment fuse panel
6 — Not Used
7 30* Starter solenoid
8 — Not Used
9 40** Ignition switch
10 — Not Used
11 30** Powertrain Control Module (PCM) relay fuse
12 — Not Used
13 30** Blower motor (climate control)
14 — Not Used
15 — Not Used
16 — Not Used
17 40** Anti-lock Brake System (ABS) module
18 — Not Used
19 — Not Used
20 — Not Used
21 10* PCM keep alive power, Canister purge valve solenoid
22 — Not Used
23 30* Fuel pump motor, Fuel injectors
24 — Not Used
25 10* A/C clutch solenoid
26 — Not Used
27 20* 4×4 module
28 — Not Used
29 30* Wipers/washer
30 — Not Used
31 15* Foglamps
32 — Not Used
33 30* ABS module
34 — Not Used
35 — Not Used
36 — Not Used
37 — Not Used
38 7,5* Trailer tow (right turn)
39 15* PCM power
40 — Not Used
41 10* Automatic transmission
42 7,5* Trailer tow (left turn)
43 20* A/C relay coil, Engine sensors, Vapor management valve solenoid, EGR solenoid, Heated PCV
44 15* Ignition coil, Capacitor
45A — Not used
45B — Not used
46A — A/C clutch solenoid
46B — Not used
47 — PCM relay
48A — Fuel pump relay, Fuel injectors relay
48B — Fog lamp relay
51 — Not Used
52 — Not Used
53 — Not Used
54 — Not Used
55 — Blower Relay
56 — Starter Relay
* Mini Fuses ** Maxi Fuses

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Mazda B-Series (2009) – fuse box diagram

Posted on by admin

Mazda B-Series  (2009) – fuse box diagram

Year of production: 2009

Passenger compartment fuse panel

The fuse panel is located under the right-hand side of the instrument panel behind the kick panel.

Mazda B-Series - fuse box - passenger compartment
Mazda B-Series – fuse box – passenger compartment
Description Ampere rating [A] Description
1 5 Instrument panel dimmer switch
2 10 Trailer tow park lamps
3 10 Right low beam headlamp
4 10 Left low beam headlamp
5 30 Windshield wiper module (RUN/ACCY)
6 10 Radio (RUN/ACCY), Door switch illumination
7 — Not used
8 10 Restraints Control Module (RCM), PADI (Passenger Air bag Deactivation Indicator), Occupant Classification Sensor (OCS)
9 5 Cluster air bag indicator
10 10 Cluster (RUN/START), 4×4 module (RUN/START)
11 10 Smart Junction Box (SJB) (Logic power)
12 15 Audiophile subwoofer amplifier, Satellite radio
13 15 Horn, Interior lamps
14 15 High beam headlamp, High beam indicator (cluster)
15 — Not Used
16 30 cartridge fuse Power windows
17 15 Turn signals/Hazards
18 — Not used
19 20 Center High-Mounted Stop Lamp (CHMSL)/Stop lamps
20 10 Anti-lock Brake System (ABS) module, Brake-shift interlock, Speed control module, Back-up lamps, Overdrive cancel switch, Electronic flasher (turn/hazard)
21 5 Starter relay coil
22 5 Radio (START)
23 30 Headlamps (low and high beam)
24 20 Radio battery feed (B+)
25 — Accessory relay (power windows)
26 2 Redundant cruise switch
27 10 Climate control blower relay/blend doors
28 15 4×4 module battery feed (B+)
29 20 Cigar lighter, Diagnostic connector (OBD II)
30 5 Power mirrors
31 20 Front park lamps, Rear park lamps, License plate lamps, Dimmer switch, Trailer tow park lamps
32 5 Brake switch (logic), Brake-shift interlock
33 5 Instrument cluster battery feed (B+)
34 20 Power point
35 15 Power locks

Power distribution box

The power distribution box is located in the engine compartment.

2.3L engine (if equipped)

Mazda B-Series - fuse box - power distribution box (2.3L engine)
Mazda B-Series – fuse box – power distribution box (2.3L engine)
Description Ampere rating [A] Description
1 40** Passenger compartment fuse panel
2 — Not Used
3 40** Passenger compartment fuse panel
4 — Not Used
5 50** Passenger compartment fuse panel
6 — Not Used
7 30** Starter solenoid
8 — Not Used
9 40** Ignition switch
10 — Not Used
11 30** Powertrain Control Module (PCM), Engine sensors
12 — Not Used
13 30** Blower motor (climate control)
14 — Not Used
15 — Not Used
16 — Not used
17 40** Anti-lock Brake System (ABS) module
18 — Not Used
19 20** Engine fan
20 — Not Used
21 10* PCM keep alive power, Canister purge valve solenoid
22 — Not Used
23 30* Fuel pump motor, Fuel injectors
24 — Not used
25 10* A/C Clutch Relay
26 — Not Used
27 — Not Used
28 — Not used
29 30* Wipers/washer
30 — Not used
31 — Not used
32 — Not Used
33 30* Anti-lock Brake System (ABS) (solenoids)
34 — Not Used
35 — Not Used
36 — Not Used
37 — Not Used
38 7,5* Trailer tow (right turn)
39 15* PCM power
40 — Not Used
41 10* Automatic transmission
42 7,5* Trailer tow (left turn)
43 20* Engine fan relay coil, A/C relay, Engine sensors, VMV solenoid
44 15* Ignition coil, Capacitor
45A — Not used
45B — Not used
46A — Fuel pump relay, Fuel injectors relay
46B — Not used
47 — Engine fan relay
48 — Starter relay
49 — Not Used
50 — Not Used
51 — Not Used
52 — Not Used
53 — Not Used
54 — PCM Relay
56 — Blower Relay
56A — A/C clutch solenoid relay
56B — Not used
* Mini Fuses ** Maxi Fuses

3.0L and 4.0L engines (if equipped)

Mazda B-Series - fuse box - power distribution box (3.0L and 4.0L engine)
Mazda B-Series – fuse box – power distribution box (3.0L and 4.0L engine)
Description Ampere rating [A] Description
1 40** Passenger compartment fuse panel
2 — Not Used
3 40** Passenger compartment fuse panel
4 — Not Used
5 50** Passenger compartment fuse panel
6 — Not Used
7 30* Starter solenoid
8 — Not Used
9 40** Ignition switch
10 — Not Used
11 30** Powertrain Control Module (PCM) relay fuse
12 — Not Used
13 30** Blower motor (climate control)
14 — Not Used
15 — Not Used
16 — Not Used
17 40** Anti-lock Brake System (ABS) module
18 — Not Used
19 — Not Used
20 — Not Used
21 10* PCM keep alive power, Canister purge valve solenoid
22 — Not Used
23 30* Fuel pump motor, Fuel injectors
24 — Not Used
25 10* A/C clutch solenoid
26 — Not Used
27 20* 4×4 module
28 — Not Used
29 30* Wipers/washer
30 — Not Used
31 15* Foglamps
32 — Not Used
33 30* Anti-lock Brake System (ABS) module
34 — Not Used
35 — Not Used
36 — Not Used
37 — Not Used
38 7,5* Trailer tow (right turn)
39 15* PCM power
40 — Not Used
41 10* Automatic transmission
42 7,5* Trailer tow (left turn)
43 20* A/C relay coil, Engine sensors, VMV solenoid, EGR solenoid, Heated PCV
44 15* Ignition coil, Capacitor
45A — Not used
45B — Not used
46A — A/C clutch solenoid
46B — Not used
47 — PCM relay
48A — Fuel pump relay, Fuel injectors relay
48B — Fog lamp relay
51 — Not Used
52 — Not Used
53 — Not Used
54 — Not Used
55 — Blower Relay
56 — Starter Relay
* Mini Fuses ** Maxi Fuses

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Mazda B-Series (2008) – fuse box diagram

Posted on by admin

Mazda B-Series  (2008) – fuse box diagram

Year of production: 2008

Passenger compartment fuse panel

The fuse panel is located under the right-hand side of the instrument panel behind the kick panel.

Mazda B-Series - fuse box - passenger compartment
Mazda B-Series – fuse box – passenger compartment
Description Ampere rating [A] Description
1 5 Instrument panel dimmer switch
2 10 Trailer tow park lamps
3 10 Right low beam headlamp
4 10 Left low beam headlamp
5 30 Windshield wipers/washer
6 10 Radio (RUN/ACCY), Door switch illumination
7 5 Not used (spare)
8 10 Restraints Control Module (RCM), PADI (Passenger Air bag Deactivation Indicator), Occupant Classification Sensor (OCS)
9 5 Cluster air bag indicator
10 10 Cluster (RUN/START), 4×4 module (RUN/START)
11 10 Smart Junction Box (SJB) (Logic power)
12 15 Audiophile subwoofer amplifier, Satellite radio
13 15 Horn, Interior lamps
14 15 High beam headlamp, High beam indicator (cluster)
15 — Not Used
16 30 cartridge fuse Power windows
17 15 Turn signals/Hazards
18 — Not used
19 20 Center High-Mounted Stop Lamp (CHMSL)/Stop lamps
20 10 Anti-lock Brake System (ABS) module, Brake-shift interlock, Speed control module, Back-up lamps, Overdrive cancel switch, Electronic flasher (turn/hazard)
21 5 Starter relay coil
22 5 Radio (START)
23 30 Headlamps (low and high beam)
24 20 Radio battery feed (B+)
25 — Accessory relay (power windows)
26 2 Redundant cruise switch
27 10 Climate control blower relay/blend doors
28 15 4×4 module battery feed (B+)
29 20 Cigar lighter, Diagnostic connector (OBD II)
30 5 Power mirrors
31 20 Front park lamps, Rear park lamps, License plate lamps, Dimmer switch, Trailer tow park lamps
32 5 Brake switch (logic), Brake-shift interlock
33 5 Instrument cluster battery feed (B+)
34 20 Power point
35 15 Power locks

Power distribution box

The power distribution box is located in the engine compartment.

2.3L engine (if equipped)

Mazda B-Series - fuse box - power distribution box (2.3L engine)
Mazda B-Series – fuse box – power distribution box (2.3L engine)
Description Ampere rating [A] Description
1 40** Passenger compartment fuse panel
2 — Not Used
3 40** Passenger compartment fuse panel
4 — Not Used
5 50** Passenger compartment fuse panel
6 — Not Used
7 30** Starter solenoid
8 — Not Used
9 40** Ignition switch
10 — Not Used
11 30** Powertrain Control Module (PCM), Engine sensors
12 — Not Used
13 30** Blower motor (climate control)
14 — Not Used
15 — Not Used
16 — Not used
17 40** Anti-lock Brake System (ABS) module
18 — Not Used
19 20** Engine fan
20 — Not Used
21 10* PCM keep alive power, Canister purge valve solenoid
22 — Not Used
23 30* Fuel pump motor, Fuel injectors
24 — Not used
25 10* A/C Clutch Relay
26 — Not Used
27 — Not Used
28 — Not used
29 30* Wipers/washer
30 — Not used
31 — Not used
32 — Not Used
33 30* Anti-lock Brake System (ABS) (solenoids)
34 — Not Used
35 — Not Used
36 — Not Used
37 — Not Used
38 7,5* Trailer tow (right turn)
39 15* PCM power
40 — Not Used
41 10* Automatic transmission
42 7,5* Trailer tow (left turn)
43 20* Engine fan relay coil, A/C relay, Engine sensors, VMV solenoid
44 15* Ignition coil, Capacitor
45A — Not used
45B — Not used
46A — Fuel pump relay, Fuel injectors relay
46B — Not used
47 — Engine fan relay
48 — Starter relay
49 — Not Used
50 — Not Used
51 — Not Used
52 — Not Used
53 — Not Used
54 — PCM Relay
56 — Blower Relay
56A — A/C clutch solenoid relay
56B — Not used
* Mini Fuses ** Maxi Fuses

3.0L and 4.0L engines (if equipped)

Mazda B-Series - fuse box - power distribution box (3.0L and 4.0L engine)
Mazda B-Series – fuse box – power distribution box (3.0L and 4.0L engine)
Description Ampere rating [A] Description
1 40** Passenger compartment fuse panel
2 — Not Used
3 40** Passenger compartment fuse panel
4 — Not Used
5 50** Passenger compartment fuse panel
6 — Not Used
7 30* Starter solenoid
8 — Not Used
9 40** Ignition switch
10 — Not Used
11 30** Powertrain Control Module (PCM) relay fuse
12 — Not Used
13 30** Blower motor (climate control)
14 — Not Used
15 — Not Used
16 — Not Used
17 40** Anti-lock Brake System (ABS) module
18 — Not Used
19 — Not Used
20 — Not Used
21 10* PCM keep alive power, Canister purge valve solenoid
22 — Not Used
23 30* Fuel pump motor, Fuel injectors
24 — Not Used
25 10* A/C clutch solenoid
26 — Not Used
27 20* 4×4 module
28 — Not Used
29 30* Wipers/washer
30 — Not Used
31 15* Foglamps
32 — Not Used
33 30* Anti-lock Brake System (ABS) module
34 — Not Used
35 — Not Used
36 — Not Used
37 — Not Used
38 7,5* Trailer tow (right turn)
39 15* PCM power
40 — Not Used
41 10* Automatic transmission
42 7,5* Trailer tow (left turn)
43 20* A/C relay coil, Engine sensors, VMV solenoid, EGR solenoid, Heated PCV
44 15* Ignition coil, Capacitor
45A — Not used
45B — Not used
46A — A/C clutch solenoid
46B — Not used
47 — PCM relay
48A — Fuel pump relay, Fuel injectors relay
48B — Fog lamp relay
51 — Not Used
52 — Not Used
53 — Not Used
54 — Not Used
55 — Blower Relay
56 — Starter Relay
* Mini Fuses ** Maxi Fuses

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
