Volkswagen Caddy (2003 – 2005) – fuse box diagram

Volkswagen Caddy (2003 – 2005) – fuse box diagram

Year of production: 2003, 2004, 2005

Location

Volkswagen Caddy - fuse box diagram - location
Volkswagen Caddy – fuse box diagram – location
  1. Fuses on fuse holder A -SA- (On the electronics box, on left in engine compartment)
  2. Fuses on fuse holder B -SB- (On left in engine compartment)
  3. Fuses on fuse holder C -SC- (Under left dash panel)

Fitting location of fuse holder A (A -SA-)

Volkswagen Caddy – fuse box diagram – fitting location of fuse holder A (A -SA-)
No. A Function/component
1 150 Alternator -C- 90A / 110A
1 200 Alternator -C- 140A
2 80 Power steering control module -J500-
Electromechanical power steering motor -V187-
3 80 Radiator fan control unit -J293-
Radiator fan -V7-
Radiator fan on right of radiator -V35-
4 70 Onboard supply control unit -J519-
X-contact relief relay -J59-
Fuse 7 on fuse holder -SC7-
Fuse 8 on fuse holder -SC8-
Fuse 28 on fuse holder -SC28- to -SC35-
5 Not used
6 100 Fuses on fuse holder C -SC-
Fuse 20 on fuse holder -SC20- to -SC24-
Fuse 42 on fuse holder -SC42- to -SC56-
7 50 Fuses on fuse holder C -SC-
Fuse 39 on fuse holder -SC39- to -SC41-

Fitting location of E-box high fuse holder (B -SB-)

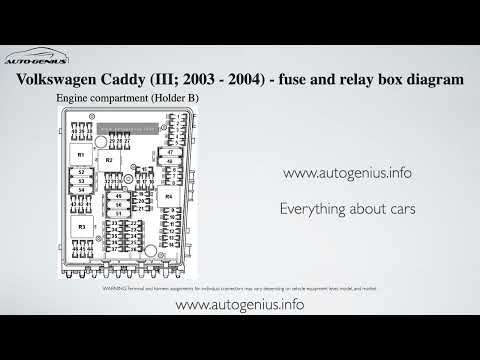

Volkswagen Caddy – fuse box diagram – fitting location of fuse holder B (B -SB-)
No. A Function/component
1 30 ABS Control Module -J104-
2 30 ABS Control Module -J104-
3 Not used
4 5 Onboard supply control unit -J519-
5 20 Onboard supply control unit -J519-
Double-tone horn relay -J4- , Signal horn relay -J413-
Treble horn -H2-
Bass horn -H7-
6 20 Ignition coil 1 with output stage -N70-
Ignition coil 2 with output stage -N127-
Ignition coil 3 with output stage -N291-
Ignition coil 4 with output stage -N292-
Ignition transformer -N152-
7 5 Brake pedal switch -F47-
J…-Engine Control Modules
Clutch position sender -G476-
8 10 Exhaust gas recirculation valve -N18-
Activated charcoal filter solenoid valve 1 -N80-
Variable intake manifold changeover valve -N156-
Protective resistor -N235-
Radiator fan control unit -J293-
Intake manifold flap motor -V157-
9 10 Fuel pump relay -J17- (BDJ, BJB)
Glow plug relay -J52- (BDJ)
Automatic glow period control module -J79- (BJB)
10 10 Exhaust gas recirculation valve -N18-
Charge pressure control solenoid valve -N75-
Exhaust gas recirculation fan switch-over valve -N345-
11 25 Motronic Control Module -J220- (BCA)
Simos Control Module -J361- (BGU, BSE, BSF)
11 30 Diesel direct injection system control module -J248- (BDJ, BJB)
12 15 Lambda probe -G39- (BCA)
Lambda probe after catalytic converter -G130- (BCA)
13 Not used
14 Not used
15 25 Starter -B-
16 15 Steering column electronics control module -J527-
17 10 Control unit in dash panel insert -J285-
18 Not used
19 15 Control module with display for radio and navigation system -J503-
Radio -R-
20 10 Mobile telephone operating electronics control module -J412-
21 Not used
22 Not used
23 Not used
24 10 Data bus diagnostic interface -J533-
25 Not used
26 5 Terminal 30 voltage supply relay -J317- (BDJ, BJB )
26 10 Motronic control module -J220- (BCA)
27 10 Heater element for crankcase breather -N79-
28 Not used
29 20 Cylinder 1 injector -N30- (BCA)
Cylinder 2 injector -N31- (BCA)
Cylinder 3 injector – N32- (BCA)
Cylinder 4 injector -N33- (BCA)
30 20 Auxiliary heater control unit -J364-
31 30 Windscreen wiper motor -V-
32 10 Cylinder 1 injector -N30- (BGU)
Cylinder 2 injector -N31- (BGU)
Cylinder 3 injector -N32- (BGU)
Cylinder 4 injector -N33- (BGU)
32 40 Glow plug 1 -Q10- (BDJ)
Glow plug 2 -Q11-
33 15 Fuel pump -G6- (BCA, BGU)
33 40 Glow plug 3 -Q12- (BDJ)
Glow plug 4 -Q13-
34 Not used
34 Not used
35 Not used
36 Not used
37 Not used
38 10 Headlight range control regulator -E102-
Left headlamp levelling actuator -V48-
Right headlamp levelling actuator -V49-
39 5 Oil level and oil temperature sensor -G266-
Control unit in dash panel insert -J285-
40 20 Fuses on fuse holder C -SC-
Fuse 1 on fuse holder -SC1- to -SC6-
Fuse 9 on fuse holder -SC9- to -SC16-
Fuse 25 on fuse holder -SC25- to -SC27-
41 Not used
42 5 Fuel pump relay -J17- (BCA, BGU)
42 10 Air mass meter -G70- (BJB)
43 Not used
44 Not used
45 15 Lambda probe -G39- (BGU)
Lambda probe after catalytic converter -G130- (BGU)
46 Not used
47 40 Onboard supply control unit -J519- , left headlight
48 40 Onboard supply control unit -J519- , right headlight
49 Not used
50 Not used
51 40 Secondary air pump relay -J299- (BGU)
Secondary air pump motor -V101-
51 50 Automatic glow period control module -J179- (BJB)
Glow plug 1 -Q10-
Glow plug 2 -Q11-
Glow plug 3 -Q12-
Glow plug 4 -Q13-
52 Not used
53 25 Driver door control unit -J386-
Front passenger door control unit -J387-
54 50 Radiator fan control unit -J293-
Radiator fan -V7-
Right fan for coolant -V35-
Radiator fan thermal switch -F18-
Radiator fan -V7-

Position of fuses on fuse holder C -SC-

Volkswagen Caddy – fuse box diagram – fitting location of fuse holder C (C -SC-)
No. A Function/component
1 Not used
2 5 Trailer detector control unit -J345-
3 5 Heater/heat output switch -E16-
High pressure sender -G65-
4 Not used
5 Not used
6 Not used
7 5 Heated driver seat regulator -E94-
Heated front passenger seat regulator -E95-
8 5 Left washer jet heater element -Z20-
Right washer jet heater element -Z21-
9 5 Airbag control unit -J234-
Front passenger side airbag deactivated warning lamp -K145-
10 5 Mobile telephone operating electronics control unit -J412-
11 10 Power steering control unit -J500-
12 Not used
13 Not used
14 5 Traction control system switch -E132-
TCS and ESP button -E256-
ABS control unit -J104-
15 10 Reversing light switch -F4-
Auxiliary heater operation relay -J485- (from May 2004)
Control unit with display for radio and navigation system -J503- (commercial equipment)
T16 – Self-diagnosis connection (T16/1)
16 5 Data bus diagnostic interface -J533-
17 7.5 Left tail light and rear fog light bulb -M41- (models without central locking)
18 Not used
19 Not used
20 Not used
21 Not used
22 5 Remote control receiver for auxiliary coolant heater -R149-
23 10 Brake light switch -F-
Left brake light bulb -M9-
Right brake light bulb -M10-
High level brake light bulb -M25-
ABS control unit -J104-
24 10 Light switch -E1-
Air conditioning system control unit -J301-
16-pin connector -T16- (self-diagnosis connection T16/16)
25 30 Heated driver seat control unit -J131-
Heated front passenger seat control unit -J132-
26 10 J… – Engine control units
27 15 Rear window wiper motor -V12- (from May 2004)
28 5
20
Light switch -E1- (models with central locking)
Fog light switch -E7- (models without central locking)
Rear fog light switch -E18- (models without central locking)
29 15 Rear window wiper motor -V12- (up to April 2004)
30 25 Light switch -E1- (models without central locking)
Fuse 37 on fuse holder C -SC37-
Fuse 38 on fuse holder C -SC38-
31 15 Auxiliary heater operation relay -J485- (up to April 2004)
32 15 Washer pump -V5-
33 Not used
34 Not used
35 40 Fresh air blower -V2-
Auxiliary heater operation relay -J485-
36 Not used
37 15 Right dipped beam bulb -M31- (models without central locking)
38 15 Left dipped beam bulb -M29- (models without central locking only)
39 Not used
40 20 Trailer detector control unit -J345-
41 20 Trailer socket -U10-
42 15
30
12 V socket -U5- (near handbrake lever)
12 V socket 2 -U18- (left luggage compartment)
43 15 Electric fuel pump 2 relay -J49- (BCA, BGU)
Fuel pump relay -J17- (BDJ, BJB)
Fuel system pressurisation pump -G6-
44 5 Interior monitoring sensor -G273-
Vehicle inclination sender -G384-
Alarm horn -H12-
45 5 Aerial selection control unit -J515-
46 7.5 Onboard supply control unit -J519- (Interior light)
47 25
30
Cigarette lighter -U1-
Rear cigarette lighter -U9-
48 20 Headlight washer system relay -J39-
Headlight washer system pump -V11-
49 10 Driver door control unit -J386-
Front passenger door control unit -J387-
50 Not used
51 Not used
52 25 Fresh air blower relay -J13-
Onboard supply control unit -J519-
53 25 Convenience system central control unit -J393-
54 Not used
55 Not used
56 Not used
57 Not used
58 Not used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
