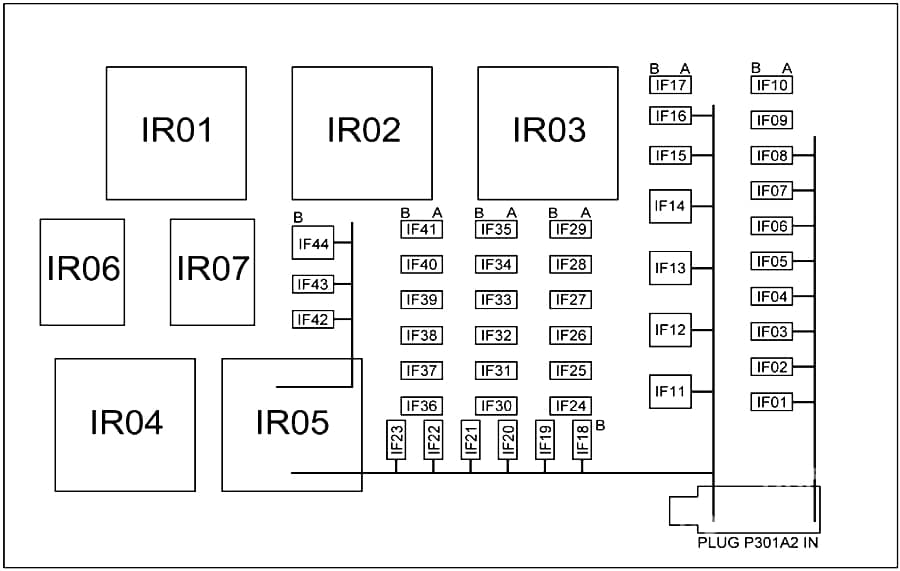

Amps |
Function / Component |
| IF01 |
Shorting link |
— |
| IF02 |
7.5A |
A/C control panel / rear central control panel / audio display screen / Instrument cluster / front central control panel |
| IF03 |
15A |
Audio control unit/audio control unit (w/integrated T-BOX function) |
| IF04 |
10A |
Rearview mirror folding relay / rearview mirror unfolding relay |
| IF05 |
15A |
Body control unit |
| IF06 |
20A |
Sunroof sunshade motor / panorama sunroof control unit / electric sunroof control unit |
| IF07 |
7.5A |
OBD (on-board diagnostic) interface |
| IF08 |
10A |
IG2 relay |
| IF09 |
— |
— |
| IF10 |
— |
— |
| IF11 |
30A |
Left front window regulator motor / body control unit / right rear window regulator motor (w/o express-up and down feature) / right rear window regulator motor (with express-up and down feature) / body control unit |
| IF12 |
30A |
Front right window regulator motor (w/express-up and down feature) / body control unit / left rear window regulator motor (w/express-up and down feature) / left rear window regulator motor (w/o express-up and down feature) |
| IF13 |
30A |
Gearshift lever module |
| IF14 |
30A |
Gearshift lever module |
| IF15 |
20A |
Body control unit |
| IF16 |
7.5A |
Keyless start and smart entry system control unit / gateway control unit |
| IF17 |
7.5A |
Gateway control unit / body control unit / keyless start and smart entry system control unit |
| IF18 |
10A |
Body control unit |
| IF19 |
15A |
Body control unit |
| IF20 |
7.5A |
Keyless start and smart entry system control unit |
| IF21 |
20A |
Body control unit |
| IF22 |
7.5A |
High-mounted stop lamp |
| IF23 |
20A |
Body control unit |
| IF24 |
— |
— |
| IF25 |
10A |
Mobile phone wireless charging module / USB 5V power supply / left front seat connector C / rear sunshade / amplifier module / audio control unit (w/integrated T-BOX function) / audio control unit (USB 2 only) / exterior rearview mirror adjustment switch (w/o memory) |
| IF26 |
7.5A |
Body control unit / keyless start and smart entry system control unit |
| IF27 |
— |
— |
| IF28 |
— |
— |
| IF29 |
— |
— |
| IF30 |
7.5A |
Left front combination lamp / right front combination lamp / headlamp leveling switch / Headlamp automatic adjustment control unit |
| IF31 |
7.5A |
Electric sunroof control unit / right front seat connector A / rain light sensor / panoramic sunroof control unit / negative ion generato / A/C control panel / A/C control unit / air quality sensor / rear central control panel / front central control panel |
| IF32 |
7.5A |
Reversing radar control unit / panorama parking control unit / automatic parking control unit / lane departure warning module / forward radar module / audio control unit (w/integrated T-BOX function) / instrument cluster / T-BOX control unit |
| IF33 |
7.5A |
Steering angular velocity sensor / electric power steering control unit / gearshift lever module |
| IF34 |
10A |
Airbag control unit |
| IF35 |
7.5A |
Electronic stability and parking control module / brake switch / engine control unit / automatic transmission control unit |
| IF36 |
7.5A |
Panoramic parking control unit / blind spot detection auxiliary control unit / blind zone detection main control unit / lane departure warning module / forward radar module |
| IF37 |
7.5A |
Headlamp automatic adjustment control unit / T-BOX control unit |
| IF38 |
7.5A |
Right front door handle switch / left front door handle switch |
| IF39 |
15A |
Mobile phone wireless charging module / left front seat connector C / A/C control unit / left front door centralized control switch / PM2.5 sensor |
| IF40 |
— |
— |
| IF41 |
— |
— |
| IF42 |
— |
— |
| IF43 |
7.5A |
Right exterior rearview mirror / left exterior rearview mirror |
| IF44 |
30A |
Rear windshield defogger |
| IR01 |
— |
IG2 relay |
| IR02 |
— |
ACC relay |
| IR03 |
— |
IG1 relay |
| IR04 |
— |
Fuel tank cap lock relay |
| IR05 |
ACC |
Defogger relay |
| IR06 |
— |
Rearview mirror folding relay |
| IR07 |
— |
Rearview mirror unfolding relay |
| IF52 |
7.5A |
T-BOX ECU / Mobile phone WCM / Smart Bluetooth module |
| IF53 |
7.5A |
Left front door handle antenna / right front door handle antenna |
| IF54 |
7.5A |
Intelligent ambient light control unit / HVAC control unit / left front door centralized control switch / PM2.5 sensor |
| IF55 |
15A |
BCM (main lamps) |
| IF56 |
7.5A |
HCP / rear central control panel / AV display / front central control panel |
| IR01 |
— |
IG1 relay |
| IR02 |
— |
IG2 relay |
| IR03 |
— |
Fuel filler cap lock relay |
| IR04 |
— |
— |
| IR05 |
ACC |
ACC relay |
| IR06 |
— |
Rearview mirror folding relay |
| IR07 |
— |
Rearview mirror unfolding relay |
