Hyundai Coupe (2005) – fuse box diagram

Hyundai Coupe (2005) – fuse box diagram

Year of production: 2005

Fuse panel located in the engine compartment

Hyundai Coupe - fuse box - engine compartment
Hyundai Coupe – fuse box – engine compartment
Description Ampere rating [A] Protected component
BATT 120 Generator(1.6L/2.0L)
BATT 50 BCM BOX(Tail lamp relay,Power connector,Fuse(2,7,12,13,19,20,24))
COND 30 Condenser fan relay
RAD 30 Radiator fan relay
ECU 30 Engine control relay, Fuel pump relay, A/T control relay, Generator, ECM (1.6L/2.7L), PCM(2.0L)
IGN 30 Ignition switch, Start relay
ABS 1 30 ABS/ESP control module, ESP Air bleeding connector
ABS 2 30 ABS/ESP control module, ESP Air bleeding connector
BLOWER 30 Blower relay
INJ 15 Injector
SNSR 10 Oxygen sensor, Camshaft position sensor, Idle speed control actuator
DRL 15 DRL control module
F/FOG 15 Front fog lamp relay
ECU 10 TCM(2.7L), ECM(2.7L/1.6L)
HORN,A/CON 15 Horn relay, A/C relay
H/LP (H1) 15 Head lamp relay (High)
H/LP (LO) 15 Head lamp relay (Low)

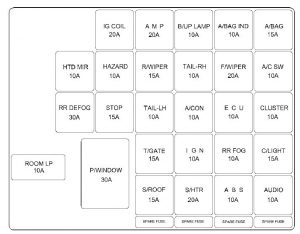

Fuse panel located in the inner panel

Hyundai Coupe - fuse box - inner panel
Hyundai Coupe – fuse box – inner panel
Fuse Ampere rating [A] Protected component
IG COIL 20 Ignition coil(1.6L/2.7L), Electronic chrome mirror
AMP 20 AMP
B/UP LAMP 10 Back-up lamp switch, Transaxle range switch, Cruise control module, Stop lamp switch
A/BAG IND 10 Instrument cluster (A/BAG IND.)
A/BAG 15 SRS control module
HTD MIR 10 Mirror defogger
HAZARD 10 Hazard relay
R/WIPER 15 Rear wiper motor, Rear intermittent wiper relay
TAIL-RH 10 Right tail lamps, Glove box lamp
F/WIPER 20 Front wiper motor, Front wiper relay
A/C SW 10 Blower relay, Blower motor
RR DEFOG 30 Defogger relay
STOP 15 Stop lamp switch, Burglar alarm horn relay, Folding/Unfolding relay
TAIL-LH 10 Left tail lamps
A/CON 10 A/C control module, Blower relay
ECU 10 ECM, Multi gauge unit, TCM, Vehicle speed sensor
CLUSTER 10 Instrument cluster (Power), Per-excitation resister, DRL Control module, Generator
ROOM LP 10 Room lamp, Clock, Audio, Data link connector, Multi gauge unit
P/WINDOW 30 Power window relay
T/GATE 15 Trunk lid switch
IGN 10 AQS sensor, Head lamp relay, DRL Control module
RR FOG 10 Rear fog lamp
C/LIGHT 15 Cigarette lighter,Outside mirror switch
S/ROOF 15 Sunroof, Power door lock/Unlock relay
S/HTR 20 Seat warmer
ABS 10 ESP/ABS control module
AUDIO 10 Audio, Digital clock



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
