Renault Maxity (2007 – 2018) – fuse box diagram
Year of production: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018

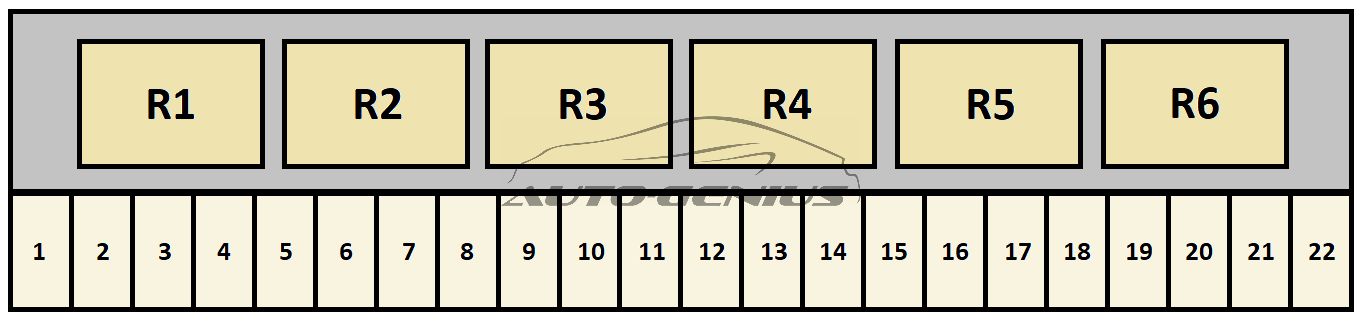

Fuse box diagram in dashboard
| № |
Symbol |
A |
Protected Component | |
| 1 |  |
+Battery | 10 | |
| 2 |  |
10 | Interior light | |
| 3 |  |
15 | ||
| 4 |  |
7,5 | ||
| 5 |  |
10 | Direction | |
| 6 |  |
15 | Heated mirror | |
| 7 |  |
20 | ||
| 8 |  |
15 | ||
| 9 |  |
15 | ||
| 10 |  |
15 | ||
| 11 |  |
15 | Horn | |
| 12 |  |
20 | Engine | |
| 13 |  |
+Accessory | 15 | Radio, lighter |
| 14 |  |
20 | Air condition | |
| 15 |  |
10 | Washer | |
| 16 |  |
+Ignition | 10 | Air bag |
| 17 |  |
15 | ||
| 18 |  |
7,5 | ||
| 19 |  |
10 | ||
| 20 |  |
+Lighting | 7,5 | |
| 21 |  |
7,5 | ||
| 22 |  |
+ BAT | 10 | |
| Relay | ||||
| R1 |  |
|||
| R2 | — | — | ||
| R3 |  |
|||
| R4 | |
|||
| R5 | |
ECU | ||
| R6 |  |
Hazard | ||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
