Renault Twingo (2000 – 2004) – fuse box diagram

Renault Twingo (2000 – 2004) – fuse box diagram

Year of production: 2000, 2001, 2002, 2003, 2004

Passenger Compartment Fuse Box

Renault Twingo - fuse box diagram - passenger compartment
Renault Twingo – fuse box diagram – passenger compartment
Fuse Ampere rating [A] Allocation
1 20 Engine connection unit
2 15 Rear screen wiper, Reversing lights, Windscreen/rear window washer pump
3 10 Pretensioners, Air bag, Engine immobiliser
4 10 Radio
5 20 Heated rear window
6 20 Injection
7 20 Heating/air conditioning fan unit
8 15 Brake lights
9 15 Windscreen wiper
10 10 Rear fog lights
11 10 Anti-lock braking system
12 25 Cigarette lighter, Sunroof
13 15 Left-hand main beam headlight
14 15 Right-hand main beam headlight
15 30 Electric window winders
16 15 Left-hand dipped headlight
17 15 Right-hand dipped headlight
18 10 Left side lights
19 10 Right-hand side lights
20 25 Indicators, Rear fog light, UCH
21 10 Horn, Engine immobiliser
22 10 Interior lighting/Short circuit, Diagnostic socket
23 10 Electrical power-assisted steering
24
25 15 Electric door locking, Electric rear-view mirrors
26
27 2 Sequential gearbox
Renault Twingo - fuse box diagram - passenger compartment
Renault Twingo – fuse box diagram – passenger compartment
Number Protected components
1
2 Front fog lights relay



Passenger Compartment Relay Box

This board is located under the dashboard beside the pedals..

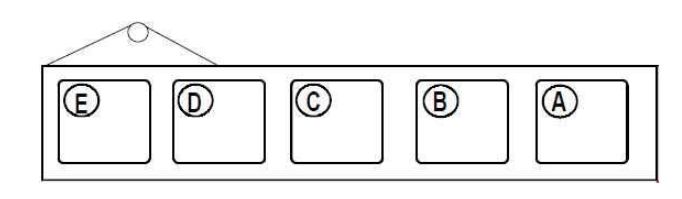

Renault Twingo - fuse box diagram - passenger compartment (relay box)
Renault Twingo – fuse box diagram – passenger compartment (relay box)
Number Protected components
A Sequential transmission
B
C Sequential gearbox starting
D
E

Engine Compartment Fuse Box

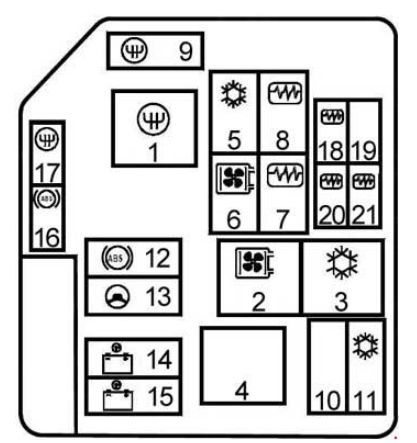

Renault Twingo - fuse box diagram - engine compartment
Renault Twingo – fuse box diagram – engine compartment
Number Ampere rating [A] Protected components
RELAY
1 50 Sequential gearbox
2 50 Fan assembly (with air conditioning)
3 25 Low speed fan (with air conditioning)
4
5 25 Air conditioning compressor
6 25 Fan assembly (except air conditioning)
7 25 Injection locking
8 25 Fuel pump
FUSES
9 30 Sequential gearbox
10
11 40 Air conditioning
12 30 Anti-lock braking system
13 30 Electrical power-assisted steering
14 60 Passenger compartment
15 60 Passenger compartment
16 20 Sequential gearbox
17 30 Anti-lock braking system
18 10 Injection
19
20 25 Injection
21 15 Injection

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
