Subaru Outback (2013 – 2014) – fuse box diagram

Subaru Outback (2013 – 2014) – fuse box diagram

Year of production: 2013, 2014

Fuse panel located in the passenger compartment

Subaru Outback - fuse box - passenger compartment
Subaru Outback – fuse box – passenger compartment
Fuse Ampere rating [A] Circuit
1 15 Trailer hitch connector
2 20 Rear power window (left side)
3 20 Power window (driver’s side)
4 7,5 Navigation system, Front wiper deicer, Moonroof
5 7,5 Combination meter
6 7,5 Remote control rear view mirrors
7 7,5 Integrated unit
8 15 Stop light
9 15 Seat heater relay
10 7,5 Power supply (Battery)
11 7,5 Turn signal unit
12 15 Integrated unit, Automatic transmission unit
13 20 Socket
14 10 Integrated unit
15 20 Rear power window (right side)
16
17 15 Front wiper deicer
18 7,5 Back-up light
19 7,5 Electronic parking brake unit, Hill Holder system unit
20 10 Accessory power outlet
21 7,5 Starter relay
22 15 Air conditioner
23
24 15 Audio, Navigation system
25 15 SRS airbag system
26 7,5 Main fan
27 30 Power window relay
28
29 20 Power window (passenger’s side)
30
31 7,5 Automatic air conditioner unit
32 7,5 Steering lock
33 7,5 ABS/Vehicle dynamics control unit, Power steering

Fuse panel located in the engine compartment

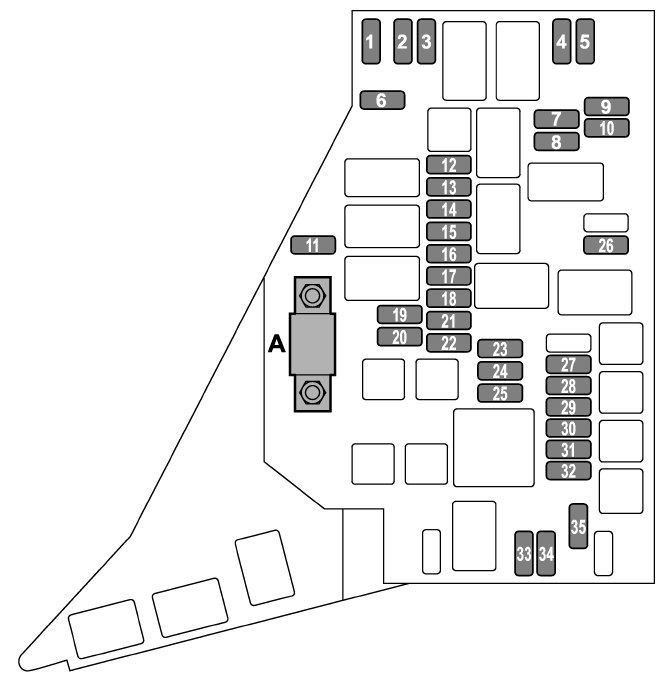

Subaru Outback - fuse box - engine compartment
Subaru Outback – fuse box – engine compartment
Fuse Ampere rating [A] Power consumer
1 7,5 CVT control unit
2 7,5 Horn (right side)
3 7,5 Horn (center)
4 15 Low beam headlight (right side)
5 15 Low beam headlight (left side)
6 20 Fuel pump
7 10 High beam headlight (left side)
8 10 High beam headlight (right side)
9 20 Continuously variable transmission control unit
10 7,5 Alternator
11 10 EyeSight system
12 20 Moonroof
13 7,5 Engine control unit
14 15 Engine control unit
15 15 Ignition coil
16 15 Engine control unit
17 15 Engine control unit
18 10 Automatic transmission control unit
19 10 Illumination
20 10 Rear combination light
21 15 Turn and hazard warning flasher (body control unit)
22 20 Door lock (body control unit)
23 15 Rear wiper, Rear washer
24 10 Front washer
25 30 Front wiper
26 25 Rear window defogger, Mirror heater, Front wiper deicer
27 15 Blower fan
28 15 Blower fan
29 25 Audio unit
30 25 Sub fan
31 25 Main fan
32 30 ABS/Vehicle dynamics control unit
33 10 Fog light (right side)
34 10 Fog light (left side)
35 10 Back-up (body control unit)
A Main fuse



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
