Skoda Citigo (2013) – fuse box diagram

Posted on 2 August 20172 August 2017 by admin

Skoda Citigo (2013) – fuse box diagram

Year of production: 2013

Fuse box under of the dash panel

The fuses are located underneath the steering wheel on the underside of the dash panel.

Skoda Citigo - fuse box - underside of dash panel — Skoda Citigo – fuse box –
underside of dash panel

Number	Power consumer
1	Telephone, radiator fan, instrument cluster, engine control unit
2	Diagnostic connection, AC compressor
3	Clutch pedal switch, brake pedal switch
4	Daylight driving lights
5	Switch wiring harness
6	Headlamp beam adjustment, exterior mirror adjustment
7	Automated transmission
8	Automated transmission
9	Airbag
10	Park Assist
11	Low beam
12	Rear fog light
13	Low beam
14	Rear window wiper
15	Light switch
16	Steering force assistance
17	Windscreen washer
18	Reverse light switch
19	Injection valves, coolant pump
20	ABS/ESP, switch wiring harness
21	Switch illumination, number plate light
22	Daytime running lights
23	Light switch
24	Switch wiring harness
25	Switch wiring harness
26	Switch wiring harness
27	Interior light
28	Diagnostic connector
29	Central control unit
30	Exterior mirror heater
31	Coller fan, regulator valve, lambda probe
32	Turn signal, brake light
33	Main beam
34	Instrument cluster, main beam
35	Not assigned
36	Cigarette lighter, 12-volt power socket
37	Air blower for heating and air conditioning
38	Radio
39	Panoramic sliding roof, horn
40	Engine control unit
41	Central locking system
42	Ignition module
43	Seat heaters
44	Fuel pump
45	Light switch
46	Rear window heater
47	Power windows – right
48	Horn
49	Front window wiper
50	Fog lights
51	Power windows – left

Fuse box in engine compartment

The fuses are located underneath a cover next to the vehicle battery.

Skoda Citigo - fuse box - engine compartment — skoda-citigo-fuse-box-engine-compartment-2012

Number	Power consumer
S1	ABS/ESP
S2	Radiator fan
S3	Battery management, control unit for radiator fan
S4	ABS/ESP
S5	Central control unit
S6	Ignition lock, starter

Fuse box in the dash panel

These fuses are located in vehicles with the START-STOP system.

Skoda Citigo - fuse box - dash panel — Skoda Citigo – fuse box –
dash panel

Number	Power consumer
1	ABS/ESP
2	Instrument cluster
3	Radio, diagnosis
4	DC-DC voltage converter, starter relay
5	Not assigned
6	Air blower for air conditioning/heating
7	Control unit for the AC system
8	Not assigned
9	Right light
10	Left light
11	Starter
12	DC-DC voltage converter

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Skoda Citigo (2012) – fuse box diagram

Posted on 2 August 2017 by admin

Skoda Citigo (2012) – fuse box diagram

Year of production: 2012

Fuse box under of the dash panel

The fuses are located underneath the steering wheel on the underside of the dash panel.

Number	Power consumer
1	Telephone, radiator fan, instrument cluster, engine control unit
2	Diagnostic connection, relay for AC compressor
3	Clutch pedal switch, brake pedal switch
4	Daylight driving lights
5	Switch wiring harness
6	Headlamp beam adjustment, exterior mirror adjust
7	Not assigned
8	Not assigned
9	Park Assist
11	Low beam
12	Rear fog light
13	Low beam
14	Rear window wiper
15	Light switch
16	Steering force assistance
17	Windscreen washer
18	Reverse light switch
19	Injection valve, water pump
20	ABS/ESP, switch wiring harness
21	Switch illumination, number plate light
22	Daylight driving lights
23	Light switch
24	Switch wiring harness
25	Switch wiring harness
26	Switch wiring harness
27	Interior light
28	Diagnostic connector
29	Vehicle voltage control unit
30	Exterior mirror heater
31	Coller fan, regulator valve, lambda probe
32	Turn signal, brake light
33	Main beam
34	Instrument cluster, main beam
35	Not assigned
36	Cigarette lighter, 12-volt power socket
37	Air blower for heating and air conditioning
38	Radio
39	Panoramic sliding roof, horn
40	Engine control unit
41	Central locking system
42	Ignition module
43	Seat heaters
44	Fuel pump relay
45	Light switch
46	Rear window heater
47	Power windows – right
48	Horn
49	Front window wiper
50	Fog lights
51	Power windows – left

Fuse box in engine compartment

The fuses are located underneath a cover next to the vehicle battery.

Number	Power consumer
51	ABS/ESP
52	Radiator fan
53	Battery management, control unit for radiator fan
54	ABS/ESP
55	Vehicle voltage control unit
56	Ignition lock, relay for starter

Fuse box in the dash panel

These fuses are located in vehicles with the START-STOP system.

Number	Power consumer
1	ABS/ESP
2	Instrument cluster
3	Radio, diagnosis
4	DC-DC voltage converter, coils of the starter relay
5	Not assigned
6	Relay for fresh air/heat blower
7	Control unit for the AC system
8	Not assigned
9	Right light
10	Left light
11	Starter
12	DC-DC voltage converter

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Seat Alhambra (2005) – fuse box diagram

Posted on 1 August 20172 February 2020 by admin

Seat Alhambra (2005) – fuse box diagram

Year of production: 2005

The meaning of the symbols

Symbol	Meaning
	Dipped beam
	Main beam
	Adjustment of headlight range
	Parking light
	Foglight
	Rear foglight
	Reverse light
	Indicators
	Hazard warning lights
	Instrument panel lighting
	Fan
	Air conditioning
	Heating
	Heated windshield
	Heated rear window
	Heated rearview mirrors
	Adjustment of outside mirrors
	Lowering of outside mirrors
	Seat heating
	Horn
	Windscreen washer/wiper
	Rear windscreen washer/wiper
	Rear windscreen washer
	Headlight washer
	Sliding roof
	Electric windows
	Lighter
	Electric side windows
	Central locking/Remote control
	Electric switchboard
	Ignition
	Diagnosis
	ABS
	ESP
	Selector lever positions (in display)
	Electronic immobilizer
	License plate lighting
	Heated ejectors
	Instrument panel
	Central locking
	Radio
	CD changer/player
	Telephone/telematic function*
	Mobile telephone
	Cruise control
	Radio navigation system
	Interior lighting
	Reading light
	Fuel pump
	Trailer light connection
	Parking assistance

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Silhouette (2003 – 2004) – fuse box diagram

Posted on 1 August 201719 August 2019 by admin

Oldsmobile Silhouette (2003 – 2004) – fuse box diagram

Year of production: 2003, 2004

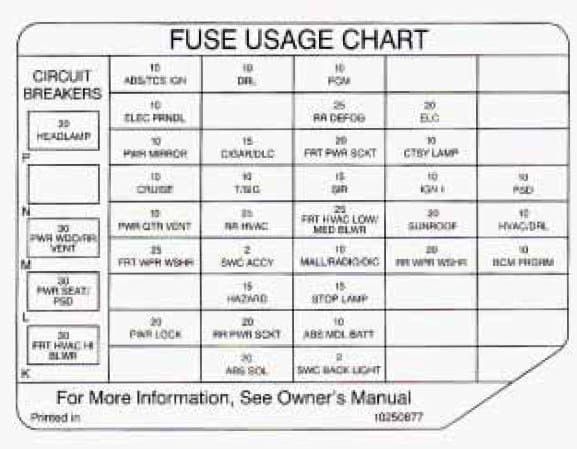

Instrument Panel Fuse Block

The instrument panel fuse block is located to the right of the glove box.

Oldsmobile Silhouette -fuse box - instrument panel — Oldsmobile Silhouette -fuse box – instrument panel

Circuit brealers	Circuity
HEADLAMP	DRL Control Module, Headlamp and Instrument Panel Dimmer Switch
PWR SLD DR	Power Sliding Door
PWR WDO	Front Power Windows
PWR/HEATED SEAT PSD	Six6-Way Power Seats and Rear Side Door Actuator Motor
FRT HVAC HI BLWR	Blower Motor Hi Speed Relay Module

Fuses	Circuity
SWC BACKLIGHT	Steering Wheel Radio Control Switches (Illumination)
PCM/PASS KEY/CLUSTER	Instrument Cluster to PRNDL Indicators
PWR MIRROR	Power Remote Control Mirror Switch
CRUISE	Cruise Control Module, Switch and Release Switch
Blank	Not Used
PCM/CRANK	Powertrain Control Module (PCM), Ignition Crank
PASS KEY	PASS-Key III System
PWR LOCK	Power Door Locks
HTD MIRROR	Heated Mirrors
RH T/LP	Driver’s Side Taillamp
RR FOG LP	Fog Lamps
CIGAR/DIC/APO FRT	Cigarette Lighter, Driver Information Center (DIC), Front Auxiliary Power Outlets
T/SIG	Turn Signal Switch
PWR QTR VENT	Indicator Lamp and Multifunction Switch (Power Vent Switch)
FRT/WPR/WSHR	Windshield Wiper/Washer Motor and Switch
HAZARD	Hazard Switch
RR PWR SCKT	Rear Electric Accessory Plug Housing
DRL	Daytime Running Lamp (DRL) Control Module
LH T/LP	Passenger’s Side Taillamp
RR DEFOG/HTD MIRROR	Rear Window Defogger Relay, Heated Mirrors
ON STAR	OnStar
SIR	Inflatable Restraint Control Module
HVAC BLOWER	Heater-A/C Control
MALL CLUSTER	Instrument Cluster, BCM, Electronic Level Control (ELC) Sensor and Relay
STOP LAMP	Stoplamp Switch
CLUSTER BATT	Module/Electronic Brake Control Module/Electronic Brake Traction Control Module (EBCM/EBTCM)
ENHANCED EVAP/AWD	Evaporative Emissions (EVAP) Canister Vent Solenoid Valve, All-Wheel Drive (AWD)
Blank	Not Used
ELC/TRAILER	Electronic Level Control (ELC) Air Compressor and ELC Relay, Trailer Harness
CTSY LAMP	Courtesy Lamp
IGN 1	BCM, Electronic Brake Control Indicator Lamp Driver Module, Instrument Panel Cluster, Rear Side Door Actuator Control Module, Rear Windows
RR HVAC TEMP CONT	Rear HVAC-A/C Control
RR WPR/WSHR	Rear Window Wiper Motor, Rear Window Wiper/Washer and Multifunction Switch (Rear Window Wiper/Washer Switch)
LH HEADLP LOW	Passenger’s Side Low Beam Headlamp
LH HEADLP HIGH	Passenger’s Side High Beam Headlamp
Blank	Not Used
Blank	Not Used
Blank	Not Used
RAP RELAY	Retained Accessory Power (RAP) Relay
Blank	Not Used
HVAC/DIC/DRL/HEATED SEAT	Air Inlet Actuator, DIC Display, DRL Control Module, Heater-A/C Control, Temperature Door Actuator (Front) and Rear Window Defogger Relay
BCM PRGRAM	BCM Programming
RH HEAD LP LOW	Driver’s Side Low Beam Headlamp
RH HEAD LP HIGH	Driver’s Side High Beam Headlamp
PCM/ABS	IGN MAIN Relay and PCM, Electronic Break Control Module

Underhood Fuse and Relay Center

This fuse and relay center is located in the engine compartment, in front of the windshield washer fluid reservoir.

Fuse	Circuity
1	Coolant Fans
2	Not Used
3	Circuit Breakers: Front Comfort Controls Hi Blower, and Headlamp Fuses (Instrument Panel): Hazard and Stoplamp, PASS-Key@
4	Circuit Breaker: Power Seat and Power Sliding Door. Fuses (Instrument Panel): Electronic Level Control and Rear Defogger, Trailer, Fog Lamps
5	Ignition Switch to Fuses (Instrument Panel): ABS/TCS Ignition, Cruise, DRL, Electronic PRNDL, Ignition 1, AWD, PSD, Air Bag, Turn Signal and Powertrain Control Module [IGN MAIN Relay (Underhood Fuse Block: A/C Clutch, Electronic Ignition, Ignition l-U/H, INJ, TCC)]
6	Coolant Fans
7	Fuses (Instrument Panel): ABS Module Battery, Cigarette Lighter, Courtesy Lamps, Front Power Socket, Power Locks, Power Mirrors and Right Rear Power Socket, OnStar, RAP
8	Ignition Switch to Fuses (VP): Body Control Module Program, Front Comfort Controls Low/Medium Blower, Front WiperANasher, HVAC/DRL, MALURadio/DIC, Puwer Guarier iierri, Zear n v b , Rear Wiper/Washer. SWC Accessory and Power Window Circuit Breaker, RAP
18	Fuel Injectors 1-6
19	Not Used
20	Not Used
21	Evaporative Emissions (EVAP) Canister Purge Valve, Heated Oxygen Sensors 1 and 2, Mass Air Flow (MAF) Sensor
22	Not Used
23	Not Used
24	Not Used
25	Ignition Control Module (ICM)
26	Not Used
27	Transaxle Range Switch to Back-up Lamps
28	A/C Clutch Relay to A/C Compressor Clutch Oil
29	Driver Information Display, Heater, A/C Control, Radio, Rear (LH and RH) Side Door Actuator Control Motor, Remote Control Door Lock Receiver (RCDLR), Security Indicator Lamp and Theft-Deterrent, Shock Sensor
30	Generator
31	Automatic Transaxle (Torque Converter Clutch Solenoids) Stoplamp Switch to Powertrain Control Module
32	Fuel Pump Relay
33	Powertrain Control Module
34	Not Used
35	Fog Lamp Relay
36	Horn Relay
37	Daytime Running Lamps (DRL) Control Module, Headlamps and Instrument Panel Dimmer Switch Theft-Deterrent Relay to Headlamps
38	Not Used
39	AIR
40	Mini Fuse Puller
	Air Conditioning Clutch Diode

Relays	Circuity
9	Right Fan 1, Left Fan 2
10	Left Fan 2
11	Fuses: A/C Clutch, Ignition l-U/H, Electronic Ignition, TCC, Injectors
12	Right Fan 1, Left Fan 2
13	A/C Clutch
14	Fuel Pump
15	Not Used
16	Horn
17	Left Fog Lamp, Right Fog Lamp, Fog Lamp Indicator

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Silhouette (2002) – fuse box diagram

Posted on 1 August 201719 August 2019 by admin

Oldsmobile Silhouette (2002) – fuse box diagram

Year of production: 2002

Instrument Panel Fuse Block

The instrument panel fuse block is located to the right of the glove box.

Circuit brealers	Circuity
HEADLAMP	DRL Control Module, Headlamp and Instrument Panel Dimmer Switch
PWR SLD DR	Power Sliding Door
PWR WDO	Front Power Windows
PWR/HEATED SEAT PSD	Six6-Way Power Seats and Rear Side Door Actuator Motor
FRT HVAC HI BLWR	Blower Motor Hi Speed Relay Module

Fuses	Circuity
SWC BACKLIGHT	Steering Wheel Radio Control Switches (Illumination)
PCM/PASS KEY/CLUSTER	Instrument Cluster to PRNDL Indicators
PWR MIRROR	Power Remote Control Mirror Switch
CRUISE	Cruise Control Module, Switch and Release Switch
Blank	Not Used
PCM/CRANK	Powertrain Control Module (PCM), Ignition Crank
PASS KEY	PASS-Key III System
PWR LOCK	Power Door Locks
HTD MIRROR	Heated Mirrors
RH T/LP	Driver’s Side Taillamp
RR FOG LP	Fog Lamps
CIGAR/DIC/APO FRT	Cigarette Lighter, Driver Information Center (DIC), Front Auxiliary Power Outlets
T/SIG	Turn Signal Switch
PWR QTR VENT	Indicator Lamp and Multifunction Switch (Power Vent Switch)
FRT/WPR/WSHR	Windshield Wiper/Washer Motor and Switch
HAZARD	Hazard Switch
RR PWR SCKT	Rear Electric Accessory Plug Housing
DRL	Daytime Running Lamp (DRL) Control Module
LH T/LP	Passenger’s Side Taillamp
RR DEFOG/HTD MIRROR	Rear Window Defogger Relay, Heated Mirrors
ON STAR	OnStar
SIR	Inflatable Restraint Control Module
HVAC BLOWER	Heater-A/C Control
MALL CLUSTER	Instrument Cluster, BCM, Electronic Level Control (ELC) Sensor and Relay
STOP LAMP	Stoplamp Switch
CLUSTER BATT	Module/Electronic Brake Control Module/Electronic Brake Traction Control Module (EBCM/EBTCM)
ENHANCED EVAP/AWD	Evaporative Emissions (EVAP) Canister Vent Solenoid Valve, All-Wheel Drive (AWD)
Blank	Not Used
ELC/TRAILER	Electronic Level Control (ELC) Air Compressor and ELC Relay, Trailer Harness
CTSY LAMP	Courtesy Lamp
IGN 1	BCM, Electronic Brake Control Indicator Lamp Driver Module, Instrument Panel Cluster, Rear Side Door Actuator Control Module, Rear Windows
RR HVAC TEMP CONT	Rear HVAC-A/C Control
RR WPR/WSHR	Rear Window Wiper Motor, Rear Window Wiper/Washer and Multifunction Switch (Rear Window Wiper/Washer Switch)
LH HEADLP LOW	Passenger’s Side Low Beam Headlamp
LH HEADLP HIGH	Passenger’s Side High Beam Headlamp
Blank	Not Used
Blank	Not Used
Blank	Not Used
RAP RELAY	Retained Accessory Power (RAP) Relay
Blank	Not Used
HVAC/DIC/DRL/HEATED SEAT	Air Inlet Actuator, DIC Display, DRL Control Module, Heater-A/C Control, Temperature Door Actuator (Front) and Rear Window Defogger Relay
BCM PRGRAM	BCM Programming
RH HEAD LP LOW	Driver’s Side Low Beam Headlamp
RH HEAD LP HIGH	Driver’s Side High Beam Headlamp
PCM/ABS	IGN MAIN Relay and PCM, Electronic Break Control Module

Underhood Fuse and Relay Center

This fuse and relay center is located in the engine compartment, in front of the windshield washer fluid reservoir.

Maxi Fuse	Circuity
1	Coolant Fans
2	Not Used
3	Circuit Breakers: Front Comfort Controls Hi Blower, and Headlamp Fuses (Instrument Panel): Hazard and Stoplamp
4	Circuit Breaker: Power Seat. Fuses (Instrument Panel): Electronic Level Control and Rear Defogger
5	Ignition Switch to Fuses (Instrument Panel): ABS/TCS Ignition, Cruise, DRL, Electronic PRNDL, Ignition 1, PSD, Air Bag, Turn Signal and Powertrain Control Module [IGN MAIN Relay (Underhood Fuse Block: A/C Clutch, Electronic Ignition, Ignition 1-U/H, INJ, TCC)]
6	Coolant Fans
7	Fuses (Instrument Panel): ABS Module Battery, Cigarette Lighter, Courtesy Lamps, Front Power Socket, Power Locks, Power Mirrors and Right Rear Power Socket
8	Ignition Switch to Fuses (I/P): Body Control Module Program, Front Comfort Controls Low/Medium Blower, Front Wiper/Washer, HVAC/DRL, MALL/Radio/DIC, Power Quarter Vent, Rear HVAC, Rear Wiper/Washer. SWC Accessory and Power Window Circuit Breaker

Mini Relays	Circuity
9	Right Fan 1, Left Fan 2
10	Left Fan 2
11	Fuses: A/C Clutch, Ignition 1-U/H, INS, Electronic Ignition, TCC
12	Right Fan 1, Left Fan 2

Micro Relays	Circuity
13	A/C Clutch
14	Fuel Pump
15	Not Used
16	Horn
17	Left Fog Lamp, Right Fog Lamp, Fog Lamp Indicator

Mini Fuse	Circuity
18	Fuel Injectors 1-6
19	Not Used
20	Not Used
21	Evaporative Emissions (EVAP) Canister Purge Valve, Heated Oxygen Sensors 1 and 2, Mass Air Flow (MAF) Sensor
22	Not Used
23	Not Used
24	Not Used
25	Ignition Control Module (ICM)
26	Not Used
27	Transaxle Range Switch to Back-up Lamps
28	A/C CLU to A/C Compressor Clutch Oil
29	Driver Information Display, Heater A/C Control, Radio, Rear Side Door Actuator Control Motor, Remote Control Door Lock Receiver (RCDLR), Security Indicator Lamp and Theft-Deterrent Shock Sensor
30	Generator
31	Automatic Transaxle (Torque Converter Clutch Solenoids) Stoplamp Switch to Powertrain Control Module
32	Fuel Pump Relay
33	Powertrain Control Module (PCM)
34	Radio
35	Fog Lamp Relay
36	Horn Relay
37	Daytime Running Lamps (DRL) Control Module, Headlamps and Instrument Panel Dimmer Switch Theft-Deterrent Relay to Headlamps
38	Not Used
39	AIR

Diode	Circuity
	Air Conditioning Clutch Diode
40	Mini Fuse Puller

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Silhouette (2001) – fuse box diagram

Posted on 1 August 201719 August 2019 by admin

Oldsmobile Silhouette (2001) – fuse box diagram

Year of production: 2001

Instrument Panel Fuse Block

The instrument panel fuse block is located to the right of the glove box.

Circuit brealers	Circuity
1	DRL Control Module, Headlamp and Instrument Panel Dimmer Switch
2	Power Sliding Door
3	Front Power Windows
4	6-Way Power Seat(s) and Rear Side Door Actuator Motor
5	Blower Motor Hi Speed Relay Module

Fuses	Circuity
6	Steering Wheel Radio Control Switches (Illumination)
7	Instrument Cluster to PRNDL Indicators
8	Power Remote Control Mirror Switch
9	Cruise Control Module, Switch and Release Switch
10	Not Used
11	Powertrain Control Module (PCM), Ignition Crank
12	PASS-Key III System
13	Body Control Module (BCM)
14	Heated Mirrors
15	Not Used
16	Not Used
17	Cigarette Lighter, Driver Information Center (DIC), Front Auxiliary Power Outlets
18	Turn Signal Switch
19	Indicator Lamp and Multifunction Switch (Power Vent Switch)
20	Windshield Wiper/Washer Motor and Switch
21	Turn Signal Switch
22	Rear Electric Accessory Plug Housing
23	Daytime Running Lamp (DRL) Control Module
24	Not Used
25	Rear Window Defogger Relay, Heated Mirrors
26	OnStar
27	Inflatable Restraint Control Module
28	Heater-A/C Control
29	Instrument Cluster, BCM, Electronic Level Control (ELC) Sensor and Relay
30	Stoplamp Switch
31	Module/Electronic Brake Control Module/Electronic Brake Traction Control Module (EBCM/EBTCM)
32	Evaporative Emissions (EVAP) Canister Vent Solonoid Valve
33	Not Used
34	Electronic Level Control (ELC) Air Compressor and ELC Relay, Trailer Harness
35	Courtesy Lamp
36	BCM, Electronic Brake Control Indicator Lamp Driver Module, Instrument Panel Cluster, Rear Side Door Actuator Control Module, Rear Windows
37	Rear HVAC-A/C Control
38	Rear Window Wiper Motor, Rear Window Wiper/Washer and Multifunction Switch (Rear Window Wiper/Washer Switch)
39	Not Used
40	Not Used
41	Not Used
42	Not Used
43	Not Used
44	Retained Accessory Power (RAP) Relay
45	Not Used
46	Air Inlet Actuator, DIC Display, DRL Control Module, Heater-A/C Control, Temperature Door Actuator (Front) and Rear Window Defogger Relay
47	BCM Programming
48	Not Used
49	Not Used
50	IGN MAIN Relay and PCM, Electronic Break Control Module

Underhood Fuse and Relay Center

This fuse and relay center is located in the engine compartment, in front of the windshield washer fluid reservoir.

Maxi Fuse		Circuity
1	COOL FAN 2	Coolant Fans
2	—	Not Used
3	HEADLAMP	Circuit Breakers: FRT HVAC HI BLWR, and HEADLAMP Fuses (Instrument Panel): HAZARD and STOPLAMP
4	BATT MAIN 2	Circuit Breaker: PWR SEAT/PSD. Fuses (UP): ELC and RR DEFOG
5	IGN MAIN 1	Ignition Switch to Fuses (Instrument Panel): ABS/TCS IGN, CRUISE, DRL, ELEC PRNDL, IGN 1, PSD, SIR, T/SIG and PCM [IGN MAIN Relay (Underhood Electrical Center Fuses: A/C CLU, ELEK IGN, IGN 1-U/H, INJ, TCC)]
6	COOL FAN I	Coolant Fans
7	BATT MAIN 1	Fuses (Instrument Panel): ABS MOD BATT, CIGAR/DLC, CTSY LAMP, FRT PWR SCKT, PWR LOCK, PWR MIRROR and RR PWR SCKT
8	IGN MAIN 2	Ignition Switch to Fuses (I/P):Ignition Switch to Fuses (I/P):BCM PRGRM, FRT HVACLOW/MED BLWR, FRTWPR/WSHR, HVAC/DRL,MALL/RADIO/DIC, PWRQRT VENT, RR HVAC, RRWPR/WSHR, SWC ACCY and PWR WDO Circuit Breaker

Mini Relays		Circuity
9	COOL FAN	RH FAN 1, LH FAN 2
10	COOL FAN 2	LH FAN 2
11	IGN MAIN	FUSES: A/C CLU, IGN l-U/H, INS, ELEK IGN, TCC
12	COOL FAN 1	RH FAN 1, LH FAN 2

Micro Relays		Circuity
13	A/C CLU	A/C Clutch
14	FUEL PUMP	Fuel Pump
15	F/PMP SPD CONT	Not Used
16	HORN	Horn
17	FOG LAMP	LH Fog Lamp, RH Fog Lamp, Fog Lamp Indicator

Mini Fuse		Circuity
18	INJ	Fuel Injectors 1-6
19	SPARE	Not Used
20	SPARE	Not Used
21	IGNI-UH	Evaporative Emissions (EVAP) Canister Purge Valve, Heated Oxygen Sensors 1 and 2, Mass Air Flow (MAF) Sensor
22	SPARE	Not Used
23	SPARE	Not Used
24	SPARE	Not Used
25	ELEK IGN	Ignition Control Module (ICM)
26	SPARE	Not Used
27	B/U LAMP	Transaxle Range Switch to Back-up Lamps
28	A/C CLU	A/C CLU to A/C Compressor Clutch Oil
29	RADIO	Driver Information Display, Heater A/C Control, Radio, Rear Side Door Actuator Control Motor, Remote Control Door Lock Receiver (RCDLR), Security Indicator Lamp and Theft-Deterrent Shock Sensor
30	ALT SENSE	Generator
31	TCC	Automatic Transaxle (Torque Converter Clutch Solenoids) Stoplamp Switch to PCM
32	FUEL PUMP	Fuel Pump Relay
33	ECM SENSE	Powertrain Control Module (PCM)
34	—	Not Used
35	FOG LP	Fog Lamp Relay
36	HORN	Horn Relay
37	PARK LP	Daytime Running Lamps (DRL) Control Module, Headlamps Switch Theft Deterrent Relay to Headlamps
38	—	Not Used
39	AIR	Not Used

Diode		Circuity
	A/C CLU DIODE	Air Conditioning Clutch Diode
40		Mini Fuse Puller

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Silhouette (2000) – fuse box diagram

Posted on 1 August 201719 August 2019 by admin

Oldsmobile Silhouette (2000) – fuse box diagram

Year of production: 2000

Instrument Panel Fuse Block

The instrument panel fuse block is located to the right of the glove box.

Circuit brealers	Circuity
HEADLAMP	DRL Control Module, Headlamp and Instrument Panel Dimmer Switch
PWR WDO	Front Power Windows
PWR SEATIPSD	6-Way Power Seat(s) and Rear Side Door Actuator Motor
FRT HVAC/HI BLWR	Blower Motor Hi Speed Relay in Module

Fuses	Circuity
SWC BACKLIGHT	Steering Wheel Radio Control Switches (Illumination)
ELEC PRNDL	Instrument Cluster to PRNDL Indicators
PWR MIRROR	Power Remote Control Mirror Switch
CRUISE	Cruise Control Module, Switch and Release Switch
PCM/CRANK	Powertrain Control Module (PCM), Ignition Crank
PASS KEY	PASS-Key III System
PWR LOCK	Body Control Module (BCM)
HTD MIRROR	Heated Mirrors
RH TLP	Not Used
RR FOG LP	Not Used
CIGARIDLC	Cigarette Lighter and Data Link Connector (DLC)
TISIG	Turn Signal Switch
PWR QTR VENT	Indicator Lamp and Multifunction Switch (Power Vent Switch)
FRT WPR/WSHR	Windshield Wiper/Washer Motor and Switch
HAZARD	Turn Signal Switch
RR PWR SCKT	Rear Electric Accessory Plug Housing
DRL	Daytime Running Lamp (DRL) Control Module
LH T/LP	Not Used
RR DEFOG/HTD MIRRORS	Rear Window Defogger Relay, Heated Mirrors
FRT PWR SCKT	Front Electric Accessory Plug Housing
SIR	Inflatable Restraint Control Module
HVAC BLOWER	Heater-A/C Control
MALL/ CLUSTER	Instrument Cluster, BCM, Electronic Level Control (ELC) Sensor and Relay
STOP LAMP	Stoplamp Switch
CLUSTER BATT	Module/Electronic Brake Control Module/Electronic Brake Traction Control Module (EBCM/EBTCM)
CAN VENT SOL	Evaporative Emissions (EVAP) Canister Vent Solonoid Valve
ELC/TRAILER	Electronic Level Control (ELC) Air Compressor and ELC Relay, Trailer Harness
CTSY LAMP	BCM
IGN 1	BCM, Electronic Brake Control Indicator Lamp Driver Module, Instrument Panel Cluster, Rear Side Door Actuator Control Module, Rear Windows
RR HVAC TEMP CONT	Rear HVAC-A/C Control
RR WPR/WSHR	Rear Window Wiper Motor, Rear Window Wiper/Washer and Multifunction Switch (Rear Window Wiper/Washer Switch)
LH HEADLP LOW	Not Used
LH HEADLP HIGH	Not Used
RAP RELAY	Retained Accessory Power (RAP) Relay
HVAC/DIC/DRL HEATED SEAT	Air Inlet Actuator, Driver Information Display, DRL Control Module, Heater-A/C Control, Temperature Door Actuator (Front) and Rear Window Defogger Relay
BCM PRGRM	Body Control Module (BCM)
RH HEADLP LOW	Not Used
RH HEADLP HIGH	Not Used
PCM	IGN MAIN Relay and PCM, Electronic Break Control Module

Underhood Fuse and Relay Center

This fuse and relay center is located in the engine compartment, in front of the windshield washer fluid reservoir.

Maxi Fuse		Circuity
1	COOL FAN 2	Coolant Fans
2	—	Not Used
3	HEADLAMP	Circuit Breakers: FRT HVAC HI BLWR, and HEADLAMP Fuses (Instrument Panel): HAZARD and STOPLAMP
4	BATT MAIN 2	Circuit Breaker: PWR SEAT/PSD. Fuses (UP): ELC and RR DEFOG
5	IGN MAIN 1	Ignition Switch to Fuses (Instrument Panel): ABS/TCS IGN, CRUISE, DRL, ELEC PRNDL, IGN 1, PSD, SIR, T/SIG and PCM [IGN MAIN Relay (Underhood Electrical Center Fuses: A/C CLU, ELEK IGN, IGN 1-U/H, INJ, TCC)]
6	COOL FAN I	Coolant Fans
7	BATT MAIN 1	Fuses (Instrument Panel): ABS MOD BATT, CIGAR/DLC, CTSY LAMP, FRT PWR SCKT, PWR LOCK, PWR MIRROR and RR PWR SCKT
8	IGN MAIN 2	Ignition Switch to Fuses (I/P):Ignition Switch to Fuses (I/P):BCM PRGRM, FRT HVACLOW/MED BLWR, FRTWPR/WSHR, HVAC/DRL,MALL/RADIO/DIC, PWRQRT VENT, RR HVAC, RRWPR/WSHR, SWC ACCY andPWR WDO Circuit Breaker

Mini Relays		Circuity
9	COOL FAN	RH FAN 1, LH FAN 2
10	COOL FAN 2	LH FAN 2
11	IGN MAIN	FUSES: A/C CLU, IGN l-U/H, INS, ELEK IGN, TCC
12	COOL FAN 1	RH FAN 1, LH FAN 2

Micro Relays		Circuity
13	A/C CLU	A/C Clutch
14	FUEL PUMP	Fuel Pump
15	F/PMP SPD CONT	Not Used
16	HORN	Horn
17	FOG LAMP	LH Fog Lamp, RH Fog Lamp, Fog Lamp Indicator

Mini Fuse		Circuity
18	INJ	Fuel Injectors 1-6
19	SPARE	Not Used
20	SPARE	Not Used
21	IGNI-UH	Evaporative Emissions (EVAP) Canister Purge Valve, Heated Oxygen Sensors 1 and 2, Mass Air Flow (MAF) Sensor
22	SPARE	Not Used
23	SPARE	Not Used
24	SPARE	Not Used
25	ELEK IGN	Ignition Control Module (ICM)
26	SPARE	Not Used
27	B/U LAMP	Transaxle Range Switch to Back-up Lamps
28	A/C CLU	A/C CLU to A/C Compressor Clutch Oil
29	RADIO	Driver Information Display, Heater A/C Control, Radio, Rear Side Door Actuator Control Motor, Remote Control Door Lock Receiver (RCDLR), Security Indicator Lamp and Theft-Deterrent Shock Sensor
30	ALT SENSE	Generator
31	TCC	Automatic Transaxle (Torque Converter Clutch Solenoids) Stoplamp Switch to PCM
32	FUEL PUMP	Fuel Pump Relay
33	ECM SENSE	Powertrain Control Module (PCM)
34	—	Not Used
35	FOG LP	Fog Lamp Relay
36	HORN	Horn Relay
37	PARK LP	Daytime Running Lamps (DRL) Control Module, Headlamps Switch Theft Deterrent Relay to Headlamps
38	—	Not Used
39	SPARE	Not Used
40		Mini Fuse Puller

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Silhouette (1999) – fuse box diagram

Posted on 1 August 201719 August 2019 by admin

Oldsmobile Silhouette (1999) – fuse box diagram

Year of production: 1999

Instrument Panel Fuse Block

The instrument panel fuse block is located to the right of the glove box.

Circuit brealers	Circuity
HEADLAMP	DRL Control Module, Headlamp and Instrument Panel Dimmer Switch
PWR WDO	Front Power Windows
PWR SEATIPSD	6-Way Power Seat(s) and Rear Side Door Actuator Motor
FRT HVAC/HI BLWR	Blower Motor Hi Speed Relay in Module

Fuses	Circuity
SWC BACKLIGHT	Steering Wheel Radio Control Switches (Illumination)
ELEC PRNDL	Instrument Cluster to PRNDL Indicators
PWR MIRROR	Power Remote Control Mirror Switch
CRUISE	Cruise Control Module, Switch and Release Switch
PWR QTR VENT	Interior Lamps and Multifunction Switch (Power Vent Switch)
FRT WPWSHR	Windshield Wipermasher Motor and Switch
PASS KEY	PASS-Key III System
PWR LOCK	Body Control Module (BCM)
HTD MIRROR	Heated Mirrors
RH TLP	Not Used
RR FOG LP	Not Used
CIGARIDLC	Cigarette Lighter and Data Link Connector (DLC)
TISIG	Turn Signal Switch
RR HVAC	Rear Blower Motor, Rear Heater-A/C Control, and Temperature Door Actuator (Rear)
SWC ACCY	Steering Wheel Radio Control Switches
HAZARD	Turn Signal Switch
RR PWR SCKT	Rear Electric Accessory Plug Housing
DRL	DRL Control Module
LH T/LP	Not Used
RR DEFOG	Rear Window Defogger Relay, Heated Mirrors
FRT PWR SCKT	Front Electric Accessory Plug Housing
SIR	Inflatable Restraint Control Module
FRT HVAC LOW/MED BLWR	Heater-A/C Control
MALL/RADIO/DIC	BCM, Driver Information Display, Rear Seat Audio, ELC Sensor and Relay
STOP LAMP	Stoplamp Switch
ABS MOD BATT	Electronic Brake Control Module/Electronic Brake Traction Control Module (EBCM/EBTCM)
CAN VENT SOL	Evaporative Emissions (EVAP) Canister Vent Solonoid Valve
ELC	Electronic Level Control (ELC) Air Compressor and ELC Relay, Trailer Harness
CTSY LAMP	BCM
IGN 1	BCM, Electronic Brake Control Indicator Lamp Driver Module, Instrument Panel Cluster, Rear Side Door Actuator Control Module, Rear Window Wiper/Washer and Multifunction Switch (Fog Lamp Switch/Traction Control Switch) and Stoplamp/Torque Converter Clutch (TCC) Switch
RR WPR WSHR	Rear Window Wiper Motor, Rear Window Wiper/Washer and Multifunction Switch (Rear Window Wiper/Washer Switch)
LH HEADLP LOW	Not Used
LH HEADLP HIGH	Not Used
ABSITCS IGN	Electronic Brake Control Module/Electronic Brake Traction Control Module (EBCM/EBTCM)
ABS SOL	LH and RH Front Brake Solenoid Valve
HVAC/DRL	Air Inlet Actuator, DRL Control Module, Heater-A/C Control, Temperature Door Actuator (Front) and Rear Window Defogger Relay
BCM PRGRM Body	Body Control Module (BCM)
RH HEADLP LOW	Not Used
RH HEADLP HIGH	Not Used
PCM	IGN MAIN Relay and PCM

Underhood Fuse and Relay Center

This fuse and relay center is located in the engine compartment, in front of the windshield washer fluid reservoir.

Maxi Fuse		Circuity
1	COOL FAN 2	Coolant Fans
3	HEADLAMP	Circuit Breakers: FRT HVAC HI BLWR, and HEADLAMP Fuses (VP): HAZARD and STOPLAMP
4	BATT MAIN 2	Circuit Breaker: PWR SEAT/PSD. Fuses (UP): ELC and RR DEFOG
5	IGN MAIN 1	Ignition Switch to Fuses (Instrument Panel): ABS/TCS IGN, CRUISE, DRL, ELEC PRNDL, IGN 1, PSD, SIR, T/SIG and PCM [IGN MAIN Relay (Underhood Electrical Center Fuses: A/C CLU, ELEK IGN, IGN 1-U/H, INJ, TCC)]
6	COOL FAN I	Coolant Fans
7	BATT MAIN 1	Fuses (Instrument Panel): ABS MOD BATT, CIGAR/DLC, CTSY LAMP, FRT PWR SCKT, PWR LOCK, PWR MIRROR and RR PWR SCKT
8	IGN MAIN 2	Ignition Switch to Fuses (I/P): BCM PRGRM, FRT HVAC LOW/MED BLWR, FRT WPR/WSHR, HVAC/DRL, MALL/RADIO/DIC, PWR QRT VENT, RR HVAC, RR WPR/WSHR, SWC ACCY and PWR WDO Circuit Breaker

Mini Relays		Circuity
9	COOL FAN	RH FAN 1, LH FAN 2
10	COOL FAN 2	LH FAN 2
11	1GN MAIN	FUSES: A/C CLU, IGN l-U/H, INS, ELEK IGN, TCC
12	COOL FAN 1	RH FAN 1, LH FAN 2

Micro Relays		Circuity
13	A/C CLU	A/C Clutch
14	FUEL PUMP	Fuel Pump
15	F/PMP SPD CONT	Not Used
16	HORN	Horn
17	FOG LAMP	LH Fog Lamp, RH Fog Lamp, Fog Lamp Indicator

Mini Fuse		Circuity
18	INJ	Fuel Injectors 1-6
19	SPARE	Not Used
20	SPARE	Not Used
21	IGNI-UH	Evaporative Emissions (EVAP) Canister Purge Valve, Heated Oxygen Sensors 1 and 2, Mass Air Flow (MAF) Sensor
22	SPARE	Not Used
23	SPARE	Not Used
24	SPARE	Not Used
25	ELEK IGN	Ignition Control Module (ICM)
26	SPARE	Not Used
27	B/U LAMP	Transaxle Range Switch to Back-up Lamps
28	A/C CLU	A/C CLU to A/C Compressor Clutch Oil
29	RADIO	Driver Information Display, Heater A/C Control, Radio, Rear Side Door Actuator Control Motor, Remote Control Door Lock Receiver (RCDLR), Security Indicator Lamp and Theft-Deterrent Shock Sensor
30	ALT SENSE	Generator
31	TCC	Automatic Transaxle (Torque Converter Clutch Solenoids) Stoplamp Switch to PCM
32	FUEL PUMP	Fuel Pump Relay
33	ECM SENSE	Powertrain Control Module (PCM)
34	—	Not Used
35	FOG LP	Fog Lamp Relay
36	HORN	Horn Relay
37	PARK LP	Daytime Running Lamps (DRL) Control Module, Headlamps Switch Theft Deterrent Relay to Headlamps
38	—	Not Used
39	SPARE	Not Used
40		Mini Fuse Puller

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Silhouette (1998) – fuse box diagram

Posted on 30 July 201719 August 2019 by admin

Oldsmobile Silhouette (1998) – fuse box diagram

Year of production: 1998

Instrument Panel Fuse Block

Circuit brealers	Circuity
HEADLAMP	DRL Control Module, Headlamp and I/P Dimmer Switch
PWR WDOIRR VENT	Front Power Windows
PWR SEATIPSD	6-Way Power Seat(s) and Rear Side Door Actuator Motor
FRT HVAC/HI BLWR	Blower Motor Hi Speed Relay in Module

Fuses	Circuity
SWC BACKLIGHT	Steering Wheel Radio Control Switches (Illumination)
ELEC PRNDL	Instrument Cluster to PRNDL Indicators
PWR MIRROR	Power Remote Control Mirror Switch
CRUISE	Cruise Control Module, Switch and Release Switch
PWR QTR VENT	Interior Lamps and Multifunction Switch (Power Vent Switch)
FRT WPWSHR	Windshield Wipermasher Motor and Switch
PWR LOCK	BCM
RH TLP	Not Used
RR FOG LP	Not Used
CIGARIDLC	Cigarette Lighter and Data Link Connector (DLC)
TISIG	Turn Signal Switch
RR HVAC	Rear Blower Motor, Rear Heater-A/C Control, and Temperature Door Actuator (Rear)
SWC ACCY	Steering Wheel Radio Control Switches
HAZARD	Turn Signal Switch
RR PWR SCKT	Rear Electric Accessory Plug Housing
DRL	DRL Control Module
LH T/LP	Not Used
RR DEFOG	Rear Window Defogger Relay
FRT PWR SCKT	Front Electric Accessory Plug Housing
SIR	Inflatable Restraint Control Module
FRT HVAC LOW/MED BLWR	Heater-A/C Control
MALL/RADIO/DIC	BCM, Driver Information Display, Radio and Radio Rear Speaker Amplifier
STOP LAMP	Stoplamp Switch to Stoplamps
ABS MOD BATT	Electronic Brake Control Module/Electronic Brake Traction Control Module (EBCM/EBTCM)
CAN VENT SOL	Evaporative Emissions (EVAP) Canister Vent Solonoid Valve
ELC	Electronic Level Control (ELC) Air Compressor and ELC Relay, Trailer Harness
CTSY LAMP	BCM
IGN 1	ALC Sensor, BCM, Electronic Brake Control Indicator Lamp Driver Module, Instrument Panel Cluster, Rear Window Wipermasher and Multifunction Switch (Fog Lamp Switch Traction Control Switch) and Stoplamp/Torque Converter Clutch (TCC) Switch
SUNROOF	Sunroof Control Module
RR WPR WSHR	Rear Window Wiper Motor, Rear Window Wipermasher and Multifunction Switch (Rear Window Wipermasher Switch)
LH HEADLP LOW	Not Used
LH HEADLP HIGH	Not Used
ABSITCS IGN	Electronic Brake Control Module/Electronic Brake Traction Control Module (EBCMEBTCM)
ABS SOL	LH and RH Front Brake Solenoid Valve
HVAC/DRL	Air Inlet Actuator, DRL Control Module, Heater-A/C Control, Temperature Door Actuator (Front) and Rear Window Defogger Relay
BCM PRGRM Body	Body Control Module (BCM)
RH HEADLP LOW	Not Used
RH HEADLP HIGH	Not Used
PCM	IGN MAIN Relay and PCM

Underhood Fuse and Relay Center

This fuse and relay center is located in the engine compartment, in front of the windshield washer fluid reservoir.

Maxi Fuse		Circuity
1	COOL FAN 2	Coolant Fans
3	HEADLAMP	Circuit Breakers: FRT HVAC HI BLWR, and HEADLAMP Fuses (VP): HAZARD and STOPLAMP
4	BATT MAIN 2	Circuit Breaker: PWR SEAT/PSD. Fuses (UP): ELC and RR DEFOG
5	IGN MAIN 1	Ignition Switch to Fuses (UP): ABS/TCS IGN, CRUISE, DRL, ELEC PRNDL, IGN 1, PSD, SIR, T/SIG and PCM [IGN MAIN Relay (Underhood Electrical Center Fuses: A/C INJ, TCC)] CLU, ELEK
6	COOL FAN I	Coolant Fans
7	BATT MAIN 1	Fuses (IP): ABS MDL BATT, CIGARIDLC, CTSY LAMP, FRT PWR SCKT, PWR LOCK, PWR MIRROR and RR PWR SCKT
8	IGN MAIN 2	Ignition Switch to Fuses (UP): BCM PRGRM, FRT HVAC LOWIMED BLWR, FRT WPRNSHR, HVAC/DRL, MALL/RADIO/DIC, PWR QRT VENT, RR HVAC, RR WPRNSHR, SUNROOF, SWC ACCY and PWR WDO Circuit Breaker

Mini Fuse		Circuity
9	COOL FAN	RH FAN 1, LH FAN 2
10	COOL FAN 2	LH FAN 2
11	1GN MAIN	FUSES: A/C CLU, IGN l-U/H, INS, ELEK IGN, TCC
12	COOL FAN 1	RH FAN 1, LH FAN 2

Micro Relays		Circuity
13	A/C CLU	A/C Clutch
14	FUEL PUMP	Fuel Pump
15	F/PMP SPD CONT	Not Used
16	HORN	Horn
17	FOG LAMP	LH Fog Lamp, RH Fog Lamp, Fog Lamp Indicator

Mini Fuse		Circuity
18	INJ	Fuel Injectors 1-6
19	SPARE	Not Used
20	SPARE	Not Used
21	IGNI-UH	Evaporative Emissions (EVAP) Canister Purge Valve, Heated Oxygen Sensors 1 and 2, Mass Air Flow (MAF) Sensor
22	SPARE	Not Used
23	SPARE	Not Used
24	SPARE	Not Used
25	ELEK IGN	Ignition Control Module (ICM)
26	SPARE	Not Used
27	B/U LAMP	Transaxle Range Switch to Back-up Lamps
28	A/C CLU	A/C CLU to A/C Compressor Clutch Oil
29	RADIO	Driver Information Display, Heater A/C Control, Radio, Rear Side Door Actuator Control Motor, Remote Control Door Lock Receiver (RCDLR), Security Indicator Lamp and Theft Deterrent Shock Sensor
30	ALT SENSE	Generator
31	TCC	Automatic Transaxle (Torque Converter Clutch Solenoids) Stoplamp Switch to PCM
32	FUEL PUMP	Fuel Pump Relay
33	ECM SENSE	Powertrain Control Module (PCM)
34	—	Not Used
35	FOG LP	Fog Lamp Relay
36	HORN	Horn Relay
37	PARK LP	Daytime Running Lamps (DRL) Control Module, Headlamps Switch Theft Deterrent Relay to Headlamps
38	—	Not Used
39	—	Not Used
40		Mini Fuse Puller

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Silhouette (1997) – fuse box diagram

Posted on 30 July 201719 August 2019 by admin

Oldsmobile Silhouette (1997) – fuse box diagram

Year of production: 1997

Instrument Panel Fuse Block

Circuit brealers	Circuity
FRT HVAC HI BLWR	Blower Motor Res
HEADLAMP	DRL Control Module, Headlamp Dimmer Switch and Headlamp Switch
PWR SEATFSD	6-way Power Seat(s) and Rear Side Door Actuator Motor
PWR WDO/RR VENT	Front Power Windows

Fuses	Circuity
ABS SOL	LH and RH Front Brake Solenoid Valve
ABS/TCS IGN	Electronic Brake Control Relay and EBTCM
BCM PRGRM	Body Control Module (BCM
CIGARDLC	Cigarette Lighter and Data Link Connector (DLC)
CRUISE	Cruise Control Module, Switch and Release Switch
CTSY LAMP	BCM
DRL	DRL Control Module
ELC	Electronic Level Control (ELC) Air Compressor and ELC Relay
ELEC PRNDL	Instrument Cluster to PRNDL Indicators
FRT HVAC LOW/MED BLWR	Heater-A/C Control
FRT PWR SCKT	Front Electric Accessory Plug Housing
FRT WPR/WSHR	Windshield Wiper/Washer Motor and Switch
HAZARD	Turn Signal Switch
HVAC/DRL	Air Recirculation Motor, DRL Control Module, Heater-A/C Control, Temperature Door Actuator (Front) and Rear Window Defogger Relay
IGN 1	ELC Sensor, BCM, Electronic Brake Control Indicator Lamp Driver Module, Instrument Panel Cluster, Rear Side Door Actuator Motor, Rear Window Wiperwasher and Multifunction Switch (Foglamp Switch/TCS Enable Switch) and Stoplamp/Torque Converter Clutch (TCC) Switch
MALL/RADIO/DIC	BCM, Driver Information Display, Radio and Radio Rear Speaker Amplifier
PCM	IGN MAIN Relay and PCM
PSD	Rear Side Door Actuator Motor
PWR LOCK	BCM
PWR MIRROR	Power Remote Control Mirror Switch
PWR QTR VENT	Interior Lamps and Multifunction Switch (Power Vent Switch
RR HVAC	Rear Blower Motor, Rear Heater-A/C Control, and Temperature Door Actuator (Rear)
RR DEFOG	Rear Window Defogger Relay
RR PWR SCKT	Rear Electric Accessory Plug Housing
RR WPR/WSHR	Rear Window Wiper Motor, Rear Window Wiper/Washer and Multifunction Switch (Rear Window Wiper/Washer Switch)
SIR	Inflatable Restraint Control Module
STOP LAMP	Stoplamp Switch to Sto
SUNROOF	Sunroof Control Module
SWC ACCY	Steering Wheel Radio Control Switches
SWC BACKLIGHT	Steering Wheel Radio Control Switches (Illumination)
T/SIG	Turn Signal Switch

Underhood Fuse and Relay Center

This fuse and relay center is located in the engine compartment, in front of the windshield washer fluid reservoir.

Maxi Fuse		Circuity
1	COOL FAN 2	Coolant Fans
3	HEADLAMP	Circuit Breakers: FRT HVAC HI BLWR, and HEADLAMP Fuses (VP): HAZARD and STOPLAMP
4	BATT MAIN 2	Circuit Breaker: PWR SEAT/PSD. Fuses (UP): ELC and RR DEFOG
5	IGN MAIN 1	Ignition Switch to Fuses (UP): ABS/TCS IGN, CRUISE, DRL, ELEC PRNDL, IGN 1, PSD, SIR, T/SIG and PCM [IGN MAIN Relay (Underhood Electrical Center Fuses: A/C INJ, TCC)] CLU, ELEK
6	COOL FAN I	Coolant Fans
7	BATT MAIN 1	Fuses (IP): ABS MDL BATT, CIGARIDLC, CTSY LAMP, FRT PWR SCKT, PWR LOCK, PWR MIRROR and RR PWR SCKT

Mini Fuse		Circuity
18	INJ	Fuel Injectors 1-6
21	IGNI-UH	Evaporative Emissions (EVAP) Canister Purge Valve, EVAP Canister Vacuum Switch, Heated Oxygen Sensors #1 and #2, Linear Exhaust Gas Recirculation (EGR) Valve, Mass Air Flow (MAF) Sensor and Powertrain Control Module (PCM) Ignition Control (IC) Module
27	B/U LAMP	Transaxle Range Switch to Back-up Lamps
28	A/C CLU	A/C CLU to A/C Compressor Clutch Oil
29	RADIO	Driver Information Display, Heater A/C Control, Radio, Rear Side Door Actuator Motor, Remote Control Door Lock Receiver (RCDLR), Security Indicator Lamp and Theft Deterrent Shock Sensor
30	ALT SENSE	Generator
31	TCC	Automatic Transaxle (Torque Converter Clutch Solenoids) Stoplamp Switch to PCM
32	FUEL PUMP	Fuel Pump Relay
33	ECM SENSE	Powertrain Control Module (PCM)
35	FOG LP	Fog Lamp Relay
36	HORN	Horn Relay
37	PARK LP	Daytime Running Lamps (DRL) Control Module, Headlamps Switch Theft Deterrent Relay to Headlamps

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
