Volkswagen Caddy (2010 – 2014) – fuse box diagram

Volkswagen Caddy (2010 – 2014) – fuse box diagram

Year of production: 2010, 2011, 2012, 2013, 2014

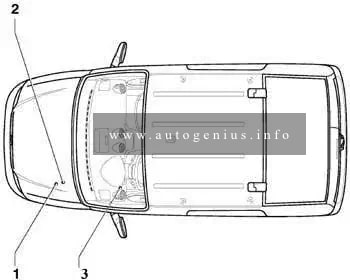

Location

Volkswagen Caddy - fuse box diagram - location
Volkswagen Caddy – fuse box diagram – location
  1. Fuses on fuse holder A -SA- (On the electronics box, on left in engine compartment)
  2. Fuses on fuse holder B -SB- (On left in engine compartment)
  3. Fuses on fuse holder C -SC- (Under left dash panel)

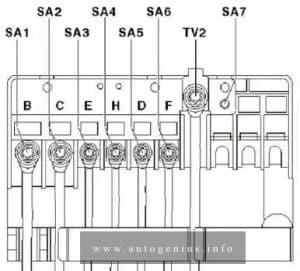

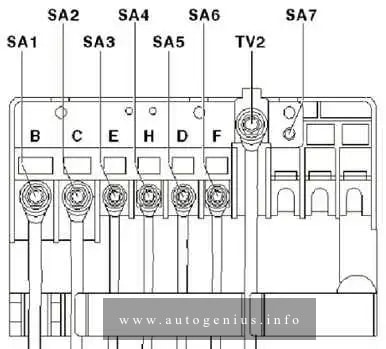

Fitting location of fuse holder A (A -SA-)

Volkswagen Caddy - fuse box diagram - fitting location of fuse holder A (A -SA-)
Volkswagen Caddy – fuse box diagram – fitting location of fuse holder A (A -SA-)
No.
A
Function/component
1 150 Alternator -C-
200 Alternator -C-1)
2 80 Power steering control unit -J500-
Electromechanical power steering motor -V187-
3 50 Radiator fan control unit -J293-
4 80 X-contact relief relay -J59-

t Fuse holder C -SC- (-SC28- up to -SC33- )
5 80 Fuse holder C -SC- (-SC20- up to -SC24- and -SC43- up to -SC53- )
6 40 Low heat output relay -J359-
7 80 High heat output relay -J360-
1) Models with 140 A generator only

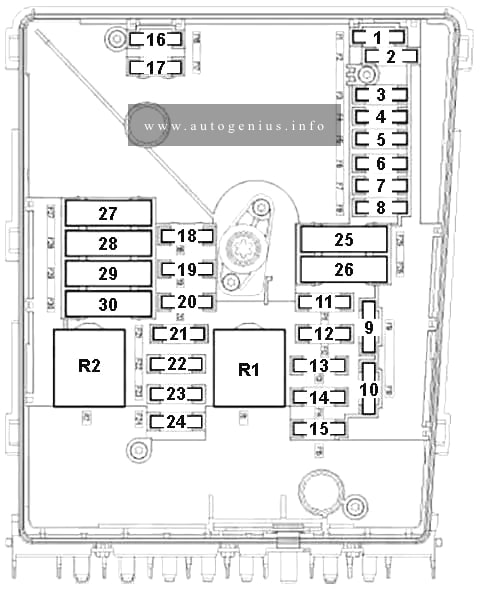

Fitting location of E-box high fuse holder (B -SB-)

Volkswagen Caddy - fuse box diagram - fitting location of fuse holder B (B -SB-)
Volkswagen Caddy – fuse box diagram – fitting location of fuse holder B (B -SB-)
No.
A
Function/component
1
2 30 Mechatronic unit for dual clutch gearbox -J743-
3 5 Battery monitoring control unit -J367-
Onboard supply control unit -J519- (T52a/24)
4 20 ABS control unit -J104-
ABS hydraulic unit -N55-
5 15 Mechatronic unit for dual clutch gearbox -J743-
6 5 Control unit in dash panel insert -J285-
Steering column electronics control unit -J527-
7 40 Terminal 15 voltage supply relay -J329-
Fuse holder C -SC- (-SC9- up to -SC16- and -SC25- up to -SC27- )
8 15 Control unit with display for radio and navigation -J503-
Radio -R-
Voltage stabiliser -J532-3)
Control module with display unit for radio and navigation system -J503-
Radio -R-
Fuse 57 on fuse holder C -SC57-
Fuse 58 on fuse holder C -SC58-
9 5 Mobile telephone operating electronics control unit -J412-4)
10 5 Main relay -J271-
Engine control unit -J623-
Engine component current supply relay -J757-
11 30 Auxiliary heater control unit -J364-
12 5 Data bus diagnostic interface -J533-
13 15 Engine control unit -J623- (petrol engine)
30 Engine control unit -J623- (diesel engine)
14 15 Fuel pressure regulating valve -N276- (diesel engine)
Fuel metering valve -N290- (diesel engine)
20 Ignition transformer -N152-
Ignition coil 1 with output stage -N70-
Ignition coil 2 with output stage -N127-
Ignition coil 3 with output stage -N291-
Ignition coil 4 with output stage -N292-
15 5 Low heat output relay -J359- (diesel engine)
High heat output relay -J360- (diesel engine)
Fuel pump relay -N17-
Electric fuel pump 2 relay -J49-
Automatic glow period control unit -J179-
10 Lambda probe heater -Z19-
Lambda probe 1 heater after catalytic converter -Z29-
Low heat output relay -J359-
High heat output relay -J360-
Fuel pump switch-off relay -J333-2)
Gas injection valve 1 -N366-1)
Gas injection valve 2 -N367-1)
Gas injection valve 3 -N368-1)
Gas injection valve 4 -N369-1)
15 High-pressure valve for gas mode -N372-2)
Valve for gas tank -N495-2)
Sensor for gas level gauge -G707-2)
Gas injection valve 1 -N366-2)
Gas injection valve 2 -N367-2)
Gas injection valve 3 -N368-2)
Gas injection valve 4 -N369-2)
16 30 Onboard supply control unit -J519- (T52c/42)
Light bulb for right foglamp -L23-
Right cornering light bulb -L149-
Rear left fog light bulb -L46- , or rear right fog light bulb -L47-
Right daytime running light bulb -L175-
Left side light bulb -M1-
Right tail light bulb -M2-
Rear left turn signal bulb -M6-
Front right turn signal bulb -M7-
Left brake light bulb -M9-
Right reversing light bulb -M17-
Left turn signal repeater bulb -M18-
High-mounted brake light bulb -M25-
Right headlight dipped beam bulb -M31-
Right headlight main beam bulb -M32-
17 15 Horn relay -J413-
18 30 Special vehicle control unit -J608-
19 30 Wiper motor control unit -J400-
20 10 Fuel tank shut-off valve 1 -N361-1)
Fuel tank shut-off valve 2 -N362-1)
Fuel tank shut-off valve 3 -N363-1)
Fuel tank shut-off valve 4 -N429-1)
Fuel tank shut-off valve 5 -N430-1)
Coolant circulation pump -V50-
21 10 Lambda probe heater -Z19- (diesel engine)
15 Fuel pump control unit -J538-
Lambda probe heater -Z19-
Lambda probe 1 heater after catalytic converter -Z29-
22 5 Clutch position sender -G476-
Brake light switch -F-5)
23 5 Additional coolant pump relay -J496-
10 Air mass meter -G70- (Diesel engine)
Charge pressure control solenoid valve -N75- (Diesel engine)
Exhaust gas recirculation cooler changeover valve -N345- (Diesel engine)
Control unit for gas mode -J659-
Relay for gas shut-off valves -J908-1)
High-pressure valve for gas mode -N372-1)
15 Fuel pressure regulating valve -N276-
24 10 Radiator fan control unit -J293-
Secondary air pump relay -J299-
Additional coolant pump relay -J496-
Activated charcoal filter solenoid valve 1 -N80-
Coolant regulating valve -N515-
Variable intake manifold changeover valve -N156-
Coolant circulation pump 2 -V178-
Injector, cylinder 1 -N30-1)
Injector, cylinder 2 -N31-1)
Injector, cylinder 3 -N32-1)
Injector, cylinder 4 -N33-1)
25 40 ABS hydraulic pump -V64-
ABS control unit -J104-
26 30 Onboard supply control unit -J519- (T52a/1)
Left cornering light bulb -L148-
Left fog light bulb -L22-
Rear left fog light bulb -L46- , or rear right fog light bulb -L47-
Left daytime running light bulb -L174-
Right side light bulb -M3-
Left tail light bulb -M4-
Front left turn signal bulb -M5-
Rear right turn signal bulb -M8-
Right brake light bulb -M10-
Left reversing light bulb -M16-
Right turn signal repeater bulb -M19-
Left headlight dipped beam bulb -M29-
Left headlight main beam bulb -M30-
27 40 Secondary air pump motor -V101-
50 Automatic glow period control unit -J179-
28
29 30 Fuse 18 on fuse holder C -SC18-
Fuse 19 on fuse holder C -SC19-
50 Fuse 35 on fuse holder C -SC35-
Fuse 39 on fuse holder C -SC39-
Fuse 54 on fuse holder C -SC54-
Fuse 55 on fuse holder C -SC55-
Fuse 59 on fuse holder C -SC59-
Fuse 60 on fuse holder C -SC60-
30 50 Fuse holder C -SC- (-SC40- up to -SC42- )
1) for vehicles with engine code BSX only
2) for vehicles with engine code CHGA only
3) for vehicles with start/stop system only
4) for vehicles without start/stop system only
5) effective since November 2011

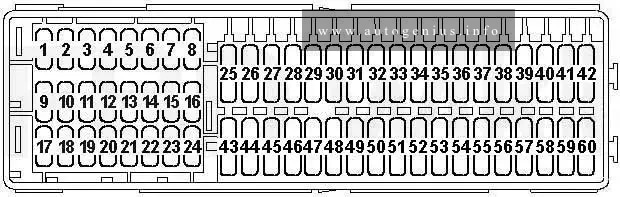

Position of fuses on fuse holder C -SC-

Volkswagen Caddy - fuse box diagram - fitting location of fuse holder C (C -SC-)
Volkswagen Caddy – fuse box diagram – fitting location of fuse holder C (C -SC-)
No.
A
Function/component
1
2
3
4
5
6
7
8
9 10 -Special vehicles-
4-pin connector -T4aa- , Pin 1 3)
10-pin connector -T10l- , Pin 4 (Interface for special functions)
10 5 Fuel pump relay -J17-
Main relay -J271-
Gas mode control unit -J659-
Terminal 50 voltage supply relay -J682-
Starter relay 1 -J906-
Voltage stabiliser -J532-
Data bus diagnostic interface -J533-
Engine control unit -J623-
11 5 Parking aid control unit -J446-
Park assist steering control unit -J791-
12 5 -Special vehicles-
Taximeter -G41-
Mirror taximeter -G511-
103) -Special vehicles-3)
2-pin connector -T2ab- , Pin 1
2-pin connector -T2ac- , Pin 1
28-pin connector -T28b- , Pin 13
204) -Special vehicles-4)
8-pin connector -T8k- , Pin 8
28-pin connector -T28a- , Pin 20
28-pin connector -T28b- , Pin 20
13 7.5 Brake light switch -F-3)
Headlight range control adjuster -E102-
TCS and ESP button -E256-
Tyre pressure monitor display button -E492-
Start/Stop operation button -E693-
ABS control unit -J104-
Trailer detector control unit -J345-
All-wheel drive control unit -J492-
Power steering control unit -J500-
Selector lever sensors control unit -J587-
Mechatronic unit for dual clutch gearbox -J743-
Left headlight range control motor -V48-
Right headlight range control motor -V49-
Control unit for cornering light and headlight range control -J745-
14 10 Reversing light switch -F4-
Air mass meter -G70-
Auxiliary heater operation relay -J485-
Control unit in dash panel insert -J285-
Heater element for crankcase breather -N79-
Activated charcoal filter solenoid valve 1 -N80-
Diagnostic connection -U31-16-pin connector -T16- , Pin 1
15 5 Airbag control unit -J234-
Front passenger side airbag deactivated warning lamp -K145-
16 5 Light switch -E1-
Heater/heat output switch -E16-
High-pressure sender -G65-
Air quality sensor -G238-
Oil level and oil temperature sender -G266-
Automatic anti-dazzle interior mirror -Y7-
17
18 10 -Special vehicles-
Taxi alarm remote control control unit -J601-
10 -Special vehicles-
10-pin connector -T10l- , Pin 6 (Interface for special functions)
19 10 -Special vehicles-
Taximeter -G41-
Mirror taximeter -G511-
Taxi alarm remote control control unit -J601-
Two-way radio -R8-
Printer -R98-
10 -Special vehicles-
10-pin connector -T10l- , Pin 7 (Interface for special functions)
20 20 Cigarette lighter -U1-7)
21 10 Light switch -E1-
Heater/heat output switch -E16-
Rain and light sensor -G397-
Heated rear window relay -J9-
Climatronic control unit -J255-
Air conditioning system control unit -J301-
Horn relay -J413-
Remote control receiver for auxiliary coolant heater -R149-
Selector lever sensors control unit -J587-
Diagnostic connection -U31-16-pin connector -T16- , Pin 16
Switch for interior lighting -E599- (Camper)
Rear interior light -W43- (Camper)
22 10 Onboard supply control unit -J519- (T52b/42) 2)
23 5 -Special vehicles-
Interior light switch (taxi) -E115-
Taxi sign switch -E138-
10-pin connector -T10l- , Pin 1 (Interface for special functions)
10 -Special vehicles-
3-pin connector -T3ak- , Pin 1 3)
  Flashing lights relay -J630-4)
24 5 Interior monitoring sensor -G273-
Vehicle inclination sender -G384-
Anti-theft alarm sensor -G578-
Alarm horn -H12-
Onboard supply control unit -J519- (T52c/1)
25 10 Output module for left headlight -J667-
26 10 Output module for right headlight -J668-
27
28 20 12-V socket 3 -U19- , in storage compart.
29 15 Rear window wiper motor -V12-
30
31 5 Heater/heat output switch -E16-
Left washer jet heater element -Z20-
Right washer jet heater element -Z21-
32
33 40 Air conditioning system control unit -J301-
Heater/heat output switch -E16-
34
35 10 -Special vehicles-3)
Fluorescent light in rear of high roof -W41-
Fluorescent light in centre of high roof -W42-
36
37
38
39 20 -Special vehicles-
10-pin connector -T10ai- , Pin 1 3)
30 -Special vehicles-
4-pin connector -T4ad- , Pin 1 4)
40 20 Trailer detector control unit -J345-
41 20 Trailer detector control unit -J345-
42 20 Trailer detector control unit -J345-
43 15 Fuel pump relay -J17-
Electric fuel pump 2 relay -J49-
Supplementary fuel pump -V393-
44 40 Fresh air blower control unit -J126-
Fresh air blower -V2-
45 20 Headlight washer system relay -J39-
Headlight washer system pump -V11-
46 10 Onboard supply control unit -J519- (T52b/42) 1)
Front interior light -W1-
Luggage compartment light -W3-
Glove compartment light -W6-
Rear interior light -W43-
30 Driver door control unit -J386-2)
47 30 Cigarette lighter -U1-6)
X-contact relief relay -J59-7)8)
Fuse holder C -SC- (-SC28- up to -SC33- ) 7)8)
48 30 Heated front seats control unit -J774-
49 30 Driver door control unit -J386-1)
Front passenger door control unit -J387-
50 20 Onboard supply control unit -J519- (T52b/1)
Rear window wiper motor -V12-
Windscreen and rear window washer pump -V59-
Washer pump -V5-
51 15 Trailer voltage supply relay -J941-
Trailer socket -U10- (T13/10)
30 -Special vehicles-
10-pin connector -T10ai- , Pin 4
10-pin connector -T10ai- , Pin 5
52 25 Heated rear window relay -J9-
Heated rear window -Z1-
Heated rear window in left wing door -Z26-
Heated rear window in right wing door -Z27-
Fresh air blower relay -J13-
Fresh air blower series resistor with overheating fuse -N24-
Fresh air blower -V2-
53 156)
207)
12 V socket -U5- , in the rear centre console
12 V socket 2 -U18- , In rear left side panel
54 15 -Special vehicles-4)
Switch-over relay 1 for roof ventilator -J180-
55 15 -Special vehicles-4)
8-pin connector -T8m- , Pin 4
8-pin connector -T8n- , Pin 4
56
57 5 Control unit in dash panel insert -J285-5)
Steering column electronics control unit -J527-5)
58 5 Mobile telephone operating electronics control unit -J412-5)
59 5 -Special vehicles-
Radio switch -E72-
Ignition bypass button -E489-
Button for daytime running light switch-off -E652-
Accident data memory -J754-
60 30 -Special vehicles-
3-pin connector -T3al- , Pin 1
1) before April 2011
2) after May 2011
3) before October 2011
4) after November 2011
5) for vehicles with start-stop system only
6) before October 2012
7) after November 2012
8) for vehicles with Climatronic only

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
