Volvo 140 (1974) – fuse box diagram

Volvo 140 (1974) – fuse box diagram

Year of production: 1974

Fuse box in instrument panel

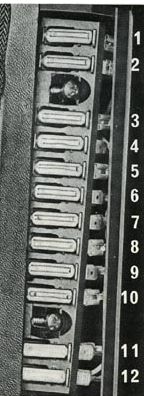

Volvo 140 - fuse box - instrument panel
Volvo 140 – fuse box –
instrument panel

There are 12 fuses located at the bottom of the dashboard near the left front door.

Position Function Ampere rating [A]
1 Rear window wiper/washer (145 only) Cigarette lighter 8
2 Wiper/washer Horn Blower 16
3 El. heated rear window Overdrive 16
4 Heater element, driver’s seat, Back-up light, Seat belt pilot light 8
5 Turn signals, Instruments, Warning lights 5
6 Hazard warning Starter cut-out relay 8
7 Fuel pump, Interior light, rear (145 only), Clock, Glove box light 8
8 Stop light Interior light 5
9 Ignition interlock, Buzzer, seat belt 5
10 Instrument lighting 5
11 Tail light, left, Side marker light, rear and front (left), License plate light, left (145, both lamps) 5
12 Tail light, right, Side marker light, front (right), License plate light, right 5

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
