Volvo 260 (1976) – fuse box diagram

Volvo 260 (1976) – fuse box diagram

Year of production: 1976

Fuse box in instrument panel

The fuse box is positioned in front of the front left door pillar.

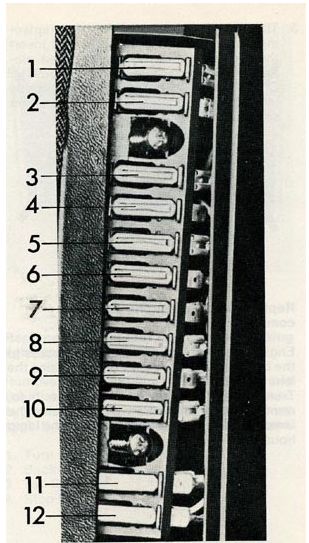

Volvo 260 - fuse box - instrument panel
Volvo 260 – fuse box –
instrument panel
Position Function Ampere rating [A]
1 Lighter, Rear wiper/washer (265) 8
2 Windshield wiper/washer, Heater fan, Horn 16
3 Rear demist, Overdrive 16
4 Glove compartment light, Back up lights, (El. heated seat), Air conditioning, Window lift 8
5 Instrument, Turn signals, Warning lights, Relay, fuel injection system, (Seat belt warning) 8
6 Hazard, Engine compartment light, Trunk light, Rear interior light (265) 8
7 Clock, Fuel pump 16
8 Stop lights , Interior light 8
9 Spare 8
10 Window lift 16
11 Left parking and side marker light, License plate light, left 8
12 Right parking and side marker light, License plate light, right, Instrument and panel lights, Seat belt light, Ash tray light, Shift positions light 8



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
