Chevrolet Traverse (2018) – fuse box diagram

Chevrolet Traverse (2018) – fuse box diagram

Year of production: 2018

Engine Compartment Fuse Block

The underhood fuse block is in the engine compartment, on the driver side of the vehicle.

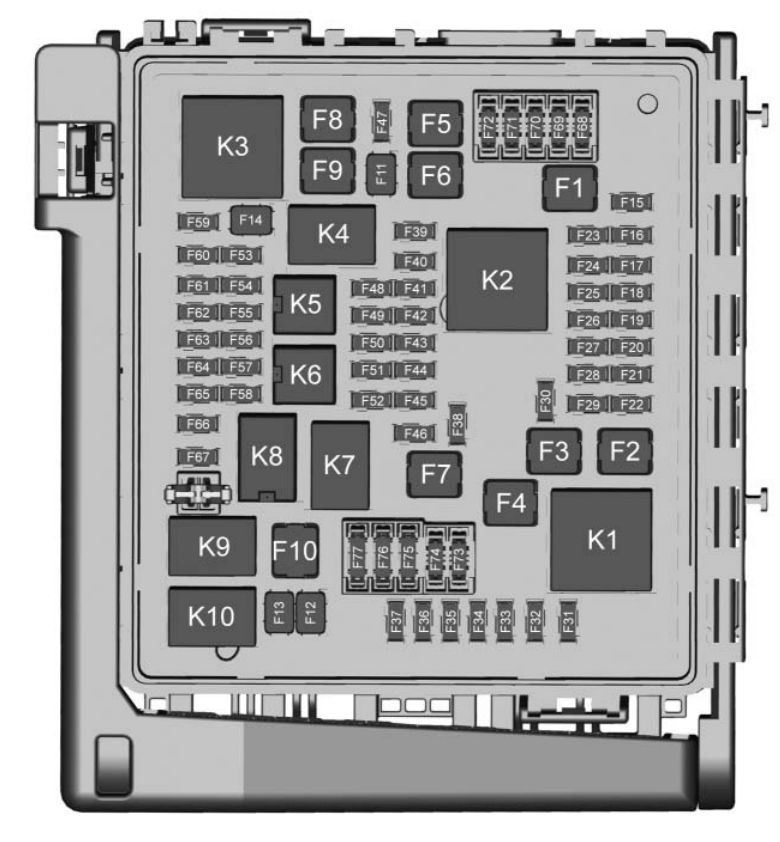

Chevrolet Traverse - fuse box diagram - engine compartment
Chevrolet Traverse – fuse box diagram – engine compartment
Fuses Description
F1 Antilock brake system pump
F2 Starter 1
F3 DC DC transformer 1
F4
F5 DC DC transformer 2
F6
F7
F8
F9 Vacuum pump
F10 Front wiper
F11
F12
F13 Starter 2
F14
F15 Rear wiper
F16
F17
F18
F19
F20
F21
F22 Electronic brake control module
F23 Parking/Trailer lamps
F24 Right trailer stoplamp/Turnlamp
F25 Steering column lock
F26
F27 Left trailer stoplamp/Turnlamp
F28
F29
F30 Washer pump
F31
F32 Left low – beam headlamp
F33 Front fog lamps
F34 Horn
F35
F36
F37 Right low – beam headlamp
F38 Automatic headlamp leveling motor (if equipped)
F39 Transmission control module
F40 Left rear bus electrical center/Ignition
F41 Instrument cluster
F42 Heating, ventilation, and air conditioning
F43 Head-up display (if equipped)
F44 Communication gateway module/Run/Crank (if equipped)
F45
F46
F47
F48
F49 Interior rearview mirror
F50 Fuel system control module
F51 Heated steering wheel
F52 Folding seats switch
F53
F54 Coolant pump
F55 Air conditioning clutch
F56 Integrated chassis control module
F57 Engine control module/Ignition
F58 Transmission control module/Ignition
F59 Engine control module battery
F60
F61 O2 sensor 1/MAF/Aeroshutter
F62 Engine control module – even 1
F63 O2 sensor 2/Canister/Engine oil/Turbo
F64 Engine control module – even 2
F65 Engine control module powertrain 1
F66 Engine control module powertrain 2
F67 Engine control module – odd
F68
F69
F70
F71
F72
F73
F74
F75
F76
F77



Relays Usage
K1 Starter 1
K2 Run/Crank
K3 Vacuum pump
K4
K5 Air conditioning
K6 Coolant pump
K7 Engine control module
K8 Folding seats
K9
K10 Starter 2



Instrument Panel Fuse Block

The instrument panel fuse block is located under the instrument panel on the passenger side of the vehicle.

Chevrolet Traverse - fuse box diagram - instrument panel
Chevrolet Traverse – fuse box diagram – instrument panel
Fuses Description
F1 Body control module 6
F2 Diagnostic link
F3 Electric steering column lock
F4 Rear USB
F5
F6 Heating, ventilation, and air conditioning
F7 Body control module 3
F8
F9 Right front heated seat
F10 Airbag
F11 Electronic precision shift
F12 Amplifier
F13 Body control module 7
F14 Left front heated seat
F15
F16 Sunroof
F17 Communication gateway module (if equipped)
F18 Instrument cluster
F19 Body control module 1
F20 Wireless charger module
F21 Body control module 4
F22 Infotainment
F23 Body control module 2
F24
F25 Parking assist
F26 Communications integration module
F27 Video
F28 Radio/Heating, ventilation, and air conditioning display
F29 Radio
F30 Steering wheel controls
F31 Front blower
F32 DC AC inverter
F33 Driver power seat
F34 Passenger power seat
F35 Feed/Body control module 4
F36 Electric power steering
F37 Power outlet/ Wireless charger/Accessory
F38 Body control module 8
F39 Steering wheel controls backlighting



Circuit Breaker Description
F40
F41
F42 Auxiliary power outlet/Lighter

Rear Compartment Fuse Block

The rear compartment fuse block is behind a trim panel on the driver side of the rear storage compartment.

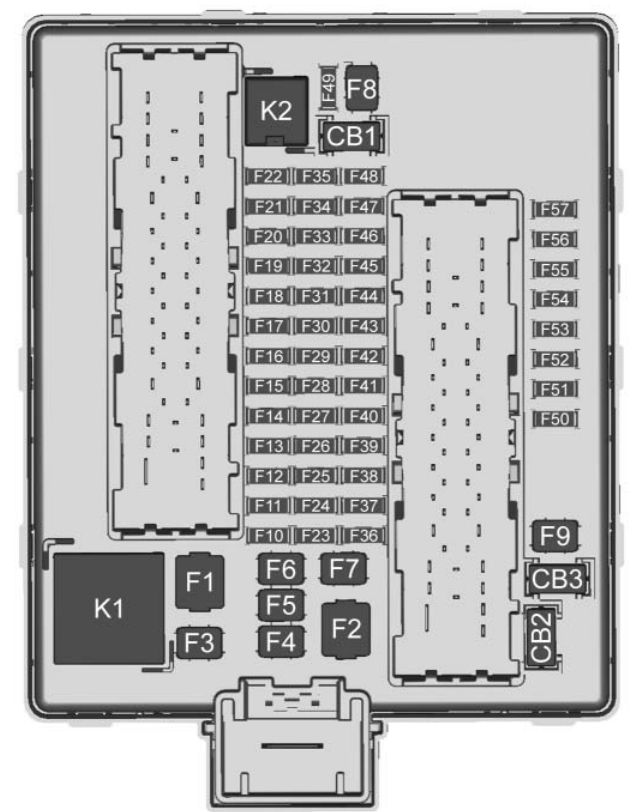

Chevrolet Traverse - fuse box diagram - rear compartment
Chevrolet Traverse – fuse box diagram – rear compartment
Fuses Description
F1
F2 Trailer
F3 Folding seats
F4 Rear blower
F5 Rear drive control
F6
F7 Right window
F8 Rear defogger
F9 Left window
F10
F11 Trailer reverse
F12 USB/Third row seats
F13
F14
F15
F16
F17 Camera
F18
F19 Ventilated seats
F20
F21
F22
F23
F24 Lumbar
F25
F26 Trailer brake lamps
F27
F28 Passive entry/Passive start
F29
F30 Canister vent
F31
F32 Heated mirrors
F33 USB/Second row seats
F34 Liftgate module
F35 Fuel system control module
F36
F37
F38 Window module
F39 Rear closure
F40 Memory seat module
F41 Automatic occupancy sensor
F42
F43
F44
F45 Liftgate motor
F46 Rear heated seats
F47
F48
F49
F50
F51
F52 Semi-active dampening system module
F53
F54 External object calculating remote system/Blind zone alert
F55
F56 Universal garage door opener/Overhead console
F57 Hands free closure release



Circuit Breaker Description
CB!
CB2
CB3 Rear auxiliary power outlet
Relay Description
K1
K2

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
