Hyundai Creta (2016) – fuse box diagram

Hyundai Creta (2016) – fuse box diagram

Year of production: 2016

Inner Compartment Fuse Panel

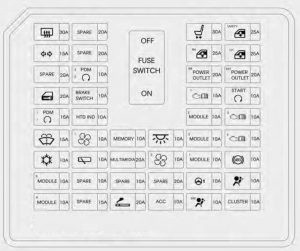

Hyundai Creta - fuse box - inner compartment
Hyundai Creta – fuse box – inner compartment
Item Name Symbol Ampere rating [A] Protected component
FUSE RR HTD 30 Rear Defogger Relay, Rear Defogger
TURN 15 Body Control Module
SPARE 20
DOOR LOCK 20 Door Lock/Unlock Relay, Door Actuator, Tail Gate Unlock Relay, Tail Gate Latch
PDM1 15 Smart Key Control Module
WASHER 15 Multi Function Switch
A/CON 10 Air Condition Module(Manual, Auto), Cluster Ionizer, Blower Relay
MODULE 5 10 Electronic chromic mirror, Head lamp leveling Switch, Head Lamp LH/RH
MODULE 4 10 Smart key Control Module, Body Control Module
SPARE 20
SPARE 20
PDM 2 10 Smart Key Control Module
BRAKE
SWITCH
10 Stop Lamp Switch, Smart Key Control Module
HTD IND 10 A/C Control Module (Manual, Auto), G4FC : ECU(MT), PCU(AT)
BLOWER 10 AC Control Module (Auto)
REAR WIPER 10 Rear Wiper Motor, Rear Wiper Relay
SPARE 10
SPARE 15
MEMORY 10 Digital Clock, Body Control Module, AC Control Module (Auto, Manual), Cluster, Outside Mirror Folding , OBD
MULTIMEDIA 20 Audio
SPARE 10
C_LIGHTER 20 Cigar lighter (Export only)
INTERIOR LP 10 Room Lamp, MAP Lamp, Luggage Lamp
BLOWER SIGNAL 10 AC Control Module (Manual)
SPARE 20
ACC 10 Audio, Body Control Module, P/OUTLET Relay, Digital Clock, Smart Key Module, Outside Mirror Switch
P/Seat 30 Power Seat(Export only)
P/WINDOW RH 25 Power Window Main Switch RH(Front, Rear)
POWER OUTLET 20 Front Power Outlet
TCU 15 M/T : Vehicle Speed Sensor, Back Up Lamp Fuse
A/T : Inhibitor Switch, TCU
MODULE 2 10 Body Control Module, Sports Mode Switch(A/T), Stop Switch (NC)
MODULE 3 10 A/C Control Module(Manual/Auto), Body Control Module(Static Bending LP Power),
ATM Lever Indicator (A/T)
MODULE 1 10 Rear Parking Sensor
MDPS 10 MDPS Unit
AIRBAG IND 10 Instrumental Cluster
SAFETY
P/WINDOW
25 Driver Safety Power Window Module
P/WINDOW
LH
25 Power Window Main Switch LH(Front Rear)
POWER
OUTLET
20 Power Outlet Rear
START 10 PCU/ECU, Inhibitor Switch, Clutch Pedal Assy,Start Relay, Start Inhibitor Relay
SENSOR 10 D4FC, D4FB : Fuel HTR Relay, Fuel Water Sensor
ENG 10 Airflow Sensor(D4FB), Smart key Control Module, ECU/PCU(G4FC,D4FC,D4FB)
ABS 10 ABS/ ESC Control Module, Rheostat & ESC Switch, Engine Room Diagnosis Connector
AIRBAG 10 Airbag Control Unit
CLUSTER 10 Instrument Cluster
* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)

Engine Compartment Fuse Panel

Gasoline engine

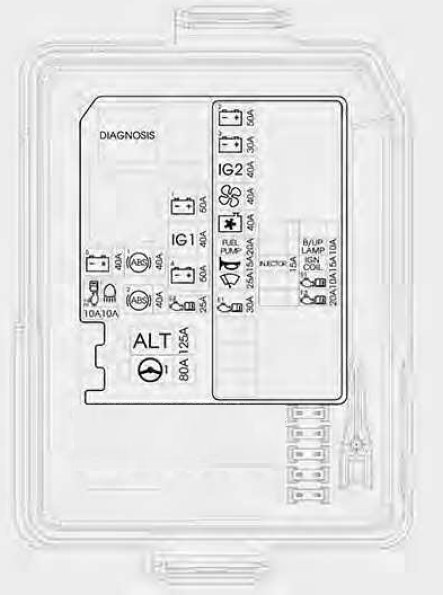

Hyundai Creta - fuse box - engine compartment (gasoline engine)
Hyundai Creta – fuse box –
engine compartment (gasoline engine)

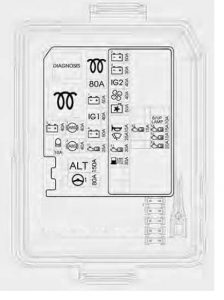

Hyundai Creta - fuse box - engine compartment (diesel engine)
Hyundai Creta – fuse box –
engine compartment (diesel engine)





Item Name Symbol Ampere rating [A] Protected component
MULTI FUSE MDPS 80 MDPS(Motor Power Steering)
ALT 125 G4FC (125A): Alternator, Battery, All Fuses connected to Alternator fuseD4FC/D4FB (150A): Alternator, Battery, All Fuses connected to Alternator fuse
150
FUSE ECU2 10 G4FC(10A): ECU (M/T), PCU(A/T)D4FC(15A): CAM SNSR, Glow RLY, WGT,EGR Control Valve, Air Flow SNSR, IMMOD4FB (15A): CAM SNSR, VGT Vacuum, IMMO
15
HEAD LAMP
HIGH BEAM
10 Head Lamp High Solenoid Relay (Bi-Functional Type)
ABS2 40 ABS / ESC Control Module
ECU 4 25 G4FC(25A): ECU (M/T), PCU(A/T)D4FC(15A): Inlet Meter Valve,D4FB(15A): Glow Plug Relay, Fuel Meter Unit
15
TCU 1 25 D4FB: TCU(A/T)
B+5 40 Instrument Panel Fuse Block Fuse: FS01
ABS 1 40 ABS / ESC Control Module, Engine Room Diagnosis
B+4 50 Instrument Panel Fuse Block Fuse: FS06, IPS-1, IPS-2, IPS-3
IG1 40 W/o Button start: Ignition SW
With Button start: PDM Relay Block
B+1 50 Instrument Panel Fuse Block Fuse: FS14,FS05,FS13,FS17,FS10,FS02,FS09, IOD
relay(Leakage Current Auto cut)
Glow 80 D4FC/D4FB: Glow Relay, Glow Plug
FUEL
HEATER
30 D4FC/D4FB: Fuel heater
ECU 1 30 (Engine Control)Main Relay
FRONT
WIPER
25 Wiper Motor(Front)
HORN 15 Horn(Dual), Burglar Alarm Horn
FUEL PUMP 20 G4FC: Fuel Pump Relay, Fuel Pump Motor
C/FAN 40 G4FC(40A),Radiator Fan MotorD4FC/D4FB(50A)-Radiator Fan Motor
50
BLOWER 40 Blower Motor
IG2 40 W/o Button Start : Start Relay, Start Solenoid, Ignition SW
With Button Start : Start Relay, Start Solenoid, PDM Relay Block
B+3 30 Instrument Panel Fuse Block Fuse: FS04, IPS-4, IPS-5
B+2 50 Instrument Panel Fuse Block Fuse: FS03, P/window Relay, P/Outlet Relay
INJECTOR 15 G4FC: Injector(#1,#2,#3,#4)
BACK UP
LAMP
10 Back up switch(MT Only), Rear Combination Lamp LH/RH
IGN COIL 15 G4FC: Condenser, Ignition Coil Extn.
SENSOR 1 10 G4FC: Variable Intake System Solenoid, Output Variable Cam(IN, EX),Purge Control Solenoid Valve, Oxygen Sensor(UP, DN), IMMO
D4FB: Lambda Sensor, Stop SW, EGR Actuator, D4FC: Stop SW
ECU 3 20 D4FC/D4FB: ECU
G4FC: ECU(M/T),PCU(A/T)
Relay Glow D4FC/D4FB: Glow Plug
* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
