Lincoln MKS (2008 – 2012) – fuse box diagram

Lincoln MKS (2008 – 2012) – fuse box diagram

Year of production: 2008, 2009, 2010, 2011, 2012

Passenger compartment fuse panel

Lincoln MKS - fuse box - passeneger compartment
Lincoln MKS – fuse box – passeneger compartment
Fuse/relay Ampere rating [A] Protected components
1 30 Right rear window
2 15 Not used (spare)
3 15 Driver seat control/lumbar
4 30 Right front window
5 10 Brake-shift interlock (BSI), keypad illumination
6 20 Turn signals, hazards
7 10 Low beam headlamps (left)
8 10 Low beam headlamps (right)
9 15 Courtesy lamps
10 15 Illumination switch, Puddle lamps
11 10 All wheel d rive (AWD)
12 7,5 Passive entry/passive start (PEPS) module
13 5 Memory/seats/mirrors/steering column, keypad, Driver zone module
14 10 Center information display, SYNC , GPS
15 10 Climate control
16 15 Electronic finish panel (EFP), Ambient lighting
17 20 Global windows, door locks and trunk release (less PEPS)
18 20 Dual heated rear seat module (DHRSM) (battery)
19 25 Not used (spare)
20 15 Diagnostic connector
21 15 Fog lamps
22 15 Park lamps, License lamps
23 15 High beam headlamps
24 20 Horn
25 10 Demand lamps
26 10 Cluster/Heads up display
27 20 Ignition Switch, PEPS
28 5 Radio mute, Radio start signal
29 5 Instrument panel cluster (run/start)
30 5 Not used (spare)
31 10 Auto high beam controller, Heads up display
32 10 Restraint control module
33 10 Adaptive Lighting
34 5 AdvanceTrac, Adaptive cruise control module, Electronic power assist steering
35 10 AWD, DHRSM, Absolute steering angle switch, Park aid (run/start)
36 5 Passive anti-theft system (PATS) module
37 10 Not used (spare)
38 20 Amplifier (THX or 6 channel)
39 20 Radio/Navigation
40 20 Amplifier (THX or 2 channel)
41 15 Delayed Accessory
42 10 Not used (spare)
43 10 Rear window defroster relay, Rain sensor
44 10 Not used (spare)
45 5 Wiper relay and module, Blower relay
46 7,5 Occupant classification sensor (OCS), Electronic finish panel, Climate control
47 30 Circuit Breaker Not used (spare)
48 Delayed accessory relay



Power distribution box

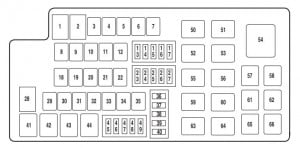

Lincoln MKS - fuse box - power distrubution box
Lincoln MKS – fuse box – power distrubution box
Fuse/relay Ampere rating [A] Protected Components
1 80** Passenger compartment fuse panel power
2 80** Passenger compartment fuse panel power
3 Not used
4 30** Front wipers
5 30** Passenger power seat
6 20** Cigar lighter
7 Not used
8 30** Moon roof
9 40** Anti-lock brake system (ABS) pump
10 30** Starter relay
11 30** Powertrain control module (PCM) relay
12 20** ABS valve
13 15* Adapt cruise
14 10* Brake on/off switch
15 15* Auto high beam
16 20* Left high intensity discharge (HID) headlamp
17 10* Alternator sense
18 Not used
19 20** Instrument panel power point
20 40** Rear window defroster
21 20** Console power point
22 30** Front heated/cooled seats
23 7,5* PCM Keep alive power, Canister vent
24 10* A/C clutch relay
25 20* Right HID headlamp
26 10* Backup relay
27 15* Fuel pump
28 60** Cooling fan (3.7L V6 engine)
80** Cooling fan (3.5L V6 engine)
29 30** Left rear window
30 30** Left front window
31 Not used
32 30** Driver seat module
33 40** Passive entry/passive start (PEPS) run/start relay
34 Not used
35 40** Front A/C blower motor
36 20* Passenger compartment fuse panel run/start
37 10* PCM run/start
38 5* Delayed accessory
39 Diode Fuel pump diode
40 Diode One-touch integrated start (OTIS) diode
41 G8VA relay A/C clutch
42 G8VA relay Fuel pump
43 G8VA relay Backup
44 G8VA relay Auto high beam
45 Not used
46 15* Vehicle power 2 (PCM), Vehicle power 3 (PCM)
47 15* PCM Vehicle power 1
48 15* Vehicle power 4 – Ignition coils
49 10* Heated mirrors
50 Half ISO relay Blower motor relay
51 Half ISO relay Fog deactivation
52 Half ISO relay Starter relay
53 Half ISO relay Adaptive cruise control (stop lamps)
54 Not used
55 Half ISO relay Wiper relay
56 Half ISO relay HBL relay
57 Not used
58 Not used
59 Not used
60 Not used
61 Not used
62 Not used
63 Half ISO relay Run/start relay
64 Half ISO relay PCM relay
65 Not used
66 Not used
* Mini Fuse **Cartridge Fuse

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
