Year of production: 1997

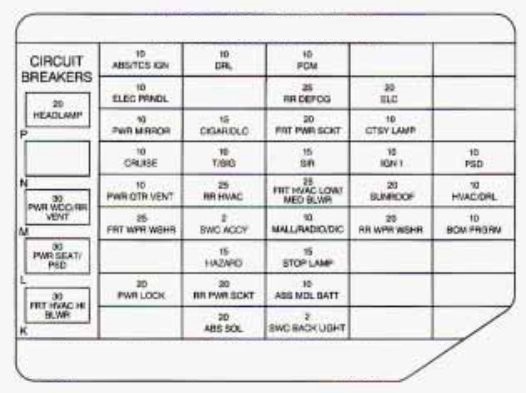

Instrument Panel Fuse Block

The instrument panel fuse block is to the right of the glove box.

Chevrolet Venture - fuse box - instrument panel
Chevrolet Venture – fuse box – instrument panel
Circuit breaker Usage
FRT HVAC HI BLWR Blower Motor Resistor
HEADLAMP DRL Control Module, Headlamp Dimmer Switch and Headlamp Switch
PWR SEATPSD 6-way Power Seat(s) and Rear Side Door Actuator Moto
PWR WDO/RR VENT Front Power Windows
Fuses Usage
ABS MDL BATT Electronic Brake Traction Control Module (EBTCM)
ABS SOL LH and RH Front Brake Solenoid Valve
ABS/TCS IGN Electronic Brake Control Relay and EBTCM
BCM PRGRM Body Control Module (BCM)
CIGAR/DLC Cigarette Lighter and Data Link Connector (DLC)
CTSY LAMP BCM
DRL DRL Control Module
ELC Electronic Level Control (ELC) Air Compressor and ELC Relay
ELEC PRNDL Instrument Cluster to PRNDL Indicators
FRT HVAC LOW/MED BLWR Heater-A/C Control
FRT PWR SCKT Front Electric Accessory Plug Housing
FRT WPR/WSHR Windshield Wiper/Washer Motor and Switch
HAZARD Turn Signal Switch
HVAC/DRL Air Recirculation Motor, DRL Control Module, Heater-A/C Control, Temperature Door Actuator (Front) and Rear Window Defogger Rela
IGN 1 ELC Sensor, BCM, Electronic Brake Control Indicator Lamp Driver Module, Instrument Panel Cluster, Rear Side Door Actuator Motor, Rear Window Wipermasher and Multifunction Switch (Foglamp Switch/TCS Enable Switch) and Stoplamp/”orque Converter Clutch (TCC) Switch
MALL/RADIODIC BCM, Driver Information Display, Radio and Radio Rear Speaker Amplifie
PCM IGN MAIN Relay and PC
PSD Rear Side Door Actuator Motor
PWR LOCK BCM
PWR MIRROR Power Remote Control Mirror Switch
PWR QTR VENT Interior Lamps and Multifunction Switch (Power Vent Switch)
RR HVAC Rear Blower Motor, Rear Heater-A/C Control, and Temperature Door Actuator (Rear)
RR DEFOG Rear Window Defogger Rela
RR PWR SCKT Rear Electric Accessory Plug Housing
RR WPWSHR Rear Window Wiper Motor, Rear Window Wipermasher and Multifunction Switch (Rear Window WiperNasher Switch)
SIR Inflatable Restraint Control Module
STOP LAMP Stoplamp Switch to Stoplamps
SUNROOF Sunroof Control Module
SWC ACCY Steering Wheel Radio Control Switchs
SWC BACKLIGHT Steering Wheel Radio Control Switches (Illumination)
T/SIG Turn Signal Switch

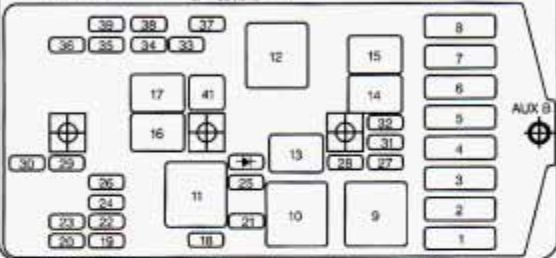

Underhood Fuse and Relay Center

This fuse and relay center is located in the engine compartment, in front of the windshield washer fluid reservoir. The fuses marked spare are available if a replacement
fuse is needed.

Chevrolet Venture - fuse box - engine compartment
Chevrolet Venture – fuse box – engine compartment
Maxi fuses Usage
1 COOL FAN 2 Coolant Fans
3 HEADLAMPS Circuit Breakers: FRT HVAC HI BLWR, and HEADLAMP Fuses (UP): HAZARD and STOPLAMP
4 BATT MAIN 2 Circuit Breaker: PWR SEATRSD. Fuses (UP): ELC and RR DEFOG
5 IGN MAIN 1 Ignition Switch to Fuses (W): ABSECS IGN, CRUISE, DRL, ELEC PRNDL, TGN 1, PSD, SIR, T/SIG and PCM [IGN MAIN Relay (Underhood Electrical Center Fuses: A/C CLU,
ELEK IGN, IGN l-U/H, INJ, TCC)I
6 COOL FAN 1 Coolant Fans
7 BATT MAIN 1 Fuses (UP): ABS MDL BATT, CIGARDLC, CTSY LAMP, FRT PWR SCKT, PWR LOCK, PWR MIRROR and RR PWR SCKT



Mini fuses Usage
18 INJ Fuel Injectors 1-6
21 IGN1-UH Evaporative Emissions (EVAP) Canister Purge Valve, EVAP Canister Vacuum Switch, Heated Oxygen Sensors #I and #2, Linear Exhaust Gas Recirculation (EGR) Valve, Mass Air Flow (MAF) Sensor and Powertrain Control Module (PCM)
25 ELEK IGN Ignition Control (IC) Module
27 B/U LAMP Transaxle Range Switch to Back-up Lamps
28 A/C CLU A/C CLU to A/C Compressor Clutch Oil
29 RADIO Driver Information Display, Heater A/C Control, Radio, Rear Side Door Actuator Motor, Remote Control Door Lock Receiver (RCDLR), Security Indicator Lamp and Theft Deterrent Shock Sensor
30 ALT SENSE Generator
31 TCC Automatic Transaxle (Torque Converter Clutch Solenoids) Stoplamp Switch to PCM
32 FUEL PUMP Fuel Pump Relay
33 ECM SENSE Powertrain Control Module (PCM)
35 FOG LP Fog Lamp Relay
36 HORN Horn Relay
37 PARK LP Daytime Running Lamps (DRL) Control Module, Headlamps Switch Theft Deterrent Relay to Headlamps
 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
