Chevrolet Lumina (1995) – fuse and relay box diagram
Year of production: 1995
This article focuses on the second-generation Chevrolet Lumina, manufactured from 1994 to 2001. It provides fuse box diagrams for the 1995 models, along with details on the location of the fuse panels within the vehicle and explanations of each fuse and relay assignment (fuse layout).
Instrument Panel Fuse Block

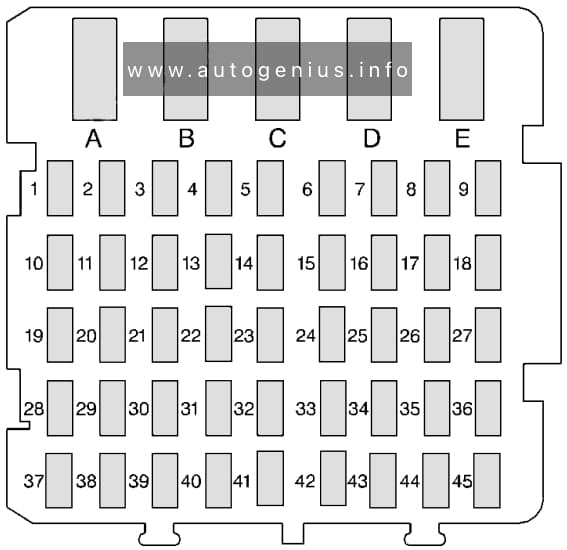

Fuse box diagram
Assignment of the fuses in the instrument panel (1995)
| Fuse | Description |
| 1 | CIGAR LIGHTER — Instrument Panel and Console Cigar Lighter |
| 2 | — |
| 3 | — |
| 4 | — |
| 5 | HAZARD FLASHER |
| 6 | — |
| 7 | — |
| 8 | — |
| 9 | — |
| 10 | I/P ELECTRONICS BATTERY FEED — Chime Module, Electronic Brake Control Module (EBCM), Theft Deterrent Module, Radio |
| 11 | AIR BAG #2 — Sensing and Diagnostic Module (SDM), Starter Rel |
| 12 | ANTI-THEFT — Theft Deterrent Module |
| 13 | — |
| 14 | AC BLOWER MOTOR — Blower Motor Relay |
| 15 | HVAC #1 — Air Temperature Valve Motor, Daytime Running Lamps Module (with DRL), HVAC Control Assembly, Multifunction Lever Cruise Control Switc,h |
| 16 | REAR DEFOG — HVAC Control Assembly Rear Window Defogger Switch |
| 17 | — |
| 18 | — |
| 19 | ER ACCESSORY #1– Door Lock Switches |
| 20 | — |
| 21 | AIR BAG #1 — Sensing and Diagnostic Module (SDM) |
| 22 | — |
| 23 | STOPLAMPS — TCCBrake Switch |
| 24 | HVAC #2 — HVAC Control Assembly, Solenoid Box |
| 25 | — |
| 26 | — |
| 27 | — |
| 28 | CTSY LAMPS — Vanity Mirrors, Defogger Relay, I/P Compartment Lamp, Trunk Courtesy Lamp, Header Courtesy and Reading Lamp, US Lighted Rearview Mirror, Dome Lamp |
| 29 | WIPER — Wiper Switch |
| 30 | TURN SIGNAL — Turn Signal Flasher |
| 31 | — |
| 32 | POWER LOCKS — Door Lock Relay, Keyless Entry Receiver |
| 33 | ABS — Electronic Brake Control Module (EBCM), ABS Relay |
| 34 | — |
| 35 | — |
| 36 | — |
| 37 | — |
| 38 | RADIO — Radio |
| 39 | I/P ELECTRONICS IGNITION FEED — Headlamp Switch, Cruise Control Cut-Out Switch, Sensing and Diagnostic Module (SDM), TCCBrake Switch, Instrument Cluster, Chime Module, Keyless Entry Receiver, Daytime Running Lamps Module (with DRL |
| 40 | — |
| 41 | — |
| 42 | — |
| 43 | — |
| 44 | — |
| 45 | — |
| Circuit Breaker | |
| A | — |
| B | — |
| C | Power Windows |
| D | Power Seats |
| E | — |
Engine Compartmet Fuse Box (Passenger Side)

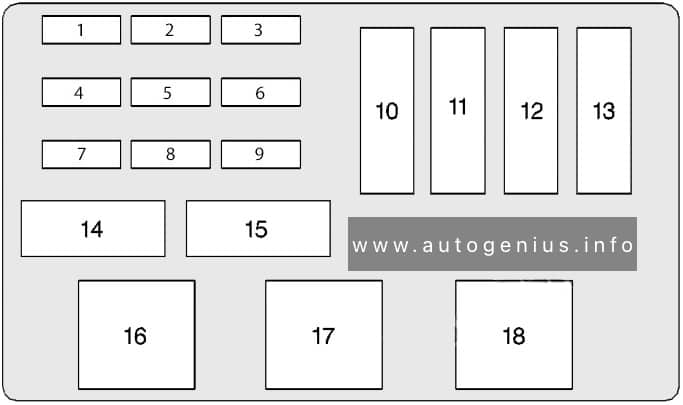

Fuse box diagram
Assignment of the fuses in the engine compartment fuse box №1 – Passenger Side (1995)
| No | Fuse | Description |
| 1 | — | — |
| 2 | R/CMPT REL | Remote Trunk Release |
| 3 | ECM BAT | Powertrain Control Module (PCM), Fuel Pump/Oil Pressure Switch, Fuel Pump Relay, Fan Cont #1 Relay |
| 4 | TCC | Automatic Transaxle, Transaxle Range Switch (VIN M onl |
| 5 | ENG EMIS | Generator, Digital Exhaust Recirculation (DEGR) Valve, Evaporative Emissions (EVAP) Canister Purge Valve Solenoid, Heated Oxygen Sensor, Fan Cont #2 Relay, A/C CMPR Relay (VIN M only) |
| 6 | CRUISE | Cruise Control Module, A/C CMPR Relay (VIN X only) |
| 7 | F/INJN | Fuel Injectors, High Resolution 24X Crankshaft Position Sensor, Camshaft Position Sensor |
| 8 | ECM IGN | Powertrain Control Module (PCM), Mass Air Flow (MAF) Sensor (VIN X only) |
| 9 | ELEK IGN | Electronic Ignition (EI) Control Module |
| 10 | I/P Fuse Block | |
| 11 | FAN CONT #1 Relay | |
| 12 | Passenger Side Underhood Electrical Center and I/P Fuse Blocks: Fuses 5, 14,23 and 32 | |
| 13 | FAN CONT #2 Relay and I/P Fuse Block: Fuse 16, Power Seat Circuit Breaker “D” | |
| Relay | ||
| 14 | FUEL PUMP | |
| 15 | A/C CMPR | |
| 16 | FAN CONT #2 — Secondary Cooling Fan (Passenger Side) | |
| 17 | FAN CONT #1– Primary Cooling Fan (Driver Side) | |
| 18 | Not Used | |
Engine Compartmet Fuse Box (Driver Side)

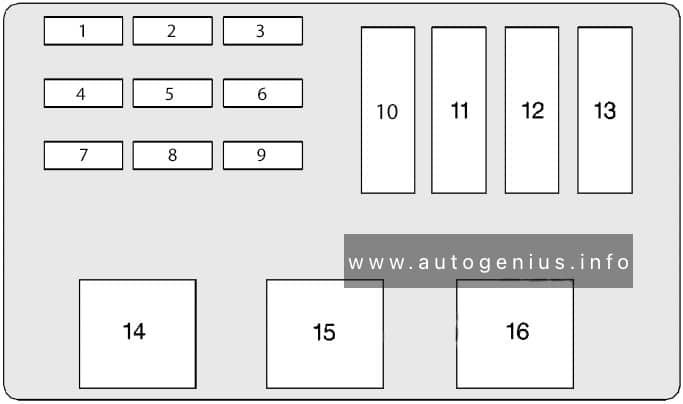

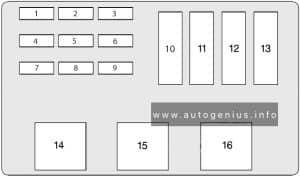

Fuse box diagram
Assignment of the fuses in the engine compartment fuse box №2 – Driver Side (1995)
| No | Name | Usage |
| 1 | — | — |
| 2 | — | — |
| 3 | — | — |
| 4 | FOG LPS | Fog Lamps |
| 5 | PARK LPS | Headlamp Switch |
| 6 | HORN | Horn Relay, Underhood Lam |
| 7 | — | — |
| 8 | — | — |
| 9 | VAR P/S | EVO Steering |
| 10 | IGN SW2 | VP Fuse Block: PWR WDO and Circuit Breaker “D”; Passenger Side Underhood Electrical Center: TCC and ENG EMIS Fuses |
| 11 | IGN SW1 | VP Fuse Block: Radio, Wiper, HVAC, ABS and Turn Signal Fuses; Passenger Side Underhood Electrical Center: F/IJN, ECM IGN and ELEK IGN Fuses |
| 12 | HD LPS | Circuit Breaker to Headlamp Switch |
| 13 | ABS | ABS Relay |
| Relay | ||
| 14 | ABS | Anti-Lock Brake System |
| 15 | FOG LPS | Fog Lamps |
| 16 | HORN | Horn |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
