Chevrolet Lumina (1997) – fuse and relay box diagram
Year of production: 1997
This article focuses on the second-generation Chevrolet Lumina, manufactured from 1994 to 2001. It provides fuse box diagrams for the 1997 models, along with details on the location of the fuse panels within the vehicle and explanations of each fuse and relay assignment (fuse layout).
Instrument Panel Fuse Block
Fuse Box Location
The fuse box is located behind the cover on the passenger side of the instrument panel.

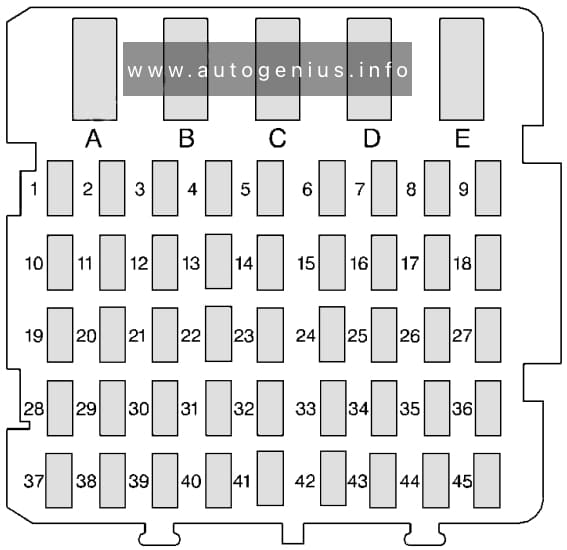

Fuse Box Diagram
Assignment of the fuses in the instrument panel (1997)
| Fuse | Description |
| 1 | CIGAR LIGHTER — Instrument Panel and Console Cigar Lighter |
| 2 | — |
| 3 | — |
| 4 | HVAC – HVAC Control Assembly Solenoid Box, Mix Motor, DRL Module, HVAC Control Head, Blower Control Switch |
| 5 | HAZARD FLASHER |
| 6 | R.H. SPOT LAMP (S.E.O.) |
| 7 | — |
| 8 | — |
| 9 | — |
| 10 | I/P ELECTRONICS BATTERY FEED — Chime Module, Electronic Brake Control Module (EBCM), Theft Deterrent Module, Radio |
| 11 | STARTER RELAY |
| 12 | ANTI-THEFT — Theft Deterrent Module |
| 13 | ABS — Electronic Brake Control Module (EBCM), ABS Relay |
| 14 | HVAC BLOWER MOTOR — Blower Motor Relay |
| 15 | L.H. SPOT LAMP (S.E.O.) |
| 16 | — |
| 17 | — |
| 18 | — |
| 19 | POWER ACCESSORY #1– Trunk Courtesy Lamp, Door Lock Switches, Power Mirror Switch |
| 20 | POWER ACCESSORY #2 (Sunroof) Control Unit |
| 21 | AIR BAG — Air Bag System |
| 22 | CRUISE CONTROL – Cruise Control Cut-Out Switch |
| 23 | STOPLAMPS — TCC/Brake Switch |
| 24 | — |
| 25 | ENGLISH/METRIC (S.E.O.) |
| 26 | — |
| 27 | — |
| 28 | CTSY LAMPS — Vanity Mirrors, Defogger Relay, I/P Compartment Lamp, Header Courtesy and Reading Lamp, I/S Lighted Rearview Mirror, Dome Lamp |
| 29 | WIPER — Wiper Switch |
| 30 | TURN SIGNAL — Turn Signal Flasher |
| 31 | — |
| 32 | POWER LOCKS — Door Lock Relay, Keyless Entry Receiver |
| 33 | DRL MODULE |
| 34 | — |
| 35 | — |
| 36 | — |
| 37 | REAR DEFOG – HVAC Control Assembly Rear Window Defogger Switch |
| 38 | RADIO — Radio, Steering Wheel Radio Switches |
| 39 | I/P ELECTRONICS IGNITION FEED — Headlamp Switch, Cruise Control Cut-Out Switch, Sensing and Diagnostic Module (SDM), TCC/Brake Switch, Instrument Cluster, Chime Module, Keyless Entry Receiver |
| 40 | — |
| 41 | POWER DROP |
| 42 | ENHANCED EVAP, SOLENOID |
| 43 | — |
| 44 | — |
| 45 | — |
| Circuit Breaker | |
| A | — |
| B | — |
| C | Power Windows |
| D | Power Seats |
| E | — |

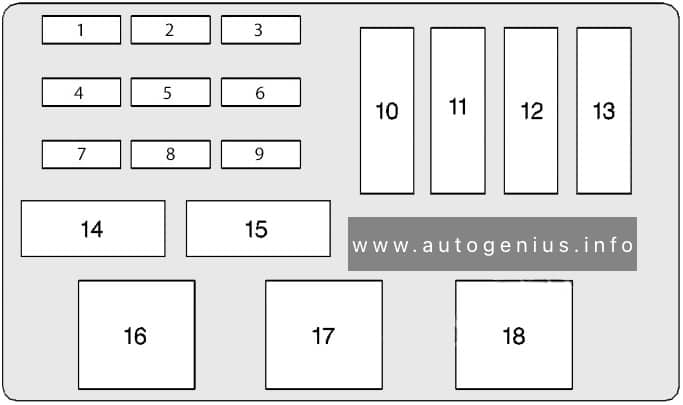

Engine Compartmet Fuse Box (Passenger Side)
Fuse box diagram
Assignment of the fuses in the engine compartment fuse box №1 – Passenger Side (1997)
| No | Fuse | Description |
| 1 | — | — |
| 2 | R/CMPT REL | Remote Trunk Release, Back-Up Lamps |
| 3 | ECM BAT | Powertrain Control Module (PCM), Fuel Pump/Oil Pressure Switch, Fuel Pump Relay, Fan Cont #1 Relay |
| 4 | — | — |
| 5 | ENG EMIS | A/C CMPR Relay (VIN M only) |
| 6 | Automatic Transaxle, Transaxle Range Switch (VIN M only) | |
| 7 | F/INJN | Fuel Injectors |
| 8 | ECM IGN | Powertrain Control Module (PCM), Mass Air Flow (MAF) Sensor (VIN X only), EGR, CCP, Oxygen Sensor, Vacuum Canister Switch, Fan #2 Relay |
| 9 | ELEK IGN | Electronic Ignition (EI) Control Module |
| 10 | I/P Fuse Block | |
| 11 | — | |
| 12 | Passenger’s Side Underhood Electrical Center, F/PMP Relay, Cooling Fans #1 and #2, Ignition Relay, P/N Switch | |
| 13 | CONT#1 Relay | |
| Relay | ||
| 14 | FUEL PUMP | FUEL PUMP |
| 15 | A/C CMPR | A/C CMPR |
| 16 | FAN CONT #2 | Secondary Cooling Fan (Passenger Side) |
| 17 | FAN CONT #1 | Primary Cooling Fan (Driver Side) |
| 18 | Ignition Relay | |

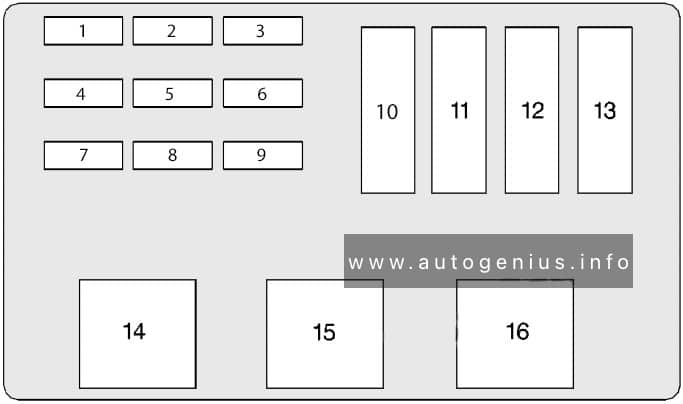

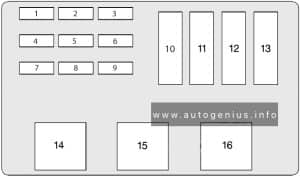

Engine Compartmet Fuse Box (Driver Side)
Fuse box diagram
Assignment of the fuses in the engine compartment fuse box №2 – Driver Side (1997)
| No | Fuse | Usage |
| 1 | — | — |
| 2 | — | — |
| 3 | — | — |
| 4 | FAN#3 | FAN CONT #3 Relay |
| 5 | PARK LPS | Headlamp Switch |
| 6 | HORN | Horn Relay, Underhood Lam |
| 7 | ABS | Anti-Lock Brake System |
| 8 | — | — |
| 9 | — | — |
| 10 | — | — |
| 11 | IGN SW1 | I/P Fuse Block: Radio, Wiper, HVAC, ABS and Turn Signal Fuses PWR WDO and Circuit Breaker D; Passenger’s Side Underhood Electrical Center: F/IJN, ECM IGN, TCC, ENG EMIS and ELEK IGN Fuses |
| 12 | HD LPS | Circuit Breaker to Headlamp Switch |
| 13 | ABS | ABS Relay |
| Relay | ||
| 14 | ABS | Anti-Lock Brake System |
| 15 | Secondary Cooling Fan (Passenger’s Side) | |
| 16 | HORN | Horn |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
