Oldsmobile Achieva (1996 – 1998) – fuse and relay box diagram

Year of production: 1996, 1997, 1998



This article covers the Oldsmobile Achieva, produced from 1992 to 1998. It includes fuse box diagrams for the 1996, 1997 and 1998models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Passenger compartment

Fuse box location

It is located on the left side of the instrument panel (to access, open the fuse panel door).



Fuse box diagram



Assignment of the fuses in the passenger compartment (instrument panel)

Fuse	Usage
PWR WDO	Power Window (Circuit Breaker)
TURN	Turn Signal Lamps
INT LPS	Alarm Module (Illuminated Entry, Warning Chimes, Overhead Lamps, MapReading Lamps, Glove Box Lamp, Trunk Lamp, Radio, Power Mirrors), Anti-Lock Brakes, Variable Effort Steering, Remote Keyless Entry
PWR ST	Power Seat
RDO IGN	Radio
HTR-A/C	Heater/Air Conditioning Blower, Daytime Running Lamps, Automatic Lamp Control
CRUISE	Cruise Control
TAIL LPS	Parking Lamps, Taillamps, Sidemarker Lamps, License Lamps, Instrument Panel Lights, Underhood Lamp, Headlamp Warning Alarm
LTR	Cigarette Lighter, Auxiliary Power Outlet
WIPER	Windshield Wipers/Washers
02	Heated Oxygen Sensors
DR UNLK	Automatic Door Unlock
ALARM	Automatic Transaxle, Automatic Door Unlock, Alarm Module (Illuminated Entry, Warning Chimes), Traction Telltale, Rear Window Defogger, Remote Keyless Entry
FOG/FTP	Fog Lamps
PRNDL	Instrument Cluster, Powertrain Computer, Park-Lock Solenoid, Electronic PRNDL
DR LK 2	Door Locks
AIR BAG	Air Bag-Power
HORN	Horn, Service Tool Power
INST	Instrument Cluster
STOP HAZ	Stoplamps, Hazard Lamps, Anti-Lock Brakes
PCM	Powertrain Control Module
DR LK 1	Door Locks
INST LPS	Instrument PanelL ights, Fog Lamps
RR DEF	Rear Window Defogger
HDLP	Headlamps, Daytime Running Lamps (Circuit Breaker)



Engine compartment

Fuse box location

It is located on the driver’s side of the engine compartment, near the battery



Fuse box diagram



Assignment of the fuses in the engine compartment

Fuse	Usage
F/P, INJ	Fuel Pump, Fuel Injectors
ERLS	Back-up Lamps, Canister Purge Valve, EGR, Automatic Transaxle, Brake-Transaxle Shift Interlock, Anti-Lock Brakes, Variable Effort Steering, Air Conditioning Compressor, Park Lock Solenoid
ABS	Anti-Lock Brake Solenoids, Variable Effort Steering
IGN MOD	Ignition System
HVAC BLO MOT	Heater/Air Conditioner-High Blower, Generator-Voltage Sense
PCM BATT	Powertrain Computer
CLG FAN	Engine Cooling Fan
HDLP	Lighting Circuits
STOP LPS PWR ACC	Power Accessory, Stoplamp Circuits,
RR DEFG	Rear Window Defogger
ABS	Anti-Lock Brakes, Variable Effort Steering
IGN SW	Ignition Switched Circuits



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Achieva (1995) – fuse and relay box diagram

Year of production: 1995



This article covers the Oldsmobile Achieva, produced from 1992 to 1998. It includes fuse box diagrams for the 1995 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Passenger compartment

Fuse box location

The fuse panel is located under the dashboard to the left of the steering column, near the parking brake release lever (pull the cover down to access the fuses).

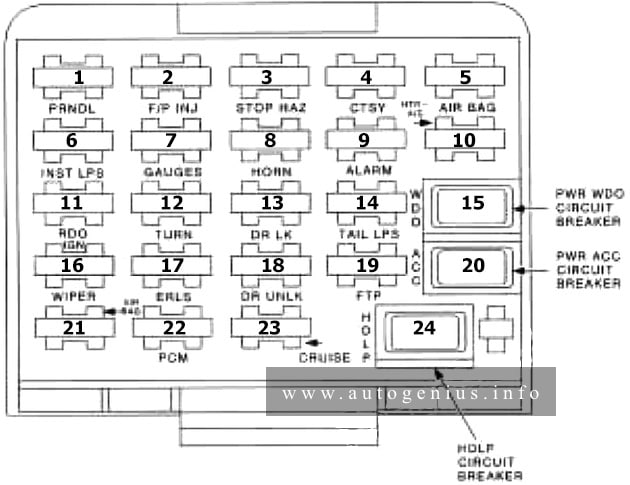

Fuse box diagram



Assignment of the fuses in the passenger compartment

No.	Fuse	Circuitry
1	PRNDL	Back-up Lights, Electronic PRNDL (automatic transaxle
2	F/P INJ	Fuel Pump, Fuel Injectors
3	STOP HAZ	Hazard/Stop Lights
4	CTSY	Power Door Locks, Power Mirrors, Cigar Lighter
5	AIR BAG	Supplemental Inflatable Restraint
6	INST LPS	Instrument Panel Lights
7	GAUGES	Rear Window DefoggerG, Gauges, Warning Lights
8	HORN	Horn, Fog Lamps
9	ALARM	Chime, Interior Lights, Automatic Door Locks, Remote Lock Control
10	HTR-A/C	Heater, Air Conditioning, Anti-Lock Brakes (ABS), Daytime Running Lamps (DRL) (Canada)
11	RDO	Radio
12	TURN	Turn Signals
13	DR LK	Automatic Door Locks
14	TAIL LPS	Fog Lamps, Tail Lamps, Marker Lamps, License Lamp
15	WDO	Power Windows, Sunroof (Circuit Breaker)
16	WIPER	Windshield Wiper/Washer
17	ERLS	Engine Controls, Back-up Lights
18	DR UNLK	Automatic Door Unlock (Remove to Disable)
19	FTP	Flash-to-Pass (U.S.)
20	ACC	Rear Window Antenna, Power Seats, Rear Window Defogger, Power Sunroof (Circuit Breaker)
21	AIR BAG	Supplemental Inflatable Restraint
22	PCM	Powertrain Control Module, Ignition System
23	CRUISE	Cruise Control
24	HDLP	Headlamps (Circuit Breaker)



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Achieva (1994) – fuse and relay box diagram

Year of production: 1994



This article covers the Oldsmobile Achieva, produced from 1992 to 1998. It includes fuse box diagrams for the 1994 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Passenger compartment

Fuse box location

The fuse panel is located under the dashboard to the left of the steering column, near the parking brake release lever (pull the cover down to access the fuses).



Fuse box diagram



Assignment of the fuses in the passenger compartment

Fuse	Ampere rating [A]	Circuitry
PRNDL	5	Back-up Lights, Electronic PRNDL (automatic transaxle
F/P INJ	20	Fuel Pump, Fuel Injectors
STOP HAZ	20	Hazard/Stop Lights
CTSY	15	Power Door Locks, Power Mirrors, Cigar Lighter
AIR BAG	5	Supplemental Inflatable Restraint
INST LPS	5	Instrument Panel Lights
GAUGES	10	Rear Window DefoggerG, auges, Warning Lights
HORN	15	Horn
ALARM	15	Chime, Interior Lights, Automatic Door Locks, Remote Lock Control
HTR-A/C	25	Heater, Air Conditioning, Anti-Lock Brakes (ABS), Daytime Running Lights (DRL (Canada)
RDO	10	Radio, Cruise Control
TURN	20	Turn Signals
DR LK	20	Automatic Door Locks
TAIL LPS	20	Fog Lights, Tail Lights, Marker Lights, License Light
WDO	30	Power Windows, Sunroof (Circuit Breaker
WIPER	25	Windshield Wiper/Washer
ERLS	15	Engine Controls, Back-up Lights
DR UNLK	10	Automatic Door Unlock (Remove to Disable)
FTP	20	Flash-to-Pass (U.S.)
ACC	30	Rear Window Antenna, Power Seats, Rear Window Defogger (Circuit Breaker)
AIR BAG	15	Supplemental Inflatable Restraint
IGN ECM	20	Engine Control Module, Ignition System
HDLP	20	Headlights, DRL (Canada) (Circuit Breaker

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Achieva (1992 – 1993) – fuse box diagram

Year of production: 1993



This article covers the Oldsmobile Achieva, produced from 1992 to 1998. It includes fuse box diagrams for the 1992 and 1993 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.

Passenger compartment

Fuse box location

The fuse panel is located under the dashboard to the left of the steering column, near the parking brake release lever (pull the cover down to access the fuses).



Fuse box diagram



Assignment of the fuses in the passenger compartment

Name	Ampere rating [A]	Circuitry
PRNDL	10	Back-up Lights, Electronic PRNDL (automatic transaxle
F/P INJ	20	Fuel Pump, Fuel Injectors
STOP HAZ	20	Turn/Hazard/Stop Lights, Anti-Lock Brakes (ABS), Brake-Transaxle Shift Interlock (BTSI
CTSY	15	Power Door Locks, Power Mirrors, Cigar Lighter
RKE	5	Remote Keyless Entry
INST LPS	5	Instrument Panel Lights
GAUGES	10	Rear Window Defogger Relay, Chime, Gages, ABS, BTSI, Daytime Running Lights (DRL) (Canada), RKE
HORN	15	Horn
ALARM	15	Chime, Interior Lights, Passive Restraints, Radio/Clock Memory, RKE
HTR-A/C	25	Heater, Air Conditioning, ABS, DRL (Canada), Engine Block Heater, Ride Control
RDO IGN	10	Radio, Cruise Control, Variable Effort Steering
TURN	20	Turn Signals
DR LK	20	Power Door Locks
TAIL LPS	20	Exterior Lights, Fog Lights, DRL (Canada)
WDO	30	Power Windows (Circuit Breaker)
WIPER	25	Windshield WiperdWasher
ERLS	15	Engine Controls, Starter and Charging System
		BLANK
FTP	20	Flash-to-Pass (U.S.)
ACC	30	Power Antenna, Power Seats, Rear Window Defogger (Circuit Breaker)
IGN ECM	20	Engine Control Module, Ignition System
		BLANK
HDLP	20	Headlights, DRL (Canada) (Circuit Breaker



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
