Suzuki Alto (2009 – 2014) – fuse and relay box diagram



Year of production: 2009, 2010, 2011, 2012, 2013, 2014



This article focuses on the seventh-generation Suzuki Alto, manufactured between 2009 and 2014. It includes fuse box diagrams for the 2009 to 2014 models, provides details on the location of the fuse panels within the vehicle, and explains the function of each fuse (fuse layout).

Passenger Compartment Fuse Box

Fuse Box Location

The fuse box is located under the driver’s side of the dashboard.

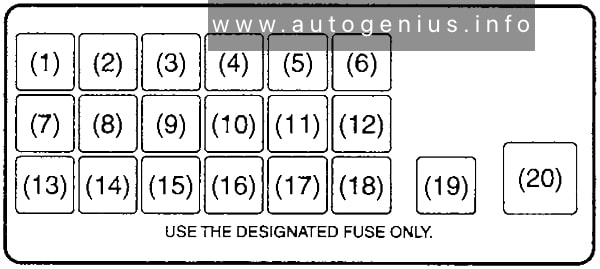

Fuse Box Diagram



Assignment of the fuses in the passenger compartment

№	Amps	Description
1	10A	Stop light
2	30A	Blower motor
3	10A	ST SIG
4	15A	Accessory
5	10A	Rear fog light
6	10A	Tail light
7	10A	Buck-up light
8	10A	ABS/ESP
9	10A	Meter
10	15A	Ignition coil
11	20A	Wiper/Washer
12	10A	Heater
13	10A	IG1 SIG
14	10A	Air bag
15	–	–
16	20A	Door lock
17	15A	Horn/Hazard
18	20A	Rear defogger
19	10A	Dome light
20	30A	Power window

Engine Compartment Fuse Box

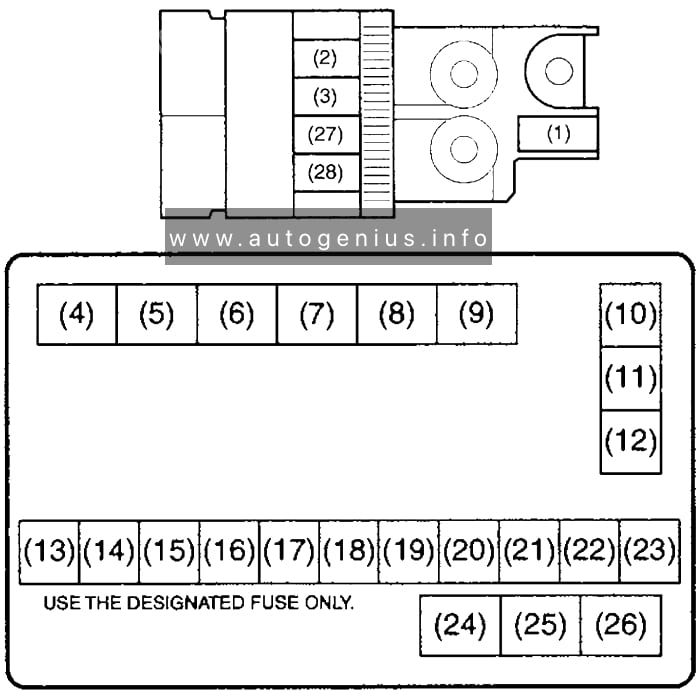

Fuse Box Diagram



Assignment of the fuses in the engine compartment

№	Amps	Description
1	80A	All electric load
2	50A	Dome, Tail light, Rear defogger, Door lock
3	50A	Power window, Heater, Wiper, Ignition
4		Front fog light relay
5		Starting motor relay
6		Blank
7		Automatic transaxle relay
8		Air compressor relay
9		Blank
10	30A	ABS control module 2
11	40A	Power steering
12	40A	ABS control module 1
13	30A	Ignition switch
14	10A	Air compressor
15	–	–
16	20A	Front fog light
17	30A	Radiator fan
18	15A	Automatic transaxle
19	15A	Headlight (Left)
20	15A	Headlight (Right)
21	–	–
22	30A	Starting motor
23	15A	Fuel injection
24		Radiator fan relay
25		Fuel pump relay
26		Main relay
27	80A	Flead light, Air compressor, Front fog light, Radiator fan
28	80A	Power steering, ABS

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
