Ford Bronco Sport (2021 – 2023) – fuse and relay box diagram

Year of production: 2021, 2022



The Ford Bronco Sport, a compact crossover, has been available since 2021. This article provides fuse box diagrams for the 2021, 2022 and 2023 models, details the locations of the fuse panels inside the vehicle, and explains the function and layout of each fuse.

Passenger compartment

Fuse box location

The fuse panel is located behind the cover below the glove compartment.

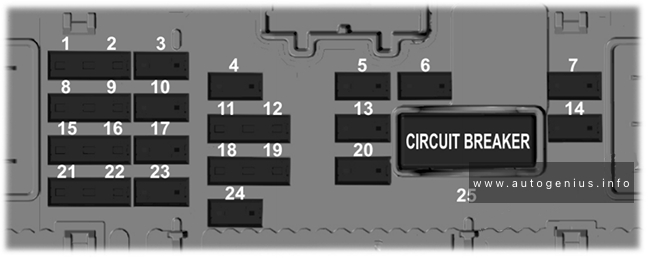

Fuse Box Diagrams



Assignment of the fuses in the Passenger Compartment Fuse Box

№	Amp.	Protected Component
1	5A	Not used.
2	5A	Not used.
3	10A	Not used.
4	10A	Ignition switch. Steering column lock.
5	20A	Lock. Unlock.
6	10A	DC-AC inverter.
7	30A	Passenger door module.
8	5A	Parking assist control module.
9	5A	Auto-dimming interior mirror. Lane keeping system. Passenger airbag deactivation indicator.
10	10A	Extended power module.
11	5A	Telematics control unit module.
12	5A	Keyless keypad switch.
13	15A	Driver door unlock.
14	30A	Driver door module.
15	15A	Not used (spare).
16	15A	Not used (spare).
17	15A	SYNC. Receiver transceiver module. Integrated control panel.
18	7.5A	Wireless accessory charging module. All terrain control module.
19	7.5A	Not used (spare).
20	10A	Not used (spare).
21	7.5A	Not used (spare).
22	7.5A	Not used (spare).
23	20A	Not used (spare).
24	20A	Not used (spare).
25	30A	Not used (spare).



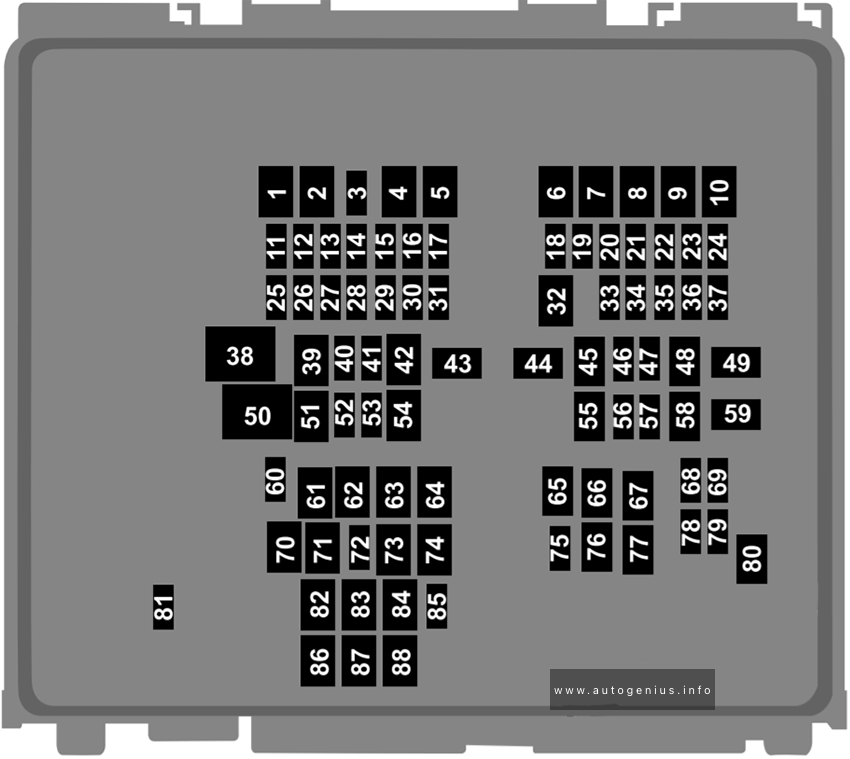

Engine Compartment Fuse Box

Fuse Box Diagrams



Assignment of the fuses in the Passenger Compartment Fuse Box

№	Amp.	Protected Component
1	30A	Aftermarket auxiliary lighting.
2	—	Not used.
3	10A	2021: Windshield heated washer jets.
4	60A	Supplemental heater.
5	40A	Supplemental heater.
6	40A	Supplemental heater.
7	20A	Heated wiper park.
8	—	Not used.
9	60A	Power inverter.
10	30A	Starter motor.
11	15A	Powertrain control module.
12	15A	Powertrain control module.
13	15A	Powertrain control module.
14	15A	Powertrain control module.
15	—	Not used.
16	—	Not used.
17	—	Not used.
18	10A	Powertrain control module.
19	10A	Anti-lock brake system module.
20	10A	Data link connector.
21	5A	Headlamp switch.
22	20A	Amplifier.
23	—	Not used.
24	—	Not used.
25	25A	Left-hand enhanced headlamps.
26	25A	Right-hand enhanced headlamps.
27	—	Not used.
28	—	Not used.
29	—	Not used.
30	10A	2021: Electronic stability control.
31	5A	Electronic power assist steering.
32	30A	Body control module.
33	10A	Front parking aid camera. Rear view camera. Blind spot information system. Gear shift actuator.
34	—	Not used.
35	15A	Heated steering wheel.
36	—	Not used.
37	20A	Horn.
38	40A	Blower motor.
39	—	Not used.
40	10A	Brake on-off switch.
41	20A	Amplifier.
42	30A	Driver power seat.
43	40A	Anti-lock brake system valves.
44	40A	Trailer tow module.
45	30A	Passenger power seat.
46	—	Not used.
47	20A	Heated seats.
48	—	Not used.
49	60A	Anti-lock brake system pump.
50	60A	Cooling fan.
51	30A	Moonroof.
52	5A	USB smart charger.
53	—	Not used.
54	—	Not used.
55	—	Not used.
56	10A	A/C clutch.
57	5A	Flood light.
58	—	Not used.
59	40A	Body control module.
60	5A	USB smart charger.
61	20A	Auxiliary power point.
62	—	Not used.
63	—	Not used.
64	—	Not used.
65	—	Not used.
66	—	Not used.
67	—	Not used.
68	—	Not used.
69	15A	Port fuel injectors.
70	20A	Auxiliary power point.
71	20A	Auxiliary power point.
72	20A	Rear window wiper.
73	—	Not used.
74	30A	Windshield wiper motor.
75	10A	Heated exterior mirrors.
76	30A	Heated rear window.
77	—	Not used.
78	15A	Liftgate window release.
79	—	Not used.
80	20A	Fuel pump.
81	10A	Rear window washer pump.
82	40A	Power inverter.
83	—	Not used.
84	40A	Driveline control module.
85	5A	Rain sensor.
86	—	Not used.
87	—	Not used.
88	—	Not used.



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
