Volkswagen Rabbit GTI (A1, Type 17; 1974 – 1984) – fuse and relay box diagram

Posted on by admin

Volkswagen Rabbit GTI (A1, Type 17; 1974 – 1984) – fuse and relay box diagram



Year of production: 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984



This article covers the Volkswagen Rabbit, manufactured from 1974 to 1984. It includes fuse box diagrams for the 1974 to 1984 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse and relay.

Fuses box diagram

Volkswagen Rabbit (1974 - 1984) - fuse and relay box diagram
Volkswagen Rabbit (1974 – 1984) – fuse and relay box diagram



Assignment of the fuses in the fuse box

Fuse Description
1 Radiator cooling fan
2 Brake lights, cruise control
3 Cig. lighter, radio. clock, interior lights
4 Emergency flasher
5 Fuel pump
6 Open
7 Tail lights, parking lights, side marker lights – left
8 Tail lights, parking lights, side marker lights – right
9 Headlights (high beam, right); high beam indicator
10 Headlights (high beam, left)
11 Windshield wipers/washer
12 Head seats (if installed)
13 Rear window deforster
14 HVAC blower fan
15 Back-up lights; shift console light (automatic trans. only)
16 Horns
17 Open
18 Seat belt warrning light, horn relay; coolant level/temperature warning light; oil pressure, oil temperature, & volt gauges; cruise control (manual trans.)
19 Turn signal; brake warning light
20 License plate lights, trunk light (1987)
21 Headlights (low beam, left)
22 Headlights (low beam, right)



Relays



Assignment of the relays in the fuse box

Relay Description
2 Fuel pump
3 Seat belt warning
4 Upshift indicator
5 Air conditioning
6 Horns
8 Load Reduction
10 Intermittent wipers
12 Turn signals & emergency flasher
15 Fuel injection power supply
17 A/C Thermofuse
18 Idle stabilizer control unit

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Equinox (2010 – 2017) – fuse and relay box diagram

Posted on by admin

Chevrolet Equinox (2010 – 2017) – fuse and relay box diagram

Year of production: 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017



This article covers the second-generation Chevrolet Equinox, produced from 2010 to 2017. It provides fuse box diagrams for the 2010 through 2017 models, outlines the locations of the fuse panels within the vehicle, and explains the purpose and layout of each fuse and relay.

Engine compartment

Fuse box diagram

Chevrolet Equinox (2010 - 2017) - fuses and relay box diagram - engine compartment
Chevrolet Equinox (2010 – 2017) – fuses and relay box diagram – engine compartment



Assignment of the fuses and relay in the engine compartment

№ Usage
1 Cool Fan 1
2 Cool Fan 2
3 Brake Booster
4 Power Windows -Right
5 Memory Seat Module
6 Power Seat – Left
7 Instrument Panel Fuse Block 1
8 Rear Defogger
9 Starter
10 AIR Pump Motor
11 Instrument Panel Fuse Block 2
12 Sunroof
13 Antilock Brake System Pump
14 Instrument Panel Fuse Block 3
15 Power Windows – Left
16 Antilock Brake System Module
17 Transmission Control Module Battery
18 Trailer Parking Light
19 AIR Pump Solenoid
20 Engine Control Module Battery
21 Canister Vent
22 Trailer Left Side (If Equipped)
23 Lift Gate Module
24 Power Lumbar
25 Trailer Right Side (If Equipped)
26 Rear Accessory Power Outlet
27 Memory Mirror Module
28 Regulated Voltage Control Battery Sensor
29 Front Wiper
30 Rear Wiper
31 Air Conditioning Compressor
32 Rear Latch
33 Heated Mirrors
34 Horn
35 Right High-Beam Headlamp
36 Left High-Beam Headlamp
37 Ignition Even Coil
38 Ignition Odd Coil
39 Windshield Washer
40 Front Fog Lamps
41 Post Catalytic Converter Oxygen Sensor
42 Engine Control Module
43 Pre-Catalytic Converter Oxygen Sensor
44 Transmission Control Module
45 Mirror
46 Fuel System Control Module Ignition
47 Spare
48 Rear Drive Module
49 Lift Gate Module Logic
50 Instrument Panel Fuse Block Ignition
51 Heated Seat- Front
52 Fuel System Control Module
53 Engine Control Module
54 Rear Vision Camera
55 Electric Power Steering
56 AIR Pump Solenoid
57 Brake Booster
58 Cooling Fan Low
59 Headlamp High Beam
60 Cooling Fan Control
61 Wiper On/Off Control
62 Air Conditioning Compressor
63 Rear Defogger
64 Wiper Speed
65 Fog Lamp
66 Engine Control
67 Starter
68 Run/Crank
69 Cooling Fan High
70 AIR Pump Motor
77 Power Seat – Right
78 Passenger Power Lumber



Instrument panel fuse block

Fuse Box Location

The instrument panel fuse block is located on the passenger side panel of the center console.



Fuse box diagram

Chevrolet Equinox (2010 - 2017) - fuses and relay box diagram - passenger compartment
Chevrolet Equinox (2010 – 2017) – fuses and relay box diagram – passenger compartment



Assignment of the fuses and relay in the instrument panel

№ Usage
1 Steering Wheel Dimming
2 Spare
3 Spare
4 Body Control Module 1
5 Infotainment
6 Body Control Module 7
7 Noise Control Module
8 Body Control Module 4
9 Radio
10 Spare
11 Rear Parking Assist Module
12 Heater, Ventilation, and Air Conditioning Battery
13 Auxiliary Power Front
14 Heater, Ventilation and Air Conditioning Ignition
15 Display
16 Body Control Module 5
17 Auxiliary Power Rear
18 Instrument Panel Ignition
19 Universal Garage Door Opener
20 Body Control Module 6
21 Spare
22 Sensing and Diagnostic Module Ignition
23 Front Camera
24 Spare
25 Transmission Gear Shift Position Indicator
26 Spare
27 Spare
28 Spare
29 Front Blower Motor
30 Body Control Module 3
31 Amplifier
32 Discrete Logic Ignition Switch
33 Communications Integration Module
34 Body Control Module 2
35 Sensing and Diagnostic Module Battery
36 Data Link Connection
37 Instrument Panel Battery
38 Passenger Sensing System Module
39 Spare
40 Body Control Module 8
41 Logistic Relay (If Equipped)
42 Retained Accessory Power Relay



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Equinox (2005) – fuse and relay box diagram

Posted on by admin

Chevrolet Equinox (2005) – fuse and relay box diagram

Year of production: 2005



This article focuses on the first-generation Chevrolet Equinox, manufactured between 2005 and 2009. It includes fuse box diagrams for the 2005 models, details the locations of the fuse panels within the vehicle, and provides information on the function and layout of each fuse and relay.



Passenger compartment

Fuse Box Location

The fuse box is located under the dashboard on the passenger’s side of the center console, behind the cover.



Fuse Box Diagram

Chevrolet Equinox (2005) - fuses and relay box diagram - passenger compartment
Chevrolet Equinox (2005) – fuses and relay box diagram – passenger compartment



Assignment of the fuses and relays in the passenger compartment

Name Description
LOCK/MIRROR Door Lock, Power Mirror
CRUISE Cruise Control System
EPS Electric Power Steering
IGN 1 2005: Ignition System
2006: Switches, Instrument Panel Cluster
PRNDL/ PWR TRN PRNDL/Powertrain
BCM (IGN) Body Control Module
AIRBAG Airbag System
BCM/ISRVM 2005: Inside Rearview Mirror
2006: Body Control Module, Inside Rearview Mirror
TURN Turn Signals
HTD SEATS Heated Seats
BCM/HVAC Body Control Module, Heating, Ventilation and Air Conditioning
HZRD Hazard Warning Flashers
RADIO Radio
PARK Parking Lamps
BCM/CLSTR 2005: Instrument Panel Cluster
2006: Body Control Module, Instrument Panel Cluster
INT LTS/ ONSTAR Interior Lights/OnStar
DR LCK Door Locks
Relays
PARK LAMP Parking Lamps Relay
HVAC BLOWER Heating, Ventilation and Air Conditioning Blower Motor
DR LCK Door Locks Relay
PASS DR UNLOCK Passenger Door Unlock Relay
DRV DR UNLCK Driver Door Unlock Relay
HEAD LAMP Headlamps



Engine Compartment

Fuse Box Diagram

Chevrolet Equinox (2005) - fuses and relay box diagram - engine compartment
Chevrolet Equinox (2005) – fuses and relay box diagram – engine compartment



Assignment of the fuses and relays in the engine compartment

Name Description
HTD SEATS Heated Seats
HVAC BLOWER Heating, Ventilation, Air Conditioning Blower Control
PREM AUD Premium Audio System, Amplifier
ABS PWR Anti-lock Brake System
RR WIPER Rear Window Wiper
FRT WIPER Front Window Wiper
SUNROOF Sunroof
ETC Electronic Throttle Control
PWR WDW Power Windows
A/C CLUTCH Air Conditioning Clutch
EMISS Emissions
ENG IGN Engine Ignition
CIGAR Cigarette Lighter
LH HDLP Left Headlamp
COOL FAN HI Cooling Fan High
ECM/TCM 2005: Body Control Module
2006: Engine Control Module, Transaxle Control Module
AUX OUTLETS /
AUX1 OUTLET		 Accessory Power Outlets
FUSE PULLER Fuse Puller
INJ Fuel Injectors
PWR TRAIN Powertrain
FUEL PUMP Fuel Pump
A/C DIODE Air Conditioning Diode
TRAILER 2006: Trailer Lighting
AUX 2/CARGO 2005: Accessory Power Outlet 2, Cargo Outlet
BRAKE Brake System
RH HDLP Right Headlamp
HORN Horn
BACKUP Back-up Lamps
BATT FEED Battery
ABS Anti-lock Brake System
COOL FAN LO Cooling Fan Low
RR DEFOG Rear Window Defogger
START 2005: Ignition
ABS Anti-lock Brake System
FOG LP Fog Lamps
IGN Ignition Switch
CB POWER SEATS Power Seats (Circuit Breaker)
Relays
ENG MAIN Engine Relay
RR WIPER Rear Window Wiper Relay
FRT WIPER Front Window Wiper Relay
PWR WDW Power Windows Relay
COOL FAN HI Cooling Fan High Relay
WIPER SYSTEM Wiper System Relay
HORN Horn Relay
DRL Daytime Running Lamps Relay
FUEL PUMP Fuel Pump Relay
STARTER RELAY Starter Relay
REAR DEFOG Rear Window Defogger Relay
FOG LP Fog Lamp Relay
COOL FAN LO Cooling Fan Low Relay
A/C CLUTCH Air Conditioning Clutch Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Amarok (2010 – 2017) – fuse and relay box diagram

Posted on by admin

Volkswagen Amarok (2010 – 2017) – fuse and relay box diagram

Year of production: 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017



The Volkswagen Amarok, a mid-size pickup truck, was produced from 2010 to 2020. In this article, you’ll find fuse box diagrams for the 2010 through 2017 models, along with information on the location of the fuse panels inside the vehicle and details about the function and layout of each fuse and relay.

Passenger compartment

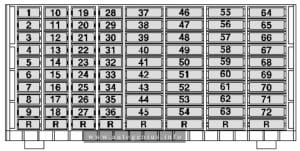

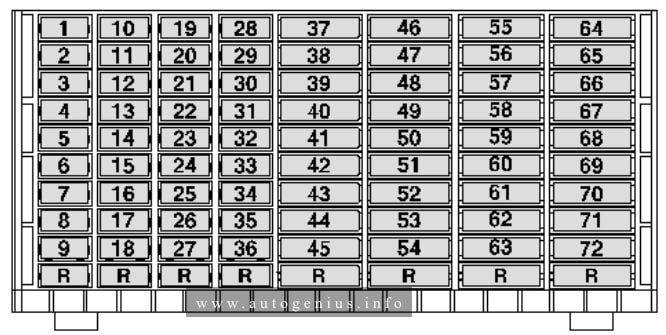

Fuse box diagram (holder C)

Volkswagen Amarok (2010 - 2017) - fuse and relay box diagram - passenger compartment (holder C)
Volkswagen Amarok (2010 – 2017) – fuse and relay box diagram – passenger compartment (holder C)



Assignment of the fuses in the passenger compartment (fuse holder C)

Fuse Current Flow Diagram designation Ampere rating [A] Function/component
1 Fuse 1 on fuse holder C -SC1- 10 ABS cintrol unik -J104-, TCS and ESP button -E256-, Driving program button -E598-
2 Fuse 2 on fuse holder C -SC2- 10 Steering column electronics control unit -J527-
3 Fuse 3 on fuse holder C -SC3- 10 Reversing switch -F41-
4 Fuse 4 on fuse holder C -SC4- 15 Onboard supply control unit -J519-
5 Fuse 5 on fuse holder C – SC5- 5 Air mass meter -G70-
6 Fuse 6 on fuse holder C -SC6- 5 Trailer detector control unit -J345-
7 Fuse 7 on fuse holder C -SC7- 5 Interface for external use
8 Fuse 8 on fuse holder C -SC8- 10 Electronic ignition lock -D9-
9 Fuse 9 on fuse holder C -SC9- 10 Airbagcontrol unit -J234-, Front passenger side airbag deactivated warning lamp -K145-
10 Fuse 10 on fuse holder C -SC10- 5 Engine control unit -J623-
11 Fuse 11 on fuse holder C -SC11- 15 Differentral lock control unit -J187-
12 Fuse 12 on fuse holder C – SC12- 10 Fuel pump 1 -V276-
13 Fuse 13 on fuse holder C -SC13 5 Exhaust flap valve -N220-, Exhaust gas recirculation cooler change-over calve -N345-
14 Fuse 14 on fuse holder C -SC14 15 Continued coolant circulation pump -V51-
15 Fuse 15 on fuse holder C -SC15- 5 Engine control unit -J623-
16 Fuse 16 on fuse holder C -SC16- 10 Rear fog light warning lamp -K13-, Rear left fog light bulb -L46-, Rear right fog light bulb -L47-
17 Fuse 17 on fuse holder C – SC17- 5 Right tail light bulb -M2-, Right side light bulb -M3-
18 Fuse 18 on fuse holder C -SC18- 5 Left side light bulb -M1-, left tail light bulb -M4-
19 Fuse 19 on fuse holder C -SC19 15 Onboard supply control unit -J519-
20 Fuse 20 on fuse holder C -SC20- 15 Onboard supply control unit -J519-
21 Fuse 21 on fuse holder C -SC21- 5 Onboard supply control unit -J519-
22 Fuse 22 on fuse holder C -SC22- — Vacant
23 Fuse 23 on fuse holder C -SC23- 15 Engine control unit -J623-
24 Fuse 24 on fuse holder C -SC24 10 Alarm horn -H12-
25 Fuse 25 on fuse holder C -SC25- 10 Heater element fon crancase breather -N79-
26 Fuse 26 on fuse holder C -SC26 5 Right day driving light bulb -L175-
27 Fuse 27 on fuse holder C -SC27- 5 Left day driving light bulb -L174-
28 Fuse 28 on fuse holder C -SC28- 15 Number plate left light -X4, Number plate right light -X5-
29 Fuse 29 on fuse holder C -SC29- 10 Left headlight range control motor -V48-
30 Fuse 30 on fuse holder C -SC30- 10 Left main beam bulb -L125-
31 Fuse 31 on fuse holder C -Sc31- — Vacant
32 Fuse 32 on fuse holder C -SC32- 10 Right main beam bulb -L126-
33 Fuse 33 on fuse holder C -SC33- 5 Mirror adjustment switch -E43-
34 Fuse 34 on fuse holder C -Sc34- 15 Vacant
35 Fuse 35 on fuse holder C -SC35- 15 Lambda probe 1 upstream of catalytic converter -GX10-
36 Fuse 36 on fuse holder C -Sc36- 5 Engine control unit -J623-
37 Fuse 37 on fuse holder C -SC37- — Vacant
38 Fuse 38 on fuse holder C -SC38- 15 12V socket -U5-
39 Fuse 39 on fuse holder C -SC39- 25 Trailer detector control unit -J345-
40 Fuse 40 on fuse holder C -SC40- 25 Trailer detector control unit -J345-
41 Fuse 41 on fuse holder C -SC41- 25 Trailer detector control unit -J345-
42 Fuse 42 on fuse holder C -SC42- 15 Diagnostic connection -U31-, steering column electronics control unit -J527-, Air conditioning system pressure switch -F129-, Air quality sensor -G238-, differential lock control unit -J187-, transfer box control unit -J646-, dash panel insert -K-, High level brake light bulb -M25-, Brake light switch -F-, Display unit -K40-
43 Fuse 41 on fuse holder C – Sc43- 25 Onboard supply control unit -J519-
44 Fuse 44 on fuse holder C -SC44- 30 Onboard supply control unit -J519-
45 Fuse 45 on fuse holder C -SC45- 15 Diagnostic connection -U31-, Dash panel insert -K-, Steering column electronics control unit -J527-, Air conditioning system control unit -J301-, Climatronic control unit -J255-, Heater/heat output switch -E16-
46 Fuse 46 on fuse holder C -SC46- 25 Transfer boc control unit -J646-
47 Fuse 47 on fuse holder C -SC47- 20 Onboard supply control unit
48 Fuse 48 on fuse holder C -SC48- 20 Driver door control unit -J386-
49 Fuse 49 on fuse holder C -SC49- 20 Front passanger door control unit -J387-
50 Fuse 50 on fuse holder C -SC50- 20 Rear left door control unit -J388-
51 Fuse 51 on fuse holder C -SC51- 20 Rear right door control unit -J389-
52 -Fuse 52 on fuse holder C -SC52- 15 Electric socket -U-
53 Fuse 53 on fuse holder C -SC53- 20 Left fog light bulb -L22-
54 Fuse 54 on fuse holder C -SC54- 15 Cigarette lighter -U1-
55 Fuse 55 on fuse holder C -SC55- 15 Right headlight range control motor -V49-
56 Fuse 56 on fuse holder C -SC56- — Vacant
57 Fuse 57 on fuse holder C -SC57- 30 Seat heating button, left -E653-, Seat heating button, right – E654-, Seat heating control unit -J882-
58 Fuse 58 on fuse holder C -SC58- — Vacant
59 Fuse 59 on fuse holder C -SC59- 20 12V socket -UX3-
60 Fuse 60 on fuse holder C -SC60- 5 Trailer detector unit -J345-, Diagnostic connection -U31-, Onboard supply control unit -J519-
61 Fuse 61 on fuse holder C -SC61- 5 Trailer detector control unit -J345-, Diagnostic connection -U31-, Onboard supply control unit -J519-
62 Fuse 62 on fuse holder C -SC62- 20 Auxiliary heater control unit -J364-, Circulation pump -V55-
63 Fuse 63 on fuse holder C -SC63- 10 Load area illumination bulb -M53-
64 Fuse 64 on fuse holder C -SC64- 30 Heater/heat output switch -E16-, Climatronic control unit -J255-, Air conditioning system control unit -J301-
65 Fuse 65 on fuse holder C -SC65- 15 Engine control unit -J623-
66 Fuse 66 on fuse holder C -SC66- 30 Onboard supply control unit -J519-
67 Fuse 67 on fuse holder C -SC67- 30 Radio -R-, Control unit with display for radio and navigation system -J503-
68 Fuse 68 on fuse holder C -SC68- — Vacant
69 Fuse 69 on fuse holder C -SC69- 15 Interface for external use
70 Fuse 70 on fuse holder C -SC70- 5 Interface for external use
71 Fuse 71 on fuse holder C -SC71- 25 Interface for external use
72 Fuse 72 on fuse holder C -SC72- 10 Interface for external use

Engine compartment

Fuse box diagram (holder A -SA-)

Volkswagen Amarok (2010 - 2017) - fuse and relay box diagram - engine compartment (holder A and holder B)
Volkswagen Amarok (2010 – 2017) – fuse and relay box diagram – engine compartment (holder A and holder B)



Assignment of the fuses in the engine compartment (fuse holders A)

Fuse Current flow diagram designation Ampere rating [A] Function/component
1 Fuse 1 on fuse holder A -SA1- 175 Alternato -C-
2 Fuse 2 on fuse holder A -SA2- 175 Fuse 4 on fuse holder C -SC4-, Fuse 8 on fuse holder C -SC8-, Fuse 11 on fuse holder C -SC11-, Fuse 15 on fuse holder C -SC15-, Fuse holder C -SC19 – SC24-, Fuse holder C -SC43 – SC51-, Fuse holder SC62 – SC64-, Fuse holder C -SC66 – SC67-
3 Fuse 3 on fuse holder A -SA3- 40 Interface for external use
4 Fuse 4 on fuse holder A -SA4- 80/110 Radiator fan -V7-
5 Fuse 5 on fuse holder A -SA5- 50 Automatic glow period control unit J179-
6 Fuse 6 on fuse holder A -SA6- 80 Fuse holder C -SC39 – SC41-



Engine compartment

Fuse box diagram (holder B -SB-)

Volkswagen Amarok (2010 - 2017) - fuse and relay box diagram - engine compartment (holder A and holder B)
Volkswagen Amarok (2010 – 2017) – fuse and relay box diagram – engine compartment (holder A and holder B)



Assignment of the fuses in the engine compartment (fuse holders B)

Fuse Current Flow Diagram designation Ampere rating [A] Function/component
1 Fuse 1 on fuse holder B -SB1- 30 ABS control unit J104-
2 Fuse 2 on fuse holder B -SB2- 30 Fuel pump relay -J17-, Fuel system pressurisation pump -G6-
3 Fuse 3 on fuse holder B -SB3- 10 ABS control unit -J104-
4 Fuse 4 on fuse holder B -SB4- 5 Onboard supply control unit -J519-
5 Fuse 5 on fuse holder B -SB5- — Vacant
6 Fuse 6 on fuse holder B -SB6- — Vacant

Relays

Relay box diagram

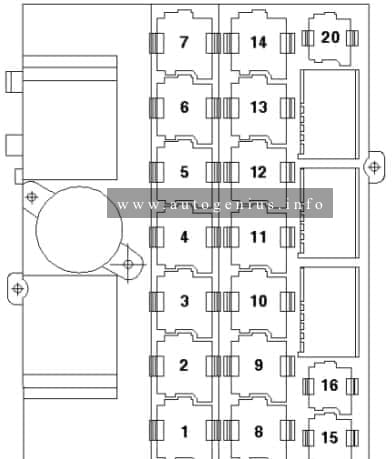

Volkswagen Amarok (2010 - 2017) - fuse and relay box diagram - relay box
Volkswagen Amarok (2010 – 2017) – fuse and relay box diagram – relay box



Assignment of the relays in the relay box

Relay Description
1 Auxiliary coolant heater relay -J493-
2 Vacant
3 Vacant
4 Vacant
5 Vacant
6 Voltage supply relay 2 -J710- (53)
7 Terminal 15 voltage supply relay -J329- (100)
8 Coolant pump relay -J235-
9 Vacant
10 Vacant
11 Vacant
12 Voltage supply relay 1 -J701- (53)
13 Starter motor relay -J53- (53)
14 Fuel pump relay -J17- (404)
Terminal 30 voltage supply relay -J317- (404)
15 Current supply relay -J16- (100)
16 Terminal 58b relief relay -J374- (449)
20 Main relay -J271- (643)



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Beetle (1954 – 1979) – fuse and relay box diagram

Posted on by admin

VW Beetle (1954 – 1979) – fuse and relay box diagram

Year of production: 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979



The classic compact car Volkswagen Beetle was produced from 1938 to 2003. In this article, you will find fuse box diagrams for the Volkswagen Beetle models from 1954 through 1979, get information about the location of the fuse panels inside the vehicle, and learn about the assignment of each fuse (fuse layout) and relay.

Fuse box diagram

Volkswagen Beetle (1954 - 1979) - fuse and relay box diagram
Volkswagen Beetle (1954 – 1979) – fuse and relay box diagram



Assignment of the fuses in the fuse box

Fuse/relay Description
1 Low beam
2 Open
3 Turn signal/emergency flasher
4 Open
5 Buzzer

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Lincoln Navigator (UN173; 2000 – 2002) – fuse and relay  box diagram

Posted on by admin

Lincoln Navigator (UN173; 2000 – 2002) – fuse and relay  box diagram

Year of production: 2000, 2001, 2002



This article covers the first-generation Lincoln Navigator, manufactured between 1998 and 2002. It includes fuse box diagrams for the 2000, 2001 and 2002 models, provides details on the locations of the fuse panels within the vehicle, and explains the function and layout of each fuse and relay.

Passenger compartment fuse panel

Fuse box location

The fuse panel is located below and to the left of the steering wheel behind the cover.



Fuse box diagram

Lincoln Navigator (UN173; 2000 - 2002) - fuse and relay box diagram - passenger compartment
Lincoln Navigator (UN173; 2000 – 2002) – fuse and relay box diagram – passenger compartment



Assignment of the fuses and relays in the passenger compartment (2000 – 2002)

No.
 A
 Circuit Protected
1 25A Audio
2 5A Clock, Overhead Trip Computer, Electronic Automatic Temperature Control (EATC), Powertrain Control Module (PCM), Cluster, Navigation
3 20A Cigar Lighter, OBD-II Scan Tool Connector
4 7.5A Remote Entry Module, Mirrors, Memory Module, Adjustable Pedals, Drivers Seat, Power Fold Mirrors
5 15A Speed Control Module, Reverse Lamp, Daytime Running Lamp Relay, Reverse Sensing System, Autolock, E/C Mirror, Navigation
6 5A Cluster, Overhead Trip Computer, Compass, Steering Sensor, Brake Shift Interlock Solenoid, Air Suspension Module, GEM Module, Heated Mirror, Rear Defroster, Reverse Sensing System, Automatic Park Brake Release
7 5A Aux A/C Blower Relay, Console Blower
8 5A Remote Entry Module, Cell Phone, Clock, GEM Module, Navigation
9 — Not Used
10 — Not Used
11 30A Front Washer Pump Relay, Wiper Run/Park Relay, Wiper Ili/LO Relay, Windshield Wiper Motor, Rear Washer Pump Relay
12 15A Air Suspension Switch
13 20A Stop Lamp Switch (Lamps), Turn/Hazard Flasher, Speed Control Module
14 15A Rear Wipers, Running Board Lamps, Battery Saver Relay, Interior Lamp Relay, Accessory Delay Relay (Power Windows, Moonroof, Flip Windows, Audio), Homelink
15 5A Stop Lamp Switch, (Speed Control, Brake Shift Interlock, ABS, PCM Module Inputs), GEM Module, Autolock, Air Suspension Module
16 20A Headlamps (Hi Beams), Cluster (Hi Beam Indicator)
17 10A Heated Mirrors/Rear Window Defroster Indicator
18 5A Instrument Illumination (Dimmer Switch Power), Clock (Dimmer), Navigation Screen
19 — Not Used
20 5A Audio, Air Suspension Module, Memory Module, GEM Module
21 15A Starter Relay, Fuse 20, Digital Transmission Range Selector
22 10A Air Bag Module, EATC, EATC Blower Relay, Feeds Fuse 7
23 10A Electrochromic Mirror, Aux A/C, Heated Seats, Trailer Tow Battery Charge, Tum/Hazard Flasher, Console Blower Door Actuator, 4×4 Clutch Relay, 4 Wheel Anti-Lock Brake System (4WABS) Module
24 10A 2000-2001: Not Used
2002: EATC Module, EATC Blower/Flasher Relay, Climate Control Selector Switch, Feeds fuse 7
25 — Not Used
26 10A Right Side Low Beam Headlamp
27 5A Foglamp Relay and Foglamp Indicator
28 10A Left Side Low Beam Headlamp
29 5A Autolamp Module, Transmission Overdrive Control Switch
30 30A Passive Anti Theft Transceiver, Cluster, Ignition Coils, Powertrain Control Module Relay
31 10A Rear Integrated Control Panel (Audio), CD Player, Cell Phone
Relay 1 — Interior Lamp Relay
Relay 2 — Battery Saver Relay
Relay 3 — Rear Window Defroster Relay
Relay 4 — One Touch Down Window Relay
Relay 5 — ACC Delay Relay

Engine Compartment Fuse Box

Fuse box location

The power distribution box is located in the engine compartment (on the driver’s side).



Fuse box diagram

Lincoln Navigator (UN173; 2000 - 2002) - fuse and relay box diagram - engine compartment
Lincoln Navigator (UN173; 2000 – 2002) – fuse and relay box diagram – engine compartment



Assignment of the fuses and relays in the engine compartment (2000 – 2002)

№ Amp Rating Description
1 20A Power Point
2 30A Powertrain Control Module
3 30A Headlamps/Autolamps
4 20A Console Powerpoint
5 20A Trailer Tow Backup/Park Lamps
6 15A Parklamps/Autolamps, Feeds Passenger Compartment Fuse 18
7 20A Horn
8 30A Power Door Locks
9 15A Daytime Running Lamps (DRL), Fog Lamps
10 20A Fuel Pump
11 20 A Alternator Field
12 10A Rear Wipers
13 15A A/C Clutch
14 — Not Used
15 10A Running Board Lamps
16 — Not Used
17 10A Delayed Accessory (Audio, Flip Windows)
18 15A Powertrain Control Module, Fuel Injectors, Fuel Pump, Mass Air Flow Sensor
19 10A Trailer Tow Stop and Right Turn Lamp
20 10A Trailer Tow Stop and Left Turn Lamp
21 — Not Used
22 — Not Used
23 15A HEGO Sensors, Canister Vent, Transmission, CMS Sensor
24 — Not Used
101 30A Trailer Tow Battery Charge
102 50A Four Wheel Antilock Brake Module
103 50A Junction Box Battery Feed
104 30A 4×4 Shift Motor & Clutch
105 40A Climate Control Front Blower
106 — Not Used
107 30A Passenger Power Seat, Passenger Seat Lumbar
108 30A Trailer Tow Electric Brake
109 50A Air Suspension Compressor
110 30A Heated Seats/CCS
111 40A Ignition Switch Battery Feed (Run and Start Circuits)
112 30A Memory (Drivers Seat, Adjustable Pedals, Mirrors), Drivers Seat Lumbar
113 40A Ignition Switch Battery Feed (Run and Accessory Circuits)
114 30A Climate Control Auxilary Blower
115 — Not Used
116 40A Rear Window Defroster, Heated Mirrors
117 — Not Used
118 — Not Used
201 — Trailer Tow Park Lamp Relay
202 — Front Wiper Run/Park Relay
203 — Trailer Tow Backup Lamp Relay
204 — A/C Clutch Relay
205 — Rear Wiper Down
206 — Fog Lamp Relay
207 — Front Washer Pump Relay
208 — Rear Washer Pump Relay
209 — Rear Wiper Up Relay
301 — Fuel Pump Relay
302 — Trailer Tow Battery Charge Relay
303 — Front Wiper Hi/Lo Relay
304 — Powertrain Control Module Relay
401 — Not Used
501 — Powertrain Control Module Diode
502 — A/C Clutch Diode
503 — Automatic Park Brake Release Diode
601 30A Delayed Accessory (Power Windows, Flip Windows, Radio, Moonroof)
602 — Not Used
502 — A/C Clutch Diode
503 — Not Used
601 30A Delayed Accessory (Power Windows, Flip Windows, Radio)
602 — Not Used



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura CL (YA4; 2003) – fuse and relay box diagram

Posted on by admin

Acura CL (YA4; 2003) – fuse and relay box diagram

Year of production: 2003



This article covers the second-generation  Acura CL, produced from 1997 to 2003. It includes fuse box diagrams for the 2003 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Engine compartment

Fuse box diagram

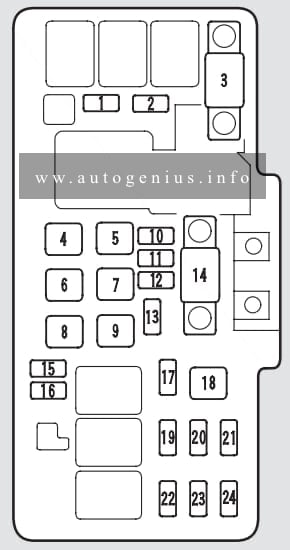

Acura CL (YA4; 2003)- fuse and relay box diagram - engine compartment
Acura CL (YA4; 2003)- fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

Fuse Ampere rating [A] Circuits Protected
1*1  20 Condenser Fan
1*2 30 Condenser Fan
2 7,5 MG Clutch
3 60 IG1 Main
4 40 Rear Window Defogger
5 40 Heater Motor
6*1 20 TCS
6*2 40 VSA
6*3 — Not used
7 40 Power Seat
8 40 Power Window Motor
9 40 Back Up, ACC
10 15 Spare Fuse
11 10 Spare Fuse
12 7,5 Spare Fuse
13*1,*3 20 Cooling Fan
13*2 30 Cooling Fan
14 120 Battery
15 30 Spare Fuse
16 20 Spare Fuse
17 15 Hazard
18 30 ABS Motor
19 15 ACG S
20 20 Stop
21 20 ABS F/S Relay
22 20 Right Headlight
23 — Not used
24 20 Left Headlight

*1 – Premium model

*2 – Type-S with A/T

*3 – Type-S with M/T



Passenger compartment

Fuse box diagram (driver’s side)

Acura CL (YA4; 2003)- fuse and relay box diagram - passenger compartment (driver's side)
Acura CL (YA4; 2003)- fuse and relay box diagram – passenger compartment (driver’s side)



Assignment of the fuses in the passenger compartment (driver’s side)

Fuse Ampere rating [A] Circuits Protected
1 15 Fuel Pump
2 10 Main SRS
3 7,5 Heater Control, A/C Clutch Relay, Cooling Fan Relay
4 7,5 Mirror, Heated Seat, Heated Mirror
5 7,5 Daytime Running Lights*
6 15 ECU (PCM), Cruise Control, VSA
7 7,5 Side SRS
8 7,5 ACC Relay, Navigation
9 7,5 Instrument Panel, Back-up Lights, Memory Seat
10 7,5 Turn Signals
11 15 IG Coil
12 30 Wiper, Washer
13 7,5 Starter Signal

*-On Canadian models



Fuse box diagram (passenger’s side)

Acura CL (YA4; 2003)- fuse and relay box diagram - passenger compartment (passenger's side)
Acura CL (YA4; 2003)- fuse and relay box diagram – passenger compartment (passenger’s side)



Assignment of the fuses in the passenger compartment (passenger’s side)

Fuse Ampere rating [A] Circuits protected
1 30 Left Power Window
2 20 Driver’s Power Seat Reclining, Memory Seat
3 20 Heated Seat
4 20 Driver’s Power Seat Sliding, Memory Seat
5 20 Passenger’s Power Seat Sliding
6 20 Passenger’s Power Seat Reclining
7 30 Moonroof Motor
8 20 Right Power Window
9 20 Radio, Power Outlet
10 10 Navigation System, Daytime Running Lights*1, OnStar*2
11 7,5 Interior Light, Seat Memory, HomeLink
12 20 Power Door Locks
13 15 Clock, Back Up, Small Light
14 7,5 ABS Motor Check
15 — Not used
16 — Not used

*1 – On Canadian models

*2 – On cars with navigation system



VSA fuse box (on type S with A/T)

Fuse box location

The VSA fuse box is located under the interior fuse box on the passenger’s side of the dashboard.



Fuse box diagram

Acura CL (YA4; 2003)- fuse and relay box diagram - passenger compartment (VSA fuse box)
Acura CL (YA4; 2003)- fuse and relay box diagram – passenger compartment (VSA fuse box)



Assignment of the fuses in the VSA fuse box

Fuse Ampere rating [A] Circuits protected
1 20 VSA F/S Relay
2 20 VSA Throttle Motor
3 — Not Used



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura CL (YA4; 2000 – 2002) – fuse and relay box diagram

Posted on by admin

Acura CL (YA4; 2000 – 2002) – fuse and relay box diagram



Year of production: 2000, 2001, 2002



This article covers the second-generation  Acura CL, produced from 1997 to 2003. It includes fuse box diagrams for the 2001 and 2002 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.

Engine compartment

Fuse box diagram

Acura CL (YA4; 2000 - 2002)- fuse and relay box diagram - engine compartment
Acura CL (YA4; 2000 – 2002)- fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

Fuse Ampere rating [A] Circuits Protected
1*1  20 Condenser Fan
1*2 30 Condenser Fan
2 7,5  MG Clutch
3 60 IG1 Main
4 40  Rear Window Defogger
5 40 Heater Motor
6*1 20 TCS
6*2 40 VSA
7 40 Power Seat
8 40 Power Window Motor
9 40 Back Up, ACC
10 15 Spare Fuse
11 10 Spare Fuse
12 7,5 Spare Fuse
13*1 20 Cooling Fan
13*1 30 Cooling Fan
14 120 Battery
15 30 Spare Fuse
16 20 Spare Fuse
17 15 Hazard
18 30 ABS Motor
19 15 ACG S
20 20 Stop
21 20 ABS F/S Relay
22 20 Right Headlight
23 — Not used
24 20 Left Headlight

*1 – Premium model

*2 – Type S

Passenger compartment

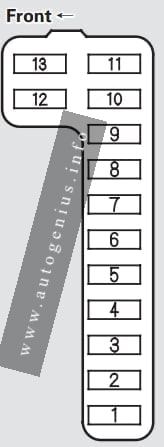

Fuse box diagram (driver’s side)

Acura CL (YA4; 2000 - 2002)- fuse and relay box diagram - passenger compartment (driver's side)
Acura CL (YA4; 2000 – 2002)- fuse and relay box diagram – passenger compartment (driver’s side)



Assignment of the fuses in the passenger compartment (driver’s side)

Fuse Ampere rating [A] Circuits Protected
1 15 Fuel Pump
2 10 Main SRS
3 7,5 Heater Control, A/C Clutch Relay, Cooling Fan Relay
4 7,5 Mirror, Heated Seat, Heated Mirror
5 7,5 Daytime Running Lights*
6 15 ECU (PCM), Cruise Control, VSA
7 7,5 Side SRS
8 7,5 ACC Relay, Navigation
9 7,5 Instrument Panel, Back-up Lights, Memory Seat
10 7,5 Turn Signals
11 15 IG Coil
12 30 Wiper, Washer
13 7,5 Starter Signal

*-On Canadian models

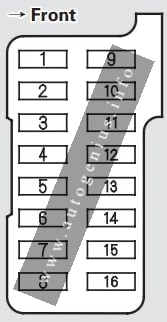

Fuse box diagram (passenger’s side)

Acura CL (YA4; 2000 - 2002)- fuse and relay box diagram - passenger compartment (passenger's side)
Acura CL (YA4; 2000 – 2002)- fuse and relay box diagram – passenger compartment (passenger’s side)



Assignment of the fuses in the passenger compartment (passenger’s side)

Fuse Ampere rating [A] Circuits protected
1 30 Moonroof Motor
2 20 Driver’s Power Seat Reclining, Memory Seat
3 20 Heated Seat
4 20 Driver’s Power Seat Sliding, Memory Seat
5 20 Passenger’s Power Seat Sliding
6 20 Passenger’s Power Seat Reclining
7 — Not used
8 20 Right Power Window
9 20 Radio, Power Outlet
10 10 Navigation System, Daytime Running Lights*
11 7,5 Interior Light, Seat Memory, HomeLink
12 20 Power Door Locks
13 15 Clock, Back Up, Small Light
14 7,5 ABS Motor Check
15 20 Driver’s Power Window
16 — Not used

*-On Canadian models

VSA fuse box (on type S)

Fuse box location

The VSA fuse box is located under the interior fuse box on the passenger’s side of the dashboard.

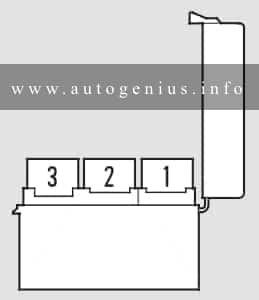

Fuse box diagram

Acura CL (YA4; 2000 - 2002)- fuse and relay box diagram - passenger compartment (VSA fuse box)
Acura CL (YA4; 2000 – 2002)- fuse and relay box diagram – passenger compartment (VSA fuse box)

Assignment of the fuses in the VSA fuse box

Fuse Ampere rating [A] Circuits protected
1 20 VSA F/S Relay
2 20 VSA Throttle Motor
3 — Not Used



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Polo (9N; 2002 – 2009) – fuse and relay box diagram

Posted on by admin

Volkswagen Polo (9N; 2002 – 2009) – fuse and relay box diagram

Year od production:2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009



This article covers the fourth-generation Volkswagen Polo (Mk4/9N), manufactured between 2002 and 2009. It includes fuse box diagrams for models from 2002 through 2009, provides details on the location of the fuse panels within the vehicle, and explains the function and layout of each fuse and relay.

Passenger Compartment Fuse Box

Fuse Box Location

The fuse panel is located behind an access panel on driver’s side edge of the instrument panel.



Fuse Box Diagram

Volkswagen Polo (9N; 2002 - 2009) - fuses and relay box diagram - passenger compartment
Volkswagen Polo (9N; 2002 – 2009) – fuses and relay box diagram – passenger compartment



Assignment of the fuses in the passenger compartment

№ Amps Function/component
1 10A Rear window wiper motor
2 5A Licence plate light
3 5A Rear left fog light bulb
Trailer socket, rear fog light
4 5A Cruise control system switch
Clutch pedal switch
Brake pedal switch
Radiator fan relay
Fuel pump control unit
5 5A Engine control unit
Exhaust gas recirculation
6 5A Headlight range control regulator
7 7.5A/5A 2002-2004:
Exhaust gas recirculation
Air-mass meter
Oil level sensor
Electrohydraulic steering
Crankcase breather heater element
2005-2009:
Oil level and oil temperature sender
Power steering control unit
Crankcase breather heater element
8 5A Onboard power supply control unit
Mirror heating
9 10A 2002-2004 (FSI):
Lambda probe
Crankcase heater
Pressure regulating valve
10 5A Mobile telephone operating electronics control unit (2006-2009)
Control unit with display for radio and navigation system
Onboard power supply control unit
Radio
11 5A Mirror adjustment switch
Folding exterior mirror control unit
12 5A Right tail light bulb
Right side light bulb
13 5A Left side light bulb
Left tail light bulb
14 10A Crankcase breather heater
Secondary air pump relay
Exhaust gas recirculation
Intake manifold flap
Hall sender
15 10A Multi-function switch
Automatic gearbox control unit
16 10A lntermittent wiper switch
Onboard power supply control unit
Rear window wiper motor
Windscreen and rear window washer pump
17 5A Engine control unit
18 5A Climatic, Climatronic, radiator fan control unit, navigation, circulation pump, illumination of functions, interior monitor sensor, mirror
19 10A Reversing light switch
Parking aid control unit
Left washer jet heater element
Right washer jet heater element
Selector lever illumination (2002-2004)
20 5A Control unit in dash panel insert
21 10A Right main beam bulb
22 10A Left main beam bulb
23 10A Traction control system switch
TCS and ESP button
Tyre pressure monitor display button
Steering angle sender, only models with ESP
ABS control unit
24 10A/15A 2002-2006:
Onboard supply control unit, tank filler flap locking motor
Onboard supply control unit, central locking motor in rear lid
2006-2009:
Heated driver seat regulator
Heated front passenger seat regulator
Heated front seats control unit
25 10A Injectors
Camshaft adjuster
Thermostat heater
Fuel purging valve
26 10A 2002-2004: Brake lights
2005-2009: Coolant pump relay (only BJX)
27 5A Steering angle sender
Control unit in dash panel insert
28 10A Onboard supply control unit, relay for interior lights
Door warning lamp relay
29 5A Climatronic control unit
Air conditioning system control unit
Mobile telephone operating electronics control unit
16-pin connector, diagnostics connection
30 5A Onboard power supply control unit, shift lock, rain sensor
31 25A Driver door control unit
Driver side window regulator motor
32 15A 2002-2004:
Seat heating
2005-2009:
Brake light switch
Brake light suppression relay
33 15A Alarm horn
34 15A/20A 2002-2004:
Socket in luggage compartment (Variant)
2005-2006:
12V socket
2006-2009:
Cigarette lighter
12V socket
Blocking diode
35 20A Sliding sunroof adjustment control unit
36 25A Fresh air blower switch
Fresh air blower control unit
37 15A/20A Ignition transformer
38 25A Rear left door control unit
39 25A Front passenger side door control unit
40 10A/20A/30A Engine control unit
41 15A Fuel pump
42 15A/20A NOx regulator, Lambda probe, exhaust gas cooling
43 15A Right headlight dipped beam bulb
Right headlight range control motor
44 15A Left fog light bulb
Right fog light bulb
45 15A Engine control unit
46 20A Onboard power supply control unit
Automatic intermittent wash and wipe relay
47 20A/30A Onboard power supply control unit
Heated rear window
48 15A Onboard power supply control unit, Turn signals
49 10A/15A 2002-2006:
Cigarette lighter
2006-2009:
Onboard supply control unit, tank filler flap locking motor
Onboard supply control unit, central locking motor in rear lid
50 15A 2002-2004:
Central locking
2005-2009:
Anti-theft alarm ultrasonic sensor
Comfort system central control unit
51 15A Control unit with display for radio and navigation system
Dipped headlight control unit, on/off for Coming home system
Radio
52 20A Headlight washer system relay
Onboard supply control unit
Treble tone horn, Bass tone horn
53 25A Rear right door control unit
54 15A Left headlight dipped beam bulb
Headlight range control motor



Relay panel

The relay panel is located under the driver’s side of the instrument panel.

Volkswagen Polo (9N; 2002 - 2009) - fuses and relay box diagram - passenger compartment (relay panel)
Volkswagen Polo (9N; 2002 – 2009) – fuses and relay box diagram – passenger compartment (relay panel)



Assignment of the fuses in the relay panel

№ Amps Description
1 2002-2004:
Driving school mode relay
2005-2009:
Secondary air pump relay (engine code BJX)
Folding exterior mirror control unit
2 2005-2009:
Folding exterior mirror control unit
Driving school mode relay
3 Glow plug relay (Diesel engines)
Motronic current supply relay (2002-2007)
4 Fuel pump relay
5 2002-2004:
Warning lamps relay
2005-2007:
Door warning lamps relay
Brake light suppression relay
6 Headlight washer system relay
7 2002-2004: Starter inhibitor relay
2005-2009: Dipped headlight control unit, on/off (coming home system)
8 Low heat output relay (Diesel engines)
Coolant pump relay (2005-2007, engine code BJX)
9 High heat output relay (Diesel engines)
10 Motronic current supply relay
Radiator fan relay (engine codes ASZ, BLT)
Current supply relay (2002-2004)
11 X-contact relief relay
12 Fuel supply relay
13 Fuel pump relay (Petrol engines)
14 40A Diesel engines fuses:
Heater element fuse 1
Heater element fuse 2
Heater element fuse 3
15 2002-2004:
Diesel direct injection system relay
2005-2009:
Terminal 30 voltage supply relay (Diesel engines)
Motronic current supply relay (Petrol engines, not engine codes BUD, BTS)
Fuel pump relay (2005-2007, engine codes BMD, BME)
F1 10A Trailer socket
F2 15A Heated driver seat regulator
Heated front passenger seat regulator
Heated driver seat control unit
Heated front passenger seat control unit
F3 10A/5A Driving school mode
Footwell light switch
Warning buzzer switch
Control unit in dash panel insert (South Africa, from 2006, 5A)
F4 10A Driving school mode
12V socket



Engine Compartment Fuse Box

Fuse Box Location

The main fuse box located on top of the battery in the engine compartment.



Fuse Box Diagram (version 1)

Volkswagen Polo (9N; 2002 - 2009) - fuses and relay box diagram - engine compartment (version 1)
Volkswagen Polo (9N; 2002 – 2009) – fuses and relay box diagram – engine compartment (version 1)



Assignment of the fuses in the engine compartment (version 1)

№ Amps Function/component
S162 175A Alternator
S163 110A Fuse holder B
S164 50A Power steering control unit
S176 50A Glow plug activation control unit
Engine glow plugs
Secondary air pump motor
S177 40A Radiator fan (models with air conditioning system or Climatronic)
S178 40A ABS control unit
S179 25A ABS control unit
S180 30A Radiator fan
S267 – –
S268 5A Onboard power supply control unit
S269 5A Radiator fan control unit
S270 – –
S271 5A Automatic gearbox control unit
S272 – –
S273 – –
S274 – –



Fuse Box Diagram (version 2)

Volkswagen Polo (9N; 2002 - 2009) - fuses and relay box diagram - engine compartment (version 2)
Volkswagen Polo (9N; 2002 – 2009) – fuses and relay box diagram – engine compartment (version 2)



Assignment of the fuses in the engine compartment (version 2)

№ Amps Function/component
S162 175A Alternator
S163 110A Fuse holder B
S164 40A Radiator fan (models with air conditioning system or Climatronic)
S176 40A ABS control unit
S177 50A Power steering control unit
S178 50A Glow plug activation control unit
Engine glow plugs
Secondary air pump motor
S179 25A ABS control unit
S180 30A Radiator fan
S267 5A Radiator fan control unit
S268 10A ABS control unit
S269 5A Onboard power supply control unit
S270 5A Diesel direct injection system control unit (models with engine code BMT)
S271 5A Automatic gearbox control unit
S272 – –
S273 – –
S274 – –



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Beetle (Sedan 111, Sedan 113, Converible; 1973) – fuse and relay box diagram

Posted on by admin

Volkswagen Beetle (Sedan 111, Sedan 113, Converible; 1973) – fuse and relay box diagram

Year of production: 1973



The classic compact car  Volkswagen Beetle was produced from 1938 to 2003. In this article, you will find fuse box diagrams for the Volkswagen Beetle models from – 1973, get information about the location of the fuse panels inside the vehicle, and learn about the assignment of each fuse (fuse layout) and relay.

Passenger compartment

Fuse box diagram

Volkswagen Beetle (1973) - fuse and relay box diagram
Volkswagen Beetle (1973) – fuse and relay box diagram



Assignment of the fuses in the passenger compartment

Fuse Ampere rating Description
1 8 Parking and side marker lights, left, tail lights left
2 8 Parking and side marker lights, right, tail right left
3 8 Low beam left
4 8 Low beam right
5 8 High beam left
6 8 High beam right, high beam indicator light
7 8 License flasher system
8 8 Emergency flasher system
9 16 Interior light
10 16 Windshield wipers, rear windows defrogger (switch current), fresh air fan
11 8 Horn, stop lights, control valve* and AFT warning lights** (Automatic Stick Shift)
12 8 Fuel gauge, turn signals, brake warning light, warning lights for oil pressure, turning signals and generator

* if this fuse is detective, the transmission cannot be shifted

** trailer hauling only

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
