Chevrolet Lumina (1998 – 2001) – fuse and relay box diagram
Year of production: 1998, 1999, 2000, 2001
This article focuses on the second-generation Chevrolet Lumina, manufactured from 1994 to 2001. It provides fuse box diagrams for the 1998, 1999, 2000 and 2001 models, along with details on the location of the fuse panels within the vehicle and explanations of each fuse and relay assignment (fuse layout).
Instrument Panel Fuse Block
Fuse Box Location
The fuse box is located behind the cover on the passenger side of the instrument panel.

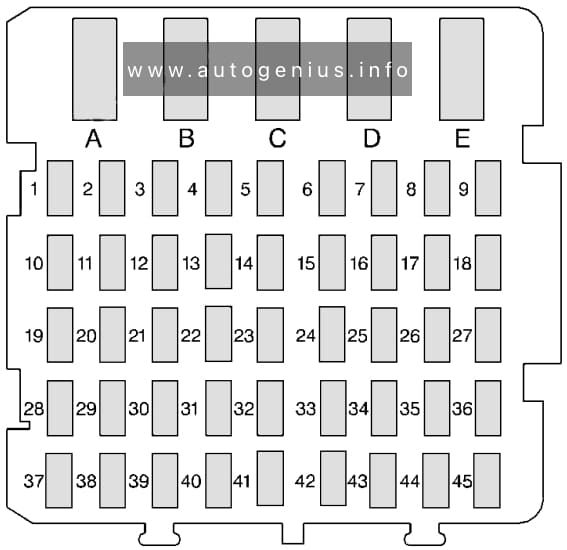

Fuse Box Diagram
Assignment of the fuses in the instrument panel (1998 – 2001)
№ | Description |
---|---|
1 | Cigar Lighter – Instrument Panel and Console Cigarette Lighter |
2 | Not Used |
3 | Not Used |
4 | HVAC – HVAC Control Assembly Solenoid Box, Mix Motor, DRL Module, HVAC Control Head, Defogger Relay, (S.E.O.) Digital Speedometer |
5 | Hazard Flasher |
6 | RH Spot Lamp (S.E.O.) |
7 | Starter Relay |
8 | Not Used |
9 | Not Used |
10 | I/P Electronics Battery – Chime Module, Electronic Brake Control Module (EBCM), Theft-Deterrent Module, Radio, DLC |
11 | Power Accessory #2 – Sunroof Control Unit, (S.E.O.) Accessory Feed |
12 | Anti-Theft/PCM – Theft-Deterrent Module, Powertrain Control Module, (PCM) IGN System Relay |
13 | ABS – Electronic Brake Control Module (EBCM), ABS Relay |
14 | HVAC Blower Motor – Blower Motor Relay |
15 | LH Spot Lamp (S.E.O.) |
16 | Steering Wheel Control #1 – Steering Wheel Radio Control Lighting |
17 | Not Used |
18 | Not Used |
19 | Power Accessory #1 – Door Lock Switches, Trunk Courtesy Lamp, O/S Mirror Switch, (S.E.O.) Emergency Vehicle-Rear Compartment Lid Lamp or Window Panel Lamps |
20 | Steering Wheel Control #2 – Steering Wheel Radio Controls |
21 | Air Bag – Air Bag System |
22 | Cruise Control – Cruise Control Cut-Out Switch, Cruise Control Module, Turn Signal Cruise Control Switches |
23 | Stoplamps – Stoplamp Switch (Brake) |
24 | Not Used |
25 | English/Metric (S.E.O.) |
26 | Not Used |
27 | Not Used |
28 | CTSY Lamps – Vanity Mirrors, I/P Compartment Lamp, I/S Lighted Rearview Mirror, Dome Lamp |
29 | Wiper – Wiper Switch |
30 | Turn Signal – Turn Signal Flasher |
31 | Not Used |
32 | Power Locks – Door Lock Relay, Remote Keyless Entry Receiver |
33 | DRL MDL – Daytime Running Lamp Module, (S.E.O.) Accessory Switch |
34 | Not Used |
35 | Not Used |
36 | Not Used |
37 | Rear Defog – Rear Window Defogger Switch Relay |
38 | Radio, Power Drop |
39 | I/P Electronics Ignition Feed – Headlamp Switch, Instrument Cluster, Chime Module, Keyless Entry Receiver, Stoplamp switch (TCC and BTSI) (S.E.O.) Accessory Switch |
40 | Not Used |
41 | Power Drop |
42 | Evap. Sol. – Evaporation Emissions (EVAP) Canister Vent Solenoid Valve |
43 | Not Used |
44 | Not Used |
45 | Not Used |
Circuit Breakers | |
A | Not Used |
B | Not Used |
C | Power Windows |
D | Power Seats |
E | Not Used |
Engine Compartmet Fuse Box (Driver Side)

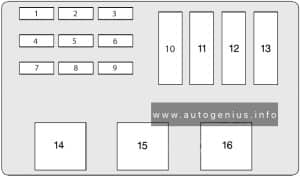

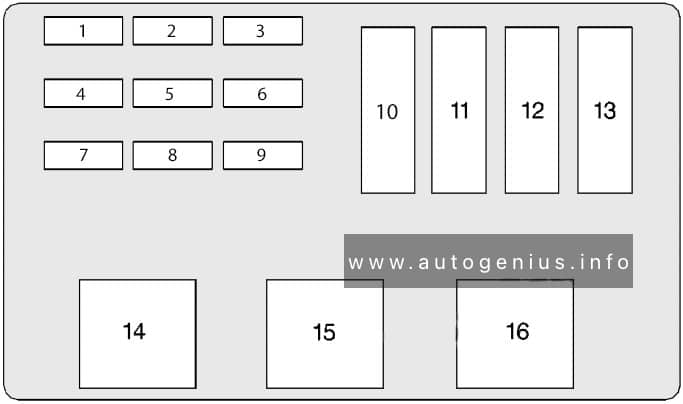

Fuse box diagram
Assignment of the fuses in the engine compartment fuse box №1 – driver side (1998-2001)
№ | Name | Description |
---|---|---|
1 | Not Used | |
2 | Not Used | |
3 | Not Used | |
4 | FAN #3 | FAN #3 Relay |
5 | PARK LPS | Headlamp Switch |
6 | HORN | Horn Relay |
7 | ABS | Anti-Lock Brake System |
8 | Not Used | |
9 | Not Used | |
10 | Not Used | |
11 | Circuit Breaker C, Starter Relay, Str Whl Control # 2, Power Accessory #2, and Theft-Deterrent Relay | |
12 | HD LPS – Circuit Breaker to Headlamp Switch | |
13 | ABS – ABS Relay | |
Relay | ||
14 | ABS – Anti-Lock Brake System | |
15 | FAN #3 – Secondary Cooling Fan (Passenger’s Side) | |
16 | HORN |
Engine Compartmet Fuse Box (Passenger Side)

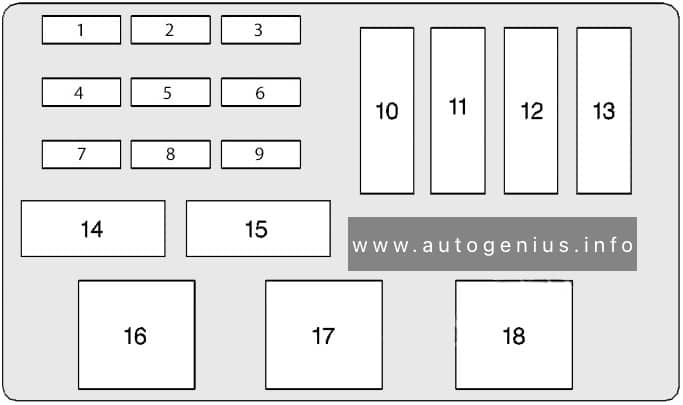

Fuse box diagram
Assignment of the fuses in the engine compartment fuse box №1 – passenger side (1998-2001)
№ | Name | Description |
---|---|---|
1 | Not Used | |
2 | R/CMPT REL | Remote Trunk Release, Back-Up Lamps, Remote Control Door Lock Receiver |
3 | PCM BAT | Powertrain Control Module (PCM), Fuel Pump Relay, Fan Cont #1 and #2 Relay |
4 | Not Used | |
5 | A/C CONT | A/C Cmpt Relay |
6 | TRANS | Automatic Transaxle |
7 | F/INJN | Fuel Injectors |
8 | PCM IGN | Mass Air Flow (MAF) Sensor Heated Oxygen Sensor #1 and #2 Evaporative Emissions (EVAP) Canister Purge Solenoid Valve |
9 | ELEK IGN | Electronic Ignition (EI) Control Module |
10 | I/P Fuse Block | |
11 | Not Used | |
12 | Passenger’s Side Underhood Electrical Center, Ign Syst Relay, R/Cmpt Rel fuse, PCM Bat fuse | |
13 | Fan Cont #1 Relay | |
Relay | ||
14 | Fuel Pump | |
15 | A/C Cmpr | |
16 | Fan Cont #2 – Secondary Cooling Fan (Passenger’s Side) | |
17 | Fan Cont #1 – Primary Cooling Fan (Driver’s Side) | |
18 | Ign Syst |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
