Volkswagen Polo (6N/6KV; 1999 – 2002) – fuse and relay box diagram

Posted on 25 June 202525 June 2025 by admin

Volkswagen Polo (6N/6KV; 1999 – 2002) – fuse and relay box diagram

Year od production: 1999, 2000, 2001, 2002

This article covers the third-generation Volkswagen Polo (Typ 6N/6KV), manufactured between 1994 and 2002. It includes fuse box diagrams for the 1999 through 2002 models, details the locations of the fuse panels within the vehicle, and provides information on the fuse and relay assignments (fuse layout)

Passenger Compartment

Fuse box location

The fuse box is located behind the cover in driver’s storage compartment.

Fuse box diagram

Volkswagen Polo (6N/6KV; 1999 - 2002) - fuses and relay box diagram - passenger compartment — Volkswagen Polo (6N/6KV; 1999 – 2002) – fuses and relay box diagram – passenger compartment

Assignment of the fuses in the instrument panel

№	Amps	Description
SB1	10A	Lambda probe heating, ACF; camshaft variable timing adjuster
SB2	5A	Number plate lights
SB3	10A	Injectors
SB4	5A	Side bulb left
SB5	5A	Side light bulb
SB6	15A	Rear wiper
SB7	75A	Turn signals
SB8	5A	ABS with EDL/ESP
SB9	5A	Headlight range control
SB10	7.5A	Interior lighting, glove box, mirror, door entry, luggage compartment light
SB11	5A	Self-diagnosis connection voltage supply, dash panel insert, Climatronic
SB12	10A	Right headlight main beam, main beam warning lamp
SB13	10A	Left main beam headlight
SB14	10A	Hazard warning lights system, anti-theft alarm system
SB15	10A	Brake lights
SB16	5A	Ignition/starter switch S-contact
SB17	–	–
SB18	5A	Mirror heating
SB19	15A	Horn
SB20	10A	Telephone/preparationfor telephone
SB21	5A	Automatic gearbox control unit
SB22	15A	Anti-theft alarm system horn
SB23	5A	EGR, air mass meter, addit. heater relay, glow plug relay
SB24	5A	Clutch pedal switch (diesel), brake light suppression switch (EPC)
SB25	5A	Selector lever switch (AG4)
SB26	7.5A	Air conditioner, central locking, electric windows, electric mirrors, navigation
SB27	5A	Dash panel insert
SB28	5A	Speedometer sender, immobilizer
SB29	75A	Reversing lights, washer jet heating, headlight range control motor
SB30	5A	Exhaust gas recirculation valve, activated charcoal filter solenoid, heater pipe
SB31	5A	Fuel shut-off control unit, engine control unit
SB32	5A	Fuel shut-off control unit (diesel)
SB33	10A	Automatic gearbox selector lever lock
SB34	10A	Ignition transformer
SB35	25A	Glass sunroof, fabric sunroof
SB36	15A	Engine control unit
SB37	15A	Engine control unit
SB38	25A	Driver’s door power window
SB39	25A	Front passenger’s power window
SB40	15A	Fuel pump
SB41	15A	Central locking, anti-theft alarm system
SB42	15A	Radio, navigation
SB43	15A	Fog light, rear fog light
SB44	15A	Dipped beam, left headlight
SB45	15A	Dipped beam right headlight
SB46	15A	Cigarette lighter
SB47	20A	Headlight washer system
SB48	20A	Heated rear window
SB49	25A	Fresh air blower
SB50	15A	Windscreen wiper system, windscreen washer pump
SB51	15A	Seat heating
		Relays:
1		Fuel pump relay (petrol engines only) Fuel shut-off control unit (diesel engines)
2		Automatic intermittent wash/wipe and rain sensor relay
7		X contact relief relay
8		Heated exterior mirror relay

Engine Compartment

Fuse box location

It is located on the battery.

Fuse box diagram

Volkswagen Polo (6N/6KV; 1999 - 2002) - fuses and relay box diagram - engine compartment — Volkswagen Polo (6N/6KV; 1999 – 2002) – fuses and relay box diagram – engine compartment

Assignment of the fuses in the engine compartment

№	Amps	Description
S162	110A	Alternator
S163	80A	Relay carrier
S164	50A	Glow plugs (engine)
S176	50A	Glow plugs (radiator fan)
S176	30A	Air conditioning system
S177	30A	ABS control unit
S178	30A	ABS control unit
S179	20A	Radiator fan
S180	10A	Air conditioning system
SA9	30A	Air conditioner – glow plugs (diesel)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen LT (2D; 1996 – 2006) – fuse and relay box diagram

Posted on 19 June 202519 June 2025 by admin

Volkswagen LT (2D; 1996 – 2006) – fuse and relay box diagram

Year of production: 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

This article focuses on the second-generation Volkswagen Transporter LT (Typ 2D), which was produced between 1996 and 2006. It includes fuse box diagrams for Volkswagen LT models from 1996 through 2006, along with information on the location of the vehicle’s fuse panels. You will also find details on the fuse and relay assignments (fuse layout) for each model year.

Passenger Compartment Fuse Box

Fuse Box Location

The fuse box is located behind an access panel in the steering column.

Fuse Box Diagram

Volkswagen LT (2D; 1996 - 2006) - fuses and relay box diagram - passenger compartment — Volkswagen LT (2D; 1996 – 2006) – fuses and relay box diagram – passenger compartment

Assignment of the fuses in the instrument panel

№	Amps	Description
1	15A	Right side and tail lights
2	15A	Right main beam (56a)
3	15A	Left main beam (56a), warning light
4	15A	Reversing lights
5	15A	Brake light
6	20A	Window wash/wipe system
7	15A	Horn (15), self-diagnosis (15), terminal 15 relief relay, fresh air and recirculating air flap two-way valve, dash panel insert, heated rear window
8	20A	Interior lights, cigarette lighter, radio system (30), self-diagnosis (30)
9	15A	Analogue clock, hazard warning system, parking light
10	15A	Instrument lighting, number plate lighting (58)
11	15A	Left side and tail lights (58L)
12	15A	Right dipped beam (56b)
13	15A	Left dipped beam (56b)
14	15A	Fog light, rear fog light
15	15A	Radio system (15)
16	–	Free for optional equipment
17	–	Free for optional equipment
18	–	Free for optional equipment
B		Hazard warning light relay
W		Wiper motor relay

Relay Panels

The placement of auxiliary relay carriers and fuse carriers is not standardized; it varies depending on the specific equipment installed in the vehicle.

Relay carrier under driver seat

Assignment of the relays in the relay carrier

№	Amps	Description
S171	15A	Battery isolation relay fuse
S41	30A	Heated rear window single fuse
S160	15A	Heated passenger’s seat fuse
S159	15A	Heated driver’s seat fuse
S161	10A	Trailer operation turn signal relay fuse
S188	10A	Roof mounted turn signals fuse
S187	15A	Differential lock fuse
S147	15A	Relief relay fuse
S37	25A	Power window fuse (driver’s side)
S170	25A	Fuse for electric windows (front passenger side)
S97	30A	Fresh air blower fuse
S23	25A	Heater fuse (Additional air heater B1LC/D1LC / B3LC/D3LC)
S53	60A	ABS hydraulic pump fuse/valves
S186	15A	Tilt device fuse
S136	15A	Air conditioning system fuse
S81	20A	Fuel pump fuse (Engine codes: AGL)
S42	20A	Radiator fan fuse
S254	15A	Optional equipment fuse (Additional exterior and interior installations)
S219	15A	Power take-off fuse
S219	15A	Power take-off/speed regulation fuse (Engine codes: AHD)
S82	10A	Continued circulation of coolant pump fuse (Engine codes: AHD, AGX, AGK)
S53	50A	ABS return flow pump fuse (ABS control unit)
S106	25A	Rotating light fuse
S150	20A	Headlight washer system fuse
S190	15A	Terminal 30 voltage supply fuse (Heated rear window delay relay, magnetic coupling control unit, battery split charge relay)
S148	10A	Mirror adjustment /heater fuse
S64	20A	Socket fuse
S124	7.5A	ABS control unit fuse
S124	10A	ABS control unit fuse
S220	7.5A	Daylight driving lights fuse (from May 1997)
S172	15A	Daylight driving light fuse (left dipped beam)
S174	15A	Daylight driving light fuse (left side and tail lights) (up to April 1997)
S175	15A	Daylight driving light fuse (right side and tail lights) (up to April 1997)
S49	15A	Siren fuse
S54	25A	ABS valves fuse
S51	10A	Warm air blower 1st and 2nd speeds fuse
S118	25A	Warm air blower and coolant shut-off valve fuse
S52	25A	Central locking fuse
S290	30A	Fuel filter heating fuse
S175	15A	Daylight driving light fuse (side and tail lights) (from May 1997)
S173	15A	Daylight driving light fuse (right dipped beam)

Auxiliary relay carrier on the flap under the driver’s seat

Assignment of the relays in the relay carrier

№	Designation/function
	Terminal 15 relief relay
	Terminal D+ relief relay
	Fuel pump relay (Engine codes: AGL)
	Fresh air blower relay
	Air conditioning system switch-off relay
	Magnetic coupling relay
	Headlight washer system relay
	Horn relay
	Terminal 30 voltage supply relay (Engine codes: AHD, AGX)
	Daylight driving light relay (dipped beam)
	Daylight driving light relay (left dipped beam) (from May 1997)
	Daylight driving light relay (right dipped beam) (from May 1997)
	Daylight driving relay (side and tail lights)
	Magnetic coupling control unit (Engine codes: AGL)

Auxiliary relay carrier and control units under driver’s seat at rear

Assignment of the relays in the relay carrier

№	Designation/function
	Battery split charge relay
	Trailer operation turn signal relay
	Roof mounted turn signals relay
	Daylight driving lights switch-on relay
	Rotating light relay
	Airbag/seat belt tensioner control unit
	CCS control unit (Engine codes: AGL)
	Coolant shortage indicator control unit (Discontinued from August 1998)
	Rotating light and siren system control unit
	Central locking control unit
	Diesel direct injection system control unit
	Motronic control unit (Engine codes: AGL 105 KW)
	Fuel filter heater relay
	Tilt device relay
	Magnetic coupling cut-out relay, air conditioning system
	Radiator fan relay
	Delay relay

Relay carrier on right in engine compartment

Assignment of the relays in the relay carrier

№	Description
–	Radiator fan 4th speed relay
–	Automatic intermittent wash/wipe and Hazard warning light relay control unit

Relay carrier on left in engine compartment

Assignment of the relays in the relay carrier

№	Amps	Designation/function
S39	80A	Strip fuse for glow plugs (Engine codes: AHD, AGX, AGK)
		Glow plug relay (Engine codes: AHD, AGX)
		Glow plug relay (Engine codes: AGK)
		ABS with EDL control unit
		Immobilizer control unit

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura EL (1.6 EL) (1997 – 2000) – fuse and relay box diagram

Posted on 24 May 202524 May 2025 by admin

Acura EL (1.6 EL) (1997 – 2000) – fuse and relay box diagram

Years of production: 1997, 1998, 1999, 2000

This article focuses on the first-generation Acura EL (1.6EL), manufactured between 1997 and 2000. It includes fuse box diagrams for the 1997, 1998, 1999, and 2000 models, provides details on the location of the fuse panels within the vehicle, and explains the function of each fuse (fuse layout).

Passenger Compartment Fuse Box

Fuse Box Location

The interior fuse box is located below the dashboard.

Fuse Box Diagram

Acura EL (1997 - 2000) - fuses and relay box diagram - passenger compartment — Acura EL (1997 – 2000) – fuses and relay box diagram – passenger compartment

Assignment of the fuses in the instrument panel

№	Amps	Circuit(s) Protected
1	–	Not used
2	–	Not used
3	–	Not used
4	10A	Resistor Right headlight (high beam)
5	10A	High beam indicator Left headlight (high beam) Resistor
6	–	Not used
7	20A	Left rear power window motor
8	20A	Right rear power window motor
9	–	Not used
10	20A	Front passenger’s window motor
11	20A	Driver’s window motor Power window master switch
12	7.5A	Turn signal/hazard relay
13	15A	PGM-Fl main relay SRS unit (VA)
14	7.5A	Cruise control unit Keyless/security control unit
15	7.5A	Alternator Charging system light (Wire color: BLK/WHT) EVAP purge control solenoid valve Heated oxygen sensor Secondary heated oxygen sensor Vehicle speed sensor
16	7.5A	ABS control unit Rear window defogger relay
17	7.5A	A/C compressor clutch relay A/C thermostat Condenser fan relay Heater control panel Mode control motor Power mirror actuator Power mirror defogger Radiator fan relay Recirculation control motor Option connector
18	7.5A	Daytime runninq liqhts control unit
19	7.5A	Back-up lights
20	10A	Daytime running lights control unit Keyless/security control unit
21	10A	Right headlight (low beam)
22	10A	Left headlight (low beam)
23	10A	SRS unit (VB)
24	7.5A	Moonroof open relay Moonroof close relay Power window relay
25	7.5A	ABS indicator circuit A/T gear position dimming circuit Clock Cruise indicator circuit Gauge assembly Interlock control unit Shift lock solenoid SRS indicator circuit Integrated control unit
26	20A	Windshield wiper motor Windshield washer motor
27	15A	Accessory power socket
28	15A	Audio unit Stereo amplifier (AFB sound system) Option connector
29	–	Not used
30	7.5A	Audio unit light A/T gear position console light A/T gear position indicator dimming circuit Clock Cruise indicator circuit Cruise main switch light Dash lights brightness controller Gauge lights Hazard warning switch light Heater control panel lights Integrated control unit Option connector
31	7.5A	ECM (M/T) PCM (A/T) PGM-FI main relay Keyless/security control unit Starter cut relay Integrated control unit
32	7.5A	Front parking lights License plate lights Taillights
33	7.5A	Key interlock solenoid

Engine Compartment Fuse Box

Fuse Box Location

The under-hood fuse box is on the passenger’s side, next to the battery.

Fuse Box Diagram

Acura EL (1997 - 2000) - fuses and relay box diagram - engine compartment — Acura EL (1997 – 2000) – fuses and relay box diagram – engine compartment

Assignment of the fuses in the engine compartment

№	Amps	Circuit(s) Protected
41	80A	All
42	40A	Ignition switch (BAT)
43	7.5A	Ceiling light Data link connector Trunk light Integrated control unit (under-dash fuse relay/box socket)
44	15A	PGM-FI main relay
45	–	Not used
46	40A	Power window relay
47	7.5A	Audio unit Clock ECM (M/T) Heater control panel PCM (A/T) Security indicator
48	30A	№ 20, 33 fuses (in under-dash tuse/relay box) № 21, 22 fuses (via security headlight relay or dimmer low switch) Combination light switch
49	–	Not used
50	30A	Rear window defogger
51	20A	Keyless/security control unit Moonroof motor
54	40A	Option connector
55	40A	Blower motor
56	20A	Condenser fan motor A/C compressor clutch
57	20A	Radiator fan motor

ABS Fuse Box

Fuse Box Diagram

ABS Fuse Box

№	Amps	Circuit(s) Protected
61	40A	ABS pump motor
62	7.5A	ABS control unit (MCK)
63	20A	ABS control unit (BAT)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Mitsubishi FTO (1997 – 2000) – fuse and relay box diagram

Posted on 7 May 20257 May 2025 by admin

Mitsubishi FTO (1997 – 2000) – fuse and relay box diagram

Year of production: 1997, 1998,1999, 2000

The Mitsubishi FTO (DE), a 2-door coupe, was manufactured from 1994 to 2000. This article provides fuse box diagrams for the 1997, 1998, 1999, and 2000 models, details the locations of the fuse panels inside the vehicle, and outlines the function of each fuse (fuse layout)

Passenger compartment fuse box

Fuse Box Location

The fuses are located below the instrument panel.

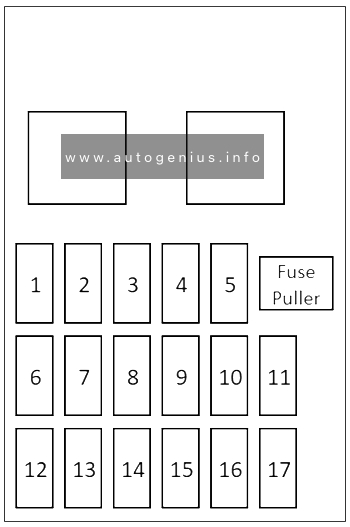

Fuse Box Diagram

Mitubishi FTO (1997 - 2000) - fuse and relay box diagram - passenger compartment fuse box — Mitubishi FTO (1997 – 2000) – fuse and relay box diagram – passenger compartment fuse box

Assignment of the fuses in the passenger compartment

№	Amps	Load circuit
1	15A	Door lock-ECU
2	10A	TCL-ECU
3	10A	A/T-ECU, A/T indicator lamp, output/input shaft speed sensor, back-up lamp, buzzer-ECU
4	10A	SRS-ECU, turn-signal and hazard flasher unit
5	–	–
6	30A	Defogger
7	–	–
8	10A	SRS-ECU, combination meter, sunroof-ECU, vehicle speed sensor, steering wheel sensor (vehicles with TCL), buzzer-ECU, motor antenna assembly, voltmeter
9	15A	Windshield intermittent wiper relay, windshield wiper motor, remote-controlled mirror, rear intermittent wiper relay, rear washer motor, rear wiper motor
10	–	–
11	30A	Blower motor
12	10A	Horn
13	10A	A/C-ECU, ABS-ECU, ABS valve relay, defogger relay, power window relay, blower high speed relay, blower motor relay
14	15A	Cigarette lighter
15	10A	–
16	10A	–
17	20A	Sunroof-ECU

Engine compartment fuse box

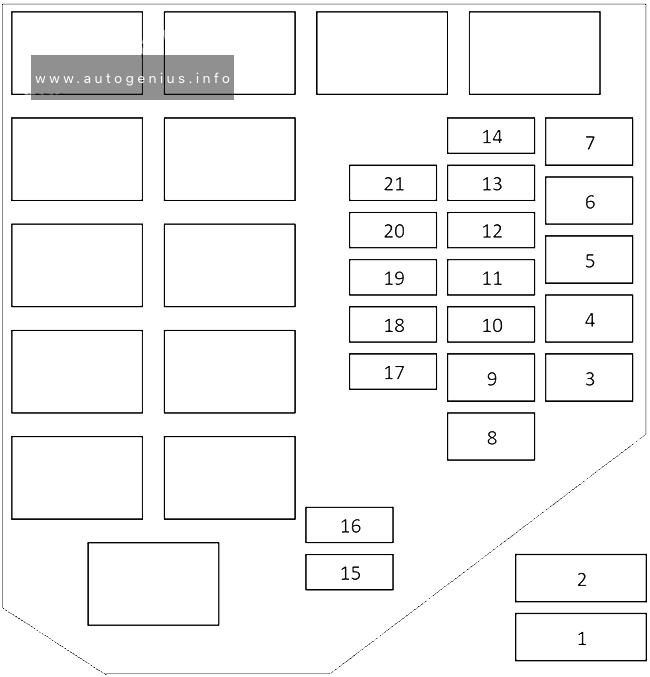

Fuse Box Diagram

Assignment of the fuses in the engine compartment

№	Amps	Circuit
1	60A	Fuses №16, 17, instrument panel fuses №1, 6, 11
2	100A	Fusible link № 1, 8, 9, fuse №10 (when engine stops); Fusible link №3, 4, 5, 6, fuses №12, 13, 14 (when engine starts)
3	20A	INVECS-II 5A/T, TCL, engine control
4	40A	Fuse №19, charging, headlamp
5	30A	Full-auto air conditioner, cooling
6	40A	Ignition switch
7	–	–
8	50A	ABS
9	30A	Instrument panel fuses №16, 17, power window
10	30A	Condenser fan
11	–	–
12	15A	Fog lamp
13	10A	Turn-signal and hazard warning lamp
14	15A	Stop lamp
15	15A	Keyless entry receiver, motor antenna assembly, spare connector for radio
16	10A	A/C-ECU power supply, TCL-ECU power supply, MUT-II power supply, engine-ECU power supply, key cylinder illumination lamp, keyless entry receiver, speedometer, trunk room lamp, clock, door-ajar indicator lamp, buzzer-ECU power supply, map lamp, motor antenna assembly, spare connector for radio
17	10A	A/C compressor
18	10A	High beam indicator lamp
19	10A	Illumination lamp, tail lamp, position lamp, license plate lamp, buzzer-ECU
20	20A	Headlamp (LH), fuse №18 (high beam indicator lamp)
21	20A	Headlamp (RH)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Mitsubishi Eclipse (2003 – 2005) – fuse and relay box diagram

Posted on 7 May 20257 May 2025 by admin

Mitsubishi Eclipse (2003 – 2005) – fuse and relay box diagram

Year of production: 2003, 2004, 2005

This article focuses on the post-facelift third-generation Mitsubishi Eclipse, produced from 2003 to 2005. It includes fuse box diagrams for the 2003, 2004, and 2005 models, provides the locations of the fuse panels within the vehicle, and explains the roles of each fuse and relay (fuse layout).

Passenger compartment fuse box

Fuse Box Location

The fuses are located behind the dashboard side cover on the driver’s side.

Fuse Box Diagram

Mitubishi Eclipse (2003 - 2005) - fuse and relay box diagram - passenger compartment fuse box — Mitubishi Eclipse (2003 – 2005) – fuse and relay box diagram – passenger compartment fuse box

Assignment of the fuses in the passenger compartment

№	Amps	Load Circuit
1	20A	Amplifier
2	–	–
3	20A	Sunroof motor assembly
4	–	–
5	30A	Capacitor, choke coil and defogger
6	30A	Automatic compressor controller, blower motor and resistor
7	–	–
8	–	–
9	–	–
10	15A	Combination meter, data link connector and ETACS-ECU
11	15A	Capacitor, ETACS-ECU and rear wiper motor
12	–	–
13	7.5A	ABS-ECU, convertible top control module and sunroof motor assembly
14	7.5A	Remote controlled mirror
15	–	–
16	15A	Accessory socket, cigarette lighter and multi center display unit
17	7.5A	Engine control module, fuel pump relay and powertrain control module
18	20A	Front-ECU and windshield wiper motor
19	–	–
20	7.5A	A/C compressor relay, A/C switch, automatic compressor controller, blower relay, defogger relay, front-ECU, outside/inside air selection damper control motor, water shut motor and water shut valve controller
21	7.5A	Auto-cruise control-ECU and autocruise control switch
22	7.5A	Backup light, combination meter, ETACS-ECU, input shaft speed sensor, output shaft speed sensor, powertrain control module and SRS-ECU
23	7.5A	Column switch, combination meter, ETACS-ECU, motor antenna assembly, multi center display unit, SRS-ECU and vehicle speed sensor
24	10A	Capacitor, distributor assembly and ignition coil

Engine compartment fuse box

Fuse Box Diagram

Assignment of the fuses in the engine compartment

№	Amps	Load Circuit
1	60A	Fuses №5, 6, 10 (in junction block) circuit
2	50A	Fan controller
3	60A	ABS-ECU
4	40A	Ignition switch circuit, theft-alarm horn and theft-alarm horn relay
5	30A	Fuses №1, 3 (injunction block) circuit, convertible top control module, power seat assembly, power window main switch and power window motor
6	15A	Combination meter and fog light
7	–	–
8	15A	Horn and horn relay
9	20A	Camshaft position sensor, crankshaft position sensor, distributor assembly, EGR solenoid valve, engine control module, evaporative emission purge solenoid, evaporative emission ventilation solenoid, heated oxygen sensor, idle air control motor, immobilizer-ECU, injector, MFI relay, powertrain control module, variable induction control solenoid valve and volume air flow sensor
10	10A	A/C compressor assembly and automatic compressor controller
11	15A	ABS-ECU, auto-cruise control-ECU, capacitor, high-mounted stoplight, immobilizer-ECU, powertrain control module and rear combination light
12	–	–
13	7.5A	Generator
14	10A	ETACS-ECU
15	20A	A/T control solenoid valve assembly and powertrain control module
16	10A	Headlight (RH)
17	10A	Headlight (LH)
18	10A	Headlight (RH)
19	10A	Headlight (LH)
20	7.5A	A/C switch, A/T selector lever position illumination light, ashtray illumination light, automatic compressor controller, combination meter, fog light switch, front combination light (RH), glove box light, hazard warning light switch, heater control panel illumination light, multi center display unit, radio, tape player, CD player, rear combination light (RH), rear side marker light (RH) and rheostat
21	7.5A	Front combination light (LH), license plate light, rear combination light (LH) and rear side marker light (LH)
22	10A	Column switch, combination meter, ETACS-ECU, front-ECU, motor antenna assembly, multi center display unit, radio, tape player, CD player, sunroof motor assembly and vanity mirror light
23	10A	ETACS-ECU, motor antenna assembly, radio, tape player and CD player
24	15A	Fuel pump module
25	–	–
26	120A	Generator (The fusible link is connected to battery positive terminal)
27	30A	Convertible top control module (The fusible link is connected in front of the relay box)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Mitsubishi Eclipse (2000 – 2002) – fuse and relay box diagram

Posted on 7 May 20257 May 2025 by admin

Mitsubishi Eclipse (2000 – 2002) – fuse and relay box diagram

Year of production: 2000, 2001, 2002

This article covers the pre-facelift third-generation Mitsubishi Eclipse, produced from 2000 to 2002. It provides fuse box diagrams for the 2000, 2001, and 2002 models, along with information on the location of the fuse panels inside the vehicle and details on the function of each fuse and relay (fuse layout).

Passenger compartment fuse box

Fuse Box Location

The fuses are located behind the dashboard side cover on the driver’s side.

Fuse Box Diagram

Mitubishi Eclipse (2000 - 2002) - fuse and relay box diagram - passenger compartment fuse box — Mitubishi Eclipse (2000 – 2002) – fuse and relay box diagram – passenger compartment fuse box

Assignment of the fuses in the passenger compartment

№	Amps	Load Circuit
1	30A	Defogger and choke coil
2	30A	Automatic compressor controller, resistor and blower motor
3	15A	Powertrain control module, ABS-ECU, stoplight, autocruise control-ECU and immobilizer-ECU
4	–	–
5	10A	Powertrain control module, input shaft speed sensor, output shaft speed sensor, backup light, SRS-ECU, and ETACS-ECU
6	–	–
7	15A	Cigarette lighter, accessory socket, remote controlled mirror and multi center display unit
8	20A	ETACS-ECU and fuse #20 (Windshield wiper and washer)
9	10A	Convertible top control module and ABS-ECU
10	10A	Horn, horn relay, theft-alarm horn and theft-alarm horn relay
11	15A	Data link connector, ETACS-ECU and combination meter
12	10A	Motor antenna assembly (ECLIPSE SPYDER)
13	10A	Combination meter, ETACS-ECU, SRS-ECU, auto-cruise control-ECU, column-ECU, multi center display unit and vehicle speed sensor
14	–	–
15	–	–
16	10A	Blower relay, outside/inside air selection damper control motor, defogger relay, A/C switch, front-ECU, A/C compressor relay and automatic compressor controller
17	20A	Audio system (Vehicles with amplifier)
18	–	–
19	20A	Sunroof (ECLIPSE)
20	20A	Windshield wiper and washer

Engine compartment fuse box

Fuse Box Diagram

Assignment of the fuses in the engine compartment

№	Amps	Load Circuit
1	–	–
2	15A	Fog light
3	10A	Air conditioning system
4	10A	ECU power supply, dome light, trunk light, universal garage door opener, sunroof assembly, luggage compartment light, audio system, multi-center display, meter and gauge
5	10A	Audio system
6	10A	Headlight and theft-alarm system
7	10A	Headlight and theft-alarm system
8	10A	Rheostat, taillight, position light, rear side marker light and illumination circuit
9	10A	Taillight, position light, rear side marker light and license plate light
10	–	–
11	10A	Headlight
12	10A	Headlight
13	20A	INVECS-II 4A/T, MFI system, air conditioning system, cooling system and immobilizer system
14	10A	Charging system, central door locking system (Vehicles with keyless entry system), turn-signal light and hazard warning light
A	60A	Instrument panel fuses №1, 2, 3, 10, 11
B	–	–
C	30A	Instrument panel fuses №17, 19, power windows, power seat, convertible top and audio system (Vehicles with amplifier)
D	50A	Air conditioning system and cooling system
E	50A	Anti-lock braking system
F	30A	Convertible top circuit
G	30A	Ignition switch circuit
H	120A	Generator circuit (the fusible link is located on the battery)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Jetta (A4; 2000 – 2005) – fuse and relay box diagram

Posted on 6 February 2025 by admin

Volkswagen Jetta (A4; 2000 – 2005) – fuse and relay box diagram

Year of production: 2000, 2001, 2002, 2003, 2004, 2005

This article covers the fourth-generation Volkswagen Jetta (A4, Typ 1J), manufactured from 1999 to 2005. It includes fuse box diagrams for the 2000, 2001, 2002, 2003, 2004, and 2005 models, provides details on the locations of the fuse panels within the vehicle, and explains the function of each fuse (fuse layout) and relay.

Passenger compartment fuse box

Fuse Box Location

The fuse panel is located behind an access panel on left edge of the instrument panel.

Fuse Box Diagram

Volkswagen Jetta (A4; 2000 - 2005) - fuse and-relay diagram - passenger compartment — Volkswagen Jetta (A4; 2000 – 2005) – fuse and-relay diagram – passenger compartment

Assignment of the fuses in the instrument panel

№	Amps	Description
1	10A	Heated washer nozzles, glove compartment light, memory seat
2	10A	Turn signal system
3	5A	Fog light relay, instrument panel dimmer switch
4	5A	License plate light
5	7.5A	Comfort system, cruise control, Climatronic, A/C, heated seat control modules, day/night dimming mirror, control module and control unit for multi-function steering wheel
6	5A	Central locking system
7	10A	Back-up lights, speedometer vehicle speed sensor
8	–	–
9	5A	Anti-lock brakes (ABS)
10	5A/10A	Engine control module (ECM)
11	5A	Instrument cluster, shift lock solenoid
12	7.5A	B+ (battery positive voltage) for Data Link Connector (DLC)
13	10A	Brake lights
14	10A	Interior lights, central locking system
15	5A	Instrument cluster, automatic transmission control module (TCM)
16	10A	A/C clutch, after-run coolant pump
17	–	–
18	10A	High beam right
19	10A	High beam left
20	15A	Low beam right
21	15A	Low beam left
22	5A	Parking and side marker lights, right
23	5A	Parking and side marker lights, left
24	20A	Front wiper motor, washer pump
25	25A	Fresh air blower, Climatronic, A/C
26	25A	Rear window defogger
27	15A	Rear wiper motor
28	15A	Fuel pump, gasoline
29	10A/15A	Engine control module (ECM)
30	20A	Sunroof control module
31	20A	Automatic transmission control module
32	10A/15A	Fuel Injectors (gasoline) ECM (diesel)
33	20A	Headlight washer system
34	10A	Engine control elements
35	30A	12V power outlet (in luggage comp.)
36	15A	Fog lights
37	10A	Radio terminal 86S, instrument cluster
38	15A	Central locking system (with power windows) luggage compartment light, remote fuel tank door, rear lid unlock
39	15A	Emergency flashers
40	20A	Dual tone horn
41	15A	Cigarette lighter
42	25A	Radio system
43	10A	Engine control elements
44	15A	Heated seats

Relays

Relay Box Location

The relay panel is located under the left side of the instrument panel.

Fuse Box Diagram

Volkswagen Jetta (A4; 2000 - 2005) - fuse and-relay diagram - passenger compartment (relays) — Volkswagen Jetta (A4; 2000 – 2005) – fuse and-relay diagram – passenger compartment (relays)

Assignment of the fuses in the relays panel

№	Amps	Description
I		Dual horn relay
II		Load reduction relay
III		–
IV		Fuel pump relay
V, VI		Wiper/Washer intermittent relay
1		–
2		Rear lid remote unlock motor relay
3		Anti-thett starter lock relay (clutch pedal switch)
4		Fog light relay
5		Multi-function steering wheel relay
6		Multi-function steering wheel relay
7		Daytime running lights (from April 1999)
8		Daytime running lights (through March 1999)
9		–
10		Glow plug relay
11		Park/Neutral position relay
12		Power supply (terminal 30b, B+) relay
13		–
A		Power (Memory) seat circuit breaker
B		–
C		Power windows, central locking, heated power mirrors
D		–
E		–
F	15A	Central locking, anti-theft warning
G	15A	Central locking, anti-theft warning

Engine compartment fuse box

Fuse Box Location

The main fuse box located on top of the battery in the engine compartment. It contains special fuses for high current applications and prevents the main wiring harness in the event of a short circuit.

Fuse Box Diagram

Volkswagen Jetta (A4; 2000 - 2005) - fuse and-relay diagram - engine compartment — Volkswagen Jetta (A4; 2000 – 2005) – fuse and-relay diagram – engine compartment

Assignment of the fuses in the engine compartment

№	Amps	Description
S162	50A	Secondary air injection relay or coolant pre-heating relays
S163	50A	Fuel pump relay or glow plug relay
S164	40A	Coolant fan and control module
S176	110A	Interior relay panel
S177	110A/150A	Generator
S178	30A	ABS-hydraulic pump
S179	30A	ABS
S180	30A	Coolant fan

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Seat Inca (2000 – 2004) – fuse and relay box diagram

Posted on 2 February 2025 by admin

Seat Inca (2000 – 2004) – fuse and relay box diagram

Year of production: 2000, 2001, 2002, 2003, 2004

The SEAT Inca (Typ 9K) was manufactured from 1996 to 2004. This article provides fuse box diagrams for the 2000, 2001, 2002, 2003, and 2004 models, along with details on the locations of the fuse panels within the vehicle and the functions of each fuse (fuse layout) and relay.

Passenger compartment fuse box

Fuse Box Location

Take hold of the ends of the cover with both hands and pull outwards until it is removed from its housings.

Seat Inca (2000 - 2004) - fuse and relay box location - passenger compartment — Seat Inca (2000 – 2004) – fuse and relay box location – passenger compartment

Fuse Box Diagram

Seat Inca (2000 - 2004) - fuse and relay box diagram - passenger compartment — Seat Inca (2000 – 2004) – fuse and relay box diagram – passenger compartment

Assignment of the fuses in the instrument panel

№	Amps	Description
1	10A	Dip beam, left headlight, left beam range adjuster
2	10A	Dip beam, right headlight, right beam range adjuster
3	10A	Number plates lights, instrument panel light
4	15A	Rear wiper, ABS
5	15A	Windscreen wiper, ABS
6	20A	Fresh air blower, control unit for radiator fan (with air conditioning)
7	10A	Right positioning light
8	10A	Left positioning light
9	20A	Heated rear window
10	15A	Fog lights, back fog light
11	10A	Main beam, left headlight
12	10A	Main beam, right headlight
13	10A/15A	Dual tone horn, radiator
14	15A	Reverse lights, heated seats, power windows, A/C
15	10A	Immobiliser, motor control, GRA
16	15A	Central lock, electric windows, electric mirrors
17	10A	Hazard warning lights, warning buzzer, turn lights
18	20A	Fuel pump (petrol engines)
19	30A	2rd and 3rd speed of the coolant
20	10A	Brake lights
21	15A	Interior lighting, central lock, lighter
22	10A	Radio or Cigarette lighter
Relays:
R1		Not used
R2		Rear window wiper/washer relay (72)
R3		Terminal 30 voltage supply relay (109)
R4		X contact relief relay (18)
R5		Not used
R6		Hazard warning system relay (21)
R7		Headlight washer system relay (33)
R8		Automatic intermittent wash/wipe relay (19)
R9		Not used
R10		Not used
R11		Dual tone horn relay (53)
R12		Fuel pump relay (167) / Glow plug relay (103)
		Relay positions above relay carrier: The control number is given in the brackets after the component designation. The relay positions may, depending on model equipment, engine or version, differ.
		Lights switched on and radio relay (292)
		2-speed radiator fan relay (no air conditioning system) (80)
		2-speed radiator fan relay (no air conditioning system) (53)
		Automatic glow period control unit (182)
		Automatic glow period control unit (166)
		Automatic glow period control unit (144)
		Power window relay (53)
		Radio/telephone loudspeaker switch-over relay
–	20A/30A	Power window fuse

Engine compartment fuse box

Fuse Box Location

The fuses are located on the battery.

Fuse Box Diagram

Seat Inca (2000 - 2004) - fuse and relay box diagram - engine compartment — Seat Inca (2000 – 2004) – fuse and relay box diagram – engine compartment

Assignment of the fuses in the engine compartment

№	Amps	Description
SA1	50A	Preheating diesel
SA2	50A	Engine management
SA3	40A	Radiator fan (2-speed)
SA4	110A	Interior and glow plugs
SA5	110A/150A	Alternator (90A / 120A)
SA6	30A	Radiator fan (single speed) / Air conditioning system
SA7	30A	ABS/ESP (pump) and steering angle sender
SA8	30A	ABS/ESP

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Hyundai Trajet (2000 – 2004) – fuse and relay box diagram

Posted on 28 January 202529 January 2025 by admin

Hyundai Trajet (2000 – 2004) – fuse and relay box diagram

Year of production: 2000, 2001, 2002, 2003, 2004

The Hyundai Trajet was manufactured from 1999 to 2008. This article features fuse box diagrams for the 2000, 2001, 2002, 2003, and 2004 models, provides details on the locations of the fuse panels within the vehicle, and explains the function of each fuse (fuse layout) and relay.

Passenger compartment fuse box

Fuse Box Location

The fuse box is located low on the dashboard on the driver’s side.

Hyundai Trajet (2000 - 2004) - fuse and relay box location - passenger compartment — Hyundai Trajet (2000 – 2004) – fuse and relay box location – passenger compartment

Fuse Box Diagram

Hyundai Trajet (2000 - 2004) - fuse and relay box diagram - passenger compartment — Hyundai Trajet (2000 – 2004) – fuse and relay box diagram – passenger compartment

Assignment of the fuses in the instrument panel

№	Amps	Circuit protected
1	10A	Immobilizer, Instrument cluster, Overhead console lamp
2	10A	Instrument cluster
3	10A	Hazard switch
4	15A	SRS control
5	20A	Power outlet
6	10A	Audio, Outside mirror & folding
7	15A	Cigarette lighter
8	10A	Seat belt tension reducer
9	10A	A/C, Outside mirror & folding
10	10A	A/C control
11	10A	Auto light, TCM, A/T pulse generator, Back-up lamp
12	10A	A/C control, Audio
13	10A	Room lamps, Instrument cluster
14	15A	Door lock relay
15	20A	AMP speaker
16	15A	Sunroof, Overhead console lamp
17	15A	Immobilizer, Fuel filler opener
18	10A	Rear fog lamp
19	30A	Defogger relay, Fuse 9
20	10A	Short connector ’B’, Illumination lamps, Exterior lamps
21	10A	A/C, Sunroof, Rain sensor
22	15A	Rear A/C
23	10A	Hazard relay, Check connector; Data link connector
24	15A	Stop lamp switch
25	20A	Front wiper & washer
26	30A	Fuse (Ignition coil, ABS), Engine control relay
27	10A	B/Alarm relay, Cruise control, Transaxle range switch, starting (M/T)
28	10A	Head lamp, Exterior lamps
29	10A	Stop lamp switch, Cruise control
30	20A	Seat warmer
31	10A	AQS sensor, Head lamp leveling, Head lamp
32	15A	Rear wiper & Washer

Relay Box Diagram

Engine compartment fuse box

Fuse Box Location

Hyundai Trajet (2000 - 2004) - fuse and relay box location - engine compartment — Hyundai Trajet (2000 – 2004) – fuse and relay box location – engine compartment

Fuse Box Diagram

Hyundai Trajet (2000 - 2004) - fuse and relay box diagram - engine compartment — Hyundai Trajet (2000 – 2004) – fuse and relay box diagram – engine compartment

Assignment of the fuses in the engine compartment

№	Name	Amps	Circuit protected
	CONDENSER FAN	20A	Condenser fan motor
	POWER WINDOW	30A	Power window
	IGNITION SWITCH 2	30A	Ignition switch (IG2, Start)
	ABS 1	30A	ABS control
	ABS 2	30A	ABS control
	PASSENGER COMPARTMENT JUNCTION BLOCK 2	50A	Short connector “A”, Fuse (12, 13, 14, 15, 16, 17, 19), Tail lamp relay
	RADIATOR FAN	30A	Radiator fan motor
1	FUEL PUMP	20A	Fuel pump relay – motor
2	HEAD LAMP (LOW)	15A	Head lamps (Low)
3	ABS	10A	ABS control
4	INJECTOR	10A	Injector
5	A/C COMPRESSOR	10A	A/C control
6	A/T	20A	A/T control relay, TCM
7	MAIN	30A	Engine control relay
8	IGNITION COIL	20A	Ignition coil, Ignition failure sensor
9	OXYGEN SENSOR	15A	Oxygen sensor
10	ECM	15A	Generator, ECM
11	HORN	10A	Horn
12	HEAD LAMP (High)	15A	Head lamps (High)
13	–	–	Not used
14	DRL	15A	DRL control
15	FRONT FOG LAMP	15A	Front fog lamps
16	–	30A	Spare
17	–	20A	Spare
18	–	15A	Spare
19	–	10A	Spare
20	BLOWER	30A	Blower relay
21	IGNITION SWITCH 1	30A	Ignition switch (ACC, IG1)
22	–	–	Not used
23	–	–	Not used
24	–	–	Not used
25	PASSENGER COMPARTMENT JUNCTION BLOCK 1	30A	Fuse (22, 23, 24)
26	EGR	10A	ECM, Fuel pump relay, PCV, ISA, CKP, CAP
27	–	–	Not used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Honda HR-V (1999 – 2006) – fuse and relay box diagram

Posted on 14 January 202514 January 2025 by admin

Honda HR-V (1999 – 2006) – fuse and relay box diagram

Year of production: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

This article covers the first-generation Honda HR-V (GH), manufactured from 1999 to 2006. It includes fuse box diagrams for the Honda HR-V models from 1999 to 2006, details the locations of the fuse panels within the vehicle, and explains the function of each fuse and relay (fuse layout).

Passenger Compartment Fuse Panel

Fuse Box Location

The fuses are located under the dashboard on the driver’s side

Fuse Box Diagram

Honda HR-V - fuse and relay box diagram - passenger compratment — Honda HR-V – fuse and relay box diagram – passenger compratment

Assignment of the fuses in the instrument panel

№	Amps	Component(s) or Circuit(s) Protected
1	10A	SRS unit (VA)
2	15A	SRS unit (VA) Inertia switch (KG and KE models), PGM-FI main relay (Except KG and KE models)
3	20A	Windshield wiper motor, windshield washer motor
4	10A	Headlight adjuster switch (KG and KE models), headlight adjuster unit (KG and KE models), rear window intermittent wiper control unit (KG and KE models), rear window washer motor, rear window wiper motor, power window master switch, power window relay
5	10A	Integrated control unit, turn signal/hazard relay, back-up lights
6	7.5A	Gauge Assembly, Clock, vehicle speed alarm unit (KY model), seat belt alarm unit (KY and KQ models), keyless door lock control unit, secondary HO2S (KG, KE, KN and KQ models), ELD unit (CVT), alternator, VSS, primary HO2S (KG, KE and KU models), PCM, EVAP purge control solenoid valve (KG, KY, KE and KU models)
7	15A	Distributor
8	–	Not used
9	–	Not used
10	15A	Rear window defogger
11	7.5A	Blower motor relay, radiator fan relay, condenser fan relay, A/C switch, A/C compressor clutch relay, recirculation control motor, A/C thermostat, ABS modulator assembly, power mirror actuator, power mirror defogger (KG model), power mirror retract actuator (with keyless entry system), seat heater main relay (KG model)
12	–	Not used
13	7.5A	ECM/PCM, PGM-FI main relay
14	–	Not used
15	–	Not used
16	–	Not used
17	–	Not used
18	15A	Audio unit, cigarette lighter
19	–	Not used
20	–	Not used
21	–	Not used
22	–	Not used
23	7.5A	Clock, seat belt alarm unit (KY and KQ models), intregated control unit, ceiling lights, immobiliser indicator light (KG, KE, KQ and KU models), cargo area light, ECM/PCM
24	15A	Audio unit
25	15A	Keyless / power door lock control unit
26	–	Not used
27	–	Not used
28	–	Not used
S		Spare fuses
R1		Power window relay
R2		Taillight relay
R3		Seat heater main relay (KG model) Shift lock relay (KQ and KU models with CVT)
R4		Turn signal/hazard relay

Engine Compartment Fuse Box

Fuse Box Location

The fuse box is located near the battery.

Fuse Box Diagram

Honda HR-V - fuse and relay box diagram - engine compartment — Honda HR-V – fuse and relay box diagram – engine compartment

Assignment of the fuses in the engine compartment

№	Amps	Component(s) or Circuit(s) Protected
41	80A	Battery, power distribution
42	50A	Ignition switch (BAT)
43	20A	Right headlight, High beam indicator light
44	7.5A	Rear fog light control unit (KG, KE models)
45	20A	Left headlight
46	7.5A / 10A	Taillight relay, clock, switch lights, taillights, licence plate lights, integrated control unit, gauge lights, audio unit light, beverage holder light, heater control panel light, front parking lights, dashlights brightness controller (KQ model), option connector C
47	10A / 15A	Brake lights, key interlock solenoid (KQ, KU models), ABS modulator assembly ECM/PCM
48	20A	ABS modulator assembly
49	10A / 15A	Turn signal/hazard lights, hazard warning light (KG and KE models)
50	40A	ABS modulator assembly
51	20A	Power window relay, passenger’s window motor
52	20A	Power window master switch, driver’s window motor
53	–	Not used
54	30A	№ 23, 24 and 25 fuses (in under-dash fuse/relay box), option connector B
55	20A	Seat heaters (KG model)
56	40A	Blower motor
57	20A	Radiator fan motor
58	20A	Condenser fan motor A/C compressor clutch
59	15A	PGM-FI main relay, data link connector
S		Spare fuses
R1		Headlight relay 1
R2		Headlight relay 2
R3		Horn relay
R4		Blower motor relay
R5		Condenser fan relay
R6		Radiator fan relay
R7		A/C compressor clutch relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
