AMC Gremlin (1970 – 1978) – fuse and relay box diagram

Posted on by admin

AMC Gremlin (1970 – 1978) – fuse and relay box diagram

Year of production: 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978

This article covers the second-generation  AMC Gremlin, produced from 1970 to 1978. It includes fuse box diagrams for the 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977 and 1978 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.

Fuse box diagram

Type 1

AMC Gremlin (1970 - 1978) - fuse and relay box diagram - type 1
AMC Gremlin (1970 – 1978) – fuse and relay box diagram – type 1



Assignment of the fuses in the fuse box (type 1)

No.
 A
 Protected Component
1 9 Dome light, cargo, courtesy, clock, glove box, and trunk light
2 14 Tail, park and instrument lights, light switch, windshield wiper, heater, cigar lighter, clock, license light, transmission, air conditioning thermostat, radio, tachometer, ash tray light, seat belt module and key buzzer
3 20 Stop light and hazard warning flasher
4 20 Turn signal, back-up lights and accessories
5 2½ Panel lights
6 4 Gauges
7 20 Fan

Circuit Breaker:

  • Headlights — 20 amp. circuit breaker in headlight switch.
  • Windshield Wiper – 6 amp. circuit breaker in wiper switch.
  • Power Windows & Tailgate Switches — 20 amp. circuit breakers located in instrument panel.

Fuse box diagram

Type 2

AMC Gremlin (1970 - 1978) - fuse and relay box diagram - type 2
AMC Gremlin (1970 – 1978) – fuse and relay box diagram – type 2



Assignment of the  fuses in the fuse box (type 2)

No.
 A
 Protected Component
1 10 Parking lights, key/headlights warning buzzer
2 15 Stop light and hazard warning
3 –  –
4 3 Cluster illumination
5 –  –
6 –  –
7 25 Heater/blower motor, A/C clutch
8 15 Radio, cigar lighter
9 15 Turn signals, backup lights, windshield washers
10 5 Gauges, seat belt warning
11 30 Power door lock, power windows circuit breaker
12 25 Heated rear window
Circuit Breaker:

  • Headlights — 20 amp. circuit breaker in headlight switch
  • Windshield Wiper — 6 amp. circuit breaker in wiper switch.
  • Power Windows & Tailgate Switches — 20 amp. circuit breakers located in instrument panel

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

AMC Concord (1978 – 1983) – fuse and relay box diagram

Posted on by admin

AMC Concord (1978 – 1983) – fuse box diagram

Year of production: 1978, 1979, 1980, 1981, 1982, 1983



This article covers the second-generation  AMC Concorde, produced from 1978 to 1983. It includes fuse box diagrams for the 1978, 1979, 1980, 1981, 1982 and 1983 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Fuse box diagram

AMC Concord - fuse box diagram
AMC Concord – fuse box diagram



Assignment of the  fuses in the fuse box

No.
 A
 Protected Component
1 10 Parking lights, key/headlights warning buzzer
2 15 Stop light and hazard warning
3 –  –
4 3 Cluster illumination
5 –  –
6 –  –
7 25 Heater/blower motor, A/C clutch
8 15 Radio, cigar lighter
9 15 Turn signals, backup lights, windshield washers
10 5 Gauges, seat belt warning
11 30 Power door lock, power windows circuit breaker
12 25 Heated rear window
Circuit Breaker:

  • Headlights — 20 amp. circuit breaker in headlight switch
  • Windshield Wiper — 6 amp. circuit breaker in wiper switch.
  • Power Windows & Tailgate Switches — 20 amp. circuit breakers located in instrument panel.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

AMC Matador (1971 – 1978) – fuse and relay box diagram

Posted on by admin

AMC Matador (1971 – 1978) – fuse and relay box diagram

Year of production: 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978



This article covers the second-generation   AMC Matador, produced from 1971 to 1978. It includes fuse box diagrams for the 1971, 1972, 1973, 1974, 1975, 1976, 1977 and 1978 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Fuse box diagram

AMC Matador (1971 - 1978) - fuse and relay box diagram
AMC Matador (1971 – 1978) – fuse and relay box diagram



Assignment of the fuses in the fuse box

No.
 A
 Protected Component
1 20 Turn signal, back-up lights, radio, windshield washer
2 20 Blower motor, air conditioner clutch
3 4 Interlock module circuit, headlight warning buzzer, oil light indicator, park brake, brake failure circuit
4 4 Panel illumination lights
5 14 Interlock module circuit, windshield wiper, park, tail, license and side marker lights
6 20 Stop light and hazard warning flasher
7 9 Dome, courtesy, glove box, trunk and cargo lights, clock
Circuit Breaker:

  • Headlights — 20 amp. circuit breaker in headlight switch.
  • Windshield Wiper – 6 amp. circuit breaker in wiper switch.
  • Power Windows & Tailgate Switches — 20 amp. circuit breakers located in instrument panel.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

AMC Pacer (1975 – 1980) – fuse and relay box diagram

Posted on by admin

AMC Pacer (1975 – 1980) – fuse and relay box diagram

Year of production: 1975, 1976, 1977, 1978, 1979, 1980



This article covers the second-generation   AMC Matador, produced from 1975 to 1980. It includes fuse box diagrams for the 1975, 1976, 1977, 1978, 1978 and 1980 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Fuse box diagram

Type 1

AMC Pacer (1975 - 1980) - fuse and relay box diagram (type 1)
AMC Pacer (1975 – 1980) – fuse and relay box diagram (type 1)



Assignment of the fuses in the fuse box (type 1)

No.
 A
 Protected Component
1 20 Turn signal, back-up lights, radio, windshield washer
2 20 Blower motor, air conditioner clutch
3 4 Interlock module circuit, headlight warning buzzer, oil light indicator, park brake, brake failure circuit
4 4 Panel illumination lights
5 14 Interlock module circuit, windshield wiper, park, tail, license and side marker lights
6 20 Stop light and hazard warning flasher
7 9 Dome, courtesy, glove box, trunk and cargo lights, clock

Type 2

AMC Pacer (1975 - 1980) - fuse and relay box diagram (type 2)
AMC Pacer (1975 – 1980) – fuse and relay box diagram (type 2)



Assignment of the fuses in the fuse box (type 2)

No.
 A
 Protected Component
1 10 Parking lights, key/headlight warning buzzer
2 15 Hazard warning, stoplights
3 10 Clock; dome and trunk lights
4 3 Cluster illumination
5 –  –
6 10 Radio, cigar lighter
7 25 Heater/A/C blower motor, A/C clutch
8 7.5 Gauges, Seat belt warning
9 20 Turn signals, backup lights, windshield washers
10 –  –
11 30 Power windows
12 25 Heated rear window

Circuit Breaker:

  • Headlights — 20 amp. circuit breaker in headlight switch.
  • Windshield Wiper – 8.25 amp. circuit breaker for windshield wipers and 4.5 amp. breaker for tail gate window wiper, both located at left side of brake support bracket.
  • Power Windows & Tailgate Switches — 20 amp. circuit breakers located in instrument panel.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Buick Electra (V; 1977 – 1984) – fuse and relay box diagram

Posted on by admin

Buick Electra (V; 1977 – 1984) – fuse and relay box diagram

Year of production: 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984



This article covers the Buick Century. It includes fuse box diagrams for the 5th generation 1977, 1978, 1979, 1980, 1981, 1982, 1983 and 1984 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Passenger compartment

Fuse box diagram

Buick Electra (V; 1977 - 1984) - fuse and relay box diagram
Buick Electra (V; 1977 – 1984) – fuse and relay box diagram



Assignment of the fuses in the fuse box

Fuse [A] Protected Component
1 5 Instrument illumination, headlight warning and electronic air conditioning
2 20 Electric choke
3 5 Instrument illumination, headlight warning
4 30 Circuit breaker: Power windows and roof, fuel cap lock release
5 — —
6 25 Heater, air conditioning, trunk lid release, radio capacitor
7 10 Electronic Control Module
8 10 Diesel engine fuse
9 25 Windshield wiper and washer
10 20 Hazard and stop lights
11 20 Seat belt light and buzzer, trunk ajar, transmission downshift and C-4 or E.S.C. jumper, heated back light relay, map and fuel economy lights, instrument gauges and indicator lights
12 20 Tail, side marker, parking and license lights, clock radio
13 10 Radio, cruise control
14 30 Circuit breaker: Power seats, door locks, heated rear window feed, tailgate window
15 20 Turn signal and back-up lights
16 20 Cigar lighter, glove box light, speed and key warning buzzer, power antenna, clock radio, clock, pulse wiper, air conditioning
17 20 Dome and sail panel lights, trunk light, reading light, vanity light, headlight on warning, automatic door locks and rear cigar lighter, tailgate ajar
18 — —
19 10 Instrument gauges, indicator lights, transmission converter clutch and cruise control, Electric choke
Circuit Breaker: Headlight Circuit — A thermo circuit breaker is incorporated in the headlight switch assembly to protect headlight circuits. Windshield Wiper — Integral with windshield wiper motor.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Buick Century (IV; 1978 – 1981) – fuse and relay box diagram

Posted on by admin

Buick Century (IV; 1978 – 1981) – fuse and relay box diagram

Year of production: 1978, 1979, 1980, 1981



This article covers the Buick Century. It includes fuse box diagrams for the 1978, 1979, 1980 and 1981 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Fuse box diagram

Buick Century (1978 - 1981) - fuse and relay box diagram
Buick Century (1978 – 1981) – fuse and relay box diagram



Assignment of the fuses in the fuse box diagram

Fuse [A] Protected Component
1 5 Instrument illumination and headlight warning
2 20 Electric choke (V6), closed loop
3 — —
4 30 Circuit breaker: Power windows and roof
5 — —
6 25 Heater, air conditioning, pulse wipers and deck lid
7 10 Electronic Control Module
8 — —
9 25 Windshield wiper and washer
10 20 Hazard and stop lights
11 20 Seat belt light and buzzer, heated back light relay, tailgate window release, map light and fuel economy light
12 20 Tail, side marker, parking and license lights, clock radio
13 10 Radio
14 30 Circuit breaker: Power seats, door locks and heated back light
15 20 Turn signal and back-up lights
16 20 Clock, cigar lighter, glove box light, key buzzer, power antenna, clock radio, radio capacitor, dome and sail panel lights, trunk light, reading light, headlight on warning and door locks
17 — —
18 — —
19 10 Gauges, cruise control, torque converter clutch and indicator light
Circuit Breaker: Headlight Circuit — A thermo circuit breaker is incorporated in the headlight switch assembly to protect headlight circuits. Windshield Wiper — Integral with windshield wiper motor.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Jeep Wagoneer (1972 – 1983) – fuse and relay box diagram

Posted on by admin

Jeep Wagoneer (1972 – 1983) – fuse and relay box diagram



Year of production: 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983



Fuse box diagram

Jeep Wagoneer - fuse and relay box diagram
Jeep Wagoneer – fuse and relay box diagram



Assignment of the fuses in the fuse box

№
 A
 Protected Component
1 20 Windshield wipers
2 15 Turn signals
3 10 Accessories
4 3 Instrument and accessory lights
5 20 Interior lights
6 20 Brake, tail and parking lights
7 25 Air conditioner, heater and electric fan
8 3 Instruments
9 25 Seat belt warning and back-up lights
10 20 Hazard flasher, clock and stop lights
Relay
R1 Hazard flasher
R2 Turn signal
  • 24 amp. circuit breaker is located in the headlight switch to protect headlight circuit. All models have two 30 amp. circuit breakers located in the fuse block to protect the electric tailgate window. One circuit breaker protects the instrument panel switch and the other protects the tailgate switch.
  • The 6-cyl. models have a 4 amp. in-line fuse protecting the cruise control. The V8 models have a 1.5 amp. in-line fuse protecting the cruise control.
  • All Jeep models are equipped with fusible links, located in the engine compartment, which protect the circuits.



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Rabbit GTI (A1, Type 17; 1974 – 1984) – fuse and relay box diagram

Posted on by admin

Volkswagen Rabbit GTI (A1, Type 17; 1974 – 1984) – fuse and relay box diagram



Year of production: 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984



This article covers the Volkswagen Rabbit, manufactured from 1974 to 1984. It includes fuse box diagrams for the 1974 to 1984 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse and relay.

Fuses box diagram

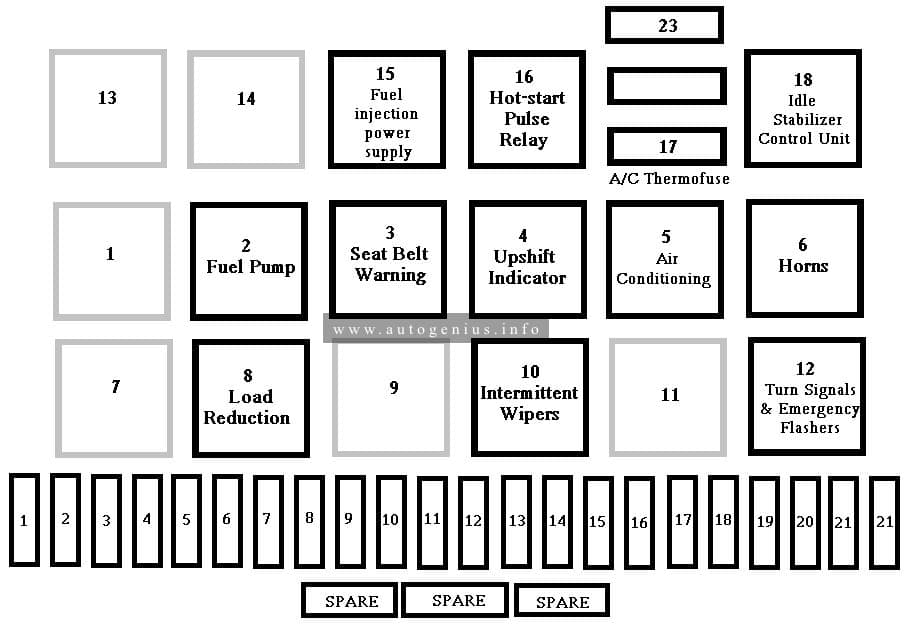

Volkswagen Rabbit (1974 - 1984) - fuse and relay box diagram
Volkswagen Rabbit (1974 – 1984) – fuse and relay box diagram



Assignment of the fuses in the fuse box

Fuse Description
1 Radiator cooling fan
2 Brake lights, cruise control
3 Cig. lighter, radio. clock, interior lights
4 Emergency flasher
5 Fuel pump
6 Open
7 Tail lights, parking lights, side marker lights – left
8 Tail lights, parking lights, side marker lights – right
9 Headlights (high beam, right); high beam indicator
10 Headlights (high beam, left)
11 Windshield wipers/washer
12 Head seats (if installed)
13 Rear window deforster
14 HVAC blower fan
15 Back-up lights; shift console light (automatic trans. only)
16 Horns
17 Open
18 Seat belt warrning light, horn relay; coolant level/temperature warning light; oil pressure, oil temperature, & volt gauges; cruise control (manual trans.)
19 Turn signal; brake warning light
20 License plate lights, trunk light (1987)
21 Headlights (low beam, left)
22 Headlights (low beam, right)



Relays



Assignment of the relays in the fuse box

Relay Description
2 Fuel pump
3 Seat belt warning
4 Upshift indicator
5 Air conditioning
6 Horns
8 Load Reduction
10 Intermittent wipers
12 Turn signals & emergency flasher
15 Fuel injection power supply
17 A/C Thermofuse
18 Idle stabilizer control unit

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Beetle (1954 – 1979) – fuse and relay box diagram

Posted on by admin

VW Beetle (1954 – 1979) – fuse and relay box diagram

Year of production: 1954, 1955, 1956, 1957, 1958, 1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979



The classic compact car Volkswagen Beetle was produced from 1938 to 2003. In this article, you will find fuse box diagrams for the Volkswagen Beetle models from 1954 through 1979, get information about the location of the fuse panels inside the vehicle, and learn about the assignment of each fuse (fuse layout) and relay.

Fuse box diagram

Volkswagen Beetle (1954 - 1979) - fuse and relay box diagram
Volkswagen Beetle (1954 – 1979) – fuse and relay box diagram



Assignment of the fuses in the fuse box

Fuse/relay Description
1 Low beam
2 Open
3 Turn signal/emergency flasher
4 Open
5 Buzzer

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
