RAM 1500 (2019 – 2021) – fuse and relay box diagram

Posted on 31 August 202411 October 2024 by admin

RAM 1500 (2019 – 2021) – fuse and relay box diagram

Year of production: 2019, 2020, 2021

The Dodge Ram 1500 (2019–2021) represents the fifth generation of the Ram truck lineup and is renowned for its blend of rugged capability, modern technology, and refined design. In 2019, the Ram 1500 received a significant overhaul, making it more comfortable, capable, and technologically advanced, which helped it stand out in the highly competitive full-size pickup truck market against rivals like the Ford F-150 and Chevrolet Silverado.

Internal Power Distribution Center

Fuse Box Location

The Power Distribution Center is located in the engine compartment near the battery. This center contains cartridge fuses, micro fuses, relays, and circuit breakers.

For access:

Locate and remove the two screws from the lower portion of the fuse panel cover.
After removing the screws, gently pull both the left and right side of the fuse panel cover to release the fastener clips.
Reverse the procedure to reinstall the fuse panel cover.

Fuse Box Diagram

Assignment of the fuses in the instrument panel fuse box (2019-2021)

№	Amps	Description
F01	30	Trailer Tow Receptacle
F02	–	Spare
F03	20	Seat Heater Module – Front Passenger
F04	–	Spare
F05	20	eToraue Power Pack Unit (PPU) Cooling Fan Module
F06	–	Spare
F07	40	Central Body Controller (CBC) 3 Power Locks Module
F08	–	Spare
F09	–	Spare
F10	40	Heating Ventilation and Air Conditioning (HVAC) Blower Motor
F11	5	Output to Under-Hood Power Distribution Center (UPDC) Run Coil
F12	25	Audio Amplifier Module / Active Noise Cancellation (ANC) / Sine Wave (SW) Inverter
F13	20	Seat Heater Module – Driver
F14	15	Steering Wheel Heater Module
F15	–	Spare
F16	–	Spare
F17	20	Left Spot Lamp – If Equipped
F18	30	Sunshade Sunroof Motor
F19	–	Spare
F20	20	Comfort Rear Seat Module (CRSM) (Heat Rear Right)
F21	–	Spare
F22	–	Spare
F23	–	Spare
F24	15	Radio Frequency (RF) Hub Module / Ignition Module / Cluster Module
F25	40	Integrated Trailer Brake Module
F26	15	Cluster Cabin/Compartment Node (CCN) Module / Cyber Security Module
F27	5	Cluster Cabin/Compartment Node (CCN) Module / Secure Gateway (SGW) Module
F28	10	Occupant Restraint Control (ORC) Module
F29	20	Comfort Rear Seat Module (CRSM) (Heat Rear Left)
F30	30	Drive Train Controller Module (DTCM) / Tailgate Module
F31	30	Central Body Controller (CBC) 1 Interior Light Module
F32	20	Right Spot Lamp – If Equipped
F33	10	Overhead Console / 911 Switch / Assist Switch / Heads Up Display (HUD)
F34	15	Front & Rear Ventilated Seat Motor
F35	10	Inverter Module / Sunshade Sunroof Motor / Dual Sunroof Motor / USB Charge Only
F36	40	Central Body Controller (CBC) 2 Exterior Light 1
F37	–	Spare
F38	–	Spare
F39	–	Spare
F40	20	Dome Pursuit Vehicle — If Equipped
F41A / F41B	15	Lumbar Support & Pass Switch / Integrated Center Stack (ICS) Switch Bank Module / HVAC Ctrl / Bank Upper Switch / Steering Control Module
F42A / F42B	10	Transfer Case Switch Module (TCSM) / Shift bv Wire Module (SBW) / Electric Park Brake Switch / Overhead Console (OHC) Switch / E-Call / Bank 3 Switch / Seat Left & Riaht Ventilation / Trailer A&B Tire Pressure Module / Gateway Trailer Module
F43A / F43B	10	Port Diagnostics / Collision Detection (CD) Module / Front & Rear USB
F44	20	Radio/Digital Content Service Delivery (DCSD) Module / Telematics Box Module/Fleet Telematics Module (FTM)
F45	30	Door Multiplexer Module (Driver-side)
F46	30	Door Multiplexer Module (Passenger-side)
F47	–	Spare
F48A	10	Rear View Mirror / SW Window Passenger / Rear USB / Wireless Charging Pad Module
F49	15	Central Vision Processing Module (CVPM) / Sensor Blind SDot / HDLP AdaDtive Front Lighting Sensor (AFLS)
F50A	10	Battery Pack Control Module
F51A / F51B	–	Spare
F52	20	Direct Battery Feed – If Equipped
F53	10	Trailer Reverse Steerina Control / Trailer Steerinq Control Knob
F54B	20	Power Outlet Center Seat
F55	25	Upfitter – If Equipped
F56	30	Network Interface Module – If Equipped
F57	20	Direct Battery Feed – If Equipped
F58	20	Direct Battery Feed – If Equipped
F59	–	Spare
F60	50	Inverter Module
F61	–	Spare
F62A / F62B	10	Intearated T railer Brakina (ITBM) / Occupant Class Mod / IAIR Suspension Mod / HVAC Sensor In-Car Temp Module / Rear Coolant Temp / Parktronic System (PTS) / Intearated Relay Ctrl Mod (IRCM) / HRLS / Gateway Trailer TPMS Module
F63	–	Spare
F64	–	Spare
F65	10	Occupant Restraint Controller (ORC) Module
F66	10	Run Accessory Feed — If Equipped
CB1	25	Driver Window SW Rear PWR Windows / Overhead SW Rear Defrost
CB2	25	Driver PWR Seat / Driver Seat Memory Mod
CB3	25	Passenger Power Seat / Passenger Seat Memory Mod

External Power Distribution Center

Fuse Box Location

The Power Distribution Center is located in the engine compartment near the battery. This center contains cartridge fuses, micro fuses, relays, and circuit breakers. A description of each fuse and component may be stamped on the inside cover, otherwise the cavity number of each fuse is stamped on the inside cover that corresponds to the following chart.

Fuse Box Diagram

Assignment of the fuses in the engine compartment fuse box (2019-2021)

№	Amps	Description
F01	25	Fuel Pump Motor
F02	–	Spare
F03	5	eTorque Motor Generator Unit (MGU)
F04	–	Spare
F05	–	Spare
F06	10	Output to Upfitter Power Distribution Center (PDC) – If Equipped
F07	–	Spare
F08	20	Trailer Tow Backup Lamp
F09	20	Trailer Stop / Turn Lamp Left
F10	20	Trailer Stop / Turn Lamp Right
F11	15	ID/Clearance Lights – If Equipped
F12	20	Trailer Tow Park Lamp
F13	–	Spare
F14	10	Air Conditioner (AC) Clutch
F15	5	Intelligent Battery Sensor (IBS)
F16	–	Active Damping Control Module (ADCM)
F17	20	Air Suspension
F18	15	Active Grill Shutter (AGS) / Rear Axle Cooling Valve / Active Air Dam
F19	–	Spare
F20	20	Adjustable Pedals
F21	30	Power Side Step
F22	50	Air Suspension Control Module
F23	–	Spare
F24	20	Transmission Control Module (TCM). Shift by Wire Module (SBW)
F25	40	Exterior Lights 2
F26	50	Electronic Stability Program (ESP) Module
F27	30	Front Wiper
F28	10	Powertrain Control Module (PCM) / Electronic Control Module (ECM)
F29	40	Electronic Stability Program (ESP) Module
F30	–	Spare
F31	–	Spare
F32	20	Electronic Control Module (ECM) / Powertrain Control Module (PCM)
F33	30	Brake Vacuum Pump
F34	–	Spare
F35	10	Electronic Control Module (ECM) / Powertrain Control Module (PCM) / eTorque Power Pack Unit (PPU) Motor Generator Unit (MGU) / Wake Up / Electric Power Steering / Active Tuned Mass Module (ATMM) / ESP
F36	–	Spare
F37	5	Run/Start (R/S) Switch Output to Internal Power Distribution Center (IPDC)
F38	10	Drive Train Controller Module (DTCM) / Active Cooling Temperature Valve
F39	15	Active Tuned Mass Module (ATMM)
F40	40	Starter
F41	10	Infrared Camera (IRCAM) Heaters
F42	20	Auxiliary Switch #5 – If Equipped
F43	20	Motor Generator Unit (MGU) Coolant Pump
F44	10	Trailer Camera
F45	10	Active Damping Control Module (ADCM) – If Equipped
F46	30	Fuel Heater (Diesel Only)
F47	30	Rear Defroster
F48	–	Spare
F49	30	Heater Control (Diesel Only)
F50	20	Auxiliary Switch #6 – If Equipped
F51	25	Fuel Pump Motor #1 – If Equipped
F52	–	Spare
F53	10	Supply / Purging Pump – If Equipped
F54	15	Powertrain Control Module (PCM)
F55	15	Right High-Intensity Discharge (HID) Headlamp
F56	–	Spare
F57	20	Horn
F58	25	Fuel Pump Motor #2 – If Equipped
F59	25	Injectors / Ignition (IGN) Coil / Glow Plug Module
F60	20	Electronic Control Module (ECM) / Powertrain Control Module (PCM) / Actuator (ACT) Short Running Valve
F61	15	Left High-Intensity Discharge (HID) Headlamp / Spare
F62	60	Glow Plug (Diesel)
F62	40	Low Temperature Radiator (LTR) Cooling Pump (TRX only)
F63	20	Diesel Nitrogen Oxide (NOx) Sensor (Diesel)
F64	10	Particulate Matter (PM) Sensor – If Equipped (Diesel)
High Current Fuses
N01	BUS	B+ BUS Feed
N02	–	Spare
N03	80	Internal Power Distribution Center (IPDC) Feed 1
N04	80	Internal Power Distribution Center (IPDC) Feed 2
N05	150	Auxiliary Power Distribution Center (PDC)
N06	300	Power Pack Unit (PPU) Generator – eTorque
N07	80	Electric Power Steering (EPS)
N08	100	Radiator Fan
Relays
K01		Fuel Pump
K02		Air Conditioner Clutch
K03		Spare
K04		Spare
K05		Front Wiper Control
K06		Starter # 2
K07		Brake Vacuum Pump
K08		Front Wiper Speed
K09		Starter #1
K10		Run/Start #1
K11		Auxiliary Switch # 6 – If Equipped
K12		Street and Racing Technology (SRT) Fuel Pump – If Equipped
K13		Auxiliary Switch # 5 – If Equipped
K14		Run Only #1
K15		Selective Catalytic Reduction (SCR) #2 (Diesel)
K16		Automatic Shutdown (ASD)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Dodge RAM 1500 Classic (2019 – 2023) – fuse box diagram

Posted on 31 August 2024 by admin

Dodge RAM 1500 Classic (2019 – 2023) – fuse box diagram

Year of production: 2019, 2020, 2021, 2022, 2023

Power Distribution Center

Fuse Box Location

he Power Distribution Center is located in the engine compartment near the battery. This center contains cartridge fuses, micro fuses, relays, and circuit breakers.

Fuse Box Diagram

№	Cartridge Fuse	Micro Fuse	Description
F01	80A Black		Rad Fan Control Module – If Equipped
F02			Spare
F03	60A Yellow		Rad Fan HI / LO
F04			Spare
F05	40A Green		2019-2021: Compressor For Air Suspension – If Equipped 2022-2023: Spare
F06	50A Red		ABS Pump Mtr
F07	40A Green		Starter Solenoid
F08		20A Blue	NOx Sensor
F09	40A Green	30A Yellow	2019: Aux Relay Output / Diesel Fuel Heater – If Equipped 2020: Diesel Fuel Heater – If Equipped (Special Services Vehicle & Cummins Diesel) 2021: Diesel Fuel Heater 2023: Brake Vac Pump
F10	40A Green / 50A Red		2020-2023: Body Controller / Exterior Lighting #2
F11	30A Pink		Integrated Trailer Brake Module – If Equipped
F12	40A Green		Body Controller #3 / Power Locks
F13	40A Green		Blower Motor
F14	40A Green		Body Controller #4 / Exterior Lighting
F15	40A Green		Spare / Special Services Only
F16	30A Pink		Smart Bar – If Equipped
F17			Spare
F18			Spare
F19	20A Blue (1500 LD Diesel) 30A Pink (Cummins Diesel)		2019-2021: SCR – If Equipped 2022-2023: Spare
F20	30A Pink		Passenger Door Module
F21	30A Pink		Drive Train Control Module
F22	20A Blue / 30A Pink / 25A White		Engine Control Module PCM – If Equipped (Cummins Diesel)
F23	30A Pink		Body Controller #1 / Interior Lighting
F24	30A Pink		Driver Door Module
F25	30A Pink		Front Wiper
F26	30A Pink		Antilock Brakes / Stability Control Module / Valves – If Equipped
F27			Spare
F28	20A Blue		Trailer Tow Backup Lights – If Equipped
F29	20A Blue		Trailer Tow Parking Lights – If Equipped
F30	30A Pink		2019: Trailer Tow Receptacle / Trailer Tow (Separate E-Brake) / Trailer Tow (BUX) 2020-2023: Trailer Tow Receptacle
F31	30A Pink		2019: Diesel Heater Control – If Equipped (DS 1500 LD Diesel) 2020-2021: Urea Heater Control – If Equipped (1500 LD Diesel) 2022-2023: Spare
F32			2019: Aux Feed, Special Services Vehicle – If Equipped (DS 1500 Only) 2020-2023: Spare
F33	20A Blue		2019: Trans Control Module – If Equipped (HD Only) Aux Feed, SSV Only (DS 1500 Only) 2020: Special Services Vehicle Only 2021-2023: Transmission Control Module
F34	30A Pink		2019: Vehicle System Interface Module #2 – If Equipped (HD Only), SSV (DS 1500 Only) 2020-2023: Vehicle System Interface Module #2 – If Equipped
F35	30A Pink		Sunroof – If Equipped
F36	30A Pink		Electric Back Light – If Equipped
F37	30A Pink		Diesel Fuel Heater #2
F38	30A Pink		Power Inverter 115 Volt AC – If Equipped
F39	20A Blue		2019-2020: Power Outlet – Special Services Only 2020-2023: Spare
F40			Spare
F41		10A Red	2019: Active Grille Shutter / Active Air Dam – If Equipped 2020-2023: Active Grille Shutter – If Equipped
F42		20A Yellow	Horn
F43			Spare
F44		10A Red	Diagnostic Port
F45			Spare
F46		10A Red	Upfitter – If Equipped
F47			Spare
F48			Spare
F49		10A Red	2019: Instrument Panel Cluster / HVAC (DS 1500 Only) 2020: Instrument Panel Cluster (Except Fleet Vehicles) 2021-2022: ICS / HVAC 2023: Instrument Panel Cluster / SGW
F50			2019-2021: Air Suspension Control Module – If Equipped 2022-2023: Spare
F51		10A Red	2019: Ignition Node Module / Keyless Ignition Node Module, Radio Frequency Hub Module / Electric Steering Column Lock – If Equipped 2020: Ignition Node Module / Keyless Ignition (Instrument Panel Cluster – Fleet Vehicles Only) 2021-2022: Ignition Node Module 2023: Ignition Node Module / Keyless Ignition Node Module, Radio Frequency Hub Module
F52		5A Tan	Battery Sensor
F53		20A Yellow	Trailer Tow – Left Turn/Stop Lights – If Equipped
F54		20A Yellow	Adjustable Pedals – If Equipped
F55			Spare
F56		15A Blue	2019-2021: Additional Diesel Content – If Equipped 2022-2023: Spare
F57		20A Yellow	2019: TCM/PCM / Solenoid Trans Pressure SW (RFE Trans Only) – If Equipped (HD Only) Transmission (DS 1500 Only) 2020-2023: Transmission
F58		20A Yellow	Spare
F59		10A Red	2020-2023: SCR Relay
F60		15A Blue	2019-2021: Underhood Lamp / TCM 2022-2023: Spare
F61		10A Red	2019: UREA Sensor / PM Sensor – If Equipped (DS 1500 LD Diesel & Cummins Diesel) 2020: PM Sensor – If Equipped (1500 LD Diesel & Cummins Diesel) 2021-2023: PM/NH3 Sensor
F62		10A Red	Air Conditioning Clutch
F63		20A Yellow	2019: Ignition Coils (Gas), Ignition Coils Capacitors (Gas) / Short Runner Valve Actuator / Urea Heater Control Unit (DS 1500 LD Diesel) / RLY Coil Feed-SCR (DS 1500 LD Diesel) 2020: Ignition Coils (Gas), Urea Heater (Cummins Diesel) 2021-2023: Ignition Coils
F64		25A Clear	2019: Fuel Injectors / Powertrain Control Module / SRV – If Equipped 2020-2022: Fuel Injectors / Powertrain 2023: Fuel Injectors / PCM / ECM / SRV
F65			Spare
F66		10A Red	2019: Sunroof / Light and Rain Sensor Module / Inside Rearview Mirror / Passenger Window SW / USB Port Rear / Feed for R/A RLY #2 Coil – If Equipped 2020: Sunroof / Passenger Window Switches / Rain Sensor 2021-2023: Sunroof / LRSM
F67		10A Red	Bluetooth / CDM
F68		10A Red	2022-2023: AEB RACAM Heater
F69		15A Blue	2020-2021: Mod SCR 12 Volt (Cummins Diesel) – If Equipped 2022-2023: Spare
F70		30A Green	2019: Fuel Pump Motor / K09 RLY Coil Feed (Cummins Diesel) – If Equipped 2020-2023: Fuel Pump Motor
F71		25A Clear	Amplifier
F72		10A Red	2019: PCM / DC/DC Converter Voltage- If Equipped (DS 1500 Only) 2020-2021: PCM – If Equipped 2022-2023: Spare
F73		20A Yellow	Fuel Transfer Pump
F74		20A Yellow	2020: Brake Vacuum Pump Gas/Diesel – If Equipped (Gas Engine & 1500 LD Diesel) 2021-2022: Vacuum Pump 2023: Spare
F75		10A Red	2019-2020: Coolant Temperature Valve Actuator 2021-2023: Cool Temp / SCR Relay
F76		10A Red	Brake System Module (Antilock Brakes & Electronic Stability Control) / Stop Lamp Switch / Electric Park Brake / Clutch Pedal Switch
F77		10A Red	2019: Drivetrain Control Module / ELSD / Front Axle Disconnect Module / Transmission Control Relay / RDM / Power Take Off Unit – If Equipped (DS 1500 Only) 2020: Drivetrain Control Module / Front Axle Disconnect Module 2021-2022: DTCM / ELSD / PTU / RDM 2023: DTCM / ELSD / FAD / PTU / RDM / EGS53 TRNS RLY CNTRL
F78		10A Red	Engine Control Module / Powertrain Control Module / Electric Power Steering
F79		15A Blue	2019-2021: ID / Clearance Lights 2022-2023: Spare
F80		10A Red	Universal Garage Door Opener / Compass / Anti-Intrusion Module
F81		20A Yellow	Trailer Tow Right Turn / Stop Lights – If Equipped
F82		10A Red	Steering Column Control Module / Cruise Control
F83			Spare
F84		15A Blue	2019: ASBM / HVAC / ICS / Rear Heated Seat Switches 2020: Switch Bank / Instrument Cluster 2021-2022: ICS 2023: ASBM / HVAC / ICS
F85		10A Red	Airbag Module (ORC)
F86		10A Red	Airbag Module (ORC)
F87		10A Red	2019: Air Suspension / Trailer Tow / DC/DC Converter (Voltage Stabilizer) / Steering Column Control Module / Occupant Classification Sensor (DS 1500 Only) 2020-2023: Air Suspension Module / Trailer Tow / Steering Column Control Module
F88		15A Blue	Instrument Panel Cluster
F89			Spare
F90 / F91		20A Yellow	Power Outlet RR – BATT / Power Outlet RR – ACC (Customer Selectable)
F92			Spare
F93		20A Yellow	Cigar Lighter
F94		10A Red	Shifter / Transfer Case Module
F95		10A Red	2019: Rear Camera / Park Assist / Blind Spot Sensor / Compass 2020-2023: Rear Camera / Park Assist – If Equipped
F96		10A Red	2019: Rear Seat Heater Switch / Trunk Lamp With Flashlamp Charger / Truck Lamp – If Equipped 2020-2023: Rear Seat Heater Switch
F97		25A Clear	Rear Heated Seats And Heated Steering Wheel
F98		25A Clear	Front Heated Seats
F99		10A Red	HVAC / DASM
F100		10A Red	Upfitters
F101		15A Blue	2019: SSV Only 2020: Electrochromatic Mirror / Smart High Beams – If Equipped 2021-2023: Spare
F102			Spare
F103			Spare
F104		20A Yellow	Power Outlets (Instrument Panel / Center Console)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

GAC GS3 Power (2021 – 2022) – fuse and relay box diagram

Posted on 18 April 202416 May 2025 by admin

GAC GS3 Power (2021 – 2022) – fuse and relay box diagram

Year of production: 2021, 2022

The facelifted MG ZS, a subcompact crossover, has been available from 2021 to the present. This article features fuse box diagrams for the 2021, 2022, and 2023 models, provides information on the locations of the fuse panels inside the vehicle, and details the function of each fuse (fuse layout).

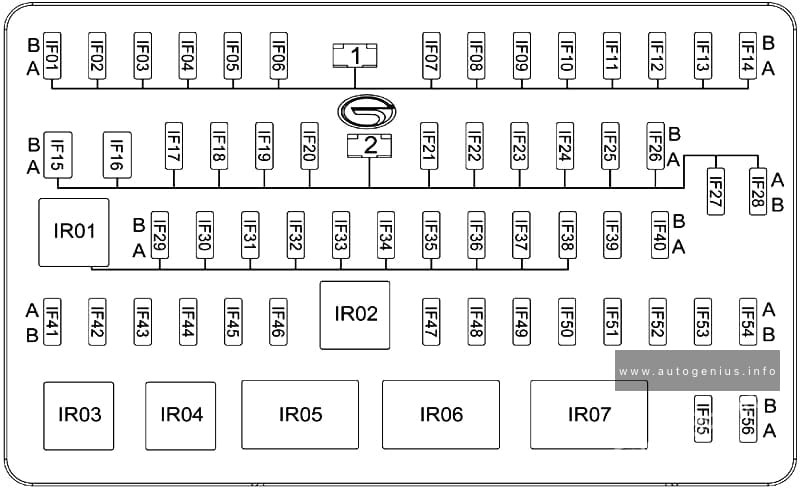

Passenger compartment fuse box

Fuse Box Location

Instrument panel PDU is installed inside the left instrument pane.

Fuse Box Diagram

GAC GS3 Power (2021 - 2022) - fuse and relay box diagram - passenger compartment fuse box — GAC GS3 Power (2021 – 2022) – fuse and relay box diagram – passenger compartment fuse box

Assignment of the fuses in the dashboard

№	Amps	Function / Component
IF01	—	—
IF02	20A	Electric adjustment of left front seat
IF03	15A	Power sunroof ECU
IF04	—	—
IF05	—	—
IF06	—	—
IF07	30A	BCM (front right window regulator) / BCM (rear right window regulator)
IF08	30A	BCM (front left window regulator) / BCM (rear left window regulator)
IF09	—	—
IF10	—	—
IF11	15A	BCM (windshield washer and rear wiper motor)
IF12	10A	Rearview mirror folding
IF13	—	—
IF14	15A	IG2 relay
IF15	—	—
IF16	30A	Instrument panel PDU
IF17	7.5A	OBD DLC
IF18	20A	BCM (main lamps)
IF19	7.5A	GWM / PEPS ECU
IF20	—	—
IF21	10A	BCM (turn signal lamp)
IF22	—	—
IF23	7.5A	Ignition switch / PEPS ECU
IF24	20A	BCM (main lamps)
IF25	7.5A	High-mounted stop lamp
IF26	20A	BCM (door lock)
IF27	—	—
IF28	SHUNT	Shorting link
IF29	10A	SRS ECU
IF30	7.5A	1.5T GDI ECM / G-DCT TCU / 6AT TCU / 1.5TM ECM
IF31	7.5A	GWM / BCM / PEPS ECU
IF32	—	—
IF33	7.5A	SAS / electric power steering control unit / 6AT GSM / G-DCT GSM
IF34	7.5A	ESPI / brake switch
IF35	7.5A	ACU / T-BOX ECU / instrument cluster
IF36	25A	Ignition switch
IF37	7.5A	Left front combination lamp (leveling motor) / right front combination lamp (leveling motor) / ALS switch / RPA ECU
IF38	7.5A	Power sunroof ECU / LDW ECU / Seat heater / HCP / HVAC control unit / negative ion generator
IF39	15A	6AT TCU
IF40	20A	ACU
IF41	7.5A	BCM / PEPS ECU / G-DCT TCU
IF42	7.5A	USB 5V power supply
IF43	—	—
IF44	7.5A	ACU / rearview mirror adjusting switch
IF45	—	—
IF46	20A	Cigarette lighter
IF47	—	—
IF48	7.5A	PEPS ECU
IF49	7.5A	Defogger relay / blower relay
IF50	7.5A	Ignition switch / PEPS ECU / BCM / G-DCT TCU / 1.5T GDI ECM / 1.5TM ECM
IF51	7.5A	T-BOX ECU
IF52	7.5A	HVAC control unit
IF53	—	—
IF54	7.5A	LDW ECU / EPB switch / G-DCT GSM
IF55	15A	BCM
IF56	7.5A	HCP / instrument cluster / AV display
IR01	—	IG1 relay
IR02	—	IG2 relay
IR03	—	—
IR04	—	—
IR05	—	ACC relay
IR06	—	Rearview mirror folding relay
IR07	—	Rearview mirror unfolding relay
IR06	—	—
IR07	—	IG2 relay

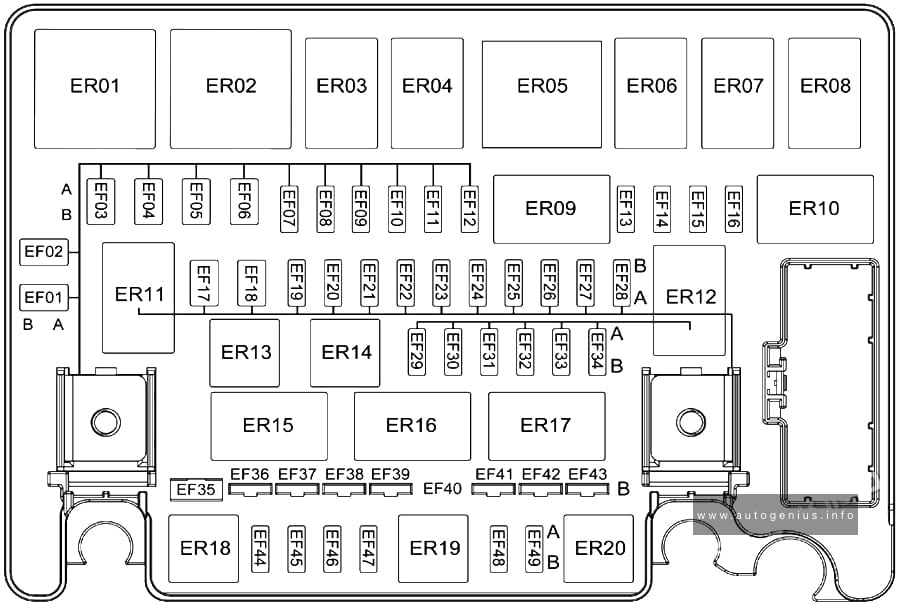

Engine Compartment Fuse Box

Fuse Box Diagram

Assignment of the fuses in the engine compartment

№	Amps	Function
EF01	50A	Low speed fan relay
EF02	50A	High speed fan relay 2
EF03	—	—
EF04	—	—
EF05	—	—
EF06	40A	ESPI
EF07	7.5A	A/C compressor
EF08	30A	IG1 relay
EF09	—	—
EF10	20A	Seat heater
EF11	—	—
EF12	—	—
EF13	15A	Left front low beam
EF14	15A	Right front low beam
EF15	7.5A	1.5TM ECM / 1.5T GDI ECM
EF16	7.5A	Rearview mirror heater
EF17	40A	G-DCT control unit
EF18	30A	ACC relay / ignition switch
EF19	7.5A	Brake switch / low beam relay / main relay / wiper speed control relay / wiper relay
EF20	—	—
EF21	—	—
EF22	—	—
EF23	15A	Fuel pump
EF24	20A	Wiper
EF25	7.5A	G-DCT TCU / 1.5TGDI ECM / 1.5TM ECM
EF26	15A	Horn relay/horn
EF27	10A	G-DCT control unit
EF28	15A	High beam relay/left front high beam / right front high beam
EF29	10A	Electronic water pump
EF30	10A	VCT (exhaust) / VCT (intake) / canister solenoid valve / oil pump solenoid valve / clutch position sensor / CSV / relief valve / waste gate
EF31	10A	Downstream oxygen sensor / upstream oxygen sensor
EF32	15A	1.5T GDI ECM / 1.5TM ECM
EF33	15A	Ignition coil 1 / ignition coil 2 / ignition coil 3 / ignition coil 4
EF34	7.5A	Compressor relay / starter relay 1 / high speed fan relay 2 / starter relay 2 / low speed fan relay / fuel pump relay / high speed fan relay 1
EF35	80A	EPS ECU
EF36	—	—
EF37	40A	Blower
EF38	40A	ESPI
EF39	40A	Rear windshield defogger heater / rearview mirror heater
EF40	150A	Main fuse
EF41	30A	Starter relay 1 / ignition switch
EF42	50A	Instrument panel PDU
EF43	50A	Instrument panel PDU
EF44	—	—
EF45	—	—
EF46	—	—
EF47	—	—
EF48	—	—
EF49	—	—
ER01	—	Low speed fan relay
ER02	—	High speed fan relay 2
ER03	—	Fuel pump relay
ER04	—	—
ER05	—	High speed fan relay 1
ER06	—	Wiper speed control relay
ER07	—	Wiper relay
ER08	—	High beam relay
ER09	—	Defogger relay
ER10	—	Blower relay
ER11	—	Low beam relay
ER12	—	Main relay
ER13	—	Compressor relay
ER14	—	—
ER15	—	Starter relay 1
ER16	—	Starter relay 2
ER17	—	—
ER18	—	—
ER19	—	Horn relay
ER20	—	—

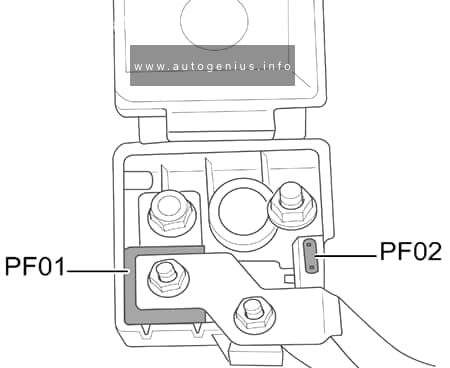

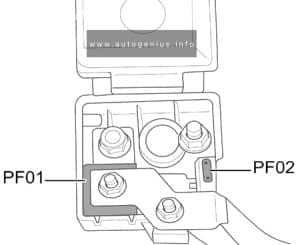

Fuses in battery PDU

Fuse Box Diagram

GAC GS3 Power (2021 - 2022) - fuse and relay box diagram - engine compartment fuse box (battery PDU) — GAC GS3 Power (2021 – 2022) – fuse and relay box diagram – engine compartment fuse box (battery PDU)

Assignment of the fuses in the engine compartment (battery PDU)

№	Amps	Feature/component
PF01	300A	Starter / engine compartment PDU
PF02	7.5A	EBS

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Cadillac Escalade (2021 – 2022) – fuse and relay box diagram

Posted on 11 March 202421 October 2024 by admin

Cadillac Escalade (2021 – 2022) – fuse and relay box diagram

Year of production: 2021, 2022

The 2021-2022 Cadillac Escalade represents a significant evolution for the luxury full-size SUV. The redesign of the Escalade introduced a more refined look, modernized technology, and advanced driving dynamics, making it a standout in the premium SUV segment.

Instrument Panel

Fuse Box Location

There are relays on the back of the fuse block. To access, press the tabs and remove the fuse block.

Cadillac Escalade - fuse and relay box location - instrument panel — Cadillac Escalade – fuse and relay box location – instrument panel

Fuse Box Diagram

Cadillac Escalade - fuse and relay box diagram - instrument panel — Cadillac Escalade – fuse and relay box diagram – instrument panel

Assignment of the fuses in the Instrument Panel Fuse Box

№	Usage
F1	Right Door
F2	Left Door
F3	Universal Garage Door Opener (UGDO)/ OnStar Hands-free Calling (OHC)/ Camera
F4	Body Control Module 2
F5	Displays
F6	Front Blower
F8	Left Door Panel
F10	Tilt/Column Lock
F11	Data Link Connector/ Column Lock/ Integrated Center Stack/ USB
F12	Central Gateway Module (CGM)/ Onstar
F14	Right Door Panel
FI 7	Steering Wheel Control
F18	2021: AVM1
F19	—
F20	—
F21	—
F22	Heated Wheel
F23	—
F24	—
F25	Special Equipment Option (SEO)/UPFITTER
F26	USB/ Special Equipment Option(SEO) Retained Accessory Power (RAP)
F27	Auxiliary Power Outlet (APO)/ Retained Accessory Power
F28	—
F30	Sensing and Diagnostic Module/ Automatic Occupant Sensing/ Driver Monitor System/ Night Vision Module
F31	Body Control Module 3
F32	Center Stack Module (CSM)/ USB
F33	Body Control Module 4
F34	Out of Park
F40	—
F41	—
F42	Electric Park Brake Switch
F43	Rear Seat Infotainment/Multi-Functional Control
F44	2021: AVM1
F45	Radio Module
F46	2021: Body Control Module 1A
F47	—
F48	Telematics Control Module
F49	Body Control Module 1
F50	2021: DMS
F51	—
F52	—
F53	—
F54	Sunroof
F55	Auxiliary Power Outlet 3
F56	Direct Current/Direct Current Converter Battery 1
F57	Direct Current/Direct Current Converter Battery 2
F58	Spare
F59	—
Circuit Breakers
CB01	Auxiliary Power Outlet 1
CB02	Auxiliary Power Outlet 2
Relays
K1	—
K2	Retain Accessory Power/ Accessory 1
K4	Retain Accessory Power/ Accessory 2
K5	—

Engine Compartment

Fuse Box Location

The engine compartment fuse block is in the engine compartment, on the driver side of the vehicle.

Cadillac Escalade - fuse and relay box location - engine compartment — Cadillac Escalade – fuse and relay box location – engine compartment

Fuse Box Diagram

Cadillac Escalade - fuse and relay box diagram - engine compartment — Cadillac Escalade – fuse and relay box diagram – engine compartment

Assignment of the fuses in the engine compartment

№	Usage
1	—
2	—
3	—
4	—
6	Exterior Lighting Module 7
7	Exterior Lighting Module 4
8	—
9	Exterior Lighting Module 5
10	Exterior Lighting Module 6
11	Long Range Radar/ Front Short Range Radar
12	—
13	Washer Front
14	Washer Rear
15	Rear Electrical Center 2
16	Power Sounder
17	2022: Electronic Brake Control Module Battery 1
19	DC/AC Inverter
20	Instrument Electrical Center Right 2
21	—
22	Instrument Electrical Center Left 1
24	2021: EBCM 2022: Fuel Heater
25	Rear Electrical Center 1
26	Camera Wash
27	Horn
28	Headlamp – Right
29	Headlamp – Left
30	Exterior Lighting Module 3
31	Exterior Lighting Module 1
32	—
33	Not R/C
34	—
37	MISC (Body Ignition 1)
38	MISC (Body Ignition 2)
39	Upfitter
40	MISC (Instrument Panel (IP))
41	Trailer Parking Lamps
42	Right Taillamp
44	Trailer Tow
45	Secondary Axle Motor
46	Engine Control Module (ECM) Ignition
47	OBD Engine
48	—
49	Transmission Auxiliary Oil Pump
50	A/C Clutch
51	Transfer Case Control Module
52	Front Wiper
53	—
54	Left Taillamps
55	Trailer Back-up Lamp
56	Semi Active Damping System
57	Spare
58	Starter Motor
60	2021: Active Fuel Management 1 2022: Powertrain Sensor 2
61	Automatic Lamp Control (ALC) Main
62	Integrated Chassis Control Module/ Canister Vent Solenoid/ Diesel Exhaust Fluid
63	Trailer Brake
65	2021: AUX UEC
66	Left Cool Fan Motor
67	Active Fuel Management 2
68	Automatic Lamp Control (ALC) Motor
69	Starter Pinion
71	Cool Fan Motor Lower
72	Right Cool Fan Motor/Lower
73	Left Trailer Stop Turn Lamp
74	Trailer Interface Module 2
75	Diesel Exhaust Fluid Controller
76	Electric Power Running Boards
78	Engine Control Module
79	2022: Cabin Cool Pump 17W
80	2022: Cabin cool pump 17W 2022: Powertrain Sensor 1
81	Right Trailer Stop Turn Lamp
82	Trailer Interface Module 1
83	Fuel Tank Zone Module
84	Trailer Battery
85	2021: Engine 2022: Auxiliary Water Pump
86	Engine Control Module
87	Injector B Even
88	O2 B Sensor
89	O2 A Sensor
90	Injector A Odd
91	Engine Control Module (ECM) Throttle Control
92	Cool Fan Clutch AERO Shutter
Relays
5	—
18	DC/AC Inverter
23	2022: Fuel Heater
35	Trailer Park Lamp
36	Run/Crank
43	Secondary Axle Motor
59	A/C Clutch
64	Starter Motor
70	Starter Pinion
77	Powertrain

Luggage Compartment

Fuse Box Location

The rear compartment fuse block is behind the access panel on the left side of the compartment. Pull the panel out by grabbing the finger access slot at the rear edge.

Cadillac Escalade - fuse and relay box location - luggage compartment — Cadillac Escalade – fuse and relay box location – luggage compartment

Fuse Box Diagram

Cadillac Escalade - fuse and relay box diagram - luggage compartment — Cadillac Escalade – fuse and relay box diagram – luggage compartment

Assignment of the fuses in the luggage compartment

№	Usage
F01	Remote Function Actuator
F02	Wireless Charging Module
F03	Heated Seat Module Row 1 (Battery 1)
F04	Memory Seat Module (MSM) Driver
F05	—
F06	—
F07	Amplifier Auxiliary 2
F08	—
F09	Special Equipment Upfitter 2
F10	Motor Seatbelt Passenger
F1	Power Folding Seat Row 2
F12	Glass Breakage Sensor
F13	—
F14	—
F15	Heated Seat Module Row 1 (Battery 2)
F16	Right Hand Cinch Latch
F17	Memory Seat Module Passenger
F18	Rear Wiper
F19	Motor Seatbelt Driver
F20	Rear Defogger
F21	—
F22	Rear HVAC Display Control
F23	External Object Calculation Module
F24	Amplifier Auxiliary 3
F25	Obstacle Detection
F26	Rear Drive Control Module
F27	Amplifier Auxiliary 1
F28	Video Processing Module
F29	—
F30	—
F31	Amplifier
F32	—
F33	Integrated Chassis Control Module
F34	Heated Seat Module Row 2
F35	Hands Free Closure Release
F36	Exterior Lighting Module
F37	—
F38	Power Slide Console
F39	—
F40	—
F41	—
F42	—
F43	Universal Park Assist
F44	—
F45	Adaptive Forward Lighting/ Automatic Headlamp Leveling
F46	Rear HVAC Blower Motor
F47	Left Hand Cinch Latch
F48	Power Seat Recline Module
F49	Lift Glass
F50	Driver Power Seat
F51	Power Liftgate Module
F52	Passenger Power Seat
Relays
K53	—
K54	—
K55	Lift Glass

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

BYD Dolphin (2021 – 2023) – fuse and relay box diagram

Posted on 18 December 202314 September 2024 by admin

BYD Dolphin (2021 – 2023) – fuse and relay box diagram

Year of production: 2021, 2022, 2023

This article provides fuse box diagrams for the BYD Dolphin models from 2021, 2022, and 2023. It also includes details on the location of the fuse panels within the car and an overview of the fuse assignments (fuse layout).

Instrument panel fuse box

Fuse Box Location

The dashboard panel fuses are located under the driver side of the dashboard.

Fuse Box Diagram

Assignment of the fuses in the instrument panel

№	Amps	Protected Component or Circuit
01	30A	Universal controller
02	30A	Towing power supply
03	5A	Brake light switch
04	10A	Diagnosis port
05	5A	Instrument cluster
06	10A	Alcohol interlock
07	5A	Gearshift panel
08	20A	Infotainment system
09	15A	External amplifier
10	10A	ADAS
11	7.5A	Combination switch
12	30A	Rear body control module
13	30A	Rear body control module
14	10A	CCS
15	20A	Left front window
16	20A	Right front window
17	20A	Left rear window
18	20A	Right rear window
19	5A	E-Call
20	7.5A	Wireless charger
21	30A	Left front power seat
22	30A	Right front power seat
23	–	–
24	–	–
25	–	–
26	–	–
27	–	–
28	–	–
29	–	–
30	–	–
31	–	–

Engine Compartment Fuse Box

Fuse Box Location

The fuse under the hood is located on the rear left side of the motor compartment.

Fuse Box Diagram

Assignment of the fuses in the engine compartment

№	Amps	Protected Component or Circuit
F1	60A	PTC3
F2	–	–
F3	–	–
F4	–	–
F5	–	–
F6	–	–
F7	–	–
F8	–	–
F9	15A	HV all-in-one controller
F10	15A	Left combination headlight
F11	15A	Right combination headlight
F12	7.5A	Compressor
F13	10A	Electrically controlled cooling water pump
F14	10A	Motor controller
F15	7.5A	Integrated thermal management module
F16	60A	PTC2
F17	–	–
F18	30A	PTC1
F19	–	–
F20	7.5A	Right daytime running light
F21	30A	Front wiper
F22	30A	Rear defroster
F23	15A	Auxiliary power
F24	15A	USB
F25	10A	USB
F26	–	–
F27	15A	Auxiliary power
F28	15A	USB
F29	–	–
F30	60A	ESC
F31	20A	Towing power supply
F32	–	–
F33	15A	HV all-in-one controller
F34	15A	Steering wheel heater
F35	5A	Rear body control module
F36	5A	Instrument cluster
F37	7.5A	ETC
F38	10A	SRS
F39	5A	ADAS
F40	–	–
F41	5A	EPS
F42	5A	ESC
F43	–	–
F44	60A	ESC
F45	40A	Blower
F46	–	–
F47	–	–
F48	10A	Rear wiper
F49	200A	Battery
F50	70A	CEPS
F51	–	–
F52	60A	Electric fan
F53	–	–

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Lincoln Corsair (2020 – 2022) – fuse and relay box diagram

Posted on 17 December 202317 April 2025 by admin

Lincoln Corsair (2020 – 2022) – fuse and relay box diagram

Year of production: 2020, 2021, 2022

The Lincoln Corsair, a compact premium crossover, has been in production since 2020. In this article, you’ll find fuse box diagrams for the 2020, 2021 and 2022 Lincoln Corsair, details on where the fuse panels are located within the vehicle, and information on the function of each fuse (fuse layout).

Engine compartment fuse box

Fuse box diagram

Assignment of the fuses in the engine compartment (2020 – 2022)

No.	A	Description
1	—	—
2	30	Heated backlight
3	10	’20: Heated exterior mirrors
4	50	Hybrid: Electric water pump
5	—	—
6	—	—
7	40	Driveline control module
8	—	—
9	30	Second row seat release
10	—	—
11	15	Powertrain control module
12	15	Powertrain control module
13	15	Powertrain control module
14	15	Powertrain control module
15	—	—
16	—	—
17	15	Heated wiper park
18	10	Air conditioning clutch
19	—	—
20	5	Hybrid: DC/DC converter
21	10	Hybrid: Battery charge control module
22	5	’20: Adaptive cruise control
23	5	Hybrid: Charge port light ring
24	5	Hybrid: Battery electronic control module
25	25	Left-hand enhanced exterior lighting module
26	25	Right-hand enhanced exterior lighting module
27	5	Hybrid: Powertrain control module
28	10	Anti-lock brake system module
29	10	Powertrain control module
30	10	Electronic stability control, Transmission oil pump
31	5	Electronic power assist steering
32	30	Body control module
33	10	Front parking aid camera, Rear view camera, Blind spot information system, Gear shift actuator (’20), Cruise control module, Image processing module B
34	10	Headlamp leveling
35	15	Heated steering wheel
36	10	Hybrid: Powertrain control module
37	20	Horn
38	40	Blower motor
39	—	—
40	10	Brake on-off switch
41	20	Amplifier
42	30	Driver power seat
43	40	Anti-lock brake control valves
44	40	’20: Trailer tow module
45	30	Passenger power seat
46	20	’20: Transmission oil pump, Transmission oil temperature
47	20	Heated seats
48	30	Power liftgate
49	60	Anti-lock brake control pump
50	60	Cooling fan
51	30	Moonroof.
52	5	USB charge port – rear console
53	5	USB charge port – rear console
54	20	Rear heated seat module
55	30	Starter motor
56	20	Amplifier
57	10	Data link connector
58	30	Climate controlled seat module
59	40	Body control module
60	—	—
61	—	—
62	—	—
63	—	—
64	—	—
65	—	—
66	—	—
67	—	—
68	5	’20: Mass air flow and intake air temperature sensor
69	15	Port fuel injectors
70	20	Rear cargo power point
71	20	Rear console power point
72	20	Rear window wiper
73	—	—
74	30	Windshield wiper motor
75	20	’20: Steering column lock
76	—	—
77	—	—
78	15	Multi-contour seats
79	10	’20: Headlamp washer
80	20	Fuel pump
81	10	Rear window washer pump
82	40	’20: Power inverter
83	—	—
84	40	Hybrid: Auxiliary power distribution box
85	5	Rain sensor
86	—	—
87	—	—
88	—	—

Passenger compartment fuse box

Fuse box diagram

Assignment of the fuses in the passenger compartment (2020-2022)

No.	A	Description
1	5	—
2	5	Rear heated seats
3	10	’20: Pedestrian sounder
4	10	Ignition switch
5	20	Lock/Unlock
6	10	Moonroof, DC inverter (’20)
7	30	Passenger door module
8	5	Parking assist control module
9	5	Electrochromatic mirror, Image processing module A
10	10	Extended power module
11	5	Power liftgate, Hands-free liftgate actuation module, Telematics control unit module
12	5	Keyless keypad switch
13	15	Driver door lock
14	30	Driver door module
15	15	Extended power module
16	15	Vehicle dynamics module
17	15	SYNC, Receiver transceiver module, Integrated control panel
18	7.5	Driver power seat switch, Passenger power seat switch, Wireless accessory charging module, Selectable drive mode switch
19	7.5	Headlamp switch pack, Telematics control unit module, Bluetooth low energy module
20	10	—
21	7.5	Climate control, E-shifter module
22	7.5	Instrument cluster, Gateway module, Steering column control module
23	20	Audio unit
24	20	Head up display

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Jeep Gladiator (JT; 2019 – 2023) – fuse and realy box diagram

Posted on 7 November 202329 April 2025 by admin

Jeep Gladiator (JT; 2019 – 2023) – fuse and relay box diagram

Year of production: 2019, 2020, 2021, 2022, 2023

The midsize pickup truck Jeep Gladiator (JT) is available from 2029 to 2023. In this article, you will find fuse box diagrams of Jeep Gladiator 2020, 2020, 2022, and 2023, get information about the location of the fuse panels inside the car, and learn about the assignment of each fuse (fuse layout).

Engine Compartment Fuse Box

Fuse Box Location

The Power Distribution Center is located in the engine compartment near the battery.

Gasoline:

Diesel:

Fuse Box Diagram

Jeep Gladiator (JT; 2019 - 2023) - fuse box and relay diagram - engine compartment — Jeep Gladiator (JT; 2019 – 2023) – fuse box and relay diagram – engine compartment

Assignment of the fuses in the Power Distribution Center (2019-2023)

No.	A	Circuit Protected
1	5	PHEV: HV Electric Coolant Heater Enable
2	40	except PHEV: Starter
3	5	Intelligent Battery Sensor (IBS)
4	20	Fuel Pump Motor, Fuel Pump Control Module (FPCM)
4	25	6.4L Hemi V8 (’18-’23): Fuel Pump
5	5	Security Gateway
6	15	PHEV: Battery Pack Control Module (BPCM)
7	15	Wrangler: Low Temp Radiator Cooling Pump (LTR)
7	15	PHEV: PECP-2
8	15	ZF 8HP75: Transmission Control Module (TCM)
9	5	PHEV: Integrated Dual Charging Module (IDCM)
10	15	Key Ignition Node (KIN), Radio Frequency Hub (RF HUB), Electric Steering Column Lock (ESCL)
11	10	UCI Port (USB & AUX)
12	25	HiFi Amplifier
13	10	PHEV: Power Inverter Module (PIM) – Redundant Main Power Supply
14	10	PHEV: Power Inverter Module (PIM) – Main Power Supply
15	15	Instrument Panel Cluster (IPC), Switch Bank-Heavy Duty Electrical Pkg
16	–	–
17	40	PHEV: Transmission Oil Pump
18	10	Air Conditioning Clutch
19	5	PHEV: Charge Port Indicator
20	30	Interior Lights – Central Body Controller (CBC)
21	20	Wrangler: Rear Wiper
22	10	Engine Control Module (ECM)/Powertrain Control Module (PCM), Motor Generator Unit (MGU – Wrangler), Power Pack Unit (PPU – Wrangler), Power Inverter Module (PIM – PHEV)
23	10	except PHEV: Engine Control Module (ECM)/Powertrain Control Module (PCM)
24	30	’23-: Passenger’s Power Seat
25	10	Module Shift By Wire
26	40	Exterior Lights No.1 – Central Body Controller (CBC)
27	30	Front Wipers
28	40	Power Locks – Central Body Controller (CBC)
29	40	Exterior Lights No.2 – Central Body Controller (CBC)
30	30	’23-: Power Step/Slider
31	10	Data Link Connector (DLC)
32	10	Occupant Classification Module (OCM), Driver Presence Detection Module (DPDM), Heating Ventilation Air Conditioning (HVAC) Module, Steering Column Lock (SCL)
33	10	ParkTronics System (PTS), Airbag Disable Lamps, Infrared Camera Module (IRCM)
34	10	Electronic Stability Control (ESC), Electric Hydraulic Power Steering (EHPS), Smart Bar Control Module (SBCM)
35	30	except PHEV: Brake Vacuum Pump
36	30	Electric Brake Module (Trailer Tow)
37	30	Trailer Tow Connector (7W)
38	20	Engine Control Module (ECM)
39	15	3.6L (Wrangler MHEV): Mild Hybrid Motor Generator Unit (MGU) Coolant Pump
40	15	DriveTrain Control Module (DTCM), Axle Lock (FT/RR)
41	15	Instrument Cluster (IC), Security GateWay (SGW)
42	10	with Stop/Start: Power Control Relay Control Feed (except PHEV)
43	20	Wrangler: Power Outlet – Batt (Cargo) (You can select to switch the Cargo Power Outlet from F43 battery fed power to this position F45 which is fed when the ignition in ON)
44	10	InfraRed Camera (IRCAM) – Heaters
45	20	Wrangler: Power Outlet – Ignition (Cargo)
46	10	Headlamp Switch, Auto Headlamp Leveling Module, Headlamp Leveling Motors
47	10	PHEV: Quiet Vehicle Pedestrian Module (QVPM)
48	–	–
49	10	Occupant Restraint Controller (ORC)
50	10	Heavy Duty (HD) Aссessory
51	10	Wrangler: Digital TV (DSRC), USB, InSide RearView Mirror (ISRVM), Compass Module (CSGM), Inverter 400W (PHEV), Engine Control Module (ECM – PHEV), Power Inverter Module (PIM – PHEV)
51	10	Gladiator: Humidity Light Rain Sensor (HLRS), Inverter 400W, USB, InSide RearView Mirror (ISRVM), Compass Module (CSGM), Digital TV (DTV)
52	20	Cigarette Lighter
53	10	Gladiator, PHEV: Wireless Speaker
54	–	–
55	10	Wrangler (’22-): Central Vision Processing Module (CVPM)
55	10	Gladiator: Central Vision Processing Module (CVPM) or Parktronics Module
56	10	In Car Temperature Sensor, PTC Heater Coil (’20- (except PHEV))
57	20	Front Driver Heated Seat
58	20	Front Passenger Heated Seat
59	30	’23-: Driver Power Seat
60	15	Heated Steering – Comfort Steering Wheel Module (CSWM)
61	10	Left Blind Spot Sensor (LBSS), Right Blind Spot Sensor (RBSS), Central ADAS Decision Module (CADM Lo (’23-))
62	10	’22-: Exhaust Solenoid (except PHEV)
63	10	Occupant Restraint Controller (ORC)
64	–	–
65	50	Gladiator, PHEV: Power Inverter 400W
66	40	Front Blower Motor (HVAC)
67	15	PHEV: BCP – Lo Temp Active Pump
68	–	–
69	5	Wrangler (’18-’23): Motor Generator Unit (MGU), Belt Starter Generator (BSG)
69	10	’23-: KIN / RF Hub
70	25	Gasoline: Injectors, Ignition Coils
70	25	Diesel: Glow Plug Module
71	10	PHEV: Battery Coolant Heater
72	10	HD ELEC ACC PKG
73	20	Wrangler: Power Top (LT)
74	20	Wrangler: Power Top (RT)
75	10	Wrangler (’18-’23): Belt Starter Generator (BSG), Power Pack Unit – Battery Pack Control Module & Auxiliary Power Module (PPUBPCM & APM)
75	5	PHEV: Battery Charge Indicator, Switch Bank PHEV Mode
76	20	Gasoline: Engine Control Module (ECM)
76	20	Diesel: Powertrain Control Module (PCM)
77	10	Heated Mirrors
78	10	Wrangler: Computer, Intrusion Module, Siren, Intrusion Sensor
79	20	Smart Bar Control Module
80	15	Powertrain Control Module (PCM), Block Shift Solenoid No.1 & No.2 (Wrangler – ’22-), ELCM Module (PHEV), Fuel Tank Isolation Solenoid (PHEV)
80	10	Wrangler (’22-’23): Vapor Blocking Valve (BSG)
81	30	Rear Window Defogger (EBL)
82	30	Diesel: Fuel Heater
83	60	Diesel: Glow Plug
83	50	PHEV: ESC-ECU & Valves
84	30	Diesel: Urea Heater Control Unit
84	20	PHEV: Power Inverter Module (PIM) – High Side Drive Power
85	10	’18-’23: PM Sensor
85	15	PHEV: PECP – Lo Temp Passive Pump
86	30	Wrangler (’18-’23): Brake Vacuum Pump No.2
87	10	’18-’23: Purging Pump Supply
87	15	PHEV: AHP – High Temp Auxiliary Pump
88	20	’18-’23: NO_xSensor No.1 & No.2
89	10	Steering Column Control Module (SCCM), Cruise Control, Digital TV (DTV), Electronic Vehicle Information Center (EVIC (’22-)), Airbag Disable Lamp (’20-)
90	20	Parking Lamp (Trailer Tow)
91	20	Horn
92	40	Heavy Duty (HD) Accessory No.2
93	40	Heavy Duty (HD) Accessory No.1
94	10	’18-’21: Tire Pressure Monitor (TPM), RF Hub System (CORAX)
94	10	’23-: Red Dual USB Port
95	–	–
96	10	Power Mirror Switch
97	20	Radio, Telematic Box Module (TBM)
98	10	Off Road, Switch Bank (Heavy Duty Electrical)
99	–	–
100	30	except PHEV: Electronic Stability Control (ESC) Control Unit & Valves
101	30	DriveTrain Control Module (DTCM)
102	15	’18-’23: Dual USB Port
102	15	’23-: TBM2 / DCSD Mod
103	15	Heavy Duty (HD) Accessory No.3
104	15	’18-’23: PPU Cool Pump
104	15	’23-: Power Seat Lumbar Switch (Driver & Passenger)
105	10	Integrated Center Stack (ICS), Heat Ventilation Air Conditioning (HVAC), ETC (’23-)
106	40	’18-’22: Electronic Stability Control (ESC) Pump Motor
106	50	’22-: Electronic Stability Control (ESC) Pump Motor
107	20	Left Stop & Turn Lamps (Trailer Tow)
108	15	Heavy Duty (HD) Accessory No.4
109	20	Right Stop & Turn Lamps (Trailer Tow)
110	30	Power Inverter 150W
111	20	Backup Lamps (Trailer Tow)
Relay
R1
R2
R3
R4
R5
R6
R7
R8
R9
R10
R11
R12
R13
R14
R15
R16
R17
R18
R19
R20
R21

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Ford F-150 (2021 – 2024) – fuse and relay box diagram

Posted on 14 March 202319 January 2025 by admin

Ford F-150 (2021 – 2024) – fuse and relay box diagram

Year of production: 2021, 2022, 2023, 2024

This article focuses on the fourteenth-generation Ford F-Series, produced from 2020 to present. It provides fuse box diagrams for the 2021, 2022 and 2024 Ford F-150 models, along with information on the locations of the fuse panels within the vehicle and the assignment of each fuse and relay (fuse layout).

Engine compartment

Fuse box location

Fuse box diagram

Version 1

Ford F-150 - fuse and relay box diagram - engine compartment — Ford F-150 – fuse and relay box diagram – engine compartment (version 1)

Assignment of the fuses in the engine compartment (version 1)

Fuse location	Fuse rating	Protected component
1	40A	Body control module – battery power in feed 1
3	40A	Body control module – battery power in feed 2
4	30A	Fuel pump
5	5A	Keep-alive power Powertrain control module (hybrid)
6	25A	Powertrain control module power
7	20A	Powertrain control module power
8	20A	Powertrain control module power (hybrid)
	10A	Powertrain control module power (gas, diesel)
9	20A	Powertrain control module power
10	20A	Powertrain control module power (diesel)
11	30A	Starter motor
13	40A	Blower motor
15	25A	Horn
19	20A	Snow plow switch Rear heated seats (gas)
21	10A	Headlamp run/start feed
22	10A	Electronic power assist steering
23	10A	Electric brake boost
24	10A	Powertrain control module (gas, hybrid), Transmission control module (diesel), Glow plug control module (diesel)
25	10A	Center high-mounted stop lamp camera, Trailer camera, 2 kW inverter, 24 V alternator – run/start feed, Analog rear video camera
28	50A	Electric brake boost
29	50A	Electric brake boost
30	40A	Driver power seat
31	30A	Passenger power seat
32	20A	Auxiliary power point
33	20A	Auxiliary power point, USB smart charger
34	20A	Auxiliary power point
37	30A	Tailgate module
38	40A	Climate controlled seat module, Power running boards
41	25A	Power sliding back window
42	30A	Trailer brake control module
47	50A	Cooling fan
48	20A	Rear heated seats (diesel, hybrid)
49	50A	Cooling fan
50	40A	Heated backlight (gas, hybrid)
55	30A	Trailer tow park lamps
56	20A	Trailer tow stop and turn lamps
58	10A	Trailer tow backup lamps
64	25A	Four-wheel drive
65	15A	Transmission control module (diesel)
67	20A	Transmission run/start
69	30A	Left-hand windshield wiper
80	15A	Not used (spare)
82	25A	Four-wheel drive
83	50A	Supplemental heater (diesel)
84	50A	Supplemental heater (diesel)
85	50A	Supplemental heater (diesel)
86	25A	Selective catalytic reduction system
91	20A	Trailer tow light module
95	15A	Powertrain control module power (hybrid)
98	10A	Powertrain control module power (hybrid), Coolant pumps (hybrid)
100	15A	Left-hand headlamps
101	15A	Right-hand headlamps
105	50A	Active front steering
107	30A	Trailer tow battery charge
121	30A	Fuel filter heater (diesel)
124	5A	Rain sensor module
125	10A	USB smart charger
134	25A	Multi-contour seats relay
138	10A	Tailgate release
139	5A	USB smart charger
146	15A	Traction battery control module
159	5A	DC/DC power (hybrid)
160	10A	Smart data link control
162	7.5A	Not used (spare)
168	20A	Traction battery control module (hybrid)
169	10A	Motor electric cool pump (hybrid)
170	10A	Pedestrian alert control module (hybrid), Traction battery control module (hybrid), Electric motor cool pump (hybrid)
202	60A	Body control module B+
210	30A	Body control module start stop

Relay number	Protected component
R04	Electronic fan relay 1
R06	Electronic fan relay 3
R35	Supplemental heater
R36	Supplemental heater

Fuse box diagram

Version 2

Assignment of the fuses in the engine compartment (version 2)

Item	Rating	Protected component
1	40A	Body control module – battery power in feed 1
3	40A	Body control module – battery power in feed 2
4	30A	Fuel pump
5	5A	Powertrain control module coil
6	25A	Powertrain control module power
7	20A	Powertrain control module power
8	20A	Powertrain control module power (hybrid)
	10A	Powertrain control module power (gas, diesel, Raptor, Tremor)
9	20A	Powertrain control module power
10	20A	Powertrain control module power (diesel)
11	30A	Starter motor
13	40A	Blower motor
15	25A	Horn
19	20A	Snow plow switch (gas), Rear heated seats (gas, diesel, hybrid)
21	10A	Headlamp run/start feed
22	10A	Electronic power assist steering
23	10A	Electric brake boost
24	10A	Powertrain control module (gas, hybrid), Transmission control module (diesel), Glow plug control module (diesel)
25	10A	Center high-mounted stop lamp camera, Trailer camera,2 kW inverter, 24 V alternator – run/start feed, Analog rear video camera
28	50A	Electric brake boost
29	50A	Electric brake boost
30	40A	Driver power seat
31	30A	Passenger power seat
32	20A	Auxiliary power point
33	20A	Auxiliary power point, USB smart charger
34	20A	Auxiliary power point
37	30A	Tailgate module
38	40A	Climate controlled seat module, Power running boards
41	25A	Power sliding back window
42	30A	Trailer brake control module
47	50A	Cooling fan (gas, hybrid, Raptor, Tremor)
48	20A	Rear heated seats (Raptor, Tremor)
49	50A	Cooling fan (gas, hybrid, Raptor, Tremor)
50	40A	Heated backlight (gas, hybrid)
55	30A	Trailer tow park lamps
56	20A	Trailer tow stop and turn lamps (4-pin connector)
58	10A	Trailer tow backup lamps
60	15A	Upfitter 1 relay (Raptor, Tremor)
61	15A	Upfitter 2 relay (Raptor, Tremor)
62	10A	Upfitter 3 relay (Raptor, Tremor)
63	10A	Upfitter 4 relay (Raptor, Tremor)
64	25A	Four-wheel drive
65	15A	Transmission control module (diesel)
67	20A	Transmission run/start
69	30A	Left-hand windshield wiper
82	25A	Four-wheel drive
83	50A	Supplemental heater (diesel)
84	50A	Supplemental heater (diesel)
85	50A	Supplemental heater (diesel)
86	25A	Selective catalytic reduction system (diesel)
91	20A	Trailer tow light module
95	15A	Powertrain control module power (hybrid)
98	10A	Powertrain control module power (hybrid) Coolant pumps (hybrid)
100	15A	Left-hand headlamps
101	15A	Right-hand headlamps
105	50A	Active front steering
107	30A	Trailer tow battery charge
108	15A	Spot lamps (police)
121	30A	Fuel filter heater (diesel)
124	5A	Rain sensor module
125	10A	USB smart charger
134	25A	Multi-contour seats relay (gas, diesel, hybrid)
138	10A	Tailgate release
139	5A	USB smart charger
146	15A	Traction battery control module (hybrid)
147	40A	Change air cooler fan relay (Raptor, Tremor)
159	5A	DC/DC power (hybrid)
160	10A	Smart data link control
168	15A	Traction battery control module (hybrid)
169	10A	Motor electric cool pump (hybrid)
170	10A	Pedestrian alert control module (hybrid), Traction battery control module (hybrid), Electric motor cool pump (hybrid)
202	60A	Body control module B+
210	30A	Body control module start stop
305	5A	Upfitter 5 relay (Raptor, Tremor)
306	5A	Upfitter 6 relay (Raptor, Tremor)

Relay number	Protected component
R04	Electronic fan relay 1
R06	Electronic fan relay 3
R35	Supplemental heater
R36	Supplemental heater

Body Control Module Fuse Box

Fuse box location

Ford F-150 - fuse and relay box location - body control module — Ford F-150 – fuse and relay box location – body control module

Fuse box diagram

Ford F-150 - fuse and relay box diagram - body control module — Ford F-150 – fuse and relay box diagram – body control module

Assignment of the fuses in the body control module

Fuse location	Fuse rating	Protected component
1	–	Not used
2	10A	Delayed accessory feed
3	7.5A	Wireless charger
4	20A	Not used
5	–	Not used
6	10A	Driver power window switch
7	10A	Gear shift module
8	5A	Cell phone passport module
9	5A	Combined sensor module
10	–	Not used
11	–	Not used
12	7.5A	Enhanced central gateway, Climate control
13	7.5A	Instrument cluster, Steering column control module
14	15A	Not used (spare)
15	15A	Integrated control panel, SYNC
16	–	Not used
17	7.5A	Headlamp control module
18	7.5A	Not used
19	5A	Headlamp switch
20	5A	Passive start, Ignition switch, Key inhibit solenoid
21	5A	Trailer brake switch
22	5A	Not used
23	30A	Driver door control module
24	30A	Moonroof
25	20A	Not used
26	30A	Passenger door control module
27	30A	Not used
28	30A	Amplifier
29	15A	12 inch display Adjustable pedals
30	5A	Not used
31	10A	RF receiver, Driver monitor, Terrain management switch
32	20A	Audio control module
33	–	Not used
34	30A	Run/start relay
35	5A	400 watt inverter run/start
36	15A	Auto-dimming interior mirror, Rear heat seat run/start, Adaptive front steering run/start, Heated wheel (vehicles without adaptive front steering)
37	20A	Advanced driver-assistance systems
38	30A circuit breaker	Rear power windows

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

KIA Sportage (QL; 2017 – 2023) – fuse box diagram

Posted on 1 April 20188 September 2024 by admin

KIA Sportage (QL; 2017 – 2023) – fuse box diagram

Year of production: 2017, 2018, 2019, 2020, 2021, 2022

The 4th generation Kia Sportage was produced in 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023 with both gasoline and diesel engines. In this publication you will find a designation of the 4th generation Kia Sportage fuses and relays with boxes diagrams and their locations. Let’s highlight the fuse responsible for the cigarette lighter.

Instrument panel (driver’s side fuse panel)

Fuse box location

Located under the dashboard on the driver’s side behind the protective cover.

Fuse box diagram

Version 1

Version 2

Fuse name	Ampere rating [A]	Protected component
MDPS	7,5	MDPS Unit
MODULE 2	10	Headlamp LH/RH
SMART KEY 1	10	Smart Key Control Module/Immobilizer Module
A/BAG IND	7,5	Instrument Cluster [Audio & Manual A/C] Hazard Switch [Audio & Auto A/C] A/C Control Module [Navigation] Center Facia Lamp
MODULE 4	10	Console Switch, Blind Spot Detection Radar LH/RH, AWD ECM, Crash Pad Switch, BCM, Lane Departure Warning Control Module
A/BAG	15	SRS Control Module
START	7,5	[W/O Smart Key & IMMO.] ICM Relay Box (Burglar Alarm Relay), Ignition Switch [With Smart Key / IMMO.] Transaxle Range Switch, ECM, Smart Key Control Module
MODULE 3	10	Front/Rear Seat Warmer Control Module, ATM Shift Lever ILL., Front Air Ventilation Seat Control Module, A/V & Navigation Head Unit, Electro Chromic Mirror, Audio, A/C Control Module, Multipurpose Check Connector, Adaptive Front Lighting Module
CLUSTER	10	Instrument Cluster
MODULE 9	20	PCB Block (Fuse – ABS 3, VACUUM PUMP 2, ECU 6, AEB, TCU 2, MODULE)
HEATED STEERING	15	BCM
MODULE 6	7,5	Front/Rear Seat Warmer Control Module, Front Air Ventilation Seat Control Module
MODULE 5	10	BCM, Smart Key Control Module
A/CON 2	7,5	A/C Control Module
MODULE 1	10	BCM, ATM Shift Lever
P/ WINDOW LH	25	Power Window Main Switch
A/CON 1	7,5	A/C Control Module, Cluster Ionizer, E/R Junction Block (Blower Relay)
WIPER RR	15	Rear Wiper Motor, ICM Relay Box (Rear Wiper Relay)
WASHER	15	Multifunction Switch
SMART KEY 3	10	[W/O Smart Key] Immobilizer Module [With Smart Key] Smart Key Control Module, Start/Stop Button Switch
STOP LAMP	7,5	Smart Key Control Module, Stop Lamp Switch
P/ WINDOW RH	25	Power Window Main Switch, Passenger Power Window Switch
MEMORY	10	Wireless Charger, Instrument Cluster, Data Link Connector, BCM, ICM Relay Box (Outside Mirror Folding/Unfolding Relay), Electro Chromic Mirror, A/C Control Module, Console Switch
SUN ROOF 1	20	Panorama Sunroof
TAIL GATE OPEN	10	Tail Gate Relay
INTERIOR LAMP	10	Ignition Key Ill.& Door Warning Switch, Room Lamp, Overhead Console Lamp, Front Vanity Lamp LH/RH, Rear Personal Lamp LH/RH, Luggage Lamp, Glove Box Lamp
SMART KEY 2	15	Smart Key Control Module
MODULE 8	7,5	Key Solenoid
MULTI MEDIA	15	Audio, A/V & Navigation Head Unit, Rear USB Charger
S/HEATER DRV/PASS	20	Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module
SUN ROOF 2	20	Panorama Sunroof
P/SEAT (PASS)	30	Passenger Seat Manual Switch
POWER OUTLET	20	Front Power Outlet #1 (Front Cigarette Lighter)
S/HEATER REAR	20	Rear Seat Warmer Control Module
DOOR LOCK	20	Door Lock/Unlock Relay
4WD	20	AWD ECM
MODULE 7	10	Hazard Switch, Driver/Passenger Smart Key Outside Handle, AEB Sensor
AMP	25	AMP
SAFETY P/ WINDOW	25	Driver Safety Power Window Module
HEATED MIRROR	10	Driver/Passenger Power Outside Mirror, A/C Control Module
P/SEAT (DRV)	30	Driver Seat Manual Switch
ACC	10	Rear USB Charger, AMP, Power Outside Mirror Switch, PCB Block(Power Outlet Relay), Smart Key Control Module, Audio, A/V & Navigation Head Unit, BCM, Wireless Charger

Engine compartment fuse panel

Fuse box location

Located on the left side of the engine compartment.

Fuse box diagram

Version 1

Version 2

Fuse name		Ampere rating [A]	Protected component
MULTI FUSE	COOLING FAN 2	80	Cooling Fan Motor
	MDPS	80	MDPS Unit
	B+ 1	60	Smart Junction Block (IPS 2 (5CH), IPS 3 (2CH), IPS 4 (2CH), IPS 5 (2CH), IPS 6 (1CH), Fuse – AMP)
	B+ 2	60	Smart Junction Block (IPS 1 (5CH), Fuse – MODULE 7, SMART KEY 2, SMART KET 3, MODULE 8, STOP LAMP)
	B+ 3	50	Smart Junction Block (Fuse – SUNROOF 1, SUNROOF 2, S/HEATER DRV/PASS, S/HEATER REAR, SAFETY P/WINDOW, Power Window Relay
	BLOWER	40	Blower Relay
	REAR HEATED	40	Rear Heated Relay
	IG1	40	[W/O Smart Key] Ignition Switch, [With Smart Key] PCB Block (PDM (IG1)/PDM (ACC) Relay)
	IG2	30	Start Relay, [W/O Smart Key] Ignition Switch, [With Smart Key] PCB Block (PDM (IG2) Relay)
FUSE	B+ 4	50	Smart Junction Block (Fuse – AWD, P/SEAT (DRV), P/SEAT (PASS), TAIL GATE OPEN, DOOR LOCK, Leak Current Autocut Device Relay)
	COOLING FAN 1	50	Cooling Fan 1 Relay
	ABS 1	40	ESC Control Module, Multipurpose Check Connector
	POWER TAIL GATE	40	Power Tail Gate Module
	ABS 2	40	ESC Module
	COOLING FAN 3	40	Cooling Fan 1 Relay
	E-CVVT 1	20	PCM
	E-CVVT 2	20	PCM
	WIPER FRT 1	30	[W/O Smart Key] Ignition Switch, [With Smart Key] PDM (IG2) Relay
	TCU 1	15	PCM
	WIPER FRT 2	10	BCM, PCM
	ECU 3	20	PCM
	HORN	15	A Horn Relay
	BATTERY MANAGEMENT	10	Battery Sensor
	SENSOR 2	10	Fuel Pump Relay, Oil Control Valve, Purge Control Solenoid Valve, Variable Intake Solenoid Valve, RCV Control Solenoid Valve
	SENSOR 1	15	Oxygen Sensor (Up/Down)
	ECU 2	20	Ignition Coil #1/#2/#3/#4
	ECU 4	15	PCM
	SENSOR 3	10	E/R Junction Block (Cooling Fan 1 Relay), Canister Close Valve
	FUEL PUMP	20	Fuel Pump Relay
	AEB	10	AEB Sensor
	MODULE	7,5	Stop Lamp Switch
	B/ALARM HORN	10	E/R Junction Block (B/Alarm Horn Relay)
	H/LAMP HI	10	BI-Function H/LP Relay
	ABS 3	10	ESC Module
	POWER OUTLET 1	20	Front Power Outlet #2
	ECU 6	10	PCM
	TCU 2	15	Transaxle Range Switch
	B/UP LAMP	10	Rear Bumper Lamp LH/RH, Electro Chromic Mirror
	POWER OUTLET 2	20	Rear Power Outlet
	ECU 1	30	Engine Control Relay
	DEICER	15	E/R Junction Block (Deicer Relay)
	VACUUM PUMP 1	20	Vacuum Pump
	VACUUM PUMP 2	15	Vacuum Pump, Cooling Fan Motor, Vacuum Switch

Relay

Relay name	Type
Cooling Fan 1 Relay	MINI
Rear Defogger Relay	MICRO
B/A Horn Relay	MICRO
Deicer Relay	MICRO
Cooling Fan 2 Relay	MICRO
Start Relay	MICRO
Blower Relay	MICRO

Engine compartment fuse panel (Battery terminal cover)

On the positive terminal of the storage battery there is a high-power main power fuse made in the form of a fusible link.

KIA Sportage (QL; 2017 - 2023) - fuse box diagram - engine compartment (battery terminal cover) — KIA Sportage (QL; 2017 – 2023) – fuse box diagram – engine compartment (battery terminal cover)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
