Jeep Cherokee XJ (1997 – 2001) – fuse box diagram

Jeep Cherokee XJ (1997 – 2001) – fuse box diagram

Year of production: 1997, 1998, 1999, 2000, 2001

Passenger compartment fuse box

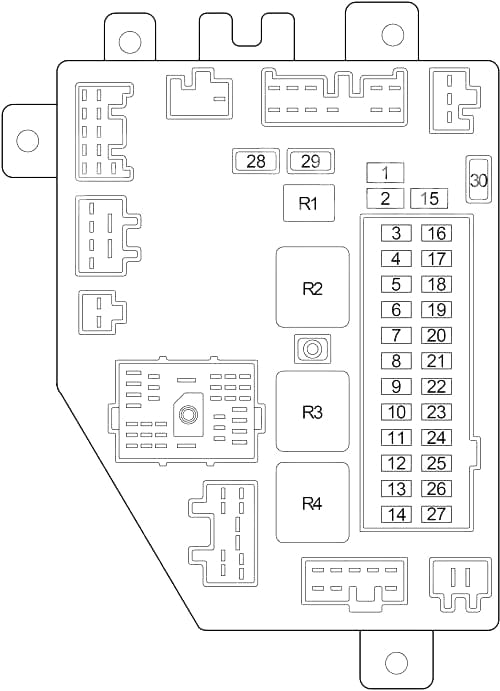

Jeep Cherokee XJ j- fuse box diagram - passenger compartment
Jeep Cherokee XJ j- fuse box diagram – passenger compartment
No. A Description
1 25 Power Outlet
2 25 Cigar Lighter
3 10 Left Headlamp (High Beam), Fog Lamp Relay No.1 (’98-’01)
4 10 Left Headlamp (Low Beam), Leveling Motor
5 10 Right Headlamp (Low Beam), Leveling Motor, Headlamp Leveling Switch, Daytime Running Lamp Module (’98-’01)
6 5 Instrument Cluster, Radio, Rear Wiper/Washer Switch, A/C Heater Control or Heater Control, Rear Window Defogger Switch, Extended Idle Switch, Front Fog Lamp Switch, Rear Fog Lamp Switch, Transmission Range Indicator Illumination (PRNDL), Transfer Case Switch Illumination
7 10 Left Tail Lamp, Left Front Park Lamp, Left Side Marker Lamp, Trailer Tow Connector, License Lamp, Front Fog Lamp Relay No.1 (’98-’01), Front Fog Lamp Switch, Fog Lamp Relay
8  –
9 10 Instrument Cluster, Overhead Console, Sentry Key Immobilizer Module (’99-’01), Message Center/Tell Tale Module (Diesel), Headlamp Delay Module, Compass
10 15 ’99-’01: Back-Up Lamp, Back-Up Lamp Switch (M/T), Transmission Range Sensor (A/T), Daytime Running Lamp Module, EVAP/Purge Solenoid (Gasoline), Radiator Fan Relay, Air Conditioner Compressor Clutch Relay, Oxygen Sensor Downstream Relay (Gasoline), Oxygen Sensor Upstream Relay (Gasoline)
11 20 Diesel (’99-’01): Engine Control Module, Fuel Heater Relay
20 Gasoline (’99-’01): Powertrain Control Module, Transmission Control Module, Automatic Shut Down Relay, Fuel Pump Relay
20 Diesel (’97-’98): Powertrain Control Module, Back-Up Lamp Switch, Fuel Heater Relay, MSA Controller
20 Gasoline (’97-’98): Automatic Shut Down Relay, Radiator Fan Relay, Fuel Pump Relay, Air Conditioner Compressor Clutch Relay, Back-Up Lamp (Back-Up Lamp Switch (M/T), Transmission Range Sensor (A/T)), Transmission Control Module, Duty Cycle EVAP/Purge Solenoid, EVAP Leak Detection Pump, Daytime Running Lamp Module (’98), Torque Converter Solenoid, Park/Neutral Position Switch
12 10 Combination Flasher, Rear Window Defogger Relay
13  –
14 10 Heated Mirror
15 25 Passenger Door Module (Power Window/Door Lock)
16 10 Right Headlamp (High Beam)
17 15 Radio
18 10 ’98-’01: Driver Door Module, Power Mirror Switch (’99-’01), Heated Seat Switch (’99-’01), Heated Seat Relay (’99-’01), Rear Fog Lamp Relay (’99-’01)
19 10 Starter Relay, Clutch Interlock Switch (M/T)
20 15 ’98-’01: Trailer Tow Connector, Trailer Tow Left Turn Relay, Trailer Tow Right Turn Relay
10 ’97: Trailer Tow Connector, Trailer Tow Left Turn Relay, Trailer Tow Right Turn Relay
21 15 Horn Relay
22 20 Rear Wiper/Washer Switch
23 10 Right Tail Lamp, Right Front Park Lamp, Right Side Marker Lamp
24  –
25 15 Blower Motor Relay, Blend Door Actuator, Brake Transmission Shift Interlock Solenoid (’00-’01), Extended Idle Switch (’00-’01), A/C Heater Control or Heater Control, ABS Relay, ABS
26 10 Airbag Control Module
27 10 Airbag Control Module
Circuit Breaker
28 25 ’99-’01: Driver/Passenger Door Module (Power Window, Door Lock)
30 ’97-’98: Driver/Passenger Door Module (Power Window, Door Lock)
29 25 ’99-’01: Power Seat, Heated Seat Relay
30 ’97-’98: Power Seat
30 20 Front Wiper Motor, Front Wiper/Washer Switch
Relay
R1  –
R2 Cigar Lighter
R3 Horn
R4 Rear Window Defogger

Engine compartment fuse box (gasoline)

2000 – 2001:

Jeep Cherokee XJ j- fuse box diagram - engine compartment - gasoline (2000 - 2001)
Jeep Cherokee XJ j- fuse box diagram – engine compartment – gasoline (2000 – 2001)



1997 – 1999:

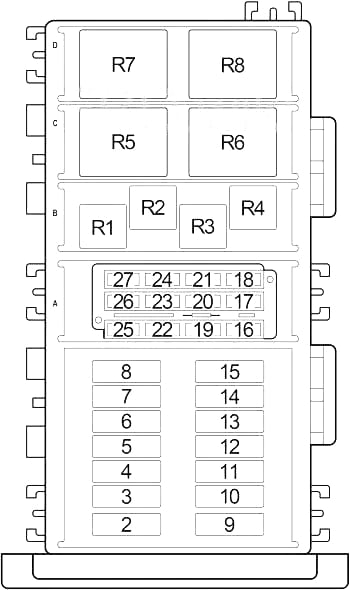

Jeep Cherokee XJ j- fuse box diagram - engine compartment - gasoline (1997 - 1999)
Jeep Cherokee XJ j- fuse box diagram – engine compartment – gasoline (1997 – 1999)
No. A Description
1  –
2 40 Ignition Switch (Cigar Lighter Relay, Fuse (Passenger Compartment): “8”, “9”, “10”, “11”, “17”, “18”, “27”, “28”, “30”))
3 40 Ignition Switch (Fuse (Passenger Compartment): “12”, “19”, “22”, “24”, “25”, “26”))
4 50 ’98-’01: Fuse (Passenger Compartment): “1”, “2”, “15”, “20”, “21”, “29”
40 ’97: Fuse (Passenger Compartment): “1”, “2”, “15”, “20”, “21”, “29”
5 40 Radiator Fan Relay
6 40 Blower Motor Relay
7 30 Headlamp Switch, Headlamp Delay Module, Daytime Running Lamp Module (’00-’01)
8 30 ’00-’01: Automatic Shut Down Relay
9 20 Air Conditioner Compressor Clutch Relay, Fuse (Engine Compartment): “27” (’00-’01), “26” (’97-’99)
10 20 ’99-’01: Starter Relay
30 ’97-’98: Starter Relay, Rear Window Defogger Relay, Fuse (Passenger Compartment): “13”
11 30 ’98-’01: Rear Window Defogger Relay, Fuse (Passenger Compartment): “13”
12 40 ABS
13 20 ABS
14  –
15  –
16 15 Dome Lamp, Cargo Lamp, Instrument Cluster, Courtesy Lamp, Radio, Transmission Control Module, Underhood Lamp, Visor/Vanity Lamp, Overhead Console, Remote Keyless Entry Module, Glove Box Lamp, Compass, Left Front Power Lock/Window Switch (’97 – LHD), Right Front Power Lock/Window Switch (’97 – LHD)
17 20 ’00-’01: Oxygen Sensor Downstream Relay, Oxygen Sensor Upstream Relay
20 ’97-’99: Headlamp Switch, Data Link Connector, Rear Fog Lamp Relay (’97), Power Antenna Relay (’98-’99)
18 15 ’00-’01: Fuel Injectors, Coil Rail, Coil Capacitor
19 20 ’00-’01: Headlamp Switch, Data Link Connector, Power Antenna Relay
25 ’97-’99: Automatic Shut Down Relay
20 15 Combination Flasher
21 15 ’00-’01: Powertrain Control Module
20 ’97-’99: Fuel Injectors, Ignition Coil, Powertrain Control Module
22 15 Fuel Pump Relay, Powertrain Control Module
23 15 Stop Lamp Switch
24 15 ’97-’99: Oxygen Sensor Downstream, Oxygen Sensor Upstream
25 15 Fog Lamp Relay No.2 (’98-’01), Fog Lamp Relay (’97-’99)
26 20 Power Amplifier
27 10 Sentry Key Immobilizer Module
Relay
R1 Air Conditioner Compressor Clutch
R2 ’97-’99: Fog Lamp
’98-’01: Fog Lamp No.1
R3 ’98-’01: Fog Lamp No.2
R4 ABS
R5 ’97-’99: Radiator Fan
’00-’01: Fuel Pump
R6 ’97-’99: Automatic Shut Down
’00-’01: Starter
R7 ’97-’99: Starter
’00-’01: Oxygen Sensor Upstream
R8 ’97-’99: Fuel Pump
’00-’01: Oxygen Sensor Downstream
R9 ’00-’01: Radiator Fan
R10 ’00-’01: Automatic Shut Down

Engine compartment fuse box (diesel)

Jeep Cherokee XJ j- fuse box diagram - engine compartment - diesel (1997 - 1999)
Jeep Cherokee XJ j- fuse box diagram – engine compartment – diesel (1997 – 1999)
No. A Description
1  –
2 50 Glow Plug Relay
3 50 Glow Plug Relay
4 30 ’99-’01: Automatic Shut Down Relay (Engine Control Module, Fuel Injection Pump, Powertrain Control Module, Radiator Fan Relay, Air Conditioner Compressor Clutch Relay), Fuse (Engine Compartment): “24”
30 ’97-’98: Diesel Power Relay (Fuel Pump Module, Powertrain Control Module, Generator, Fuse (Engine Compartment): “21”), Fuse (Engine Compartment): “24”
5 40 Ignition Switch (Cigar Lighter Relay, Fuse (Passenger Compartment): “8”, “9”, “10”, “11”, “17”, “18”, “27”, “28”, “30”))
6 30 Fuel Heater Relay
7 20 ’99-’01: Starter Relay
30 ’97-’98: Starter Relay, Rear Window Defogger Relay, Fuse (Passenger Compartment): “13”
8 30 Headlamp Switch, Headlamp Delay Module
9 50 Fuse (Passenger Compartment): “1”, “2”, “15”, “20”, “21”, “29”
10 40 Ignition Relay (Fuse (Passenger Compartment): “12”, “19”, “22”, “24”, “25”, “26”))
11 40 Blower Motor Relay
12 40 ABS
13 40 ’98-’01: Radiator Fan Relay
14 20 ABS
15 30 ’99-’01: Rear Window Defogger Relay, Fuse (Passenger Compartment): “13”
16 15 Dome Lamp, Cargo Lamp, Instrument Cluster, Courtesy Lamp, Radio, Transmission Control Module, Underhood Lamp/Mercury Switch, Visor/Vanity Lamp, Overhead Console, Remote Keyless Entry Module, Glove Box Lamp, Compass, Left Front Power Lock/Window Switch (’97 – LHD), Right Front Power Lock/Window Switch (’97 – LHD)
17  –
18  –
19 15 Stop Lamp Switch
20 20 Air Conditioner Compressor Clutch Relay, Fuse (Engine Compartment): “27”
21 20 ’99-’01: Fuel Injection Pump, Glow Plug Relay, EGR Solenoid
20 ’97-’98: Glow Plug Relay, Mass Air Flow Sensor, Fuel Pump Module, Electronic Vacuum Modulator, Air Conditioner Compressor Clutch Relay
22 20 Power Amplifier
23 15 Combination Flasher
24 10 Powertrain Control Module
25 15 Fog Lamp Relay
26 20 Headlamp Switch, Data Link Connector, Power Antenna Relay (’98-’01), Rear Fog Lamp Relay (’97)
27 10 Sentry Key Immobilizer Module (’98-’01), Overhead Module (’97)
Relay
R1 Air Conditioner Compressor Clutch
R2 ’97-’99: Fog Lamp
R3 ’00-’01: Fog Lamp
R4 ABS
R5 Radiator Fan
R6 ’00-’01: Automatic Shut Down
’97-’99: Diesel Power
R7 Starter
R8 Fuel Heater

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
