Volkswagen Transporter (T4; 1990 – 2003) – fuse box diagram

Posted on by admin

Volkswagen Transporter (T4; 1990 – 2003) – fuse box diagram

Year of production: 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003



Volkswagen Transporter T4  – represents the 4th generation of the legendary Transporter series. This model was produced in 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002 and 2003 with diesel and gasoline engines with different wheelbases: short and long, and with different roof height. Also on the T4, Volkswagen continued its lineup of luxury Caravelle, California and Multivan models. In this article, we will show the location of all electronic control sides and a detailed designation of the purpose of fuses and relays Volkswagen T4 with box diagrams in which they are located.



Locations

Volkswagen Transporter T4 (1990 - 2003) - fuse box location
Volkswagen Transporter T4 (1990 – 2003) – fuse box location



1 Air conditioning control unit 1 – with automatic temperature control – in the heater control panel, front
2 Air conditioning control unit 2 – with automatic temperature control – in the heater control panel, rear – central pillar
3 Evaporator Fan Control Unit (A / C) – With Rear A / C – Behind Right Rear Trim Panel
4 Air conditioning / heater fan motor control unit 1 – with automatic temperature control – front – fan unit
5 Air conditioning / heater blower motor control unit 2- with automatic temperature control – rear- bottom of the body, in the center
6 Aerial amplifier – behind the dash, passenger side
7 Alternator resistor – near additional relays – CV / AUF, with alternator 150A / automatic transmission / automatic temperature control – behind the central part of the dashboard
8 Additional battery – under the driver’s seat
9 Accumulator battery
10 Central locking signal control unit – behind the dashboard
11 Cruise control unit (with throttle motor) – cruise control is controlled by the ECM
12 Electronic cruise control module (without throttle motor) – behind dash, passenger side
13 Diagnostic connector (DLC) – instrument panel, driver’s side
14 Diagnostic unit – 05/99 (except for AAC / ABL / AET / AES / AJA) – in the instrument cluster
15 Cooling Fan Motor Relay – Behind Left Headlight
16 Cooling Fan Motor 1/2 Resistor – Behind Left Headlight
17 Coolant heater control unit (with additional coolant heater – D3W / B4W / D4W) – in the heater – underbody, in the center
18 Coolant heater control unit (with optional coolant heater – B7W / D7W) – behind the dash, passenger side
19 Engine oil pressure warning buzzer – in instrument cluster control unit
21 Fuse / relay box, instrument cluster 1
22 Fuse / relay box 2, dash – under dash fuse / relay box 1
23 Fuse / relay box, dash 3 – above dash fuse / relay box 1
24 Fuse / relay box, dash 4 – behind dash, center
25 Fuse / Relay Box, Driver’s Seat – Under Seat
26 Fuse / Relay Box, Engine Compartment – Battery Powered
27 Additional fuse (5A / 7.5A / 10A) – in the back of the audio system unit
28 Additional fuse (10A) – at the rear of the navigation system control unit
29 Headlights not switched off warning buzzer – in the instrument cluster control unit
30 Heater blower motor resistor – manual temperature control – blower unit, front
31 Horn 1/2 – behind the front bumper
32 Immobilizer control unit – behind the instrument cluster
33 Immobilizer ring antenna – near the ignition switch
34 Turn signal relay, alarm relay – in the alarm switch
35 Instrument Cluster Control Module / Digital Multifunction Display – In Instrument Cluster
36 Outside temperature sensor – behind the front bumper
37 Driver’s seat heating control unit – in the seat heating switch
38 Passenger seat heating control unit – in the seat heating switch
39 SRS control unit – under the dash, center
40 Sunroof electric control unit
41 Theme control unit – in the display of the navigation system
42 Telephone interface control unit – behind the instrument cluster
43 Electronic gearbox control unit – near the engine control unit
44 Vehicle speed sensor – gearbox



Passenger compartment

Fuse box location

The main fuse and relay box is located under the dash on the driver’s side.

Fuse box diagram

Version 1

Volkswagen Transporter T4 (1990 - 2003) - fuse box diagram - passenger compartment (version 1)
Volkswagen Transporter T4 (1990 – 2003) – fuse box diagram – passenger compartment (version 1)
№
 A
 Description
1 10 Left Headlight Low Beam
2 10 Right Headlight Low Beam
3 10 Instrument & License Lights
4 15 Rear Window Wiper/Washer, Heated Front Seats
5 15 Windshield Wiper/Washer, Rear Window Washer, Heated Washer Jets
6 30 A/C, Fresh Air Fan
7 10 Right Tail Light & Side Marker Light, Engine Compartment Lamp
8 10 Left Taillight & Side Marker Light
9 20 Rear Window & Mirror Heater
10 15 Fog Lamps
11 10 Left Headlight High Beam & High Beam Indicator
12 10 Right Headlight High Beam
13 10 Horn, Radiator Cooling Fan
14 10 Backup Lights, Electric Mirrors, Heated Front Seats, Windshield Washer Jets, Cruise Control, Power Roof
15 10 Engine Electronics
16 15 Warning/Indicator Lights, Multi-Function Indicator, Glove Box Light, ABS
17 10 Turn Signals
18 20 Fuel Pump
19 30 A/C, Radiator Cooling Fan
20 10 Brake Lights
21 15 Dome & Luggage Lamps, Clock, Radio, Central Locking System, Multi-Function Indicator, Vanity Mirror, OBD Diagnostic
22 10 Cigarette Lighter
Relay
1 A/C Control Module Relay
2 Rear Window Wiper/Washer Relay
3 ECM Power Supply Relay
4 Load Reduction Relay
5 Open
6 Emergency Flasher Relay
7 Headlight Washer Relay
8 Washer/Wiper Intermittent Relay
9 Seat Belt Warning Relay
10 Fog Lamp/Parking Lamp Relay
11 Dual Horn Relay
12 Fuel Pump Relay
13 Heater Control Module Relay
14 Coolant Pump After-Run Relay
15 Open
16 Open
17 Open
18 Roof Ventilator Fan (Fuse)
19 Heater Air Blower Relay
20 Starter Interlock/Back-up Light Relay
21 5 Back-up Lights, Cruise Control
22 20 A/C (Second Evaporator)
23 Rear Window Defroster/Heated Mirror Relay
24 20 Power Windows, Central Locking System
25 10 ABS System
26 15 Rear Window Defroster, Heated Mirrors
27 A/C Compressor Clutch Relay

Version 2

Fuse box diagram (main box)

Volkswagen Transporter T4 (1990 - 2003) - fuse box diagram - passenger compartment (version 2)
Volkswagen Transporter T4 (1990 – 2003) – fuse box diagram – passenger compartment (version 2)
№
 A
 Description
Relay assignment
1 (105) Heater blower motor relay – rear (ventilation)
2 (174) Rear window wiper / washer relay
3 (30/109) Engine management relay
4 (18) Ignition auxiliary circuits relay 1
5 Reserve
6 (22/21) Emergency ventilation relay (with repeaters for direction indicators on the roof)
7 (95) Headlight washer pump relay
8 (99) Relay for intermittent operation of the windshield wiper / washer
9 (36) Headlamps warning buzzer
10 (53) Fog lamp relay
11 (53) Horn relay
12 (167) Fuel pump relay
Fuse
1 10 Left headlight – low beam, headlight range control
2 10 Right headlight – low beam, headlight range control
3 10 License plate lamps
4 15 Rear window wiper / washer, auxiliary ignition circuit relay 2, additional equipment
5 15 Windshield wiper / washer, heaters for windshield washer nozzles (05/01)
6 30 Air conditioning system, heater fan motor
7 10 Front right side / rear right side lamps
8 10 Lamps front left / rear left
9 20 Heated rear window, heated outside mirror
10 15 Fog lights
11 10 Left headlamp-high beam
12 10 RH headlamp-high beam
13 10 Sound signal
14 10 ABS system (with ESP), automatic transmission control system, additional equipment, central locking, cruise control system, power windows, power rear-view mirrors on the doors, reverse light (s)
15 10 Engine management system, crankcase ventilation heater, cruise control system, vehicle speed sensor
16 15 ABS indicator, glove box illumination lamp, turn signals, immobilizer, instrument cluster
17 10 Additional heater
18 20 Engine management system, fuel pump
19 30 A/C, Radiator Cooling Fan
20 10 Stop lights
21 15 Audio system, diagnostic connector (DLC), interior lamps, navigation system

Additional Fuse box

It is located under the main block.

Volkswagen Transporter T4 (1990 - 2003) - fuse box diagram - additional fuse box
Volkswagen Transporter T4 (1990 – 2003) – fuse box diagram – additional fuse box
№
 A
 Description
1 15 Accessory power connector
2 15 Trailer electrical connector
3 10 Roof identification light
4 20 Additional heater (AC V / AH Y / AJT / AU F)
5 10 Anti-lock braking system (ABS)
6 FOR Phone
7 15 Taxi
8 10 Roof fan
9 15 Audio system, instrument cluster
10 15 Central locking
11 15 Heated seats
12 30 Heated door mirrors, heated rear window
13 FOR PHONE (ACV / AH Y / AJT / AU F)
14 30 Air conditioning system – manual automatic temperature control
15 20 Additional heater



Additional relay box 1

Located at the top of the main unit.

Relay box diagram

Volkswagen Transporter T4 (1990 - 2003) - fuse box diagram - additional relay box no. 1
Volkswagen Transporter T4 (1990 – 2003) – fuse box diagram – additional relay box no. 1
№
   Description
1 (53) Coolant pump relay
2 (125) Idle speed control (AM) relay
3 (137) Glow plug control unit (ABL)
4 (53) Ignition auxiliary circuits relay 2 (some models)
5 (53) Ignition auxiliary circuits relay 2 (AES, with air conditioning)
F1 30 Power window fuse
F2 15 Engine control unit
F3 15 Actuator

Additional relay box 2

It is located behind the dashboard in the center.

Fuse box diagram

Volkswagen Transporter T4 (1990 - 2003) - fuse box diagram - additional relay box no. 2
Volkswagen Transporter T4 (1990 – 2003) – fuse box diagram – additional relay box no. 2
№
  Description
1 (106) Auxiliary heater relay
2 Audio / Telephone Speaker Switch Relay
3 (53) (53) Heater blower motor relay – rear (warm air)
4 (114) Heater blower motor relay – automatic temperature control
5 (152) Heater radiator coolant valve relay (rear heater)
6 (38) Air intake changeover actuator relay (A / C / heater)
7 (53) Alternator relay (AES, with 150A alternator)
8 (53) Alternator relay (ACV / AUF, with alternator 150A / automatic / automatic temperature control)
9 (175) Start inhibit switch relay / reversing lamp relay
10 (87) Wheel hub connection control unit



Another unit can be located under the driver’s seat. The following items may be located there: (214/426) Relay for additional battery, (403) Relay for additional heater, (30A) Additional liquid heating system, (5A) Sockets , etc.



Engine compartment

Fuse box location

This unit is located on the cover in front of the battery.

Fuse box diagram

Volkswagen Transporter T4 (1990 - 2003) - fuse box diagram - engine compartment
Volkswagen Transporter T4 (1990 – 2003) – fuse box diagram – engine compartment



№
  Description
1 60A Glow plug relay
2 50A Cooling fan motor
3 50A Cooling fan motor
4 50A Anti-lock braking system (ABS)
5 110A/150A/175A Generator
6 30A System of maintaining exchange rate stability
7 30A Anti-lock braking system (with ESP)
8 5A System of maintaining exchange rate stabilit

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Iveco Daily (II; 1989 – 2000) – fuse and relay box diagram

Posted on by admin

Iveco Daily (1989 – 2000) – fuse and relay  box diagram

Year of production: 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000



This article covers the second-generation   Iveco Daily II (2nd generation), produced from 1989 to 2000. It includes fuse box diagrams for the 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999 and 2000 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.

Fuse box diagram

Iveco Daily (II; 1989 - 2000) - fuse and relay box diagram
Iveco Daily (II; 1989 – 2000) – fuse and relay box diagram



Assignment of the fuses in the fuse box

No. A Function
1 5 Lh front parking light – Lh number plate light- Rh rear parking light – Rh front and Lh rear marker
2 5 lights – Dashboard. Rh front parking light – Rh number plate light -Lh rear parking light – Lh front and Rh rear
3 7,5 marker lights. Lh low beam light
4 7,5 Rh low beam light
5 7,5 Lh high beam light
6 7,5 Rh high beam light
7 3 Electronic speedometer or tachograph
8 5 Brake – instrument – telltale failure
9 10 Fog headlights
10 3 Rear fog lamps
11 5 Interior lighting (bus)
12 7,5 Not used
13 10 Hazard lights
И 5 Tractor unit turn signal lights
15 3 Engine stop
16 7,5 Reversing lights – stop lights
17 10 Homs
18 7,5 Interior lighting – Cigar lighter
19 15 Heated fuel oil filter
20 10 Windscreen wiper – Windscreen washer pump
21 15 Electric heater – Electromagnetic fan
22 7,5 Push switch lighting – flashing light
23 25 Power window – Electromagnetic fan
24 10 Emergency control pushbutton (Bus)
25 20 Air conditioning
26 20 Air conditioning
27 25 Air conditioning
28 25 Electric heater
29 40 Thermostarter control unit
Relays
E1 Low beam lights (switch contacts)
E2 High beam lights (N.O. contact)
E3 Users cutoff during starting stage (N.O. contact)
E4 Fog lamps (switch contacts)
E5 Heated fuel oil filter
E6 Emergency control unit
E7 Day lights + fog lamps
E8 Horns (N.O. contact)
E9 Windscreen wiper intermittent
E10 Flashing light (N.O. contact)
E11 Diode for emergency control unit (with day lights)
E12 Not used
E13 Brake system failure (switch contact)
E14a Emergency control unit (with day lights)
E14b Emergency control unit (with day lights)
E15 Direction indicators – single charge emergency
C Air conditioning

Engine compartment

Fuse box diagram

Iveco Daily (II; 1989 - 2000) - fuse and relay box diagram - engine compartment
Iveco Daily (II; 1989 – 2000) – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

Fuse Ampere rating [A] Description
1 30 Electro-hidraulic assembly (Power Pack)
2 20 Electronic control unit (from battery positive)
3 20 Electronic control unit (lock and key protection)



Relay Description
a Circuit protection diode casing
b Optical indicator ON button
c Reversing light
d Buzzer (acoustic indicator)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Alfa Romeo 155 (1992 – 1998) – fuse box diagram

Posted on by admin

Alfa Romeo 155 (1992 – 1998) – fuse box diagram

Year of production: 1992, 1993, 1994, 1995, 1996, 1997, 1998



Alfa Romeo 155 is a mid-size sedan produced in 1992, 1993, 1994, 1995, 1996, 1997 and 1998. In this article, we will show a designation of fuses and relays Alfa Romeo 155 with box diagrams and their locations. Note the cigarette lighter fuse.

Passenger Compartment Fuse Panel

Version 1

The fuse and relay box is located in the passenger compartment on the left.

Alfa Romeo 155 (1992 - 1998) - fuse box diagram - passenger compartment (version 1)
Alfa Romeo 155 (1992 – 1998) – fuse box diagram – passenger compartment (version 1)
No. Circuit protected
Daytime running light relay I
Headlight washer relay (black)
Suspension relay (brown)
Tailgate/Trunk Compartment Release Relay (Red)
Daytime running light relay II
Coolant fan motor Relay (White)
Sunroof Motor Relay (White)
20 Washing/wiping the headlights
30 Suspension adjustment
30 Boot release
25 Electric windows
25 Electric windows
25 Electric windows
10 ABS

Version 2

Alfa Romeo 155 (1992 - 1998) - fuse box diagram - passenger compartment (version 2)
Alfa Romeo 155 (1992 – 1998) – fuse box diagram – passenger compartment (version 2)
Fuse A Circuit protected
1 10 Hazard warning lights
2 20 Horns, Cigar lighters, Stoplights, Boot release, Radio
3 20 Windscreen wipers
4 20 Roof light timer
5 10 Control lighting, Rear left and front right sidelights, RH numberptale light
6 10 Control lighting, Rear right and front left sidelights, LH numberptale light
7 10 RH dipped beam headlight
8 10 LH dipped beam headlight
9 10 RH main beam headlight
10 10 LH main-beam headlight (+ warning lamp)
11 7,5 Rear foglamp (+ warning lamp)
12 30 Heated rear window (+ warning lamp), Door mirror defrosters
13 20 Heating/air conditioning fan, Seat warming, Rear and front power windows, Radio
14 20 Engine cooling fan (6V)
25 Electric fan for radiator cooling
15 10 Dashboard, Check Panel, Windscreen washers, Headlight washers, Reversing lights, Controlled damping suspension solenoid valves, Air conditioning compressor control, Engine electric fan control
16 7,5 Interior lights, Clock, Air conditioning control unit
17 7,5 Direction indicators, Door mirror adjustment, Controlled damping suspension
18 20 Door locks
19 20 Front foglamps (+ warning lamp)
Relay
N11 Door locking control unit
N13 Hazard warning lights and direction indicators intermittence
N14 Electronic windscreen wiper intermittence
I2 Heated rear window relay
I3 Horn relay
I17 Fog-light relay
I25 Rear fog light relay
I35 Key-operated supply relay
I49 Dipped beam headlight
I50 Main beam headlight
I64 Sidelights relay

Auxiliary Fusebox

Alfa Romeo 155 (1992 - 1998) - fuse box diagram - auxiliary fuse box
Alfa Romeo 155 (1992 – 1998) – fuse box diagram – auxiliary fuse box
A Color Circuit protected
20 Black Headlight washer intermittence
25 Brown Passenger side power window
10 Red ABS
25 Blue Rear power windows
30 Green Electric seat adjustment
30 Red Boot release
20 Brown Controlled damping suspension
30 White Sunroof
Black Timer for headlight washer
Green Relay for radiator fan (only for TS model)

Engine compartment

There are usually two fuses and relay boxes. The first is located near the headlight and radiator cap under the protective casing.

Fuse box no. 1

Alfa Romeo 155 (1992 - 1998) - fuse box diagram - engine compartment (fuse box no.1)
Alfa Romeo 155 (1992 – 1998) – fuse box diagram – engine compartment (fuse box no.1)
No. A Fuse component
F1 7,5 Fuel pump
F2 7,5 Lambda probe
F3 3 Engine control module
Relay
1 Engine Control Module 1 Relay
2 Timing relay
3 Fuel pump relay
4 Engine control module relay 2

Fuse box no. 2

The second one is near the ABS sensor above the brake cylinder.

Alfa Romeo 155 (1992 - 1998) - fuse box diagram - engine compartment (fuse box no.2)
Alfa Romeo 155 (1992 – 1998) – fuse box diagram – engine compartment (fuse box no.2)
No. A Fuse component
F1 30 A/C fan motor
F2 40 A/C cooling fan
F3 15 A/C compressor
Relay
1 A/C condenser fan motor relay
2 A/C condenser fan timer relay
3 A/C compressor clutch relay
4 Air conditioner relay



Fuse box no. 3

For V16 and 2.5 versions only, a third block has been added.

No. A Fuse component
F1 7,5 Lambda probe
F2 15 Motronic system
Relay
1 Engine Control Module I Relay
2 Fuel pump relay
3 Engine Control Module II Relay

1.8-2.0 TS Model

The following fuses are housed on a bracket located between the battery and the air-flow meter.

Alfa Romeo 155 (1992 - 1998) - fuse box diagram - engine compartment (1.8-2.0 TS Model)
Alfa Romeo 155 (1992 – 1998) – fuse box diagram – engine compartment (1.8-2.0 TS Model)
Number Circuit protected
1 Control unit power supply
2 Lambda probe (for vehicles equipped with catalytic converter)
3 Fuel pump
Relay
R1 Fuel pump relay
R2 Main relay
R3 Timing variator relay
R4 Relay for services

2.4 V6 model

The following fuses are located in a box located on the rear wall of the engine compartment next to the tank

Alfa Romeo 155 (1992 - 1998) - fuse box diagram - engine compartment (2.4 V6 model)
Alfa Romeo 155 (1992 – 1998) – fuse box diagram – engine compartment (2.4 V6 model)
Number Fuse component
1 Lambda probe (for vehicles equipped with catalytic converter)
2 Fuel pump
Relay
R1 Fuel pump relay
R2 Main relay
R3 Relay for services

Heating – ventilation system

The following fuses are housed in the rear left-hand part of the engine compartment next to the brake-clutch fluid reservoir.

Alfa Romeo 155 (1992 - 1998) - fuse box diagram - engine compartment (heating - ventilation system)
Alfa Romeo 155 (1992 – 1998) – fuse box diagram – engine compartment (heating – ventilation system)
No. A Fuse component
1 50 Heating-ventilatton system control unit
2 40 Engine cooling liquid radiator fan (only for 1.8 – 2.0 TS model

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Mazda MX-5 (1989 – 1997) – fuse and relay box diagram

Posted on by admin

Mazda MX-5 (1989 – 1997) – fuse and relay box diagram

Year of production: 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997



This article covers the first-generation Mazda MX-5 Miata (NA), produced between 1989 and 1997. It includes fuse box diagrams for the 1989–1997 models, provides details on the locations of the fuse panels inside the vehicle, and explains the function and layout of each fuse and relay.

Engine compartment

Fuse Box Location

Mazda MX-5 (1989 - 1997) - fuse and relay location - engine compartment
Mazda MX-5 (1989 – 1997) – fuse and relay location – engine compartment



Fuse Box Diagram

Mazda MX-5 (1989 - 1997) - fuse and relay diagram - engine compartment
Mazda MX-5 (1989 – 1997) – fuse and relay diagram – engine compartment



Assignment of the fuses in the engine compartment

Position Name Fuse rating [A] Description
1 HEAD 30 Headlights
2 INJ 30 Fuel injection, Alternator
3 MAIN 80 For protection of all circuits
4 BTN 40 Refer to HAZARD (15A), STOP (15A), ROOM (10A), TAIL (15A)
5 ABS 60 Antilock brake system
6 COIOLING FAN 30 Cooling fan
7 AIR BAG 10 Air bag
8 AD FAN 20 Additional fan (Air conditioner)
9 ST SIG 10 Fuel injection
10 RETRACTOR 30 Headlight retractor

Passenger compartment

Fuse Box Location

Mazda MX-5 (1989 - 1997) - fuse and relay location - passenger compartment
Mazda MX-5 (1989 – 1997) – fuse and relay location – passenger compartment



Fuse Box Diagram

Mazda MX-5 (1989 - 1997) - fuse and relay diagram - passenger compartment
Mazda MX-5 (1989 – 1997) – fuse and relay diagram – passenger compartment



Assignment of the fuses in the passenger compartment

Position Name Fuse rating [A] Protected component
A ENGINE 15 Cooling fan
B METER 10 Gauges, Warning lights, Turn-signal lights, Cruise control
C AIR BAG 15 Air bag
D HEATER 30 Heater
E — — —
F POWER WIND 30 Power windows
G WIPER 20 Wipers, Washer
H — — —
I TAIL 15 Tail lights
J — — —
K STOP 15 Shift lock, Cruise control, Horn, Stoplights
L HAZARD 15 Hazard warning lights
M — — —
N ROOM 10 Interior lamps, Warning buzzers, Radio/cassette and compact disc player and clock
O CIGAR 15 Radio/cassette and compact disc player and clock, Cigarette lighter
P — — —
Q — — —

Luggage compartment

Fuse Box Location

Mazda MX-5 (1989 - 1997) - fuse and relay location - luggage compartment
Mazda MX-5 (1989 – 1997) – fuse and relay location – luggage compartment



Fuse Box Diagram

Mazda MX-5 (1989 - 1997) - fuse and relay diagram - luggage compartment
Mazda MX-5 (1989 – 1997) – fuse and relay diagram – luggage compartment

Assignment of the fuses in the trunk

Number Name Ampere ratting [A] Description
1 DEFOG 10 Rear defroster
2 ANTENNA 10 Auto antenna

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Ford F-350 (1992 – 1997) – fuse and relay box diagram

Posted on by admin

Ford F-350 (1992 – 1997) – fuse and relay box diagram

Year of production: 1992, 1993, 1993, 1994, 1995, 1996, 1997



This article focuses on the ninth-generation Ford F-Series, produced from 1992 to 1997. It provides fuse box diagrams for the 1992, 1993, 1994, 1995, 1996, and 1997 Ford F-150, F-250, and F-350 models, along with information on the locations of the fuse panels within the vehicle and the assignment of each fuse and relay (fuse layout).



Passenger Compartment Fuse Panel

Fuse box location

The fuse panel is located behind the cover to the left of the steering wheel. Remove the cover from the lower edge of the instrument panel by pulling on handle to disengage the fasteners.



Fuse box diagram

Ford F-350 - fuse and relay box diagram - passenger compartment
Ford F-350 – fuse and relay box diagram – passenger compartment



Assignment of the fuses in the instrument panel

№ A Description
1 30 Heater/Air conditioner blower
2 30 Wiper/Washer
8.25 Circuit breaker: Interval Wiper/Washer
3 3 Idle position switch (Diesel)
4 15 Exterior lamps;  Instrument illumination;  Trailer exterior lamp relay;  Warning buzzer/chime module
5 10 Airbag restraint
6 15 Fuel Tank Selector (Diesel Only), Air Conditioner/Heater, Remote/Keyless Entry
7 15 Turn Lamps
8 15 Courtesy Lamps. Engine Compartment Lamp, Radio Memory, Power Mirrors, Clock Memory, Speedometer Memory, Warning Chime, Sun Visor Mirror Illumination, Keyless Entry
9 15 Power point
25 Power point
10 4 Instrument illumination
11 15 Radio, Radio Display Dimmer
12 20 Circuit breaker: Electronic Shift Motor 4-wheel, Power Door Locks, Tailgate Power Window (Bronco)
30 Circuit breaker: Power Door Lock, Power Tailgate Window (Bronco), Electronic Shift Control, Power Lumbar
13 15 Stop and Hazard Lamps, Stop Sense For: Anti-lock Brakes, Speed Control, Electronic Engine Control, Brake Shift Interlock, Anti-Lock Brakes
14 20 Circuit breaker: Power Windows, Tailgate Power Window: Instrument Panel Switch
15 20 Anti-Lock Brakes
16 15 Cigarette Lighter, Generic Scan Tool
17 10 Overdrive Switch. Stop Lamp Switch, Warning Chime, Diesel Warning Lamps Display, Fuel Water Switch, Low Vacuum Warning Switch, Instrument Cluster, Electronic Shift Control, Tachometer, Gauges, Electronic Transmission
18 10 Air Bag Restraint, Automatic Day/Night Mirror, Brake Shift Interlock, Electronic Shift Module 4-wheel Drive, Overhead Console, Speedometer, Speed Control. Electronic Shift Control

Engine compartment fuse box

Fuse box diagram

Ford F-350 - fuse and relay box diagram - engine compartment
Ford F-350 – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

№ A Description
1 20A Audio power
2 (15A) Fog lamps;
200A alternator (Diesel ambulance only)
3 30A Daytime running lamps (Canada only);
Headlamp flash-to-pass;
Horn
4 25A Trailer back-up lamps;
Trailer running lamps
5 15A Back-up lamps;
Daytime running lamp module (DRL) (Canada only);
Oxygen sensor heater;
Trailer battery charge relay
6 10A Trailer right-hand stop/turn lamp
7 10A Trailer left-hand stop/turn lamp
8 30A maxi Injector driver module
9 30A (Gas) / 20A (Diesel) Powertrain control system
10 20A maxi Instrument panel fuses: 15,18;
Starter relay coil
11 — Not used
12 Diode Powertrain control system relay coil
13 50A maxi Instrument panel fuses: 5,9,13
14 — Not used
15 50A maxi Instrument panel fuses: 1, 7;
Power distribution box: fuse 5
16 20A maxi Fuel pump feed (Gas engine)
17 50A maxi Alternator charge lamp;
Idle position switch (Diesel);
Instrument panel fuses: 2, 6, 11,14,17;
Power distribution box: fuse 22
18 30A maxi Trailer battery charge
19 40A maxi Headlamps
20 50A maxi Instrument panel fuses: 4, 8, 12,16
21 30A maxi Trailer brake feed
22 20A maxi (Gas) / 30A (Diesel) Distributor pickup (Gas engine);
Fuel line heater (Diesel);
Glow plug controller (Diesel);
Ignition coil (Gas engine);
Powertrain control system relay coil;
Thick film integrated (TFI) module (Gas engine)
Relay 1 Powertrain control system
Relay 2 Fuel pump (Gas engine);
Injector driver module (IDM relay) (Diesel)
Relay 3 Horn
Relay 4 Trailer tow lamps
Relay 5 Anti-lock brake system (ABS) pump motor

Trailer relay box

Fuse box diagram

Ford F-350 - fuse and relay box diagram - trailer relay box
Ford F-350 – fuse and relay box diagram – trailer relay box



Assignment of the fuses in the trailer relay box

Circuit Protected Size Location
Headlamps & High Beam Indicator 22 Amp Circ. Brkr. Integral with Headlamp Switch
Alternator, 95 Amp 12 Ga. Fuse Link At Starting Motor Relay (Gasoline Engine)
Alternator, 130 Amp (2) 12 Ga. Fuse Links At Starting Motor Relay (Diesel Engine)
Diesel Glow Plugs (2) 14 Ga. Fuse Links At Starting Motor Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Ford F-250 (1992 – 1997) – fuse and relay box diagram

Posted on by admin

Ford F-250 (1992 – 1997) – fuse and relay box diagram

Year of production: 1992, 1993, 1993, 1994, 1995, 1996, 1997



This article focuses on the ninth-generation Ford F-Series, produced from 1992 to 1997. It provides fuse box diagrams for the 1992, 1993, 1994, 1995, 1996, and 1997 Ford F-150, F-250, and F-350 models, along with information on the locations of the fuse panels within the vehicle and the assignment of each fuse and relay (fuse layout).



Passenger Compartment Fuse Panel

Fuse box location

The fuse panel is located behind the cover to the left of the steering wheel. Remove the cover from the lower edge of the instrument panel by pulling on handle to disengage the fasteners.



Fuse box diagram

Ford F-250 - fuse and relay box diagram - passenger compartment
Ford F-250 – fuse and relay box diagram – passenger compartment



Assignment of the fuses in the instrument panel

№ A Description
1 30 Heater/Air conditioner blower
2 30 Wiper/Washer
8.25 Circuit breaker: Interval Wiper/Washer
3 3 Idle position switch (Diesel)
4 15 Exterior lamps;  Instrument illumination;  Trailer exterior lamp relay;  Warning buzzer/chime module
5 10 Airbag restraint
6 15 Fuel Tank Selector (Diesel Only), Air Conditioner/Heater, Remote/Keyless Entry
7 15 Turn Lamps
8 15 Courtesy Lamps. Engine Compartment Lamp, Radio Memory, Power Mirrors, Clock Memory, Speedometer Memory, Warning Chime, Sun Visor Mirror Illumination, Keyless Entry
9 15 Power point
25 Power point
10 4 Instrument illumination
11 15 Radio, Radio Display Dimmer
12 20 Circuit breaker: Electronic Shift Motor 4-wheel, Power Door Locks, Tailgate Power Window (Bronco)
30 Circuit breaker: Power Door Lock, Power Tailgate Window (Bronco), Electronic Shift Control, Power Lumbar
13 15 Stop and Hazard Lamps, Stop Sense For: Anti-lock Brakes, Speed Control, Electronic Engine Control, Brake Shift Interlock, Anti-Lock Brakes
14 20 Circuit breaker: Power Windows, Tailgate Power Window: Instrument Panel Switch
15 20 Anti-Lock Brakes
16 15 Cigarette Lighter, Generic Scan Tool
17 10 Overdrive Switch. Stop Lamp Switch, Warning Chime, Diesel Warning Lamps Display, Fuel Water Switch, Low Vacuum Warning Switch, Instrument Cluster, Electronic Shift Control, Tachometer, Gauges, Electronic Transmission
18 10 Air Bag Restraint, Automatic Day/Night Mirror, Brake Shift Interlock, Electronic Shift Module 4-wheel Drive, Overhead Console, Speedometer, Speed Control. Electronic Shift Control

Engine compartment fuse box

Fuse box diagram

Ford F-250 - fuse and relay box diagram - engine compartment
Ford F-250 – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

№ A Description
1 20A Audio power
2 (15A) Fog lamps;
200A alternator (Diesel ambulance only)
3 30A Daytime running lamps (Canada only);
Headlamp flash-to-pass;
Horn
4 25A Trailer back-up lamps;
Trailer running lamps
5 15A Back-up lamps;
Daytime running lamp module (DRL) (Canada only);
Oxygen sensor heater;
Trailer battery charge relay
6 10A Trailer right-hand stop/turn lamp
7 10A Trailer left-hand stop/turn lamp
8 30A maxi Injector driver module
9 30A (Gas) / 20A (Diesel) Powertrain control system
10 20A maxi Instrument panel fuses: 15,18;
Starter relay coil
11 — Not used
12 Diode Powertrain control system relay coil
13 50A maxi Instrument panel fuses: 5,9,13
14 — Not used
15 50A maxi Instrument panel fuses: 1, 7;
Power distribution box: fuse 5
16 20A maxi Fuel pump feed (Gas engine)
17 50A maxi Alternator charge lamp;
Idle position switch (Diesel);
Instrument panel fuses: 2, 6, 11,14,17;
Power distribution box: fuse 22
18 30A maxi Trailer battery charge
19 40A maxi Headlamps
20 50A maxi Instrument panel fuses: 4, 8, 12,16
21 30A maxi Trailer brake feed
22 20A maxi (Gas) / 30A (Diesel) Distributor pickup (Gas engine);
Fuel line heater (Diesel);
Glow plug controller (Diesel);
Ignition coil (Gas engine);
Powertrain control system relay coil;
Thick film integrated (TFI) module (Gas engine)
Relay 1 Powertrain control system
Relay 2 Fuel pump (Gas engine);
Injector driver module (IDM relay) (Diesel)
Relay 3 Horn
Relay 4 Trailer tow lamps
Relay 5 Anti-lock brake system (ABS) pump motor

Trailer relay box

Fuse box diagram

Ford F-250 - fuse and relay box diagram - trailer relay box
Ford F-250 – fuse and relay box diagram – trailer relay box



Assignment of the fuses in the trailer relay box

Circuit Protected Size Location
Headlamps & High Beam Indicator 22 Amp Circ. Brkr. Integral with Headlamp Switch
Alternator, 95 Amp 12 Ga. Fuse Link At Starting Motor Relay (Gasoline Engine)
Alternator, 130 Amp (2) 12 Ga. Fuse Links At Starting Motor Relay (Diesel Engine)
Diesel Glow Plugs (2) 14 Ga. Fuse Links At Starting Motor Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Buick Century (V; 1996) – fuse box diagram

Posted on by admin

Buick Century (V; 1996) – fuse box diagram

Year of production:  1996

This article covers the Buick Century. It includes fuse box diagrams for the 5th generation 1995 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Passenger compartment

Fuse box location

The fuse panel is located inside the glove box, on the left side.

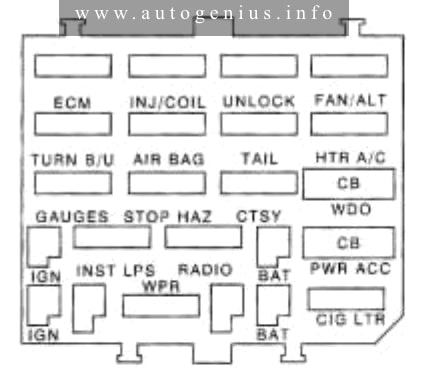

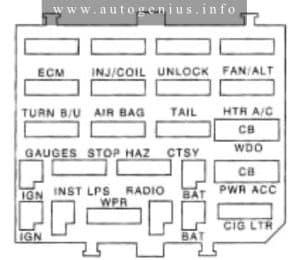

Fuse box diagram

Buick Century (V; 1996) - fuse and relay box diagram - passenger compartment
Buick Century (V; 1996) – fuse and relay box diagram – passenger compartment



Assignment of the fuses in the passenger compartment (instrument panel)

Fuse Usage
ECM Powertrain Control Module
TNJ/COIL Fuel Injectors
UNLOCK Auto Door Locks (Remove this fuse to disable the automatic door unlock)
FAN/ALT Electric Fan, Starter and Generator, Seq. Fuel Inj (V6), Cruise Control, Anti-Lock Brakes
TURN B/U Back-up Lamps
AIR BAG Supplemental Inflatable Restraint (Air Bag System)
TAIL Taillamps, Parking, Sidemarker, License Plate, Stopflurn Signal
HTR A/C Heater/Air Conditioner Blower Controls
GAUGES I/P Cluster, Warning Indicators, Torque Converter Clutch, Audible Warning System, Trunk Release, Brake Warning Indicator, Rear Defog Switch, Remote Keyless Entry, Headlamps, Air Bag System
STOP HAZ Stop Lamps, Hazard Flashers
CTSY Interior, Underhood, Courtesy, UP, Trunk Lamps, Door Locks, Horn Relay, Passive Restraint System, Deck Lid Release, Power Antenna Remote Keyless Entry, Vanity Mirror
WDO Power Windows
INST LPS Illumination for: I/P, Radio, Pod Lamps, Ashtray, Console Lamp,
Heater and A/C Control, Defog Switch, Headlamp Switch, Power Antenna
RADIO Radio
PWR ACC* Seats, Door Locks, Rear Defog, Power Seat Recliner, Rear Window Wiper, Trunk Release
WPR Windshield Wiper/Washer
CIG LTR Cigarette Lighter
*Circuit Breaker

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Lumina (1996) – fuse and relay box diagram

Posted on by admin

Chevrolet Lumina (1996) – fuse and relay box diagram

Year of production: 1996



This article focuses on the second-generation Chevrolet Lumina, manufactured from 1994 to 2001. It provides fuse box diagrams for the 1996 models, along with details on the location of the fuse panels within the vehicle and explanations of each fuse and relay assignment (fuse layout).



Instrument Panel Fuse Block

Fuse box diagram

Chevrolet Lumina (1996) - fuses and relay box diagram - passenger compartment
Chevrolet Lumina (1996) – fuses and relay box diagram – passenger compartment



Assignment of the fuses in the instrument panel (1996)

Fuse Description
1 CIGAR LIGHTER — Instrument Panel and Console Cigar Lighter
2 —
3 DRL MDL
4 HVAC #2 — HVAC Control Assembly, Soloneid Box
5 HAZARD FLASHER
6 POWER ACCESSORY #2 — Sunroof Control Unit
7 —
8 —
9 —
10 I/P ELECTRONICS BATTERY FEED — Chime Module, Electronic Brake Control Module (EBCM), Theft Deterrent Module, Radio
11 STARTER RELAY
12 ANTI-THEFT — Theft Deterrent Module
13 ABS — Electronic Brake Control Module (EBCM), ABS Relay
14 HVAC BLOWER MOTOR — Blower Motor Relay
15 HVAC #1 — Air Temperature Valve Motor,  Daytime Running Lamps Module (with DRL), HVAC Control Assembly, Multifunction Lever Cruise Control Switch
16 REAR DEFOG — HVAC Control Assembly Rear Window Defogger Switch
17 —
18 —
19 POWER ACCESSORY #1– Trunk Courtesy Lamp, Door Lock  Switches, Power Mirror Switch
20 POWER ACCESSORY (Power) #1 – Door Lock Switches, Trunk Courtesy Lamp, O/S Mirror Switch
21 AIR BAG — Air Bag System
22 —
23 STOPLAMPS — TCC/Brake Switch
24 CRUISE CONTROL
25 —
26 —
27 —
28 CTSY LAMPS — Vanity Mirrors, Defogger Relay, I/P Compartment Lamp, Header Courtesy and Reading Lamp, I/S Lighted Rearview Mirror, Dome Lamp
29 WIPER — Wiper Switch
30 TURN SIGNAL — Turn Signal Flasher
31 —
32 POWER LOCKS — Door Lock Relay, Keyless Entry Receiver
33 —
34 —
35 —
36 —
37 —
38 RADIO — Radio, Steering Wheel Radio Switches
39 I/P ELECTRONICS IGNITION FEED — Headlamp Switch, Cruise Control Cut-Out Switch, Sensing and Diagnostic Module (SDM), TCC/Brake Switch, Instrument Cluster, Chime Module, Keyless Entry Receiver
40 —
41 —
42 —
43 —
44 —
45 —
Circuit Breaker
A —
B —
C Power Windows
D Power Seats
E —

Engine Compartmet Fuse Box (Passenger Side)

Fuse box diagram

Chevrolet Lumina (1996) - fuses and relay box diagram - engine compartment (passenger side)
Chevrolet Lumina (1996) – fuses and relay box diagram – engine compartment (passenger side)



Assignment of the fuses in the engine compartment fuse box №1 – Passenger Side (1996)
No Fuse Description
1 A.I.R. PMP A.I.R. Relay
2 R/CMPT REL Remote Trunk Release
3 ECM BAT Powertrain Control Module (PCM), Fuel Pump/Oil Pressure Switch, Fuel Pump Relay, Fan Cont #1 Relay
4 TCC Automatic Transaxle, Transaxle Range Switch (VIN M onl
5 ENG EMIS A/C CMPR Relay (VIN M only)
6 Automatic Transaxle, Transaxle Range Switch (VIN M only)
7 F/INJN Fuel Injectors
8 ECM IGN Powertrain Control Module (PCM), Mass Air Flow (MAF) Sensor (VIN X only), EGR, CCP, Oxygen Sensor, Vacuum Canister Switch, Fan #2 Relay
9 ELEK IGN Electronic Ignition (EI) Control Module
10 I/P Fuse Block
11 FAN CONT #1 Relay
12 Passenger Side Underhood Electrical Center and I/P Fuse Blocks: Fuses 5, 14,23 and 32
13 FAN CONT #2 Relay and I/P Fuse Block: Fuse 16, Power Seat Circuit Breaker “D”
Relay
14 FUEL PUMP FUEL PUMP
15 A/C CMPR A/C CMPR
16 FAN CONT #2 Secondary Cooling Fan (Passenger Side)
17 FAN CONT #1 Primary Cooling Fan (Driver Side)
18 Ignition Relay

Engine Compartmet Fuse Box (Driver Side)

Fuse box diagram

Chevrolet Lumina (1996) - fuses and relay box diagram - engine compartment (driver side)
Chevrolet Lumina (1996) – fuses and relay box diagram – engine compartment (driver side)



Assignment of the fuses in the engine compartment fuse box №2 – Driver Side (1996)
No Fuse Usage
1 — —
2 — —
3 — —
4 FOG LPS Fog Lamps
5 PARK LPS Headlamp Switch
6 HORN Horn Relay, Underhood Lam
7 ABS Anti-Lock Brake System
8 — —
9 VAR P/S EVO Steering
10 IGN SW2 I/P Rise Block: PWR WDO and Circuit Breaker D; Passenger’s Side Underhood Electrical Center: TCC and ENG EMIS Fuses;
11 IGN SW1 I/P Fuse Block: Radio, Wiper, HVAC, ABS and Turn Signal Fuses; Passenger’s Side Underhood Electrical Center: F/IJN, ECM IGN and ELEK IGN Fuses;
12 HD LPS Circuit Breaker to Headlamp Switch
13 ABS ABS Relay
Relay
14 ABS Anti-Lock Brake System
15 — —
16 HORN Horn
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chevrolet Astro (1996) – fuse and relay box diagram

Posted on by admin

Chevrolet Astro (1996) – fuse and relay box diagram

Year of production: 1996



This article covers the Chevrolet Astro, produced from 1985 to 2005. It includes fuse box diagrams for the 1996 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Passenger compartment

Fuse box location

The fuse block is located on the lower portion of the instrument panel on the driver’s side.

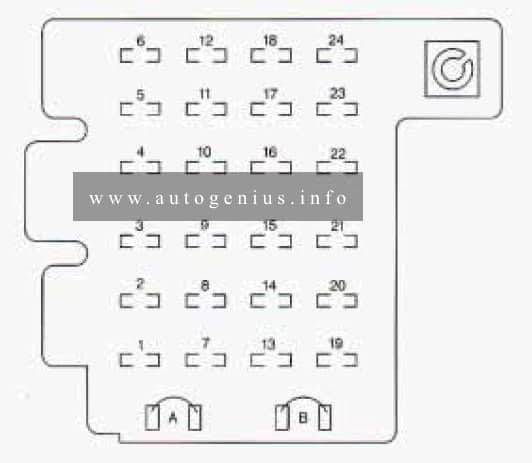

Fuse box diagram

Chevrolet Astro (1996) - fuse and relay box diagram - passenger compartment
Chevrolet Astro (1996) – fuse and relay box diagram – passenger compartment



Assignment of the fuses in the passenger compartment (instrument panel)

Fuses/Circuit Breaker Usage
1 Stop/Tum/Hazard Lamps, CHMSL, Chime Module
2 No Fuse-Resistor
3 Courtesy Lamps, Power Outside Mirrors, Glove Box Lamp, Dome Reading Lamps, Vanity Mirror Lamps
4 DRL Relay, DRL Module, Chime Headlamp Switch, Keyless Entry, Cluster, Overhead Console
5 —
6 Cruise Module, Cruise Activator Switch
7 Power Outlets, DLC, Subwoofer Amplifier
8 —
9 License Plate Lamp, Taillamps, Parking Lamps, Ashtray Lamp, Panel Lights, Trailer Taillamps, Front and Rear Sidemarker Lamps, Door Switch Illumination, Headlamp Switch Illumination, RSA Illumination
10 Air Bag System
11 Wiper Motor, Washer Pump
12 L, M 1, M2 Blower Motor, Rear A/C Relay Coil, Front Cont, Temp. Door Motor, Hi Blower Relay, Defogger Timer Coil, Upfitter Relay Coil
13 Cigarette Lighter, Door Lock Relay
14 Cluster HVAC Controls, Chime Module, Radio Illumination, Rear Heat Switch Illumination, Rear WiperNasher Switch Illumination, Rear Liftgate Switch Illumination, Remote Cassette Illumination OH Console
15 DRL Lamps
16 Front Turn Signals, Rear Turn Signals, Trailer Turn Signals, Back-up Lamps, BTSI Solenoid
17 Radio: ATC (Standby), 2000 Series (Main Feed), Rear Seat Audio Controls
18 VCM-Ign 3, VCM- Brake, 4WAL, Cruise Stepper Motor
19 Radio: ATC (Main Feed), 2000 Series (Standby)
20 PRNDLI Odometer, TCC Enable and PWM Solenoids, Shift A and Shift B Solenoids, 3-2 Downshift Solenoids
21 —
22 —
23 Rear Wiper, Rear Washer Pump
24 —
A (Circuit Breaker) Power Door Lock, 6-way Power Seat, Keyless Entry Module, Dutch Door Module, Dutch
B (Circuit Breaker) Power Windows

Engine compartment

Fuse box location

The underhood fuse block is located toward the rear of the engine compartment on the driver’s side of the vehicle.

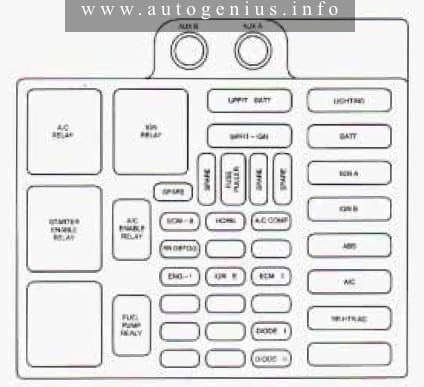

Fuse box diagram

Chevrolet Astro (1996) - fuse and relay box diagram - engine compartment
Chevrolet Astro (1996) – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

Feef Usage
AUX B Upfitter Battery Feed
AUX A Upfitter Accessory Feed



Relays
A/C Relay
IGN Relay
Starter Enable Relay
A/C Enable Relay
Empty Relay
Fuel Pump Relay
Fuse/Circuit Breaker Usage
UPFITTER-BATT Upfitter Battery Power Stud, Trailer Wiring Harness
UPFITTER-ACCY Upfitter Accessory Relay
Spare —
Fuse Puller*
Spare —
Spare —
ECM-B Fuel Pump Relay, VCM, Oil Pressure Switch/Sender
HORN Horn Relay
A/C COMP A/C Enable Relay
RR DEFOG Heater-A/C Control Selector Switch
ENG-I Oxygen Sensors 1-4, Camshaft Position Sensor, Mass Air Flow Sensor, Evaporative Emission Canister Purge Solenoid Valve, Linear EGR Valve Solenoid, VCM
IGN-E A/C Enable Relay
ECM-I Fuel Injectors 1-6, Crankshaft Position Sensor, VCM, Distributor Ignition Control Module
LIGHTING Park Lamps Fuse, DRL Fuse, Headlamp and Panel Dimmer Switch
BATT I/P Fuse Block Fuses, Power Seat CB, Stop/Hazard Fuse, Auxiliary Power Fuse, Cigarette Lighter Fuse, Radio, Battery Fuse
IGN A Starter Relay, Ignition Switch
IGN B Ignition Switc
ABS Brake Pressure Module Valve
A/C Blower Motor Resistor, Blower Relay
RR HTR/AC Auxiliary Heater A/C Relay
Spare Not Used
* A fuse puller is included in the underhood electrical center. You will also find spare fuses.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Achieva (1996 – 1998) – fuse and relay box diagram

Posted on by admin

Oldsmobile Achieva (1996 – 1998) – fuse and relay box diagram

Year of production: 1996, 1997, 1998



This article covers the Oldsmobile Achieva, produced from 1992 to 1998. It includes fuse box diagrams for the 1996, 1997 and 1998models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Passenger compartment

Fuse box location

It is located on the left side of the instrument panel (to access, open the fuse panel door).



Fuse box diagram

Oldsmobile Achieva (1996 - 1998) - fuse and relay box diagram - passenger compartment
Oldsmobile Achieva (1996 – 1998) – fuse and relay box diagram – passenger compartment



Assignment of the fuses in the passenger compartment (instrument panel)

Fuse Usage
PWR WDO Power Window (Circuit Breaker)
TURN Turn Signal Lamps
INT LPS Alarm Module (Illuminated Entry, Warning Chimes, Overhead Lamps, MapReading Lamps, Glove Box Lamp, Trunk Lamp, Radio, Power Mirrors), Anti-Lock Brakes, Variable Effort Steering, Remote Keyless Entry
PWR ST Power Seat
RDO IGN Radio
HTR-A/C Heater/Air Conditioning Blower, Daytime Running Lamps, Automatic Lamp Control
CRUISE Cruise Control
TAIL LPS Parking Lamps, Taillamps, Sidemarker Lamps, License Lamps, Instrument Panel Lights, Underhood Lamp, Headlamp Warning Alarm
LTR Cigarette Lighter, Auxiliary Power Outlet
WIPER Windshield Wipers/Washers
02 Heated Oxygen Sensors
DR UNLK Automatic Door Unlock
ALARM Automatic Transaxle, Automatic Door Unlock, Alarm Module (Illuminated Entry, Warning Chimes), Traction Telltale, Rear Window Defogger, Remote Keyless Entry
FOG/FTP Fog Lamps
PRNDL Instrument Cluster, Powertrain Computer, Park-Lock Solenoid, Electronic PRNDL
DR LK 2 Door Locks
AIR BAG Air Bag-Power
HORN Horn, Service Tool Power
INST Instrument Cluster
STOP HAZ Stoplamps, Hazard Lamps, Anti-Lock Brakes
PCM Powertrain Control Module
DR LK 1 Door Locks
INST LPS Instrument PanelL ights, Fog Lamps
RR DEF Rear Window Defogger
HDLP Headlamps, Daytime Running Lamps (Circuit Breaker)



Engine compartment

Fuse box location

It is located on the driver’s side of the engine compartment, near the battery



Fuse box diagram

Oldsmobile Achieva (1996 - 1998) - fuse and relay box diagram - engine compartment
Oldsmobile Achieva (1996 – 1998) – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

Fuse Usage
F/P, INJ Fuel Pump, Fuel Injectors
ERLS Back-up Lamps, Canister Purge Valve, EGR, Automatic Transaxle, Brake-Transaxle Shift Interlock, Anti-Lock Brakes, Variable Effort Steering, Air Conditioning Compressor, Park Lock Solenoid
ABS Anti-Lock Brake Solenoids, Variable Effort Steering
IGN MOD Ignition System
HVAC BLO MOT Heater/Air Conditioner-High Blower, Generator-Voltage Sense
PCM BATT Powertrain Computer
CLG FAN Engine Cooling Fan
HDLP Lighting Circuits
STOP LPS PWR ACC Power Accessory, Stoplamp Circuits,
RR DEFG Rear Window Defogger
ABS Anti-Lock Brakes, Variable Effort Steering
IGN SW Ignition Switched Circuits



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
