Ford F-250 (1992 – 1997) – fuse and relay box diagram

Posted on by admin

Ford F-250 (1992 – 1997) – fuse and relay box diagram

Year of production: 1992, 1993, 1993, 1994, 1995, 1996, 1997



This article focuses on the ninth-generation Ford F-Series, produced from 1992 to 1997. It provides fuse box diagrams for the 1992, 1993, 1994, 1995, 1996, and 1997 Ford F-150, F-250, and F-350 models, along with information on the locations of the fuse panels within the vehicle and the assignment of each fuse and relay (fuse layout).



Passenger Compartment Fuse Panel

Fuse box location

The fuse panel is located behind the cover to the left of the steering wheel. Remove the cover from the lower edge of the instrument panel by pulling on handle to disengage the fasteners.



Fuse box diagram

Ford F-250 - fuse and relay box diagram - passenger compartment
Ford F-250 – fuse and relay box diagram – passenger compartment



Assignment of the fuses in the instrument panel

№ A Description
1 30 Heater/Air conditioner blower
2 30 Wiper/Washer
8.25 Circuit breaker: Interval Wiper/Washer
3 3 Idle position switch (Diesel)
4 15 Exterior lamps;  Instrument illumination;  Trailer exterior lamp relay;  Warning buzzer/chime module
5 10 Airbag restraint
6 15 Fuel Tank Selector (Diesel Only), Air Conditioner/Heater, Remote/Keyless Entry
7 15 Turn Lamps
8 15 Courtesy Lamps. Engine Compartment Lamp, Radio Memory, Power Mirrors, Clock Memory, Speedometer Memory, Warning Chime, Sun Visor Mirror Illumination, Keyless Entry
9 15 Power point
25 Power point
10 4 Instrument illumination
11 15 Radio, Radio Display Dimmer
12 20 Circuit breaker: Electronic Shift Motor 4-wheel, Power Door Locks, Tailgate Power Window (Bronco)
30 Circuit breaker: Power Door Lock, Power Tailgate Window (Bronco), Electronic Shift Control, Power Lumbar
13 15 Stop and Hazard Lamps, Stop Sense For: Anti-lock Brakes, Speed Control, Electronic Engine Control, Brake Shift Interlock, Anti-Lock Brakes
14 20 Circuit breaker: Power Windows, Tailgate Power Window: Instrument Panel Switch
15 20 Anti-Lock Brakes
16 15 Cigarette Lighter, Generic Scan Tool
17 10 Overdrive Switch. Stop Lamp Switch, Warning Chime, Diesel Warning Lamps Display, Fuel Water Switch, Low Vacuum Warning Switch, Instrument Cluster, Electronic Shift Control, Tachometer, Gauges, Electronic Transmission
18 10 Air Bag Restraint, Automatic Day/Night Mirror, Brake Shift Interlock, Electronic Shift Module 4-wheel Drive, Overhead Console, Speedometer, Speed Control. Electronic Shift Control

Engine compartment fuse box

Fuse box diagram

Ford F-250 - fuse and relay box diagram - engine compartment
Ford F-250 – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

№ A Description
1 20A Audio power
2 (15A) Fog lamps;
200A alternator (Diesel ambulance only)
3 30A Daytime running lamps (Canada only);
Headlamp flash-to-pass;
Horn
4 25A Trailer back-up lamps;
Trailer running lamps
5 15A Back-up lamps;
Daytime running lamp module (DRL) (Canada only);
Oxygen sensor heater;
Trailer battery charge relay
6 10A Trailer right-hand stop/turn lamp
7 10A Trailer left-hand stop/turn lamp
8 30A maxi Injector driver module
9 30A (Gas) / 20A (Diesel) Powertrain control system
10 20A maxi Instrument panel fuses: 15,18;
Starter relay coil
11 — Not used
12 Diode Powertrain control system relay coil
13 50A maxi Instrument panel fuses: 5,9,13
14 — Not used
15 50A maxi Instrument panel fuses: 1, 7;
Power distribution box: fuse 5
16 20A maxi Fuel pump feed (Gas engine)
17 50A maxi Alternator charge lamp;
Idle position switch (Diesel);
Instrument panel fuses: 2, 6, 11,14,17;
Power distribution box: fuse 22
18 30A maxi Trailer battery charge
19 40A maxi Headlamps
20 50A maxi Instrument panel fuses: 4, 8, 12,16
21 30A maxi Trailer brake feed
22 20A maxi (Gas) / 30A (Diesel) Distributor pickup (Gas engine);
Fuel line heater (Diesel);
Glow plug controller (Diesel);
Ignition coil (Gas engine);
Powertrain control system relay coil;
Thick film integrated (TFI) module (Gas engine)
Relay 1 Powertrain control system
Relay 2 Fuel pump (Gas engine);
Injector driver module (IDM relay) (Diesel)
Relay 3 Horn
Relay 4 Trailer tow lamps
Relay 5 Anti-lock brake system (ABS) pump motor

Trailer relay box

Fuse box diagram

Ford F-250 - fuse and relay box diagram - trailer relay box
Ford F-250 – fuse and relay box diagram – trailer relay box



Assignment of the fuses in the trailer relay box

Circuit Protected Size Location
Headlamps & High Beam Indicator 22 Amp Circ. Brkr. Integral with Headlamp Switch
Alternator, 95 Amp 12 Ga. Fuse Link At Starting Motor Relay (Gasoline Engine)
Alternator, 130 Amp (2) 12 Ga. Fuse Links At Starting Motor Relay (Diesel Engine)
Diesel Glow Plugs (2) 14 Ga. Fuse Links At Starting Motor Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Buick Century (VI; 1997 – 1999) – fuse and relay box diagram

Posted on by admin

Buick Century (VI; 1997 – 1999) – fuse and relay box diagram

Year of production:  1997, 1998, 1999



This article covers the Buick Century. It includes fuse box diagrams for the 6th generation 1997 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Passenger compartment

Fuse box location

The fuse box is located on right side of the instrument panel, behind the cover.



Fuse box diagram

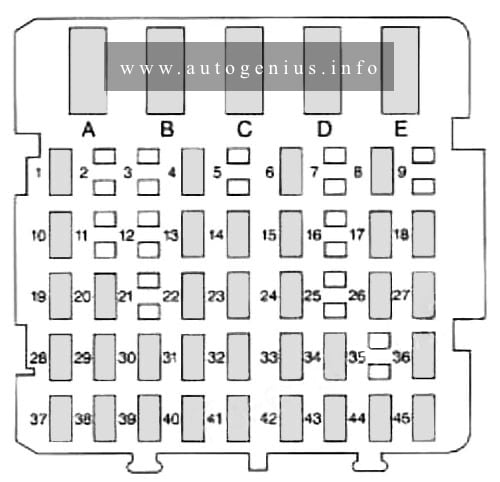

Buick Centaury (VI; 1997 - 1999) - fuse and relay box diagram - passenger compartment
Buick Centaury (VI; 1997 – 1999) – fuse and relay box diagram – passenger compartment



Assignment of the fuses in the passenger compartment

Circuit Breaker Usage
A —
B Power Windows/Sunroof
C Rear Defog
D Power Seats



Fuse Usage
1 —
4 Ignition Signal — Hot in Run and Start — PCM, BCM U/H Relay
6 Power Mirrors
8 Panel Dimming
10 Ignition Signal — Hot in Run, Unlock and Start — Cluster, Powertrain Control Module, Body Control Module
13 DRL Module
14 Interior Lamps
15 Door Locks
17 Taillamps, License Lamp
18 Radio
19 Heated Mirror
20 Cruise Control
22 Clusters
23 Cigarette Lighter — Auxiliary Power Connection, Data Link
24 Stoplamps
26 Parklamps
27 Auxiliary Power Connection — Hot in ACC and Run
28 Crank Signal — Body Control Module, Cluster, Powertrain Control Modules
29 Ignition Signal — HVAC Control Head
30 Brake Transmission Shift Interlock
31 Air Bag
32 Anti-lock Brake Controls, Body Control Module
33 Hazard Flashers
34 —
36 Ignition Signal — Hot in ACC and Run — Body Control Module
37 Anti-lock Brake Solenoids
38 Low Blowe
39 Anti-lock Brakes
40 Turn Signals
41 Radio, HVAC head, Keyless Entry, Cluster
42 High Blowe
43 —
44 Steering Wheel Controls
45 Wipers

Engine compartment

Fuse box diagram

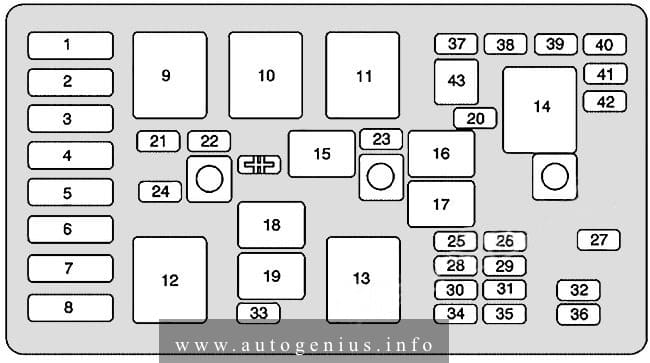

Buick Centaury (VI; 1997 - 1999) - fuse and relay box diagram - engine compartment
Buick Centaury (VI; 1997 – 1999) – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

Fuse Usage
1 Cooling Fan
2 Starter Solenoid
3 Power Seats, Rear Defog
4 High Blower, Hazard Flasher, Stoplamps, Power Mirror, Door Locks
5 Ignition Switch, BTSI, Stoplamps, ABS, Turn Signals, Cluster, Air Bag, DRL Module
6 Cooling Fan
7 Interior Lamps, Retained Accessory Power, ABS, Keyless Entry, Data Link, HVAC Head, Cluster, Radio, AUX Power, Cigarette Lighter
8 Ignition Switch, Wipers, Radio, Steering Wheel Controls, Body Control Module, AUX Power, Power Windows, Sunroof, HVAC Controls, DRL, Rear Defog Relay



Relay Usage
9 Cooling Fan 2
10 Cooling Fan 3
11 Starter Solenoid
12 Cooling Fan 1
13 Ignition Main
14 —



Fuse Usage
15 A/C Clutch



Relay Usage
16 Horn



Fuse Usage
17 —
18 —
19 Fuel Pump
20 Air Pump
21 Generator
22 ECM
23 A/C Compressor Clutch
24 —
25 Electronic Ignition
26 Transaxle
27 Horn
28 Fuel Injector
29 Oxygen Sensor
30 Engine Emissions
31 —
32 Headlamp (Right)
33 Rear Compartment Release
34 Parklamp
35 Fuel Pump
36 Headlamp (Left)
37 Spare
38 Spare
39 Spare
40 Spare
41 Spare
42 Spare
43 Fuse Puller
SYMBOL A/C Commessor Clutch Diode

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Oldsmobile Achieva (1996 – 1998) – fuse and relay box diagram

Posted on by admin

Oldsmobile Achieva (1996 – 1998) – fuse and relay box diagram

Year of production: 1996, 1997, 1998



This article covers the Oldsmobile Achieva, produced from 1992 to 1998. It includes fuse box diagrams for the 1996, 1997 and 1998models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Passenger compartment

Fuse box location

It is located on the left side of the instrument panel (to access, open the fuse panel door).



Fuse box diagram

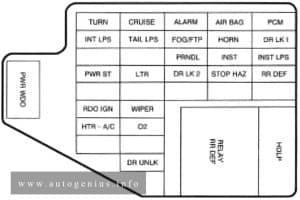

Oldsmobile Achieva (1996 - 1998) - fuse and relay box diagram - passenger compartment
Oldsmobile Achieva (1996 – 1998) – fuse and relay box diagram – passenger compartment



Assignment of the fuses in the passenger compartment (instrument panel)

Fuse Usage
PWR WDO Power Window (Circuit Breaker)
TURN Turn Signal Lamps
INT LPS Alarm Module (Illuminated Entry, Warning Chimes, Overhead Lamps, MapReading Lamps, Glove Box Lamp, Trunk Lamp, Radio, Power Mirrors), Anti-Lock Brakes, Variable Effort Steering, Remote Keyless Entry
PWR ST Power Seat
RDO IGN Radio
HTR-A/C Heater/Air Conditioning Blower, Daytime Running Lamps, Automatic Lamp Control
CRUISE Cruise Control
TAIL LPS Parking Lamps, Taillamps, Sidemarker Lamps, License Lamps, Instrument Panel Lights, Underhood Lamp, Headlamp Warning Alarm
LTR Cigarette Lighter, Auxiliary Power Outlet
WIPER Windshield Wipers/Washers
02 Heated Oxygen Sensors
DR UNLK Automatic Door Unlock
ALARM Automatic Transaxle, Automatic Door Unlock, Alarm Module (Illuminated Entry, Warning Chimes), Traction Telltale, Rear Window Defogger, Remote Keyless Entry
FOG/FTP Fog Lamps
PRNDL Instrument Cluster, Powertrain Computer, Park-Lock Solenoid, Electronic PRNDL
DR LK 2 Door Locks
AIR BAG Air Bag-Power
HORN Horn, Service Tool Power
INST Instrument Cluster
STOP HAZ Stoplamps, Hazard Lamps, Anti-Lock Brakes
PCM Powertrain Control Module
DR LK 1 Door Locks
INST LPS Instrument PanelL ights, Fog Lamps
RR DEF Rear Window Defogger
HDLP Headlamps, Daytime Running Lamps (Circuit Breaker)



Engine compartment

Fuse box location

It is located on the driver’s side of the engine compartment, near the battery



Fuse box diagram

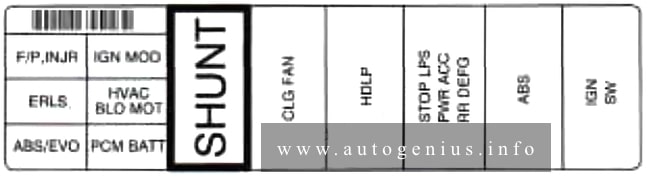

Oldsmobile Achieva (1996 - 1998) - fuse and relay box diagram - engine compartment
Oldsmobile Achieva (1996 – 1998) – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

Fuse Usage
F/P, INJ Fuel Pump, Fuel Injectors
ERLS Back-up Lamps, Canister Purge Valve, EGR, Automatic Transaxle, Brake-Transaxle Shift Interlock, Anti-Lock Brakes, Variable Effort Steering, Air Conditioning Compressor, Park Lock Solenoid
ABS Anti-Lock Brake Solenoids, Variable Effort Steering
IGN MOD Ignition System
HVAC BLO MOT Heater/Air Conditioner-High Blower, Generator-Voltage Sense
PCM BATT Powertrain Computer
CLG FAN Engine Cooling Fan
HDLP Lighting Circuits
STOP LPS PWR ACC Power Accessory, Stoplamp Circuits,
RR DEFG Rear Window Defogger
ABS Anti-Lock Brakes, Variable Effort Steering
IGN SW Ignition Switched Circuits



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

GMC Savana (1997 – 2000) – fuse and relay box diagram

Posted on by admin

GMC Savana (1997 – 2000) – fuse and relay box diagram

Year of production: 1997, 1998, 1999, 2000



This article provides fuse box diagrams for the GMC Savana models from 1997 to 2000. It includes information on the location of the fuse panels within the vehicle and details the function and layout of each fuse and relay.

Passenger Compartment

Fuse box location

The fuse block access door is on the driver’s side of the instrument panel above the hood release lever.



Fuse box diagram

GMC Savana (1997 - 2000) - fuse and relay box diagram - passenger compartment
GMC Savana (1997 – 2000) – fuse and relay box diagram – passenger compartment



Assignment of the fuses in the passenger compartment

Position Name Circuits protected
1 STOP Stop/CHMSL, Stoplamps
2 HTD MIR Electric Heated Mirrors
3 CTSY Courtesy Lamps, Dome/RDG Lamps, Vanity Mirrors, Power Mirrors
4 GAUGES IP Cluster, DRL Relay, DRL Module, HDLP Switch, Keyless Entry Illumination, Low Coolant Module, CHIME Module, DRAB Module
5 HAZARD Hazard Lamps/CHIME Module
6 CRUISE Cruise Control
7 PWR AUX Auxiliary Power Outlet, DLC
8 CRANK —
9 PARK LPS License Plate Lamp, Parking Lamps, Taillamps, Front Sidemarkers, Glove Box Ashtray
10 AIR BAGS Air Bags
11 WIPER Wiper Motor, Washer Pump
12 HTR-A/C A/C, A/C Blower, High Blower Relay, HTD Mirror
13 CIG LTR Cigarette Lighter
14 ILLUM IP Cluster, HVAC Controls, RR HVAC Controls, IP Switches, Radio Illumination, Door Switch Illumination
15 DRL DRL Relay
16 TURN B/U Front Turn, RR Turn, Back-up Lamps, BTSI Solenoid
17 RADIO-1 Radio (Ign, Accy), Upfitter Provision Relay
18 BRAKE 4WAL PCM, ABS, Cruise Control
19 RADIO-B Radio (Battery), Power Antenna
20 TRANS PRNDL, Automatic Transmission
21 SECURITY Passlock
22 RR DEFOG Rear Window Defog
23 Not Used —
24 RR HVAC RR HVAC Controls, HIGH, MED, LOW Relays
A PWR ACCY Power Door Lock, Six-Way Power Seat, Keyless Entry Illumination Module
B PWR WDO Power Windows
Fuse amperage levels are imprinted on the fuse panel under the dash.

Engine Compartment

Fuse box location

The fuse block is on the driver’s side of the engine compartment at the rear.



Fuse box diagram

GMC Savana (1997 - 2000) - fuse and relay box diagram - engine compartment
GMC Savana (1997 – 2000) – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

Name Circuit protected
BLOWER Front Blower Motor
ABS Electronic Brake Control Module
IGN B Ignition Switch
IGN A Starter Relay, Ignition Switch
BATT Instrument Panel Fuse Block
LIGHTING Instrument Panel Fuse Block, Headlamp Switch
RR BLOWER Rear Auxiliary Blower Motor Relays
ENG-I Heated O2 Sensors, Mass Air Flow Sensor, EGR Valve Solenoid, Evap Canister Purge Valve, Crankshaft Position Sensor, Secondary Air Injection Relay (Diesel), Water in Fuel Sensor (Diesel), Fuel Heater (Diesel), Glowplug Relay (Diesel), Wastegate Solenoid (Diesel)
A/C Air Conditioning Clutch Relay
SPARE Spare Fuses
AUX A Upfitter Provisions
AUX B Upfitter Provisions
RH-HDLP Right-hand Headlamp (Export only)
RH-HIBM Right-hand High-beam Headlamp (Export only)
ECM-I Ignition Coil, Camshaft Position Sensor, VCM, Fuel Injectors, Coil Driver
HORN Horn Relay, Underhood Lamp(s)
LH-HDLP Left-hand Headlamp (Export only)
LH-HIBM Left-hand High-beam Headlamp (Export only)
FUEL SOL PCM, Fuel Solenoid Driver, Engine Shutoff Solenoid
IGN-E Air Conditioning Clutch Relay
ECM-B Fuel Pump Relay, VCM, PCM, Fuel Pump and Engine Oil Pressure Switch



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Toyota Previa First Generation mk1 (XR10, XR20; 1990–1999) – fuse box diagram

Posted on by admin

Toyota Previa First Generation mk1 (XR10, XR20; 1990–1999) – fuse box diagram

Year of production: 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999

Instrument panel

Toyota Previa mk1 - fuse box - instrument panel
Toyota Previa mk1 – fuse box – instrument panel

Front compartment

Toyota Previa mk1 - fuse box - front compartment
Toyota Previa mk1 – fuse box – front compartment

Fuses (type A)

Fuse Ampere rating [A} Circuit
1 ST 7,5 Starter system
2 IGN 7,5 Charging system, discharge warning light, emission control system, multiport fuel injection system/sequential multiport fuel injection system, SRS airbag system
3 OBD 7,5 On-board diagnosis system
4 FOG 20 Front fog lights
5 T/M ACC 7,5 Automatic transmission shift indicator
6 TAIL 15 Tail lights, parking lights, side marker lights, license plate lights, instrument panel lights
7 HAZ-HORN 15 Emergency flashers, horns, turn signal lights
8 HEAD (LH) 15 (USA) Left-hand headlight
HEAD
(LH-L WR)		 10 (Canada)
9 HEAD (RH) 15 (USA) Right-hand headlight
HEAD
(RH-L WR)		 10 (Canada)
10 ENGINE 7,5 Charging system, emission control system
11 RADIO 7,5 Radio, cassette tape player, Compact Disc player
12 ST-A 7,5 Starter system
13 STOP 20 Stop lights, anti-lock brake system
14 DOME 15 Interior lights, luggage compartment light, clock, open door warning light, radio, cassette tape player, Compact Disc player
15 DEFOG 15 Rear window defogger
16 ECU-B 15 Anti-lock brake system, electronically controlled automatic transmission system
17 CIG 15 Cigarette lighter, digital clock display, power rear view mirrors, theft deterrent system, SRS airbag system, automatic transmission shift lock system
18 EFI 15 Multiport fuel injection system/sequential multiport fuel injection system
19 TURN 7,5 Turn signal lights
20 GAUGE 10 Gauges and meters, service reminder indicators and warning buzzers (except discharge and open door warning lights), back-up lights, automatic transmission overdrive system, rear window defogger, electric rear sun roof, power windows, power door lock system
21 FR-WIPER 30 Windshield wipers and washer
22 ENGINE OIL 15 Engine oil autofeed system
23 RR-WIPER 15 Rear window wiper and washer
24 A/C 15 Air conditioning cooling system, cool box
25 ECU-IG 15 Cruise control system, electronically controlled automatic transmission system, anti-lock brake system, theft deterrent system
26 FR-W ASHER 10 Windshield washer motor
27 HEAD (LH-UPR) 10 Left-hand headlight (Canada only)
28 HEAD (RH-UPR) 10 Right-hand headlight (Canada only)
29 ALT-S 7,5 Charging system
30 AM2 20 Charging system, discharge warning light, emission control system, multiport fuel injection system/ sequential multiport fuel injection system

Fuses (type B)

Fuse Ampere rating [A] Circuit
31 DOOR 30 Power door lock system, theft deterrent system
32 POWER 30 Electric rear sun roof, power windows

Fuses (type C)

Fuse Ampere rating [A] Circuit
33 ABS 60 Anti-lock brake system
34 ALT 100 “ABS”, “AM1”, “STOP”, “DEFOG”, “FOG”, “ECU-B”, “TAIL”, “A/C” and “RR A/C” fuses, and “FR-HTR” circuit breaker
35 AM1 50 “ENGINE”, “GAUGE”, “TURN”, “FR-WIPER”, “ECU-IG”, “A/C”, “RADIO”, “CIG”, “ST”, “POWER” and DOOR” fuses
36 MAIN 50 “HAZ-HORN”, “DOME”, “HEAD (LH)”, “HEAD (RH)” and “EFI” fuses

Circuit breaker

Fuse Ampere rating [A] Circuit
37 FR-HTR C/B 40 Air conditioning control system

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
