Dodge RAM 2500  (1998 – 2001) – fuse and relay box diagram

Posted on by admin

Dodge RAM 2500  (1998 – 2001) – fuse and relay box diagram

Year of production: 1998, 1999, 2000, 2001



The Dodge Ram 2500 (1998–2001) was part of the second generation of Dodge Ram trucks, which debuted in 1994 and was produced until 2002. The Ram 2500 was the heavy-duty version of the Dodge Ram lineup, offering more towing capacity, payload capability, and durability compared to the half-ton Ram 1500. This truck was particularly popular with those needing a vehicle for heavy work such as towing trailers, hauling heavy loads, or off-roading.



Passenger Compartment Fuse Box

Fuse box location

The fuse panel is located behind the cover on the driver’s side of the instrument panel.

Dodge RAM 1500 (1994 - 1997) - fuse and relay location - passenger compartment
Dodge RAM 2500 (1998 – 2001) – fuse and relay location – passenger compartment



Fuse box diagram

Dodge RAM 1500 (1998 - 2001) - fuse and relay diagram - passenger compartment
Dodge RAM 2500 (1998 – 2001) – fuse and relay diagram – passenger compartment



Assignment of fuses in the passenger compartment (1998 – 2001)

No.
 A
 Protected Component
1 15 Heated Seat Relay, Central Timer Module
2 10 Blower Motor Relay, A/C Heater Temperature Select, Blend Door Actuator, Driver Heated Seat Switch, Passenger Heated Seat Switch, Heated Mirror Switch
3 10 Controller Antilock Brake (ABS)
4 10 Radio Choke Relay
5 5 Radio, Cluster, A/C Heater Control, Cup Holder Lamp, Ash Receiver Lamp, Driver Heated Seat Switch, Passenger Heated Seat Switch
6 25 Intermittent Wiper Switch, Central Timer Module, Windshield Washer Pump, Wiper Motor, Wiper Motor Relay
7 10 Park/Neutral Position (PNP) Switch (A/T), Back-Up Lamp Switch (M/T), Daytime Running Lamp Module
8 10 Radio
9 10 Powertrain Control Module, Fuel Pump Relay (Gasoline), Engine Control Module (Diesel)
10 10 Combination Flasher
11 10 Automatic Day/Night Mirror, Overhead Console, Central Timer Module, EVAP/Purge Solenoid, Fuel Heater Relay (Diesel), Air Conditioner Compressor Clutch
12 10 Power Mirror Switch, Dome Lamp, Cargo Lamp, Data Link Connector, Radio, Glove Box Lamp and Switch, Overhead Console, Underhood Lamp, Left Visor/Vanity Lamp, Right Visor/Vanity Lamp
13 10 Driver Door Window/Lock Switch, Passenger Door Window/Lock Switch, Central Timer Module
14 10 Cluster
15 20 Cigar Lighter
16 –  –
17 10 Cluster
18 10 Airbag Control Module
19 10 Airbag Control Module, Passenger Airbag On/Off Switch
20 20 Circuit Breaker: Driver Door Window/Lock Switch, Passenger Door Window/Lock Switch
21 20 Circuit Breaker: Driver Power Seat Switch, Passenger Power Seat Switch
Relay
R1 Combination Flasher
R2 Heated Seat



Engine Compartment Fuse Box

Fuse box location

Dodge RAM 1500 (1994 - 1997) - fuse and relay location - engine compartment
Dodge RAM 2500 (1998 – 2001) – fuse and relay location – engine compartment



Fuse box diagram

Dodge RAM 1500 (1998 - 2001) - fuse and relay diagram - engine compartment
Dodge RAM 2500 (1998 – 2001) – fuse and relay diagram – engine compartment



Assignment of fuses and relay in the engine compartment (1998 – 2001)

No.
 A
 Protected Component
1 50 Junction Block ((Passenger Compartment) Fuse: “1”, “4”, “12”, “13”, “14”, “21”)
2 30 Ignition Switch
3 20 Gasoline: Powertrain Control Module, Fuel Pump Relay
20 Diesel: Engine Control Module, Powertrain Control Module, Fuel Pump Relay,
4 20 Junction Block ((Passenger Compartment) Combination Flasher)
5 20 Stop Lamp Switch, Electric Brake Provision, Center High Mounted Stop Lamp, Turn Signal/Hazard Switch
6 30 Automatic Shut Down Relay, Injector, Ignition Coil, Capacitor, Oxygen Sensor, Oxygen Sensor Downstream Relay, Powertrain Control Module
7 40 Fuel Heater Relay
8 40 Trailer Tow Connector, Electric Brake Provision, Trailer Tow Relay
9 30 Starter Motor Relay
10 50 Ignition Switch
11 40 Controller Antilock Brake (ABS)
12 40 Blower Motor Relay
13 140 Generator
A –  –
B 15 Right Outboard Headlamp
C 15 Left Outboard Headlamp
D –  –
E 15 Left Headlamp, Right Headlamp, Quad High Beam Relay
F 20 Headlamp Switch
G 15 Security Relay, Daytime Running Lamp Module, Fog Lamp Relay, Headlamp Beam Select Switch, Left Outboard Headlamp, Right Outboard Headlamp
H 20 Horn Relay, Central Timer Module, Clockspring
I 20 Transmission Control Relay
J 10 Air Conditioner Compressor Clutch
K1 15
K2 15
L 20 Power Outlet
M –  –
Relay
R1 Fuel Pump
R2  –
R3 Horn
R4 Quad High Beam
R5 Fog Lamp
R6 Oxygen Sensor – Rear
R7 Wiper Motor
R8 Security
R9 ASD
R10 Air Conditioner Compressor Clutch
R11  –
R12 Transmission Control
R13  –
R14 Fuel Heater
R15 Starter Motor
R16 Blower Motor
R17 Trailer Tow

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Dodge RAM 1500  (1998 – 2001) – fuse and relay box diagram

Posted on by admin

Dodge RAM 1500  (1998 – 2001) – fuse and relay box diagram

Year of production: 1998, 1999, 2000, 2001



The Dodge Ram 1500 (1998–2001) was part of the second generation of Dodge Ram trucks, which initially debuted in 1994. During this period, Dodge made incremental updates to the truck’s design, technology, and performance to keep it competitive in the full-size pickup market. This generation is known for its bold design, capable powertrains, and improved comfort and features compared to earlier models.



Passenger Compartment Fuse Box

Fuse box location

The fuse panel is located behind the cover on the driver’s side of the instrument panel.

Dodge RAM 1500 (1994 - 1997) - fuse and relay location - passenger compartment
Dodge RAM 1500 (1998 – 2001) – fuse and relay location – passenger compartment



Fuse box diagram

Dodge RAM 1500 (1998 - 2001) - fuse and relay diagram - passenger compartment
Dodge RAM 1500 (1998 – 2001) – fuse and relay diagram – passenger compartment



Assignment of fuses in the passenger compartment (1998 – 2001)

No.
 A
 Protected Component
1 15 Heated Seat Relay, Central Timer Module
2 10 Blower Motor Relay, A/C Heater Temperature Select, Blend Door Actuator, Driver Heated Seat Switch, Passenger Heated Seat Switch, Heated Mirror Switch
3 10 Controller Antilock Brake (ABS)
4 10 Radio Choke Relay
5 5 Radio, Cluster, A/C Heater Control, Cup Holder Lamp, Ash Receiver Lamp, Driver Heated Seat Switch, Passenger Heated Seat Switch
6 25 Intermittent Wiper Switch, Central Timer Module, Windshield Washer Pump, Wiper Motor, Wiper Motor Relay
7 10 Park/Neutral Position (PNP) Switch (A/T), Back-Up Lamp Switch (M/T), Daytime Running Lamp Module
8 10 Radio
9 10 Powertrain Control Module, Fuel Pump Relay (Gasoline), Engine Control Module (Diesel)
10 10 Combination Flasher
11 10 Automatic Day/Night Mirror, Overhead Console, Central Timer Module, EVAP/Purge Solenoid, Fuel Heater Relay (Diesel), Air Conditioner Compressor Clutch
12 10 Power Mirror Switch, Dome Lamp, Cargo Lamp, Data Link Connector, Radio, Glove Box Lamp and Switch, Overhead Console, Underhood Lamp, Left Visor/Vanity Lamp, Right Visor/Vanity Lamp
13 10 Driver Door Window/Lock Switch, Passenger Door Window/Lock Switch, Central Timer Module
14 10 Cluster
15 20 Cigar Lighter
16 –  –
17 10 Cluster
18 10 Airbag Control Module
19 10 Airbag Control Module, Passenger Airbag On/Off Switch
20 20 Circuit Breaker: Driver Door Window/Lock Switch, Passenger Door Window/Lock Switch
21 20 Circuit Breaker: Driver Power Seat Switch, Passenger Power Seat Switch
Relay
R1 Combination Flasher
R2 Heated Seat



Engine Compartment Fuse Box

Fuse box location

Dodge RAM 1500 (1994 - 1997) - fuse and relay location - engine compartment
Dodge RAM 1500 (1998 – 2001) – fuse and relay location – engine compartment



Fuse box diagram

Dodge RAM 1500 (1998 - 2001) - fuse and relay diagram - engine compartment
Dodge RAM 1500 (1998 – 2001) – fuse and relay diagram – engine compartment



Assignment of fuses and relay in the engine compartment (1998 – 2001)

No.
 A
 Protected Component
1 50 Junction Block ((Passenger Compartment) Fuse: “1”, “4”, “12”, “13”, “14”, “21”)
2 30 Ignition Switch
3 20 Gasoline: Powertrain Control Module, Fuel Pump Relay
20 Diesel: Engine Control Module, Powertrain Control Module, Fuel Pump Relay,
4 20 Junction Block ((Passenger Compartment) Combination Flasher)
5 20 Stop Lamp Switch, Electric Brake Provision, Center High Mounted Stop Lamp, Turn Signal/Hazard Switch
6 30 Automatic Shut Down Relay, Injector, Ignition Coil, Capacitor, Oxygen Sensor, Oxygen Sensor Downstream Relay, Powertrain Control Module
7 40 Fuel Heater Relay
8 40 Trailer Tow Connector, Electric Brake Provision, Trailer Tow Relay
9 30 Starter Motor Relay
10 50 Ignition Switch
11 40 Controller Antilock Brake (ABS)
12 40 Blower Motor Relay
13 140 Generator
A –  –
B 15 Right Outboard Headlamp
C 15 Left Outboard Headlamp
D –  –
E 15 Left Headlamp, Right Headlamp, Quad High Beam Relay
F 20 Headlamp Switch
G 15 Security Relay, Daytime Running Lamp Module, Fog Lamp Relay, Headlamp Beam Select Switch, Left Outboard Headlamp, Right Outboard Headlamp
H 20 Horn Relay, Central Timer Module, Clockspring
I 20 Transmission Control Relay
J 10 Air Conditioner Compressor Clutch
K1 15
K2 15
L 20 Power Outlet
M –  –
Relay
R1 Fuel Pump
R2  –
R3 Horn
R4 Quad High Beam
R5 Fog Lamp
R6 Oxygen Sensor – Rear
R7 Wiper Motor
R8 Security
R9 ASD
R10 Air Conditioner Compressor Clutch
R11  –
R12 Transmission Control
R13  –
R14 Fuel Heater
R15 Starter Motor
R16 Blower Motor
R17 Trailer Tow

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Dodge Neon (1994 – 1999) – fuse and relay box diagram

Posted on by admin

Dodge Neon (1994 – 1999) – fuse and relay box diagram

Year of production: 1994, 1995, 1996, 1997, 1998, 1999



The Dodge Neon was a compact car produced by Chrysler Corporation under the Dodge brand, from 1994 to 2005. Known for its affordability, sporty handling, and peppy performance, it was one of the more exciting economy cars of its era.



First Generation (1994–1999), Second Generation (2000–2005), Dodge Neon SRT-4 (2003–2005)



Passenger Compartment Fuse Box

Fuse box location

The fuse panel is located behind the cover on the driver’s side of the dashboard.

Dodge Neon (1994 - 1999) - fuse and relay location - passenger compartment
Dodge Neon (1994 – 1999) – fuse and relay location – passenger compartment



Fuse box Diagram

Dodge Neon (1994 - 1999) - fuse and relay diagram - passenger compartment
Dodge Neon (1994 – 1999) – fuse and relay diagram – passenger compartment



Assignment of fuses in the passenger compartment

No.
 A
 Circuit Protected
1 15 Cigar Lighter/Power Outlet
2 15 Headlamp Switch (Park Lamp, Tail Lamp, License Lamp, Radio, Front Fog Lamp Switch, Remote Keyless Entry Module (’98-’99))
3 20 Door Lock Switch, Remote Keyless Entry Module (’98-’99), Immobilizer (’98-’99)
4 10 Fog Lamp Switch
5 10 ’95-’97: A/C Cycling Switch, Back-Up Lamp (Back-Up Lamp Switch M/T), Park/Neutral Position Switch (A/T), Rear Window Defogger Switch
10 ’98-’99 (LHD): Airbag Control Module
10 ’98-’99 (RHD): A/C Cycling Switch, Back-Up Lamp (Back-Up Lamp Switch M/T), Park/Neutral Position Switch (A/T), Rear Window Defogger Switch, High Speed Warning Module
6 10 Turn Signal/Hazard
7 25 A/C Heater Blower Motor
8 10 ’95-’97: Airbag Control Module
10 ’98-’99 (LHD): A/C Cycling Switch, Back-Up Lamp (Back-Up Lamp Switch M/T), Park/Neutral Position Switch (A/T), Rear Window Defogger Switch, High Speed Warning Module
10 ’98-’99 (RHD): Airbag Control Module
9 4 ’95-’97: Instrument Cluster, Radio, Ash Receiver Lamp, Rear Window Defogger Switch, “PRNDL” Lamp, Rear Fog Lamp Switch, A/C Heater Control Switch, Headlamp Leveling Switch
10 ’98-’99 (LHD): Airbag Control Module
4 ’98-’99 (RHD): Instrument Cluster, Radio, Ash Receiver Lamp, Rear Window Defogger Switch, “PRNDL” Lamp, Rear Fog Lamp Switch, A/C Heater Control Switch, Headlamp Leveling Switch
10 15 Powertrain Control Module, Air Conditioner Compressor Clutch Relay, ABS, Vapor Canister Leak Detector, Torque Converter Clutch Solenooid (A/T), Duty Cycle EVAP/Purge Solenoid, ABS Relay Box, EGR Transducer Solenoid, ABS Warning Lamp Relay
11 5 Instrument Cluster, Daytime Running Lamp Module (’98-’99), Remote Keyless Entry Module (’98-’99), Immobilizer (’98-’99)
12 10 ’95-’97: Airbag Control Module
4 ’98-’99 (LHD): Instrument Cluster, Radio, Ash Receiver Lamp, Rear Window Defogger Switch, “PRNDL” Lamp, Rear Fog Lamp Switch, A/C Heater Control Switch, Headlamp Leveling Switch
10 ’98-’99 (RHD): Airbag Control Module
13 –  –
14 20 Sunroof
15 20 Wiper Motor, Wiper/Washer Switch, Intermittent Wiper/Washer Switch, Cigar Lighter Relay
16 10 Radio
17 10 Left Headlamp, Left/Right Headlamp Leveling Motor
18 10 Right Headlamp
19 –  –
20 –  –
Circuit Breaker
CB1 30 Power Window, Power Window
CB2 –  –
Relay
R1 ’98-’99 (LHD): Time Delay
R2 ’95-’97: Cigar Lighter
’98-’99 (LHD): Combination Flasher
’98-’99 (RHD): Cigar Lighter
R3 ’95-’97: Combination Flasher
’98-’99 (LHD): Time Out
’98-’99 (RHD): Combination Flasher



Engine Compartment Fuse Box

Fuse box location

Dodge Neon (1994 - 1999) - fuse and relay location - engine compartment
Dodge Neon (1994 – 1999) – fuse and relay location – engine compartment



Fuse box diagram

Dodge Neon (1994 - 1999) - fuse and relay diagram - engine compartment
Dodge Neon (1994 – 1999) – fuse and relay diagram – engine compartment



Assignment of fuses and relay in the engine compartment

No.
 A
 Protected Component
2 40 Ignition Switch (Fuse (Passenger Compartment): “5”, “6”, “7”, “8”, “CB1”)
3 40 Headlamp Switch, Fuse (Passenger Compartment): “1”, “3”, “4”
5 30 Solid State Fan Relay (Radiator Fan)
8 30 Rear Window Defogger
10 40 ABS Relay Box
11 30 Starter Relay, Ignition Switch (Clutch Pedal Position Switch (M/T), Fuse (Passenger Compartment): “10”, “11”, “12”, “14”, “15”, “16”)
13 10 Dome Lamp, Trunk Lamp, Underhood Lamp, Instrument Cluster, Radio, Glove Box Lamp, Map/Reading Lamp, Visor/Vanity Lamp, Power Mirror Switch, High Speed Warning Module (’98-’99), Time Delay Relay (’98-’99), Time Out Relay (’98-’99)
16 20 Fog Lamp Relay, Rear Fog Lamp Switch
18 10 ’95-’97: Air Conditioner Compressor Clutch Relay
20 ’98-’99: Air Conditioner Compressor Clutch Relay, ABS
20 10 Turn Signal/Hazard
21 20 Fuel Pump Relay, Auto Shut Down Relay (Fuel Injectors, Ignition Coil Pack, Powertrain Control Module, Generator, Data Link Connector, Oxygen Sensors, Capacitor, Noise Suppressor)
23 15 Horn Relay
25 15 Stop Lamp Switch
Relay
R1  –
R2 Fuel Pump
R3 Auto Shut Down
R4 Horn
R5 Fog Lamp
R6 ABS Warning Lamp
R7 Air Conditioner Compressor Clutch
R8 Starter

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Dodge Durango (1998 – 2000) – fuse and relay box diagram

Posted on by admin

Dodge Durango (1998 – 2000) – fuse and relay box diagram

Year of  production: 1998, 1999, 2000

Passenger compartment

Fuse box location

The fuse panel is located behind the cover on the driver’s side of dash panel.

Dodge Durango - fuse box location - passenger compartment
Dodge Durango (1998 – 2000) – fuse box location – passenger compartment

Fuse box diagram

Dodge Durango - fuse box diagram - passenger compartment
Dodge Durango (1998 – 2000) – fuse box diagram – passenger compartment



Assignment of the fuses in the instrument panel

№ Amps Description
1 20A Brake Lamp Switch
or
Headlamp Relay & A/C Compressor Clutch Relay
2 15A/20A Daytime Running Lamp, Passenger Door Lock Switch, Park/Neutral Position Switch
3 10A Controller Anti-Lock Brake
4 15A Power Amplifier
5 5A Headlamp Switch, Overhead A/C Control, Instrument Cluster, Radio, Rear Wiper/Defogger Switch, Ash Receiver Lamp & A/C-Heater Control
6 20A Central Timer Module, Multifunction Switch, Wiper Motor, Wiper Relay & Junction Block
7 15A A/C Low Temperature Cut-Out Switch, Blower Motor Relay, A/C Compressor Clutch Relay & Rear Wiper/Defogger Switch
8 10A Radio
9 10A Automatic Shut Down Relay, Fuel Pump Relay & Powertrain Control Module
10 15A –
11 10A Diagnostic Connector, Overhead Console, Automatic Day/Night Mirror, Central Timer Module & Duty Cycle Evap/Purge Solenoid
12 15A Left/Right Courtesy Lamp, Data Link Connector, Instrument Cluster, Glove Box Lamp, Radio, Left/Right Visor/Vanity Mirror, Front/Rear Dome Light, Overhead Console, Power Mirror Switch, Liftgate Lamp, Underhood Lamp & Rear Wiper Motor
13 15A/20A Central Timer Module, Relay/Fuse Block, Driver/Passenger Power Door Lock Switch & Driver Power Door Lock
14 15A Headlamp Switch
15 15A Cigar Lighter
16 15A Combination Flasher
17 10A Instrument Cluster
18 10A Airbag Control Module
19 10A Airbag Control Module
20 25A Power Window / Door Lock Switch
21 –  –
R1 Horn Relay
R2 Combination Flasher Relay

Engine Compartment

Fuse box location

Dodge Durango - fuse box location - engine compartment
Dodge Durango (1998 – 2000) – fuse box location – engine compartment

Fuse box diagram

Dodge Durango (1998 - 2000) - fuse box diagram - engine compartment
Dodge Durango (1998 – 2000) – fuse box diagram – engine compartment



Assignment of the fuses in the engine compartment

№ Amps Description
A 15A Powertrain Control Module, Fuel Injector/Coil On Plug 1, 2, 3, 4, 5, 6, 7, 8, Ignition Coil, Oxygen Sensors & Capacitors 1 & 2
B 20A Transmission Control Relay & Transmission Control Module
C 20A Fog Lamp Relay, Left/Right Fog Lamp & Daytime Running Lamp
D 20A Brake Lamp Switch
E 15A Left Headlamp
F 25A Combination Flasher
G 15A Right Headlamp
1 20A Powertrain Control Module, Fuel Pump Relay & Fuel Pump Module
2 30A Radiator Fan Relay
3 30A Automatic Shut Down Relay
4 50A Power Seat Switch & Rear Wiper/Defogger Switch
5 40A Blower Motor Relay
6 50A Relay/Fuse Block, Electric Brake & Trailer Tow Connector
7 40A Junction Block
8 40A Controller Anti-Lock Brake
9 50A Ignition Switch & Engine Starter Motor Relay
10 40A Ignition Switch
11 140A Generator
R1 Wiper Relay
R2 Blower Motor Relay
R3 Starter Relay
R4 Oxygen Upstream Relay
R5 Fog Lamp Relay
R6 Radiator Fan Relay
R7 Transmission Control Relay / Trailer Relay
R8 Air Conditioner Compressor Clutch Relay
R9 Automatic Shut Down (ASD) Relay
R10 Oxygen Upstream Relay
R11 Radiator Fan Relay / Transmission Control Relay
R12 Headlamp Flasher Relay / HD LPS
R13 Fuel Pump Relay



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Jeep Cherokee (XJ; 1997 – 2001) – fuse and relay box diagram

Posted on by admin

Jeep Cherokee (XJ; 1997 – 2001) – fuse and relay box diagram

Year of production: 1997, 1998, 1999, 2000, 2001



In this article, we focus on the post-facelift second-generation Jeep Cherokee (XJ), manufactured between 1997 and 2001. You’ll find fuse box diagrams for the 1997, 1998, 1999, 2000, and 2001 models, along with details on the locations of the fuse panels inside the vehicle and information on the function and layout of each fuse and relay.

Passenger compartment fuse box

Fuse Box Location

It is located behind the lid under the glove compartment.



Fuse Box Diagram

Jeep Cherokee (XJ; 1997 - 2001) - fuse and relay box diagram - passenger compartment
Jeep Cherokee (XJ; 1997 – 2001) – fuse and relay box diagram – passenger compartment



Assignment of the fuses and relay under the dashboard

No. A Description
1 25 Power Outlet
2 25 Cigar Lighter
3 10 Left Headlamp (High Beam), Fog Lamp Relay No.1 (’98-’01)
4 10 Left Headlamp (Low Beam), Leveling Motor
5 10 Right Headlamp (Low Beam), Leveling Motor, Headlamp Leveling Switch, Daytime Running Lamp Module (’98-’01)
6 5 Instrument Cluster, Radio, Rear Wiper/Washer Switch, A/C Heater Control or Heater Control, Rear Window Defogger Switch, Extended Idle Switch, Front Fog Lamp Switch, Rear Fog Lamp Switch, Transmission Range Indicator Illumination (PRNDL), Transfer Case Switch Illumination
7 10 Left Tail Lamp, Left Front Park Lamp, Left Side Marker Lamp, Trailer Tow Connector, License Lamp, Front Fog Lamp Relay No.1 (’98-’01), Front Fog Lamp Switch, Fog Lamp Relay
8 –  –
9 10 Instrument Cluster, Overhead Console, Sentry Key Immobilizer Module (’99-’01), Message Center/Tell Tale Module (Diesel), Headlamp Delay Module, Compass
10 15 ’99-’01: Back-Up Lamp, Back-Up Lamp Switch (M/T), Transmission Range Sensor (A/T), Daytime Running Lamp Module, EVAP/Purge Solenoid (Gasoline), Radiator Fan Relay, Air Conditioner Compressor Clutch Relay, Oxygen Sensor Downstream Relay (Gasoline), Oxygen Sensor Upstream Relay (Gasoline)
11 20 Diesel (’99-’01): Engine Control Module, Fuel Heater Relay
20 Gasoline (’99-’01): Powertrain Control Module, Transmission Control Module, Automatic Shut Down Relay, Fuel Pump Relay
20 Diesel (’97-’98): Powertrain Control Module, Back-Up Lamp Switch, Fuel Heater Relay, MSA Controller
20 Gasoline (’97-’98): Automatic Shut Down Relay, Radiator Fan Relay, Fuel Pump Relay, Air Conditioner Compressor Clutch Relay, Back-Up Lamp (Back-Up Lamp Switch (M/T), Transmission Range Sensor (A/T)), Transmission Control Module, Duty Cycle EVAP/Purge Solenoid, EVAP Leak Detection Pump, Daytime Running Lamp Module (’98), Torque Converter Solenoid, Park/Neutral Position Switch
12 10 Combination Flasher, Rear Window Defogger Relay
13 –  –
14 10 Heated Mirror
15 25 Passenger Door Module (Power Window/Door Lock)
16 10 Right Headlamp (High Beam)
17 15 Radio
18 10 ’98-’01: Driver Door Module, Power Mirror Switch (’99-’01), Heated Seat Switch (’99-’01), Heated Seat Relay (’99-’01), Rear Fog Lamp Relay (’99-’01)
19 10 Starter Relay, Clutch Interlock Switch (M/T)
20 15 ’98-’01: Trailer Tow Connector, Trailer Tow Left Turn Relay, Trailer Tow Right Turn Relay
10 ’97: Trailer Tow Connector, Trailer Tow Left Turn Relay, Trailer Tow Right Turn Relay
21 15 Horn Relay
22 20 Rear Wiper/Washer Switch
23 10 Right Tail Lamp, Right Front Park Lamp, Right Side Marker Lamp
24 –  –
25 15 Blower Motor Relay, Blend Door Actuator, Brake Transmission Shift Interlock Solenoid (’00-’01), Extended Idle Switch (’00-’01), A/C Heater Control or Heater Control, ABS Relay, ABS
26 10 Airbag Control Module
27 10 Airbag Control Module
Circuit Breaker
28 25 ’99-’01: Driver/Passenger Door Module (Power Window, Door Lock)
30 ’97-’98: Driver/Passenger Door Module (Power Window, Door Lock)
29 25 ’99-’01: Power Seat, Heated Seat Relay
30 ’97-’98: Power Seat
30 20 Front Wiper Motor, Front Wiper/Washer Switch
Relay
R1  –
R2 Cigar Lighter
R3 Horn
R4 Rear Window Defogger

Engine compartment fuse box

Fuse Box Diagram (Gasoline)

2000 – 2001:

Jeep Cherokee (XJ; 2000 - 2001) - fuse and relay box diagram - engine compartment (gasoline)
Jeep Cherokee (XJ; 2000 – 2001) – fuse and relay box diagram – engine compartment (gasoline)



1997 – 1999:

Jeep Cherokee (XJ; 1997 - 1999) - fuse and relay box diagram - engine compartment (gasoline)
Jeep Cherokee (XJ; 1997 – 1999) – fuse and relay box diagram – engine compartment (gasoline)



Assignment of the fuses and relay in the engine compartment (Gasoline)

No. A Description
1 –  –
2 40 Ignition Switch (Cigar Lighter Relay, Fuse (Passenger Compartment): “8”, “9”, “10”, “11”, “17”, “18”, “27”, “28”, “30”))
3 40 Ignition Switch (Fuse (Passenger Compartment): “12”, “19”, “22”, “24”, “25”, “26”))
4 50 ’98-’01: Fuse (Passenger Compartment): “1”, “2”, “15”, “20”, “21”, “29”
40 ’97: Fuse (Passenger Compartment): “1”, “2”, “15”, “20”, “21”, “29”
5 40 Radiator Fan Relay
6 40 Blower Motor Relay
7 30 Headlamp Switch, Headlamp Delay Module, Daytime Running Lamp Module (’00-’01)
8 30 ’00-’01: Automatic Shut Down Relay
9 20 Air Conditioner Compressor Clutch Relay, Fuse (Engine Compartment): “27” (’00-’01), “26” (’97-’99)
10 20 ’99-’01: Starter Relay
30 ’97-’98: Starter Relay, Rear Window Defogger Relay, Fuse (Passenger Compartment): “13”
11 30 ’98-’01: Rear Window Defogger Relay, Fuse (Passenger Compartment): “13”
12 40 ABS
13 20 ABS
14 –  –
15 –  –
16 15 Dome Lamp, Cargo Lamp, Instrument Cluster, Courtesy Lamp, Radio, Transmission Control Module, Underhood Lamp, Visor/Vanity Lamp, Overhead Console, Remote Keyless Entry Module, Glove Box Lamp, Compass, Left Front Power Lock/Window Switch (’97 – LHD), Right Front Power Lock/Window Switch (’97 – LHD)
17 20 ’00-’01: Oxygen Sensor Downstream Relay, Oxygen Sensor Upstream Relay
20 ’97-’99: Headlamp Switch, Data Link Connector, Rear Fog Lamp Relay (’97), Power Antenna Relay (’98-’99)
18 15 ’00-’01: Fuel Injectors, Coil Rail, Coil Capacitor
19 20 ’00-’01: Headlamp Switch, Data Link Connector, Power Antenna Relay
25 ’97-’99: Automatic Shut Down Relay
20 15 Combination Flasher
21 15 ’00-’01: Powertrain Control Module
20 ’97-’99: Fuel Injectors, Ignition Coil, Powertrain Control Module
22 15 Fuel Pump Relay, Powertrain Control Module
23 15 Stop Lamp Switch
24 15 ’97-’99: Oxygen Sensor Downstream, Oxygen Sensor Upstream
25 15 Fog Lamp Relay No.2 (’98-’01), Fog Lamp Relay (’97-’99)
26 20 Power Amplifier
27 10 Sentry Key Immobilizer Module
Relay
R1 Air Conditioner Compressor Clutch
R2 ’97-’99: Fog Lamp
’98-’01: Fog Lamp No.1
R3 ’98-’01: Fog Lamp No.2
R4 ABS
R5 ’97-’99: Radiator Fan
’00-’01: Fuel Pump
R6 ’97-’99: Automatic Shut Down
’00-’01: Starter
R7 ’97-’99: Starter
’00-’01: Oxygen Sensor Upstream
R8 ’97-’99: Fuel Pump
’00-’01: Oxygen Sensor Downstream
R9 ’00-’01: Radiator Fan
R10 ’00-’01: Automatic Shut Down

Fuse Box Diagram (Diesel)

Jeep Cherokee (XJ; 1997 - 1999) - fuse and relay box diagram - engine compartment (diesel)
Jeep Cherokee (XJ; 1997 – 1999) – fuse and relay box diagram – engine compartment (diesel)



Assignment of the fuses and relay in the engine compartment (Diesel)

No. A Description
1 –  –
2 50 Glow Plug Relay
3 50 Glow Plug Relay
4 30 ’99-’01: Automatic Shut Down Relay (Engine Control Module, Fuel Injection Pump, Powertrain Control Module, Radiator Fan Relay, Air Conditioner Compressor Clutch Relay), Fuse (Engine Compartment): “24”
30 ’97-’98: Diesel Power Relay (Fuel Pump Module, Powertrain Control Module, Generator, Fuse (Engine Compartment): “21”), Fuse (Engine Compartment): “24”
5 40 Ignition Switch (Cigar Lighter Relay, Fuse (Passenger Compartment): “8”, “9”, “10”, “11”, “17”, “18”, “27”, “28”, “30”))
6 30 Fuel Heater Relay
7 20 ’99-’01: Starter Relay
30 ’97-’98: Starter Relay, Rear Window Defogger Relay, Fuse (Passenger Compartment): “13”
8 30 Headlamp Switch, Headlamp Delay Module
9 50 Fuse (Passenger Compartment): “1”, “2”, “15”, “20”, “21”, “29”
10 40 Ignition Relay (Fuse (Passenger Compartment): “12”, “19”, “22”, “24”, “25”, “26”))
11 40 Blower Motor Relay
12 40 ABS
13 40 ’98-’01: Radiator Fan Relay
14 20 ABS
15 30 ’99-’01: Rear Window Defogger Relay, Fuse (Passenger Compartment): “13”
16 15 Dome Lamp, Cargo Lamp, Instrument Cluster, Courtesy Lamp, Radio, Transmission Control Module, Underhood Lamp/Mercury Switch, Visor/Vanity Lamp, Overhead Console, Remote Keyless Entry Module, Glove Box Lamp, Compass, Left Front Power Lock/Window Switch (’97 – LHD), Right Front Power Lock/Window Switch (’97 – LHD)
17 –  –
18 –  –
19 15 Stop Lamp Switch
20 20 Air Conditioner Compressor Clutch Relay, Fuse (Engine Compartment): “27”
21 20 ’99-’01: Fuel Injection Pump, Glow Plug Relay, EGR Solenoid
20 ’97-’98: Glow Plug Relay, Mass Air Flow Sensor, Fuel Pump Module, Electronic Vacuum Modulator, Air Conditioner Compressor Clutch Relay
22 20 Power Amplifier
23 15 Combination Flasher
24 10 Powertrain Control Module
25 15 Fog Lamp Relay
26 20 Headlamp Switch, Data Link Connector, Power Antenna Relay (’98-’01), Rear Fog Lamp Relay (’97)
27 10 Sentry Key Immobilizer Module (’98-’01), Overhead Module (’97)
Relay
R1 Air Conditioner Compressor Clutch
R2 ’97-’99: Fog Lamp
R3 ’00-’01: Fog Lamp
R4 ABS
R5 Radiator Fan
R6 ’00-’01: Automatic Shut Down
’97-’99: Diesel Power
R7 Starter
R8 Fuel Heater

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Jeep Grand Cherokee (WJ; 1999 – 2005) – fuse and relay box diagram

Posted on by admin

Jeep Grand Cherokee (WJ; 1999 – 2005) – fuse and relay box diagram

Year of production: 1999, 2000, 2001, 2002, 2003, 2004, 2005



In this article, we consider the second-generation Jeep Grand Cherokee (WJ), produced from 1999 to 2005. Here you will find fuse box diagrams of Jeep Grand Cherokee 1999, 2000, 2001, 2002, 2003, 2004 and 2005, get information about the location of the fuse panels inside the car, and learn about the assignment of each fuse (fuse layout) and relay.



Passenger compartment fuse box

Fuse box location

It is located under the instrument panel on the driver’s side, behind a plastic cover near the OBD2 port.

Fuse box diagram

Jeep Grand Cherokee (WJ; 1999 - 2005) - fuse an relay box diagram -passenger compartment
Jeep Grand Cherokee (WJ; 1999 – 2005) – fuse an relay box diagram -passenger compartment



Assignment of the fuses and relay in the instrument panel

No. A Description
1 –  –
2 –  –
3 10 Left Headlamp (High Beam)
4 15 Combination Flasher
5 25 Radio, Amplifier
6 15 Park Lamp Relay (Park Lamp, Tail Lamp, License Lamp, Trailer Tow Connector, Headlamp Leveling Switch)
7 10 Body Control Module, Underhood Lamp, Sentry Key Immobilizer Module, Automatic Zone Control Module, Automatic Headlamp Light Sensor/VTSS LED, Remote Keyless Module
8 15 Rear Wiper Motor, Courtesy Lamp, Glove Box Lamp, Cargo Lamp, Overhead Map Lamp, Door Handle Lamp, Vehicle Information Center, Liftgate Flip-Up Push Button Switch, Security System Module, Visor/Vanity Lamp
9 20 Front Power Outlet, Rear Power Outlet, Power Connector
10 20 Adjustable Pedals (?-’04)
11 10 Automatic Zone Control Module (AZC), Manual Temperature Control (MTC)
12 10 Fuel Pump Relay, Automatic Shut Down Relay, Powertrain Control Module, Transmission Control Relay (4.7L)
13 –  –
14 10 Left Headlamp (Low Beam)
15 10 Right Headlamp (Low Beam)
16 10 Right Headlamp (High Beam)
17 10 Data Link Connector, Instrument Cluster
18 20 Trailer Tow Brake Lamp Relay, Electric Brake (’99-’01-?)
30 Trailer Tow Brake Lamp Relay, Electric Brake (?-’04)
19 10 ABS
20 10 Combination Flasher, Automatic Zone Control Module (AZC), Manual Temperature Control (MTC), Temperature Valve Actuator (MTC), Transmission Solenoid/TRS Assembly (4.7L), Park/Neutral Position Switch (4.0L, 3.1L TD), Driver/Passenger Heated Seat Switch
21 10 Gasoline: Air Conditioner Compressor Clutch Relay, EVAP/Purge Solenoid, Brake Transmission Shift Interlock Solenoid
10 Diesel: Fuel Heater Relay, Engine Control Module, Brake Transmission Shift Interlock Solenoid
22 10 Body Control Module, Instrumeent Cluster, Sentry Key Immobilizer Module, Vehicle Information Center, Automatic Day/Night Mirror, Security System Module
23 15 Stop Lamp Switch
24 15 Front Fog Lamp Relay, Body Control Module
25 20 Sunroof Delay Relay, Body Control Module
26 15 Cigar Lighter
27 15 Rear Fog Lamp Relay
28 10 Body Control Module
29 10 Cigar Lighter Relay, Right Multi-Function Switch
30 15 Radio
31 10 Starter Relay, Transmission Control Module (4.7L)
32 10 Airbag Control Module
33 10 Airbag Control Module
Circuit Breaker
C1 20 Front Wiper Motor, Wiper (On/Off) Relay (Wiper (High/Low) Relay)
C2 20 Power Seat
Relay
R1 Low Beam / Daytime Running Lamp
R2 Cigar Lighter
R3 Combination Flasher
R4 Rear Window Defogger
R5 Rear Fog Lamp
R6 Low Beam
R7 High Beam
R8 Sunroof Delay
R9  –
R10 Front Fog Lamp
R11  –
R12 Park Lamp
R13  –
R14  –



Engine compartment fuse box

Fuse box location

The Power Distribution Center is located near the battery (left or right depending on the version).

Fuse box diagram

Jeep Grand Cherokee (WJ; 1999 - 2005) - fuse an relay box diagram -engine compartment
Jeep Grand Cherokee (WJ; 1999 – 2005) – fuse an relay box diagram -engine compartment



Assignment of the fuses and relay in power distribution center

No. A Description
1 40 Blower Motor (MTC), Blower Motor Controller (AZC)
2 40 Rear Window Defogger Relay (Rear Window Defogger, Fuse (Passenger Compartment): “11”), Cigar Lighter Relay (Trailer Tow Circuit Breaker, Fuse (Passenger Compartment): “26”)
3 50 High Beam Relay (Fuse (Passenger Compartment): “3”, “16”), Low Beam Relay (Fuse (Passenger Compartment): “14”, “15”) or Low Beam / Daytime Running Lamp Relay (Fuse (Passenger Compartment): “14”, “15”), Fuse (Passenger Compartment): “4”, “5”, “6”, “11”, “17”
4 40 ABS
5 30 Gasoline: Transmission Control Relay, Transmission Control Module (4.7L), Transmission Solenoid (4.0L), Transmission Solenoid/TRS Assembly (4.7L)
6 30 Gasoline: Automatic Shut Down Relay (Ignition Coils, Capacitor, Fuse (Engine Compartment): “16”, “26”)
50 Diesel: Glow Glug Relay No.1 (Glow Plug: No.1, 3, 5)
7 50 Fuse (Passenger Compartment): “23”, “24”, “25”, “27”, “C2”
8 40 Starter Relay, Ignition Switch (Fuse (Passenger Compartment): “12”, “21”, “22”, “28”, “29”, “30”, “32”, “C1”)
9 20 Diesel: Fuel Heater Relay
10 40 4.0L: Radiator Fan Relay
40 Diesel: Radiator Fan Relay
11 50 Diesel: Glow Glug Relay No.2 (Glow Plug: No.2, 4)
12 50 Driver/Passenger Door Module, Fuse (Passenger Compartment): “18”
13 30 Diesel: Automatic Shut Down Relay (Engine Control Module, Powertrain Control Module, Fuse (Engine Compartment): “16”, “26”)
14 40 Ignition Switch (Fuse (Passenger Compartment): “19”, “20”, “31”, “33”)
15 50 Fuse (Passenger Compartment): “5”, “7”, “8”, “9”
16 15 Gasoline (’01): Oxygen Sensors, Oxygen Sensor Downstream Relay
10 Gasoline (’99-’00): Oxygen Sensors
10 Diesel: Air Conditioner Compressor Clutch Relay, Glow Plug Relay No.1, Glow Plug Relay No.2, EGR Solenoid
17 20 Gasoline (’99-’00): Oxygen Sensor Downstream Relay, Oxygen Sensor Upstream Relay
18 15 Horn Relay
19 10 Gasoline: Powertrain Control Module
20 –  –
21 15 Air Conditioner Compressor Clutch Relay
22 –  –
23 –  –
24 20 Gasoline: Fuel Pump Relay
15 Diesel: Powertrain Control Module, Transmission Control Relay
25 20 ABS
26 15 Gasoline: Fuel Injectors
15 Diesel: Fuel Injection Pump
27 –  –
28 15 4.0L: Transmission Solenoid
Relay
R1 Gasoline: Fuel Pump
Diesel: Wiper (On/Off)
R2 Gasoline: Starter
Diesel: Wiper (High/Low)
R3 Gasoline: Transmission Control
Diesel: Fuel Heater
R4 Gasoline: Wiper (On/Off)
Diesel: Transmission Control
R5 Gasoline: Wiper (High/Low)
Diesel: Starter
R6 Gasoline: Oxygen Sensor Downstream
R7 Gasoline: Oxygen Sensor Upstream
R8 Air Conditioner Compressor Clutch
R9 Horn
R10 Automatic Shut Down
R11 Diesel: Glow Plug (No.1)
R12 Diesel: Glow Plug (No.2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chrysler Neon (1994 – 1999) – fuse and relay box diagram

Posted on by admin

Chrysler Neon (1994 – 1999) – fuse and relay box diagram

Year of production: 1994, 1995, 1996, 1997, 1998, 1999



The Chrysler Neon, also known as the Dodge Neon in some markets, was a compact car produced by Chrysler Corporation from 1994 to 2005. It was initially marketed under both the Dodge and Plymouth brands in North America and as the Chrysler Neon in international markets.



First Generation (1994–1999), Second Generation (2000–2005), Dodge Neon SRT-4 (2003–2005)



Passenger Compartment Fuse Box

Fuse box location

The fuse panel is located behind the cover on the driver’s side of the dashboard.

Chrysler Neon (1994 - 1999) - fuse and relay location - passenger compartment
Chrysler Neon (1994 – 1999) – fuse and relay location – passenger compartment



Fuse box Diagram

Chrysler Neon (1994 - 1999) - fuse and relay diagram - passenger compartment
Chrysler Neon (1994 – 1999) – fuse and relay diagram – passenger compartment



Assignment of fuses in the passenger compartment

No.
 A
 Circuit Protected
1 15 Cigar Lighter/Power Outlet
2 15 Headlamp Switch (Park Lamp, Tail Lamp, License Lamp, Radio, Front Fog Lamp Switch, Remote Keyless Entry Module (’98-’99))
3 20 Door Lock Switch, Remote Keyless Entry Module (’98-’99), Immobilizer (’98-’99)
4 10 Fog Lamp Switch
5 10 ’95-’97: A/C Cycling Switch, Back-Up Lamp (Back-Up Lamp Switch M/T), Park/Neutral Position Switch (A/T), Rear Window Defogger Switch
10 ’98-’99 (LHD): Airbag Control Module
10 ’98-’99 (RHD): A/C Cycling Switch, Back-Up Lamp (Back-Up Lamp Switch M/T), Park/Neutral Position Switch (A/T), Rear Window Defogger Switch, High Speed Warning Module
6 10 Turn Signal/Hazard
7 25 A/C Heater Blower Motor
8 10 ’95-’97: Airbag Control Module
10 ’98-’99 (LHD): A/C Cycling Switch, Back-Up Lamp (Back-Up Lamp Switch M/T), Park/Neutral Position Switch (A/T), Rear Window Defogger Switch, High Speed Warning Module
10 ’98-’99 (RHD): Airbag Control Module
9 4 ’95-’97: Instrument Cluster, Radio, Ash Receiver Lamp, Rear Window Defogger Switch, “PRNDL” Lamp, Rear Fog Lamp Switch, A/C Heater Control Switch, Headlamp Leveling Switch
10 ’98-’99 (LHD): Airbag Control Module
4 ’98-’99 (RHD): Instrument Cluster, Radio, Ash Receiver Lamp, Rear Window Defogger Switch, “PRNDL” Lamp, Rear Fog Lamp Switch, A/C Heater Control Switch, Headlamp Leveling Switch
10 15 Powertrain Control Module, Air Conditioner Compressor Clutch Relay, ABS, Vapor Canister Leak Detector, Torque Converter Clutch Solenooid (A/T), Duty Cycle EVAP/Purge Solenoid, ABS Relay Box, EGR Transducer Solenoid, ABS Warning Lamp Relay
11 5 Instrument Cluster, Daytime Running Lamp Module (’98-’99), Remote Keyless Entry Module (’98-’99), Immobilizer (’98-’99)
12 10 ’95-’97: Airbag Control Module
4 ’98-’99 (LHD): Instrument Cluster, Radio, Ash Receiver Lamp, Rear Window Defogger Switch, “PRNDL” Lamp, Rear Fog Lamp Switch, A/C Heater Control Switch, Headlamp Leveling Switch
10 ’98-’99 (RHD): Airbag Control Module
13 –  –
14 20 Sunroof
15 20 Wiper Motor, Wiper/Washer Switch, Intermittent Wiper/Washer Switch, Cigar Lighter Relay
16 10 Radio
17 10 Left Headlamp, Left/Right Headlamp Leveling Motor
18 10 Right Headlamp
19 –  –
20 –  –
Circuit Breaker
CB1 30 Power Window, Power Window
CB2 –  –
Relay
R1 ’98-’99 (LHD): Time Delay
R2 ’95-’97: Cigar Lighter
’98-’99 (LHD): Combination Flasher
’98-’99 (RHD): Cigar Lighter
R3 ’95-’97: Combination Flasher
’98-’99 (LHD): Time Out
’98-’99 (RHD): Combination Flasher



Engine Compartment Fuse Box

Fuse box location

Chrysler Neon (1994 - 1999) - fuse and relay location - engine compartment
Chrysler Neon (1994 – 1999) – fuse and relay location – engine compartment



Fuse box diagram

Chrysler Neon (1994 - 1999) - fuse and relay diagram - engine compartment
Chrysler Neon (1994 – 1999) – fuse and relay diagram – engine compartment



Assignment of fuses and relay in the engine compartment

No.
 A
 Protected Component
2 40 Ignition Switch (Fuse (Passenger Compartment): “5”, “6”, “7”, “8”, “CB1”)
3 40 Headlamp Switch, Fuse (Passenger Compartment): “1”, “3”, “4”
5 30 Solid State Fan Relay (Radiator Fan)
8 30 Rear Window Defogger
10 40 ABS Relay Box
11 30 Starter Relay, Ignition Switch (Clutch Pedal Position Switch (M/T), Fuse (Passenger Compartment): “10”, “11”, “12”, “14”, “15”, “16”)
13 10 Dome Lamp, Trunk Lamp, Underhood Lamp, Instrument Cluster, Radio, Glove Box Lamp, Map/Reading Lamp, Visor/Vanity Lamp, Power Mirror Switch, High Speed Warning Module (’98-’99), Time Delay Relay (’98-’99), Time Out Relay (’98-’99)
16 20 Fog Lamp Relay, Rear Fog Lamp Switch
18 10 ’95-’97: Air Conditioner Compressor Clutch Relay
20 ’98-’99: Air Conditioner Compressor Clutch Relay, ABS
20 10 Turn Signal/Hazard
21 20 Fuel Pump Relay, Auto Shut Down Relay (Fuel Injectors, Ignition Coil Pack, Powertrain Control Module, Generator, Data Link Connector, Oxygen Sensors, Capacitor, Noise Suppressor)
23 15 Horn Relay
25 15 Stop Lamp Switch
Relay
R1  –
R2 Fuel Pump
R3 Auto Shut Down
R4 Horn
R5 Fog Lamp
R6 ABS Warning Lamp
R7 Air Conditioner Compressor Clutch
R8 Starter

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Chrysler Cirrus (1995 – 2000) – fuse and relay box diagram

Posted on by admin

Chrysler Cirrus (1995 – 2000) – fuse and relay box diagram

Year of production: 1995, 1996, 1997, 1998, 1999, 2000



The Chrysler Cirrus is a mid-size sedan that was produced by Chrysler from 1995 to 2000. Part of Chrysler’s “Cloud Car” series, the Cirrus shared its platform with the Dodge Stratus and Plymouth Breeze, with each model offering slightly different features and trim levels. The Cirrus was designed to offer a balance of style, performance, and comfort in the competitive mid-size sedan market of the 1990s.

The Chrysler Cirrus was a stylish, comfortable, and reasonably well-equipped sedan for its time. It offered a good blend of power (particularly with the V6 engine), a smooth ride, and modern design cues. While it is no longer in production, the Cirrus remains a memorable part of Chrysler’s history in the mid-size sedan segment.



Passenger Compartment Fuse Box

Fuse Box Location

Chrysler Cirrus (1995 - 2000) - fuse and relay location - passenger compartment
Chrysler Cirrus (1995 – 2000) – fuse and relay location – passenger compartment



Fuse Box Diagram

Chrysler Cirrus (1995 - 2000) - fuse and relay diagram - passenger compartment
Chrysler Cirrus (1995 – 2000) – fuse and relay diagram – passenger compartment



Assignment of fuses in the instrument panel

No.
 A
 Protected Component
1 30 Blower Motor
2 20 Convertible: Right Headlamp (High Beam), Daytime Running Lamp Module
10 Right Headlamp (High Beam), Daytime Running Lamp Module
3 20 Convertible: Left Headlamp (High Beam)
10 Left Headlamp (High Beam)
4 15 Back-Up Lamp (Back-Up Lamp Switch (M/T), Transmission Range Sensor (A/T)), Power Top Relay (Convertible), Daytime Running Lamp Module, Power Door Lock Switch, Power Mirror Switch, Automatic Day/Night Mirror, Steering Proportional Steering Module
5 10 Dome Lamp, Data Link Connector, Power Antenna, Overhead Map Lamp, Trunk Lamp, Traveler, Body Control Module, Radio, Glove Box Lamp, Visor/Vanity Lamp, Universal Garage Door Opener, Automatic Day/Night Mirror, Illuminated Entry Relay, Courtesy Lamp, Power Door Lock Switch, Door Arm/Disarm Switch, Key-In Halo Lanp, Sunroof Control Module
6 10 Heated Mirror, A/C Heater Control
7 20 ’98-’00: Instrument Cluster, Headlamp Switch
15 ’95-’97: Headlamp Switch
8 20 Cigar Lighter/Power Outlet, Horn Relay
9 15 Body Control Module
10 20 Rear Fog Lamp Switch, Daytime Running Lamp Module
11 10 Body Control Module, Instrument Cluster, Autostick Switch, Transmission Control Module
12 10 Left Headlamp (Low Beam), Daytime Running Lamp Module
13 20 Right Headlamp (Low Beam), Front Fog Lamp Switch
14 10 Radio
15 10 Combination Flasher, Seat Belt Control Module (Convertible), Intermittent Wiper Relay, Wiper (High/Low) Relay, Rear Window Defogger Relay
16 10 Airbag Control Module
17 10 Airbag Control Module
Circuit Breaker
18 20 Power Seat Switch, Decklid Release Relay
19 20 Power Window, Master Power Window Switch, Window Timer Module, Sunroof Control module
Relay
R1 Headlamp Delay
R2 Horn
R3 Rear Window Defogger



Engine Compartment Fuse Box

Fuse Box Location

Chrysler Cirrus (1995 - 2000) - fuse and relay location - engine compartment
Chrysler Cirrus (1995 – 2000) – fuse and relay location – engine compartment



Fuse Box Diagram

Chrysler Cirrus (1995 - 2000) - fuse and relay diagram - engine compartment
Chrysler Cirrus (1995 – 2000) – fuse and relay diagram – engine compartment



Assignment of fuses in the engine compartment

No.
 A
 Protected Component
1 10 Oxygen Sensor Downstream
2 20 ABS
3 20 Transmission Control Module, Transmission Control Relay
4 20 Stop Lamp Switch, Fuse (Passenger Compartment): “5”
5 20 Automatic Shut Down Relay (Fuel Injectors, Ignition Coil Pack (2.0L and 2.4L), Noise Suppressor (2.0L and 2.4L), Generator, Oxygen Sensor Upstream, Distributor (2.5L) EGR Solenoid, Fuse: “1”), Powertrain Control Module
6 20 Combination Flasher, Sentry Key Immobilizer Module
7 10 Ignition Switch (Fuse (Passenger Compartment): “11”)
8 20 Starter Relay, Fuel Pump Relay, Ignition Switch (Body Control Module, Clutch Interlock Switch (M/T), Transmission Control Module (EATX), Fuse (Passenger Compartment): “14”, “15”, “17”, Fuse (Engine Compartment): “9”, “10”)
9 10 Air Conditioner Compressor Clutch Relay, Radiator Fan (High Speed) Relay, Radiator Fan (Low Speed) Relay, Fuel Pump Module, Instrument Cluster, Sentry Key Immobilizer Module, Brake Shift Interlock Solenoid
10 10 Fuel Pump Relay, Powertrain Control Module, ABS
11 20 Convertible: Seat Belt Control Module
12 40 Rear Window Defogger Relay
13 40 ABS
14 40 Fuse (Passenger Compartment): “7”, “8”
15 40 Headlamp Switch, Headlamp Delay Relay (Body Control Module, Headlamp Switch, Fuse (Passenger Compartment): “12”, “13”), Fuse (Passenger Compartment): “9”, “10””18″
16 40 Ignition Switch (Fuse (Passenger Compartment): “1”, “4”, “16”, “19”)
17 40 Convertible: Power Top Up/Down Relays
18 40 Intermittent Wiper Relay (Wiper (High/Low) Relay)
19 40 Air Conditioner Compressor Clutch Relay, Radiator Fan (High Speed) Relay, Radiator Fan (Low Speed) Relay
Relay
R1 Radiator Fan (High Speed)
R2 Automatic Shut Down
R3 Radiator Fan (Low Speed)
R4 Starter
R5  –
R6 Air Conditioner Compressor Clutch
R7 Convertible: Power Tow
R8 Intermittent Wiper
R9 Wiper (High/Low)
R10 Fuel Pump
R11 Transmission Control
R12  –

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Acura CL (3.0/2.2/2.3; 1997 – 1999) – fuse and relay box diagram

Posted on by admin

Acura CL (3.0/2.2/2.3; 1997 – 1999) – fuse and relay box diagram

Year of productions:  1997, 1998, 1999



This article covers the second-generation Acura CL, produced from 1997 to 2003. It includes fuse box diagrams for the 1997, 1998, and 1999 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.

Passenger copmartment

Fuse box diagram

Acura CL(3.0/2.2/2.3; 1997 - 1999) - fuse and relay box diagram - passenger compartment
Acura CL(3.0/2.2/2.3; 1997 – 1999) – fuse and relay box diagram – passenger compartment



Assignment of the fuses in the passenger compartment

Fuse number Fuse name Ampere rating [A] Component or circuit protected
1 BACK·UP LIGHTS, METER LIGHTS, CLOCK, SECURITY 10 Gauge assembly, Back-up lights, Clock, Vehicle speed sensor (VSS), Shill loCk solenoid, Integrated control unit, Keyless/security control unit
2 FUEL PUMP 15 PGM·FI main relay, SRS unit
3 SRS 10 SRS unit
4 ECU, EAT ECU CRUISE CONTROL FAN TIMER 7,5 Charging system,Radiator tan control module, Cruise control, PGM·FI, TCM (3.0L)
5 IGN COIL 15 Ignition (3.0L)
6 WIPER WASHER 30 Wiper/washer, Integrated control unit
7 R/C MIRROR (HEATED MIRROR) HEATED SEAT) 7,5 Anti-lock brake system (ABS), Power mirrors, Seat heaters
8 HEATER CONTROL RELAY, A/C CLUTCH RELAY, COOLING FAN RELAY 7,5 Air delivery, A/C compressor controls, Fans, Rear window defogger
9 STARTER SIGNAL 7,5 Gauge assembly, PGM·FI main relay, Powertrain or Engine control module (PCM or ECM), Starter cut relay, A/T gear position switch or Clutch interlock switch
10 (DAY LIGHTS) 7,5 Daytime running lights control unit (Canada)
11 RADIO AUDIO AMPLIFER 10 Cigarette lighter relay, Stereo amplifier (3.0L)
12 TURN SIGNALS 7,5 Turn signal/hazard relay



Engine compartment

Fuse box diagram (ABS Fuse/Relay box)

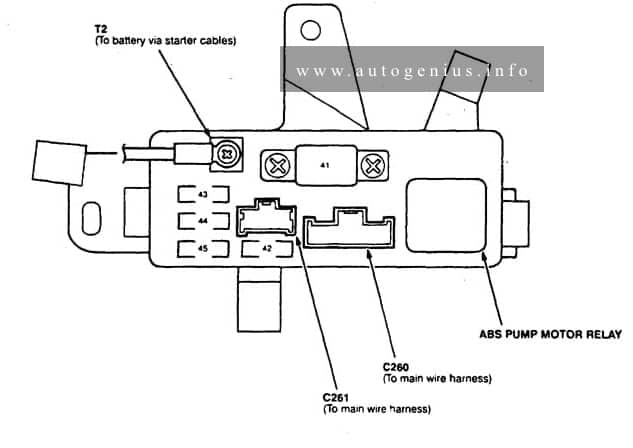

Acura CL(3.0/2.2/2.3; 1997 - 1999) - fuse and relay box diagram - engine compartment (ABS fuse)

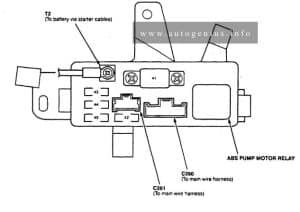

Acura CL(3.0/2.2/2.3; 1997 – 1999) – fuse and relay box diagram – engine compartment (ABS fuse)



Assignment of the fuses in the engine compartment (ABS fuse/relay box)

Fuse number Fuse name Ampere rating [A] Component or Circuit protected
41 ABS MOTOR 40 ABS pump motor relay
42 ABS UNIT 10 ABS control unit
43 ABS B1 20 ABS front fall·safe relay
44 ABS B2 15 ABS rear fail-safe relay, ABS control unit
45 — — —



Engine compartment

Fuse box diagram

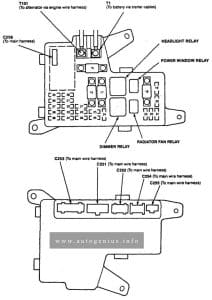

Acura CL(3.0/2.2/2.3; 1997 - 1999) - fuse and relay box diagram - engine compartment

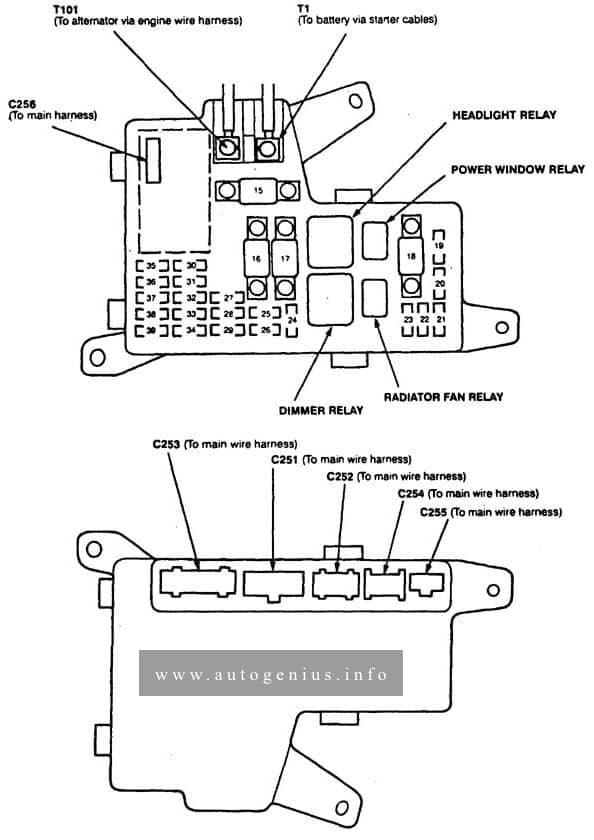

Acura CL(3.0/2.2/2.3; 1997 – 1999) – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

Fuse number Fuse name Ampere rating [A] Component or Circuit protected
15 BATTERY 100 Power distribution
16 REAR DEFROSTER 40 Rear window defogger
17 HEATER BLOWER 40 Blower motor relay
18 IGN SW 50 Ignition switch (BAT)
19 L-HEADLIGHT 20 Left headlight, Daytime running lights control unit (Canada), Hi beam indicator
20 R-HEADLIGHT 20 Right headlight, Daytime running lights control unit (Canada)
21 COOLING FAN 20 Radiator fan relay
22 (HEATED SEAT) 15 Seat heater main relay
23 RUNNING LIGHT 10 Daytime running lights control unit Canada)
24 — — —
25 — — —
26 POWER WINDOW FR-R 20 Passenger’s front power window motor, Moonroof control unit
27 (2.2L) POWER SEAT 20 Driver’s power seat motors
27 (3.0L) POWER SEAT FR HEIGHT 15 Driver’s power seat motors
28 POWER WINDOW FR-L 20 Driver’s power window motor
29 SUN ROOF 30 Moonroof motor
30 STOP LIGHT HORN 20 Horns, Brake lights, Key interlock solenoid (A/T), ABS control unit, Cruise control, PGM-FI, TCM (3.0L A/T)
31 (3.0L) POWER SEAT RR HEIGHT RECLINE 20 Driver’s power seat motors, Power seat control unit
32 SMALL LIGHT 15 Dash lights, Parking lights, Taillights, License plate lights
33 ECU 15 (20 2.2L A/T) PGM-FI main relay
34 CONDENSER FAN 15 (20 3.0L) Radiator control module (3.3L), Condenser fan relay, A/C compressor clutch relay
35 HAZARD 15 Hazard warning switch
36 RADIO CIGAR LIGHTER 15 Cigarette lighter, Audio unit Data link connector (DLC)
37 INTERIOR LIGHT 7,5 Integrated control unit, Trunk light, Courtesy lights, Ceiling light, Sportlights
38 SECURITY DOOR LOCK 15 Keyless/security control unit
39 BACK-UP (RADIO) (FAN TIMER 3.0L) 7,5 Powertrain or Engine control module (PCM or ECM), Clock, Audio unit, Security indicator, TCM (3.0L), Radiator fan control module (3.0L)



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Jeep Wagoneer (1972 – 1983) – fuse and relay box diagram

Posted on by admin

Jeep Wagoneer (1972 – 1983) – fuse and relay box diagram



Year of production: 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983



Fuse box diagram

Jeep Wagoneer - fuse and relay box diagram
Jeep Wagoneer – fuse and relay box diagram



Assignment of the fuses in the fuse box

№
 A
 Protected Component
1 20 Windshield wipers
2 15 Turn signals
3 10 Accessories
4 3 Instrument and accessory lights
5 20 Interior lights
6 20 Brake, tail and parking lights
7 25 Air conditioner, heater and electric fan
8 3 Instruments
9 25 Seat belt warning and back-up lights
10 20 Hazard flasher, clock and stop lights
Relay
R1 Hazard flasher
R2 Turn signal
  • 24 amp. circuit breaker is located in the headlight switch to protect headlight circuit. All models have two 30 amp. circuit breakers located in the fuse block to protect the electric tailgate window. One circuit breaker protects the instrument panel switch and the other protects the tailgate switch.
  • The 6-cyl. models have a 4 amp. in-line fuse protecting the cruise control. The V8 models have a 1.5 amp. in-line fuse protecting the cruise control.
  • All Jeep models are equipped with fusible links, located in the engine compartment, which protect the circuits.



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
