Volkswagen Golf IV (Type 1J; 1997 – 2003) – fuse and relay box diagram

Volkswagen Golf IV (Type 1J; 1997 – 2003) – fuse box diagram

Year of production: 1997, 1998, 1999, 2000, 2001, 2002, 2003



The 4rd generation Volkswagen Golf compact car was produced in 1997, 1998, 1999, 2000, 2001, 2002 and 2003 with gasoline and diesel engines. Delivered worldwide in various body styles: convertible, sedan, station wagon and hatchback. In this article you will find a designation of the fuse and relay boxes diagram of the 4rd generation Volkswagen Golf.

Passenger comartment

Fuse box diagram

Volkswagen Golf (IV, Type 1J; 1997 - 2003)- fuse and relay box diagram - passenger compartment
Volkswagen Golf (IV, Type 1J; 1997 – 2003)- fuse and relay box diagram – passenger compartment



Assignment of the fuses in the passenger compartment


A
Function/component
1 5 Z4 – Driver side heated exterior mirror (models without ohne electric window regulator)
Z5 – Front passenger side heated exterior mirror (models without ohne electric window regulator)
Z20 – Left washer jet heater element
Z21 – Right washer jet heater element
2 5 E3 – Hazard warning light switch
J1 – Turn signal relay
M5 – Front left turn signal bulb
M6 – Rear left turn signal bulb
M7 – Front right turn signal bulb
M8 – Rear right turn signal bulb
J567 – Left gas discharge light control unit
J568 – gas discharge light control unit with headlight range control right
3 5 J5 – Fog light relay
E20 – Switches and instruments illumination regulator
4 5 X – Number plate lights
5 7.5 E45 – Cruise control system switch
E221 – Operating unit in steering wheel
E227 – Cruise control system button (CCS) SET button
G65 – High pressure sender (air conditioning system)
J131 – Heated driver seat control unit
J132 – Heated front passenger seat control unit
J245 – Sliding sunroof adjustment control unit (models without central locking)
J255 – Climatronic
G266 – Oil level and oil temperature sender
J293 – Radiator fan control unit, multifunction steering wheel
J393 – Convenience system (E231 – Exterior mirror heater button),
J453 – Multifunction steering wheel control unit
J446 – Parking aid control unit
J503 – Control unit with display for radio and navigation system
N147 – 2-way valve for coolant shut-off valve (above F269 – temperature flap position switch)
V154 – Fresh air/recirculated air flap control motor
6 55 Up to April 2001:
J379 – Central locking and anti-theft alarm system control unit
from September 2002:
J651 – Shut-off valve relay 1 (engine code BEH)
7 10 K142 – Selector lever position P/N warning lamp
M16 – Left reversing light bulb
M17 – Right reversing light bulb
8 5 J412 – Mobile telephone operating electronics control unit
9 5 E256 – TCS and ESP button
G85 -Steering angle sender
J104 – ABS/ABS control unit with EDL/ ASR/ ESP
10 15
510
up to October 2001:
Engine management: Petrol
Engine management: Diesel
from November 2001:
R – Radio (S-contact)
J285 – Display in dash panel insert
J503 – Control unit with display for radio and navigation
11 5 J285 – Control unit with display in dash panel insert
N110 – Selector lever lock solenoid
12 7.5 J412 – Mobile telephone operating electronics control unit
G273 – Interior monitoring sensor
G274 – Interior monitoring sender
T16 – 16-pin connector, (in centre dash panel, self-diagnosis connection)
W11 – Rear left reading light (models with interior monitor)
W12 – Rear right reading light (models with interior monitor)
13 10 F – Brake light switch
M9 – Left brake light bulb (only Golf/Bora)
J…..-.Engine control units
J104 – ABS/ABS control unit with EDL/ ASR/ ESP
M9 – Left brake light bulb (only Golf/Bora)
M10 – Right brake light bulb (only Golf/Bora)
M21 – Left brake and tail light bulb (only Golf Variant/Bora Variant)
M25 – High level brake light bulb
14 10 J393 – Convenience system central control unit (models without central lock)
J546 – Rear lid remote release control unit
models without central lock:
M27 – Left door warning lamp
M28 – Right door warning lamp
W – Front interior light
W3 – Luggage compartment light
W11 – Rear left reading light
W12- Rear right reading light
W14 – Illuminated vanity mirror (front passenger side)
W18 – Luggage compartment light on left
W19 – Reading light/driver side
W20 – Illuminated vanity mirror (driver side)
15 5 G85 – Steering angle sender
J217 – Automatic gearbox control unit
J285 – Control unit with display in dash panel insert
16 10 J255 – Climatronic
J293 – Radiator fan control unit
17
18 10 J285 – Control unit with display in dash panel insert
L2 – Right twin filament bulb (only Bora)
M32 – Right main beam bulb (only Golf)
19 10 L1 – Left twin filament bulb (only Bora)
M30 – Left headlight main beam bulb (only Golf)
20 15 E102 – Headlight range control regulator
J427 – Right headlight starter for gaseous discharge light
J568 – Gas discharge light control unit with headlight range control right
L2 – Right twin filament bulb (only Bora)
M31 – Right headlight dipped beam bulb (only Golf)
V48 – Left headlight range control motor
V49 – Right headlight range control motor
21 15 L1 – Left twin filament bulb (only Bora),
M29 – Left headlight dipped beam bulb (only Golf)
J426 – Left headlight starter for gaseous discharge light,
J567 – Gas discharge light control unit with headlight range control left
22 5 J285 – Control unit with display in dash panel insert
M3 – Right side light bulb
23 5 J285 – Control unit with display in dash panel insert
M1 – Left side light bulb
24 20 E22 – Intermittent wiper switch, windscreen wiper motor
J31 – Automatic intermittent wash and wipe relay
V – Windscreen wiper motor
V59 – Windscreen and rear window washer pump
25 20 E9 – Fresh air blower switch
E35 – Air conditioning system switch
N24 – Fresh air blower series resistor with overheating fuse
V2 – Fresh air blower
J293 – Radiator fan control unit
J255 – Climatronic
J… -Engine control units
26 25 Z1 – Heated rear window
27 15 up to November 2005:
V12 – Rear window wiper motor
from December 2005:
U1 – Cigarette lighter
U5 – 12 V socket, on left in luggage compartment
28 15 G6 – Fuel pump (pre-supply pump)
29 15
2010
Petrol (not for engine code BDE)
Engine management: Engine code BDEEngine management: Diesel
30 20 J245 – Sliding sunroof adjustment control unit
V1 – Sliding sunroof motor
31 20

5

J217 – Automatic gearbox control unit
F125 – Multifunction switch
J542 – Brake servo control unitJ492 – Four-wheel drive control unit (4 Motion)
32 10
30
Injectors: Petrol
Engine management: Diesel
33 20 J31 – Automatic intermittent wash and wipe relay
V11 – Headlight washer system pump
34 10 Engine management
35 30 U10 – Trailer socket
up to November 2005:
U5-12 V socket, on left in luggage compartment
36 15 J5 – Fog light relay
L22 – Left fog light bulb
L23 – Right fog light bulb
L46 – Rear left fog light bulb
J285 – Control unit with display in dash panel insert
37 15
510
up to October 2001:
J285 – Control unit with display in dash panel insert
J503 – Control unit with display for radio and navigation system
R – Radio, S-contact
from November 2001:
Engine management: Petrol
Engine management: Diesel
38 15 E204 – Tank filler flap remote release switch
J379 – Central locking and anti-theft alarm system control unit
J386 – Driver door control unit
J387 – Front passenger door control unit
J388 – Rear left door control unit
J389 – Rear right door control unit
J398 – Rear lid remote release relay
V155- Tank filler flap locking motor
39 15 E3 – Hazard warning light switch
J1 – Turn signal relay
J567 – Gas discharge light control unit with headlight range control right
J568 – Gas discharge light control unit with headlight range control right
M5 – Front left turn signal bulb
M6 – Rear left turn signal bulb
M7 – Front right turn signal bulb
M8 – Rear right turn signal bulb
40 20 H1 – Dual tone horn
41 15 U1-Cigarette lighter (up to November 2005)
42 25 R – Radio
R12 – Amplifier
J503 – Control unit with display for radio and navigation system
J415 – Navigation system tuner for TV
J559 – Traffic information control unit
43 10 Engine management
44 15 J131 -Heated driver seat control unit
J132 -Heated front passenger seat control unit

Engine compartment

Position of fuses in fuse holder/battery

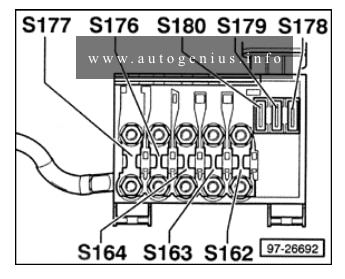

Up to August 2000

Volkswagen Golf (IV, Type 1J; 1997 - 2003)- fuse and relay box diagram - engine compartment (position of fuses in fuse holder/battery)
Volkswagen Golf (IV, Type 1J; 1997 – 2003)- fuse and relay box diagram – engine compartment (position of fuses in fuse holder/battery)

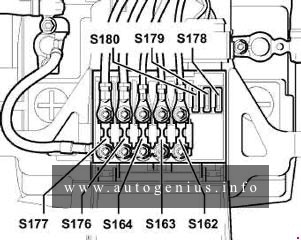

From September 2000

Volkswagen Golf (IV, Type 1J; 1997 - 2003)- fuse and relay box diagram - engine compartment (position of fuses in fuse holder/battery)
Volkswagen Golf (IV, Type 1J; 1997 – 2003)- fuse and relay box diagram – engine compartment (position of fuses in fuse holder/battery)



Assignment of the fuses in the engine compartment


A
Function/component
S162 50 Heated pin heating
S163 50 Engine management
S164 40 Radiator fan
S176 110 Interior
S177 110
150
Alternator (90 A)
Alternator (120 A)
S178 30 ABS (pump)
S179 30 ABS
S180 30 Radiator fan

Position of relays and fuses

Volkswagen Golf (IV, Type 1J; 1997 - 2003)- fuse and relay box diagram - position of relays and fuses
Volkswagen Golf (IV, Type 1J; 1997 – 2003)- fuse and relay box diagram – position of relays and fuses



Assignment of the fuses and relays in the box

Fuse locations on relay plate
A Seat adjustment fuse
B Fuses for V192 – Vacuum pump for brakes (from May 2002)
C Window regulator fuse, central locking and heated exterior mirror (only models with convenience system and window regulator)
Relay positions on relay plate
1 J4 – Dual tone horn relay (53)
2 J59 – X-contact relief relay (18) J59 – X-contact relief relay (100)
3 Vacant
4 J17 – Fuel pump relay (409) J52 – Glow plug relay (103)
V/VI J31 – Automatic intermittent wash and wipe relay, without headlight washer system (377), -with headlight washer system (389), -with rain sensor (192)
Relay locations on the 13 position additional relay carrier above the relay plate, left-handdrive vehicles
1 Vacant
2 J398 – Rear lid remote release relay (79)
J546 – Rear lid remote release control unit (407)
3 Vacant
4 J5 – Fog light relay (53)
5 J453 – Multifunction steering wheel control unit (450)
6 J453 – Multifunction steering wheel control unit (450)
7 J508 – Brake light suppression relay (206)
8 J99 – Heated exterior mirror relay (53)
J541 – Coolant shut-off valve relay (53)
9 J17 – Fuel pump relay, four-wheel-diesel, (53)
10 J17 – Fuel pump relay (pre-supply pump) (167)
11 J226 – Starter inhibitor and reversing light relay (175)
12 J317 – Terminal 30 voltage supply relay (109)
13 J151 – Continued coolant circulation relay (53)
Fuse locations on 13 position additional relay carrier, left-handdrive vehicles:
D Vacant
E Vacant
F 15A S30 – Rear window wiper single fuse (from December 2005),
S144 – Anti-theft alarm system central locking fuse (ATA turn signal)
G 15A S111 – Anti-theft alarm system fuse (ATA horn)
1 J453 – Multifunction steering wheel control unit (450)
2 J453 – Multifunction steering wheel control unit (450)
3 J5 – Fog light relay (53)
4 Vacant
5 J398 – Rear lid remote release relay (79)
J546 – Rear lid remote release control unit (407)
6 Vacant
7 J151 – Continued coolant circulation relay (53)
8 J317 – Terminal 30 voltage supply relay (109)
9 J226 – Starter inhibitor and reversing light relay (175)
10 J17 – Fuel pump relay (pre-supply pump) (167)
11 J17 – Fuel pump relay, four-wheel-diesel, (53)
12 J99 – Heated exterior mirror relay (53)
J541 – Coolant shut-off valve relay (53)
J193 – Cigarette lighter relay (53)
13 J508 – Brake light suppression relay (206)
D 15A S144 – Anti-theft alarm system central locking fuse (ATA turn signal)
E 15A S111 – Anti-theft alarm system fuse (ATA horn)
S30 – Rear window wiper single fuse (from December 2005)
F Vacant
G Vacant

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Jetta (mk4, Type 1J; 1998 – 2005) – fuse and relay box diagram

VW Jetta (mk4, Type 1J; 1998 – 2005) – fuse and relay box diagram

Year of production: 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005



The  Volkswagen Jetta was a compact family car produced from 1979. In this article, you will find  fuse box diagrams for Volkswagen Jetta mk4 models from 1998 to 2005, along with details on the fuse panel locations inside the vehicle and the specific functions of each fuse (fuse layout) and relay.



Passenger compartment

Fuse box diagram

Volkswagen Jetta (IV, Type 1J; 1998 - 2005)- fuse and relay box diagram - passenger compartment
Volkswagen Jetta (IV, Type 1J; 1998 – 2005)- fuse and relay box diagram – passenger compartment



Assignment of the fuses and relays in the passenger comartment

Fuse Ampere rating [A] Description
1 10 Washer nozzle heaters, glove compartment light, memory seat control module
2 10 Turn signal lights
3 5 Fog light relay, instrument panel light dimmer switch
4 5 License plate light
5 7,5 Comfort system, cruise control, Climatronic, A/C, heated seat control modules, automatic day/night interior mirror, control module for multi-function steering wheel, control unit in steering wheel
6 5 Central locking system
7 10 Back-up lights, speedometer vehicle speed sensor (VSS)
8 Open
9 5 Anti-lock brake system (ABS)
10 10 Engine control module (ECM): gasoline engine
5 Engine control module (ECM): diesel engine, Model Year 2000
11 5 Instrument cluster, shift lock solenoid
12 7,5 Data Link Connector (DLC) power supply
13 10 Brake tail lights
14 10 Interior lights, central locking system
15 5 Instrument cluster, transmission control module (TCM)
16 10 A/C clutch, after-run coolant pump
17 Open
18 10 Headlight high beam, right
19 10 Headlight high beam, left
20 15 Headlight low beam, right
21 15 Headlight low beam, left
22 5 Parking lights right, side marker right
23 5 Parking lights left, side marker left
24 20 Windshield and rear window washer pump, windshield wiper motor
25 25 Fresh air blower, Climatronic, A/C
26 25 Rear window defogger
27 15 Motor for rear windshield wiper
28 15 Fuel pump (FP)
29 15 Engine control module (ECM): gasoline engine
10 Engine control module (ECM): diesel engine
30 20 Power sunroof control module
31 20 Transmission control module (TCM)
32 10 Injectors: gasoline engine
15 Injectors: diesel engine
33 20 Headlight washer system
34 10 Engine control elements
35 30 12 V power outlet (in luggage compartment)
36 15 Fog lights
37 10 Terminal (86S) on radio, Instrument cluster
38 15 Central locking system (with power windows), luggage compartment light, remote/fuel tank door, motor to unlock rear lid
39 15 Emergency flashers
40 20 Dual tone horn
41 15 Cigarette lighter
42 25 Radio
43 10 Engine control elements
44 15 Heated seats

Engine compartment

Fuse box diagram

Volkswagen Jetta (IV, Type 1J; 1998 - 2005)- fuse and relay box diagram - engine compartment
Volkswagen Jetta (IV, Type 1J; 1998 – 2005)- fuse and relay box diagram – engine compartment



Fuse arangements in fuse bracket/battery

Fuse Ampere rating [A] Description
S162 50 Glow plugs (coolant)
S163 50 Fuel pump (FP) relay/glow plug relay
S164 40 Coolant fan control (FC) control module/coolant fan
S177 90 / 110 Generator (GEN)
120 / 150
S178 30 ABS (hydraulic pump)
S179 30 ABS
S180 30 Coolant fan



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
