Hyundai Elantra (2017 – 2018) – fuse box diagram

Posted on by admin

Hyundai Elantra (2017 – 2018) – fuse box diagram

Year of production: 2017, 2018

Instrument panel (Driver’s side fuse panel)

Hyundai Elantra - fuse box diagram - instrument panel
Hyundai Elantra – fuse box diagram – instrument panel
Fuse name Symbol A Protected component
SPARE2 10 Spare
CLUSTER 10 Instrument Cluster
A/BAG IND 7,5 Instrument Cluster, A/C Control Module
MDPS1 7,5 MDPS Unit
MODULE7 7,5 Front Seat Warmer Control Module, Front Air Ventilation, Seat Control Module, Rear Seat Warmer Control Module, Sunroof Motor, Electro Chromic Mirror
A/CON1 7,5 E/R Junction Block (RLY.12, RLY. 1B, RLY. 13B), Ionizer, A/C Control Module
HTD STRG 15 BCM
WIPER1 25 Wiper Motor, PCM Block (Front Wiper (Low) Relay)
HTD MIRR 10 Driver Power Outside Mirror, Passenger  Power Outside Mirror, A/C Control Module
DR LOCK 20 Door Lock Relay, Door Unlock Relay
MULTI MEDIA 15 DC-DC Converter, Audio A/V&Navigation Head Unit MTH E-Call Module
MODULE1 7,5 Driver/Passenger Smart Key Outside Handle, Driver Door Module, Passenger Door Module
BUTTON START3 7,5 Immobilizer Module, Smart Key Control Module
A/BAG 15 SRS Control Module
MODULE6 7,5 Smart Key Control Module, BCM
WASHER 15 Multifunction Switch
WIPER2 10 BCM, ECM/PCM
MEMORY1 10 Driver/Passenger Door Module, Driver IMS Module, BCM, Data Link Connector, Digital Clock, Rain Sensor, A/C Control Module, Instrument Cluster, ICM Relay Box (Outside Mirror Folding/Unfolding Relay)
MEMORY2 7,5 —
SUNROOF 20 Sunroof Motor
BRAKE SWITCH 7,5 Stop Lamp Switch, Smart Key Control Module
MODULE3 10 Stop Lamp Switch, BCM, Sport Mode Switch, Driver Door Module, Passenger Door Module
SPARE3 15 Spare
SPARE5 25 Spare
S/HEATER REAR 25 Rear Seat Warmer Control Module
AMP 25 DC-DC Converter, AMP
SPARE4 20 Spare
BUTTON START2 7,5 Smart Key Control Module, Immobilizer Module
AEB AEB 10 —
MODULE4 10 Parking Assist Buzzer, Blind Spot Detection Radar LH/RH
P/WDW RH 25 Power Window RH Relay Driver Safety Power Window Module (RHD)
TRUNK 10 Trunk Relay, Trunk Lid Latch
P/SEAT DRV 30 Driver Seat Manual Switch, Driver Seat Manual Switch, Driver lms Module
S/HEATER FRONT 20 Front Seat Warmer Control Module, Front Air Ventilation Seat Control Module
START 7,5 Burglar Alarm Relay, Transmission Range Switch, Ignition Lock & Clutch Switch, Smart Key Control Module, ECM/PCM, E/R Junction Block (RLY.4)
BUTTON START1 15 Smart Key Control Module
A/CON2 10 E/R Junction Block (RLY.12), Blower Motor, B;pwer Resistor, A/C Control Module
SPARE1 20 Spare
P/WDW LH 25 Power Window LH Relay Driver Safety Power Window Module (LHD)
INTERIOR LAMP 10 Ignition Key ILL. & Door Warning Switch, Trunk Room Lamp, Front Vanity Lamp, LH/RH Room Lamp, Overhead Console Lamp
MODULE2 10 Digital Clock, USB Charging Connector, MTS E-Call Module, Smart Key Control Module, BCM, Audio, A/V & Navigation Head Unit, Power Outside Mirror Switch, DC-DC Converter, AMP, E/R Junction Block (RLY.14)

Engine compartment fuse panel

Hyundai Elantra - fuse box diagram - engine compartment
Hyundai Elantra – fuse box diagram – engine compartment
Fuse name Symbol A Protected component
MAIN 150 Fuse: F28, F29, F30, F31, F34
MDPS 80 MDPS Unit
BATT5 60 PCB Block (Fuse: F8, F14, F15, F16, Engine Control Relay)
BATT2 60 Smart Junction Block (Fuse: F36, ARISU)
BATT3 60 Smart Junction Block (Fuse: ARISU, IPS)
BATT4 50 Smart Junction Block (Fuse: F20, F26, F27, F33, F34, F35, F41)
COOLING FAN1 50 RLY.9, RLY.2 (DSL)
RR HTD 50 RLY.10
BLOWER 40 RLY.12
IG1 40 Ignition Switch, E/R Junction Block (RLY.3, RLY8)
IG2 40 Ignition Switch, E/R Junction  Block (RLY.6)
PTC HEATER1 50 RLY.11B
PTC HEATER2 50 RLY.1B
PTC HEATER3 50 RLY.13B
FUEL HEATER 40 RLY.5B
B/UP LAMP 10 Electro Chromic Mirror, Rear Combination Lamp (IN) LH/RH, Audio, MTS E-Call Module, Smart Junction Block (IPS Control Module)
POWER OUTLET3 20 Cigarette Lighter
POWER OUTLET2 20 Power Outlet
HEAD LAMP HI 20 RLY.13A
TCU1 15 TCM
VACUUM PUMP1 20 —
A/CON 10 —
COOLING FAN2 40 RLY.9, RLY.2 (GSL)
BATT1 40 Smart Junction Block (LEAK CURRENT AUTCUT DEVICE, Fuse: F10, F12, F21, F29, F38)
DCT1 40 TCM
DCT2 40 TCM
B/ALARM HORN 10 RLY.7
ABS1 40 ABS Control Module, ESC Control Module, Multipurpose Check Connector
ABS2 30 ABS Control Module, ESC Control Module, Multipurpose Check Connector
POWER 40 RLY.14

Engine compartment main fuse panel – PCB (Gamma 1.6 MPI)

Fuse name Symbol A Protected component
SNSR2 10 Purge Control Solenoid Valve, Variable Intake Solenoid Valve, E/R Junction Block (RLY.2, RLY.9)
ECU2 15 —
ECU1 10 ECM/PCM
INJ 15 INJECTOR #1-#4
SNSR1 15 Oxygen Sensor (Up), Oxygen Sensor (Down)
IGN 15 Ignition Coil #1-#4, Condenser
SNSR3 20 Fuel Pump Relay, Oil Control Valve #1, Oil Control Valve #2
HORN 10 Horn Relay
ECU5 10 ECM/PCM
SNSR4 20 —
ABS3 15 ABS/ESC Control Module, Multipurpose Check Connector
TCU2 15 Vehicle Speed Sensor, Transmission Range Switch, E/R Junction Block (Fuse: F17)
ECU4 20 ECM/PCM
ECU3 10 ECM/PCM
F/PUMP 20 Fuel Pump Relay

Engine compartment main fuse panel – PCB Block (Nu 2.0 MPI)

Fuse name Symbol A Protected component
SNSR2 10 Purge Control Solenoid Valve, Variable Intake Solenoid Valve, E/R Junction Block (RLY.2, RLY.9)
ECU2 15 PCM
ECU1 10
INJ 15 INJECTOR #1-#4
SNSR1 15 Oxygen Sensor (Up), Oxygen Sensor (Down)
IGN 15 Ignition Coil #1-#4, Condenser
SNSR3 20 Fuel Pump Relay, Oil Control Valve #1, Oil Control Valve #2
HORN 10 Horn Relay
ECU5 10 ECM/PCM
SNSR4 20 —
ABS3 15 ABS/ESC Control Module, Multipurpose Check Connector
TCU2 15 Vehicle Speed Sensor, Transmission Range Switch, E/R Junction Block (Fuse: F17)
ECU4 20 PCM
ECU3 10 PCM
F/PUMP 20 Fuel Pump Relay

Engine compartment main fuse panel – PCB Block (UII 1.6 TCI)

Fuse name Symbol A Protected component
SNSR2 10 Purge Control Solenoid Valve, Variable Intake Solenoid Valve, E/R Junction Block (RLY.2, RLY.9)
ECU2 15 —
ECU1 10 ECM
INJ 15
SNSR1 15 Lambda Sensor #1, Lambda Sensor #2
IGN 15 —
SNSR3 20 Fuel Pump Relay, Air Flow Sensor, Camshaft Position Sensor, Oil Control Valve
HORN 10 Horn Relay
ECU5 10 ECM
SNSR4 20 Fuel Filter Warning Sensor, Glow Relay Unit
ABS3 15 ABS/ESC Control Module, Multipurpose Check Connector
TCU2 15 TCM, Transmission Range Switch
ECU4 20 —
ECU3 10 PCM
F/PUMP 20 Fuel Pump Relay

Assignment of the relay

Symbol Relay NO. Protected component Type
RLY.1B PTC HEATER #2 Relay MICRO
RLY.2 COOLING FAN2 Relay MICRO
RLY.3 PDM #3 (IG1) Relay MICRO
RLY.4 START #1 Relay MICRO
RLY.5A SUB FUEL PUMP Relay MICRO
RLY.5B FUEL HEATER Relay (D4FB) MICRO
RLY.6 PDM #4 (IG2) Relay MICRO
RLY.7 B/ALARM HORN Relay MICRO
RLY.8 PDM #2 (ACC) Relay MICRO
RLY.9 COOLING FAN1 Relay MINI
RLY.10 REAR HEATED Relay MINI
RLY.11 A/C Relay MICRO
RLY.11B PTC HEATER #1 Realy (D4FB) MICRO
RLY.12 BLOWER Relay MICRO
RLY.13A H/LAMP HI Relay MICRO
RLY.13B PTC HEATER #3 Relay (D4FB) MICRO
RLY.14 POWER OUTLET Relay (D4FB) MICRO



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Subaru WRX (2018) – fuse box diagram

Posted on by admin

Subaru WRX (2018) – fuse box diagram

Year of production: 2018

Instrument panel

Subaru WRX - fuse box diagram - instrument panel
Subaru WRX – fuse box diagram – instrument panel
Fuse A Circuit
1 20 R.FOG TRAIL
2 7.5 METER IG
3 15 DOOR LOCK
4 10 IG2
5 — —
6 7.5 MIR
7 15 UNIT+B
8 7.5 STOP
9 7.5 WIPER DEICE
10 7.5 D-OP+B
11 7.5 TURN IG
12 15 UNIT IG1
13 20 12V PLUG
14 10 TAIL CLEARANCE
15 10 BKUP+B
16 7.5 ILM
17 15 SEAT HTR
18 10 LAMP IG
19 — —
20 10 CIGAR
21 10 START
22 7.5 A/C IG
23 — —
24 10 AUDIO NAVI
25 15 SRS AIR BAG
26 7.5 IG1
27 15 BLOWER
28 15 BLOWER
29 15 F.FOG
30 — —
31 7.5 ACC
32 7.5 STR LOCK
33 7.5 UNIT IG2

Engine compartment (STI)

Subaru WRX - fuse box diagram - engine compartment ( STI)
Subaru WRX – fuse box diagram – engine compartment ( STI)
Fuse A Circuit
A Main fuse
1 30 ABS SOL
2 25 MAIN FAN
3 25 SUB FAN
4 — —
5 25 AUDIO AMP
6 30 H/L LO
7 15 H/L HI
8 20 BACK UP
9 15 HORN
10 25 R.DEF
11 15 FUEL PI, P
12 10 (Transmission control unit)
13 7.5 EGI+B
14 15 HAZARD
15 15 LIGHTING
16 7.5 ALT-S
17 — —
18 20 INJ
19 15 H/L LO RH
20 15 H/L LO LH
21 10 AIR CUT
22 7.5 (Telematics)

Engine compartment (expect STI)

Subaru WRX - fuse box diagram - engine compartment (expect STI)
Subaru WRX – fuse box diagram – engine compartment (expect STI)
Fuse A Circuit
A Main fuse
1 30 ABS SOL
2 25 MAIN FAN
3 25 SUB FAN
4 — —
5 25 AUDIO AMP
6 30 H/L LO
7 15 H/L HI
8 20 BACK UP
9 15 HORN
10 25 R.DEF
11 15 FUEL PI, P
12 10 (Transmission control unit)
13 7.5 EGI+B
14 15 HAZARD
15 15 LIGHTING
16 7.5 ALT-S
17 — —
18 20 INJ
19 15 H/L LO RH
20 15 H/L LO LH

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Subaru WRX (2015 – 2017) – fuse box diagram

Posted on by admin

Subaru WRX (2015 – 2017) – fuse box diagram

Year of production: 2015, 2016, 2017

Instrument panel

Subaru WRX - fuse box diagram - instrument panel
Subaru WRX – fuse box diagram – instrument panel
Fuse A Circuit
1 20 (Not available)
2 7.5 Combination meter
3 15 Door locking
4 10 Front wiper deicer relay
5 — —
6 7.5 Remote control rear view mirrors, Seat heater relay
7 10 Combination meter, Integrated unit
8 7.5 Stop light
9 7.5 Front wiper deicer
10 7.5 Power supply (battery)
11 7.5 Turn signal unit
12 15 Transmission control unit, Engine control unit, Integrated unit
13 20 Accessory power outlet (center console)
14 10 Parking light, Tail light, Rear combination light
15 10 Trunk light, Keyless unit
16 7.5 Illumination
17 15 Seat heaters
18 10 Backup light
19 – Daytime running lights
20 10 Accessory power outlet (instrument panel)
21 7.5 Starter relay
22 10 Air conditioner, Rear window defogger relay coil
23 — —
24 10 Audio unit, Navigation system (if equipped)
25 15 SRS airbag system
26 7.5 Power window relay, Radiator main fan relay
27 15 Blower fan
28 15 Blower fan
29 10 Fog light
30 — —
31 7.5 Auto air conditioner unit, Integrated unit
32 7.5 Clutch switch, Steering lock control unit
33 7.5 Vehicle Dynamics Control unit

Engine compartment (STI)

Subaru WRX - fuse box diagram - engine compartment ( STI)
Subaru WRX – fuse box diagram – engine compartment ( STI)
Fuse A Circuit
A Main fuse
1 30 ABS unit, Vehicle Dynamics Control unit
2 25 Main fan (cooling fan)
3 25 Sub fan (cooling fan)
4 — —
5 25 Audio
6 30 Headlight (low beam)
7 15 Headlight (high beam)
8 20 Back-up
9 15 Horn
10 25 Rear window defogger, Mirror heater
11 15 Fuel pump
12 10 Transmission control unit
13 7.5 Engine control unit
14 15 Turn and hazard warning flasher
15 15 Tail and illumination relay
16 7.5 Alternator
17 — —
18 20 Injection
19 15 Headlight (low beam -right hand)
20 15 Headlight (low beam -left hand)
21 10 Secondary air combination valve

Engine compartment (expect STI)

Subaru WRX - fuse box diagram - engine compartment (expect STI)
Subaru WRX – fuse box diagram – engine compartment (expect STI)
Fuse A Circuit
A Main fuse
1 30 ABS unit, Vehicle Dynamics Control unit
2 25 Main fan (cooling fan)
3 25 Sub fan (cooling fan)
4 — —
5 25 Audio
6 30 Headlight (low beam)
7 15 Headlight (high beam)
8 20 Back-up
9 15 Horn
10 25 Rear window defogger, Mirror heater
11 15 Fuel pump
12 20 Transmission control unit
13 7.5 Engine control unit
14 15 Turn and hazard warning flasher
15 15 Tail and illumination re lay
16 7.5 Alternator
17 —
18 20 Injection
19 15 Headlight (low beam -right hand)
20 15 Headlight (low beam -left hand)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Subaru Crosstrek (2018) – fuse box diagram

Posted on by admin

Subaru Crosstrek (2018) – fuse box diagram

Year of production: 2018

Instrument panel

Subaru Crosstrek - fuse box diagram - instrument panel
Subaru Crosstrek – fuse box diagram – instrument panel
Fuse A Circuit
1 — —
2 20 CIGAR SEAT/H
3 7.5 IG A-1
4 15 AUDIO NAVI
5 15 IG B-2
6 — —
7 15 12V SOCKET
8 15 A/C IG
9 7.5 ACC
10 7.5 IG B-1
11 — —
12 Empty
13 7.5A IG A-3
14 7.5A UNIT +B
15 7.5A METER IG
16 Empty
17 7.5A MIRROR
18 7.5A LAMP IG
19 10A IG A-2
20 10A SRS AIR BAG
21 Empty
22 15 STRG/H
23 10 DRL
24 — —
25 — —
26 10 BACK UP
27 — —
28 20 TRAIL R.FOG
29 — —
30 — —
31 — —
32 7.5 ILLUMI
33 7.5 KEY SWA
34 — —
35 — —
36 7.5 KEY SW B
37 7.5 STOP
38 7.5 EYE SIGHT

Engine compartment

Subaru Crosstrek - fuse box diagram - engine compartment
Subaru Crosstrek – fuse box diagram – engine compartment
Fuse A Circuit
1 7.5 HORN 2
2 7.5 HORN 1
3 15 H/L LO RH
4 15 H/L LO LH
5 7.5 ACTGS
6 10 H/L HI RH
7 10 H/L HI LH
8 10 TAIL
9 10 ODS
10 7.5 OBD
11 7.5 PU B/UP
12 30 JB-B
13 15 HAZARD
14 20 FUEL
15 7.5 D-OP+B
16 10 MB-B
17 15 D/L
18 10 DCM
19 20 TCU
20 7.5 CVT SSR
21 15 IG COIL
22 10 AVCS
23 10 E/G2
24 — —
25 — —
26 20 O2 HTR
27 15 E/G1
28 — —
29 30 BACKUP
30 25 R. DEF
31 20 AUDIO
32 30 VDC SOL
33 25 MAIN FAN
34 25 SUB FAN
35 10 DEICER
36 15 F. FOG
37 15 BLOWER
38 15 BLOWER
39 —
40 30 F. WIPER
41 15 F. WASH
42 15 R. WIPER
43 — —
44 — —

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Subaru Crosstrek (2011 – 2015) – fuse box diagram

Posted on by admin

Subaru Crosstrek (2011 – 2015) – fuse box diagram

Year of production: 2011, 2012, 2013, 2014, 2015

Instrument panel

Subaru Crosstrek - fuse box - passenger compartment
Subaru Crosstrek – fuse box – passenger compartment
Fuse panel Fuse rating Circuit
1 20A Trailer hitch connector
2 Empty
3 15A Door locking
4 10A Front wiper deicer relay
5 10A Combination meter, Clock
6 7.5A Remote control rear view mirrors, Seat heater relay
7 15A Combination meter, Integrated unit
8 15A Stop light
9 15A Front wiper deicer
10 7.5A Power supply (battery)
11 7.5A Turn signal unit
12 15A Transmission control unit, Engine control unit, Integrated unit
13 20A Accessory power outlet (center console), AC 110V (If installed)
14 15A Parking light, Tail light, Rear combination light
15 10A Luggage light, Clock
16 7.5A Illumination
17 15A Seat heaters
18 10A Backup light
19 7.5A (Spare)
20 10A Accessory power outlet (instrument panel)
21 7.5A Starter relay
22 10A Air conditioner, Rear window defogger relay coil
23 Empty
24 10A Audio unit, Clock
25 15A SRS airbag system
26 7.5A Power window relay, Radiator main fan relay
27 15A Blower fan
28 15A Blower fan
29 15A Fog light
30 Empty
31 7.5A Auto air conditioner unit, Integrated unit
32 7.5A Clutch switch, Steering lock control unit
33 7.5A Vehicle Dynamics Control unit

Engine compartment

Subaru Crosstrek - fuse box - engine compartment
Subaru Crosstrek – fuse box – engine compartment
Fuse A Circuit
1 30 ABS unit, Vehicle Dynamics Control unit
2 25 Main fan (cooling fan)
3 25 Sub fan (cooling fan)
4 — —
5 — —
6 30 Headlight (low beam)
7 15 Headlight (high beam)
8 20 Back-up
9 15 Horn
10 25 Rear window defogger, Mirror heater
11 15 Fuel pump
12 20 Automatic transmission control unit
13 7.5 Engine control unit
14 15 Turn and hazard warning flasher
15 15 Tail and illumination relay
16 7.5 Alternator
17 — —
18 — —
19 15 Headlight (low beam -right hand)
20 15 Headlight (low beam -left hand)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Mercury Mountaineer (1997 – 2001) – fuse box diagram

Posted on by admin

Mercury Mountaineer (1997 – 2001) – fuse box diagram

Year of production: 1997, 1998, 1999, 2000, 2001

Passenger compartment fuse panel

Mercury Mountaineer First Generation - fuse box - passenger compartment
Mercury Mountaineer First Generation – fuse box – passenger compartment
No. A Protected components
1 7.5 Power Mirror Switch, Power Antenna, Memory Seat (’00-’01)
2 7.5 ’98-’01: Blower Motor Relay, Air Bag Diagnostic Monitor, Passive Deactivation (PAD) Module (’98)
7.5 ’97: High-mount Brakelamp
3 7.5 ’98-’01: Left Stop/Turn Trailer Tow Connector
15 ’97: Parking Lamps
4 10 Left Headlamp
5 10 Data Link Connector (DLC)
6 7.5 ’99-’01: Rear Blower Motor (Without EATC)
7.5 ’97-’98: Air Bag System, Blower Relay, Passive Deactivation (PAD) Module (’98)
7 7.5 ’98-’01: Right Stop/Turn Trailer Tow Connector
7.5 ’97: Illumination switches
8 10 Right Headlamp, Foglamp Relay, Daytime Running Lamps (DRL) Module (’98)
9 7.5 ’98-’01: Brake Pedal Position Switch
10 ’97: Autolamps
10 7.5 ’98-’01: Speed Control/Amplifier Assembly, Generic Electronic Module (GEM), Shift Lock Actuator, Blend Door Actuator, A/C – Heater Assembly, Flasher, Overhead Console (’99-’01), Load Leveling Module (’99-’01), Brake Pressure Switch (’98), Main Light Switch (’98), RABS Resistor (’98), A/C – Heater Assembly
7.5 ’97: Rear Blower, Speed Control, Generic Electronic Module (GEM), Brake Interlock, Overhead Console
11 7.5 Instrument Cluster, Main Light Switch (’98), RABS Resistor (’98)
12 7.5 ’98-’01: Washer Pump Relay, Rear Washer Pump Relay
10 ’97: Liftgate Wiper/Washer, Front Washer
13 20 ’98-’01: Brake Pedal Position Switch, Brake Pressure Switch
15 ’97: Brake on/off Switch
14 10 ’98-’01: 4 Wheel Anti-Lock Brake System (4WABS) Module, 4WABS Main Relay
10 ’97: Anti-Lock Brake System
20 ’98: Rear Anti-Lock Brake System (RABS) Module
15 7.5 Instrument Cluster, Air Bag System (’97)
16 30 Windshield Wiper Motor (’98-’01), Wiper Hi-Lo Relay (’98-’01), Wiper Run/Park Relay
17 25 ’98-’01: Cigar Lighter
15 ’97: Cigar Lighter
18 25 ’99-’01: Drivers Unlock Relay, All Unlock Relay, All Lock Relay, Power Seats
15 ’97: A/C System
15 ’98: Drivers Unlock Relay, All Unlock Relay, All Lock Relay
19 25 ’98-’01: PCM Power Diode
25 ’97: Ignition Coil, PCM System
20 7.5 RAP Module (’98-’01), Generic Electronic Module (GEM), Radio, Cellular Phone (’99-’01), Power Antenna (’97), Anti-theft (’97)
21 15 Flasher (Hazard)
22 20 Auxiliary Power Socket
10 Turn Signals
23 — ’99-’01: Not Used
10 ’97: Rear Wiper System
15 ’98: Turn Signals
24 7.5 ’99-’01: Clutch Pedal Position (CPP) Switch, Starter Interrupt Relay, Anti-Theft
10 ’97: Anti-theft Relay
— ’98: Not Used
25 7.5 Generic Electronic Module (GEM), Instrument Cluster, Securi-Lock (’99-’01)
26 10 ’98-’01: Battery Saver Relay, Electronic Shift Relay, Interior Lamp Relay, Electronic Shift Control Module, Power Window Relay (’98), Shift Control Module (’98), Transmission Control (’98)
10 ’97: 4R70W Overdrive, Daytime Running Lamps (DRL) System, Backup Lamps, Rear Defroster Relay
27 15 ’99-’01: Daytime Running Lamps (DRL), Backup Lamps Switch, DTR Sensor
10 ’97: Underhood Lamp, Map Lights, Glove Box Lamp, Overhead Lamp, Visor Lamps, Accessory Delay, Dimmer Switch Illumination
15 ’98: Switch, Daytime Running Lamps (DRL), Backup Lamps Switch, DTR Sensor, Instrument Illumination Dimming Module, Dome/Map Lamp, GEM, Electric Shift, Interior Lights, Glove Box Lamp and Switch
28 7.5 Generic Electronic Module (GEM), Radio (’98-’01), Memoiy Seat (’99-’01)
29 25 ’00-’01: Radio
10 ’97: Audio System
15 ’98: Radio
10 ’99: Radio
30 15 ’98-’01: Park Lamp/Trailer Tow Relay
— ’97: Not Used
31 — ’98-’01: Not Used
7.5 ’97: Rear Blower Motor Relay
32 10 ’99-’01: Heated Mirror
7.5 ’97: Heated Rear Window
10 ’98: Rear Blower
33 15 Headlamps, Daytime Running Lamps (DRL) Module, Instrument Cluster
34 7.5 ’98-’01: Rear Integrated Control Parrel, CD
7.5 ’97: Luxury Audio System
35 7.5 ’99-’01: Rear Blower Motor (With EATC)
— ’97: Not Used
10 ’98: RABS Test Connector
36 7.5 ’98-’01: EATC Memory (’99-’01), CD, Rear Integrated Control Panel, Memory Seat, Message Center
— ’97: Not Used

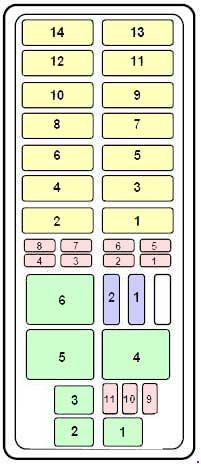

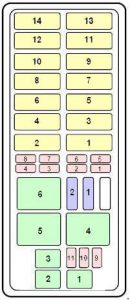

Engine Compartment Fuse Box (’97)

Mercury Mountaineer - fuse box diagram - engine compartment
Mercury Mountaineer – fuse box diagram – engine compartment
No. A Fused component
Maxi fuses
1 30 Rear window defrost
2 30 PCM power relay
3 20 Fuel system, anti-theft system
4 20 Headlamps
5 30 ABS system
6 30 ABS system
7 20 Trailer park LP and trailer stop LP
8 30 Battery saver relay and headlamp relay
9 50 Blower motor
10 30 Power locks, power windows and power
11 20 PCM memory and
12 50 Air ride control relay
13 60 Instrument panel fuse
14 60 Ignition
Mini fuses
1 30 JBL system
2 15 Rear wiper system
3 30 Power point
4 20 4WD system
5 15 Air suspension system
6 15 Alternator system
7 10 Air bag system
8 15 DRL/Fog lamps/Off-road lamps
9 — Not used
10 — Not used
11 20 HEGO system
Relay
1 Wiper run relay
2 Horn relay
3 Wiper HI/LO relay
4 WOT A/C relay
5 PCM power relay
6 Fuel pump relay
Diode
1 ABS diode
2 PCM diode

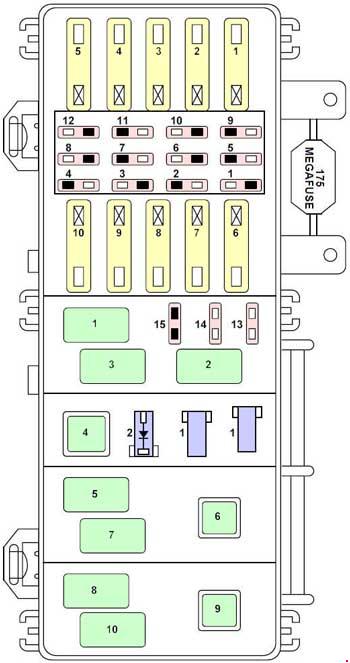

Engine Compartment Fuse Box (’98-’01)

Mercury Mountaineer - fuse box diagram - engine compartment
Mercury Mountaineer – fuse box diagram – engine compartment
No. A Protected components
Maxi Fuses
1 60 ’99-’01: I/P Fuse Panel fuses 1,9, and 13
50 ’98: I/P Fuse Panel
2 40 Blower Motor Relay
3 50 4 Wheel Anti-Lock Brake System (4WABS) Module
4 30 ’99-’01: Power Moon Roof, Accessory Relay Delay (’01), Power Windows (’99-’00), Power Seat (’99-’00)
20 ’98: Mainlight Switch, Instrument Cluster
5 50 Ignition Switch, Starter Relay
6 20 Transfer Case Relay
7 — Not Used
8 20 Air Suspension (Automatic Ride Control ARC Switch Off/On Switch)
9 40 Air Suspension (Automatic Ride Control Relay)
10 30 PCM Power Relay
Mini Fuses
1 10 A/C Relay
2 30 ’99-’01: Heated Seats
20 ’98: Auxiliary Power Point
3 30 ’99-’01: Heated Backlight
— ’98: Not Used
4 15 Fog Lamps and Daytime Running Lamps
5 — ’99-’01: Not Used
10 ’98: Air Bag Diagnostic Monitor
6 10 Powertrain Control Module
7 30 4 Wheel Anti-Lock System (4WABS) Module
8 15 ’99-’01: Rear Wiper Motor
30 ’98: PCM Relay
9 20 Fuel Pump Relay and RAP Module
10 15 Horn Relay
11 15 Parklamps Relay and Mainlight Switch
12 30 Mainlight Switch and Multifunction Switch
13 15 Heated Oxygen Sensor, EGR Vacuum Regulator, EVR Solenoid, Camshaft Position (CMP) Sensor, Canister Vent Solenoid, A4LD
Automatic Transmission (’98)
14 30 Generator/Voltage Regulator
15 — Not Used
Relay
1 Wiper Park
2 A/C
3 Wiper High/Low
4 PCM Power
5 Fuel Pump
6 Starter
7 Horn
8 ’99-’01: Rear Wiper Down
’98: Washer Pump
9 Blower Motor
10 ’99-’01: Rear Wiper Up
’98: Fog Lamp
Diode / Resistor
1 ’99-’01: Not Used
’98: Resistor: Fuse 7
1 ’00-’01: Daytime Running Lamps Diode
’98: Anti-Lock Brakes Indicator Diode
’99: Not Used
2 Electronic Engine Controls Diode

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market

Subaru Ascent (2018) – fuse box diagram

Posted on by admin

Subaru Ascent (2018) – fuse box diagram

Year of production: 2018

Passenger compartment fuse panel

The fuse panel is located on the left side of the dashboard, below, under the cover

Subaru Ascent - fuse box diagram - passenger compartment
Subaru Ascent – fuse box diagram – passenger compartment
Fuse A Circuit
1 — —
2 20A CIGAR
3 7.5A IGA-1
4 15A AUDIO NAVI
5 15A IG B-2
6 — —
7 — —
8 15A A/C IG
9 7.5A ACC
10 7.5A IG B-1
11 — —
12 — —
13 7.5A IGA-3
14 10A UNIT +B
15 7.5A METER IG
16 — —
17 7.5A MIRROR
18 7.5A LAMP IG
19 10A IGA-2
20 10A SRS AIRBAG
21 — —
22 15A STRG/H
23 10A DRL
24 — —
25 — —
26 10A BACK UP
27 15A SEAT HTR F
28 15A TRAIL
29 — —
30 — —
31 — —
32 7.5A ILLUMI
33 7.5A KEY SW A
34 — —
35 — –
36 7.5A KEY SW B
37 7.5A STOP
38 7.5A EYE SIGHT

Engine compartment fuse box

The power distribution box is located in the engine compartment

Subaru Ascent - fuse box diagram - engine compartment
Subaru Ascent – fuse box diagram – engine compartment
Fuse A Circuit
A — Main fuse
1 7.5A HORN HI
2 7.5A HORN LO
3 15A H/L LO RH
4 15A H/L LO LH
5 10A DCM
6 10A H/L HI RH
7 10A H/L HI LH
8 10A TAIL
9 30A JB-B
10 25A FUEL
11 7.5A OBD
12 10A ODS
13 7.5A PU B/UP
14 15A HAZARD
15 — —
16 10A MB-B
17 20A SOCKET
18 20A D/L
19 15A ETC
20 10A E/G2
21 7.5A CVT SSR
22 20A DI
23 — —
24 20A O2 HTR
25 — —
26 20A TCU
27 15A IG COIL
28 15A E/G1
29 30A BACKUP
30 15A R_S/H
31 30A VDC SOL
32 15A F. FOG
33 30A R. DEF
34 20A AUDIO
35 15A DEICER
36 — —
37 20A BLOWER
38 20A BLOWER
39 — —
40 15A R. WIPER
41 15A F. WASH
42 30A F. WIPER
43 — —
44 — —

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market

Mercury Mountaineer (2002 -2005) – fuse box diagram

Posted on by admin

Mercury Mountaineer (2002 -2005) – fuse box diagram

Year of production: 2002, 2003, 2004, 2005

Passenger compartment fuse panel

Mercury Mountaineer Second Generation - fuse box - passenger compartment
Mercury Mountaineer Second Generation – fuse box – passenger compartment

The fuse panel is located below the instrument panel on the driver’s side.

No. A Circuits Protected
1 30 Memory seat module, Driver power seat (’03-’05), Driver power lumbar (’05)
2 20 Heated seats (’02), Moonroof
3 20 Radio, Amplifier, Power antenna (’02), DVD
4 5 Front wiper module
5 15 Flasher relay (Turn, hazards)
6 10 Right horn (’02), Key-in-chime (’03-’05)
7 15 Heated mirrors
8 5 ’04-’05: Heated PCV (4.0L engine only)
9 — Not used (spare)
10 10 Heated backlight relay coil, Heated seat module (’02), Temp blend actuator (’02), A/C clutch contact
11 20 ’03-’05: Heated seats
12 5 ’02: Foglamp switch, 4×4 module
13 5 Overdrive cancel switch, Flex fuel sender (’02-’03)
14 5 PATS module
15 5 Rear wiper module, Cluster, TPMS (’02-’03)
16 5 Power mirror, Manual climate control, TPMS
17 15 Delayed acc. coil, Battery saver, Interior lamps (front and rear), Glove compartment lamp
18 10 Left horn (’02-’03), Flexible fuel pump (’04-’05)
19 10 RCM, PAD indicator (’02)
20 5 Memory driver seat switch, Driver seat module, Body Security Module (BSM), PATS LED, Sunload sensor (’02-’03)
21 5 Instrument cluster, Compass, Flasher coil
22 10 ABS, IVD Controller
23 15 ’02-’03: Brake pedal position switch, Driver brake applied relay, Redundant cruise deactivate switch
24 15 Cigar lighter, OBD II
25 5 Mode-Temperature actuator for auxiliary climate control, Trailer tow battery charge coil, TPMS (’04-’05)
26 7.5 Reverse park aid, Brake shift interlock, Approach lamp relay coil (’02), IVD switch
27 7.5 Automatic dimming mirror, Digital transmission range sensor, Backup lamps
28 5 Radio (Start)/DVD (Start)
29 10 Digital transmission range sensor, PWR feed to fuse #28 (Start feed)
30 5 Daytime Running Lamps (DRL), Remote solenoid, DEATC climate controller, Manual climate control, Manual climate control temp blend actuator



Passenger compartment fuse panel (top side)

Mercury Mountaineer Second Generation - fuse box - passenger compartment (top side)
Mercury Mountaineer Second Generation – fuse box – passenger compartment (top side)

These relays are located on the reverse side of the passenger compartment fuse panel. To access the relays you must remove the passenger compartment fuse panel.

No. Circuits Protected
1 Flasher
2 Rear defrost
3 Delayed accessory
4 Open
5 Battery saver
6 Open
7 Open

Engine Compartment Fuse Box

Mercury Mountaineer Second Generation - fuse box - power distribution box
Mercury Mountaineer Second Generation – fuse box – power distribution box

The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overload.

No. A Circuits Protected
1 60 PJB
2 30 BSM
3 — Not used
4 30 Rear defrost
5 40 Anti-lock Brake System (ABS) pump
6 60 Delayed accessory, Power windows (’04-’05), Audio (’04-’05)
7 20 Power point #2
8 — Not used
9 20 Power point #1
10 30 ABS module (valves)
11 40 PTEC (’02-’03), Powertrain Control Module (PCM) (’04-’05)
12 50 Ignition relay/Starter relay
13 40 Trailer tow battery. Trailer tow turn signals
14 10 ’02-’03: Daytime Running Lamps (DRL) (Canada)
15 15 Memory (KAPWR) (’02), Memory (PCM/DEATC/Cluster) (’03-’05), Courtesy lamps (’03-’05)
16 15 Headlamp switch (’02-’03), Foglamp switch (’03), Park lamps (’04-’05), Autolamp parklamps (’04-’05), Front foglamps relay coil (’04-’05)
17 — Not used
18 20 4×4 (v-batt 1) (’02-’03), PCM with two-speed 4×4 clutch (’04-’05)
19 20 High beam relay
20 30 Trailer electric brake module
21 30 Front wiper motor
22 20 Autolamp; Low beam
23 30 Ignition switch, PCM diode (’04-’05)
24 — Not used
25 15 ’04-’05: Brake on-off
26 15 ’02-’03: Fuel pump
20 ’04-’05: Fuel pump
27 20 Trailer tow lamps, Trailer tow back-up
28 20 Horn relay
29 60 PJB
30 20 Rear wiper motor
31 — Not used
32 — Not used
33 30 Auxiliary blower motor
34 30 Power seats, Adjustable pedals
35 20 Rear power point (’02)
36 40 Blower motor
37 15 A/C clutch relay/Transmission
38 15 Coil on plug (’02-’03), HEGO (’04-’05), VMV (’04-’05), CMS (’04-’05), ESM (’04-’05), CVS (’04-’05)
39 15 Injectors/Fuel pump relay
40 15 PTEC power (’02-’03), PCM power (’04-’05)
41 15 HEGO (’02-’03), VMV (’02-’03), CMS (’02-’03), PTEC (’02-’03), Coil on plug (’04-’05; 4.6L engine only), Ignition coil (’04-’05; 4.0L engine only)
42 10 Right low beam
43 10 Left low beam
44 15 Front foglamps
45 5 Brake pressure switch (’02)
2 Brake pressure switch (ABS) (’03-’05)
46 20 High beams
62 30 Circuit Breaker: Delayed accessory (’02), Power windows (’03-’05)
Relay
47 Horn
48 Fuel pump
49 High beam
50 Fog lamp
51 ’02-’03: Daytime Running Lamps
52 A/C clutch
53 Trailer tow right turn
54 Trailer tow left turn
55 Blower motor
56 Starter
57 ’02-’03: PTEC
’04-’05: PCM
58 Ignition
59 ’02-’03: Driver brake applied or Daytime Running Lamps
Diode
60 PCM
61 A/C clutch

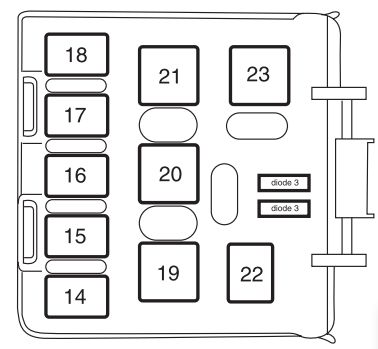

Rear Relay Box

Mercury Mountaineer Second Generation - fuse box - rear relay box
Mercury Mountaineer Second Generation – fuse box – rear relay box

The relay box is located on the rear passenger side quarter trim panel. To access this box you must remove the trim panel.

No. Circuits Protected
14 Not used
15 Trailer tow back-up lamps
16 Not used
17 Not used
18 Not used
19 Trailer tow park lamps
20 Trailer tow battery charge
21 Not used
22 ’02: Approach lamps
23 Not used
Diode
3 Not used
4 Not used

Auxiliary relay box (trailer tow)

Mercury Mountaineer Second Generation - fuse box - auxiliary relay box
Mercury Mountaineer Second Generation – fuse box – auxiliary relay box

The relay box is located on the front right fender well underneath the speed control module.

Relay Description
Relay 64 Trailer Tow (left turn)
Relay 65 Trailer Tow (right turn)
Relay 66 Not used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market

Mercury Mountaineer (2006 – 2010) – fuse box diagram

Posted on by admin

Mercury Mountaineer (2006 – 2010) – fuse box diagram

Year of production: 2006, 2007, 2008, 2009, 2010

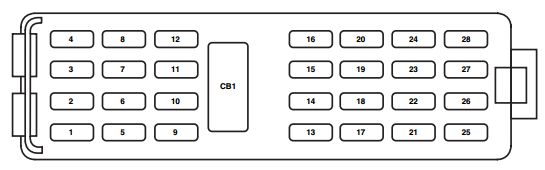

Passenger compartment fuse panel

Mercury Mountaineer Third Generation - fuse box - passenger panel
Mercury Mountaineer Third Generation – fuse box – passenger panel

The fuse panel is located below the instrument panel on the driver’s side.

No. A Protected Circuits
1 20 Moon roof, Adjustable pedals, DSM, Memory seats, Lumbar motor
2 5 Microcontroller power
3 20 Radio, Navigation amplifier, GPS module
4 10 ’07-’10: On-board diagnostic (OBD II) connector
20 ’06: On-board diagnostic (OBD II) connector
5 5 Moon roof, Door lock switch illumination (’08-’10), Auto dimming rear view mirror (’10), Rearview mirror with microphone (’08-’09)
6 20 Liftglass release motor, Door unlock/lock
7 15 Trailer stop/turn
8 15 Ignition switch power, Passive anti-theft system (PATS), Cluster
9 2 6R Transmission control module/Powertrain control module (Ignition RUN/START), Fuel pump relay
10 5 Front wiper RUN/ACC relay in power distribution box (PDB)
11 5 Radio start
12 5 Rear wiper motor RUN/ACC, Trailer battery charge relay in PDB, Radio
13 15 Heated mirror, Manual climate rear defrost indicator
14 20 Horn
15 10 Reverse lamps
16 10 Trailer reverse lamps
17 10 Restraints control module, Passenger occupancy, PAD lamp (’06-’07)
18 10 Roll Stability Control™ (RSC) switch (’10), RSC (’10), All wheel drive (AWD) module, Heated seat switches, Reverse park aid (’10)
IVD switch (’06-’09), IVD, Compass (’06-’09), Electrochromatic mirror (’06-’09), Auxiliary climate control
19 — Not used
20 10 Climate control system, Brake shift, DEATC (’06-’09)
21 — Not used
22 15 Brake switch, Bi-color stop lamps, High-mount brake lamp, All turn lamps
23 15 Interior lamps, Puddle lamps, Battery saver, Instrument illumination, HomeLink®
24 10 Cluster, Theft indicator light
25 15 Trailer tow park lamps
26 15 License plate/rear park lamp, Front park lamps, Manual climate
27 15 Tri-color stop lamps
28 10 Climate controls
CB1 25 Circuit Breaker: Windows

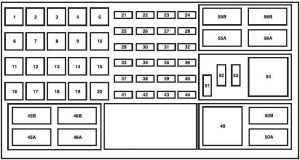

Engine Compartment Fuse Box

’06:

Mercury Mountaineer - fuse box diagram - engine compartment
Mercury Mountaineer – fuse box diagram – engine compartment

’07 – ’10:

Mercury Mountaineer - fuse box diagram - engine compartment
Mercury Mountaineer – fuse box diagram – engine compartment
Fuse/relay Ampere rating [A] Description
1 50** BATT 2 (SJB)
2 50** BATT 3 (SJB)
3 50** BATT 1 (SJB)
4 30** Fuel pump, Injectors
5 30** Third row seat (left)
6 40** IVD module
7 40** Powertrain Control Module (PCM)
8 40** Heated windshield (left)
9 40** Heated windshield (right)
10 30** Power seat (right)
11 30** Starter
12 30** Third row seat (right)
13 30** Trailer tow battery charger
14 30** Memory seats (DSM)
40** Non-memory seats
15 40** Rear defrost, Heated mirrors
16 40** Blower motor
17 30** Trailer electronic brakes
18 30** Auxiliary blower motor
19 30** Running boards
20 — Not used
21 20* Rear power point
22 20* Subwoofer
23 — Not used
24 10* Powertrain Control Module (PCM) KAP, CAN vent
25 20* Front power point/Cigar lighter
26 20* AWD module
27 20* 6R Transmission module
28 20* Heated seats, Power mirrors
29 20* Headlamps (right)
30 25* Rear wiper
31 15* Fog lamps
32 5* Power mirrors
33 30* IVD module
34 20* Headlamps (left)
35 10* AC clutch
36 — Not used
37 30* Front wiper
38 15* 5R Transmission
39 15* PCM power
40 15* Fan clutch, PCV valve, AC clutch relay, GCC fan
41 15* SDARS/DVD
42 15* Redundant brake switch, EVMV, MAFS, HEGO, EVR, VCT1, VCT2, CMCV, CMS
43 15* Coil on plug (4.6L engine only), Coil tower (4.0L engine only)
44 15 Injectors
45A — Not used
45B — GCC fan relay
46A — Not used
46B — Not used
47 — Front wiper relay
48 — PCM relay
49 — Fuel pump relay
50A — Fog lamps relay
50B — AC clutch relay
51 — Not used
52 — A/C clutch (diode)
53 — Not used
54 — Trailer battery charger relay
55 — Starter relay
56 — Blower relay
* Mini Fuses ** Cartridge Fuses

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market

Mercury Mystique (1995 – 2000) – fuse box diagram

Posted on by admin

Mercury Mystique (1995 – 2000) – fuse box diagram

Year of production: 1995, 1996, 1997, 1998, 1999, 2000

Passenger Compartment Fuse Box

Mercury Mystique - fuse box diagram - passenger compartment
Mercury Mystique – fuse box diagram – passenger compartment
No.
 A
 Fused component
19 7.5 ’95-’97: Heated rear view mirrors
20 10 Circuit breaker: Wiper motors
21 40 Power windows
22 7.5 ’95-’99: ABS module
23 15 Backup lamps
24 15 Brake lamps
25 20 Door locks
26 7.5 Main light
27 15 Cigar lighter
28 30 Electric seats
29 30 Rear window defrost
30 7.5 Engine management system
31 7.5 Instrument panel illumination
32 7.5 Radio
33 7.5 Parking lamps – driver’s side
34 7.5 Interior lighting/electric mirror adjustment
35 7.5 Parking lamps – passenger’s side
36 10 ’95-’98: Air bag
37 30 Heater blower motor
38 — Not used
Relay
R12 Interior lighting
R13 Rear window defrost
R14 Heater blower motor
R15 Wiper motor
R16 Ignition
Diode
D2 Reverse voltage protection

Engine Compartment Fuse Box (’99-’00)

Mercury Mystique - fuse box diagram - engine compartment
Mercury Mystique – fuse box diagram – engine compartment
No.
 A
 Fused component
1 — Not used
2 7.5 Alternator
3 20 Foglamps
4 — Not used
5 — Not used
6 3 EEC ignition module (memory)
7 20 Horn and hazard flasher warning system
8 — Not used
9 15 Fuel pump
10 — Not used
11 20 Ignition, Electronic Engine Control
12 — Not used
13 20 HEGO sensor
14 7.5 ABS module
15 7.5 Low beam headlamp (passenger’s side)
16 7.5 Low beam headlamp (driver’s side)
17 7.5 High beam headlamp (passenger’s side)
18 7.5 High beam headlamp (driver’s side)
39 — Not used
40 20 Ignition, light switch, central junction box
41 20 EEC relay
42 40 Central junction box (fuse 37 to blower relay)
43 — Not used
44 — Not used
45 60 Ignition
46 — Not used
47 — Not used
48 — Not used
49 60 Engine cooling
50 — Not used
51 60 ABS
52 60 Central junction box (central timer module, rear window defrost relay, fuses 24, 25, 27, 28, 34)
Relay
R1 Fuel pump
R2 EEC module
R3 Air conditioning
R4 Low beam
R5 High beam
R6 Horn
R7 Starter solenoid
R8 Engine cooling fan (high speed)
R9 Engine cooling fan
R10 Not used
R11 Daytime running lights
Diode
D1 Reverse voltage protection
D2 Not used

Engine Compartment Fuse Box (’95-’98)

Mercury Mystique - fuse box diagram - engine compartment
Mercury Mystique – fuse box diagram – engine compartment
No.
 A
 Fused component
1 80 Main power supply to vehicle electrical system
2 60 Engine cooling fan
3 60 ABS braking system, heater blower (’98)
4 20 Ignition, Daytime running lights
5 15 Foglamp
6 — Not used
7 20 ’98: ABS system
30 ’95-’97: ABS system
8 30 ’95-’97: Air pump
9 20 Electronic Engine Control (EEC)
10 20 Ignition switch
11 3 EEC ignition module (memory)
12 15 Horn and hazard flasher warning system
13 20 ’98: HEGO sensor
15 ’95-’97: HEGO sensor
14 15 Electrically operated fuel pump
15 10 Low beam headlamp – (passengers side)
16 10 Low beam headlamp – (driver’s side)
17 10 High beam headlamp – (passengers side)
18 10 High beam headlamp – (driver’s side)
Relay
R1 Daytime running lights
R2 Radiator fan relay (high speed)
R3 Air conditioning
R4 Air conditioning clutch relay
R5 Radiator fan relay (low speed)
R6 Starter solenoid
R7 Horn
R8 Fuel pump
R9 Low beam headlamps
R10 High beam headlamps
R11 PCM module
Diode
D1 Reverse voltage protection

Auxiliary relays (outside of fuse boxes (’99-’00))

No.
 Circuits switched
 Location
R18 “One touch” switch (drivers window) Driver’s door
R22 Foglamps Wire shield on instrument panel
R23 Turn signals Steering column
R24 Panic alarm – driver’s side Door lock module bracket
R25 Panic alarm – right-hand side Door lock module bracket
R32 Hego heater control (’00) Near PCM-Module

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
