AMC Hornet (1970 – 1977) – fuse and relay box diagram

Posted on by admin

AMC Hornet (1970 – 1977) – fuse and relay box diagram

Year of production: 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977



This article covers the second-generation   AMC Hornet, produced from 1970 to 1977. It includes fuse box diagrams for the 1970, 1971, 1972, 1973, 1974, 1975, 1976 and 1977 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Fuse box diagram

AMC Hornet (1970 - 1977) - fuse and relay box diagram
AMC Hornet (1970 – 1977) – fuse and relay box diagram

Assignment of the fuses in the fuse box

No. A
 Protected Component
1 9 Dome light, cargo, courtesy, clock, glove box, and trunk light
2 14 Tail, park and instrument lights, light switch, windshield wiper, heater, cigar lighter, clock, license light, transmission, air conditioning thermostat, radio, tachometer, ash tray light, seat belt module and key buzzer
3 20 Stop light and hazard warning flasher
4 20 Turn signal, back-up lights and accessories
5 2½ Panel lights
6 4 Gauges
7 20 Fan
Circuit Breaker:

  • Headlights — 20 amp. circuit breaker in headlight switch.
  • Windshield Wiper – 6 amp. circuit breaker in wiper switch.
  • Power Windows & Tailgate Switches — 20 amp. circuit breakers located in instrument panel.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

AMC Matador (1971 – 1978) – fuse and relay box diagram

Posted on by admin

AMC Matador (1971 – 1978) – fuse and relay box diagram

Year of production: 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978



This article covers the second-generation   AMC Matador, produced from 1971 to 1978. It includes fuse box diagrams for the 1971, 1972, 1973, 1974, 1975, 1976, 1977 and 1978 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Fuse box diagram

AMC Matador (1971 - 1978) - fuse and relay box diagram
AMC Matador (1971 – 1978) – fuse and relay box diagram



Assignment of the fuses in the fuse box

No.
 A
 Protected Component
1 20 Turn signal, back-up lights, radio, windshield washer
2 20 Blower motor, air conditioner clutch
3 4 Interlock module circuit, headlight warning buzzer, oil light indicator, park brake, brake failure circuit
4 4 Panel illumination lights
5 14 Interlock module circuit, windshield wiper, park, tail, license and side marker lights
6 20 Stop light and hazard warning flasher
7 9 Dome, courtesy, glove box, trunk and cargo lights, clock
Circuit Breaker:

  • Headlights — 20 amp. circuit breaker in headlight switch.
  • Windshield Wiper – 6 amp. circuit breaker in wiper switch.
  • Power Windows & Tailgate Switches — 20 amp. circuit breakers located in instrument panel.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

AMC Pacer (1975 – 1980) – fuse and relay box diagram

Posted on by admin

AMC Pacer (1975 – 1980) – fuse and relay box diagram

Year of production: 1975, 1976, 1977, 1978, 1979, 1980



This article covers the second-generation   AMC Matador, produced from 1975 to 1980. It includes fuse box diagrams for the 1975, 1976, 1977, 1978, 1978 and 1980 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Fuse box diagram

Type 1

AMC Pacer (1975 - 1980) - fuse and relay box diagram (type 1)
AMC Pacer (1975 – 1980) – fuse and relay box diagram (type 1)



Assignment of the fuses in the fuse box (type 1)

No.
 A
 Protected Component
1 20 Turn signal, back-up lights, radio, windshield washer
2 20 Blower motor, air conditioner clutch
3 4 Interlock module circuit, headlight warning buzzer, oil light indicator, park brake, brake failure circuit
4 4 Panel illumination lights
5 14 Interlock module circuit, windshield wiper, park, tail, license and side marker lights
6 20 Stop light and hazard warning flasher
7 9 Dome, courtesy, glove box, trunk and cargo lights, clock

Type 2

AMC Pacer (1975 - 1980) - fuse and relay box diagram (type 2)
AMC Pacer (1975 – 1980) – fuse and relay box diagram (type 2)



Assignment of the fuses in the fuse box (type 2)

No.
 A
 Protected Component
1 10 Parking lights, key/headlight warning buzzer
2 15 Hazard warning, stoplights
3 10 Clock; dome and trunk lights
4 3 Cluster illumination
5 –  –
6 10 Radio, cigar lighter
7 25 Heater/A/C blower motor, A/C clutch
8 7.5 Gauges, Seat belt warning
9 20 Turn signals, backup lights, windshield washers
10 –  –
11 30 Power windows
12 25 Heated rear window

Circuit Breaker:

  • Headlights — 20 amp. circuit breaker in headlight switch.
  • Windshield Wiper – 8.25 amp. circuit breaker for windshield wipers and 4.5 amp. breaker for tail gate window wiper, both located at left side of brake support bracket.
  • Power Windows & Tailgate Switches — 20 amp. circuit breakers located in instrument panel.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Jetta (V, Type 1K; 2005 – 2009) – fuse and relay box diagram

Posted on by admin

Volkswagen Jetta (V, Type 1K; 2005 – 2010) – fuse and relay box diagram

Year of production: 2005, 2006, 2007, 2008, 2009, 2010



The Volkswagen Jetta was a compact family car produced from 1992 to 1999. In this article, you will find fuse box diagrams for Volkswagen Jetta V, type 1K models from 2005 to 2010, along with details on the fuse panel locations inside the vehicle and the specific functions of each fuse (fuse layout) and relay.

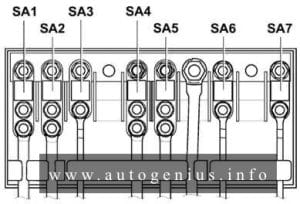

Fuse box location

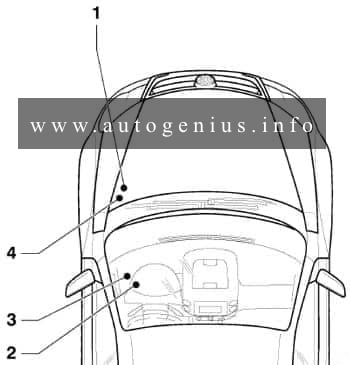

Volkswagen Jetta (V, Type 1K; 2005 - 2010)- fuse and relay box location
Volkswagen Jetta (V, Type 1K; 2005 – 2010)- fuse and relay box location

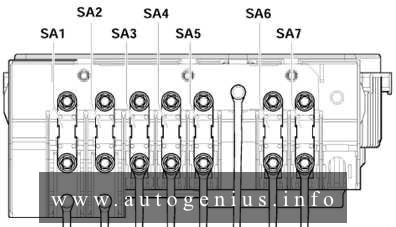

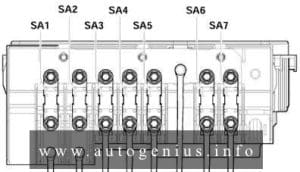

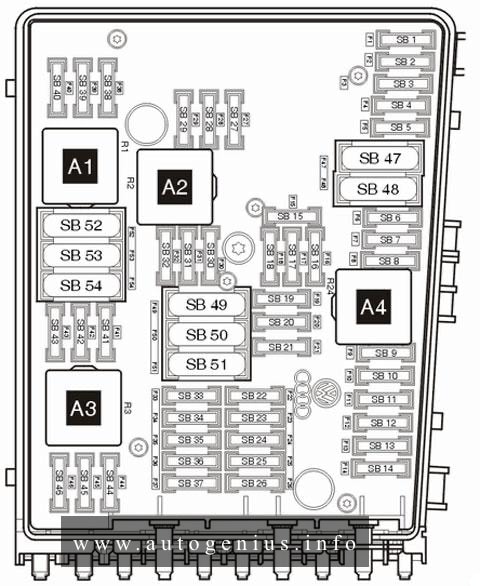

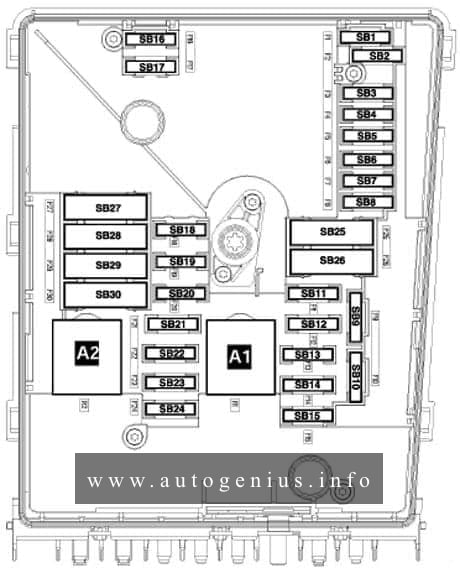

  1. Engine compartment fuse box

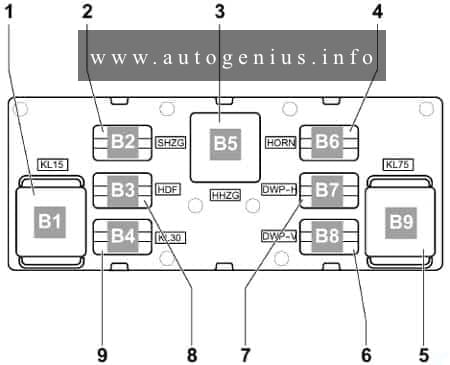

  2. Relay carrier on onboard supply control unit (left under dash panel)
  3. The instrument panel fuse panel

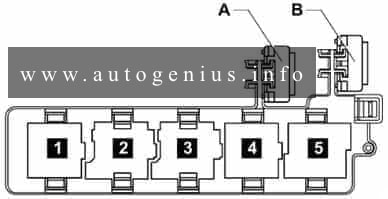

  4. Additional relay carrier, under box in engine compartment

Passenger compartment

Fuse box diagram

Volkswagen Jetta (V, Type 1K; 2005 - 2010)- fuse and relay box diagram - passenger compartment
Volkswagen Jetta (V, Type 1K; 2005 – 2010)- fuse and relay box diagram – passenger compartment

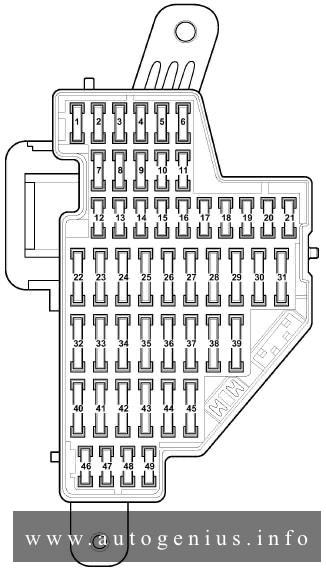

Assignment of the fuses and relays in the passenger compartment

No.
 A
 Function/component
1 10 T16 – Diagnostic connection (T16/1)
J623 – Engine control unit
J757 – Engine component current supply relay (167) (from May 2005)
J538 – Fuel pump control unit (from May 2005)
J485 – Relay for auxiliary heater operation (from 2006)
N79 – Heater element for crankcase breather (from 2006)
G70 – Air mass meter (from 2006)
J431 – Control unit for headlight range control (from 2006)
2 5 J104 – ABS control unit
E132 – Traction control system switch
E256 – TCS and ESP button
E492 – Tyre pressure monitor display button
F – Brake light switch (low; from November 2005)
10 J623 – Engine control unit (from 2006)
V49 – Right headlight range control motor (from 006)
V48 – Left headlight range control motor (from 2006)
E102 – Headlight range control regulator (from 2006)
J538 – Fuel pump control unit (from 2006)
J345 – Trailer detector control unit (from 2006)
J587 – Selector lever sensors control unit (from 2006)
J533 – Data bus diagnostic interface (from 2006)
J285 – Control unit in dash panel insert (from 2006)
J500 – Power steering control unit (from 2006)
J104 – ABS with EDL control unit (from 2006)
E132 – Traction control system switch (from 2006)
E256 – TCS and ESP button (from 2006)
G476 – Brake pedal position sender (from 2006)
E1 – Light switch (from 2006)
F47 – Brake pedal switch, (from November 2005)
3 10 J500 – Power steering control unit (up to May 2005)
5 J234 – Airbag control unit (from May 2005)
4 5 E16 – Heater/heat output switch
G65 – High-pressure sender
J131 – Heated driver seat control unit
J132 – Heated front passenger seat control unit
J255 – Climatronic control unit
K216 – Stabilisation program warning lamp 2 (from May 2005)
M17 – Reversing light bulb (from May 2005)
E422 – Tyre pressure monitor display button (from May 2005)
G266 – Oil level and oil temperature sender (high; from May 2005)
J530 – Garage door operation control unit (from May 2006)
G128 – Seat occupied sensor, front passenger side (from May 2006)
Y7 – Automatic anti-dazzle interior mirror (from May 2006)
Z20 – Left washer jet heater element (from May 2006)
Z21 – Right washer jet heater element (from May 2006)
10 G266 – Oil level and oil temperature sender (high; from November 2005)
M17 – Reversing light (high; from November 2005)
J255 – Climatronic control unit (high; from November 2005)
G65 – High-pressure sender (high; from November 2005)
E16 – Switch for heater and heater output (high; from November 2005)
J530 – Garage door operation control unit (high; from November 2005)
N253 – Battery isolation igniter (high; from November 2005)
Y7 – Automatic anti-dazzle interior mirror (high; from November 2005)
E422 – Tyre pressure monitor display button (high; from November 2005)
K216 – Stabilisation programme warning lamp 2 (high; from November 2005)
Z20 – Left washer jet heater element (high; from November 2005)
Z21 – Right washer jet heater element (high; from November 2005)
L71 – Illumination for traction control system switch (high; from November 2005)
J301 – Air conditioning system control unit (high; from May 2007)
5 5 F47 – Cruise control system brake pedal switch (to May 2005)
G476 – Clutch position sender
J431 – Control unit for headlight range control (from May 2005)
J500 – Power steering control unit (from May 2005)
J745 – Cornering light and headlight range control unit, on right headlight, (high; December 2006)
10 J745 – Cornering light and headlight range control unit, on right headlight (low; from May 2006), (high; from May 2007)
6 5 J285 – Control unit in dash panel insert (up to May 2006)
J538 – Fuel pump control unit (up to May 2006)
J533 – Data bus diagnostic interface (up to May 2006)
F125 – Multifunction switch (up to May 2006)
J587 – Selector lever sensors control unit (up to May 2006)
F189 – Tiptronic switch (up to May 2006)
J745 – Cornering light and headlight range control unit, on left of headlight (high; December 2006)
10 J745 – Cornering light and headlight range control unit, on left headlight (low; from May 2006), (high; from May 2007)
7 5 J431 – Control unit for headlight range control (to May 2005)
Y7 – Automatic anti-dazzle interior mirror (from May 2005)
Not assigned (from May 2006)
8 5 Y7 – Automatic anti-dazzle interior mirror (to May 2005)
10 J345 – Trailer detector control unit (from May 2005)
Not assigned (from May 2006)
9 5 Not assigned (to May 2005)
J503 – Control unit with display for radio and navigation system (only commercial navigation system unit) (from May 2005)
Not assigned (from May 2006)
10 5 J412 – Mobile telephone operating electronics control unit (to May 2005)
J530 – Garage door operation control unit (from May 2005)
J706 – Seat occupied recognition control unit (from May 2005)
Not assigned (from May 2006)
11 5 J345 – Trailer detector control unit (to May 2005)
Not assigned (from May 2005)
10 J745 – Cornering light and headlight range control unit, on right headlight, (from May 2007)
12 10 J386 – Driver door control unit
J387 – Front passenger door control unit
13 10 E1 – Light switch
T16 – Diagnostic connection (T16/16)
F47 – Brake pedal switch (from May 2005)
G397 – Sensor for rain and light detection (from 2006)
G197 – Magnetic field sender for compass (from 2006)
14 5 F – Brake light switch (low; from May 2005)
J217 – Automatic gearbox control unit
10 J587 – Selector lever sensors control unit (from 2006)
R149 – Remote control receiver for auxiliary coolant heater (from 2006)
J301 – Air conditioning system control unit (from 2006)
J255 – Climatronic control unit (from 2006)
E16 – Heater/heat output switch (from 2006)
J446 – Parking aid control unit (from 2006)
J104 – ABS with EDL control unit (from 2006)
E94 – Heated driver seat regulator (from 2006)
E95 – Heated front passenger seat regulator (from May 2006)
J217 – Automatic gearbox control unit (from November 2005)
15 7.5 J519 – Onboard supply control unit (interior illumination)
16 10 E16 – Heater/heat output switch
J301 – Air conditioning system control unit
J255 – Climatronic control unit
R149 – Remote control receiver for auxiliary coolant heater
Not assigned (from May 2006)
5 J515 – Aerial selection control unit (high; from November 2005)
17 5 G397 – Rain and light detector sensor (up to May 2006)
J515 – Aerial selection control unit (up to May 2006)
G273 – Interior monitoring sensor (from 2006)
G384 – Vehicle inclination sender (from 2006)
H12 – Alarm horn (from 2006)
18 5 J446 – Parking aid control unit
J587 – Selector lever sensors control unit
Not assigned (from 2006)
19 5 J754 – Accident data memory
20 5 J104 – ABS with EDL control unit
Not assigned (from 2006)
21 5 J503 – Control unit with display for radio and navigation system (only commercial navigation system unit) (up to May 2005)
Not assigned (from May 2005)
J542 – Control unit for engine speed governor, in front left footwell (special vehicles) (high; from May 2007)
J378 – PDA control unit (special vehicles) (from May 2007)
22 40 V2 – Fresh air blower (Climatronic)
N253 – Battery isolation igniter (rear battery) (high; from May 2005)
23 30 J386 – Driver door control unit (window regulator)
J387 – Front passenger door control unit (window regulator)
24 25 U1 – Cigarette lighter (up to May 2006)
U9 – Rear cigarette lighter (up to May 2006)
U5 – 12 V socket (criminal investigation department)
20 J388 – Rear left door control unit (central locking) (from 2006)
J389 – Rear right door control unit (central locking) (from 2006)
J393 – Convenience system central control unit (from 2006)
25 J388 – Rear left door control unit (central locking) (high; from May 2007)
J389 – Rear right door control unit (central locking) (high; from May 2007)
J393 – Convenience system central control unit (high; from May 2007)
25 25 Z1 – Heated rear window
J301 – Air conditioning system control unit (only with auxiliary coolant heater)
E16 – Heater/heat output switch (only with auxiliary coolant heater)
N24 – Fresh air blower series resistor (only with auxiliary coolant heater)
26 20 U5 – 12 V socket (luggage compartment) (up to May 2006)
30 J388 – Rear left door control unit (window regulator) (from May 2006)
J389 – Rear right door control unit (window regulator) (from May 2006)
27 15 J538 – Fuel pump control unit
G6 – Fuel system pressurisation pump
J17 – Fuel pump control unit
J643 – Fuel supply relay (from May 2006)
28 10 Charging point for Mag- Lite electric torch (special vehicle interface) (up to May 2005)
30 U13 – Transformer with socket, 12V-230V (from May 2005)
Not assigned (from May 2006)
25 Special vehicles socket (not for USA/Canada ) (high; from November 2005)
29 10 J220/J623 – Motronic control unit
J248/J623 – Diesel direct injection system control unit
G70 – Air mass meter (AXX)
N79 – Heater element for crankcase breather (BUB, BMJ)
Not assigned (from 2006)
30 5 J234 – Airbag control unit (to May 2005)
K145 – Front passenger side airbag deactivated warning lamp (to May 2005)
10 N30 – Injector, cylinder 1 (from May 2005)
N31 – Injector, cylinder 2 (from May 2005)
N32 – Injector, cylinder 3 (from May 2005)
N33 – Injector, cylinder 4 (from May 2005)
20 N30 – Injector, cylinder 1
N31 – Injector, cylinder 2
N32 – Injector, cylinder 3
N33 – Injector, cylinder 4
N83 – Injector, cylinder 5
N84 – Injector, cylinder 6
J217 – Automatic gearbox control unit (from 2006)
J743 – Mechatronics for direct shift gearbox (from 2006)
31 5 F4 – Reversing light switch (up to May 2005)
J743 – Mechatronics for direct shift gearbox (up to May 2005)
20 V192 – Vacuum pump for brakes (from May 2005)
32 30 J388 – Rear left door control unit (window regulator) (up to May 2006)
J389 – Rear right door control unit (window regulator) (up to May 2006)
U13 – Transformer with socket, 12V-230 V (from May 2006)
U27 – Transformer with socket, 12V- 15 V, (USA/Canada) (from May 2006)
33 25 J245 – Sliding sunroof adjustment control unit
34 15 V125 – Driver seat lumbar support longitudinal adjustment motor
V126 – Front passenger seat lumbar support longitudinal adjustment motor
V129 – Driver seat lumbar support height adjustment motor
V130 – Front passenger seat lumbar support height adjustment motor
35 5 G273 – Interior monitoring sensor
G384 – Vehicle inclination sender
H12 – Alarm horn
Not assigned (from 2006)
36 20 V11 – Headlight washer system pump
J39 – Headlight washer system relay
37 30 J131 – Heated driver seat control unit
J132 – Heated front passenger seat control unit
38 10 J23 – Rotating light and siren system control unit (up to May 2005)
Not assigned (from May 2005)
J745 – Cornering light and headlight range control unit, on left headlight, (from May 2007)
20 J388 – Rear left door control unit (central locking), NAR, with alarm horn relay J641) (from May 2006)
J389 – Rear right door control unit (central locking), NAR, with alarm horn relay J641) (from May 2006)
J393 – Convenience system central control unit (only VR6) (from May 2006)
39 20 Not assigned (up to May 2005)
J217 – Automatic gearbox control unit (from May 2005)
Not assigned (from May 2006)
40 40 E16 – Heater/heat output switch (fresh air blower)
J301 – Air conditioning system control unit (fresh air blower)
5 E16 – Heater/heat output switch (fresh air blower) (high; from November 2005)
J301 – Air conditioning system control unit (fresh air blower) (high; from November 2005)
41 15 V12 – Rear window wiper motor (up to May 2006)
20 V12 – Rear window wiper motor (from May 2006)
J519 – Onboard supply control unit (double washer pump) (BSG J1) (from May 2006)
42 15 J729 – Double washer pump relay 1 (to May 2005)
J730 – Double washer pump relay 2 (to May 2005)
J519 – Onboard supply control unit (double washer pump) (BSG J1) (from May 2005)
20 U1 – Cigarette lighter (from May 2006)
U9 – Rear cigarette lighter (from May 2006)
U5 – 12 V socket (criminal investigation department) (from May 2006)
43 15 J345 – Trailer detector control unit
44 20 J345 – Trailer detector control unit
45 15 J345 – Trailer detector control unit
46 5 Z20 – Left washer jet heater element
Z21 – Right washer jet heater element
E94 – Heated driver seat regulator
E95 – Heated front passenger seat regulator
Not assigned (from May 2006)
47 5 J485 – Auxiliary heater operation relay
Not assigned (from May 2006)
48 10 Not assigned (to May 2005)
Charger for Mag-Lite and hand-held two-way radio (from May 2005)
49 5 E1 – Lighting switch
Not assigned (from May 2006)

Engine compartment

Fuse box diagram (low)

Volkswagen Jetta (V, Type 1K; 2005 - 2010)- fuse and relay box diagram - engine compartment (low)
Volkswagen Jetta (V, Type 1K; 2005 – 2010)- fuse and relay box diagram – engine compartment (low)



Assignment of the fuses and relays in the engine compartment (low)

No.
 A
 Function/component
F1 20 J393 – Convenience system central control unit
Not assigned (from May 2006)
F2 5 J527 – Steering column electronics control unit
F3 5 J519 – Onboard supply control unit
F4 30 J104 – ABS control unit
F5 15 J743 – Mechatronic control unit (up to May 2006), (from May 2007)
30 J743 – Mechatronic control unit (from May 2006)
J285 – Control unit in dash panel insert (from May 2006)
F6 5 J285 – Control unit in dash panel insert
F7 15 J608 – Special vehicle control unit
25 J608 – Special vehicle control unit (from May 2006)
30 J743 – Mechatronics control unit (0AM) (from May 2007)
F8 15
25		 J503 – Control unit with display for radio and navigation
R – Radio
R – Preparation for radio and navigation system with TV (models for Japan)
F9 5 J412 – Mobile telephone operating electronics control unit
F10 5 J317 – Terminal 30 voltage supply relay
10 J623 – Engine control unit
5 J359 – Low heat output relay
F11 20 J364 – Auxiliary heater control unit
F12 5 J533 – Data bus diagnostic interface
F13 30 J623 – Engine control unit (only models with diesel engine)
J623 – Engine control unit (petrol) (from May 2007)
25 J623 – Petrol engine control unit (only models with petrol engine) (up to May 2007)
F14 20 N152 – Ignition transformer
N70-N323 – Ignition coils with output stage
F15 10 Z62 – Lambda probe heater 3
Z19 – Lambda probe heater
G39 – Lambda probe
G108 – Lambda probe 2 before catalytic converter
G130 – Lambda probe after catalytic converter
5 G131 – Lambda probe 2 after catalytic converter
G287 – Lambda probe 3 after catalytic converter
J17 – Fuel pump relay
J179 – Automatic glow period control unit
J360 – High heat output relay (370)
F16 30 J104 – ABS control unit
F17 15 H2 – Treble tone horn
H7 – Bass tone horn
J519 – Onboard supply control unit (from May 2006)
F18 30 J608 – Special vehicle control unit (up to May 2006)
R12 – Amplifier
F19 30 J400 – Wiper motor control unit
V216 – Driver side windscreen wiper motor
F20 40 Not assigned (up to May 2006)
J179 – Automatic glow period control unit (SDI) (from May 2006)
10 V50 – Continued coolant circulation pump (from May 2007)
F21 15 Z19 – Lambda probe heater (up to May 2006)
G39 – Lambda probe (up to May 2006)
G130 – Lambda probe after catalytic converter (up to May 2006)
J583 – NOx sensor control unit (up to May 2006)
10 Z28 – Lambda probe heater
G39 – Lambda probe
G130 – Lambda probe after catalytic converter (from May 2006)
J583 – NOx sensor control unit (from May 2006)
Z28 – Lambda probe heater (from May 2006)
20 V192 – Brake vacuum pump (from May 2007)
F22 5 F47 – Brake pedal switch (to November 2005)
G476 – Clutch position sender
F23 5 J299 – Secondary air pump relay (BSF)
10 N18 – Exhaust gas recirculation valve
N75 – Charge pressure control solenoid valve (up to May 2006)
N80 – Activated charcoal filter system solenoid valve 1 (from May 2006)
V144 – Fuel system diagnostic pump (BGQ,BGP)
N345 – Exhaust gas recirculation cooler changeover valve
N381 – Exhaust gas recirculation cooler changeover valve 2 (up to May 2006)
N276 – Fuel pressure regulating valve (from May 2006)
J623 – Engine control unit (from May 2006)
N156 – Variable intake manifold changeover valve (from May 2006)
15 N276 – Fuel pressure regulating valve (up to May 2006)
N218 – Secondary air inlet valve (from May 2006)
N276 – Fuel pressure regulating valve (from May 2007)
J623 – Engine control unit (from May 2007)
N156 – Variable intake manifold changeover valve (from May 2007)
F24 10 F265 – Map-controlled engine cooling system thermostat
J293 – Radiator fan control unit
N18 – Exhaust gas recirculation valve
N80 – Activated charcoal filter solenoid valve 1
N156 – Variable intake manifold changeover valve
N205 – Inlet camshaft control valve 1
N316 – Intake manifold flap valve
V157 – Intake manifold flap motor
F25 40 J519 – Onboard supply control unit (up to May 2006)
30 J519 – Onboard supply control unit (A/1) (from May 2006)
F26 40 J519 – Onboard supply control unit (up to May 2006)
30 J519 – Onboard supply control unit (D/1) (from May 2006)
F27 50 J179 – Automatic glow period control unit
40 J299 – Secondary air pump relay
F28 40 J681 – Terminal 15 voltage supply relay 2
F29 50 J496 – Additional coolant pump relay
S44 – Seat adjustment thermal fuse 1
F30 50 Not assigned (up to May 2006)
J59 – X-contact relief relay (from May 2006)
40 J519 – Onboard supply control unit (I/1) (from May 2007)
Relay
A1 Terminal 30 voltage supply relay -J317- (458)
Terminal 30 voltage supply relay -J317- (100)
Terminal 30 voltage supply relay -J317- (370)
A2 Secondary air pump relay -J299- (100)
Sensor for current measurement -G582- (488; up to May 2006, only engine code BLG)
Wiring bridge (only models with diesel engine)

Relay code number 100 is replaced by relay code number 370 depending on production.



Volkswagen Jetta (V, Type 1K; 2005 - 2010)- fuse and relay box diagram - engine compartment
Volkswagen Jetta (V, Type 1K; 2005 – 2010)- fuse and relay box diagram – engine compartment



Assignment of the fuses and relays in the engine compartment

No.
 A
 Function/component
1 150 C – Alternator (90A/120A)
200 C – Alternator (140A)
2 80 J500 – Power steering control unit
V187 – Electromechanical power steering motor
3 50 J293 – Radiator fan control unit
V7 – Radiator fan
V177 – Radiator fan 2
4 40
Special equipment (up to May 2006)
J359 – Low heat output relay (1st stage), (from December 2006)
Z35 – Auxiliary air heater element (from December 2006)
5 100
Fuses on fuse holder C, on left under dash panel SC43-SC45, SC28, SC22, SC18, SC19, SC12, (up to November 2005)
Fuses on fuse holder C, on left under dash panel SC43-SC45, SC28, SC22, SC15-SC20, SC 12, SC22-SC27, SC19, SC38, (from November 2005)

J604 – Auxiliary air heater control unit (up to November 2005)
Z35 – Auxiliary air heater element (up to November 2005)
Optional equipment (from November 2005)
6 80 Fuses on fuse holder C, on left under dash panel SC43-SC45, SC28, SC22, SC18, SC19, SC12
J360 – High heat output relay (1st and 3rd stages), (from December 2006)

Z35 – Auxiliary air heater element (from November 2006)
100 J604 – Auxiliary air heater control unit (from November 2005)
Z35 – Auxiliary air heater element (from November 2005)
Optional equipment
7 50 Trailer operation
40 Special equipment, disabled persons
30 Special equipment, criminal investigation department

Fuse box diagram (high)

Volkswagen Jetta (V, Type 1K; 2005 - 2010)- fuse and relay box diagram - engine compartment (high)
Volkswagen Jetta (V, Type 1K; 2005 – 2010)- fuse and relay box diagram – engine compartment (high)



Assignment of the fuses and relays in the engine comparment (high)

No.
 A
 Function/component
F1 30 J104 – ABS with EDL control unit
F2 30 J104 – ABS with EDL control unit
F3 20 J393 – Convenience system central control unit
V217 – Front passenger side wiper motor (from May 2005)
Not assigned (from November 2005)
F4 5 J519 – Onboard supply control unit
F5 20 H2 – Treble tone horn (up to May 2005)
H7 – Bass tone horn (up to May 2005)
15 J519 – Onboard supply control unit (horn) (from May 2005)
F6 5 N276 – Fuel pressure regulating valve (up to May 2005)
15 N276 – Fuel pressure regulating valve (from May 2005)
J17 – Fuel pump (from May 2007)
20 N152 – Ignition transformer (up to May 2005)
N… – Ignition coils 1-4 with output stage (up to May 2005)
F7 5 F47 – Cruise control system brake pedal switch
G476 – Clutch position sender
Not assigned (from November 2005)
40 SF2 – Fuse 2 on fuse holder F (rear battery) (from May 2007)
F8 10 F265 – Map-controlled engine cooling system thermostat
N205 – Inlet camshaft control valve 1
N80 – Activated charcoal filter solenoid valve 1 (pulsed)
N18 – Exhaust gas recirculation valve
N316 – Intake manifold flap air control valve
V157 – Intake manifold flap motor
N79 – Crankcase breather heater element
N156 – Variable intake manifold changeover valve
J293 – Radiator fan control unit
Not assigned (from May 2005)
15 R190 – Digital radio satellite receiver (from May 2007)
F9 10 J583 – NOx sensor control unit (up to May 2005)
J179 – Automatic glow period control unit (up to May 2005)
J17 – Fuel pump relay (up to May 2005)
N249 – Turbocharger air recirculation valve (from May 2005)
N80 – Activated charcoal filter solenoid valve 1 (from May 2005)
N75 – Charge pressure control solenoid valve (from May 2005)
F10 10 G130 – Lambda probe after catalytic converter (up to May 2005)
G131 – Lambda probe 2 after catalytic converter (up to May 2005)
N18 – Exhaust gas recirculation valve (up to May 2005)
N75 – Charge pressure control solenoid valve (up to May 2005)
N345 – Exhaust gas recirculation cooler changeover valve (up to May 2005)
J299 – Secondary air pump relay (up to May 2005)
Not assigned (from May 2005)
V144 – Fuel system diagnostic pump (USA/Canada) (from November 2005)
G42 – Intake air temperature sender (from May 2007)
G70 – Air mass meter (from May 2007)
F11 25 J220 – Motronic control unit (up to May 2005)
30 J361 – Simos control unit (up to May 2005)
J248 – Diesel direct injection system control unit (up to May 2005)
10 Z19 – Lambda probe heater (from May 2005)
Z28 – Lambda probe 2 heater 2 (from May 2007)
F12 15 G39 – Lambda probe (AXW, BAG, BCA, BKG, BLP, BLX and BLY) (up to May 2005)
G108 – Lambda probe 2 (AXW, BLX and BLY) (up to May 2005)
G130 – Lambda probe after catalytic converter (BCA) (up to May 2005)
J583 – NOx sensor control unit (BAG, BKG and BLP) (up to May 2005)
10 Z29 – Lambda probe 1 heater after catalytic converter (from May 2005)
Z30 – Lambda probe 2 heater after catalytic converter (from May 2007)
F13 15 J217 – Automatic gearbox control unit (up to May 2005)
J743 – Mechatronics for dual clutch gearbox
30 J743 – Mechatronic control unit (from May 2007)
F14 – Not assigned
F15 40 B – Starter (terminal 50) (up to May 2005)
10 V50 – Coolant circulation pump (from May 2005)
F16 15 J527 – Steering column electronics control unit (up to May 2005)
5 J104/J527 – Steering column control unit (from May 2005)
F17 10 J285 – Display control unit in dash panel insert (up to May 2005)
5 J285 – Control unit in dash panel insert (from May 2005)
F18 30 J608 – Special vehicle control unit (up to May 2005)
R12 – Amplifier (from May 2005)
J608 – Control unit for special vehicles (from May 2007)
F19 15 R – Radio
J503 – Control unit with display for radio and navigation system (up to May 2005)
R19 – Digital satellite radio (from May 2007)
F20 10 J412 – Mobile telephone operating electronics control unit (telephone /preparation for telephone)
J503 – Control unit with display for radio navigation system (from May 2005)
5 J412 – Mobile telephone operating electronics control unit (from November 2005)
F21 – Not assigned
F22 – Not assigned
F23 10 Not assigned (up to May 2005)
J623 – Engine control unit (from May 2005)
J271 – Motronic current supply relay (100) (from May 2005)
5 J623 – Engine control unit (from November 2005)
F24 10 J533 – Data bus diagnostic interface (up to May 2005)
5 J533 – Data bus diagnostic interface (from May 2005)
F25 40 Not assigned (up to May 2007)
J519 – Onboard supply control unit (A1) (from May 2007)
F26 10 J220 – Motronic control unit (up to May 2005)
Not assigned (from May 2005)
5 J248 – Diesel direct injection system control unit (up to May 2005)
J317 – Terminal 30 voltage supply relay (up to May 2007)
40 J519 – Onboard supply control unit (D1) (from May 2007)
F27 10 N79 – Heater element for crankcase breather (up to May 2005)
Not assigned (from May 2005)
F28 20 J217 – Automatic gearbox control unit (up to May 2005)
F125 – Multifunction switch (up to May 2005)
25 J623 – Engine control unit (from May 2005)
F29 20 N… – Ignition coils 1-4 with output stage (up to May 2005)
N… – Injectors cylinders 1-4 (up to May 2005)
5 J496 – Additional coolant pump relay (from May 2005)
J299 – Secondary air pump relay (from May 2005)
F30 20 J162 – Heater control unit (up to May 2005)
J485 – Auxiliary heater operation relay (from May 2005)
F31 25 V – Windscreen wiper motor (up to May 2005)
30 V – Windscreen wiper motor (from May 2005)
F32 10 N… – Injectors (up to May 2005)
Not assigned (from May 2005)
F33 15 G6 – Fuel system pressurisation pump (up to May 2005)
Not assigned (from May 2005)
F34 – Not assigned
F35 – Not assigned
F36 – Not assigned
F37 – Not assigned
F38 10 V48 – Left headlight range control motor (up to May 2005)
V49 – Right headlight range control motor (up to May 2005)
J293 – Radiator fan control unit (from May 2005)
N205 – Exhaust camshaft control valve 1 (from November 2005)
N112 – Secondary air inlet valve (from May 2007)
N321 – Exhaust flap 1 valve (from May 2007)
N320 – Secondary air inlet valve 2 (from May 2007)
V144 – Diagnosis pump for fuel system (from May 2007)
N80 – Activated charcoal filter solenoid valve 1 (from May 2007)
N156 – Secondary air inlet valve (from May 2007)
N318 – Exhaust camshaft control valve 1 (from May 2007)
F39 5 G226 – Oil level and oil temperature sender (up to November 2005)
F – Brake light switch (up to November 2005)
F47 – Brake pedal switch (from November 2005)
G476 – Clutch position sender (from November 2005)
F40 20 Dash panel fuse holder (SC1-SC6, SC7-SC11, SC29-SC31) (up to May 2005)
N70 – Ignition coil 1 with output stage (from May 2005)
N127 – Ignition coil 2 with output stage (from May 2005)
N291 – Ignition coil 3 with output stage (from May 2005)
N292 – Ignition coil 4 with output stage (from May 2005)
F41 – Not assigned
F42 10 G70 – Air mass meter (AZV, BKC, BKD, BDK, BJB)
J757 – Engine component current supply relay (from November 2005)
5 J49 – Electric fuel pump 2 relay (BGU, BCA)
J271 – Motronic current supply relay (to November 2005)
F43 30 Not assigned (up to May 2005)
N70 – Ignition coil 1 with output stage (from May 2005)
N127 – Ignition coil 2 with output stage (from May 2005)
N291 – Ignition coil 3 with output stage (from May 2005)
N292 – Ignition coil 4 with output stage (from May 2005)
N323 – Ignition coil 5 with output stage (from May 2005)
N324 – Ignition coil 6 with output stage (from May 2005)
F44 – Not assigned
F45 – Not assigned
F46 – Not assigned
F47 40 J519 – Onboard supply control unit (up to November 2005)
30 J519 – Onboard supply control unit (D/1 left) (from November 2005)
F48 40 J519 – Onboard supply control unit (up to November 2005)
30 J519 – Onboard supply control unit (A/1 right) (from November 2005)
F49 40 Not assigned (up to May 2005)
J681 – Terminal 15 voltage supply relay 2 (from May 2005)
SF2 – Fuse in fuse holder F (rear battery) (from November 2005)
J519 – Onboard supply control unit (L1) (from November 2005)
F50 – Not assigned
F51 50 Q10 – Glow plug 1 (up to May 2005)
Q11 – Glow plug 2 (up to May 2005)
Q12 – Glow plug 3 (up to May 2005)
Q13 – Glow plug 4 (up to May 2005)
40 J299/V101 – Secondary air pump relay (from May 2005)
F52 50 J519 – Onboard supply control unit SC40-SC42, SC46, SC47, SC49 (up to May 2005)
40 J59 – X-contact relief relay (from May 2005)
F53 50 Safety cutout for seat adjustment
S44 – Seat adjustment thermal fuse 1, SB111 – Positive connection 1 (30a) (from November 2005)
F54 50 J293 – Radiator fan control unit (up to May 2005)
Not assigned (from May 2005)
Relay
A1 Terminal 15 voltage supply relay -J329- (433) (up to May 2005)
Motronic current supply relay -J271- (100) (up to November 2005)
Engine components current supply relay -J757- (167) (from November 2005)
A2 Terminal 50 voltage supply relay -J682- (433) (up to May 2005)
Additional coolant pump relay -J496- (100) (from May 2005)
A3 Current supply relay for engine components -J757- (167) (up to May 2005)
Not assigned (from November 2005)
A4 Terminal 30 voltage supply relay -J317- (458) (up to May 2005)
Engine components current supply relay -J757- (167) (up to November 2005)
Motronic current supply relay -J271- (100) (from May 2005)



Volkswagen Jetta (V, Type 1K; 2005 - 2010)- fuse and relay box diagram - engine compartment
Volkswagen Jetta (V, Type 1K; 2005 – 2010)- fuse and relay box diagram – engine compartment



Assignment of the fuses and relays in the engine comparment

No.
 A
 Function/component
1 150 C – Alternator (90A/120A)
200 C – Alternator (1401A)
TV2 – Terminal 30 wiring junction (rear battery)
2 80 J500 – Power steering control unit
V187 – Electromechanical power steering motor
3 50 J293 – Radiator fan control unit
V7 – Radiator fan
V177 – Radiator fan 2 (500 W)
4 80
Not assigned (up to May 2005)
Fuses on fuse holder C, on left under dash panel: SC32-SC 37, Driver seat adjustment thermal fuse 1 – 30A (from May 2005)
Not assigned (from November 2005)
5 50
80
Fuses on fuse holder C, on left under dash panel SC12-SC17, SC19, SC22-SC27, SC32-SC38, SC43-SC45 (up to May 2005), (from May 2007)
100 J604 – Auxiliary air heater control unit (from May 2005)
Z35 – Auxiliary air heater element (from May 2005)
50 Fuses on fuse holder C, on left under dash panel SC12-SC17, SC19, SC22-SC27, SC32-SC38, SC43-SC45 (from November 2005)
6 125
SF1 – Fuse 1 on fuse holder F (rear battery) (up to May 2005), (from November 2005)
100
80
 Fuses on fuse holder C, on left under dash panel: SC18-SC20, SC22-SC28, SC43-SC45 optional equipment (from May 2005)
7 50
Not assigned (up to May 2005), (from November 2005)
Fuses on fuse holder C, on left under dash panel: SC22-SC27 (from May 2005)

Relay carrier on onboard supply control unit (left under dash panel)

Fuse box diagram

Volkswagen Jetta (V, Type 1K; 2005 - 2010)- fuse and relay box diagram - dash panel
Volkswagen Jetta (V, Type 1K; 2005 – 2010)- fuse and relay box diagram – dash panel



Assignment of the fuses and relays in the instrument panel

No.
 A
 Function/component
A 30 Seat adjustment thermal fuse 1 -S44- (from May 2004)
B 30 Seat adjustment thermal fuse 1 -S44- (up to April 2004)
Relay
1 Fresh air blower relay -J13- (53) (only with auxiliary heater)
Low heat output relay -J359- (373)
2 Auxiliary heater operation relay -J485- (449)
High heat output relay -J360- (370)
Secondary air pump relay -J299- (100)
3 Headlight washer system relay -J39- (53)
Terminal 50 voltage supply relay -J682- (449 / 53)
4 Additional coolant pump relay -J496- (449) (BLG)
Fuel supply relay -J643- (449) (BCA)
Fuel pump relay -J17- (449)
Headlight washer system relay -J39- (53)
5 Terminal 50 voltage supply relay -J682- (433 / 53)
Fuel pump relay -J17- (449) (J17- and -J485- are mini-relays and can be found on a relay slot)
Auxiliary heater operation relay -J485- (449) (J17- and -J485- are mini-relays and can be found on a relay slot)

Relay assignment on relay carrier on onboard supply control unit

Fuse box diagram

Volkswagen Jetta (V, Type 1K; 2005 - 2010)- fuse and relay box diagram - relay assignment on relay carrier on oboard supply control unit
Volkswagen Jetta (V, Type 1K; 2005 – 2010)- fuse and relay box diagram – relay assignment on relay carrier on oboard supply control unit



Assignment of the fuses and relays

No.
 Relay
1 Fresh air blower relay -J13- (up to May 2005)
Terminal 15 voltage supply relay 2 -J681-
2 Heated exterior mirror relay -J99- (449)
3 Heated rear window relay -J9- (53)
4 Horn relay -J413- (449)
5 X-contact relief relay -J59- (460)
6 Double washer pump relay 2 -J730- (404)
7 Double washer pump relay 1 -J729- (404)
8 Not assigned
9 Terminal 30 voltage supply relay 2 -J689- (449)

Additional relay carrier, under box on left in engine compartment

Volkswagen Jetta (V, Type 1K; 2005 - 2010)- fuse and relay box diagram - engine compartment - additional relay carrier
Volkswagen Jetta (V, Type 1K; 2005 – 2010)- fuse and relay box diagram – engine compartment – additional relay carrier



Assignment of the fuses and relays in engine compartment

No.
 Relay
1 Automatic glow period control unit -J179- (461) / (457)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Cadillac Eldorado (1979 – 1981) – fuse and realy box diagram

Posted on by admin

Cadillac Eldorado (1979 – 1981) – fuse and realy box diagram

Year of production: 1979, 1980, 1981



This article covers the Cadillac Eldorado, produced from 1953 to 2002. The Cadillac Eldorado was one of the longest-produced luxury coupé models in the history of American automotive manufacturing.
Inside, you’ll find fuse box diagrams for the 1979 through 1981 models, along with details on the location of the fuse panels within the vehicle and information on the function and layout of each fuse and relay.



Fuse box diagram

Cadillac Eldorado (1979 - 1981) - fuse and relay box diagram
Cadillac Eldorado (1979 – 1981) – fuse and relay box diagram



Assignment of the fuses in the fuse box

Fuse [A] Protected Component
1 3 Fuel injector
2 3 Fuel injector
3 3 Fuel pump cranking circuit
4 20 ECS battery
5 10 MDA ignition
6 10 Fuel pump
7 15 ECS ignition
8 — —



Cadillac Eldorado (1979 - 1981) - fuse and relay box diagram
Cadillac Eldorado (1979 – 1981) – fuse and relay box diagram



Assignment of the fuses in the fuse box

Fuse [A] Protected Component
1 10 Cornering, side marker, opera, right door ash tray, instrument panel ash tray lights
2 3 Cruise control, DFI brake switch
3 5 Rheostat controlled instrument panel lights
4 — —
5 10 Back-up lights, diesel fast idle, diesel controller
6 20 Air conditioning compressor feed, ECC programmer and power module, rear defogger relay coil, generator indicator
7 10 Antenna motor feed
8 8 Turn signal lights
9 25 Opera, license, tail and rear side marker lights
10 20 Stop light switch, hazard warning flasher, ECC control head
11 20 Fuel gauge, oil pressure and coolant temperature indicator, low brake fluid indicator, seat belt warning chime and indicator, electronic level control compressor, downshift switch
12 20 Key warning buzzer, coolant temperature indicator, instrument panel courtesy and compartment lights, cigar lighter, engine telltale light, glove box light
13 25 Automatic Temperature Control blower
14 — —
15 10 Radio, antenna relay coil
16 20 Electronic fuel injection (’79)
17 20 Body courtesy lights, cigar lighters, level control height sensor, ash tray lights
18 25 Windshield wipers and low washer fluid indicator
19 25 Rear window defogger

Circuit Breaker:

  • Headlights (Twilight Sentinel) — Integral with headlight switch.
  • Windshield Wiper — Integral with windshield wiper switch.
  • Rear Defogger — Circuit breaker located on lower steering column cover reinforcement.
  • Sunroof — 25 amp. On body bracket at upper right corner of fuse block

Fusible Link:

  • Accessories & Body Feed — 16 gauge fusible link located in black/red stripe wire at starter
  • Ignition — 16 gauge fusible link located in red wire at starter solenoid
  • Headlights — 18 gauge fusible link located in yellow wire at starter
  • Charging — 16 gauge fusible link located in red/white stripe wire at junction block
  • Fuel Injection Electronic Control Unit – 18 gauge fusible link located in dark green wire on “BAT” terminal of alternator (’79).

In-Line Fuse:

  • Vanity Mirror — 2 amp. fuse located behind mirror
  • EFI Fuel Pump — 10 amp. fuse located left of fuel injection electronic control unit brown wire (’79)
  • Theft Deterrent — One 20 amp. fuse for lights, and one 25 amp. fuse for horn is located above radio in instrument panel.
  • Trunk Lid Pull Down — One 20 amp. fuse is located behind right hand fabric rear end panel inside trunk.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Buick Electra (V; 1977 – 1984) – fuse and relay box diagram

Posted on by admin

Buick Electra (V; 1977 – 1984) – fuse and relay box diagram

Year of production: 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984



This article covers the Buick Century. It includes fuse box diagrams for the 5th generation 1977, 1978, 1979, 1980, 1981, 1982, 1983 and 1984 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Passenger compartment

Fuse box diagram

Buick Electra (V; 1977 - 1984) - fuse and relay box diagram
Buick Electra (V; 1977 – 1984) – fuse and relay box diagram



Assignment of the fuses in the fuse box

Fuse [A] Protected Component
1 5 Instrument illumination, headlight warning and electronic air conditioning
2 20 Electric choke
3 5 Instrument illumination, headlight warning
4 30 Circuit breaker: Power windows and roof, fuel cap lock release
5 — —
6 25 Heater, air conditioning, trunk lid release, radio capacitor
7 10 Electronic Control Module
8 10 Diesel engine fuse
9 25 Windshield wiper and washer
10 20 Hazard and stop lights
11 20 Seat belt light and buzzer, trunk ajar, transmission downshift and C-4 or E.S.C. jumper, heated back light relay, map and fuel economy lights, instrument gauges and indicator lights
12 20 Tail, side marker, parking and license lights, clock radio
13 10 Radio, cruise control
14 30 Circuit breaker: Power seats, door locks, heated rear window feed, tailgate window
15 20 Turn signal and back-up lights
16 20 Cigar lighter, glove box light, speed and key warning buzzer, power antenna, clock radio, clock, pulse wiper, air conditioning
17 20 Dome and sail panel lights, trunk light, reading light, vanity light, headlight on warning, automatic door locks and rear cigar lighter, tailgate ajar
18 — —
19 10 Instrument gauges, indicator lights, transmission converter clutch and cruise control, Electric choke
Circuit Breaker: Headlight Circuit — A thermo circuit breaker is incorporated in the headlight switch assembly to protect headlight circuits. Windshield Wiper — Integral with windshield wiper motor.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Buick Century (IV; 1978 – 1981) – fuse and relay box diagram

Posted on by admin

Buick Century (IV; 1978 – 1981) – fuse and relay box diagram

Year of production: 1978, 1979, 1980, 1981



This article covers the Buick Century. It includes fuse box diagrams for the 1978, 1979, 1980 and 1981 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.



Fuse box diagram

Buick Century (1978 - 1981) - fuse and relay box diagram
Buick Century (1978 – 1981) – fuse and relay box diagram



Assignment of the fuses in the fuse box diagram

Fuse [A] Protected Component
1 5 Instrument illumination and headlight warning
2 20 Electric choke (V6), closed loop
3 — —
4 30 Circuit breaker: Power windows and roof
5 — —
6 25 Heater, air conditioning, pulse wipers and deck lid
7 10 Electronic Control Module
8 — —
9 25 Windshield wiper and washer
10 20 Hazard and stop lights
11 20 Seat belt light and buzzer, heated back light relay, tailgate window release, map light and fuel economy light
12 20 Tail, side marker, parking and license lights, clock radio
13 10 Radio
14 30 Circuit breaker: Power seats, door locks and heated back light
15 20 Turn signal and back-up lights
16 20 Clock, cigar lighter, glove box light, key buzzer, power antenna, clock radio, radio capacitor, dome and sail panel lights, trunk light, reading light, headlight on warning and door locks
17 — —
18 — —
19 10 Gauges, cruise control, torque converter clutch and indicator light
Circuit Breaker: Headlight Circuit — A thermo circuit breaker is incorporated in the headlight switch assembly to protect headlight circuits. Windshield Wiper — Integral with windshield wiper motor.

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Jetta (2006) – fuse and relay box diagram

Posted on by admin

Volkswagen Jetta (2006) – fuse and relay box diagram

Year of production: 2006

Passenger compartment

Fuse box location

Fuse arrangements in fuse panel behind instrument cluster, left.



Fuse box diagram

Volkswagen Jetta - fuse box diagram - instrument panel
Volkswagen Jetta – fuse box diagram – instrument panel



Assignment of the fuses and relays in the instrument panel

Fuse name Description Ampergw
1 Heated washer nozzles, glove compartment light 10
2 Turn signal system 10
3 Fog light relay 5
4 License plate light 5
5 Comfort system, cruise control, Climatronic, A/C, heated seat control modules, day/night dimming mirror, control module and control unit for multi-function steering wheel 7,5
6 Central locking system 5
7 Back-up lights, speedometer vehicle speed sensor 10
8 Open —
9 Anti-lock brakes (ABS) 5
10 ECM, gasoline engine 10
10 ECM, diesiel engine (m.y. 2000>) 5
11 Instrument cluster, shift lock solenoid 5
12 B+ (battery positive voltage) for Data Link Connector 7,5
13 Brake lights 10
14 Interior lights, central locking system 10
15 Instrument cluster, automatic transmission control module (TCM) 5
16 A/C clutch, after-run coolant pump 10
17 Open —
18 High beam, right 10
19 High beam, left 10
20 Low beam left 15
21 Low beam right 15
22 Parking and side marker lights, rights 5
23 Parking and side marker lights, left 5
24 Front wiper motor, washer pump 20
25 Fresh air blower, Climatronic, A/C 25
26 Rear window defogger 25
27 Rear wiper motor 15
28 Fuel pump, gasoline 15
29 Engine control module (ECM), gasoline 15
29 Engine control module (ECM), diesel 10
30 Sunroof control module 20
31 Automatic transmission control module 20
32 Fuel Injectors (gasoline) 10
32 ECM (diesel) 15
33 Headlight washer system 20
34 Engine control elements 10
35 12V power outlet (in luggage compartment) 30
36 Fog lights 15
37 Radio terminal 865, intrument cluster 10
38 Central locking system (with power windows) luggage compartment light, remote fuel tank door, rear lid unlock 15
39 Emergency flasher 15
40 Dual tone horn 20
41 Cigarette lighter 15
42 Radio system 25
43 Engine control elements 10
44 Heated seats 15

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Jetta (A6; 2010 – 2017) – fuse and relay box diagram

Posted on by admin

Volkswagen Jetta (A6; 2010 – 2017) – fuse and relay box diagram

Year of production: 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017



This article covers the sixth-generation Volkswagen Jetta (A6, Typ 1B), produced from 2010 to 2017. It provides fuse box diagrams for the 2010, 2011, 2012, 2013, 2014, 2015, 2016, and 2017 models, details the locations of the fuse panels inside the vehicle, and explains the function of each fuse (fuse layout) and relay.



Passenger Compartment Fuse Box

Fuse Box Location

The fuse box is located behind the cover on the driver’s side. Pull the lower part of the cover in the direction of the arrow and remove the cover from the bottom. On the inside of the cover there are plastic tweezers for removing and inserting fuses.

Volkswagen Jetta (A6; 2010 - 2017) - fuse and relay diagram - passenger compartment
Volkswagen Jetta (A6; 2010 – 2017) – fuse and relay diagram – passenger compartment



Fuse Box Diagram (-SC-)

Volkswagen Jetta (A6; 2010 - 2017) - fuse and relay diagram - passenger compartment (holder C)
Volkswagen Jetta (A6; 2010 – 2017) – fuse and relay diagram – passenger compartment (holder C)



Assignment of the fuses in the instrument panel (holder C)

№ Amps Function/Component
F1 10A 2014-2017:
Left washer nozzle heater
Right washer nozzle heater
F2 5A/7,5A Electronic steering column lock control module
F3 10A Instrument cluster control module
F4 2A/10A 2012-2017:
Telephone Transceiver
Compass magnetic field sensor (vehicles equipped with Start/Stop)
F5 7.5A 2012-2017: Left rear fog lamp bulb
F6 10A Vehicle electrical system control module (T73a/66) (interior lamp, AW0 only)
Rearview camera (2014-2017)
F7 5A Fog lamp relay (AW0 only)
Instrument panel and switch illumination dimmer switch (AW0 only)
License plate lamp
Vehicle electrical system control module (T52c/27), (AW1 only)
F8 7.5A Windshield and headlamp washer pump switch (AW0 only)
Windshield washer pump (AW0 only)
Vehicle electrical system control module (T73b/61), (AW0 only)
F8 – not used (AW1 only)
F9 5A/15A Arbag control module
Airbag Control Module
Front passenger airbag “disabled” indicator lamp
Passenger occupant detection system control module
F10 10A Right steering column switch (T10ls/3) (AW0 only)
F11 10A 2012-2017: Left front headlamp (HID headlamp)
F12 10A 2012-2017: Right front headlamp (HID headlamp)
F13 5A Automatic dimming interior rearview mirror
Light recognition sensor
Parking aid control module
Ar quality sensor
High pressure sensor
Climatronic control module
Tire pressure monitoring button
ASR/ESP button
Back-up lamp switch
Start/Stop mode switch
28-pin connector (T28/10)
Mirror adjusting switch
Exterior rearview mirror heating switch
AC compressor control module (T14hy/14) (Engine code CNLA)
Cornering lamp and headlamp range control module
F14 10A Left steering column switch (T16ls/1) (AW0 only)
ABS control module T26/20 / T47/8
Light switch (T10h/4) (AW1 only)
Arbag spiral spring/return spring with slip ring (T16k/14)
Fuel pump control module
Towing recognition control module (T12a/2)
Voltage stabilizer
Converter with socket, 12V-230V (T3wr/3)
Data bus on board diagnostic interface (AW1 only)
Instrument cluster control module
Selector lever sensor system control module
Tiptronic switch (T10s/9)
Power steering control module (T6z/1)
Oil level thermal sensor (T6z/4)
Hybrid battery unit (T14ax/7) (Engine code CNLA)
Electric drive power and control electronics (T28jx/56) (Engine code CNLA)
F15 10A 16-pin connector (diagnostic connection)
Instrument panel and switch illumination dimmer switch
Headlamp range control adjuster (AW1 only)
Fresh air blower relay
Mass airflow sensor
Positive crankcase ventilation heating element –
Structure borne sound control module
Left front headlamp
Left headlamp beam adjustment motor
Right front headlamp
Right headlamp beam adjustment motor
Vehicle electrical system control module (T73a/44)
F16 10A Auxiliary engine coolant pump relay
Fuel pump control module
Engine control module
Electric drive button (Engine code CNLA)
F17 10A 2012-2017:
Anti-theft alarm system horn (Running change)
Anti-theft alarm system interior sensor (Running change)
Anti-theft alarm system alarm (Running change)
F18 15A Left front headlamp
Left low beam headlamp bulb (vehicles with China equipment)
F19 15A Right front headlamp
Right low beam headlamp bulb (vehicles with China equipment)
F20 10A Ignition/starter switch (T10/10) (AW0 only)
Tiptronic switch
Automatic transmission control module
Selector lever sensor system control module
Climatronic control module
Auxiliary engine coolant heater radio frequency receiver
F21 15A/20A 2012-2017:
Vehicle electrical system control module (T73a/73), (AW0 only)
Dual tone horn relay (AW1 only)
High tone horn (AW1 only)
Low tone horn (AW1 only)
F22 20A/10A/7.5A Ignition/starter switch (AW0 only)
Converter box (AW0 only)
Interior monitoring sensor
Aarm horn relay
Aarm horn
Dual tone horn relay (2010-1011)
F23 10A Vehicle electrical system control module (T73b/39) (AW0 only)
16-pin connector (diagnostic connection)
Light switch (AW1 only)
Rain/light recognition sensor
Compass magnetic field sensor (vehicles without Start/Stop)
F24 10A Vehicle electrical system control module (T73a/64) (AW0 only)
Access/start authorization control module
F25 15A Automatic transmission control module
Selector lever sensor system control module
Multifunction switch
F26 15A Brake system vacuum pump
F27 1A 2012-2017: Arbag spiral spring/return spring with slip ring (T16k/1)
F28 40A Auxiliary heater operation relay
F29 1A Vehicle electrical system control module (T73b/51) (AW0 only)
Ignition/starter switch (AW0 only)
Converter box (AW0 only)
F30 20A Cigarette lighter
12V socket
12V socket 2
Blocking diode
F31 30A Light switch (T17/1) (AW0 only)
F32 20A Light switch (T17/2) (AW0 only)
F33 40A Heater/heat output switch
Fresh air blower relay
AC control module
Fresh air blower switch
F34 15A Left high beam headlamp bulb (AW0 only)
Right high beam headlamp bulb (AW0 only)
Instrument cluster control module (AW0 only)
F35 10A Steering column electronics control module (AW1 only)
Data bus on board diagnostic interface (AW1 only)
Instrument cluster control module (2010-2011)
Signal horn activation (2010-2012)
F36 25A Vehicle electrical system control module (T73a/16) (AW0 only) (T52b/1) (AW1 only)
Vehicle electrical system control module (T73a/61) (AW0 only) (Running change)
F37 15A Left front headlamp
Left daytime running lamp bulb
F38 15A Right front headlamp
Right daytime running lamp bulb
F39 20A Low beam relay
F40 15A Towing recognition control module (T12a/9)
F41 15A Towing recognition control module (T12a/12)
F42 20A Towing recognition control module (T12a/11)
F43 30A Front passenger door control module
F44 25A/30A Rear window defogger relay (AW1 only)
Rear window defogger
Vehicle electrical system control module (T73b/67) (AW0 only)
F45 30A Driver door control module
Front passenger door control module (vehicles with China equipment)
F46 30A Left rear door control module
Right rear door control module
F47 15A Fuel pump control module
Fuel pump relay
Fuel primer relay
F48 20A Vehicle electrical system control module
F49 40A Fresh air blower
Climatronic control module
A/C control module
F50 30A Front seat heating control module
F51 20A Sunroof control module
F52 20A 2010-2012:
Dual tone horn relay

2013-2017:
Headlamp Washer Relay
Headlamp washer pump
F53 15A 2010-2012:
Front seat heating control module

2013-2017:
Driver seat lumbar support adjustment switch
F54 15A Fog lamp relay
F55 20A Light switch (T17/15) (AW0 only)
Left steering column switch (T16ls/10) (AW0 only)
F56 10A 2013-2017:
Hybrid battery unit (T14ax/5) (Engine code CNLA)
Electric drive power and control electronics (T28jx/55) (Engine code CNLA)
F57 15A/25A Radio
Radio/Navigation Display Control Module
F58 1A/30A Telephone Transceaver (2010-2011)
Converter with socket 12V-230V
F59 15A/30A 2010-2012:
Amplifier

2013-2017:
Fan activation relay (Engine code CNLA)
Battery fan 1 (Engine code CNLA)
F60 30A Auxiliary heater control module
– 20A Driver power seat adjustment circuit breaker 1 (it is located above relay carrier)



Relays

The relay carrier is above the fuse panel.

Volkswagen Jetta (A6; 2010 - 2017) - fuse and relay diagram - passenger compartment (relays)
Volkswagen Jetta (A6; 2010 – 2017) – fuse and relay diagram – passenger compartment (relays)



15-pin relay carrier (2010-2011)
Volkswagen Jetta (A6; 2010 - 2017) - fuse and relay diagram - passenger compartment (15-pin relay carrier)
Volkswagen Jetta (A6; 2010 – 2017) – fuse and relay diagram – passenger compartment (15-pin relay carrier)



Assignment of the fuses in the relay box (2010 – 2011)

№ Description
R1 Converter box (E-Box Low, (AWO))
R2 Fresh air blower relay
R3 Auxiliary heater operation relay -J485- (449)
R4 Fuel Pump Relay
Engine Component Power Supply Relay
Auxiliary engine coolant pump relay
R5 Low beam relay (E-Box Low, (AWO))
R6 Fresh air blower relay
R7 Terminal 75 power supply relay 1
R8 Dual tone horn relay
Headlamp washer relay
R9 Power Supply Relay (terminal 50) -J682- (643)
R10 Terminal 15 power supply relay 2 -J681- (643)
R11 Rear window defogger relay -J9- (449)
R12 Fuel pump relay 2
Heat resistance relay
Cold start injector relay
Fuel primer relay
R13 Power Supply Relay (terminal 50)
R14 Terminal 15 power supply relay
R15 Fog lamp relay

12-pin relay carrier (2012-2017)
Volkswagen Jetta (A6; 2010 - 2017) - fuse and relay diagram - passenger compartment (15-pin relay carrier)
Volkswagen Jetta (A6; 2010 – 2017) – fuse and relay diagram – passenger compartment (15-pin relay carrier)



Assignment of the fuses in the relay box (2012 – 2017)

№ Description
R1 Dual tone horn relay
Alarm horn relay (USA and Mexico, E-Box Low)
Headlamp washer relay
R2 Power Supply Relay (terminal 50)
Starter relay 2
Driver power window opening relay (E-Box high, since 2013)
Driver power window closing relay (E-Box high, since 2013)
R3 Cold start injector relay (since 2013)
Secondary air injection pump relay (CNLA)
Fuel pump relay 2
Front passenger power window opening relay (E-Box high, since 2013)
Heat resistance relay
Front passenger power window closing relay (E-Box high, since 2013)
R4 Coolant circulation pump relay (up to 2012)
Fuel Pump Relay
Auxiliary engine coolant pump relay
Fuel primer relay
Engine Component Power Supply Relay (E-Box high, since 2013)
R5 Terminal 75 power supply relay 1 (up to 2012)
R6 Power Supply Relay (terminal 50)
Starter relay 1
R7 Terminal 15 power supply relay (E-Box Low)
Auxiliary heater operation relay (E-Box high)
Power window relay (E-Box high, since 2013)
R8 Low beam relay (E-Box Low)
Rear window defogger relay (E-Box high)
R9 Terminal 15 power supply relay 2
R10 Terminal 75 power supply relay 1
R11 Fog lamp relay (E-Box Low)
Fresh air blower relay (E-Box high)
Fan activation relay (hybrid)
R12 Converter box (E-Box Low)
R13 Power Supply Relay (terminal 50)
R14 Terminal 15 power supply relay
R15 Fog lamp relay



Engine Compartment Fuse Box

Fuse Box Location

Move the release tabs in the direction of the arrows to unlock the fuse box cover.

Volkswagen Jetta (A6; 2010 - 2017) - fuse and relay location - engine compartment
Volkswagen Jetta (A6; 2010 – 2017) – fuse and relay location – engine compartment

Fuse Box Diagram (-SB-)

Volkswagen Jetta (A6; 2010 - 2017) - fuse and relay diagram - engine compartment
Volkswagen Jetta (A6; 2010 – 2017) – fuse and relay diagram – engine compartment



Assignment of the fuses in the engine compartment

№ Amps Function/Component
F1 – Not used
F2 10A/15A Engine control module
Engine component power supply relay
F3 5A/10A Coolant fan control module
Relay for low heat output
Relay for high heat output
F4 5A/10A/15A Oxygen sensor heater
Heater for oxygen sensor 1 after catalytic converter
High temperature circuit coolant pump (Engine codes CNLA, CRJA)
Low temperature circuit coolant pump
F5 5A/10A/20A Oxygen sensor heater
Oxygen sensor 2 heater (Engine codes CNLA, CRJA)
Leak detection pump
Wastegate bypass regulator valve
EGR cooler switch-over valve
Positive crankcase ventilation heating element
Mass airflow sensor (Engine code CFFB)
Vacuum pump relay
Brake system vacuum pump
F6 5A/10A/15A/20A Leak detection pump
EVAP canister purge regulator valve 1
Tank switch-off valve
Secondary air injection pump relay
F6 5A/10A/15A Water pump
Auxiliary heater heating element
Relay for low heat output
Relay for high heat output
F7 20A Petrol:
Ignition coil 1~4 with power output stage
F7 5A Diesel:
Fuel pressure regulator valve
Fuel metering valve
F8 10A Throttle valve control module
Wastegate bypass regulator valve
EVAP canister purge regulator valve 1
Camshaft adjustment valve 1
Turbocharger recirculation valve
Intake manifold runner control valve
Exhaust camshaft adjustment valve 1 (Engine codes CNLA, CRJA)
Oil pressure regulation valve (Engine codes CNLA, CRJA)
Decoupler pressure actuator (Engine codes CNLA, CRJA)
Refrigerant cut-off valve (Engine codes CNLA, CRJA)
F9 5A/15A Secondary air injection sensor 1
Secondary air injection sensor 2
Automatic glow time control module
Fuel pump relay 2
Fuel pump relay
EVAP canister purge regulator valve 1
Camshaft adjustment valve 1
Fuel pressure regulator valve
After-run coolant pump
Coolant circulation pump relay
Engine coolant circulation pump 2
F10 5A Brake lamp switch
Clutch position sensor
Auxiliary engine coolant pump relay
Brake booster relay (Engine codes CNLA, CRJA)
Speed sensor
F11 – Not used
F12 5A Ignition coil 1~4 with power output stage
After-run coolant pump
F13 5A/20A Auxiliary engine coolant pump relay
Water pump
Brake booster relay (Engine codes CNLA, CRJA)
Brake system vacuum pump (Engine codes CNLA, CRJA)
F14 5A Engine control module
Main relay
F15 30A Voltage stabilizer
F16 30A ABS control module
F17 30A DSG transmission Mechatronic
F18 20A DSG transmission Mechatronic
F19 1A Vehicle electrical system control module (T52a/24) AW1, (T73b/59) AW0
F20 30A Vehicle electrical system control module (AW0)
Wiper/washer intermittent relay (AW1)
Wiper motor change-over relay 1 (AW1)
Wiper motor change-over relay 2 (AW1)
F21 50A Secondary air injection pump motor
F22 40A Auxiliary heater heating element
F23 40A ABS control module
F24 50A Towing recognition control module
F25 50A Terminal 15 power supply relay
Terminal 15 power supply relay 2
F26 50A/40A Automatic glow time control module
Secondary air injection pump relay
Secondary air injection pump motor (Engine codes CNLA, CRJA)
F27 50A/60A Coolant fan
F28 40A Vehicle electrical system control module (AW1)
F29 40A Vehicle electrical system control module (AW1)
F30 50A Terminal 75 power supply relay 1
F31 30A Amplifier
F32 40A Auxiliary heater heating element
508   Threaded connection (30) on the E-box
SA1 200A Without Hybrid system:
Generator
With Hybrid system:
Electric drive power and control electronics
Voltage converter
SA2 – Not used
SA3 80A Steering
SA4 80A Without Hybrid system:
Interior terminal 30 power supply SC fuses
R1   Wiper motor change-over relay 1 / Not used (AW0)
R2   Wiper motor change-over relay 2 / Not used (AW0)
R3   Main relay
Terminal 30 power supply relay
Fuel primer relay
R4   Relay for low heat output
Coolant circulation pump relay (Running change)
Auxiliary engine coolant pump relay
R5   Relay for high heat output
Secondary air injection pump relay (gasoline)
Brake booster relay (Hybrid, with auxiliary heater)
R6   Automatic glow time control module
Brake booster relay (Hybrid, without auxiliary heater)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Audi 100 (C4; 1992 – 1994) – fuse and relay box diagram

Posted on by admin

Audi 100 (C4; 1992 – 1994) – fuse box diagram

Year of production: 1992, 1993, 1994



This article covers the second-generation   Audi 100 (C4), produced from 1990 to 1994. It includes fuse box diagrams for the 1992, 1993 and 1994 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.

Passenger compartment

Fuse box diagram

Audi 100 (C4; 1992 - 1994) - fuse and relay box diagram - passenger compartment (instrument panel)
Audi 100 (C4; 1992 – 1994) – fuse and relay box diagram – passenger compartment (instrument panel)



Assignment of the fuses in the passenger compartment (instrument panel)

№
   A
 Description
1 15 Rear fog lights
2 15 Emergency flash switch, anti-theft system (USA only)
3 25 Horns, brake lights switch
4 15 Luggage compartment, light, cigar lighter, interior lights
5 30 Not used
6 5 Tail lights, side marker light, RF
7 5 Tail lights, side marker light, LF
8 10 Headlight, hi-beam, right
9 10 Headlight, hi beam, left
10 10 Headlight, lo beam, right
11 10 Headlight, lo beam, left
12 15 Automatic transmission, backup lights, interior lights
13 15 Fuel pump
14 5 License plate lights, glove compartment light, engine compartment light, center console
15 25 Wipers/washer
16 30 Rear defogger
17 30 Fresh air fan, air conditioning
18 5 Power mirror switch
19 10 Central locking system, anti-theft system (USA only)
20 30 Heated seats
21 25 Fuel injection control unit, diagnostic
22 — Open
23 — Open
24 — Open
25 — Open
26 5 Speedometer, power mirrors
27 10 Ignition control unit
28 15 Fuel injection control unit, electronic engine cintrol
29 — Open
30 5 Automatic transmission



№ Description
1 Rear fog light jumper plug
2 Rad. cooling fan relay 2nd stage
3 Rad. cooling fan relay after run control unit
4 Open
5 Load reduction relay
6 Open
7 Horn relay
8 Automatic transmission/anti-theft relay
9 Wash/wiper intermit, relay
10 Fuel pump relay, J17
11 Open

Fuse box diagram

Audi 100 (C4; 1992 - 1994) - fuse and relay box diagram - passenger compartment (instrument panel)
Audi 100 (C4; 1992 – 1994) – fuse and relay box diagram – passenger compartment (instrument panel)



Assignment of the  fuses in the passenger compartment (instrument panel)

№
 Description Color
A Air conditioning connector Gray
B Right front wiring harness connector Black
C Instrument panel connector Blue
D Left front wiring harness connector Green
E Left front wiring harness connector Yellow
F Instrument panel connector Brown
G Instrument panel connector Red
H Rear wiring harness connector Black
I Instrument panel connector Red
J Instrument panel connector Yellow
K — —
L Single connector (terminal 30) connector Colorless
M For optional equipment connector Colorless
N — —
O — —
P To fuse 26 —

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
