MG eHS (2020 – 2023) – fuse and relay box diagram

Posted on by admin

MG eHS (2020 – 2023) – fuse and relay box diagram

Years of production: 2020, 2021, 2022, 2023



The MG eHS (also known as the HS PHEV), a compact plug-in hybrid crossover, has been available since 2020. This article provides fuse box diagrams for the 2020, 2021, 2022, and 2023 models, offers information on the locations of the fuse panels inside the vehicle, and explains the function of each fuse (fuse layout).

Passenger Compartment Fuse Box

Fuse Box Diagram

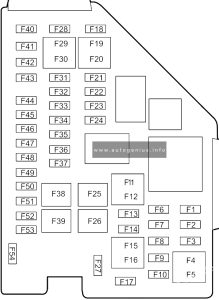

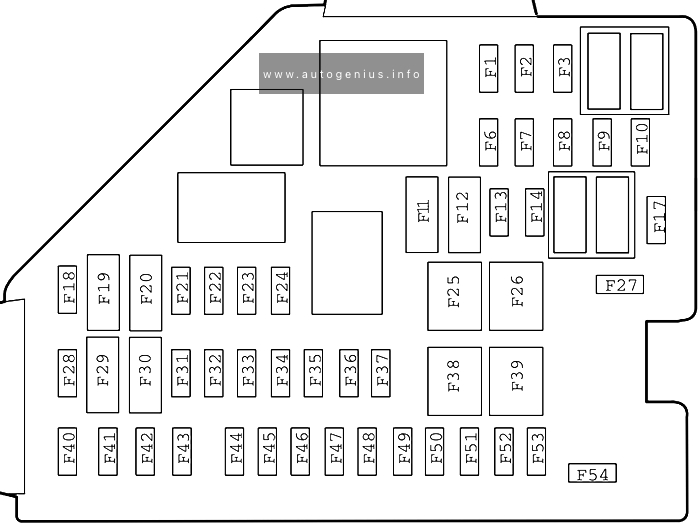

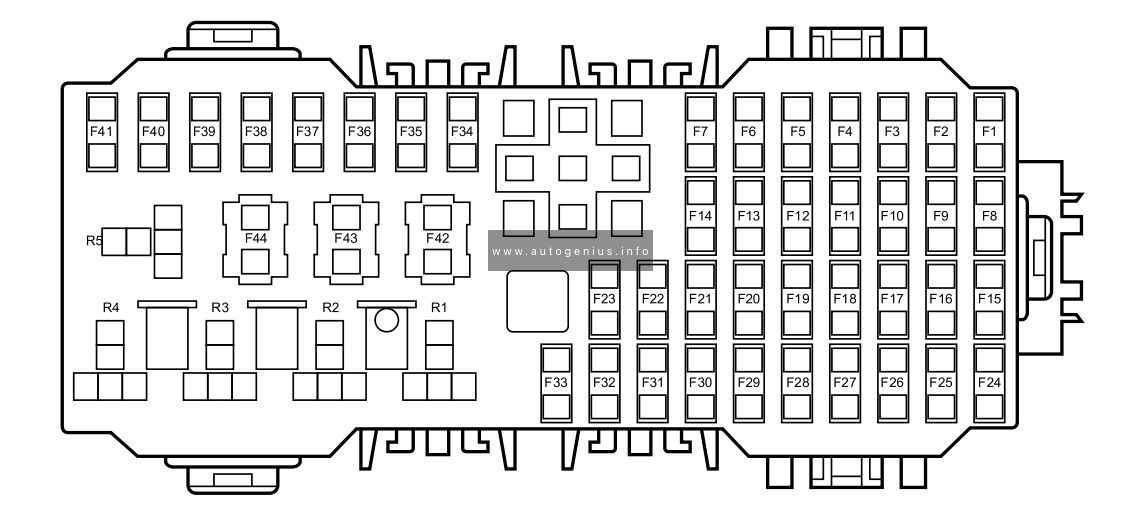

MG eHS (2020 - 2023) - fuse and relay box diagram - passenger compartment fuse box
MG eHS (2020 – 2023) – fuse and relay box diagram – passenger compartment fuse box



Assignment of the fuses in the passenger compartment

No. A Protected components
F1 10A Sensing Diagnostic Module (Airbag), Electronic Shifter Control Unit, TBOX, Instrument Pack, Body Control Module, Airbag Display Module
F2 7.5A Engine Control Module, Hybrid Control Unit
F3 5.0A Front View Control Module, Front Detection Radar
F6 – –
F7 15A Towing Kit Connector Socket
F8 15A Front Power Socket
F9 5A USB Port
F10 – –
F11 7.5A Mirror Heaters
F12 25A Rear Windscreen Heating
F13-F14 – –
F17 – –
F18 30A Rear Left Window Lift
F19 5A EPB Switch, PRND Display
F20 30A Rear Right Window Lift
F21 10A Front Right Seat Heating Relay
F22 5A Diagnostic Line Connector
F23 10A Front Left Seat Heating Relay
F24 10A Gateway
F25 40A KLR Relay
F26 30A Passenger Window lift
F27 – –
F28 5A Passive Entry Passive Start Module, Backup Immobilizer Coil
F29 10A Gateway
F30 5A Driver Door Switch Pack, Rain Light Sensor
F31 – –
F32 5A Ambient Light Control Module
F33 5A Sensing Diagnostic Module (Airbag)
F34 5A TBOX
F35 10A Radio Broadcasting Reception Module
F36 10A Electronic Steering Column Lock
F37 20A Driver Electric Adjust Seat Switch
F38 30A Driver Window Lift
F39 30A Blower
F40 15A Entertainment System
F41 5A Upper Console Switch
F42 10A AC Control Module
F43 5A Instrument Pack
F44 5A Rear Driving Assistance System
F45 30A Sunroof Motor
F46 5A Tyre Pressure Monitoring System
F47 30A Sunshade Motor
F48 20A Passenger Electric Adjust Seat
F49 5A Around View Module
F50 – –
F51 30A Rear Windscreen Heating Relay, Exterior Mirrors Relay
F52 10A Headlamp, Interior Rear View Mirror, Headlamp Levelling Switch
F53 10A Electronic Shifter Control Unit
F54 – –
F54 – –

Engine Compartment Fuse Box

Fuse Box Diagram

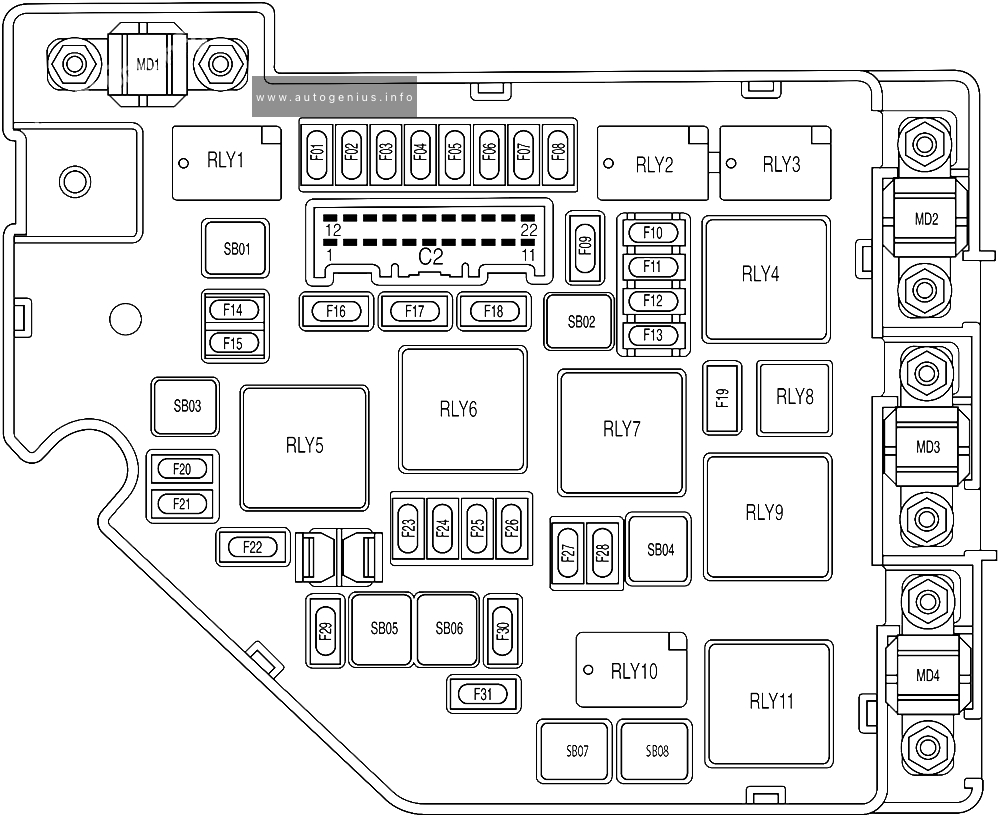

MG eHS (2020 - 2023) - fuse and relay box diagram - engine compartment fuse box
MG eHS (2020 – 2023) – fuse and relay box diagram – engine compartment fuse box



Assignment of the fuses in the engine compartment

No. A Protected components
F01 10A Right Headlamp Assembly
F02 10A Left Headlamp Assembly
F03 10A DC/DC Convertor
F04 – –
F05 5A Electric Air Conditioning Compressor
F06 – –
F07 – –
F08 20A Power Electronic Box Coolant Pump
F09 10A Fuel Pump Relay, Lower Console Switch, Fuel Tank Isolation Diagnosis Module (Tank Leakage), Brake Pedal Switch
F10 20A Engine Control Module
F11 15A Intake Variable Camshaft Timing, Exhaust Variable Camshaft Timing, Upstream Lambda Sensor, Downstream Lambda Sensorv Canister Purge Valve
F12 20A Ignition Coil
F13 15A Waste Gate Control Valve, Dump Valve, Electronic Thermostat, Mass Air Flow Sensor
F14 25A Body Control Module
F15 10A Rear Washer Relay
F16 25A Body Control Module
F17 25A Body Control Module
F18 25A Body Control Module
F19 10A Front Fog Lamp Relay
F20 10A Front Washer Relay
F21 10A Engine Control Module
F22 10A Power Electronic Box
F23 – –
F24 – –
F25 30A Hybrid Control Unit
F26 25A Body Control Module
F27 – –
F28 10A Engine Auxiliary Pump
F29 15A Horn
F30 10A Hybrid Control Unit
F31 25A Front Wiper Enable Relay
SB01 25A Body Control Module
SB02 60A Cooling Fan Low Speed Relay
SB03 40A EVP Relay
SB04 40A Cooling Fan
SB05 40A Stability Control System-Pump
SB06 40A Stability Control System-Valve
SB07 – –
SB08 50A Cooling Fan Middle Speed Relay
MD1 200A Power Pump
MD2 100A Passenger Compartment Fusebox
MD3 80A Electric Power Steering Module
MD4 200A Luggage Compartment Fusebox



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

MG HS PHEV (2020 – 2023) – fuse and relay box diagram

Posted on by admin

MG HS PHEV (2020 – 2023) – fuse and relay box diagram

Years of production: 2020, 2021, 2022, 2023



The MG eHS (also known as the HS PHEV), a compact plug-in hybrid crossover, has been available since 2020. This article provides fuse box diagrams for the 2020, 2021, 2022, and 2023 models, offers information on the locations of the fuse panels inside the vehicle, and explains the function of each fuse (fuse layout).

Passenger Compartment Fuse Box

Fuse Box Diagram

MG HS PHEV (2020 - 2023) - fuse and relay box diagram - passenger compartment fuse box
MG HS PHEV (2020 – 2023) – fuse and relay box diagram – passenger compartment fuse box



Assignment of the fuses in the passenger compartment

No. A Protected components
F1 10A Sensing Diagnostic Module (Airbag), Electronic Shifter Control Unit, TBOX, Instrument Pack, Body Control Module, Airbag Display Module
F2 7.5A Engine Control Module, Hybrid Control Unit
F3 5.0A Front View Control Module, Front Detection Radar
F6 – –
F7 15A Towing Kit Connector Socket
F8 15A Front Power Socket
F9 5A USB Port
F10 – –
F11 7.5A Mirror Heaters
F12 25A Rear Windscreen Heating
F13-F14 – –
F17 – –
F18 30A Rear Left Window Lift
F19 5A EPB Switch, PRND Display
F20 30A Rear Right Window Lift
F21 10A Front Right Seat Heating Relay
F22 5A Diagnostic Line Connector
F23 10A Front Left Seat Heating Relay
F24 10A Gateway
F25 40A KLR Relay
F26 30A Passenger Window lift
F27 – –
F28 5A Passive Entry Passive Start Module, Backup Immobilizer Coil
F29 10A Gateway
F30 5A Driver Door Switch Pack, Rain Light Sensor
F31 – –
F32 5A Ambient Light Control Module
F33 5A Sensing Diagnostic Module (Airbag)
F34 5A TBOX
F35 10A Radio Broadcasting Reception Module
F36 10A Electronic Steering Column Lock
F37 20A Driver Electric Adjust Seat Switch
F38 30A Driver Window Lift
F39 30A Blower
F40 15A Entertainment System
F41 5A Upper Console Switch
F42 10A AC Control Module
F43 5A Instrument Pack
F44 5A Rear Driving Assistance System
F45 30A Sunroof Motor
F46 5A Tyre Pressure Monitoring System
F47 30A Sunshade Motor
F48 20A Passenger Electric Adjust Seat
F49 5A Around View Module
F50 – –
F51 30A Rear Windscreen Heating Relay, Exterior Mirrors Relay
F52 10A Headlamp, Interior Rear View Mirror, Headlamp Levelling Switch
F53 10A Electronic Shifter Control Unit
F54 – –
F54 – –

Engine Compartment Fuse Box

Fuse Box Diagram

MG HS PHEV (2020 - 2023) - fuse and relay box diagram - engine compartment fuse box
MG HS PHEV (2020 – 2023) – fuse and relay box diagram – engine compartment fuse box



Assignment of the fuses in the engine compartment

No. A Protected components
F01 10A Right Headlamp Assembly
F02 10A Left Headlamp Assembly
F03 10A DC/DC Convertor
F04 – –
F05 5A Electric Air Conditioning Compressor
F06 – –
F07 – –
F08 20A Power Electronic Box Coolant Pump
F09 10A Fuel Pump Relay, Lower Console Switch, Fuel Tank Isolation Diagnosis Module (Tank Leakage), Brake Pedal Switch
F10 20A Engine Control Module
F11 15A Intake Variable Camshaft Timing, Exhaust Variable Camshaft Timing, Upstream Lambda Sensor, Downstream Lambda Sensorv Canister Purge Valve
F12 20A Ignition Coil
F13 15A Waste Gate Control Valve, Dump Valve, Electronic Thermostat, Mass Air Flow Sensor
F14 25A Body Control Module
F15 10A Rear Washer Relay
F16 25A Body Control Module
F17 25A Body Control Module
F18 25A Body Control Module
F19 10A Front Fog Lamp Relay
F20 10A Front Washer Relay
F21 10A Engine Control Module
F22 10A Power Electronic Box
F23 – –
F24 – –
F25 30A Hybrid Control Unit
F26 25A Body Control Module
F27 – –
F28 10A Engine Auxiliary Pump
F29 15A Horn
F30 10A Hybrid Control Unit
F31 25A Front Wiper Enable Relay
SB01 25A Body Control Module
SB02 60A Cooling Fan Low Speed Relay
SB03 40A EVP Relay
SB04 40A Cooling Fan
SB05 40A Stability Control System-Pump
SB06 40A Stability Control System-Valve
SB07 – –
SB08 50A Cooling Fan Middle Speed Relay
MD1 200A Power Pump
MD2 100A Passenger Compartment Fusebox
MD3 80A Electric Power Steering Module
MD4 200A Luggage Compartment Fusebox



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

MG ZS  EV (2019 – 2021) – fuse and relay box diagram

Posted on by admin

MG ZS  EV (2019 – 2021) – fuse and relay box diagram

Year of production: 2019, 2020, 2021



The pre-facelift MG ZS EV, a subcompact electric crossover, was produced from 2019 to 2021. This article includes fuse box diagrams for the 2019, 2020, and 2021 models, provides details on the locations of the fuse panels inside the vehicle, and explains the function of each fuse (fuse layout).



Passenger Compartment Fuse Box

Fuse Box Location

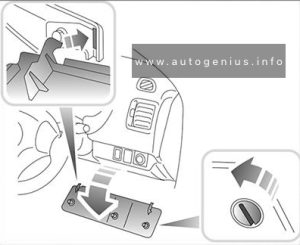

The fuse panel is located below the glove box at the front passenger side.



Fuse Box Diagram

MG ZS EV (2019 - 2021) - fuse and relay box diagram - passenger compartment fuse box
MG ZS EV (2019 – 2021) – fuse and relay box diagram – passenger compartment fuse box



Assignment of the fuses in the passenger compartment

No.
 А
 Function
F1 5A Charging Plug Unlock Relay, Charging Plug Lock Relay
F2 10A Diagnostic Socket
F3 5A Charger, EVCC
F4 15A Front Wash Relay, Rear Wash Relay
F5 5A SDM
F6 5A HV PTC, ESS PTC
F7 10A ESS (High Voltage Battery)
F8 5A TPMS, EPB Switch
F9 5A VCU
F10 10A PACM
F11 5A PEPS
F12 – –
F13 30A Driver Seat Adjust Switch
F14 5A IMMO Coil
F15 15A Front Power Socket
F16 5A Rear USB Charge Module, Master Light Switch, Headlamp Assembly
F17 – –
F18 30A Rear Left Window Lift Switch
F19 30A Passenger Window Lift Switch
F20 30A Rear Right Window Lift Switch
F21 30A Driver Window Lift Motor
F22 10A Heated Mirrors
F23 25A Rear Windshield Assembly
F24 20A FICM, IFP, DAB
F25 15A ETC, ACFP
F26 5A Instrument Pack
F27 10A Driver Door Switch Pack, Master Light Switch
F28 5A RLS, Master Radar
F29 10A Gateway
F30 10A Gateway
F31 30A Sunroof ECU
F32 30A Sunroof ECU
F33 5A SCU
F34 10A ESCL
F35 15A Super Lock Relay
F36 — —
F37 — —
F38 — —
F39 — —
F40 — —
F41 — —
F42 30A EPB
F43 30A EPB
F44 – –

Engine Compartment Fuse Box

Fuse Box Diagram

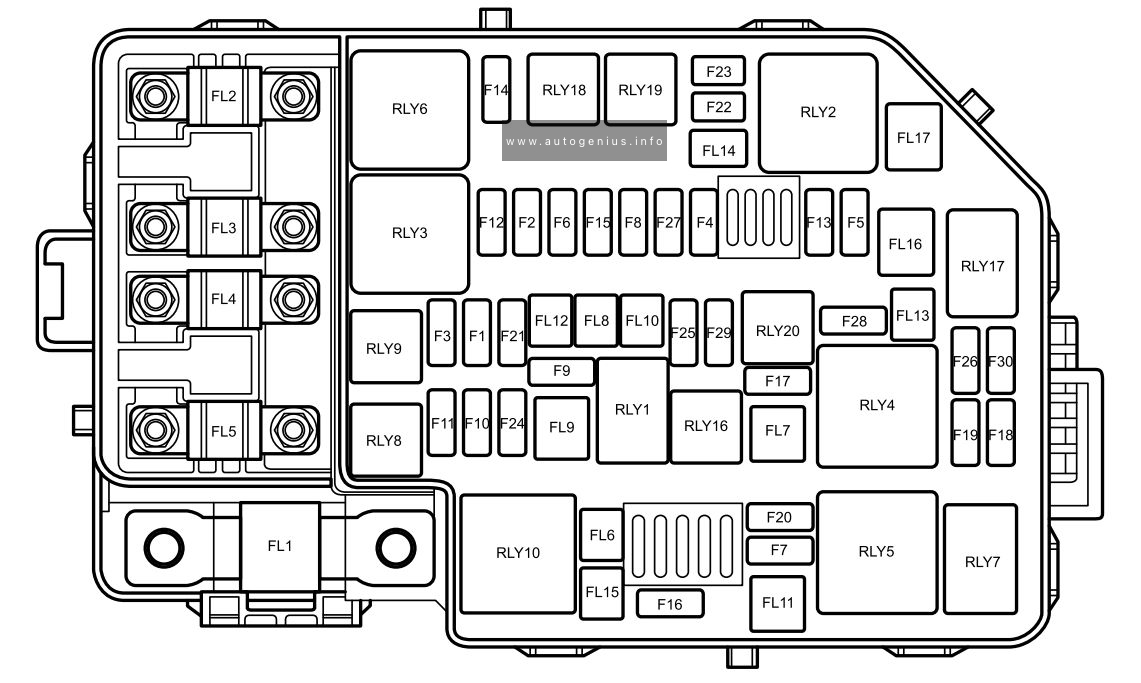

MG ZS EV (2019 - 2021) - fuse and relay box diagram - engine compartment fuse box
MG ZS EV (2019 – 2021) – fuse and relay box diagram – engine compartment fuse box



Assignment of the fuses in the engine compartment

№ Amps Function
FL1 I50A PEB
FL2 80A EPS
FL3 40A Cooling Fan Relay Pack
FL4 80A Passenger Compartment Fusebox Fuse F18, F19, F20, F21, F34, F35, F42, F43
FL5 80A Passenger Compartment Fusebox Fuse F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F13, F14, F24, F25, F26, F27, F28, F29, F30, F31, F32, F33, HRW Relay
FL6 25A SCS Valve
FL7 30A Blower Motor, ETC
FL8 20A BCM
FL9 40A SCS Pump
FL10 30A BCM
FL11 – –
FL12 20A BCM
FL13 – –
FL14 – –
FL15 30A KLR Relay
FL16 – –
FL17 40A EVP Relay
F1 – –
F2 15A PEB Water Pump, Cooling Fan Relay Pack
F3 – –
F4 – –
F5 10A EVAP
F6 – –
F7 30A Wiper Enable Relay, Wiper Speed Relay
F8 – –
F9 – –
F10 10A Main Beam – RH
F11 10A Main Beam – LH
F12 – –
F13 15A Horn Relay
F14 – –
F15 5A Brake Pedal Switch
F16 15A Rear Wiper Relay
F17 15A ESS PWM Pump Relay
F18 5A SDM
F19 5A VCU
F20 – –
F21 15A BCM
F22 10A Seat Heat Relay – LH
F23 10A Seat Heat Relay – RH
F24 10A PEB
F25 15A BCM
F26 – –
F27 5A BCM, EVP Relay, Front Breath Lamp
F28 – –
F29 – –
F30 10A BCM, SCU, Instrument Pack, ADM, FVCM, Front Radar

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

MG ZS (2021 – 2023) – fuse and relay box diagram

Posted on by admin

MG ZS (2021 – 2023) – fuse and relay box diagram

Year of production: 2021, 2022, 2023



The pre-facelift MG ZS, a subcompact crossover, was produced from 2017 to 2020. This article includes fuse box diagrams for the 2017 through 2020 models, provides details on the locations of the fuse panels inside the vehicle, and explains the function of each fuse (fuse layout).



Fuse Box Location

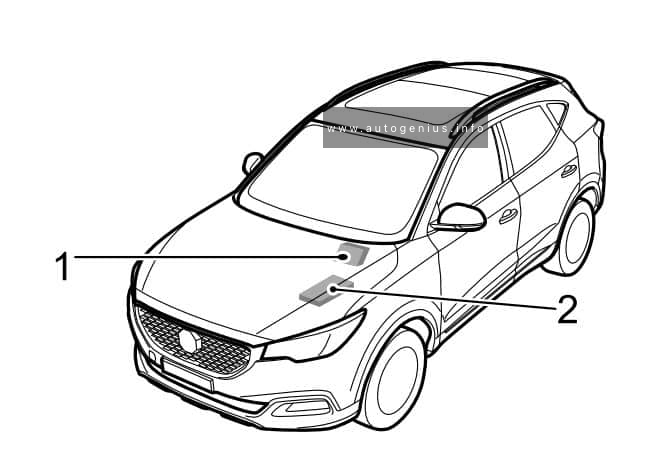

MG ZS (2021 - 2023) - fuse and relay box location

MG ZS (2021 – 2023) – fuse and relay box location



  1. Passenger Compartment Fuse Box（below the glove box at the front passenger side
  2. Engine Compartment Fuse Box（at the left side of the Engine Compartment



Passenger Compartment Fuse Box

Fuse Box Diagram

MG ZS (2021 - 2023) - fuse and relay box diagram - passenger compartment fuse box
MG ZS (2021 – 2023) – fuse and relay box diagram – passenger compartment fuse box



Assignment of the fuses in the passenger compartment

No.
 А
 Function
F1 15A Front Washer Relay, Rear Washer Relay
F2 10A Diagnostic Socket
F3 5A PRND Display
F4 10A Front Left Seat Heating Relay
F5 10A Airbag ECU (SDM)
F6 10A Keyless Start/Stop Switch, Gateway
F7 30A Driver Seat Adjust Switch
F8 15A Super Lock Relay
F9 — —
F10 — —
F11 — —
F12 5A Left Rear Driving Assistance Radar
F13 — —
F14 — —
F15 15A Front Power Socket
F16 5A Front Courtesy Lamp, Outside Mirror and Master Light Height Adjust Switch, Top USB, Left Headlamp Assembly, Right Headlamp Assembly
F17 5A Rear USB
F18 5A EPB Switch
F19 5A Outside Mirror and Master Light Height Adjust Switch, Rain Light Sensor
F20 10A Front Right Seat Heating Relay
F21 10A 360° View Module, Passenger Compartment Fuse F12
F22 10A Exterior Mirrors Heating Element
F23 25A Rear Windscreen Heating Element
F24 20A Front Central Display, Front Infotainment Control Module
F25 10A Electronic Temperature Controller
F26 5A Instrument Pack
F27 10A Transmission Control Module – AT
F28 5A Information Faceplate
F29 30A Sunroof
F30 5A DAB Module
F31 5A Tyre Pressure Monitoring System
F32 10A Electronic Steering Column Lock
F33 30A Sunroof
F34 — —
F35 — —
F36 — —
F37 — —
F38 — —
F39 — —
F40 — —
F41 — —
F42 25A Stability Control Module(Valve) – MT
F42 40A Stability Control Module(Valve) – AT
F43 30A Passenger Window lift Switch, Rear Left Window Lift Switch
F44 30A Driver Door Switch Pack, Driver Window Lifter, Rear Right Window Lift Switch

Engine Compartment Fuse Box

Fuse Box Diagram

MG ZS (2021 - 2023) - fuse and relay box diagram - engine compartment fuse box
MG ZS (2021 – 2023) – fuse and relay box diagram – engine compartment fuse box



Assignment of the fuses in the engine compartment

№ Amps Function
FL1 I50A Alternator
FL2 80A Electric Power Steering Module
FL3 40A Cooling Fan Relay Pack
FL4 80A Windscreen/Mirror Heating Relay, Passenger Compartment Fuse F18, F19, F20, F21, F42, F43, F44
FL5 80A KLR Relay, Passenger Compartment Fuse F1, F2, F3, F4, F5, F6, F7, F8, F24, F25, F26, F27, F28, F29, F30, F31, F32, F33
FL6 – –
FL7 40A Electronic Temperature Controller, Blower
FL8 20A Body Control Module
FL9 40A Stability Control Module(Pump)
FL10 – –
FL11 – –
FL12 – –
FL13 30A Starter Relay
FL14 – –
FL15 – –
FL16 30A DC/DC Convertor
FL17 – –
F1 10A Right Headlamp Assembly
F2 15A Downstream Lambda Sensor, Upstream Lambda Sensor, Positive Temperature Coefficient (1.5L), Intake Variable Camshaft Timing (1.0T), Exhaust Variable Camshaft Timing (1.0T), Oil Control Valve (1.0T), Canister Purge Valve (1.0T)
F3 10A Left Headlamp Assembly
F4 10A Compressor Relay
F5 5A Engine Control Module
F6 10A Fuel lnjector (1.5L)
F7 30A Front Wiper Enable Relay, Front Wiper High/Low Speed Relay
F8 5A Cooling Fan Relay Pack, Brake Pedal Switch, Fuel Pump Relay, AC Pressure Switch, Neutral Switch (1.5L)
F9 20A Fuel Pump Relay
F10 10A Right Headlamp Assembly
F11 10A Left Headlamp Assembly
F12 30A Ignition Coil, Engine Control Module
F13 15A Horn Relay
F14 – –
F15 10A Intake Variable Camshaft Timing (1.5L), Exhaust Variable Camshaft Timing (1.5L), Canister Purge Valve (1.5L), Electronic Thermostat (1.0T), Electronic Water Pump (1.0T), Dump Valve (1.0T), Waste Gate Control Valve (1.0T), Clutch Master Cylinder Sensor (1.0T)
F16 15A Rear Wiper Relay
F17 10A Fog Lamp Relay
F18 5A Airbag ECU (SDM)
F19 5A Instrument Pack, Front Detect Radar, Front View Control Module, Shifter Mechanism, Reverse Lamp Switch, DC/DC Convertor, Airbag Display Module
F20 5A Engine Control Module
F21 25A Body Control Module
F22 – –
F23 – –
F24 – –
F25 30A Body Control Module
F26 – –
F27 15A Body Control Module
F28 – –
F29 – –
F30 5A Engine Control Module

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

MG MG4 EV (2022 – 2024) – fuse and relay box diagram

Posted on by admin

MG MG4 EV (2022 – 2024) – fuse and relay box diagram

Year of production: 2022, 2023, 2024



The MG MG4 EV, a battery electric small family car, has been in production since 2022. This article provides fuse box diagrams for the 2022, 2023, and 2024 models, offers information on the locations of the fuse panels inside the vehicle, and details the function of each fuse (fuse layout).



Passenger Compartment Fuse Box

Fuse Box Location

The fuses are located behind the driver side knee trim panel.



Fuse Box Diagram

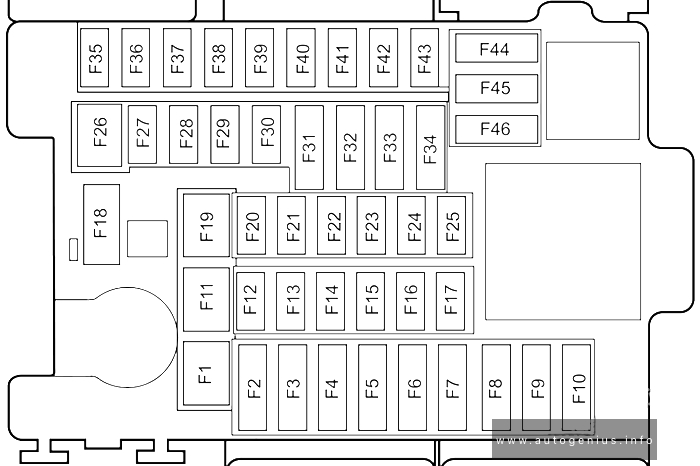

MG MG4 (2022 - 2024) - fuse and relay box diagram - passenger compartment fuse box
MG MG4 (2022 – 2024) – fuse and relay box diagram – passenger compartment fuse box



Assignment of the fuses in the passenger compartment

№ Amps Function
F1 – –
F2 5A High Voltage Electric Heater
F3 7.5A Gateway
F4 I5A Heated Steering Wheel
F5 5A Driver door combination switch, exterior rearview mirrors and headlamp leveling switch, EPB switch, infortainment control panel, clock spring
F6 5A Pedestrian alert module, communication module
F7 5A Gear shift control unit, instrument pack
F8 7.5A Digital radio, central display, front view camera module
F9 5A Charging Port
F10 – –
F11 30A Driver seat control module, driver seat adjustment switch
F12 – –
F13 5A Fatigue Monitoring Module
F14 10A Airbag Control Module
F15 15A Super Lock
F16-F17 – –
F18 10A Electronic Steering Column Lock
F19 – –
F20 10A DLC
F21 – –
F22 10A Automatic Temperature Control
F23 – –
F24 20A Infortainment Mainframe
F25 5A Rear Driving Assistance Radar
F26-F43 – –
F44 15A Front Console Power Socket
F45 5A Rear USB port, wireless charging module of mobile phone
F46 – –

Engine Compartment Fuse Box

Fuse Box Diagram

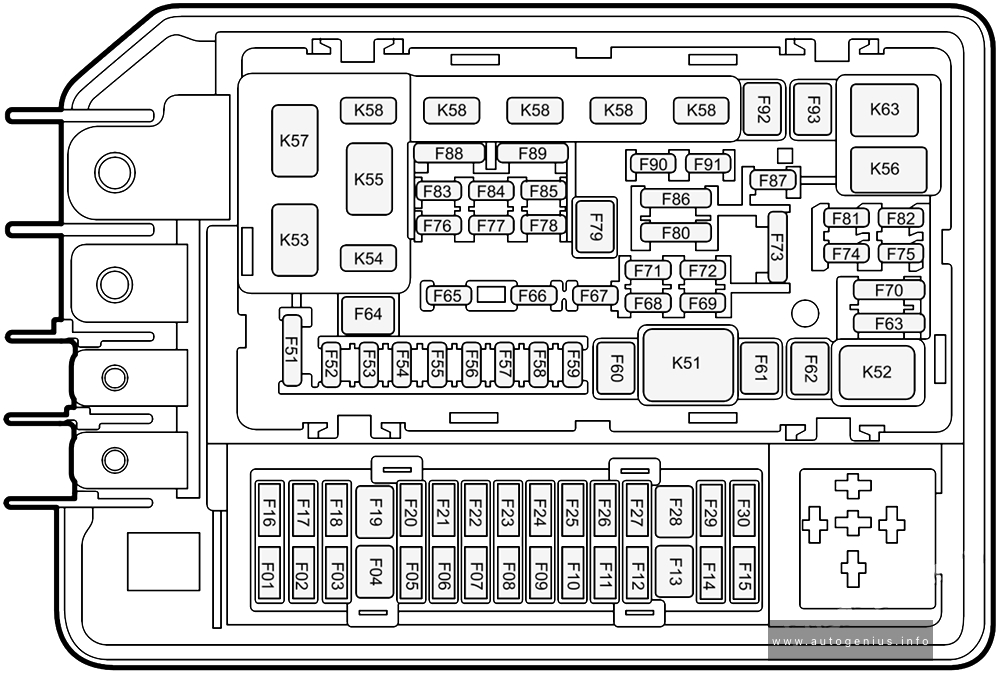

MG MG4 (2022 - 2024) - fuse and relay box diagram - engine compartment fuse box
MG MG4 (2022 – 2024) – fuse and relay box diagram – engine compartment fuse box



Assignment of the fuses in the engine compartment

№ Amps Function
F1 20A Reserved Trailer Module
F2-F50 – –
F51 15A Horn Relay
F52 5A Electric vehicle communication controller, active intake grille
F53 20A Left Headlamp
F54 30A Body Control Module
F55 30A Body Control Module
F56 5A Forward Detection Radar
F57 5A Electric Parking Motor Control Unit
F58 30A Body Control Module
F59 – –
F60 30A Heated Rear Window
F61 40A Integrated Braking System
F62 30A Power Window Regulator Motor
F63 5A Airbag control module, collision power module, instrument pack, gateway, parking assist sensor, body control module
F64 30A Collision Power Module
F65 – –
F66 10A Electric Exterior Rearview Mirror
F67 – –
F68 20A Electric Parking Motor Control Unit
F69 30A Collision Power Module
F70 5A Integrated braking system, electric power steering, second axis motor controller, intelligent electronic control unit
F71 – –
F72 20A Right Headlamp
F73 5A Battery sensor, brake pedal switch
F74-F76 – –
F77 15A PEB Cooling Water Pump
F78 20A High Voltage Battery Pack System
F79 50A Air Conditioning Inlet Box
F80 10A Second axis motor control unit, intelligent electronic control unit
F81 15A PEB Cooling Water Pump
F82 – –
F83 15A Battery Pack Coolant Pump
F84 – –
F85 15A Front Wiper Motor
F86 15A Heat Pump Controller
F87 5A Combined Charging Unit
F88 5A Electric air conditioning compressor, battery pack heater
F89 5A Interior rearview mirror, exterior rearview mirrors and headlamp leveling switch, left headlamp, right headlamp
F90 – –
F91 30A Body Control Module
F92 25A Wiper Relay
F93 30A Automatic Window Regulator Motor
A – –
B – –
C 80A Electric Power Steering
D – –
E 100A Passenger compartment fuse box
F – –
G 60A Cooling Fan Power Supply
H 60A Integrated Braking System

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

MG MG5 EV (2020 – 2024) –  fuse and relay box diagram

Posted on by admin

MG MG5 EV (2020 – 2024) –  fuse and relay box diagram

Year of production: 2020, 2021, 2022, 2023, 2024

The MG MG5 EV, a battery electric subcompact car, has been in production from 2020 to the present. This article provides fuse box diagrams for the 2020, 2021, 2022, 2023, and 2024 models, details the locations of the fuse panels inside the vehicle, and explains the function of each fuse (fuse layout)



Passenger compartment fuse box

Fuse Box Diagram

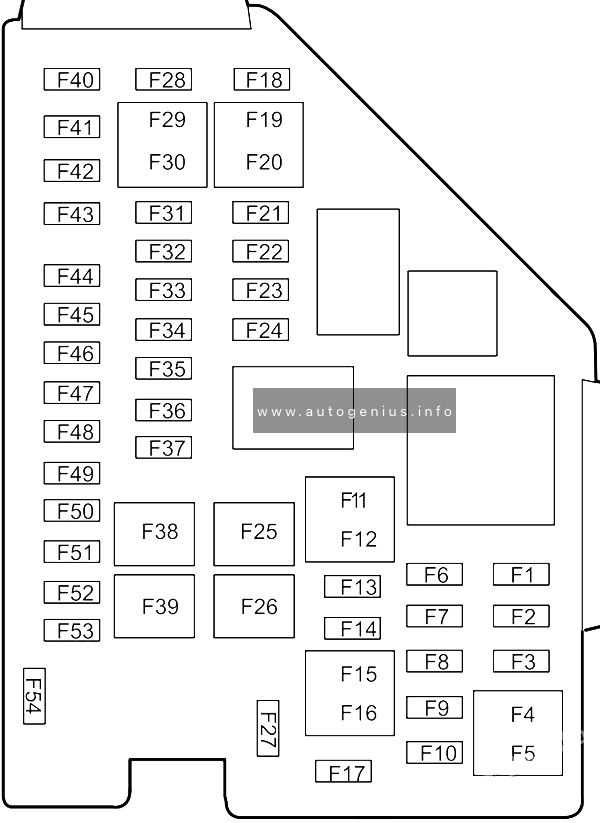

MG MG5 EV (2020 - 2024) - fuse and relay box diagram - passenger compartment fuse box
MG MG5 EV (2020 – 2024) – fuse and relay box diagram – passenger compartment fuse box



Assignment of the fuses in the passenger compartment

№ Amps Protected components
F1 15A Front Console Power Socket
F2 5A Interior Mirror, Rear Console USB Charging Ports
F3-F17 – –
F18 5A 2020-2022: TBOX, Vehicle Control Unit, Sensing Diagnostic Module (Airbag), Shifter Control Unit, Instrument Pack.
2023-2023: Vehicle Control Unit, Sensing Diagnostic Module (Airbag), Shifter Control Unit, Instrument Pack, Front Detection Radar, Front View Control Module
F19 5A 2020-2022: AC Front Panel
2023-2024: Digital Audio Broadcasting Module
F20 10A AC Control Module
F21 10A Front Right Seat Heater
F22 5A Diagnostic Socket
F23 10A Front Left Seat Heater
F24 5A PEPS Control Module
F25 – –
F26 30A 2020-2022: Front Left Window Lift, Rear Right Window Lift
2023-2024: Front Right Window Lift, Rear Right Window Lift
F27 – –
F28 5A Backup Immobilizer Coil
F29 15A Entertainment System
F30 5A Instrument Pack
F31 5A EPB Switch
F32 5A 2020-2022: Rain Light Sensor
2023-2024: Driver Door Switch Pack, Tyre Pressure Monitoring System
F33 10A Sensing Diagnostic Module (Airbag)
F34 10A 2020-2022: Driver Door Switch Pack, Gateway
2023-2024: Gateway
F35 – –
F36 15A 2023: Towing Device Reserved Interface
F37 25A Driver Electric Seat Adjustment
F38 – –
F39 40A Blower
F40-F43 – –
F44 5A 2020-2022: Radio Broadcasting Reception Module
2023-2024: 360 Around View Module
F45 10A 2020-2022: Electronic Steering Column Lock
F46 10A 2023-2024: Electronic Steering Column Lock
F47 5A High Voltage Electric Heater
F48 – –
F49 5A TBOX
F50 10A Gateway
F51 5A 2020-2022: Shifter Control Unit, Tyre Pressure Monitoring System
2023-2024: Shifter Control Unit
F52 5A 2020-2022: Door Mirrors and Headlamp Levelling Adjustment Switch
F53 5A Pedestrian Alert Control Module
F54 – –



Engine compartment fuse box

Fuse Box Diagram

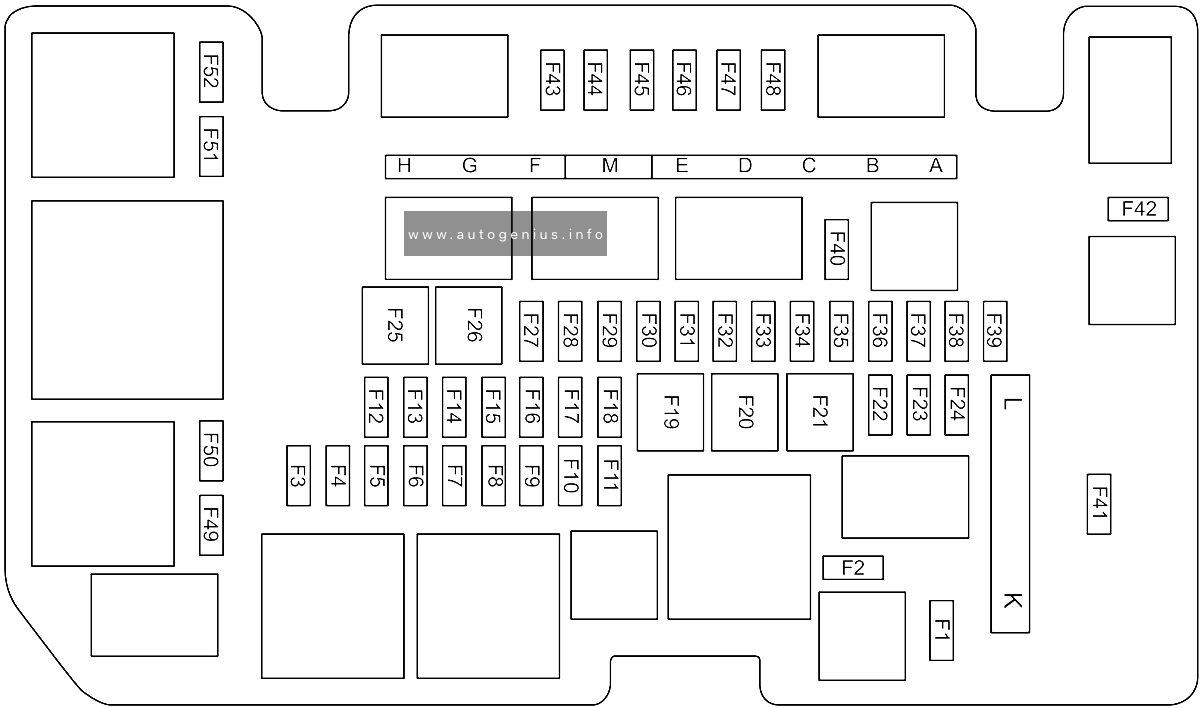

MG MG5 EV (2020 - 2024) - fuse and relay box diagram - engine compartment fuse box
MG MG5 EV (2020 – 2024) – fuse and relay box diagram – engine compartment fuse box



Assignment of the fuses in the engine compartment

№ Amps Protected components
F1 On-board Network Terminal Resistance
F2 On-board Network Terminal Resistance
F3 30A Body Control Module
F4 20A Body Control Module
F5 15A Body Control Module
F6 5A Charging Plug Latch
F7 5A Vehicle Control Unit
F8 30A 2020-2022: Electric Parking Motor Control Unit
F8 5A 2023-2024: Electrical Battery Sensor
F9 15A Horn Relay, Horn
F10 10A 2023-2024: Electric Vehicle Communication Controller
F11 15A 2020-2022: High Voltage Battery Pack, Electric Vehicle Communication Controller, Battery Heater
2023-2024: High Voltage Battery Pack
F12-F24 – –
F25 30A 2020-2022: Driver Door Switch Pack, Driver Window Lift, Rear Left Window Lift
2023-2024: Front Left Window Lift, Rear Left Window Lift
F26 30A Stability Control System (Valve)
F27 15A Windscreen Washer System
F28 10A Body Control Module
F29 20A Body Control Module
F30 25A Front Wiper System
F31 10A Power Electronic Box
F32 25A Body Control Module
F33 15A Superlock System
F34 15A Main relay, Power Electronic Box Water Pump, Brake Lamp Switch
F35 5A Combined Charging Unit
F36 5A 2020-2022: Electric Air Conditioning Compressor
2023-2024: Electric Air Conditioning Compressor, Charging Status Lamp
F37 10A 2020-2022: Main Beam Relay, Main beam
2023-2024: Daytime Running Lamp
F38 15A Rear Wiper System
F39 15A High-Voltage Battery Pack Coolant Pump
F40-F42 – –
F43 7.5A Heated Exterior Rearview Mirror
F44 25A Heated Rear Window
F45 – –
F46 5A 2020-2022: Door Mirrors and Headlamp Levelling Adjustment Switch, Manual Headlamp Levelling
2023-2024: Headlamp Levelling Adjustment Switch, Manual Headlamp Levelling
F47 – –
F48 5A Charging Flap Motor
F49-F52 – –
A 80A Electric Power Steering Module
B – –
C 40A Stability Control System (Pump)
D – –
E 40A 2023-2024: Electric Parking Motor Control Unit
F 30A Electrical Parking Brake Control Module
G 50A Cooling Fan
H 50A iBooster
M 150A Combined Charging Unit
L 30A Electronic Parking Brake Control Module
K 100A Passenger Compartment Fuse Box



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

MG ZS (2017 – 2020) – fuse and relay box diagram

Posted on by admin

MG ZS (2017 – 2020) – fuse and relay box diagram

Year of production: 2017, 2018, 2019, 2020



The pre-facelift MG ZS, a subcompact crossover, was produced from 2017 to 2020. This article includes fuse box diagrams for the 2017 through 2020 models, provides details on the locations of the fuse panels inside the vehicle, and explains the function of each fuse (fuse layout).



Fuse Box Location

MG ZS (2017 - 2020) - fuse and relay box location
MG ZS (2017 – 2020) – fuse and relay box location



  1. Passenger Compartment Fuse Box（below the glove box at the front passenger side
  2. Engine Compartment Fuse Box（at the left side of the Engine Compartment



Passenger Compartment Fuse Box

Fuse Box Diagram

MG ZS (2017 - 2020) - fuse and relay box diagram - passenger compartment fuse box
MG ZS (2017 – 2020) – fuse and relay box diagram – passenger compartment fuse box



Assignment of the fuses in the passenger compartment

No.
 А
 Function
F1 15 Rear wash realy
F2 10 Rearview mirror switch, Diagnostic Socket
F3 5 Gear shift display
F4 15 Front wash relay
F5 10 Airbag ECU
F6 10 Brake pedal switch
F7 15 Super lock relay
F8 — —
F9 — —
F10 — —
F11 — —
FI2 — —
F13 — —
F14 — —
FI5 15 Front power socket
FI6 5 Radio
F17 5 Front interior lamp, Blower relay
FI8 30 Rear left window lift switch
FI9 30 Passenger window lift switch
F20 30 Rear right window lift switch
F2I 30 Driver door switch pack
F22 10 Door mirror heater
F23 25 Rear window heating element
F24 15 Radio/FICM, DAB, ICE panel switch
F25 10 MTC, ETC, ETC pane
F26 5 Instrument pack
F27 10 Automatic transmission (4AT & 6AT)
F28 — —
F29 — —
F30 5 Ignition switch
F3I 10 TPMS
F32 5 IMMO Antenna
F33 — —
F34 — —
F35 — —
F36 — —
F37 — —
F38 — —
F39 — —
F40 — —
F41 — —
F42 — —
F43 — —
F44 — —

Engine Compartment Fuse Box

Fuse Box Diagram

MG ZS (2017 - 2020) - fuse and relay box diagram - engine compartment fuse box
MG ZS (2017 – 2020) – fuse and relay box diagram – engine compartment fuse box



Assignment of the fuses in the engine compartment

No.
 А
 Function
FL1 200 Alternator
FL2 80 EPS
FL3 40 Cooling fan relay pack
FL4 60 Passenger compartment fuse box fuse F18, F19, F20, F21
FL5 80 Passenger compartment fuse box fuse F1, F2, F3, F4, F5, F6, F7, F24, F25, F26, F27, F28, F29, F30, F31, Rear windscreen heater relay
FL6 25 SCS（Valve）
FL7 — —
FL8 20 BCM
FL9 40 SCS（Pump
FL10 25 BCM
FL11 30 Blower relay
FL12 — —
FL13 30 Starter relay
FL14 25 —
FL15 30 KLR relay
FL16 30 DC/DC
FL17 30 —
F1 10 Right dipped beam, Headlamp leveling switch, Right headlamp leveling motor
F2 15 Alternator, Pre oxygen sensor, Post oxygen sensor, Variable
valve timing valve (Intake, 1.0T), VVT valve (Exhaust, 1.0T), Canister control valve (1.0T), Oil control valve (1.0T)
F3 10 Left dipped beam, Left headlamp leveling motor
F4 10 A/C Compressor Clutch Relay
F5 5 Engine ECU
F6 10 Fuel injector（1.5L
F7 30 Front wiper enable relay, Front wiper speed relay
F8 5 Cooling fan relay pack, AC pressure switch, NTS
F9 15 Fuel pump relay
F10 10 Right main beam
F11 10 Left main beam
F12 30 Ignition coil, Engine ECU
F13 10 Horn relay
F14 30 —
F15 10 Intake camshaft solenoid (1.5L), Exhaust camshaft solenoid (1.5L), Canister control valve (1.5L), Clutch position sensor (1.5L), Waste gate control valve (1.0T), Electronic thermostat (1.0T), Water pump (1.0T), Variable dump valve (1.0T)
F16 15 Rear wiper relay
F17 15 Front fog relay
F18 5 Airbag ECU
F19 5 Engine ECU
F20 5 Engine ECU
F21 5 BCM
F22 10 —
F23 10 —
F24 5 —
F25 10 BCM
F26 15 —
F27 15 BCM
F28 15 —
F29 10 —
F30 10 DC/DC, Instrument pack, ETC, Reverse lamp switch, 6AT gear shift, PAB display

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

MG ZR (2001 – 2005) – fuse and relay box diagram

Posted on by admin

MG ZR (2001 – 2005) – fuse and relay box diagram

Year of production: 2001, 2002, 2003, 2004, 2005



The MG ZR hatchback was produced from 2001 to 2005. This article provides fuse box diagrams for the 2001 through 2005 models, details the locations of the fuse panels within the vehicle, and explains the function of each fuse (fuse layout).

Passenger Compartment Fuse Box

Fuse Box Location

MG ZR (2001 - 2005) - fuse and relay box location - passenger compartment fuse box
MG ZR (2001 – 2005) – fuse and relay box location – passenger compartment fuse box



Fuse Box Diagram

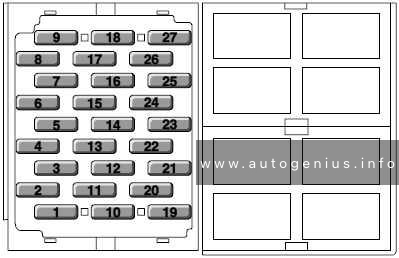

MG ZR (2001 - 2005) - fuse and relay box diagram - passenger compartment fuse box

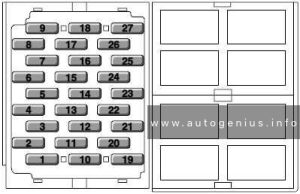

MG ZR (2001 – 2005) – fuse and relay box diagram – passenger compartment fuse box



Assignment of the fuses in the passenger compartment

No
 A
 Description
1 15 Horn
2 20 Window – RH rear
3 10 Rear fog guard lights
4 20 Window – LH rear
5 10 Interior & luggage compartment lights, Seat belt buckle – RH, Audio unit. Door mirrors, Clock
6 20 Window – LH front
7 30 Sunroof
8 20 Window – RH front
9 20 Screen washers, Headlight washers
10 10 Headlight – RH main beam
11 10 Daylight running lights, Interior illumination (Scandinavia)
12 10 Headlight – LH main beam
13 10 Side & tail lights – LH, Headlight levelling – LH, Glovebox light. Clock, Interior lights
14 10 Headlight – RH dipped beam
15 10 Side & tail lights – RH, Headlight levelling – RH, Number plate light
16 10 Headlight – LH dipped beam
17 20 Blower motor
18 20 Seat heaters
19 10 Audio system
20 10 Engine starting
21 15 Windscreen wipers – front
22 10 Door mirrors
23 10 Anti-lock braking system
24 10 Brake lights. Reversing lights
25 10 Anti-theft alarm. Blower motor, Direction indicators, Clock, Instrument pack
26 15 Rear screen wiper. Headlight washers. Air conditioning illumination. Seat heaters
27 5 Airbag SRS

Engine compartment fuse box

Fuse Box Location

The fuse box is located on the left hand side of the engine compartment.



Fuse Box Diagram

MG ZR (2001 - 2005) - fuse and relay box diagram - engine compartment fuse box
MG ZR (2001 – 2005) – fuse and relay box diagram – engine compartment fuse box



Assignment of the fuses in the engine compartment

No
 A
 Description
1 10 Engine management system. Automatic transmission selector, Speedometer
2 20 Engine management system. Fuel pump
3 10 Engine management system. Glow plug relay
4 10 Air conditioning relay, Cooling fan relay
5 25 Anti-theft alarm. Central door locking
6 15 Front fog lights
7 15 Hazard warning lights
8 15 Engine management system
9 10 Air conditioning
10 20 Fuel cut-off switch

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
