Geo Prizm (1990 – 1995) – fuse and relay box diagram

Posted on by admin

Geo Prizm (1990 – 1995) – fuse and relay box diagram

Year of production: 1990, 1991, 1992, 1993, 1994, 1995



This article covers the Geo Prizm, produced from 1990 to 1995. It includes fuse box diagrams for the 1990, 1991, 1992, 1993,1994 and 1995 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.

Passenger compartment

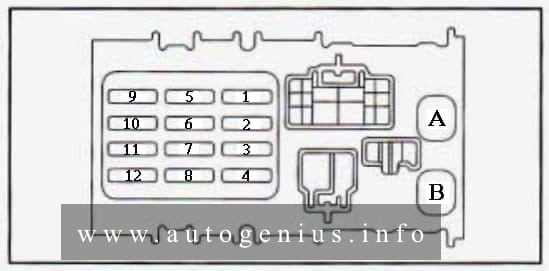

Fuse box diagram

Geo Prizm (1990 - 1995) - fuse and relay box diagram - passenger compartment (driver's side)
Geo Prizm (1990 – 1995) – fuse and relay box diagram – passenger compartment (driver’s side)



Assignment of the fuses in the passenger compartment (driver’s side instrument panel)

Item Ampere rating [A] Usage
1 — Not Used
2 10 Ignition
3 15 stop
4 — Not Used/Spare
5 20 Cigarette Lighter and Radio
6 10 ECU-B
7 7,5 Turn Signal
8 10 Gage
9 15 Taillamp
10 7,5 Defogger – I/UP
11 15 ECU-IG
12 20 Wiper
A 30 Power
B 30 Defroster

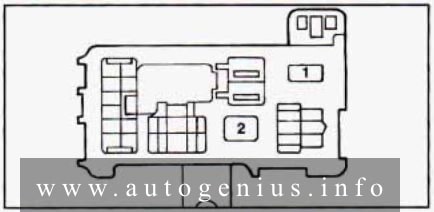

Fuse box diagram (Passenger’s Side Kick Panel)

Geo Prizm (1990 - 1995) - fuse and relay box diagram - passenger compartment (passenger's side kick panel)
Geo Prizm (1990 – 1995) – fuse and relay box diagram – passenger compartment (passenger’s side kick panel)



Assignment of the fuses in the passenger compartment (passenger side kick panel)

Item Ampere rating [A] Usage
1 15 Air Conditioner
2 40 Heater



Engine Compartment

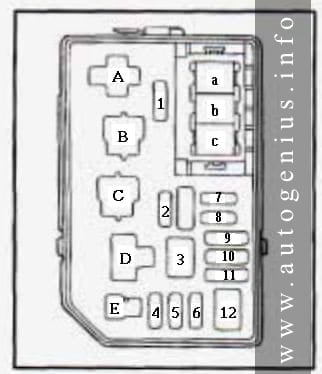

Fuse box diagram

Geo Prizm (1990 - 1995) - fuse and rxelay box diagram - engine compartment
Geo Prizm (1990 – 1995) – fuse and rxelay box diagram – engine compartment



Assignment of the fuses in the engine compartment

Item Ampere rating [A] Usage
1 15 Electronic Fuel Injection F/HTR
2 7,5 Alternator-S
3 30 Fan
4 20 Dome Lamp
5 20 Hazard Warning Flashers; Horn
6 7,5 Fan – I/UP
7 15 Left Head
8 15 Right Head
9 — Not Used/Spare
10 — Not Used/Spare
11 — Not Used/Spare
12 30 AM2
a 50 Anti-Lock Brake System (ABS)
b 100 Alternator
c 40 AM1
A Electronic Fuel Injection F/HTR Relay
B Headlamp Relay
C Engine Main Relay
D Fan Relay #I
E Horn Relay

Engine Compartment

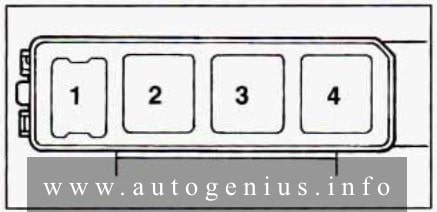

Relay box diagram

Geo Prizm (1990 - 1995) - fuse and rxelay box diagram - engine compartment (relay box)
Geo Prizm (1990 – 1995) – fuse and rxelay box diagram – engine compartment (relay box)



Assignment of the fuses in the engine compartment

Item Ampere rating [A] Usage
1 30 CDS
2 Air Conditioner MG Relay
3 Air Conditioner Fan Relay #3
4 Air Conditioner Fan Relay #2

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

GMC Sonoma (2003 – 2004) – fuse and relay box diagram

Posted on by admin

GMC Sonoma (2003 – 2004) – fuse and relay box diagram

Year of production: 2003, 2004



This article covers the second-generation  GMC Sonoma, produced from 1994 to 2004. It includes fuse box diagrams for the 2003 and 2004 models, provides details on the locations of the fuse panels within the vehicle, and explains the layout and function of each fuse and relay.



Passenger Compartment

Fuse box location

The instrument panel fuse block is at the driver’s end of the instrument panel.



Fuse box diagram

GMC Sonoma (2003 - 2004) - fuse and relay box diagram - passenger compartment fuse box
GMC Sonoma (2003 – 2004) – fuse and relay box diagram – passenger compartment fuse box



Assignment of the fuses in the passenger compartment

Fuse/Circuit Breaker Usage
A Not Used
B Not Used
1 Not Used
2 Cigarette Lighter, Data Link Connector
3 Cruise Control, Body Controls TBC, Cruise Module, Cruise Switch
4 Gages, Body Controls TBC, Instrument Panel Cluster, B+ Power
5 Parking Lamps, Power Window Switch, TBC, Ashtray Lamp
6 Not Used
7 Headlamp Switch, Body Controls TBC, Headlamp Relay
8 Courtesy Lamps, Inadvertent Power Relay
9 HVAC Control Head
10 Turn Signal
11 Instrument Panel Cluster, Engine Controls
12 Interior Illumination
13 Auxiliary Power
14 Power Locks
15 4WD Switch, Engine Control (VCM, PCM, Transmission)
16 Supplemental Inflatable Restraint
17 Front Wiper
18 Not Used
19 Radio Battery
20 Not Used
21 HVAC I, HVAC Control Head, HVAC Devices
22 Anti-Lock Brakes
23 Rear Wiper
24 Radio, Ignition

Engine Compartment

Fuse box location

The fuse block is under the hood on the driver’s side of the engine compartment.



Fuse box diagram

GMC Sonoma (2003 - 2004) - fuse and relay box diagram - engine compartment fuse box
GMC Sonoma (2003 – 2004) – fuse and relay box diagram – engine compartment fuse box



Assignment of the fuses in the engine compartment

Name Usage
TRL TRN Trailer Left Turn
TRR TRN Trailer Right Turn
TRL B/U Trailer Back Up Lamps
VEH B/U Vehicle Back-Up Lamps
HDLP PWR Headlamp Power
RT TURN Right Turn Signal Front
LT TURN Left Turn Signal Front
HDLP W/W Not Used
LT TRN Left Turn Signal Rear
RT TRN Right Turn Signal Rear
RR PRK Right Rear Parking Lamps
TRL PRK Trailer Park Lamps
LT HDLP Left Headlamp
RT HDLP Right Headlamp
FRPRK Front Parking Lamps
INT BAT Instrument Panel Fuse Block Feed
ENG I Engine Sensors/Solenoids, MAF, CAM, PURGE, VENT
ECM B Engine Control Module, Fuel Pump Module, Oil Pressure
ABS Anti-Lock Brake System
ECM I Engine Control Module Injectors
F/PUMP Fuel Pump
DRL Daytime Running Lamps
A/C Air Conditioning
HORN Horn
BTSI Automatic Transmission Shift Lock Control System
B/U LP Back Up Lamps
IGN B Column Feed, IGN 2, 3, 4
STARTER Starter
RAP Retained Accessory Power
LD LEV Not Used
OXYSEN Oxygen Sensor
IGN E Engine
MIR/LKS Mirrors, Door Locks
FOG LP Fog Lamps
IGN A Starting and Charging Ignition 1
STUD #2 Accessory Feeds, Electric Brake
PARKLP Parking Lamps
LR PRK Left Rear Parking Lamps
LIFTGLASS Liftglass
IGN C Starter Solenoid, Fuel Pump, PRNDL
HTDSEAT Heated Seat
HVAC Heating,Ventilation, Air Cooling
System
TRCHMSL Trailer Center High Mount Stop Light
RRDFOG Rear Defogger
TBC Truck Body Computer
CRANK Clutch Switch, NSBU Switch
CHMSL Center High Mounted Stoplamp
HAZLP Hazard Lamps
VECHMSL Vehicle Center High-Mounted Stop Lamp
RR DEFOG Rear Defogger
HTDMIR Heated Mirrors
ATC Transfer Case (Four-Wheel Drive)
STOPLP Stoplamps
RR W/W Rear Window Wiper

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

GMC Sonoma (1999 – 2002) – fuse and relay box diagram

Posted on by admin

GMC Sonoma (1999 – 2002) – fuse and relay box diagram

Year of production: 1999, 2000, 2001, 2002



This article covers the second-generation GMC Sonoma, produced from 1994 to 2004. It includes fuse box diagrams for the 1999 to 2002 models, provides details on the locations of the fuse panels within the vehicle, and explains the layout and function of each fuse and relay.

Passenger Compartment

Fuse box location

The instrument panel fuse block is at the driver’s end of the instrument panel.



Fuse box diagram

GMC Sonoma (1999 - 2002) - fuse and relay box diagram - passenger compartment fuse box
GMC Sonoma (1999 – 2002) – fuse and relay box diagram – passenger compartment fuse box



Assignment of the fuses in the passenger compartment

Fuse/Circuit Breaker Usage
A Not Used
B Not Used
1 Not Used
2 Cigarette Lighter, Data Link Connector
3 Cruise Control, Body Controls TBC, Cruise Module, Cruise Switch
4 Gages, Body Controls TBC, Instrument Panel Cluster, B+ Power
5 Parking Lamps, Power Window Switch, TBC, Ashtray Lamp
6 Not Used
7 Headlamp Switch, Body Controls TBC, Headlamp Relay
8 Courtesy Lamps, Inadvertent Power Relay
9 HVAC Control Head
10 Turn Signal
11 Instrument Panel Cluster, Engine Controls
12 Interior Illumination
13 Auxiliary Power
14 Power Locks
15 4WD Switch, Engine Control (VCM, PCM, Transmission)
16 Supplemental Inflatable Restraint
17 Front Wiper
18 Not Used
19 Radio Battery
20 Not Used
21 HVAC I, HVAC Control Head, HVAC Devices
22 Anti-Lock Brakes
23 Rear Wiper
24 Radio, Ignition

Engine Compartment

Fuse box location

The fuse block is under the hood on the driver’s side of the engine compartment.



Fuse box diagram

GMC Sonoma (1999 - 2002) - fuse and relay box diagram - engine compartment fuse box
GMC Sonoma (1999 – 2002) – fuse and relay box diagram – engine compartment fuse box



Assignment of the fuses in the engine compartment

Name Usage
TRL TRN Not Used
TRR TRN Not Used
TRL B/U Not Used
VEH B/U Vehicle Back-Up Lamps
RT TURN Right Turn Signal Front
LT TURN Left Turn Signal Front
HDLP W/W Not Used
LT TRN Left Turn Signal Rear
RT TRN Right Turn Signal Rear
RR PRK Right Rear Parking Lamps
TRL PRK Not Used
LT HDLP Left Headlamp
RT HDLP Right Headlamp
FR PRK Front Parking Lamps
INT BAT I/P Fuse Block Feed
ENG I Engine Sensors/Solenoids, MAF, CAM, PURGE, VENT
ECM B Engine Control Module, Fuel Pump Module, Oil Pressure
ABS Anti-Lock Brake System
ECM I Engine Control Module Injectors
BTSI Brake-Transmission Shift Interlock
B/U LP Back-Up Lamps
A/C Air Conditioning
W/W PMP Not Used
HORN Horn
IGN B Column Feed, IGN 2, 3, 4
RAP Retained Accessory Power
LD LEV Not Used
OXYSEN Oxygen Sensor
IGN E Engine
MIR/LKS Mirrors, Door Locks
FOG LP Fog Lamps
IGN A Starting and Charging IGN 1
STUD #2 Accessory Feeds, Electric Brake
PARKLP Parking Lamps
LR PRK Left Rear Parking Lamps
IGN C Starter Solenoid, Fuel Pump, PRNDL
HTDSEAT Not Used
HVAC HVAC System
TRCHMSL Not Used
RRDFOG Not Used
TBC Truck Body Computer
CRANK Clutch Switch, NSBU Switch
HAZLP Hazard Lamps
VECHMSL Vehicle Center High-Mounted Stoplamp
HTDMIR Heated Outside Mirrors
ATC Transfer Case (Four-Wheel Drive)
STOPLP Stoplamps
RR W/W Not Used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

GMC Savana (1997 – 2000) – fuse and relay box diagram

Posted on by admin

GMC Savana (1997 – 2000) – fuse and relay box diagram

Year of production: 1997, 1998, 1999, 2000



This article provides fuse box diagrams for the GMC Savana models from 1997 to 2000. It includes information on the location of the fuse panels within the vehicle and details the function and layout of each fuse and relay.

Passenger Compartment

Fuse box location

The fuse block access door is on the driver’s side of the instrument panel above the hood release lever.



Fuse box diagram

GMC Savana (1997 - 2000) - fuse and relay box diagram - passenger compartment
GMC Savana (1997 – 2000) – fuse and relay box diagram – passenger compartment



Assignment of the fuses in the passenger compartment

Position Name Circuits protected
1 STOP Stop/CHMSL, Stoplamps
2 HTD MIR Electric Heated Mirrors
3 CTSY Courtesy Lamps, Dome/RDG Lamps, Vanity Mirrors, Power Mirrors
4 GAUGES IP Cluster, DRL Relay, DRL Module, HDLP Switch, Keyless Entry Illumination, Low Coolant Module, CHIME Module, DRAB Module
5 HAZARD Hazard Lamps/CHIME Module
6 CRUISE Cruise Control
7 PWR AUX Auxiliary Power Outlet, DLC
8 CRANK —
9 PARK LPS License Plate Lamp, Parking Lamps, Taillamps, Front Sidemarkers, Glove Box Ashtray
10 AIR BAGS Air Bags
11 WIPER Wiper Motor, Washer Pump
12 HTR-A/C A/C, A/C Blower, High Blower Relay, HTD Mirror
13 CIG LTR Cigarette Lighter
14 ILLUM IP Cluster, HVAC Controls, RR HVAC Controls, IP Switches, Radio Illumination, Door Switch Illumination
15 DRL DRL Relay
16 TURN B/U Front Turn, RR Turn, Back-up Lamps, BTSI Solenoid
17 RADIO-1 Radio (Ign, Accy), Upfitter Provision Relay
18 BRAKE 4WAL PCM, ABS, Cruise Control
19 RADIO-B Radio (Battery), Power Antenna
20 TRANS PRNDL, Automatic Transmission
21 SECURITY Passlock
22 RR DEFOG Rear Window Defog
23 Not Used —
24 RR HVAC RR HVAC Controls, HIGH, MED, LOW Relays
A PWR ACCY Power Door Lock, Six-Way Power Seat, Keyless Entry Illumination Module
B PWR WDO Power Windows
Fuse amperage levels are imprinted on the fuse panel under the dash.

Engine Compartment

Fuse box location

The fuse block is on the driver’s side of the engine compartment at the rear.



Fuse box diagram

GMC Savana (1997 - 2000) - fuse and relay box diagram - engine compartment
GMC Savana (1997 – 2000) – fuse and relay box diagram – engine compartment



Assignment of the fuses in the engine compartment

Name Circuit protected
BLOWER Front Blower Motor
ABS Electronic Brake Control Module
IGN B Ignition Switch
IGN A Starter Relay, Ignition Switch
BATT Instrument Panel Fuse Block
LIGHTING Instrument Panel Fuse Block, Headlamp Switch
RR BLOWER Rear Auxiliary Blower Motor Relays
ENG-I Heated O2 Sensors, Mass Air Flow Sensor, EGR Valve Solenoid, Evap Canister Purge Valve, Crankshaft Position Sensor, Secondary Air Injection Relay (Diesel), Water in Fuel Sensor (Diesel), Fuel Heater (Diesel), Glowplug Relay (Diesel), Wastegate Solenoid (Diesel)
A/C Air Conditioning Clutch Relay
SPARE Spare Fuses
AUX A Upfitter Provisions
AUX B Upfitter Provisions
RH-HDLP Right-hand Headlamp (Export only)
RH-HIBM Right-hand High-beam Headlamp (Export only)
ECM-I Ignition Coil, Camshaft Position Sensor, VCM, Fuel Injectors, Coil Driver
HORN Horn Relay, Underhood Lamp(s)
LH-HDLP Left-hand Headlamp (Export only)
LH-HIBM Left-hand High-beam Headlamp (Export only)
FUEL SOL PCM, Fuel Solenoid Driver, Engine Shutoff Solenoid
IGN-E Air Conditioning Clutch Relay
ECM-B Fuel Pump Relay, VCM, PCM, Fuel Pump and Engine Oil Pressure Switch



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

GMC Safari (2004 – 2005) – fuse and relay box diagram

Posted on by admin

GMC Safari (2004 – 2005) – fuse  and relay box diagram

Year of production: 2004, 2005



This article focuses on the second-generation GMC Safari, produced from 1996 to 2005. It includes fuse box diagrams for the 2004 and 2005 models, along with information on the locations of the fuse panels inside the vehicle and details about the function and layout of each fuse and relay.

Passenger Compartment Fuse Box

Fuse box location

The fuse block is on the lower portion of the instrument panel on the driver’s side.



Fuse box diagram

GMC Safari (2004 - 2005) - fuse and relay box diagram - passenger compartment fuse box
GMC Safari (2004 – 2005) – fuse and relay box diagram – passenger compartment fuse box



Assignment of the fuses in the passenger compartment

Fuse/Circuit Breaker Usage
1 Stop/Turn/Hazard Lamps, CHMSL, ABS
2 Radio ACCY, RR Seat Audio Controls
3 Courtesy Lamps, Glove Box Lamp, Dome Reading Lamps, Vanity Mirror Lamps, Courtesy Lamps
4 DRL Relay, Instrument Panel Cluste
5 Rear Defogger
6 Cruise Module, TBC Module, Instrument Panel Cluster, Cruise Control Switch, Electrochromic Mirror
7 Power Outlets, DLC, Subwoofer Amplifier
8 Crank Circuit Fuse, Park/Neutral Switch, Starter Enable Relay
9 License Plate Lamp, Taillamps, Parking Lamps, Ashtray Lamp, Panel Lights, Trailer Taillamps, Front and Rear Sidemarker Lamps, Door Switch Illumination, Headlamp Switch Illumination, Rear Seat Audio Illumination, TBC Module
10 Air Bag System
11 Not Used
12 L, M1, M2 Blower Motor, Rear A/C Relay Coil, Front Cont. Temp. Door Motor, HI Blower Relay, Defogger Timer Coil
13 Cigarette Lighter, Door Lock Switches, Dutch Door Release Module
14 Cluster Illum, HVAC Controls, Chime Module, Radio Illumination, Rear Heat Switch Illumination, Rear Wiper/Washer Switch Illumination, Rear Liftgate Switch Illumination, Remote Cassette Illumination, O/H Console, TBC Illumination
15 TBC Module, Headlamp Relay
16 Front Turn Signals, Rear Turn Signals, Trailer Turn Signals, Back-Up Lamps, BTSI Solenoid
17 Front Wipers, Front Washer Pump
18 VCM-Ign 3, VCM-Brake, Cruise Stepper Motor Signal, ATC Module
19 Instrument Panel Radio: ATC (Main Feed), 2000 Series (Standby)
20 PRNDL/ Odometer, TCC Enable and PWM Solenoid, Shift A and Shift B Solenoids, 3-2 Downshift Solenoid, Instrument Panel Cluster, VCM Module
21 Pwr Adj Mirrors
22 Not Used
23 Rear Wiper, Rear Washer Pump
24 Not Used
A (Circuit Breaker) Power Door Lock Relay, 6-Way Power Seats
B (Circuit Breaker) Power Windows

Engine Compartment Fuse Box

Fuse box location

The underhood fuse block is located toward the rear of the engine compartment on the driver’s side of the vehicle.

Fuse box diagram

GMC Safari (2004 - 2005) - fuse and relay box diagram - engine compartment fuse box
GMC Safari (2004 – 2005) – fuse and relay box diagram – engine compartment fuse box



Assignment of the fuses in the engine compartment

Feed Usage
AUX B Upfitter Battery Feed
AUX A Upfitter Accessory Feed



Relay Usage
A/C Relay (Rear Heat and A/C) Rear/Heat and Air Conditioning
Upfitter-ACCY Relay Upfitter Accessory
Starter Enable Relay Starter
A/C Enable Relay Air Conditioning
Headlamps Relay Headlamps
Fuel Pump Relay Fuel Pump



Fuse/Circuit Breaker Usage
UPFITTER-BATT Upfitter Battery Power Stud, Trailer Wiring Harness
UPFITTER-ACCY Upfitter Accessory Relay
Spare Not used
Spare Not used
Spare Not used
ECM-B Fuel Pump Relay and Motor, VCM, Oil Pressure Switch/Sender
HORN Horn Relay and Horn
A/C COMP A/C Enable Relay and Compressor
RR HTR/AC Rear Heater and Air Conditioning
ATC Active Transfer Case-L Van
FRT HVAC Front Heater and Air Conditioning
ENG-I Oxygen Sensors, Camshaft Position Sensor, Mass Air Flow Sensor, Evaporative Emission Canister Vent Solenoid
IGN-E A/C Enable Relay Coil
ECM-I Fuel Injectors 1-6, Crankshaft Position Sensor, VCM, Coil Driver Module (EST), Ignition Coil
Blank Not Used
RH HDLMP Right Headlamp
LH Headlamp Left Headlamp
Blank Not Used
Blank Not Used
DIODE-A/C Coil Air Conditioning
Blank Not Used
Blank Not Used
Blank Not Used
LIGHTING Courtesy Fuse, Pwr. Adj. Mirrors Fuse, TBC-Battery Fuse
BATT Power ACCY CB, Stop/Hazard Fuse, Auxiliary Power Fuse, Cigarette Lighter Fuse, Radio Battery Fuse
IGN A Starter Relay, Ignition Switch
IGN B Ignition Switch
ABS Electronic Brake Control Module
Blank Not Used
RAP Radio Accy, Power Windows
HTD MIR/RR DEFOG Rear Window Defogger, HVAC Control Head

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

GMC Safari (2000 – 2003) – fuse and relay box diagram

Posted on by admin

GMC Safari (2000 – 2003) – fuse box and relay diagram

Year of production: 2000, 2001, 2002, 2003



This article focuses on the second-generation GMC Safari, produced from 1996 to 2005. It includes fuse box diagrams for the 2000 to 2003 models, along with information on the locations of the fuse panels inside the vehicle and details about the function and layout of each fuse and relay.

Passenger Compartment Fuse Box

Fuse box location

The fuse block is on the lower portion of the instrument panel on the driver’s side.



Fuse box diagram

GMC Safari (2000 - 2003) - fuse and relay box diagram - passenger compartment fuse box
GMC Safari (2000 – 2003) – fuse and relay box diagram – passenger compartment fuse box



Assignment of the fuses in the passenger compartment

Fuse/Circuit Breaker Usage
1 Stop/Turn/Hazard Lamps, CHMSL, ABS
2 Radio ACCY, RR Seat Audio Controls
3 Courtesy Lamps, Glove Box Lamp, Dome Reading Lamps, Vanity Mirror Lamps, Courtesy Lamps
4 DRL Relay, Instrument Panel Cluste
5 Rear Defogger
6 Cruise Module, TBC Module, Instrument Panel Cluster, Cruise Control Switch, Electrochromic Mirror
7 Power Outlets, DLC, Subwoofer Amplifier
8 Crank Circuit Fuse, Park/Neutral Switch, Starter Enable Relay
9 License Plate Lamp, Taillamps, Parking Lamps, Ashtray Lamp, Panel Lights, Trailer Taillamps, Front and Rear Sidemarker Lamps, Door Switch Illumination, Headlamp Switch Illumination, Rear Seat Audio Illumination, TBC Module
10 Air Bag System
11 Not Used
12 L, M1, M2 Blower Motor, Rear A/C Relay Coil, Front Cont. Temp. Door Motor, HI Blower Relay, Defogger Timer Coil
13 Cigarette Lighter, Door Lock Switches, Dutch Door Release Module
14 Cluster Illum, HVAC Controls, Chime Module, Radio Illumination, Rear Heat Switch Illumination, Rear Wiper/Washer Switch Illumination, Rear Liftgate Switch Illumination, Remote Cassette Illumination, O/H Console, TBC Illumination
15 TBC Module, Headlamp Relay
16 Front Turn Signals, Rear Turn Signals, Trailer Turn Signals, Back-Up Lamps, BTSI Solenoid
17 Front Wipers, Front Washer Pump
18 VCM-Ign 3, VCM-Brake, Cruise Stepper Motor Signal, ATC Module
19 Instrument Panel Radio: ATC (Main Feed), 2000 Series (Standby)
20 PRNDL/ Odometer, TCC Enable and PWM Solenoid, Shift A and Shift B Solenoids, 3-2 Downshift Solenoid, Instrument Panel Cluster, VCM Module
21 Pwr Adj Mirrors
22 Not Used
23 Rear Wiper, Rear Washer Pump
24 Not Used
A (Circuit Breaker) Power Door Lock Relay, 6-Way Power Seats
B (Circuit Breaker) Power Windows

Engine Compartment Fuse Box

Fuse box location

The underhood fuse block is located toward the rear of the engine compartment on the driver’s side of the vehicle.

Fuse box diagram

GMC Safari (2000 - 2003) - fuse and relay box diagram - engine compartment fuse box
GMC Safari (2000 – 2003) – fuse and relay box diagram – engine compartment fuse box



Assignment of the fuses in the engine compartment

Feed Usage
AUX B Upfitter Battery Feed
AUX A Upfitter Accessory Feed



Relay
A/C Relay (Rear Heat and A/C)
Upfitter-ACCY Relay
Starter Enable Relay
A/C Enable Relay
Headlamps Relay
Fuel Pump Relay



Fuse/Circuit Breaker Usage
UPFITTER-BATT Upfitter Battery Power Stud, Trailer Wiring Harness
UPFITTER-ACCY Upfitter Accessory Relay
Spare Not used
Fuse Puller* —
Spare Not used
Spare Not used
ECM-B Fuel Pump Relay and Motor, VCM, Oil Pressure Switch/Sender
HORN Horn Relay and Horn
A/C COMP A/C Enable Relay and Compressor
ATC Active Transfer Case-L Van
FRT HVAC Front Heater and A/C
ENG-I Oxygen Sensors, Camshaft Position Sensor, Mass Air Flow Sensor, Evaporative Emission Canister Vent Solenoid
IGN-E A/C Enable Relay Coil
ECM-I Fuel Injectors 1-6, Crankshaft Position Sensor, VCM, Coil Driver Module (EST), Ignition Coil
RH HDLMP Right Headlamp
LH Headlamp Left Headlamp
DIODE-A/C Coil A/C
LIGHTING Courtesy Fuse, Pwr. Adj. Mirrors Fuse, TBC-Battery Fuse
BATT Power ACCY CB, Stop/Hazard Fuse, Auxiliary Power Fuse, Cigarette Lighter Fuse, Radio Battery Fuse
IGN A Starter Relay, Ignition Switch
IGN B Ignition Switch
ABS Electronic Brake Control Module
RAP Radio Accy, Power Windows
HTD MIR/RR DEFOG Rear Window Defogger, HVAC Control Head
A fuse puller is included in the underhood electrical center

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

GMC Safari (1999) – fuse and relay box diagram

Posted on by admin

GMC Safari (1999) – fuse and relay box diagram

Year of production: 1999

This article focuses on the second-generation GMC Safari, produced from 1996 to 2005. It includes fuse box diagrams for the 1999 models, along with information on the locations of the fuse panels inside the vehicle and details about the function and layout of each fuse and relay.

Passenger Compartment Fuse Box

Fuse box location

The fuse block is on the lower portion of the instrument panel on the driver’s side.



Fuse box diagram

GMC Safari (1999) - fuse and relay box diagram - passenger compartment fuse box
GMC Safari (1999) – fuse and relay box diagram – passenger compartment fuse box



Assignment of the fuses in the passenger compartment

Fuse/Circuit Breaker Usage
1 Stop/Turn/Hazard Lamps, CHMSL, Chime Module
2 Heated Mirror (Not Used)
3 Courtesy Lamps, Power Outside Mirrors, Glove Box Lamp, Dome Reading Lamps, Vanity Mirror Lamps
4 DRL Relay, DRL Module, Chime Headlamp Switch, Keyless Entry, Cluster, Overhead Console, Interior Lamps Module
5 Rear Defogger
6 Cruise Module, Cruise Control Switch, Electrochromic Mirror
7 Power Outlets, DLC, Subwoofer Amplifier
8 Starter Enable Relay
9 License Plate Lamp, Taillamps, Parking Lamps, Ashtray Lamp, Panel Lights, Trailer Taillamps, Front and Rear Sidemarker Lamps, Door Switch Illumination, Headlamp Switch Illumination, Rear Seat Audio Illumination
10 Air Bag System
11 Wiper Motor, Washer Pump, Upfitter Relay Coil
12 L, M1, M2 Blower Motor, Rear A/C Relay Coil, Front Cont. Temp. Door Motor, HI Blower Relay, Defogger Timer Coil
13 Cigarette Lighter, Door Lock Switches, Dutch Door Release Module
14 Cluster Illum, HVAC Controls, Chime Module, Radio Illumination, Rear Heat Switch Illumination, Rear Wiper/Washer Switch Illumination, Rear Liftgate Switch Illumination, Remote Cassette Illumination, O/H Console
15 DRL Lamps
16 Front Turn Signals, Rear Turn Signals, Trailer Turn Signals, Back-up Lamps, BTSI Solenoid
17 Radio: ATC (Standby), 2000 Series (Main Feed), Rear Seat Audio Controls
18 VCM-Ign 3, VCM-Brake, 4WAL, Cruise Stepper Motor Signal
19 Radio: ATC (Main Feed), 2000 Series (Standby)
20 PRNDL/ Odometer, TCC Enable and PWM Solenoid, Shift A and Shift B Solenoids, 3-2 Downshift Solenoid
21 Security
22 Not Used
23 Rear Wiper, Rear Washer Pump
24 Not Used
A (Circuit Breaker) Power Door Lock Relay, 6-way Power Seat, Remote Control Door Lock Receiver, Dutch Door Module, Dutch Door Release
B (Circuit Breaker) Power Windows

Engine Compartment Fuse Box

Fuse box location

The underhood fuse block is located toward the rear of the engine compartment on the driver’s side of the vehicle.

Fuse box diagram

GMC Safari (1999) - fuse and relay box diagram - engine compartment fuse box
GMC Safari (1999) – fuse and relay box diagram – engine compartment fuse box



Assignment of the fuses in the engine compartment

Feed Usage
AUX B Upfitter Battery Feed
AUX A Upfitter Accessory Feed



Relay
A/C Relay (Rear Heat and A/C)
Upfitter-ACCY Relay
Starter Enable Relay
A/C Enable Relay
Fuel Pump Relay



Fuse/Circuit Breaker Usage
UPFITTER-BATT Upfitter Battery Power Stud, Trailer Wiring Harness
UPFITTER-ACCY Upfitter Accessory Relay
Spare Not used
Fuse Puller* —
Spare Not used
Spare Not used
ECM-1B Fuel Pump Relay and Motor, VCM, Oil Pressure Switch/Sender
HORN Horn Relay and Horn
A/C COMP A/C Enable Relay and Compressor
ATC Active Transfer Case-L Van
ENG-I Oxygen Sensors, Camshaft Position Sensor, Mass Air Flow Sensor, Evaporative Emission Canister Purge Solenoid, Linear EGR Valve Solenoid, VCM EGR HI
IGN-E A/C Enable Relay Coil
ECM-I Fuel Injectors 1-6, Crankshaft Position Sensor, VCM, Coil Driver Module (EST)
LIGHTING Park Lamps Fuse, DRL Fuse, Headlamp and Panel Dimmer Switch
BATT Steering/Security Fuse, Courtesy Fuse, ACSY CB, Stop/Hazard Fuse, Auxiliary Power Fuse, Cigarette Lighter Fuse, Radio Battery Fuse
IGN A Starter Relay, Ignition Switch
IGN B Ignition Switch
ABS Electronic Brake Control Module
A/C Blower Motor Resistor, Blower Relay
RR HTR/AC Auxiliary Heater, A/C Relay
HTD MIR/RR DEFOG Rear Window Defogger
A fuse puller is included in the underhood electrical center

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Cadillac ATS (2016 – 2017) – fuse and relay box diagram

Posted on by admin

Cadillac ATS (2016 – 2017) – fuse and relay box diagram

Year of production: 2016, 2017



The Cadillac ATS, a compact executive 4-door sedan, was manufactured from 2013 to 2019. This article provides fuse box diagrams for the 2016 and 2017 models, along with information on the location of the fuse panels within the vehicle and details on the function and layout of each fuse and relay.



Engine compartment

Fuse box location

The underhood fuse block is on the passenger side of the engine compartment.



Fuse box diagram

Cadillac ATS (2016 - 2017) - fuse and relay box diagram - engine compartment
Cadillac ATS (2016 – 2017) – fuse and relay box diagram – engine compartment



Assignment of the fuses and relays in the engine compartment (2016-2017)

Number Usage
1 Not Used
2 Not Used
3 Passenger motorized seat belt
4 Not used
5 Not Used
6 Driver Power Seat
7 Not Used
8 Headlamp Washer Relay
9 Not Used
10 Not Used
11 Not Used
12 Not Used
13 Passenger Power Seat
14 Body Control Module 5
15 Passive Entry/Passive Start
16 Not Used
17 Headlamp Washer
18 Not Used
19 Antilock Brake System Pump
20 Antilock Brake System Valve
21 Not used
22 Driver motorized seat belt
23 Wiper Control Relay
24 Wiper Speed Relay
25 Engine Control Module Relay
26 Not used
27 Spare/Heated Seat 2
28 Spare/Reverse lockout
29 AFS AHL/Pedestrian Protection
30 Not used
31 Passenger window switch
32 Not used
33 Sunroof
34 Front Wiper
35 Steering column lock
36 Rear electrical center ignition
37 Spare/MIL ignition
38 Spare/PT fuse
39 Oxygen Sensor
40 Ignition Coils/Injectors
41 Ignition Coils/Injectors/Spare
42 Engine Control Module
43 Not used
44 Not used
45 Not Used
47 Front washer relay
48 Instrument Panel Body Ignition
49 Fuel System Control Module Ignition
50 Heated Steering Wheel
51 Engine control module ignition
52 Transmission control module ignition
53 Coolant Pump
54 Coolant pump relay
55 Not used
56 Transmission Control Module/Spare
57 Headlamp Low Relay
58 Headlamp high Relay
59 Run/Crank Relay
60 Starter Relay
60 Starer 2 relay
61 Vacuum Pump Relay
62 Starter relay
63 Air conditioning control relay
64 Adaptive headlamp leveling
65 Left high intensity discharge headlamp
66 Right high intensity discharge headlamp
67 Headlamp high left/right
68 Aero shutter
69 Horn
70 Horn relay
71 Cooling fan
72 Starter 2
73 Brake vacuum pump
74 Starter
75 Air conditioning compressor clutch
76 Not used

Passenger compartment

Fuse box location

The instrument panel fuse block is in the end of the driver side of the instrument panel.



Fuse box diagram

Cadillac ATS (2016 - 2017) - fuse and relay box diagram - passenger compartment
Cadillac ATS (2016 – 2017) – fuse and relay box diagram – passenger compartment



Assignment of the fuses and relays in the engine compartment (2016-2017)

Number Usage
2 Spare
3 Electric Steering Column Lock
4 Spare
5 Heater, Ventilation, and Air Conditioning Control
6 Tilt and Telescope Steering Column
8 Data link connector
9 Spare
10 Shunt
11 Body control module 1
12 Body control module 5
13 Body control module 6
14 Spare
15 Body control module 7
16 Transmission control module
17 Spare
18 Spare
19 Spare
20 Spare
21 Spare
22 Sensing Diagnostic Module/Automatic Occupant Sensing
23 Radio/DVD/Heater, Ventilation, and Air Conditioning
24 Display
25 Heated Steering Wheel
26 Wireless charger
27 Steering wheel controls
28 Spare
29 Visor vanity lamp
30 Spare
31 Spare
32 Spare
33 Front heater, ventilation, and air conditioning blower
CB1 Retained accessory power/Accessory power outlet
CB7 Spare
K10 Retained accessory power/Accessory
K605 Logistics
K644 Spare

Rear  compartment

Fuse box location

The rear compartment fuse block is behind a cover on the driver side of the rear compartment.



Fuse box diagram

Cadillac ATS (2016 - 2017) - fuse and relay box diagram - rear compartment
Cadillac ATS (2016 – 2017) – fuse and relay box diagram – rear compartment



Assignment of the fuses and relays in the rear compartment (2016-2017)

Number Usage
1* Rear driver control module/DC DC transformer
2 Left Window
3 Body Control Module 8
4* A/C Inverter
5 Passive Entry Passive Start Battery 1
6 Body Control Module 4
7 Heated Mirrors
8 Amplifier
9 Rear Window Defogger
10 Glass break
11* Trailer Connector
12 OnStar (If Equipped)
13 Right Window
14 Electric Parking Brake
15 Not Used
16 Trunk Release
17* Run Relay
18* Logistics Relay
19* Not used
20 Rear Window Defogger Relay
21 Mirror Window Module
22 Spare
23 Canister Vent
24 Body Control Module 2
25* Rear Vision Camera
26* Front ventilated seats
27* SBZA/LDW/EOCM
28* Trailer/Sunshade
29* Rear heated seats
30* Semi-Active Damping System
31* Transfer case control module/Rear control drive module
32* Theft Module/Universal Garage Door Opener/Rain Sensor
33* UPA
34* Radio/DVD
35 Not Used
36* Trailer
37 Fuel Pump/Fuel System Control Module
38 Not Used
39 Not Used
40 Not Used
41 Not Used
42* Memory Seat Module
43 Body Control Module 3
44 Not Used
45 Battery Regulated Voltage Control
46 Engine Control Module Battery
47 Not Used
48 Not Used
49* Trailer Module
50 Transfer case control module/Rear control drive module
51 Rear closure release
52 Spare
53 Not used
54 Door lock security
55 Not used
56* Fuel door
* Optional

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Cadillac ATS (2014 – 2015) – fuse and relay box diagram

Posted on by admin

Cadillac ATS (2014 – 2015) – fuse and relay box diagram

Year of production: 2014, 2015



The Cadillac ATS, a compact executive 4-door sedan, was manufactured from 2013 to 2019. This article provides fuse box diagrams for the 2014 and 2015 models, along with information on the location of the fuse panels within the vehicle and details on the function and layout of each fuse and relay.

Engine compartment

Fuse box location

The underhood fuse block is on the passenger side of the engine compartment.



Fuse box diagram

Cadillac ATS (2014 - 2015) - fuse and relay box diagram - engine compartment
Cadillac ATS (2014 – 2015) – fuse and relay box diagram – engine compartment



Assignment of the fuses and relays in the engine compartment (2014-2015)

Number Usage
1 Not Used
2 Not Used
3 Not Used
4 Body Control Module 6
5 Not Used
6 Driver Power Seat
7 Not Used
8* Headlamp Washer Relay
9 Not Used
10 Not Used
11 Not Used
12 Not Used
13 Passenger Power Seat
14 Body Control Module 5
15 Passive Entry/Passive Start
16 Not Used
17* Headlamp Washer
18 Not Used
19 Antilock Brake System Pump
20 Antilock Brake System Valve
21* AIR Pump
22 Not Used
23 Wiper Control Relay
24 Wiper Speed Relay
25 Engine Control Module Relay
26* AIR Pump Relay
27 Spare/Heated Seat 2
28 Body Control Module 1/Spare
29* AFS AHL/Pedestrian Protection
30 Passenger Window Switch
31 Body Control Module 7
32 Sunroof
33 Front Wiper
34 AOS Display/MIL Ignition
35 Rear Electrical Center Ignition
36 Spare PT Fuse
37 Oxygen Sensor
38 Ignition Coils/Injectors
39 Ignition Coils/Injectors/Spare
40 Engine Control Module
41 Fuel Heater
42* AIR Solenoid Relay
43 Washer
44 Rear Washer Relay
45 Front Washer Relay
46 Not Used
47 Instrument Panel Body Ignition
48 Fuel System Control Module Ignition
49 Heated Steering Wheel
50* Steering Column Lock
51* Coolant Pump
52* Coolant Pump Relay
53 Air Conditioning Compressor Clutch
54* AIR Solenoid
55 Transmission Control Module/Spare
56* Headlamp Low Relay
57 Headlamp high Relay
58 Starter
59 Starter Relay
60 Run/Crank Relay
61* Vacuum Pump Relay
62 Air Conditioning Control Relay
63* Adaptive Headlamp Leveling
64* Left High Intensity Discharge Headlamp
65* Right High Intensity Discharge Headlamp
66 Headlamp High Left/Right
67 Horn
68 Horn Relay
69 Cooling Fan
70 Aero Shutter
71 Transmission Control Module Ignition
72 Engine Control Module Ignition
73* Brake Vacuum Pump
74 Not Used
* Optional

Passenger compartment

Fuse box location

The instrument panel fuse block is in the end of the driver side of the instrument panel.



Fuse box diagram

Cadillac ATS (2014 - 2015) - fuse and relay box diagram - passenger compartment
Cadillac ATS (2014 – 2015) – fuse and relay box diagram – passenger compartment



Assignment of the fuses and relays in the passenger compartment (2014-2015)

Number Usage
2 Spare
3 Electric Steering Column Lock
4 Data Link Connector
5 Heater, Ventilation, and Air Conditioning Control
6 Tilt and Telescope Steering Column
8 Spare
9 Spare
10 Shunt
11 Spare
12 Spare
13 Spare
14 Spare
16 Spare
17 Spare
18 Spare
19 Spare
20 Spare
21 Spare
22 Sensing Diagnostic Module/Automatic Occupant Sensing
23 Radio/DVD/Heater, Ventilation, and Air Conditioning
24 Display
25 Heated Steering Wheel
26 Spare
27 Switches
28 Spare
29 Spare
30 Spare



J Case Fuses Usage
31 Spare
32 Spare
33 Front Heater, Ventilation, and Air Conditioning Blower



Circuit breakers Usage
CB1 Retained Accessory Power/Accessory Power Outlet Power
CB7 SPare



Relays Usage
K10 Retained Accessory Power/Accessory
K605 Spare
K609 Spare

Rear  compartment

Fuse box location

The rear compartment fuse block is behind a cover on the driver side of the rear compartment.



Fuse box diagram

Cadillac ATS (2014 - 2015) - fuse and relay box diagram - rear compartment
Cadillac ATS (2014 – 2015) – fuse and relay box diagram – rear compartment



Assignment of the fuses and relays in the rear compartment (2014-2015)

Number Usage
1 Not Used
2 Left Window
3 Body Control Module 8
4 A/C Inverter
5 Passive Entry Passive Start Battery 1
6 Body Control Module 4
7 Heated Mirrors
8 Amplifier
9 Rear Window Defogger
10 Not Used
11 Trailer Connector
12 OnStar (If Equipped)
13 Right Window
14 Electric Parking Brake
15 Not Used
16 Trunk Release
17 Run Relay
18 Logistics Relay
19 Logistics Fuse
20 Rear Window Defogger Relay
21 Mirror Window Module
22 Not Used
23 Canister Vent
24 Body Control Module 2
25 Rear Vision Camera
26 Not Used
27 SBZA/LDW/EOCM
28 Trailer/Sunshade
29 Not Used
30 Semi-Active Damping System
31 Transfer Case Control Module
32 Theft Module/Universal Garage Door Opener/Rain Sensor
33 UPA
34 Radio/DVD
35 Not Used
36 Trailer
37 Fuel Pump/Fuel System Control Module
38 Not Used
39 Not Used
40 Not Used
41 Not Used
42 Memory Seat Module
43 Body Control Module 3
44 Not Used
45 Battery Regulated Voltage Control
46 Engine Control Module Battery
47 Not Used
48 Not Used
49 Trailer Module

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Cadillac ATS (2013) – fuse and relay box diagram

Posted on by admin

Cadillac ATS (2013) – fuse and relay box diagram

Year of production: 2013



The Cadillac ATS, a compact executive 4-door sedan, was manufactured from 2013 to 2019. This article provides fuse box diagrams for the 2013 models, along with information on the location of the fuse panels within the vehicle and details on the function and layout of each fuse and relay.

Engine compartment

Fuse box location

The underhood fuse block is on the passenger side of the engine compartment.



Fuse box diagram

Cadillac ATS (2013) - fuse and relay box diagram - engine compartment
Cadillac ATS (2013) – fuse and relay box diagram – engine compartment



Assignment of the fuses and relays in the engine compartment

Number Usage
1 Not Used
2 Not Used
3 Not Used
4 Body Control Module 6
5 Not Used
6 Driver Power Seat
7 Not Used
8* Headlamp Washer Relay
9 Not Used
10 Not Used
11 Not Used
12 Not Used
13 Passenger Power Seat
14 Body Control Module 5
15 Passive Entry/Passive Start
16 Not Used
17* Headlamp Washer
18 Not Used
19 Antilock Brake System Pump
20 Antilock Brake System Valve
21* AIR Pump
22 Not Used
23 Wiper Control Relay
24 Wiper Speed Relay
25 Engine Control Module Relay
26* AIR Pump Relay
27 Spare/Heated Seat 2
28 Body Control Module 1/Spare
29* AFS AHL/Pedestrian Protection
30 Passenger Window Switch
31 Body Control Module 7
32 Sunroof
33 Front Wiper
34 AOS Display/MIL Ignition
35 Rear Electrical Center Ignition
36 Spare PT Fuse
37 Oxygen Sensor
38 Ignition Coils/Injectors
39 Ignition Coils/Injectors/Spare
40 Engine Control Module
41 Fuel Heater
42* AIR Solenoid Relay
43 Washer
44 Rear Washer Relay
45 Front Washer Relay
46 Not Used
47 Instrument Panel Body Ignition
48 Fuel System Control Module Ignition
49 Heated Steering Wheel
50* Steering Column Lock
51* Coolant Pump
52* Coolant Pump Relay
53 Air Conditioning Compressor Clutch
54* AIR Solenoid
55 Transmission Control Module/Spare
56* Headlamp Low Relay
57 Headlamp high Relay
58 Starter
59 Starter Relay
60 Run/Crank Relay
61* Vacuum Pump Relay
62 Air Conditioning Control Relay
63* Adaptive Headlamp Leveling
64* Left High Intensity Discharge Headlamp
65* Right High Intensity Discharge Headlamp
66 Headlamp High Left/Right
67 Horn
68 Horn Relay
69 Cooling Fan
70 Aero Shutter
71 Transmission Control Module Ignition
72 Engine Control Module Ignition
73* Brake Vacuum Pump
74 Not Used
* Optional

Passenger compartment

Fuse box location

The instrument panel fuse block is in the end of the driver side of the instrument panel.



Fuse box diagram

Cadillac ATS (2013) - fuse and relay box diagram - passenger compartment
Cadillac ATS (2013) – fuse and relay box diagram – passenger compartment



Assignment of the fuses and relays in the passenger compartment

Number Usage
1 Not Used
2 Data Link Connector
3 Not Used
4 Not Used
5 Heater, Ventilation, and Air Conditioning Control
6 Electric Steering Column Lock
8 Battery
9 Heated Steering Wheel
10 Not Used
11 Logistics Shunt 1
12 SDM/AOS
13 Cluster/HUD/ICS/Steering Wheel Controls
14 Radio/Heater, Ventilation, and Air Conditioning
16 Not Used
17 Accessory Power Outlet 1
18 Accessory Power Outlet 2
19 Steering Wheel Controls
20 Not Used
21 Not Used
22 Logistics Shunt 2
23 Not Used
24 Not Used
25 Not Used
27 RAP Relay
28 Front Heater, Ventilation, and Air Conditioning Blower
29 Power Steering Column
30 Not Used



Circuit breakers Usage
CB7 Not used
CB26 Not used



Relays Usage
K10 RAP/Accessory
K605 Logistics
K609 Not used

Rear  compartment

Fuse box location

The rear compartment fuse block is behind a cover on the driver side of the rear compartment.



Fuse box diagram

Cadillac ATS (2013) - fuse and relay box diagram - rear compartment
Cadillac ATS (2013) – fuse and relay box diagram – rear compartment



Assignment of the fuses and relays in the rear compartment

Number Usage
1 Not Used
2 Left Window
3 Body Control Module 8
4 Not Used
5 Passive Entry Passive Start Battery 1
6 Body Control Module 4
7 Heated Mirrors
8 Amplifier
9 Rear Window Defogger
10 Not Used
11 Trailer Connector
12 OnStar (If Equipped)
13 Right Window
14 Electric Parking Brake
15 Not Used
16 Trunk Release
17 Run Relay
18 Logistics Relay
19 Logistics Fuse
20 Rear Window Defogger Relay
21 Mirror Window Module
22 Not Used
23 Canister Vent
24 Body Control Module 2
25 Rear Vision Camera
26 Not Used
27 SBZA/LDW/EOCM
28 Trailer/Sunshade
29 Not Used
30 Semi-Active Damping System
31 Transfer Case Control Module
32 Theft Module/Universal Garage Door Opener/Rain Sensor
33 UPA
34 Radio/DVD
35 Not Used
36 Trailer
37 Fuel Pump/Fuel System Control Module
38 Not Used
39 Not Used
40 Not Used
41 Not Used
42 Memory Seat Module
43 Body Control Module 3
44 Not Used
45 Battery Regulated Voltage Control
46 Engine Control Module Battery
47 Not Used
48 Not Used
49 Trailer Module

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
