Honda HR-V (1999 – 2006) – fuse and relay box diagram

Posted on 14 January 202514 January 2025 by admin

Honda HR-V (1999 – 2006) – fuse and relay box diagram

Year of production: 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006

This article covers the first-generation Honda HR-V (GH), manufactured from 1999 to 2006. It includes fuse box diagrams for the Honda HR-V models from 1999 to 2006, details the locations of the fuse panels within the vehicle, and explains the function of each fuse and relay (fuse layout).

Passenger Compartment Fuse Panel

Fuse Box Location

The fuses are located under the dashboard on the driver’s side

Fuse Box Diagram

Honda HR-V - fuse and relay box diagram - passenger compratment — Honda HR-V – fuse and relay box diagram – passenger compratment

Assignment of the fuses in the instrument panel

№	Amps	Component(s) or Circuit(s) Protected
1	10A	SRS unit (VA)
2	15A	SRS unit (VA) Inertia switch (KG and KE models), PGM-FI main relay (Except KG and KE models)
3	20A	Windshield wiper motor, windshield washer motor
4	10A	Headlight adjuster switch (KG and KE models), headlight adjuster unit (KG and KE models), rear window intermittent wiper control unit (KG and KE models), rear window washer motor, rear window wiper motor, power window master switch, power window relay
5	10A	Integrated control unit, turn signal/hazard relay, back-up lights
6	7.5A	Gauge Assembly, Clock, vehicle speed alarm unit (KY model), seat belt alarm unit (KY and KQ models), keyless door lock control unit, secondary HO2S (KG, KE, KN and KQ models), ELD unit (CVT), alternator, VSS, primary HO2S (KG, KE and KU models), PCM, EVAP purge control solenoid valve (KG, KY, KE and KU models)
7	15A	Distributor
8	–	Not used
9	–	Not used
10	15A	Rear window defogger
11	7.5A	Blower motor relay, radiator fan relay, condenser fan relay, A/C switch, A/C compressor clutch relay, recirculation control motor, A/C thermostat, ABS modulator assembly, power mirror actuator, power mirror defogger (KG model), power mirror retract actuator (with keyless entry system), seat heater main relay (KG model)
12	–	Not used
13	7.5A	ECM/PCM, PGM-FI main relay
14	–	Not used
15	–	Not used
16	–	Not used
17	–	Not used
18	15A	Audio unit, cigarette lighter
19	–	Not used
20	–	Not used
21	–	Not used
22	–	Not used
23	7.5A	Clock, seat belt alarm unit (KY and KQ models), intregated control unit, ceiling lights, immobiliser indicator light (KG, KE, KQ and KU models), cargo area light, ECM/PCM
24	15A	Audio unit
25	15A	Keyless / power door lock control unit
26	–	Not used
27	–	Not used
28	–	Not used
S		Spare fuses
R1		Power window relay
R2		Taillight relay
R3		Seat heater main relay (KG model) Shift lock relay (KQ and KU models with CVT)
R4		Turn signal/hazard relay

Engine Compartment Fuse Box

Fuse Box Location

The fuse box is located near the battery.

Fuse Box Diagram

Honda HR-V - fuse and relay box diagram - engine compartment — Honda HR-V – fuse and relay box diagram – engine compartment

Assignment of the fuses in the engine compartment

№	Amps	Component(s) or Circuit(s) Protected
41	80A	Battery, power distribution
42	50A	Ignition switch (BAT)
43	20A	Right headlight, High beam indicator light
44	7.5A	Rear fog light control unit (KG, KE models)
45	20A	Left headlight
46	7.5A / 10A	Taillight relay, clock, switch lights, taillights, licence plate lights, integrated control unit, gauge lights, audio unit light, beverage holder light, heater control panel light, front parking lights, dashlights brightness controller (KQ model), option connector C
47	10A / 15A	Brake lights, key interlock solenoid (KQ, KU models), ABS modulator assembly ECM/PCM
48	20A	ABS modulator assembly
49	10A / 15A	Turn signal/hazard lights, hazard warning light (KG and KE models)
50	40A	ABS modulator assembly
51	20A	Power window relay, passenger’s window motor
52	20A	Power window master switch, driver’s window motor
53	–	Not used
54	30A	№ 23, 24 and 25 fuses (in under-dash fuse/relay box), option connector B
55	20A	Seat heaters (KG model)
56	40A	Blower motor
57	20A	Radiator fan motor
58	20A	Condenser fan motor A/C compressor clutch
59	15A	PGM-FI main relay, data link connector
S		Spare fuses
R1		Headlight relay 1
R2		Headlight relay 2
R3		Horn relay
R4		Blower motor relay
R5		Condenser fan relay
R6		Radiator fan relay
R7		A/C compressor clutch relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Lupo (2000 – 2006) – fuse box diagram

Posted on 7 September 2024 by admin

Volkswagen Lupo (2000 – 2006) – fuse box diagram

Year of production: 2000, 2001, 2002, 2003, 2004,2005, 2006

Volkswagen Lupo was produced mainly in the body of a 3-door hatchback in 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005 and 2006. Positioned as a city car with low fuel consumption. In this material you will find a designation of the purpose of fuses and relays in Volkswagen Lupo, diagrams of the boxes in which they are located.

Passenger compartment

Fuse box location

The fuse panel is located behind the cover on the driver’s side of dash panel.

Switch off the ignition and the component concerned.
Remove cover towards the front.
With the aid of the list of fuses determine which fuse belongs to the component that has failed.
Replace blown fuse – can be recognized by the burnt metal strip – with a fuse of same amperage.

Fuse box diagram

№	Amps	Consumer
SB1	10A	Lambda probe heater / Air mass meter
SB2	5A	Number plate lights
SB3	5A/10A	Injectors Mapped controlled engine cooling thermostat, fuel metering valve, intake manifold flap air flow control valve, camshaft timing adjustment valve
SB4	5A	Left side lights
SB5	5A	Left side lights
SB6	15A	Rear wiper
SB7	7.5A	Turn signal system
SB8	5A	ABS/ESP
SB9	5A	Headlight range control
SB10	5A	Interior lights Self-diagnosis connection (3L)
SB11	5A	Self-diagnosis connection, dash panel insert, Climatronic, ESP control unit, Steering angle sender
SB12	10A	Right main beam, main beam warning lamp
SB13	10A	Left main beam
SB14	10A	Hazard warning system, anti-theft alarm system, remote control system
SB15	10A	Brake lights
SB16	5A	Radio Central locking and anti-theft alarm control unit Dash panel insert Ignition switch S-contact
SB17	5A	Folding mirrors
SB18	5A/15A	Mirror heating
SB19	15A	Dual tone horn, heated washer jets
SB20	5A/10A	CD changer, telephone
SB21	5A/10A/15A	Automatic gearbox control unit Electronic manual gearbox control unit
SB22	15A	ATA horn
SB23	5A	Supplementary heater relay, glow plug relays, throttle butterfly valve, exhaust gas regulation relay, speed sender, charge pressure sender
SB24	5A	Clutch pedal switch (diesel), brake light switch, Motronic control unit, radiator fan control unit
SB25	5A	Automatic gearbox selector lever, electric vent wing window
SB26	7.5A/5A	Central locking control unit, electrically adjustable exterior mirror, air conditioner, navigation, mobile telephone Mirror heating
SB27	5A	Dash panel insert
SB28	5A	Speedometer sender, immobilizer
SB29	7.5A	Reversing lights, washer jets heater elements, headlight range control
SB30	5A/7.5A	Exhaust gas recirculation valve, activated charcoal filter solenoid valve, heater tube, pressure control valve
SB31	10A	Engine control unit, electronic manual gearbox control unit
SB32	5A/10A	Engine control unit Crash fuel shut-off control unit
SB33	10A	Automatic gearbox control unit, electronic manual gearbox control unit
SB34	10A	Ignition transformer Speedometer sender
SB35	20A/25A	Sliding/tilting sunroof
SB36	15A	Simos (injection system) control unit, 4LV (injection system) control unit, electronic manual gearbox control unit
SB37	15A	Engine control unit Metering adjuster, electronic shut-off valve
SB38	25A	Left electric windows Left door control unit
SB39	25A	Right electric windows Right door control unit
SB40	15A	Fuel pump
SB41	15A	Central locking system control unit, anti-theft alarm system, remote control system
SB42	15A	Radio, navigation, CD changer
SB43	15A	Front fog lights, rear fog light
SB44	15A	Left dipped beam Headlight range control adjuster
SB45	15A	Right dipped beam
SB46	15A	Cigarette lighter
SB47	15A/20A/30A	Headlight washer system pump, gearbox hydraulic pump relay Horn (GTI)
SB48	20A	Heated rear window
SB49	25A	Fresh air blower
SB50	15A	Front wiper, windscreen washer pump
SB51	15A	Heated seats

Engine Compartment

Fuse box location

Fuse box placed on the battery of the engine compartment.

Fuse box diagram

Version 1

№	Amps	Function/component
SA1	150A	Alternator
SA2	80A	Fuse carrier B Fuse SA2 is located in luggage compartment next to battery
SA3	50A	Engine glow plugs
SA4	80A	Electro-hydraulic power steering motor (ARR, AYZ) Coolant heater elements (ARR, AYZ) Radiator fan control unit (only models with air conditioner, ARR, AYZ) Radiator fan (ARR, AYZ)
SA5	30A	Radiator fan (AMF)
SA6	30A	ABS with EDL control unit
SA7	30A	ABS with EDL control unit
SA8	10A/20A	Radiator fan (AVY, ARR) Radiator fan control unit (only models with air conditioner, AVY, ARR)
SA9	30A/10A	Radiator fan control unit (only models with air conditioner, AVY, ARR)

Version 2

№	Amps	Function/component
SA1	150A	Alternator
SA2	80A	Fuse carrier B Fuse SA2 is located in luggage compartment next to battery
SA3	50A	Engine glow plugs
SA4	80A	Electro-hydraulic power steering motor (ARR, AYZ) Coolant heater elements (ARR, AYZ) Radiator fan control unit (only models with air conditioner, ARR, AYZ) Radiator fan (ARR, AYZ)
SA5	30A	Radiator fan (AMF)
SA6	30A	ABS with EDL control unit
SA7	30A	ABS with EDL control unit
SA8	10A/20A	Radiator fan (AVY, ARR) Radiator fan control unit (only models with air conditioner, AVY, ARR)
SA9	30A/10A	Radiator fan control unit (only models with air conditioner, AVY, ARR)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Dodge Durango (2001 – 2003) – fuse and relay box diagram

Posted on 7 September 20244 October 2024 by admin

Dodge Durango (2001 – 2003) – fuse and relay box diagram

Year of production: 2001, 2002, 2003

Passenger compartment

Fuse box location

The fuse panel is located behind the cover on the driver’s side of dash panel.

Fuse box diagram

Assignment of the fuses in the engine compartment

№	Amps	Description
1	15A	Sentry Key Immobilizer, Instrument Cluster, Radio, Center Console Lamp, Overhead Console, Front/Rear Dome Lamp, Glove Box Lamp/Switch, Data Link Connector, Driver Door Module, Right/Left Visor/Vanity Mirror & Liftgate Lamp
2	20A	Horn Relay & Clockspring
3	–	–
4	20A	Central Timer Module, Headlamp Switch, Left/Right Tail Lamp Assembly, Left/Right Front Park/Turn Signal Lamps, Left/Right Front Side Marker Lamp & License Plate Lamp
5	20A	Front Wiper Relay, Front Wiper Motor & Central Timer Module
6	–	–
7	–	–
8	10A	Transmission Control Module & Instrument Cluster
9	5A	Rear A/C Heater Control, Overhead Console, Transfer Case Selector Switch, Shift Bezel Lamp, Radio, Cigar Lighter, A/C Heater Control & Instrument Cluster
10	10A	Powertrain Control Module, Fuel Pump Relay, Radiator Fan Relay & Sentry Key Immobilizer
11	10A	A/C Compressor, Proportional Purge Solenoid, Automatic Day/Night Mirror, Overhead Console, Central Timer Module & Transfer Case Selector Switch
12	10A	Engine Starter Motor Relay & Transmission Control Module
13	15A	Amplifier
14	10A	Instrument Cluster
15	10A	Driver/Passenger Power Mirror
16	–	–
17	15A	Cigar Lighter
18	10A	Radio
19	10A	Combination Flasher
20	10A	Airbag Control Module
21	10A	Airbag Control Module
22	20A	Heated Seat Module & Passenger/Driver Heated Seat Module
23	–	–
24	15A	Rear Window Defogger Relay & Rear Blower Motor Relay
25	10A	A/C Heater Control
26	15A	Transmission Solenoid, Transmission Range Sensor & Passenger Door Power Lock Switch
27	10A	Controller Anti-Lock Brake
28	25A CB	Driver Door Module (Power Window)
29	–	–
R1		Horn Relay
R2		Park Lamp Relay

Engine Compartment

Fuse box location

Fuse box diagram

Assignment of the fuses in the engine compartment

№	Amps	Description
A	20A	Transfer Case Control Module
B	10A	A/C Compressor Clutch Relay
C	20A	Trailer Tow Connector
D	20A	Junction Block & Front/Center/Rear Power Outlet
E	20A	Ignition Switch
F	20A	Transmission Control Relay
G	–	–
H	20A	Fog Lamp Relay
J	20A	Rear Wiper Relay
K	25A	Rear Blower Motor Relay
L	–	–
M	–	–
N	–	–
P	–	–
R	–	–
S	–	–
T	10A	Left/Right Front Park/Turn Signal Lamps, Left/Right Side Marker Lamp & License Lamp
U	20A	Oxygen Sensors, Fuel Injectors Coil On Plugs, Powertrain Control Module & Ignition Coil
1	20A/30A	Combination Flasher
2	20A	Powertrain Control Module, Automatic Shut Down Relay & Fuel Pump Module/Relay
3	20A	Central Timer Module
4	40A	Rear Window Defogger Relay
5	20A	Brake Lamp Switch
6	30A	Electric Brake
7	40A	Junction Block
8	40A	Controller Anti-Lock Brake
9	50A	Ignition Switch
10	40A	Ignition Switch
11	30A	Automatic Shut Down Relay
12	20A	Central Timer Module
13	40A	Ignition Switch
14	50A	Driver/Passenger Power Seat Switch
15	50A	Radiator Fan Relay & Driver/Passenger Power Relay
16	50A	Engine Starter Motor Relay
17	50A	Ignition Switch
R1		Radiator Fan Relay
R2		Automatic Shut Down (ASD) Relay
R3		–
R4		Rear Blower Motor Relay
R5		–
R6		EBL Relay
R7		Fuel Pump Relay
R8		–
R9		Air Conditioner Compressor Clutch Relay
R10		Fog Lamp Relay
R11		–
R12		Oxygen Sensor Relay
R13		–
R14		Transmission Control Relay
R15		–
R16		–
R17		Starter Relay
R18		Front Wiper Relay
R19		Rear Wiper Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Toyota Land Cruiser (70, AU 78/79; 2000 – 2006) – fuse and relay box diagram

Posted on 5 September 20246 October 2024 by admin

Toyota Land Cruiser (70, AU 78/79; 2000 – 2006) – fuse and relay box diagram

Year of production: 2000, 2001, 2002, 2003, 2004, 2005, 2006

This article provides fuse box diagrams for the Toyota Land Cruiser 78/79 (Australia) models from 2000 to 2006. It also includes details on the location of the fuse panels within the vehicle and explains the function and layout of each fuse.

Passenger Compartment Fuse Boxes

Fuse Box Location

Remove the lid to access.

Fuse Box Diagrams

Toyota Land Cruiser (2000 - 2006) - fuse box diagram - passenger compartment — Toyota Land Cruiser (2000 – 2006) – fuse and relay box diagram – passenger compartment

Assignment of the fuses under the instrument panel

№	Name	Amp	Description
1	SPARE	7.5A	Spare fuse
2	SPARE	15A	Spare fuse
3	CHARGE	7.5A	Gasoline: No circuit
3	IGN	7.5A	1HD-FTE engine: Electronically controlled fuel injection pump system
4	CIG	15A	Cigarette lighter, clock, radio
5	EFI	15A	Gasoline: Multiport fuel injection system / sequential multiport fuel injection system
5	ECD	15A	1HD-FTE engine: Electronically controlled fuel injection pump system
6	A.C	10A	Air conditioning system
7	TURN	10A	Turn signals lights
8	DEFOG	15A	No circuit
9	WIPER	20A	Windshield wipers and washer, rear window wiper and washer, back-up lights
10	ENGINE	15A	Charging system, emission control system, gauges and meters, service reminder indicators and warning buzzer
11	ST	30A	Diesel: Starting system
12	STOP	10A	Stop lights
13	DOME	10A	Interior light, luggage compartment light, clock, radio
14	RADIO	10A	Diesel: No circuit
15	ECU-B	10A	Diesel; 2003-2006: Exhaust gas recirculation system
16	TAIL	20A	Tail lights, parking lights, license plate lights, instrument panel lights
17	GLOW	7.5A	Diesel: No circuit
18	HAZ-HORN	15A	Emergency flashers, horns
19	HEAD (LH)	10A	Left-hand headlights
20	HEAD (RH)	10A	Right-hand headlights
21	IGN	7.5A	Gasoline: Multiport fuel injection system / sequential multiport fuel injection system
21	FUEL-HTR	15A	Diesel: No circuit
22	DOOR	30A	Power door lock system
23	HEATER	30A	Air conditioning system
24	POWER	30A	Power windows
25	DIFF	30A	Differential lock system, four-wheel drive control system

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Jeep Grand Cherokee (WJ; 1999 – 2005) – fuse and relay box diagram

Posted on 12 November 202325 January 2025 by admin

Jeep Grand Cherokee (WJ; 1999 – 2005) – fuse and relay box diagram

Year of production: 1999, 2000, 2001, 2002, 2003, 2004, 2005

In this article, we consider the second-generation Jeep Grand Cherokee (WJ), produced from 1999 to 2005. Here you will find fuse box diagrams of Jeep Grand Cherokee 1999, 2000, 2001, 2002, 2003, 2004 and 2005, get information about the location of the fuse panels inside the car, and learn about the assignment of each fuse (fuse layout) and relay.

Passenger compartment fuse box

Fuse box location

It is located under the instrument panel on the driver’s side, behind a plastic cover near the OBD2 port.

Fuse box diagram

Jeep Grand Cherokee (WJ; 1999 - 2005) - fuse an relay box diagram -passenger compartment — Jeep Grand Cherokee (WJ; 1999 – 2005) – fuse an relay box diagram -passenger compartment

Assignment of the fuses and relay in the instrument panel

No.	A	Description
1	–	–
2	–	–
3	10	Left Headlamp (High Beam)
4	15	Combination Flasher
5	25	Radio, Amplifier
6	15	Park Lamp Relay (Park Lamp, Tail Lamp, License Lamp, Trailer Tow Connector, Headlamp Leveling Switch)
7	10	Body Control Module, Underhood Lamp, Sentry Key Immobilizer Module, Automatic Zone Control Module, Automatic Headlamp Light Sensor/VTSS LED, Remote Keyless Module
8	15	Rear Wiper Motor, Courtesy Lamp, Glove Box Lamp, Cargo Lamp, Overhead Map Lamp, Door Handle Lamp, Vehicle Information Center, Liftgate Flip-Up Push Button Switch, Security System Module, Visor/Vanity Lamp
9	20	Front Power Outlet, Rear Power Outlet, Power Connector
10	20	Adjustable Pedals (?-’04)
11	10	Automatic Zone Control Module (AZC), Manual Temperature Control (MTC)
12	10	Fuel Pump Relay, Automatic Shut Down Relay, Powertrain Control Module, Transmission Control Relay (4.7L)
13	–	–
14	10	Left Headlamp (Low Beam)
15	10	Right Headlamp (Low Beam)
16	10	Right Headlamp (High Beam)
17	10	Data Link Connector, Instrument Cluster
18	20	Trailer Tow Brake Lamp Relay, Electric Brake (’99-’01-?)
18	30	Trailer Tow Brake Lamp Relay, Electric Brake (?-’04)
19	10	ABS
20	10	Combination Flasher, Automatic Zone Control Module (AZC), Manual Temperature Control (MTC), Temperature Valve Actuator (MTC), Transmission Solenoid/TRS Assembly (4.7L), Park/Neutral Position Switch (4.0L, 3.1L TD), Driver/Passenger Heated Seat Switch
21	10	Gasoline: Air Conditioner Compressor Clutch Relay, EVAP/Purge Solenoid, Brake Transmission Shift Interlock Solenoid
21	10	Diesel: Fuel Heater Relay, Engine Control Module, Brake Transmission Shift Interlock Solenoid
22	10	Body Control Module, Instrumeent Cluster, Sentry Key Immobilizer Module, Vehicle Information Center, Automatic Day/Night Mirror, Security System Module
23	15	Stop Lamp Switch
24	15	Front Fog Lamp Relay, Body Control Module
25	20	Sunroof Delay Relay, Body Control Module
26	15	Cigar Lighter
27	15	Rear Fog Lamp Relay
28	10	Body Control Module
29	10	Cigar Lighter Relay, Right Multi-Function Switch
30	15	Radio
31	10	Starter Relay, Transmission Control Module (4.7L)
32	10	Airbag Control Module
33	10	Airbag Control Module
Circuit Breaker
C1	20	Front Wiper Motor, Wiper (On/Off) Relay (Wiper (High/Low) Relay)
C2	20	Power Seat
Relay
R1	Low Beam / Daytime Running Lamp
R2	Cigar Lighter
R3	Combination Flasher
R4	Rear Window Defogger
R5	Rear Fog Lamp
R6	Low Beam
R7	High Beam
R8	Sunroof Delay
R9	–
R10	Front Fog Lamp
R11	–
R12	Park Lamp
R13	–
R14	–

Engine compartment fuse box

Fuse box location

The Power Distribution Center is located near the battery (left or right depending on the version).

Fuse box diagram

Jeep Grand Cherokee (WJ; 1999 - 2005) - fuse an relay box diagram -engine compartment — Jeep Grand Cherokee (WJ; 1999 – 2005) – fuse an relay box diagram -engine compartment

Assignment of the fuses and relay in power distribution center

No.	A	Description
1	40	Blower Motor (MTC), Blower Motor Controller (AZC)
2	40	Rear Window Defogger Relay (Rear Window Defogger, Fuse (Passenger Compartment): “11”), Cigar Lighter Relay (Trailer Tow Circuit Breaker, Fuse (Passenger Compartment): “26”)
3	50	High Beam Relay (Fuse (Passenger Compartment): “3”, “16”), Low Beam Relay (Fuse (Passenger Compartment): “14”, “15”) or Low Beam / Daytime Running Lamp Relay (Fuse (Passenger Compartment): “14”, “15”), Fuse (Passenger Compartment): “4”, “5”, “6”, “11”, “17”
4	40	ABS
5	30	Gasoline: Transmission Control Relay, Transmission Control Module (4.7L), Transmission Solenoid (4.0L), Transmission Solenoid/TRS Assembly (4.7L)
6	30	Gasoline: Automatic Shut Down Relay (Ignition Coils, Capacitor, Fuse (Engine Compartment): “16”, “26”)
6	50	Diesel: Glow Glug Relay No.1 (Glow Plug: No.1, 3, 5)
7	50	Fuse (Passenger Compartment): “23”, “24”, “25”, “27”, “C2”
8	40	Starter Relay, Ignition Switch (Fuse (Passenger Compartment): “12”, “21”, “22”, “28”, “29”, “30”, “32”, “C1”)
9	20	Diesel: Fuel Heater Relay
10	40	4.0L: Radiator Fan Relay
10	40	Diesel: Radiator Fan Relay
11	50	Diesel: Glow Glug Relay No.2 (Glow Plug: No.2, 4)
12	50	Driver/Passenger Door Module, Fuse (Passenger Compartment): “18”
13	30	Diesel: Automatic Shut Down Relay (Engine Control Module, Powertrain Control Module, Fuse (Engine Compartment): “16”, “26”)
14	40	Ignition Switch (Fuse (Passenger Compartment): “19”, “20”, “31”, “33”)
15	50	Fuse (Passenger Compartment): “5”, “7”, “8”, “9”
16	15	Gasoline (’01): Oxygen Sensors, Oxygen Sensor Downstream Relay
	10	Gasoline (’99-’00): Oxygen Sensors
	10	Diesel: Air Conditioner Compressor Clutch Relay, Glow Plug Relay No.1, Glow Plug Relay No.2, EGR Solenoid
17	20	Gasoline (’99-’00): Oxygen Sensor Downstream Relay, Oxygen Sensor Upstream Relay
18	15	Horn Relay
19	10	Gasoline: Powertrain Control Module
20	–	–
21	15	Air Conditioner Compressor Clutch Relay
22	–	–
23	–	–
24	20	Gasoline: Fuel Pump Relay
24	15	Diesel: Powertrain Control Module, Transmission Control Relay
25	20	ABS
26	15	Gasoline: Fuel Injectors
26	15	Diesel: Fuel Injection Pump
27	–	–
28	15	4.0L: Transmission Solenoid
Relay
R1	Gasoline: Fuel Pump
R1	Diesel: Wiper (On/Off)
R2	Gasoline: Starter
R2	Diesel: Wiper (High/Low)
R3	Gasoline: Transmission Control
R3	Diesel: Fuel Heater
R4	Gasoline: Wiper (On/Off)
R4	Diesel: Transmission Control
R5	Gasoline: Wiper (High/Low)
R5	Diesel: Starter
R6	Gasoline: Oxygen Sensor Downstream
R7	Gasoline: Oxygen Sensor Upstream
R8	Air Conditioner Compressor Clutch
R9	Horn
R10	Automatic Shut Down
R11	Diesel: Glow Plug (No.1)
R12	Diesel: Glow Plug (No.2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Transporter (T4; 1990 – 2003) – fuse box diagram

Posted on 24 July 20188 September 2024 by admin

Volkswagen Transporter (T4; 1990 – 2003) – fuse box diagram

Year of production: 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003

Volkswagen Transporter T4 – represents the 4th generation of the legendary Transporter series. This model was produced in 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002 and 2003 with diesel and gasoline engines with different wheelbases: short and long, and with different roof height. Also on the T4, Volkswagen continued its lineup of luxury Caravelle, California and Multivan models. In this article, we will show the location of all electronic control sides and a detailed designation of the purpose of fuses and relays Volkswagen T4 with box diagrams in which they are located.

Locations

Volkswagen Transporter T4 (1990 - 2003) - fuse box location — Volkswagen Transporter T4 (1990 – 2003) – fuse box location

1	Air conditioning control unit 1 – with automatic temperature control – in the heater control panel, front
2	Air conditioning control unit 2 – with automatic temperature control – in the heater control panel, rear – central pillar
3	Evaporator Fan Control Unit (A / C) – With Rear A / C – Behind Right Rear Trim Panel
4	Air conditioning / heater fan motor control unit 1 – with automatic temperature control – front – fan unit
5	Air conditioning / heater blower motor control unit 2- with automatic temperature control – rear- bottom of the body, in the center
6	Aerial amplifier – behind the dash, passenger side
7	Alternator resistor – near additional relays – CV / AUF, with alternator 150A / automatic transmission / automatic temperature control – behind the central part of the dashboard
8	Additional battery – under the driver’s seat
9	Accumulator battery
10	Central locking signal control unit – behind the dashboard
11	Cruise control unit (with throttle motor) – cruise control is controlled by the ECM
12	Electronic cruise control module (without throttle motor) – behind dash, passenger side
13	Diagnostic connector (DLC) – instrument panel, driver’s side
14	Diagnostic unit – 05/99 (except for AAC / ABL / AET / AES / AJA) – in the instrument cluster
15	Cooling Fan Motor Relay – Behind Left Headlight
16	Cooling Fan Motor 1/2 Resistor – Behind Left Headlight
17	Coolant heater control unit (with additional coolant heater – D3W / B4W / D4W) – in the heater – underbody, in the center
18	Coolant heater control unit (with optional coolant heater – B7W / D7W) – behind the dash, passenger side
19	Engine oil pressure warning buzzer – in instrument cluster control unit
21	Fuse / relay box, instrument cluster 1
22	Fuse / relay box 2, dash – under dash fuse / relay box 1
23	Fuse / relay box, dash 3 – above dash fuse / relay box 1
24	Fuse / relay box, dash 4 – behind dash, center
25	Fuse / Relay Box, Driver’s Seat – Under Seat
26	Fuse / Relay Box, Engine Compartment – Battery Powered
27	Additional fuse (5A / 7.5A / 10A) – in the back of the audio system unit
28	Additional fuse (10A) – at the rear of the navigation system control unit
29	Headlights not switched off warning buzzer – in the instrument cluster control unit
30	Heater blower motor resistor – manual temperature control – blower unit, front
31	Horn 1/2 – behind the front bumper
32	Immobilizer control unit – behind the instrument cluster
33	Immobilizer ring antenna – near the ignition switch
34	Turn signal relay, alarm relay – in the alarm switch
35	Instrument Cluster Control Module / Digital Multifunction Display – In Instrument Cluster
36	Outside temperature sensor – behind the front bumper
37	Driver’s seat heating control unit – in the seat heating switch
38	Passenger seat heating control unit – in the seat heating switch
39	SRS control unit – under the dash, center
40	Sunroof electric control unit
41	Theme control unit – in the display of the navigation system
42	Telephone interface control unit – behind the instrument cluster
43	Electronic gearbox control unit – near the engine control unit
44	Vehicle speed sensor – gearbox

Passenger compartment

Fuse box location

The main fuse and relay box is located under the dash on the driver’s side.

Fuse box diagram

Version 1

№	A	Description
1	10	Left Headlight Low Beam
2	10	Right Headlight Low Beam
3	10	Instrument & License Lights
4	15	Rear Window Wiper/Washer, Heated Front Seats
5	15	Windshield Wiper/Washer, Rear Window Washer, Heated Washer Jets
6	30	A/C, Fresh Air Fan
7	10	Right Tail Light & Side Marker Light, Engine Compartment Lamp
8	10	Left Taillight & Side Marker Light
9	20	Rear Window & Mirror Heater
10	15	Fog Lamps
11	10	Left Headlight High Beam & High Beam Indicator
12	10	Right Headlight High Beam
13	10	Horn, Radiator Cooling Fan
14	10	Backup Lights, Electric Mirrors, Heated Front Seats, Windshield Washer Jets, Cruise Control, Power Roof
15	10	Engine Electronics
16	15	Warning/Indicator Lights, Multi-Function Indicator, Glove Box Light, ABS
17	10	Turn Signals
18	20	Fuel Pump
19	30	A/C, Radiator Cooling Fan
20	10	Brake Lights
21	15	Dome & Luggage Lamps, Clock, Radio, Central Locking System, Multi-Function Indicator, Vanity Mirror, OBD Diagnostic
22	10	Cigarette Lighter
Relay
1	A/C Control Module Relay
2	Rear Window Wiper/Washer Relay
3	ECM Power Supply Relay
4	Load Reduction Relay
5	Open
6	Emergency Flasher Relay
7	Headlight Washer Relay
8	Washer/Wiper Intermittent Relay
9	Seat Belt Warning Relay
10	Fog Lamp/Parking Lamp Relay
11	Dual Horn Relay
12	Fuel Pump Relay
13	Heater Control Module Relay
14	Coolant Pump After-Run Relay
15	Open
16	Open
17	Open
18	Roof Ventilator Fan (Fuse)
19	Heater Air Blower Relay
20	Starter Interlock/Back-up Light Relay
21	5	Back-up Lights, Cruise Control
22	20	A/C (Second Evaporator)
23	Rear Window Defroster/Heated Mirror Relay
24	20	Power Windows, Central Locking System
25	10	ABS System
26	15	Rear Window Defroster, Heated Mirrors
27	A/C Compressor Clutch Relay

Version 2

Fuse box diagram (main box)

№	A	Description
Relay assignment
1	(105)	Heater blower motor relay – rear (ventilation)
2	(174)	Rear window wiper / washer relay
3	(30/109)	Engine management relay
4	(18)	Ignition auxiliary circuits relay 1
5		Reserve
6	(22/21)	Emergency ventilation relay (with repeaters for direction indicators on the roof)
7	(95)	Headlight washer pump relay
8	(99)	Relay for intermittent operation of the windshield wiper / washer
9	(36)	Headlamps warning buzzer
10	(53)	Fog lamp relay
11	(53)	Horn relay
12	(167)	Fuel pump relay
Fuse
1	10	Left headlight – low beam, headlight range control
2	10	Right headlight – low beam, headlight range control
3	10	License plate lamps
4	15	Rear window wiper / washer, auxiliary ignition circuit relay 2, additional equipment
5	15	Windshield wiper / washer, heaters for windshield washer nozzles (05/01)
6	30	Air conditioning system, heater fan motor
7	10	Front right side / rear right side lamps
8	10	Lamps front left / rear left
9	20	Heated rear window, heated outside mirror
10	15	Fog lights
11	10	Left headlamp-high beam
12	10	RH headlamp-high beam
13	10	Sound signal
14	10	ABS system (with ESP), automatic transmission control system, additional equipment, central locking, cruise control system, power windows, power rear-view mirrors on the doors, reverse light (s)
15	10	Engine management system, crankcase ventilation heater, cruise control system, vehicle speed sensor
16	15	ABS indicator, glove box illumination lamp, turn signals, immobilizer, instrument cluster
17	10	Additional heater
18	20	Engine management system, fuel pump
19	30	A/C, Radiator Cooling Fan
20	10	Stop lights
21	15	Audio system, diagnostic connector (DLC), interior lamps, navigation system

Additional Fuse box

It is located under the main block.

№	A	Description
1	15	Accessory power connector
2	15	Trailer electrical connector
3	10	Roof identification light
4	20	Additional heater (AC V / AH Y / AJT / AU F)
5	10	Anti-lock braking system (ABS)
6		FOR Phone
7	15	Taxi
8	10	Roof fan
9	15	Audio system, instrument cluster
10	15	Central locking
11	15	Heated seats
12	30	Heated door mirrors, heated rear window
13		FOR PHONE (ACV / AH Y / AJT / AU F)
14	30	Air conditioning system – manual automatic temperature control
15	20	Additional heater

Additional relay box 1

Located at the top of the main unit.

Relay box diagram

Volkswagen Transporter T4 (1990 - 2003) - fuse box diagram - additional relay box no. 1 — Volkswagen Transporter T4 (1990 – 2003) – fuse box diagram – additional relay box no. 1

№		Description
1	(53)	Coolant pump relay
2	(125)	Idle speed control (AM) relay
3	(137)	Glow plug control unit (ABL)
4	(53)	Ignition auxiliary circuits relay 2 (some models)
5	(53)	Ignition auxiliary circuits relay 2 (AES, with air conditioning)
F1	30	Power window fuse
F2	15	Engine control unit
F3	15	Actuator

Additional relay box 2

It is located behind the dashboard in the center.

Fuse box diagram

№	Description
1	(106)	Auxiliary heater relay
2		Audio / Telephone Speaker Switch Relay
3	(53)	(53) Heater blower motor relay – rear (warm air)
4	(114)	Heater blower motor relay – automatic temperature control
5	(152)	Heater radiator coolant valve relay (rear heater)
6	(38)	Air intake changeover actuator relay (A / C / heater)
7	(53)	Alternator relay (AES, with 150A alternator)
8	(53)	Alternator relay (ACV / AUF, with alternator 150A / automatic / automatic temperature control)
9	(175)	Start inhibit switch relay / reversing lamp relay
10	(87)	Wheel hub connection control unit

Another unit can be located under the driver’s seat. The following items may be located there: (214/426) Relay for additional battery, (403) Relay for additional heater, (30A) Additional liquid heating system, (5A) Sockets , etc.

Engine compartment

Fuse box location

This unit is located on the cover in front of the battery.

Fuse box diagram

№	Description
1	60A	Glow plug relay
2	50A	Cooling fan motor
3	50A	Cooling fan motor
4	50A	Anti-lock braking system (ABS)
5	110A/150A/175A	Generator
6	30A	System of maintaining exchange rate stability
7	30A	Anti-lock braking system (with ESP)
8	5A	System of maintaining exchange rate stabilit

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen New Beetle (1998 – 2011) – fuse and relay box diagram

Posted on 23 July 201818 July 2025 by admin

Volkswagen New Beetle (1998 – 2011) – fuse and relay box diagram

Year of production: 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011

The Volkswagen New Beetle, a compact car, was manufactured from 1998 to 2011. In this article, you’ll find fuse box diagrams for the 1998 through 2011 models, along with information on the location of the fuse panels inside the vehicle and details on the function and layout of each fuse and relay.

Location

Fuses -S162-, -S163-, -S164-, -S176-, -S177-, -S178-, -S179-, -S180- on fuse holder/battery
Fuses -S43-, -S111-, -S130-, -S144-, -S283-, -S329-, -S337-, -S338-, on the 13 position additional relay carrier above the relay plate
Fuses (S) in fuse holder, left dash panel

Engine compartment

Fuses (S) on fuse holder/battery

Assignment of the fuses in the engine compartment (battery)

№	A	Function/component
1	50	V101 – Secondary air pump motor, models with secondary air pump only J359 – Low heat output relay, models with diesel engines, manual gearbox only J360 – High heat output relay, models with diesel engines, manual gearbox only
2	50	J17 – Fuel pump relay (17/30) J370 – Glow plug activation control unit, models with diesel engines only
3	40	J293 – Radiator fan control unit (T4e/1) V7 – Radiator fan
4	110	J59 – X – contact relief relay (7/30)
5	110 150	C – Alternator (90A) C – Alternator (120A)
6	30	J104 – ABS control unit (T47a/1)
7	30	J104 – ABS control unit (T47a/32)
8	30	F18 – Radiator fan thermal switch J293 – Radiator fan control unit (T4e/3)

Passenger compartment

Fuses on the 13 position additional relay carrier above the relay plate

Assignment of the fuses in the passenger compartment (dashboard)

№	A	Function/component
A	30	Window regulator thermal fuse -S43-
B		Brake vacuum pump fuse -S283-^1 Vacant^2,7
C	30^3 10^7	Rear spoiler motor fuse -S329-^*3Secondary air pump fuse -S130-
F	–	Vacant
G	–	Vacant
H	15	Anti-theft alarm system fuse and immobilizer fuse -S111-^4 Telematics fuse -S338-^5
J	15^4 20^2,6	Anti-theft alarm system central locking fuse -S144-^4 Brake vacuum pump fuse -S283-^2 Fuse for dual clutch gearbox mechatronic unit -S337-^*6
Relay positions – relay on relay plate
1	J4 – Dual tone horn relay (53)
2	J59 – X-contact relief relay (100)
3	Vacant
4	J17 – Fuel pump relay (409) J52 – Glow plug relay (103)^*8
5	Automatic intermittent wash and wipe relay -J31- (377), (192), (389)
Relay positions on the 13 position additional relay carrier above the relay plate
1	Vacant
2	Vacant
3	Starter inhibitor relay, clutch pedal switch -J434- (53)^*9
4	Fog light relay -J5- (53)
5	Vacant
6	Vacant
7	Daytime running lights change-over relay -J89- (173)^*10
8	Heated exterior mirror relay -J99- (53)^*11
9	Alarm horn relay -J641- (for telematics only)
10	Turn signals relay for anti-theft alarm -J237- (for telematics only) Radiator fan 3rd speed relay -J135- (100) (only 1.8 l-engine) Secondary air pump relay -J299- (100) (only petrol engines, from July 2005) Low heat output relay -J359- (100) (engine code BEW only, from June 2003 up to December 2006)
11	Starter inhibitor and reversing light relay -J226- (126) (only for automatic gearbox 01M) Starter inhibitor relay -J207- (176) (from model year 2005; only for 6-speed automatic gearbox 09G, with Tiptronic)
12	Terminal 30 voltage supply relay -J317- (109) (for engine codes BPR, BPS only; models with diesel engines only)
13	High heat output relay -J360- (53) (engine code BEW only, from June 2003 up to December 2006)
1 – for models with manual gearbox, model year 2003 2 – models with automatic gearbox, from model year 2004 3 – models with 1.8 l engine, model year 2003 up to 2005 4 – up to model year 2003 5 – from model year 2004 6 – for models with engine code BEW; with dual clutch gearbox DSG 02E; from model year 2004 7 – from model July 2005 8 – engine codes ALH, ATD, AXR, BSW only 9 – only manual gearbox 10 – daytime running lights only 11 – American markets only; only models with mechanical window regulator

Fuses (S) in fuse holder, left dash panel

Volkswagen New Beetle (1998 - 2011) - fuse and relay box diagram - passenger compartment (dash panel) — Volkswagen New Beetle (1998 – 2011) – fuse and relay box diagram – passenger compartment (dash panel)

Assignment of the fuses in the passenger compartment (dashboard)

№	A	Function/component
1	10	J99 – Heated exterior mirror relay^*1 J131 – Heated driver seat control unit (T6/5) J132 – Heated front passenger seat control unit (T6b/5) W6 – Glove compartment light Z20/ Z21 – Left/right washer jet heater element
2	10	J1 – Turn signal relay (T7/6) M5/ M7 – Front left/right turn signal bulb M6/ M8 – Rear left/right turn signal bulb
3	5	E1 – Lighting switch E20 – Switches and instruments illumination regulator J5 – Fog light relay (4/86)
4	5	X – number plate light
5	7,5	E45 – Cruise control system switch^2 E159 – Fresh air/air recirculation flap switch (T8b/5) E184 – Fresh air and air recirculation switch^1 E227 – Cruise control system (CCS) SET button (T4q/3), CCS only^1 E231 – Exterior mirror heater button F36 – Clutch pedal switch (T4q/3) F47 – Brake pedal switch G65 – High-pressure sender (T3e/3) J89 – Daytime running lights change-over relay (8/86) J255 – Climatronic control unit (T16c/9)^1 J293 – Radiator fan control unit (T14/9) J386 – Driver door control unit (T18d/3) T16 – 16-pin connector, self-diagnosis (T16/1T16/16) V48 – Left headlight range control motor^1 V49 – Right headlight range control motor^1 Y2 – Digital clock^2 Y7 -Automatic anti-dazzle interior mirror^2
6	5	J393 – Convenience system central control unit (T23/5) Vacant, model year 2004
7	10	F4 – Reversing light switch F125 – Multifunction switch (T10t/10)^*2 G22 – Speedometer sender J226 – Starter inhibitor and reversing light relay (T9/5) K142 – Selector lever position P/N warning lamp M16 / M17 – Left/right reversing light bulb T16 – 16-pin connector, self-diagnosis (T16/1)
8	–	Vacant J412 – Mobile telephone operating electronics control unit (T18d/10)^*3
9	5	E256 – TCS and ESP button (T6/6) J104 – ABS control unit (T47a/4) G85 – Steering angle sender (T6k/5)
10	10	J285 – Control unit in dash panel insert (T32/30) J393 – Convenience system central control unit (T23/17), models with window regulator from 2003 only R – Radio Y2 – Digital clock
11	5	J285 – Control unit in dash panel insert (T32/1) N110 – Selector lever lock solenoid
12	7,5	T16 – 16-pin connector, self-diagnosis (T16/16) J502 – Tyre pressure monitor control unit (T20b/3)^*2
13	10	F – Brake light switch
14	10	J220 – Motronic control unit (T121/62) J271 – Motronic current supply relay J393 – Convenience system central control unit (T23/22), models with window regulator from model year 2003
15	5	G85 – Steering angle sender (T6p/4) for TCS/ESP J217 – Automatic gearbox control unit (T68/45) J285 – Control unit in dash panel insert (T32/23) Y2 – Digital clock^*2
16	10	J293 – Radiator fan control unit (T14/4)
17	–	Vacant
18	10	J5 – Fog light relay J285 – Control unit in dash panel insert (T32/a17) J607 – Right dip and main beam switch relay (for gas discharge bulb)^*1 M32 – Right main beam bulb
19	10	J606 – Left dip and main beam switch relay (for gas discharge bulb)^*1 M30 – Left main beam bulb
20	15	J607 – Right dip and main beam switch relay (for gas discharge bulb)^*1 M31 – Right headlight dipped beam bulb
21	15	J606 – Left dip and main beam switch relay (for gas discharge bulb)^*1 M29 – Left headlight dipped beam bulb
22	5	J285 – Control unit in dash panel insert (T32/26) M3 – Right side light bulb^2 M22 – Right brake and tail light bulb M34 – Front right side marker bulb^2 M36 – Front right turn signal and side marker bulb M38 – Rear right side marker bulb
23	5	J285 – Control unit in dash panel insert (T32/27) M1 – Left side light bulb^2 M21 – Left brake and tail light bulb M33 – Front left side marker bulb^2 M35 – Front left turn signal and side marker bulb M37 – Rear left side marker bulb
24	20	E22 – Intermittent wiper switch (T8c/8) J31 – Automatic intermittent wash and wipe relay (T18a/13), for headlight washer system only
25	25	E9 – Fresh air blower switch (T6d/2) J255 – Climatronic control unit (T16b/14)^1 V2 – Fresh air blower, for Climatronic only^1
26	25	E15 – Heated rear window switch (T6b/5) Z1 – Heated rear window
27	15	U1 – Cigarette lighter, from model year 2007 J29 – Blocking diode, from model year 2007 U18 – 12 V socket -2- U19 – 12 V socket 3, in luggage compartment
28	15	G6 – Fuel system pressurisation pump J17 – Fuel pump relay (T9b/1)^*3
29	15	J220 – Motronic control unit (T121/3) J248 – Diesel direct injection system control unit (T121/37)^1 N30/ N31/ N32/ N33/ N83 – Injector, cylinder^2 J623 – Engine control unit (T80/4), engine code CBPA only^*2 G70 – Air mass meter, (T5d/2), engine code BEW only, from June 2003 up to December 2006 J248 – Diesel direct injection system control unit, (T94/18), engine code BEW only, from June 2003 up to December 2006
30	20	J245 – Sliding sunroof adjustment control unit (T6l/4)
31	20	F125 – Multifunction switch (T8a/7)^*1 J217 – Automatic gearbox control unit (T68/23) J539 – Brake servo control unit (T6k/3)
32	30	N30/ N31/ N32/ N33 – Injector, cylinders, engine code CBPA only N280 – Air conditioning system compressor regulating valve^*2
32	15	J248 – Diesel direct injection system control unit (T121/2) N146 – Metering adjuster^*1
33	20	Vacant
34	10	G40 – Hall sender, engine code BEW only, from June 2003 up to December 2006 J52 – Glow plug relay (engine codes ALH and BEW only) J299 – Secondary air pump relay (T13/9)^3 J370 – Glow plug activation control unit, (6/87), engine code BEW only, from June 2003 up to December 2006 N18 – Exhaust gas recirculation valve (engine codes ALH and BEW only) N75 – Charge pressure control solenoid valve N79 – Heater element for crankcase breather^3 N108 – Commencement of injection valve (engine codes ALH and BEW only) N239 – Variable intake manifold flap change-over valve (engine codes ALH and BEW only) N205 – Inlet camshaft control valve 1 (engine codes ALH and BEW only) N249 – Turbocharger air recirculation valve (engine codes ALH and BEW only) N345 – Exhaust gas recirculation cooler change-over valve, engine code BEW only, from June 2003 up to December 2006 S130 – Secondary air pump fuse^*3 V157 – Intake manifold flap motor, engine code BEW only, from June 2003 up to December 2006
35	30	U19 – 12 V socket 3, in luggage compartment U10 – Trailer socket (T13/9)^*3
36	15	E7 – Fog light switch (T17/2)
37	20	J220 – Motronic control unit (T121/62) J248 – Diesel direct injection system control unit (T121/88), engine codes ALH and BEW J271 – Motronic current supply relay (1/30) J393 – Convenience system central control unit (T23/17), models with window regulator J623 – Engine control unit (T80/15), engine code CBPA only S283 – Brake vacuum pump fuse
38	15	E204 – Tank filler flap remote release switch E233 – Rear lid remote release button J386 – Driver door control unit (T29/19), models with window regulator J387 – Front passenger door control unit (T29a/19), models with window regulator J393 – Convenience system central control unit (T23/22)^*3
39	15	E3 – Hazard warning light switch (T8d/8)
40	20	H1 – Horn or dual tone horn J4 – Dual tone horn relay (3/30)
41	15	U1 – Cigarette lighter U5 – 12 V socket U18 – 12 V socket -2-, from 07.03 U19 – 12 V socket 3, in luggage compartment, from 07.03 Vacant^*3
42	25	R – Radio (T8/5, T8/7)
43	10	G39 – Lambda probe G70/G42 – Air mass meter/ Intake air temperature sender, engine codes BPS, BPR only G108 – Lambda probe 2 G130 – Lambda probe after catalytic converter G465 – Centre Lambda probe for bank 1 catalytic converter, engine code BPR only J299 – Secondary air pump relay (4/85)^1 N80 – Activated charcoal filter system solenoid valve 1 N112-Secondary air inlet valve^1 V144 – Fuel system diagnostic pump
43	10	F36 – Clutch pedal switch F47-Brake pedal switch J359 – Low heat output relay J360 – High heat output relay N79-Heater element for crankcase breather
44	15	J131 – Heated driver seat control unit (T6/4) J132 – Heated front passenger seat control unit (T6b/4)
1 – model year 2002 up to july 2005 2 – from model July 2005 3 – from model July 2009

J179 – Automatic glow period control unit*¹,²

Volkswagen New Beetle (1998 - 2011) - fuse and relay box diagram - engine compartment (automatic glow period control unit) — Volkswagen New Beetle (1998 – 2011) – fuse and relay box diagram – engine compartment (automatic glow period control unit)

Location: in centre of plenum chamber ⇒ -arrow-
1) engine code BEW only
2) from June 2003 up to December 2006

Additional relay carrier

Assignment of the fuses in the additional relat carrier

№	Function/component
1	Secondary air pump relay -J299- (100)^1 High heat output relay -J360- (100)^2
2	Motronic current supply relay -J271- (458)^1 Low heat output relay -J359- (53)^2
1 – petrol engines only 2 – diesel engines only

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

MG ZR (2001 – 2005) – fuse and relay box diagram

Posted on 20 July 201812 May 2025 by admin

MG ZR (2001 – 2005) – fuse and relay box diagram

Year of production: 2001, 2002, 2003, 2004, 2005

The MG ZR hatchback was produced from 2001 to 2005. This article provides fuse box diagrams for the 2001 through 2005 models, details the locations of the fuse panels within the vehicle, and explains the function of each fuse (fuse layout).

Passenger Compartment Fuse Box

Fuse Box Location

Fuse Box Diagram

MG ZR (2001 - 2005) - fuse and relay box diagram - passenger compartment fuse box — MG ZR (2001 – 2005) – fuse and relay box diagram – passenger compartment fuse box

Assignment of the fuses in the passenger compartment

No	A	Description
1	15	Horn
2	20	Window – RH rear
3	10	Rear fog guard lights
4	20	Window – LH rear
5	10	Interior & luggage compartment lights, Seat belt buckle – RH, Audio unit. Door mirrors, Clock
6	20	Window – LH front
7	30	Sunroof
8	20	Window – RH front
9	20	Screen washers, Headlight washers
10	10	Headlight – RH main beam
11	10	Daylight running lights, Interior illumination (Scandinavia)
12	10	Headlight – LH main beam
13	10	Side & tail lights – LH, Headlight levelling – LH, Glovebox light. Clock, Interior lights
14	10	Headlight – RH dipped beam
15	10	Side & tail lights – RH, Headlight levelling – RH, Number plate light
16	10	Headlight – LH dipped beam
17	20	Blower motor
18	20	Seat heaters
19	10	Audio system
20	10	Engine starting
21	15	Windscreen wipers – front
22	10	Door mirrors
23	10	Anti-lock braking system
24	10	Brake lights. Reversing lights
25	10	Anti-theft alarm. Blower motor, Direction indicators, Clock, Instrument pack
26	15	Rear screen wiper. Headlight washers. Air conditioning illumination. Seat heaters
27	5	Airbag SRS

Engine compartment fuse box

Fuse Box Location

The fuse box is located on the left hand side of the engine compartment.

Fuse Box Diagram

MG ZR (2001 - 2005) - fuse and relay box diagram - engine compartment fuse box — MG ZR (2001 – 2005) – fuse and relay box diagram – engine compartment fuse box

Assignment of the fuses in the engine compartment

No	A	Description
1	10	Engine management system. Automatic transmission selector, Speedometer
2	20	Engine management system. Fuel pump
3	10	Engine management system. Glow plug relay
4	10	Air conditioning relay, Cooling fan relay
5	25	Anti-theft alarm. Central door locking
6	15	Front fog lights
7	15	Hazard warning lights
8	15	Engine management system
9	10	Air conditioning
10	20	Fuel cut-off switch

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Iveco Daily (III; 2000 – 2006) – fuse and relay box diagram

Posted on 18 July 20183 August 2025 by admin

Iveco Daily (III; 2000 – 2006) – fuse and relay box diagram

Year of production: 2000, 2001, 2002, 2003, 2004, 2005, 2006

This article covers the second-generation Iveco Daily (III), produced from 2000 to 2006. It includes fuse box diagrams for the 2000, 2001, 2002, 2003, 2004, 2005 and 2006 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.

Passenger compartment

Fuse box diagram

Assignment of the fuses in the passenger compartment

No	Function	A
1	ID/TCA (.11): Thermal starter	40
1	UNIJET (.13-.15): Thermal starter	80
1	UNIJET F1A (.10-.12): Thermal starter, additional heater	30
2	Immobilizer/Warming/EDC	5
3	DDS device	5
4	Instrument cluster (+30)	5
5	Instrument cluster (+15)	5
6	Stalk unit (rear fog guard, flasher)	5
7	Stalk unit (low beams)	10
8	Stalk unit (high beams)	15
9	Stalk unit (side lights)	15
10	Windscreen wiper	15
11	Stalk unit (direction indicators/hazard warning lights)	15
12	Stalk unit (horns)	15
13	Reversing light	5
14	Side light, clearance, no. plate light	5
15	Side light cluster lighting	5
16	Left low beam headlamp	10
17	Right low beam headlamp	10
18	Left high beam headlamp	10
19	Right high beam headlamp/headlamp aming	10
20	Interior lighting/radio/cigar lighter	10
20	UNIJET F1A (.10-.12): Interior lighting/radio	10
21	Electric windscreen defrosting unit	30
21	UNIJET F1A (.10-.12): Cigar lighter	15
22	Heated fuel filter	15
23	EDC electronic control unit	25
24	EDC	10
25	Stop lights	5
26	13-pin current socket	15
27	13-pin current socket	15
28	13-pin current socket	10
29	38-pin diagnostic connector	5
30	Fog lamps	10
31	Climate control, additional heater, engine cooling	5
31	UNIJET F1A (.10-.12): Compressor, timer, engine fan	10
32	Climate control	5
33	Additional heater	20
34	Headlamp washer	20
35	Rear differential lock	5
36	ABS, EBD, ABD failure warning light	5
37	ABS	5
39	Heated mirrors	10
39	UNIJET F1A (.10-.12): Heated mirrors, heated rear-screen, heated windscreen	10
40	Power windows	30
40	UNIJET F1A (.10-.12): Power windows (left)	20
41	Heated rear-screen, heated windscreen	10/ 20
42	Self-levelling suspensions (Wabco)	5
43	Air bag failure warning light	5
44	Self-levelling suspensions (Wabco)	40
45	Air-bag	5
46	Solenoid valve for thermal starter	5
46	UNIJET F1A (.10-.12): Power windows (right)	20
47	Electric fuel pump	10
48	Door locking/alarm	30
49	Door locking/alarm	5
50	Rear differential lock	30
51	Total power takeoff	10
52	Front differential lock (4×4)	30
53	Self-levelling suspensions Techniek)	30
54	Electric hatch (van and 6+1)	15
55	Rototranslating door	15
Code	Relays
25035	Switching on external lights
25003	Switching on fog lamps
25006	Switching on stop lights
25704	Total power takeoff engagement control
25104	Switching off Retarder with ABS on
25209	Loads cut-off during starting
25222	Thermal starter engagement enable
25223	Thermal starter fan control
25307	Climate control compressor engagement
25336	Engine cooling
25337	Climate control compressor disengagement
25340	Compressor on signal
25620	Fuel filter clogged signal
25705	Diagnostics enable
25810	Heated fuel filter circuit control
25811	Advance variator control (KSB)
25818	Heated windscreen switching on
25837	Electric fuel pump switching on
25858	EDC switching on
25926	Suspension raising enable
25927	Suspension lowering enable
25928	Rear-screen heating switching on
61002A	Anti-retum from Trinary
61002В	Anti-retum from TGC (bus)
66010	Timer for headlamp washer

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Buick Century (VI; 2002 – 2003) – fuse and relay box diagram

Posted on 22 January 201717 August 2025 by admin

Buick Century (VI; 2002 – 2003) – fuse and relay box diagram

Year of production: 2002, 2003

This article covers the Buick Century. It includes fuse box diagrams for the 6th generation 2002 and 2003 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.

Passenger compartment

Fuse box location

The fuse box is located on right side of the instrument panel, behind the cover.

Fuse box diagram

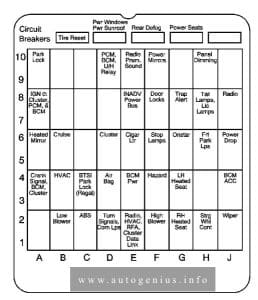

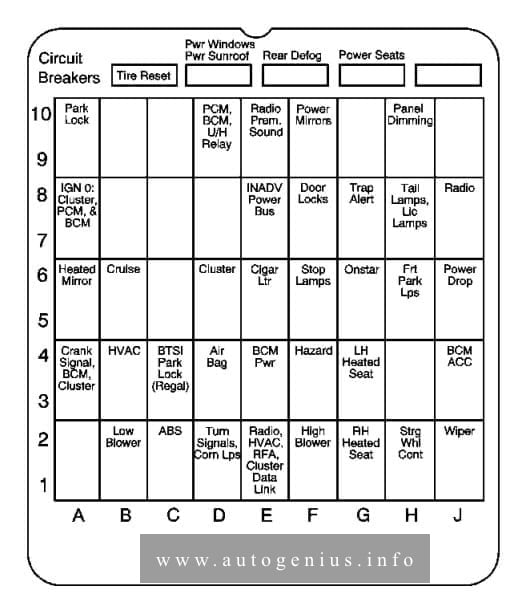

Buick Centaury (VI; 2002 - 2003) - fuse and relay box diagram - passenger compartment — Buick Centaury (VI; 2002 – 2003) – fuse and relay box diagram – passenger compartment

Assignment of the fuses in the passenger compartment

Circuit Breakers	Usage
TIRE RESET	Tire Inflation Monitor Reset Button
PWR/WNDW PWR S/ROOF	Power Windows, Power Sunroof
R/DEFOG	Rear Window Defogger
PWR/ SEAT	Power Seat
Blank	Not Used

Fuses	Usage
PRK/LCK	Ignition Key Solenoid
Blank	Not Used
Blank	Not Used
PCM, BCM, U/H	Ignition Signal: Hot in Run and Start, Powertrain Control Module, Body Control Module, Underhood Relay
RADIO PREM. SOUND	Remote Radio Premium Sound
POWER MIRRORS	Power Mirrors
Blank	Not Used
INT/ILLUM	Panel Dimming
Blank	Not Used
IGN 0: CLSTR, CM & BCM	Ignition Signal: Hot in Run, Unlock and Start; Cluster, Powertrain Control Module, Body Control Module
Blank	Not Used
Blank	Not Used
Blank	Not Used
INADV POWER BUS	Retained Accessory Power
DOOR LOCKS	Door Locks
TRAP ALERT	Trap Alert
TAIL LAMPS, LIC LAMPS	Taillamps, License Plate Lamps
RADIO	Radio
HEATED MIRROR	Heated Mirrors
CRUISE	Cruise Control
Blank	Not Used
CLUSTER	Instrument Panel Cluster
CIGAR LTR	Cigarette Lighter, Auxiliary Power Connection (Power Drop)
STOP LAMPS	Stoplamps
ONSTAR	OnStar®
FRT PARK LPS	Parking Lamps
POWER DROP	Auxiliary Power Connection (Power Drop): Hot in ACC and Run
CRANK SIGNAL, BCM, CLUSTER	Crank Signal, Body Control Module, Cluster, Powertrain Control Module
HVAC	Ignition Signal, Heating, Ventilation, and Air Conditioning Control Head
BTSI PARK LOCK	Shifter Lock Solenoid
AIR BAG	Air Bag
BCM PWR	Body Control Module
HAZARD	Hazard Warning Flashers
LH HEATED SEAT	Driver’s Heated Seat
Blank	Not Used
BCM ACCY	Ignition Signal: Hot in ACCESSORY and RUN, Body Control Module
Blank	Not Used
LOW BLOWER	Low Blower
ABS	Anti-Lock Brakes
TURN SIGNALS, CORN LPS	Turn Signals, Cornering Lamps
RADIO, HVAC, RFA, CLUSTER	Radio, HVAC Head, Remote Keyless Entry, Cluster
HIGH BLOWER	High Blower
RH HEATED SEAT	Passenger’s Heated Seat
STRG WHL CONT	Audio Steering Wheel Controls
WIPER	Wipers

Engine compartment

Fuse box location

Some fuses and relays are located in the underhood fuse block on the passenger’s side of the vehicle in the engine compartment.

Fuse box diagram

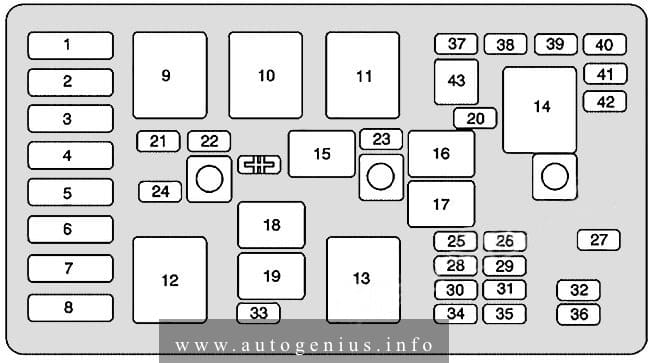

Buick Centaury (VI; 2002 - 2003) - fuse and relay box diagram - engine compartment — Buick Centaury (VI; 2002 – 2003) – fuse and relay box diagram – engine compartment

Assignment of the fuses in the engine compartment

Maxi Fuses	Usage
1	ABS
2	Starter Solenoid
3	Power Seats, Rear Defog, Heated Seats
4	High Blower, Hazard Flasher, Stoplamps, Power Mirror, Door Locks
5	Ignition Switch, BTSI, Stoplamps, ABS, Turn Signals, Cluster, Air Bag, DRL Module
6	Cooling Fan
7	Retained Accessory Power, Keyless Entry, Data Link, Heating Ventilation Air Conditioning Head, Cluster, Radio, Auxiliary Power (Power Drop), Cigarette Lighter
8	Ignition Switch, Wipers, Radio, Steering Wheel Controls, Body Control Module, Auxiliary Power (Power Drop), Power Windows, Sunroof, Heating Ventilation Air Conditioning Controls, Daytime Running Lamps, Rear Defog Relay

Mini Relays	Usage
9	Cooling Fan 2
10	Cooling Fan 3
11	Starter Solenoid
12	Cooling Fan 1
13	Ignition Main
14	Not used
15	Not Used
16	Horn
17	Fog Lamps
18	Not Used
19	Fuel Pump

Micro Relays	Usage
15	A/C Clutch
16	Horn
17	Not Used
18	Not Used
19	Fuel Pump

Mini Fuses	Usage
20	Not Used
21	Generator
22	ECM
23	A/C Compressor Clutch
24	Cooling Fan
25	Electronic Ignition
26	Transaxle

Mini Relay	Usage
27	Horn
28	Fuel Injector
29	Oxygen Sensor
30	Engine Emissions
31	Not Used
32	Headlamp (Right)
33	Rear Compartment Release
34	Parking Lamps
35	Fuel Pump
36	Headlamp (Left)
37	Spare
38	Spare
39	Spare
40	Spare
41	Spare
42	Spare
43	Spare
SYMBOL	Air Conditioner Compressor Clutch Diode

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
