Toyota Land Cruiser (70, AU 78/79; 2000 – 2006) – fuse and relay box diagram

Posted on by admin

Toyota Land Cruiser (70, AU 78/79; 2000 – 2006) – fuse and relay box diagram

Year of production: 2000, 2001, 2002, 2003, 2004, 2005, 2006



This article provides fuse box diagrams for the Toyota Land Cruiser 78/79 (Australia) models from 2000 to 2006. It also includes details on the location of the fuse panels within the vehicle and explains the function and layout of each fuse.



Passenger Compartment Fuse Boxes

Fuse Box Location

Remove the lid to access.

Toyota Land Cruiser (2000 - 2006) - fuse box - location passenger compartment
Toyota Land Cruiser (2000 – 2006) – fuse and relay box – location passenger compartment



Fuse Box Diagrams

Toyota Land Cruiser (2000 - 2006) - fuse box diagram - passenger compartment
Toyota Land Cruiser (2000 – 2006) – fuse and relay box diagram – passenger compartment



Assignment of the fuses under the instrument panel

№ Name Amp Description
1 SPARE 7.5A Spare fuse
2 SPARE 15A Spare fuse
3 CHARGE 7.5A Gasoline: No circuit
IGN 7.5A 1HD-FTE engine: Electronically controlled fuel injection pump system
4 CIG 15A Cigarette lighter, clock, radio
5 EFI 15A Gasoline: Multiport fuel injection system / sequential multiport fuel injection system
ECD 15A 1HD-FTE engine: Electronically controlled fuel injection pump system
6 A.C 10A Air conditioning system
7 TURN 10A Turn signals lights
8 DEFOG 15A No circuit
9 WIPER 20A Windshield wipers and washer, rear window wiper and washer, back-up lights
10 ENGINE 15A Charging system, emission control system, gauges and meters, service reminder indicators and warning buzzer
11 ST 30A Diesel: Starting system
12 STOP 10A Stop lights
13 DOME 10A Interior light, luggage compartment light, clock, radio
14 RADIO 10A Diesel: No circuit
15 ECU-B 10A Diesel; 2003-2006: Exhaust gas recirculation system
16 TAIL 20A Tail lights, parking lights, license plate lights, instrument panel lights
17 GLOW 7.5A Diesel: No circuit
18 HAZ-HORN 15A Emergency flashers, horns
19 HEAD (LH) 10A Left-hand headlights
20 HEAD (RH) 10A Right-hand headlights
21 IGN 7.5A Gasoline: Multiport fuel injection system / sequential multiport fuel injection system
FUEL-HTR 15A Diesel: No circuit
22 DOOR 30A Power door lock system
23 HEATER 30A Air conditioning system
24 POWER 30A Power windows
25 DIFF 30A Differential lock system, four-wheel drive control system



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Toyota Tarago (2003 – 2005) – fuse and relay box diagram

Posted on by admin

Toyota Tarago (2003 – 2005) – fuse and relay box diagram

Year of production: 2003, 2004, 2005



The Toyota Tarago (2003-2005) is an Australian-market version of the globally known Toyota Previa or Estima, and it is a versatile multi-purpose vehicle (MPV) designed to accommodate large families or serve as a people mover. Known for its spacious interior, comfort, and reliable engineering, the Tarago was a popular choice in the minivan segment in Australia during this time. It offered a balance of practicality, comfort, and performance for long journeys and daily use.



Passenger Compartment Fuse Boxes

Fuse Box Location

Toyota Tarago (2003 - 2005) - fuse box location - passenger compartment
Toyota Tarago (2003 – 2005) – fuse and relay box location – passenger compartment



Fuse Box Diagrams

Fuse Box №1
Toyota Tarago (2003 - 2005) - fuse box diagram - passenger compartment (fuse box no. 1)
Toyota Tarago (2003 – 2005) – fuse and relay box diagram – passenger compartment (fuse box no. 1)



Assignment of the fuses in the Fuse Box №1 (driver’s side)

№ Name Amp Description
27 STOP 15A Stoplights, high mounted stoplight
28 GAUGE 10A Gauges and meters, air conditioning system, service reminder indicators
29 A/C 7.5A Air conditioning system
30 S-HTR (R) 10A Seat heater (right)
31 S-HTR (L) 10A Seat heater (left)
32 IGN 15A Gauges and meters, changing system, SRS airbag system, multiport fuel injection system / sequential multiport fuel injection system
33 ECU-IG 15A Rear window defogger, anti-lock brake system, power windows multiport fuel injection system / sequential multiport fuel injection system
34 WIP 30A Windshield wipers and washer, rear window wiper and washer
35 RR DOOR 30A No circuit
36 AM1 7.5A Starter system
37 OBD II 7.5A On-board diagnosis system
38 MET 7.5A Gauges and meters
48 RR HTR 30A Heater system, gauges and meters
Fuse Box №2
Toyota Tarago (2003 - 2005) - fuse box diagram - passenger compartment (fuse box no. 2)
Toyota Tarago (2003 – 2005) – fuse and relay box diagram – passenger compartment (fuse box no. 2)



Assignment of the fuses in the Fuse Box №2 (passenger’s side)

№ Name Amp Description
17 P/OUTLET 15A Power outlet
18 CIG 15A Car audio system, cigarette lighter, power rear view mirrors
19 DOOR (RL) 30A No circuit
20 RR FOG 7.5A No circuit
21 FOG 15A Front fog lights
22 TAIL 15A Tail lights, license plate lights, instrument panel lights
23 DEF 20A Rear window defogger, outside rear view mirror heaters, multiport fuel injection system / sequential multiport fuel injection system and “l/UP” fuse
24 ACC 30A “P/OUTLET” and “CIG” fuses
25 T/M 10A Back-up lights, clock
26 l/UP 10A Rear window defogger, outside rear view mirror heaters, multiport fuel injection system / sequential multiport fuel injection system
44 FR HTR 40A Heater system and “BLC” fuse
45 PWR 30A Power windows, electric moon roof
46 DR LCK 30A Power door lock system
47 VSC 40A No circuit

Engine Compartment Fuse Boxes

Fuse Box Location

Toyota Tarago (2003 - 2005) - fuse box location - engine compartment
Toyota Tarago (2003 – 2005) – fuse and relay box location – engine compartment



Fuse Box Diagrams

Fuse Box №1
Toyota Tarago (2003 - 2005) - fuse box diagram - engine compartment (fuse box no. 1)
Toyota Tarago (2003 – 2005) – fuse and relay box diagram – engine compartment (fuse box no. 1)



Assignment of the fuses in the Fuse Box №1

№ Name Amp Description
1 SLC 10A No circuit
2 H-LP (RH) 15A Right-hand headlight (hiqh beam)
3 H-LP (LH) 15A Left-hand headlight (high beam)
4 H-LP (RL) 15A Right-hand headlight and headlight beam level control
5 H-LP (LL) 15A Left-hand headlight
6 DOME 10A Clock, personal light, door courtesy lights
7 HAZ-HORN 20A Emergency flashers, turn signal lights, horn
8 STA 7.5A Engine starter system, multiport fuel injection system / sequential multiport fuel injection system
9 EFI 15A Multiport fuel injection system / sequential multiport fuel injection system
10 RAD №1 15A Car audio system
11 ECU-B 10A Service reminder indicators, air conditioning system
12 SPARE 15A Spare fuse
13 SPARE 7.5A Spare fuse
14 ETCS 10A Electronic throttle control system
39 FAN-2 30A Electric cooling fans
40 FAN-1 30A Electric cooling fans
Fuse Box №2
Toyota Tarago (2003 - 2005) - fuse box diagram - engine compartment (fuse box no. 2)
Toyota Tarago (2003 – 2005) – fuse and box diagram – engine compartment (fuse box no. 2)



Assignment of the fuses in the Fuse Box №2

№ Name Amp Description
15 ABS 25A Anti-lock brake system
16 ALT-S 5A Charging system
41 FR DEF 50A No circuit
42 ABS 40A Anti-lock brake system
43 AM2-2 30A “IGN”, “STA” and “MET” fuses
49 AM2 80A “HAZ-HORN”, “RAD №1”, “ECU-B”, “EFI”, “H-LP (RH)”, “H-LP (LH)”, “H-LP (RL)”, “H-LP (LL)” and “DOME” fuses
50 ALT 140A “FR HTR”, “PWR”, “P/OUTLET”, “T/M”, “DEF”, “FOG”, “DOOR (RL)”, “DR LCK”, “TAIL”, “PTC1”, “PTC2”, “PTC3”, “AM1”, “VSC” and “RR FOG” fuses
51 AM-1 100A “A/C”, “GAUGE”, “ECU-IG”, “WIP”, “S-HTR (R)”, “S-HTR (L)”, “RR HTR”, “AM1 “, “RR DOOR”, “FAN-1”, “FAN-2”, “STOP” and “OBD II” fuses

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Toyota Previa (2003 – 2005) – fuse box diagram

Posted on by admin

Toyota Previa (2003 – 2005) – fuse box diagram

Year of production: 2003, 2004, 2005



The Toyota Previa (2003-2005) is a multi-purpose vehicle (MPV) or minivan, known for its spacious interior, family-friendly design, and reliable performance. In various markets, including some parts of Asia and Europe, it was also sold under the name Toyota Estima. The Previa was designed to offer practicality, comfort, and a smooth driving experience, making it a popular choice for families and individuals seeking a versatile vehicle.



Passenger Compartment Fuse Boxes

Fuse Box Location

Toyota Previa (2003 - 2005) - fuse box location - passenger compartment
Toyota Previa (2003 – 2005) – fuse box location – passenger compartment



Fuse Box Diagrams

Fuse Box №1
Toyota Previa (2003 - 2005) - fuse box diagram - passenger compartment (fuse box no. 1)
Toyota Previa (2003 – 2005) – fuse box diagram – passenger compartment (fuse box no. 1)



Assignment of the fuses in the Fuse Box №1 (driver’s side)

№ Name Amp Description
27 STOP 15A Stoplights, high mounted stoplight
28 GAUGE 10A Gauges and meters, air conditioning system, service reminder indicators
29 A/C 7.5A Air conditioning system
30 S-HTR (R) 10A Seat heater (right)
31 S-HTR (L) 10A Seat heater (left)
32 IGN 15A Gauges and meters, changing system, SRS airbag system, multiport fuel injection system / sequential multiport fuel injection system
33 ECU-IG 15A Rear window defogger, anti-lock brake system, power windows multiport fuel injection system / sequential multiport fuel injection system
34 WIP 30A Windshield wipers and washer, rear window wiper and washer
35 RR DOOR 30A No circuit
36 AM1 7.5A Starter system
37 OBD II 7.5A On-board diagnosis system
38 MET 7.5A Gauges and meters
48 RR HTR 30A Heater system, gauges and meters
Fuse Box №2
Toyota Previa (2003 - 2005) - fuse box diagram - passenger compartment (fuse box no. 2)
Toyota Previa (2003 – 2005) – fuse box diagram – passenger compartment (fuse box no. 2)



Assignment of the fuses in the Fuse Box №2 (passenger’s side)

№ Name Amp Description
17 P/OUTLET 15A Power outlet
18 CIG 15A Car audio system, cigarette lighter, power rear view mirrors
19 DOOR (RL) 30A No circuit
20 RR FOG 7.5A No circuit
21 FOG 15A Front fog lights
22 TAIL 15A Tail lights, license plate lights, instrument panel lights
23 DEF 20A Rear window defogger, outside rear view mirror heaters, multiport fuel injection system / sequential multiport fuel injection system and “l/UP” fuse
24 ACC 30A “P/OUTLET” and “CIG” fuses
25 T/M 10A Back-up lights, clock
26 l/UP 10A Rear window defogger, outside rear view mirror heaters, multiport fuel injection system / sequential multiport fuel injection system
44 FR HTR 40A Heater system and “BLC” fuse
45 PWR 30A Power windows, electric moon roof
46 DR LCK 30A Power door lock system
47 VSC 40A No circuit

Engine Compartment Fuse Boxes

Fuse Box Location

Toyota Previa (2003 - 2005) - fuse box location - engine compartment
Toyota Previa (2003 – 2005) – fuse box location – engine compartment



Fuse Box Diagrams

Fuse Box №1
Toyota Previa (2003 - 2005) - fuse box diagram - engine compartment (fuse box no. 1)
Toyota Previa (2003 – 2005) – fuse box diagram – engine compartment (fuse box no. 1)



Assignment of the fuses in the Fuse Box №1

№ Name Amp Description
1 SLC 10A No circuit
2 H-LP (RH) 15A Right-hand headlight (hiqh beam)
3 H-LP (LH) 15A Left-hand headlight (high beam)
4 H-LP (RL) 15A Right-hand headlight and headlight beam level control
5 H-LP (LL) 15A Left-hand headlight
6 DOME 10A Clock, personal light, door courtesy lights
7 HAZ-HORN 20A Emergency flashers, turn signal lights, horn
8 STA 7.5A Engine starter system, multiport fuel injection system / sequential multiport fuel injection system
9 EFI 15A Multiport fuel injection system / sequential multiport fuel injection system
10 RAD №1 15A Car audio system
11 ECU-B 10A Service reminder indicators, air conditioning system
12 SPARE 15A Spare fuse
13 SPARE 7.5A Spare fuse
14 ETCS 10A Electronic throttle control system
39 FAN-2 30A Electric cooling fans
40 FAN-1 30A Electric cooling fans
Fuse Box №2
Toyota Previa (2003 - 2005) - fuse box diagram - engine compartment (fuse box no. 2)
Toyota Previa (2003 – 2005) – fuse box diagram – engine compartment (fuse box no. 2)



Assignment of the fuses in the Fuse Box №2

№ Name Amp Description
15 ABS 25A Anti-lock brake system
16 ALT-S 5A Charging system
41 FR DEF 50A No circuit
42 ABS 40A Anti-lock brake system
43 AM2-2 30A “IGN”, “STA” and “MET” fuses
49 AM2 80A “HAZ-HORN”, “RAD №1”, “ECU-B”, “EFI”, “H-LP (RH)”, “H-LP (LH)”, “H-LP (RL)”, “H-LP (LL)” and “DOME” fuses
50 ALT 140A “FR HTR”, “PWR”, “P/OUTLET”, “T/M”, “DEF”, “FOG”, “DOOR (RL)”, “DR LCK”, “TAIL”, “PTC1”, “PTC2”, “PTC3”, “AM1”, “VSC” and “RR FOG” fuses
51 AM-1 100A “A/C”, “GAUGE”, “ECU-IG”, “WIP”, “S-HTR (R)”, “S-HTR (L)”, “RR HTR”, “AM1 “, “RR DOOR”, “FAN-1”, “FAN-2”, “STOP” and “OBD II” fuses

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Holden Rodeo (RA; 2003 – 2006) – fuse box diagram

Posted on by admin

Holden Rodeo (RA; 2003 – 2006) – fuse box diagram

Year of production: 2003, 2004, 2005, 2006

Passenger Compartment Fuse Box

Fuse Box Location

The fuses are located behind a cover on the driver’s side of the dash panel.
To open the fuse cover in the dash panel, open the driver’s side door, pull the top of the cover out, then pivot downwards.

Holden Rodeo (Ra; 2003 - 2006) - fuse box location - passenger compartment
Holden Rodeo (Ra; 2003 – 2006) – fuse box location – passenger compartment

Fuse Box Diagram

Holden Rodeo (Ra; 2003 - 2006) - fuse box diagram - passenger compartment
Holden Rodeo (Ra; 2003 – 2006) – fuse box diagram – passenger compartment
№ Amps Function
1 – –
2 10A ABS
3 – –
4 15A Back Up
5 15A Meter
6 10A Turn
7 15A Elec. IG
8 15A Engine
9 20A Frt Wiper/Washer
10 15A Egr
11 10A Audio
12 15A/20A Cigar/Acc Socket
13 15A Audio (+B)
14 20A Door Lock
15 10A Meter (+B)
16 10A Dome Light
17 10A Anti Theft
18 15A Stop
19 15A Acc Socket (according to 2003)
20 10A Starter
21 10A SRS
SBF10 20A RR Def (Slow blow fuse)
SBF11 30A Power Window (Slow blow fuse)
B-7 Rear defogger relay
B-8 Power window relay
B-40 Acc Socket relay (according to 2003)

Engine Compartment Fuse Box

Fuse Box Location

This fuse box is located on the passenger side of the engine compartment near the battery.
To remove the cover, press the catch on the side of the fuse box towards the engine and release the two tabs at the opposite side.

Holden Rodeo (Ra; 2003 - 2006) - fuse box location - engine compartment
Holden Rodeo (Ra; 2003 – 2006) – fuse box location – engine compartment

Fuse Box Diagram

Holden Rodeo (Ra; 2003 - 2006) - fuse box diagram - engine compartment
Holden Rodeo (Ra; 2003 – 2006) – fuse box diagram – engine compartment
№ Amps Function
1 10A/15A/20A ECM
2 10A/15A 6VE1: ECM
HFV6: O2 pre heat
4JH1-TC: RR Fog
3 10A/15A C24SE: Frt Fog
6VE1, HFV6: ECM (B)
4JH1-TC: Frt Fog
4 10A/15A C24NE, C24SE: ACG (S)
6VE1: Frt Fog
HFV6: TCM/PIM (B)
4JH1-TC: ACG (S) (according to 2003)
5 10A Illumination (according to 2003)
C24SE: Illumination (according to 2006)
HFV6, 4JH1-TC: Illumination & Tail (right) (according to 2006)
6 10A Tail light (according to 2003)
C24SE: Illumination (according to 2006)
HFV6, 4JH1-TC: Illumination & Tail (left) (according to 2006)
7 10A H/Light (right)
8 10A H/Light (left)
9 10A/20A C24NE, C24SE: Fuel Pump
HFV6, 4JH1-TC: Trailer (according to 2006)
6VE1: O2 Sensor (according to 2003)
10 10A/20A C24NE, C24SE: O2 Sensor
6VE1: Fuel Pump
HFV6: O2 Heat Post
4JH1-TC: ACG (S)
11 15A HFV6: Coil-RH
12 15A HFV6: Coil-LH
13 10A A/C
14 10A 4WD
15 10A Horn
16 10A/15A Hazard
17 80A/100A Main fuse
18 20A HFV6: Frt Fog
4JH1-TC: Cond, Fan
19 50A/60A HFV6: Rad, Fan
4JH1-TC: Glow
20 20A/30A C24NE, C24SE, 6VE1: Cond, Fan
HFV6: Fuel Pump
4JH1-TC: ECM
21 40A IG 1
22 40A 6VE1, 4JH1-TC: ABS-1 (according to 2003)
HFV6, 4JH1-TC: IG 1 (according to 2006)
23 30A/40A 6VE1, 4JH1-TC: ABS-2
24 30A Blower
25 50A IG 2
Relays:
X-1 Tail light
X-2 Fuel pump (according to 2003)
4JH1-TC (according to 2006): Frt Fog
X-3 Horn
X-4 Dimmer
X-5 6VE1: Fog light (according to 2003)
4JH1-TC: Glow
X-6 C24NE, 6VE1: Starter (according to 2003)
C24SE: Starter
4JH1-TC: Starter cut
X-7 Cond, Fan (according to 2003)
C24SE, 4JH1-TC (according to 2006): H/Light
X-8 4JH1-TC: Starter (according to 2006)
X-9 6VE1: Hazard (right) (according to 2003)
C24SE: FRT Fog light (according to 2006)
4JH1-TC: Cond fan (according to 2006)
X-10 6VE1: Hazard (left) (according to 2003)
C24SE: Cond fan (according to 2006)
HFV6: FRT Fog light (according to 2006)
X-11 Heater
X-12 Headlights (according to 2003)
HFV6: ECM Main (according to 2006)
X-13 6VE1: ECM Main (according to 2003)
C24SE: Starter cut (according to 2006)
HFV6: Starter (according to 2006)
4JH1-TC: ECM Main (according to 2006)
X-14 A/C compressor
X-15 Thermo (according to 2003)
C24SE, 4JH1-TC: Thermo (according to 2006)
HFV6: H/light (according to 2006)



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Jeep Grand Cherokee (WJ; 1999 – 2005) – fuse and relay box diagram

Posted on by admin

Jeep Grand Cherokee (WJ; 1999 – 2005) – fuse and relay box diagram

Year of production: 1999, 2000, 2001, 2002, 2003, 2004, 2005



In this article, we consider the second-generation Jeep Grand Cherokee (WJ), produced from 1999 to 2005. Here you will find fuse box diagrams of Jeep Grand Cherokee 1999, 2000, 2001, 2002, 2003, 2004 and 2005, get information about the location of the fuse panels inside the car, and learn about the assignment of each fuse (fuse layout) and relay.



Passenger compartment fuse box

Fuse box location

It is located under the instrument panel on the driver’s side, behind a plastic cover near the OBD2 port.

Fuse box diagram

Jeep Grand Cherokee (WJ; 1999 - 2005) - fuse an relay box diagram -passenger compartment
Jeep Grand Cherokee (WJ; 1999 – 2005) – fuse an relay box diagram -passenger compartment



Assignment of the fuses and relay in the instrument panel

No. A Description
1 –  –
2 –  –
3 10 Left Headlamp (High Beam)
4 15 Combination Flasher
5 25 Radio, Amplifier
6 15 Park Lamp Relay (Park Lamp, Tail Lamp, License Lamp, Trailer Tow Connector, Headlamp Leveling Switch)
7 10 Body Control Module, Underhood Lamp, Sentry Key Immobilizer Module, Automatic Zone Control Module, Automatic Headlamp Light Sensor/VTSS LED, Remote Keyless Module
8 15 Rear Wiper Motor, Courtesy Lamp, Glove Box Lamp, Cargo Lamp, Overhead Map Lamp, Door Handle Lamp, Vehicle Information Center, Liftgate Flip-Up Push Button Switch, Security System Module, Visor/Vanity Lamp
9 20 Front Power Outlet, Rear Power Outlet, Power Connector
10 20 Adjustable Pedals (?-’04)
11 10 Automatic Zone Control Module (AZC), Manual Temperature Control (MTC)
12 10 Fuel Pump Relay, Automatic Shut Down Relay, Powertrain Control Module, Transmission Control Relay (4.7L)
13 –  –
14 10 Left Headlamp (Low Beam)
15 10 Right Headlamp (Low Beam)
16 10 Right Headlamp (High Beam)
17 10 Data Link Connector, Instrument Cluster
18 20 Trailer Tow Brake Lamp Relay, Electric Brake (’99-’01-?)
30 Trailer Tow Brake Lamp Relay, Electric Brake (?-’04)
19 10 ABS
20 10 Combination Flasher, Automatic Zone Control Module (AZC), Manual Temperature Control (MTC), Temperature Valve Actuator (MTC), Transmission Solenoid/TRS Assembly (4.7L), Park/Neutral Position Switch (4.0L, 3.1L TD), Driver/Passenger Heated Seat Switch
21 10 Gasoline: Air Conditioner Compressor Clutch Relay, EVAP/Purge Solenoid, Brake Transmission Shift Interlock Solenoid
10 Diesel: Fuel Heater Relay, Engine Control Module, Brake Transmission Shift Interlock Solenoid
22 10 Body Control Module, Instrumeent Cluster, Sentry Key Immobilizer Module, Vehicle Information Center, Automatic Day/Night Mirror, Security System Module
23 15 Stop Lamp Switch
24 15 Front Fog Lamp Relay, Body Control Module
25 20 Sunroof Delay Relay, Body Control Module
26 15 Cigar Lighter
27 15 Rear Fog Lamp Relay
28 10 Body Control Module
29 10 Cigar Lighter Relay, Right Multi-Function Switch
30 15 Radio
31 10 Starter Relay, Transmission Control Module (4.7L)
32 10 Airbag Control Module
33 10 Airbag Control Module
Circuit Breaker
C1 20 Front Wiper Motor, Wiper (On/Off) Relay (Wiper (High/Low) Relay)
C2 20 Power Seat
Relay
R1 Low Beam / Daytime Running Lamp
R2 Cigar Lighter
R3 Combination Flasher
R4 Rear Window Defogger
R5 Rear Fog Lamp
R6 Low Beam
R7 High Beam
R8 Sunroof Delay
R9  –
R10 Front Fog Lamp
R11  –
R12 Park Lamp
R13  –
R14  –



Engine compartment fuse box

Fuse box location

The Power Distribution Center is located near the battery (left or right depending on the version).

Fuse box diagram

Jeep Grand Cherokee (WJ; 1999 - 2005) - fuse an relay box diagram -engine compartment
Jeep Grand Cherokee (WJ; 1999 – 2005) – fuse an relay box diagram -engine compartment



Assignment of the fuses and relay in power distribution center

No. A Description
1 40 Blower Motor (MTC), Blower Motor Controller (AZC)
2 40 Rear Window Defogger Relay (Rear Window Defogger, Fuse (Passenger Compartment): “11”), Cigar Lighter Relay (Trailer Tow Circuit Breaker, Fuse (Passenger Compartment): “26”)
3 50 High Beam Relay (Fuse (Passenger Compartment): “3”, “16”), Low Beam Relay (Fuse (Passenger Compartment): “14”, “15”) or Low Beam / Daytime Running Lamp Relay (Fuse (Passenger Compartment): “14”, “15”), Fuse (Passenger Compartment): “4”, “5”, “6”, “11”, “17”
4 40 ABS
5 30 Gasoline: Transmission Control Relay, Transmission Control Module (4.7L), Transmission Solenoid (4.0L), Transmission Solenoid/TRS Assembly (4.7L)
6 30 Gasoline: Automatic Shut Down Relay (Ignition Coils, Capacitor, Fuse (Engine Compartment): “16”, “26”)
50 Diesel: Glow Glug Relay No.1 (Glow Plug: No.1, 3, 5)
7 50 Fuse (Passenger Compartment): “23”, “24”, “25”, “27”, “C2”
8 40 Starter Relay, Ignition Switch (Fuse (Passenger Compartment): “12”, “21”, “22”, “28”, “29”, “30”, “32”, “C1”)
9 20 Diesel: Fuel Heater Relay
10 40 4.0L: Radiator Fan Relay
40 Diesel: Radiator Fan Relay
11 50 Diesel: Glow Glug Relay No.2 (Glow Plug: No.2, 4)
12 50 Driver/Passenger Door Module, Fuse (Passenger Compartment): “18”
13 30 Diesel: Automatic Shut Down Relay (Engine Control Module, Powertrain Control Module, Fuse (Engine Compartment): “16”, “26”)
14 40 Ignition Switch (Fuse (Passenger Compartment): “19”, “20”, “31”, “33”)
15 50 Fuse (Passenger Compartment): “5”, “7”, “8”, “9”
16 15 Gasoline (’01): Oxygen Sensors, Oxygen Sensor Downstream Relay
10 Gasoline (’99-’00): Oxygen Sensors
10 Diesel: Air Conditioner Compressor Clutch Relay, Glow Plug Relay No.1, Glow Plug Relay No.2, EGR Solenoid
17 20 Gasoline (’99-’00): Oxygen Sensor Downstream Relay, Oxygen Sensor Upstream Relay
18 15 Horn Relay
19 10 Gasoline: Powertrain Control Module
20 –  –
21 15 Air Conditioner Compressor Clutch Relay
22 –  –
23 –  –
24 20 Gasoline: Fuel Pump Relay
15 Diesel: Powertrain Control Module, Transmission Control Relay
25 20 ABS
26 15 Gasoline: Fuel Injectors
15 Diesel: Fuel Injection Pump
27 –  –
28 15 4.0L: Transmission Solenoid
Relay
R1 Gasoline: Fuel Pump
Diesel: Wiper (On/Off)
R2 Gasoline: Starter
Diesel: Wiper (High/Low)
R3 Gasoline: Transmission Control
Diesel: Fuel Heater
R4 Gasoline: Wiper (On/Off)
Diesel: Transmission Control
R5 Gasoline: Wiper (High/Low)
Diesel: Starter
R6 Gasoline: Oxygen Sensor Downstream
R7 Gasoline: Oxygen Sensor Upstream
R8 Air Conditioner Compressor Clutch
R9 Horn
R10 Automatic Shut Down
R11 Diesel: Glow Plug (No.1)
R12 Diesel: Glow Plug (No.2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Transporter (T4; 1990 – 2003) – fuse box diagram

Posted on by admin

Volkswagen Transporter (T4; 1990 – 2003) – fuse box diagram

Year of production: 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003



Volkswagen Transporter T4  – represents the 4th generation of the legendary Transporter series. This model was produced in 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002 and 2003 with diesel and gasoline engines with different wheelbases: short and long, and with different roof height. Also on the T4, Volkswagen continued its lineup of luxury Caravelle, California and Multivan models. In this article, we will show the location of all electronic control sides and a detailed designation of the purpose of fuses and relays Volkswagen T4 with box diagrams in which they are located.



Locations

Volkswagen Transporter T4 (1990 - 2003) - fuse box location
Volkswagen Transporter T4 (1990 – 2003) – fuse box location



1 Air conditioning control unit 1 – with automatic temperature control – in the heater control panel, front
2 Air conditioning control unit 2 – with automatic temperature control – in the heater control panel, rear – central pillar
3 Evaporator Fan Control Unit (A / C) – With Rear A / C – Behind Right Rear Trim Panel
4 Air conditioning / heater fan motor control unit 1 – with automatic temperature control – front – fan unit
5 Air conditioning / heater blower motor control unit 2- with automatic temperature control – rear- bottom of the body, in the center
6 Aerial amplifier – behind the dash, passenger side
7 Alternator resistor – near additional relays – CV / AUF, with alternator 150A / automatic transmission / automatic temperature control – behind the central part of the dashboard
8 Additional battery – under the driver’s seat
9 Accumulator battery
10 Central locking signal control unit – behind the dashboard
11 Cruise control unit (with throttle motor) – cruise control is controlled by the ECM
12 Electronic cruise control module (without throttle motor) – behind dash, passenger side
13 Diagnostic connector (DLC) – instrument panel, driver’s side
14 Diagnostic unit – 05/99 (except for AAC / ABL / AET / AES / AJA) – in the instrument cluster
15 Cooling Fan Motor Relay – Behind Left Headlight
16 Cooling Fan Motor 1/2 Resistor – Behind Left Headlight
17 Coolant heater control unit (with additional coolant heater – D3W / B4W / D4W) – in the heater – underbody, in the center
18 Coolant heater control unit (with optional coolant heater – B7W / D7W) – behind the dash, passenger side
19 Engine oil pressure warning buzzer – in instrument cluster control unit
21 Fuse / relay box, instrument cluster 1
22 Fuse / relay box 2, dash – under dash fuse / relay box 1
23 Fuse / relay box, dash 3 – above dash fuse / relay box 1
24 Fuse / relay box, dash 4 – behind dash, center
25 Fuse / Relay Box, Driver’s Seat – Under Seat
26 Fuse / Relay Box, Engine Compartment – Battery Powered
27 Additional fuse (5A / 7.5A / 10A) – in the back of the audio system unit
28 Additional fuse (10A) – at the rear of the navigation system control unit
29 Headlights not switched off warning buzzer – in the instrument cluster control unit
30 Heater blower motor resistor – manual temperature control – blower unit, front
31 Horn 1/2 – behind the front bumper
32 Immobilizer control unit – behind the instrument cluster
33 Immobilizer ring antenna – near the ignition switch
34 Turn signal relay, alarm relay – in the alarm switch
35 Instrument Cluster Control Module / Digital Multifunction Display – In Instrument Cluster
36 Outside temperature sensor – behind the front bumper
37 Driver’s seat heating control unit – in the seat heating switch
38 Passenger seat heating control unit – in the seat heating switch
39 SRS control unit – under the dash, center
40 Sunroof electric control unit
41 Theme control unit – in the display of the navigation system
42 Telephone interface control unit – behind the instrument cluster
43 Electronic gearbox control unit – near the engine control unit
44 Vehicle speed sensor – gearbox



Passenger compartment

Fuse box location

The main fuse and relay box is located under the dash on the driver’s side.

Fuse box diagram

Version 1

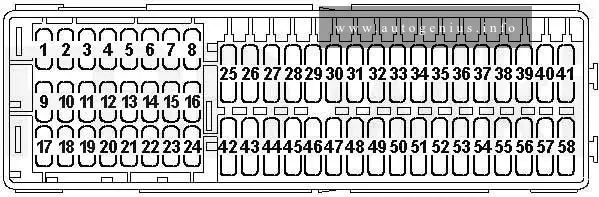

Volkswagen Transporter T4 (1990 - 2003) - fuse box diagram - passenger compartment (version 1)
Volkswagen Transporter T4 (1990 – 2003) – fuse box diagram – passenger compartment (version 1)
№
 A
 Description
1 10 Left Headlight Low Beam
2 10 Right Headlight Low Beam
3 10 Instrument & License Lights
4 15 Rear Window Wiper/Washer, Heated Front Seats
5 15 Windshield Wiper/Washer, Rear Window Washer, Heated Washer Jets
6 30 A/C, Fresh Air Fan
7 10 Right Tail Light & Side Marker Light, Engine Compartment Lamp
8 10 Left Taillight & Side Marker Light
9 20 Rear Window & Mirror Heater
10 15 Fog Lamps
11 10 Left Headlight High Beam & High Beam Indicator
12 10 Right Headlight High Beam
13 10 Horn, Radiator Cooling Fan
14 10 Backup Lights, Electric Mirrors, Heated Front Seats, Windshield Washer Jets, Cruise Control, Power Roof
15 10 Engine Electronics
16 15 Warning/Indicator Lights, Multi-Function Indicator, Glove Box Light, ABS
17 10 Turn Signals
18 20 Fuel Pump
19 30 A/C, Radiator Cooling Fan
20 10 Brake Lights
21 15 Dome & Luggage Lamps, Clock, Radio, Central Locking System, Multi-Function Indicator, Vanity Mirror, OBD Diagnostic
22 10 Cigarette Lighter
Relay
1 A/C Control Module Relay
2 Rear Window Wiper/Washer Relay
3 ECM Power Supply Relay
4 Load Reduction Relay
5 Open
6 Emergency Flasher Relay
7 Headlight Washer Relay
8 Washer/Wiper Intermittent Relay
9 Seat Belt Warning Relay
10 Fog Lamp/Parking Lamp Relay
11 Dual Horn Relay
12 Fuel Pump Relay
13 Heater Control Module Relay
14 Coolant Pump After-Run Relay
15 Open
16 Open
17 Open
18 Roof Ventilator Fan (Fuse)
19 Heater Air Blower Relay
20 Starter Interlock/Back-up Light Relay
21 5 Back-up Lights, Cruise Control
22 20 A/C (Second Evaporator)
23 Rear Window Defroster/Heated Mirror Relay
24 20 Power Windows, Central Locking System
25 10 ABS System
26 15 Rear Window Defroster, Heated Mirrors
27 A/C Compressor Clutch Relay

Version 2

Fuse box diagram (main box)

Volkswagen Transporter T4 (1990 - 2003) - fuse box diagram - passenger compartment (version 2)
Volkswagen Transporter T4 (1990 – 2003) – fuse box diagram – passenger compartment (version 2)
№
 A
 Description
Relay assignment
1 (105) Heater blower motor relay – rear (ventilation)
2 (174) Rear window wiper / washer relay
3 (30/109) Engine management relay
4 (18) Ignition auxiliary circuits relay 1
5 Reserve
6 (22/21) Emergency ventilation relay (with repeaters for direction indicators on the roof)
7 (95) Headlight washer pump relay
8 (99) Relay for intermittent operation of the windshield wiper / washer
9 (36) Headlamps warning buzzer
10 (53) Fog lamp relay
11 (53) Horn relay
12 (167) Fuel pump relay
Fuse
1 10 Left headlight – low beam, headlight range control
2 10 Right headlight – low beam, headlight range control
3 10 License plate lamps
4 15 Rear window wiper / washer, auxiliary ignition circuit relay 2, additional equipment
5 15 Windshield wiper / washer, heaters for windshield washer nozzles (05/01)
6 30 Air conditioning system, heater fan motor
7 10 Front right side / rear right side lamps
8 10 Lamps front left / rear left
9 20 Heated rear window, heated outside mirror
10 15 Fog lights
11 10 Left headlamp-high beam
12 10 RH headlamp-high beam
13 10 Sound signal
14 10 ABS system (with ESP), automatic transmission control system, additional equipment, central locking, cruise control system, power windows, power rear-view mirrors on the doors, reverse light (s)
15 10 Engine management system, crankcase ventilation heater, cruise control system, vehicle speed sensor
16 15 ABS indicator, glove box illumination lamp, turn signals, immobilizer, instrument cluster
17 10 Additional heater
18 20 Engine management system, fuel pump
19 30 A/C, Radiator Cooling Fan
20 10 Stop lights
21 15 Audio system, diagnostic connector (DLC), interior lamps, navigation system

Additional Fuse box

It is located under the main block.

Volkswagen Transporter T4 (1990 - 2003) - fuse box diagram - additional fuse box
Volkswagen Transporter T4 (1990 – 2003) – fuse box diagram – additional fuse box
№
 A
 Description
1 15 Accessory power connector
2 15 Trailer electrical connector
3 10 Roof identification light
4 20 Additional heater (AC V / AH Y / AJT / AU F)
5 10 Anti-lock braking system (ABS)
6 FOR Phone
7 15 Taxi
8 10 Roof fan
9 15 Audio system, instrument cluster
10 15 Central locking
11 15 Heated seats
12 30 Heated door mirrors, heated rear window
13 FOR PHONE (ACV / AH Y / AJT / AU F)
14 30 Air conditioning system – manual automatic temperature control
15 20 Additional heater



Additional relay box 1

Located at the top of the main unit.

Relay box diagram

Volkswagen Transporter T4 (1990 - 2003) - fuse box diagram - additional relay box no. 1
Volkswagen Transporter T4 (1990 – 2003) – fuse box diagram – additional relay box no. 1
№
   Description
1 (53) Coolant pump relay
2 (125) Idle speed control (AM) relay
3 (137) Glow plug control unit (ABL)
4 (53) Ignition auxiliary circuits relay 2 (some models)
5 (53) Ignition auxiliary circuits relay 2 (AES, with air conditioning)
F1 30 Power window fuse
F2 15 Engine control unit
F3 15 Actuator

Additional relay box 2

It is located behind the dashboard in the center.

Fuse box diagram

Volkswagen Transporter T4 (1990 - 2003) - fuse box diagram - additional relay box no. 2
Volkswagen Transporter T4 (1990 – 2003) – fuse box diagram – additional relay box no. 2
№
  Description
1 (106) Auxiliary heater relay
2 Audio / Telephone Speaker Switch Relay
3 (53) (53) Heater blower motor relay – rear (warm air)
4 (114) Heater blower motor relay – automatic temperature control
5 (152) Heater radiator coolant valve relay (rear heater)
6 (38) Air intake changeover actuator relay (A / C / heater)
7 (53) Alternator relay (AES, with 150A alternator)
8 (53) Alternator relay (ACV / AUF, with alternator 150A / automatic / automatic temperature control)
9 (175) Start inhibit switch relay / reversing lamp relay
10 (87) Wheel hub connection control unit



Another unit can be located under the driver’s seat. The following items may be located there: (214/426) Relay for additional battery, (403) Relay for additional heater, (30A) Additional liquid heating system, (5A) Sockets , etc.



Engine compartment

Fuse box location

This unit is located on the cover in front of the battery.

Fuse box diagram

Volkswagen Transporter T4 (1990 - 2003) - fuse box diagram - engine compartment
Volkswagen Transporter T4 (1990 – 2003) – fuse box diagram – engine compartment



№
  Description
1 60A Glow plug relay
2 50A Cooling fan motor
3 50A Cooling fan motor
4 50A Anti-lock braking system (ABS)
5 110A/150A/175A Generator
6 30A System of maintaining exchange rate stability
7 30A Anti-lock braking system (with ESP)
8 5A System of maintaining exchange rate stabilit

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen New Beetle (1998 – 2011) – fuse and relay box diagram

Posted on by admin

Volkswagen New Beetle (1998 – 2011) – fuse and relay box diagram

Year of production: 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011



The Volkswagen New Beetle, a compact car, was manufactured from 1998 to 2011. In this article, you’ll find fuse box diagrams for the 1998 through 2011 models, along with information on the location of the fuse panels inside the vehicle and details on the function and layout of each fuse and relay.

Location

Volkswagen New Beetle (1998 - 2011) - fuse and relay box location
Volkswagen New Beetle (1998 – 2011) – fuse and relay box location

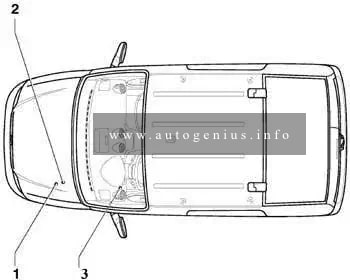

  1. Fuses -S162-, -S163-, -S164-, -S176-, -S177-, -S178-, -S179-, -S180- on fuse holder/battery
  2. Fuses -S43-, -S111-, -S130-, -S144-, -S283-, -S329-, -S337-, -S338-, on the 13 position additional relay carrier above the relay plate
  3. Fuses (S) in fuse holder, left dash panel

Engine compartment

Fuses (S) on fuse holder/battery

Volkswagen New Beetle (1998 - 2011) - fuse and relay box diagram - engine compartment (battery)
Volkswagen New Beetle (1998 – 2011) – fuse and relay box diagram – engine compartment (battery)



Assignment of the fuses in the engine compartment (battery)

№ A Function/component
1 50 V101 – Secondary air pump motor, models with secondary air pump only
J359 – Low heat output relay, models with diesel engines, manual gearbox only
J360 – High heat output relay, models with diesel engines, manual gearbox only
2 50 J17 – Fuel pump relay (17/30)
J370 – Glow plug activation control unit, models with diesel engines only
3 40 J293 – Radiator fan control unit (T4e/1)
V7 – Radiator fan
4 110 J59 – X – contact relief relay (7/30)
5 110
150		 C – Alternator (90A)
C – Alternator (120A)
6 30 J104 – ABS control unit (T47a/1)
7 30 J104 – ABS control unit (T47a/32)
8 30 F18 – Radiator fan thermal switch
J293 – Radiator fan control unit (T4e/3)

Passenger compartment

Fuses on the 13 position additional relay carrier above the relay plate

Volkswagen New Beetle (1998 - 2011) - fuse and relay box diagram - passenger compartment
Volkswagen New Beetle (1998 – 2011) – fuse and relay box diagram – passenger compartment



Assignment of the fuses in the passenger compartment (dashboard)

№
 A
 Function/component
A 30 Window regulator thermal fuse -S43-
B Brake vacuum pump fuse -S283-*1
Vacant*2,7
C 30*3
10*7		 Rear spoiler motor fuse -S329-*3
Secondary air pump fuse -S130-
F – Vacant
G – Vacant
H 15 Anti-theft alarm system fuse and immobilizer fuse -S111-*4
Telematics fuse -S338-*5
J 15*4
20*2,6		 Anti-theft alarm system central locking fuse -S144-*4
Brake vacuum pump fuse -S283-*2
Fuse for dual clutch gearbox mechatronic unit -S337-*6
Relay positions – relay on relay plate
1 J4 – Dual tone horn relay (53)
2 J59 – X-contact relief relay (100)
3 Vacant
4 J17 – Fuel pump relay (409)
J52 – Glow plug relay (103)*8
5 Automatic intermittent wash and wipe relay -J31- (377), (192), (389)
Relay positions on the 13 position additional relay carrier above the relay plate
1 Vacant
2 Vacant
3 Starter inhibitor relay, clutch pedal switch -J434- (53)*9
4 Fog light relay -J5- (53)
5 Vacant
6 Vacant
7 Daytime running lights change-over relay -J89- (173)*10
8 Heated exterior mirror relay -J99- (53)*11
9 Alarm horn relay -J641- (for telematics only)
10 Turn signals relay for anti-theft alarm -J237- (for telematics only)
Radiator fan 3rd speed relay -J135- (100) (only 1.8 l-engine)
Secondary air pump relay -J299- (100) (only petrol engines, from July 2005)
Low heat output relay -J359- (100) (engine code BEW only, from June 2003 up to December 2006)
11 Starter inhibitor and reversing light relay -J226- (126) (only for automatic gearbox 01M)
Starter inhibitor relay -J207- (176) (from model year 2005; only for 6-speed automatic gearbox 09G, with Tiptronic)
12 Terminal 30 voltage supply relay -J317- (109) (for engine codes BPR, BPS only; models with diesel engines only)
13 High heat output relay -J360- (53) (engine code BEW only, from June 2003 up to December 2006)
1 – for models with manual gearbox, model year 2003
2 – models with automatic gearbox, from model year 2004
3 – models with 1.8 l engine, model year 2003 up to 2005
4 – up to model year 2003
5 – from model year 2004
6 – for models with engine code BEW; with dual clutch gearbox DSG 02E; from model year 2004
7 – from model July 2005
8 – engine codes ALH, ATD, AXR, BSW only
9 – only manual gearbox
10 – daytime running lights only
11 – American markets only; only models with mechanical window regulator

Fuses (S) in fuse holder, left dash panel

Volkswagen New Beetle (1998 - 2011) - fuse and relay box diagram - passenger compartment (dash panel)
Volkswagen New Beetle (1998 – 2011) – fuse and relay box diagram – passenger compartment (dash panel)



Assignment of the fuses in the passenger compartment (dashboard)

№ A Function/component
1 10 J99 – Heated exterior mirror relay*1
J131 – Heated driver seat control unit (T6/5)
J132 – Heated front passenger seat control unit (T6b/5)
W6 – Glove compartment light
Z20/ Z21 – Left/right washer jet heater element
2 10 J1 – Turn signal relay (T7/6)
M5/ M7 – Front left/right turn signal bulb
M6/ M8 – Rear left/right turn signal bulb
3 5 E1 – Lighting switch
E20 – Switches and instruments illumination regulator
J5 – Fog light relay (4/86)
4 5 X – number plate light
5 7,5 E45 – Cruise control system switch*2
E159 – Fresh air/air recirculation flap switch (T8b/5)
E184 – Fresh air and air recirculation switch*1
E227 – Cruise control system (CCS) SET button (T4q/3), CCS only*1
E231 – Exterior mirror heater button
F36 – Clutch pedal switch (T4q/3)
F47 – Brake pedal switch
G65 – High-pressure sender (T3e/3)
J89 – Daytime running lights change-over relay (8/86)
J255 – Climatronic control unit (T16c/9)*1
J293 – Radiator fan control unit (T14/9)
J386 – Driver door control unit (T18d/3)
T16 – 16-pin connector, self-diagnosis (T16/1T16/16)
V48 – Left headlight range control motor*1
V49 – Right headlight range control motor*1
Y2 – Digital clock*2
Y7 -Automatic anti-dazzle interior mirror*2
6 5 J393 – Convenience system central control unit (T23/5)
Vacant, model year 2004
7 10 F4 – Reversing light switch
F125 – Multifunction switch (T10t/10)*2
G22 – Speedometer sender
J226 – Starter inhibitor and reversing light relay (T9/5)
K142 – Selector lever position P/N warning lamp
M16 / M17 – Left/right reversing light bulb
T16 – 16-pin connector, self-diagnosis (T16/1)
8 – Vacant
J412 – Mobile telephone operating electronics control unit (T18d/10)*3
9 5 E256 – TCS and ESP button (T6/6)
J104 – ABS control unit (T47a/4)
G85 – Steering angle sender (T6k/5)
10 10 J285 – Control unit in dash panel insert (T32/30)
J393 – Convenience system central control unit (T23/17), models with window regulator from 2003 only
R – Radio
Y2 – Digital clock
11 5 J285 – Control unit in dash panel insert (T32/1)
N110 – Selector lever lock solenoid
12 7,5 T16 – 16-pin connector, self-diagnosis (T16/16)
J502 – Tyre pressure monitor control unit (T20b/3)*2
13 10 F – Brake light switch
14 10 J220 – Motronic control unit (T121/62)
J271 – Motronic current supply relay
J393 – Convenience system central control unit (T23/22), models with window regulator from model year 2003
15 5 G85 – Steering angle sender (T6p/4) for TCS/ESP
J217 – Automatic gearbox control unit (T68/45)
J285 – Control unit in dash panel insert (T32/23)
Y2 – Digital clock*2
16 10 J293 – Radiator fan control unit (T14/4)
17 – Vacant
18 10 J5 – Fog light relay
J285 – Control unit in dash panel insert (T32/a17)
J607 – Right dip and main beam switch relay (for gas discharge bulb)*1
M32 – Right main beam bulb
19 10 J606 – Left dip and main beam switch relay (for gas discharge bulb)*1
M30 – Left main beam bulb
20 15 J607 – Right dip and main beam switch relay (for gas discharge bulb)*1
M31 – Right headlight dipped beam bulb
21 15 J606 – Left dip and main beam switch relay (for gas discharge bulb)*1
M29 – Left headlight dipped beam bulb
22 5 J285 – Control unit in dash panel insert (T32/26)
M3 – Right side light bulb*2
M22 – Right brake and tail light bulb
M34 – Front right side marker bulb*2
M36 – Front right turn signal and side marker bulb
M38 – Rear right side marker bulb
23 5 J285 – Control unit in dash panel insert (T32/27)
M1 – Left side light bulb*2
M21 – Left brake and tail light bulb
M33 – Front left side marker bulb*2
M35 – Front left turn signal and side marker bulb
M37 – Rear left side marker bulb
24 20 E22 – Intermittent wiper switch (T8c/8)
J31 – Automatic intermittent wash and wipe relay (T18a/13), for headlight washer system only
25 25 E9 – Fresh air blower switch (T6d/2)
J255 – Climatronic control unit (T16b/14)*1
V2 – Fresh air blower, for Climatronic only*1
26 25 E15 – Heated rear window switch (T6b/5)
Z1 – Heated rear window
27 15 U1 – Cigarette lighter, from model year 2007
J29 – Blocking diode, from model year 2007
U18 – 12 V socket -2-
U19 – 12 V socket 3, in luggage compartment
28 15 G6 – Fuel system pressurisation pump
J17 – Fuel pump relay (T9b/1)*3
29 15 J220 – Motronic control unit (T121/3)
J248 – Diesel direct injection system control unit (T121/37)*1
N30/ N31/ N32/ N33/ N83 – Injector, cylinder*2
J623 – Engine control unit (T80/4), engine code CBPA only*2
G70 – Air mass meter, (T5d/2), engine code BEW only, from June 2003 up to December 2006
J248 – Diesel direct injection system control unit, (T94/18), engine code BEW only, from June 2003 up to December 2006
30 20 J245 – Sliding sunroof adjustment control unit (T6l/4)
31 20 F125 – Multifunction switch (T8a/7)*1
J217 – Automatic gearbox control unit (T68/23)
J539 – Brake servo control unit (T6k/3)
32 30 N30/ N31/ N32/ N33 – Injector, cylinders, engine code CBPA only
N280 – Air conditioning system compressor regulating valve*2
32 15 J248 – Diesel direct injection system control unit (T121/2)
N146 – Metering adjuster*1
33 20 Vacant
34 10 G40 – Hall sender, engine code BEW only, from June 2003 up to December 2006
J52 – Glow plug relay (engine codes ALH and BEW only)
J299 – Secondary air pump relay (T13/9)*3
J370 – Glow plug activation control unit, (6/87), engine code BEW only, from June 2003 up to December 2006
N18 – Exhaust gas recirculation valve (engine codes ALH and BEW only)
N75 – Charge pressure control solenoid valve
N79 – Heater element for crankcase breather*3
N108 – Commencement of injection valve (engine codes ALH and BEW only)
N239 – Variable intake manifold flap change-over valve (engine codes ALH and BEW only)
N205 – Inlet camshaft control valve 1 (engine codes ALH and BEW only)
N249 – Turbocharger air recirculation valve (engine codes ALH and BEW only)
N345 – Exhaust gas recirculation cooler change-over valve, engine code BEW only, from June 2003 up to December 2006
S130 – Secondary air pump fuse*3
V157 – Intake manifold flap motor, engine code BEW only, from June 2003 up to December 2006
35 30 U19 – 12 V socket 3, in luggage compartment
U10 – Trailer socket (T13/9)*3
36 15 E7 – Fog light switch (T17/2)
37 20 J220 – Motronic control unit (T121/62)
J248 – Diesel direct injection system control unit (T121/88), engine codes ALH and BEW
J271 – Motronic current supply relay (1/30)
J393 – Convenience system central control unit (T23/17), models with window regulator
J623 – Engine control unit (T80/15), engine code CBPA only
S283 – Brake vacuum pump fuse
38 15 E204 – Tank filler flap remote release switch
E233 – Rear lid remote release button
J386 – Driver door control unit (T29/19), models with window regulator
J387 – Front passenger door control unit (T29a/19), models with window regulator
J393 – Convenience system central control unit (T23/22)*3
39 15 E3 – Hazard warning light switch (T8d/8)
40 20 H1 – Horn or dual tone horn
J4 – Dual tone horn relay (3/30)
41 15 U1 – Cigarette lighter
U5 – 12 V socket
U18 – 12 V socket -2-, from 07.03
U19 – 12 V socket 3, in luggage compartment, from 07.03
Vacant*3
42 25 R – Radio (T8/5, T8/7)
43 10 G39 – Lambda probe
G70/G42 – Air mass meter/ Intake air temperature sender, engine codes BPS, BPR only
G108 – Lambda probe 2
G130 – Lambda probe after catalytic converter
G465 – Centre Lambda probe for bank 1 catalytic converter, engine code BPR only
J299 – Secondary air pump relay (4/85)*1
N80 – Activated charcoal filter system solenoid valve 1
N112-Secondary air inlet valve*1
V144 – Fuel system diagnostic pump
43 10 F36 – Clutch pedal switch
F47-Brake pedal switch
J359 – Low heat output relay
J360 – High heat output relay
N79-Heater element for crankcase breather
44 15 J131 – Heated driver seat control unit (T6/4)
J132 – Heated front passenger seat control unit (T6b/4)
1 – model year 2002 up to july 2005
2 – from model July 2005
3 – from model July 2009

J179 – Automatic glow period control unit*¹,²

Volkswagen New Beetle (1998 - 2011) - fuse and relay box diagram - engine compartment (automatic glow period control unit)
Volkswagen New Beetle (1998 – 2011) – fuse and relay box diagram – engine compartment (automatic glow period control unit)



Location:  in centre of plenum chamber ⇒ -arrow-
1) engine code BEW only
2) from June 2003 up to December 2006



Additional relay carrier

Volkswagen New Beetle (1998 - 2011) - fuse and relay box diagram - engine compartment (additional relay carrier)
Volkswagen New Beetle (1998 – 2011) – fuse and relay box diagram – engine compartment (additional relay carrier)



Assignment of the fuses in the additional relat carrier

№ Function/component
1 Secondary air pump relay -J299- (100)*1
High heat output relay -J360- (100)*2
2 Motronic current supply relay -J271- (458)*1
Low heat output relay -J359- (53)*2
1 – petrol engines only
2 – diesel engines only

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

MG ZR (2001 – 2005) – fuse and relay box diagram

Posted on by admin

MG ZR (2001 – 2005) – fuse and relay box diagram

Year of production: 2001, 2002, 2003, 2004, 2005



The MG ZR hatchback was produced from 2001 to 2005. This article provides fuse box diagrams for the 2001 through 2005 models, details the locations of the fuse panels within the vehicle, and explains the function of each fuse (fuse layout).

Passenger Compartment Fuse Box

Fuse Box Location

MG ZR (2001 - 2005) - fuse and relay box location - passenger compartment fuse box
MG ZR (2001 – 2005) – fuse and relay box location – passenger compartment fuse box



Fuse Box Diagram

MG ZR (2001 - 2005) - fuse and relay box diagram - passenger compartment fuse box
MG ZR (2001 – 2005) – fuse and relay box diagram – passenger compartment fuse box



Assignment of the fuses in the passenger compartment

No
 A
 Description
1 15 Horn
2 20 Window – RH rear
3 10 Rear fog guard lights
4 20 Window – LH rear
5 10 Interior & luggage compartment lights, Seat belt buckle – RH, Audio unit. Door mirrors, Clock
6 20 Window – LH front
7 30 Sunroof
8 20 Window – RH front
9 20 Screen washers, Headlight washers
10 10 Headlight – RH main beam
11 10 Daylight running lights, Interior illumination (Scandinavia)
12 10 Headlight – LH main beam
13 10 Side & tail lights – LH, Headlight levelling – LH, Glovebox light. Clock, Interior lights
14 10 Headlight – RH dipped beam
15 10 Side & tail lights – RH, Headlight levelling – RH, Number plate light
16 10 Headlight – LH dipped beam
17 20 Blower motor
18 20 Seat heaters
19 10 Audio system
20 10 Engine starting
21 15 Windscreen wipers – front
22 10 Door mirrors
23 10 Anti-lock braking system
24 10 Brake lights. Reversing lights
25 10 Anti-theft alarm. Blower motor, Direction indicators, Clock, Instrument pack
26 15 Rear screen wiper. Headlight washers. Air conditioning illumination. Seat heaters
27 5 Airbag SRS

Engine compartment fuse box

Fuse Box Location

The fuse box is located on the left hand side of the engine compartment.



Fuse Box Diagram

MG ZR (2001 - 2005) - fuse and relay box diagram - engine compartment fuse box
MG ZR (2001 – 2005) – fuse and relay box diagram – engine compartment fuse box



Assignment of the fuses in the engine compartment

No
 A
 Description
1 10 Engine management system. Automatic transmission selector, Speedometer
2 20 Engine management system. Fuel pump
3 10 Engine management system. Glow plug relay
4 10 Air conditioning relay, Cooling fan relay
5 25 Anti-theft alarm. Central door locking
6 15 Front fog lights
7 15 Hazard warning lights
8 15 Engine management system
9 10 Air conditioning
10 20 Fuel cut-off switch

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Volkswagen Caddy (III; 2003 – 2004) – fuse and relay box diagram

Posted on by admin

 Volkswagen Caddy (III; 2003 – 2004) – fuse and relay box diagram

Year of production: 2003, 2004



In this article, we take a look at the third-generation Volkswagen Caddy (2K) before its first facelift, produced between 2003 and 2010. You will find fuse box diagrams for the 2003–2004 models, along with details on the location of the fuse panels inside the vehicle and the assignment of each fuse (fuse layout).

Location

Volkswagen Caddy (III; 2003 - 2004) - fuse box location
Volkswagen Caddy (III; 2003 – 2004) – fuse box location



  1. Fuses on fuse holder A -SA- (On the electronics box, on left in engine compartment)
  2. Fuses on fuse holder B -SB- (On left in engine compartment)
  3. Fuses on fuse holder C -SC- (Under left dash panel)

Engine Compartment

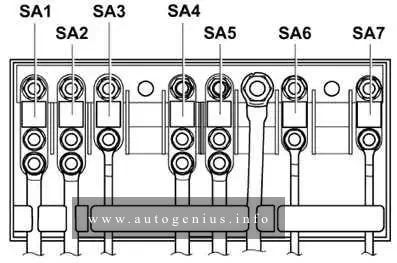

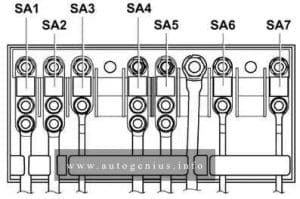

Fitting location of fuse holder A (A -SA-)

Fuse box diagram

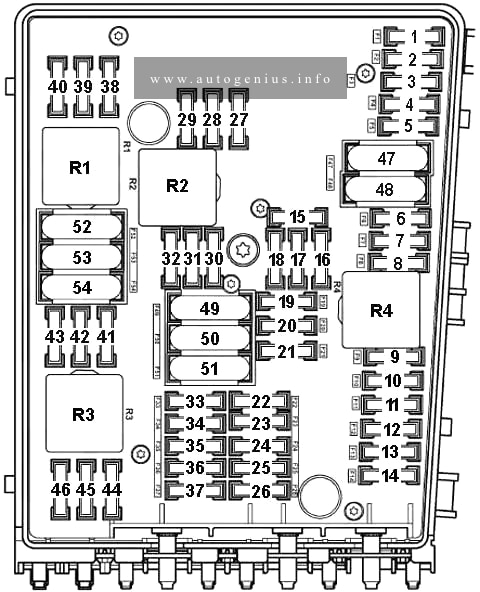

Volkswagen Caddy (III; 2003 - 2004) - fuse box diagram - engine compartment (holderA)
Volkswagen Caddy (III; 2003 – 2004) – fuse box diagram – engine compartment (holderA)


Assignment of the fuses in the engine compartment (pre-fuse box)

No. A Function/component
1 150 Alternator -C- 90A / 110A
1 200 Alternator -C- 140A
2 80 Power steering control module -J500-
Electromechanical power steering motor -V187-
3 80 Radiator fan control unit -J293-
Radiator fan -V7-
Radiator fan on right of radiator -V35-
4 70 Onboard supply control unit -J519-
X-contact relief relay -J59-
Fuse 7 on fuse holder -SC7-
Fuse 8 on fuse holder -SC8-
Fuse 28 on fuse holder -SC28- to -SC35-
5 – Not used
6 100 Fuses on fuse holder C -SC-
Fuse 20 on fuse holder -SC20- to -SC24-
Fuse 42 on fuse holder -SC42- to -SC56-
7 50 Fuses on fuse holder C -SC-
Fuse 39 on fuse holder -SC39- to -SC41-

Fitting location of E-box high fuse holder (B -SB-)

Fuse box diagram

Volkswagen Caddy (III; 2003 - 2004) - fuse box diagram - engine compartment (holder B)
Volkswagen Caddy (III; 2003 – 2004) – fuse box diagram – engine compartment (holder B)



Assignment of the fuses in the engine compartment

No. A Function/component
1 30 ABS Control Module -J104-
2 30 ABS Control Module -J104-
3 – Not used
4 5 Onboard supply control unit -J519-
5 20 Onboard supply control unit -J519-
Double-tone horn relay -J4- , Signal horn relay -J413-
Treble horn -H2-
Bass horn -H7-
6 20 Ignition coil 1 with output stage -N70-
Ignition coil 2 with output stage -N127-
Ignition coil 3 with output stage -N291-
Ignition coil 4 with output stage -N292-
Ignition transformer -N152-
7 5 Brake pedal switch -F47-
J…-Engine Control Modules
Clutch position sender -G476-
8 10 Exhaust gas recirculation valve -N18-
Activated charcoal filter solenoid valve 1 -N80-
Variable intake manifold changeover valve -N156-
Protective resistor -N235-
Radiator fan control unit -J293-
Intake manifold flap motor -V157-
9 10 Fuel pump relay -J17- (BDJ, BJB)
Glow plug relay -J52- (BDJ)
Automatic glow period control module -J79- (BJB)
10 10 Exhaust gas recirculation valve -N18-
Charge pressure control solenoid valve -N75-
Exhaust gas recirculation fan switch-over valve -N345-
11 25 Motronic Control Module -J220- (BCA)
Simos Control Module -J361- (BGU, BSE, BSF)
11 30 Diesel direct injection system control module -J248- (BDJ, BJB)
12 15 Lambda probe -G39- (BCA)
Lambda probe after catalytic converter -G130- (BCA)
13 – Not used
14 – Not used
15 25 Starter -B-
16 15 Steering column electronics control module -J527-
17 10 Control unit in dash panel insert -J285-
18 – Not used
19 15 Control module with display for radio and navigation system -J503-
Radio -R-
20 10 Mobile telephone operating electronics control module -J412-
21 – Not used
22 – Not used
23 – Not used
24 10 Data bus diagnostic interface -J533-
25 – Not used
26 5 Terminal 30 voltage supply relay -J317- (BDJ, BJB )
26 10 Motronic control module -J220- (BCA)
27 10 Heater element for crankcase breather -N79-
28 – Not used
29 20 Cylinder 1 injector -N30- (BCA)
Cylinder 2 injector -N31- (BCA)
Cylinder 3 injector – N32- (BCA)
Cylinder 4 injector -N33- (BCA)
30 20 Auxiliary heater control unit -J364-
31 30 Windscreen wiper motor -V-
32 10 Cylinder 1 injector -N30- (BGU)
Cylinder 2 injector -N31- (BGU)
Cylinder 3 injector -N32- (BGU)
Cylinder 4 injector -N33- (BGU)
32 40 Glow plug 1 -Q10- (BDJ)
Glow plug 2 -Q11-
33 15 Fuel pump -G6- (BCA, BGU)
33 40 Glow plug 3 -Q12- (BDJ)
Glow plug 4 -Q13-
34 – Not used
34 – Not used
35 – Not used
36 – Not used
37 – Not used
38 10 Headlight range control regulator -E102-
Left headlamp levelling actuator -V48-
Right headlamp levelling actuator -V49-
39 5 Oil level and oil temperature sensor -G266-
Control unit in dash panel insert -J285-
40 20 Fuses on fuse holder C -SC-
Fuse 1 on fuse holder -SC1- to -SC6-
Fuse 9 on fuse holder -SC9- to -SC16-
Fuse 25 on fuse holder -SC25- to -SC27-
41 – Not used
42 5 Fuel pump relay -J17- (BCA, BGU)
42 10 Air mass meter -G70- (BJB)
43 – Not used
44 – Not used
45 15 Lambda probe -G39- (BGU)
Lambda probe after catalytic converter -G130- (BGU)
46 – Not used
47 40 Onboard supply control unit -J519- , left headlight
48 40 Onboard supply control unit -J519- , right headlight
49 – Not used
50 – Not used
51 40 Secondary air pump relay -J299- (BGU)
Secondary air pump motor -V101-
51 50 Automatic glow period control module -J179- (BJB)
Glow plug 1 -Q10-
Glow plug 2 -Q11-
Glow plug 3 -Q12-
Glow plug 4 -Q13-
52 – Not used
53 25 Driver door control unit -J386-
Front passenger door control unit -J387-
54 50 Radiator fan control unit -J293-
Radiator fan -V7-
Right fan for coolant -V35-
Radiator fan thermal switch -F18-
Radiator fan -V7-

Passenger Comparment

Position of fuses on fuse holder C -SC-

Fuse box diagram

Volkswagen Caddy (III; 2003 - 2004) - fuse box diagram - passenger compartment (holder C)
Volkswagen Caddy (III; 2003 – 2004) – fuse box diagram – passenger compartment (holder C)



Assignment of the fuses in the engine compartment

No. A Function/component
1 – Not used
2 5 Trailer detector control unit -J345-
3 5 Heater/heat output switch -E16-
High pressure sender -G65-
4 – Not used
5 – Not used
6 – Not used
7 5 Heated driver seat regulator -E94-
Heated front passenger seat regulator -E95-
8 5 Left washer jet heater element -Z20-
Right washer jet heater element -Z21-
9 5 Airbag control unit -J234-
Front passenger side airbag deactivated warning lamp -K145-
10 5 Mobile telephone operating electronics control unit -J412-
11 10 Power steering control unit -J500-
12 – Not used
13 – Not used
14 5 Traction control system switch -E132-
TCS and ESP button -E256-
ABS control unit -J104-
15 10 Reversing light switch -F4-
Auxiliary heater operation relay -J485- (from May 2004)
Control unit with display for radio and navigation system -J503- (commercial equipment)
T16 – Self-diagnosis connection (T16/1)
16 5 Data bus diagnostic interface -J533-
17 7.5 Left tail light and rear fog light bulb -M41- (models without central locking)
18 – Not used
19 – Not used
20 – Not used
21 – Not used
22 5 Remote control receiver for auxiliary coolant heater -R149-
23 10 Brake light switch -F-
Left brake light bulb -M9-
Right brake light bulb -M10-
High level brake light bulb -M25-
ABS control unit -J104-
24 10 Light switch -E1-
Air conditioning system control unit -J301-
16-pin connector -T16- (self-diagnosis connection T16/16)
25 30 Heated driver seat control unit -J131-
Heated front passenger seat control unit -J132-
26 10 J… – Engine control units
27 15 Rear window wiper motor -V12- (from May 2004)
28 5
20		 Light switch -E1- (models with central locking)
Fog light switch -E7- (models without central locking)
Rear fog light switch -E18- (models without central locking)
29 15 Rear window wiper motor -V12- (up to April 2004)
30 25 Light switch -E1- (models without central locking)
Fuse 37 on fuse holder C -SC37-
Fuse 38 on fuse holder C -SC38-
31 15 Auxiliary heater operation relay -J485- (up to April 2004)
32 15 Washer pump -V5-
33 – Not used
34 – Not used
35 40 Fresh air blower -V2-
Auxiliary heater operation relay -J485-
36 – Not used
37 15 Right dipped beam bulb -M31- (models without central locking)
38 15 Left dipped beam bulb -M29- (models without central locking only)
39 – Not used
40 20 Trailer detector control unit -J345-
41 20 Trailer socket -U10-
42 15
30		 12 V socket -U5- (near handbrake lever)
12 V socket 2 -U18- (left luggage compartment)
43 15 Electric fuel pump 2 relay -J49- (BCA, BGU)
Fuel pump relay -J17- (BDJ, BJB)
Fuel system pressurisation pump -G6-
44 5 Interior monitoring sensor -G273-
Vehicle inclination sender -G384-
Alarm horn -H12-
45 5 Aerial selection control unit -J515-
46 7.5 Onboard supply control unit -J519- (Interior light)
47 25
30		 Cigarette lighter -U1-
Rear cigarette lighter -U9-
48 20 Headlight washer system relay -J39-
Headlight washer system pump -V11-
49 10 Driver door control unit -J386-
Front passenger door control unit -J387-
50 – Not used
51 – Not used
52 25 Fresh air blower relay -J13-
Onboard supply control unit -J519-
53 25 Convenience system central control unit -J393-
54 – Not used
55 – Not used
56 – Not used
57 – Not used
58 – Not used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Iveco Daily (III; 2000 – 2006) – fuse and relay box diagram

Posted on by admin

Iveco Daily (III; 2000 – 2006) – fuse and relay box diagram



Year of production: 2000, 2001, 2002, 2003, 2004, 2005, 2006



This article covers the second-generation Iveco Daily (III), produced from 2000 to 2006. It includes fuse box diagrams for the 2000, 2001, 2002, 2003, 2004, 2005 and 2006 models, provides details on the location of the fuse panels inside the vehicle, and explains the function and layout of each fuse.

Passenger compartment

Fuse box diagram

Iveco Daily(III; 2000 - 2006) - fuse and relay box diagram - passenger compartment
Iveco Daily(III; 2000 – 2006) – fuse and relay box diagram – passenger compartment



Assignment of the fuses in the passenger compartment

No Function A
1 ID/TCA (.11): Thermal starter 40
1 UNIJET (.13-.15): Thermal starter 80
1 UNIJET F1A (.10-.12): Thermal starter, additional heater 30
2 Immobilizer/Warming/EDC 5
3 DDS device 5
4 Instrument cluster (+30) 5
5 Instrument cluster (+15) 5
6 Stalk unit (rear fog guard, flasher) 5
7 Stalk unit (low beams) 10
8 Stalk unit (high beams) 15
9 Stalk unit (side lights) 15
10 Windscreen wiper 15
11 Stalk unit (direction indicators/hazard warning lights) 15
12 Stalk unit (horns) 15
13 Reversing light 5
14 Side light, clearance, no. plate light 5
15 Side light cluster lighting 5
16 Left low beam headlamp 10
17 Right low beam headlamp 10
18 Left high beam headlamp 10
19 Right high beam headlamp/headlamp aming 10
20 Interior lighting/radio/cigar lighter 10
20 UNIJET F1A (.10-.12): Interior lighting/radio 10
21 Electric windscreen defrosting unit 30
21 UNIJET F1A (.10-.12): Cigar lighter 15
22 Heated fuel filter 15
23 EDC electronic control unit 25
24 EDC 10
25 Stop lights 5
26 13-pin current socket 15
27 13-pin current socket 15
28 13-pin current socket 10
29 38-pin diagnostic connector 5
30 Fog lamps 10
31 Climate control, additional heater, engine cooling 5
31 UNIJET F1A (.10-.12): Compressor, timer, engine fan 10
32 Climate control 5
33 Additional heater 20
34 Headlamp washer 20
35 Rear differential lock 5
36 ABS, EBD, ABD failure warning light 5
37 ABS 5
39 Heated mirrors 10
39 UNIJET F1A (.10-.12): Heated mirrors, heated rear-screen, heated windscreen 10
40 Power windows 30
40 UNIJET F1A (.10-.12): Power windows (left) 20
41 Heated rear-screen, heated windscreen 10/ 20
42 Self-levelling suspensions (Wabco) 5
43 Air bag failure warning light 5
44 Self-levelling suspensions (Wabco) 40
45 Air-bag 5
46 Solenoid valve for thermal starter 5
46 UNIJET F1A (.10-.12): Power windows (right) 20
47 Electric fuel pump 10
48 Door locking/alarm 30
49 Door locking/alarm 5
50 Rear differential lock 30
51 Total power takeoff 10
52 Front differential lock (4×4) 30
53 Self-levelling suspensions Techniek) 30
54 Electric hatch (van and 6+1) 15
55 Rototranslating door 15
Code Relays
25035 Switching on external lights
25003 Switching on fog lamps
25006 Switching on stop lights
25704 Total power takeoff engagement control
25104 Switching off Retarder with ABS on
25209 Loads cut-off during starting
25222 Thermal starter engagement enable
25223 Thermal starter fan control
25307 Climate control compressor engagement
25336 Engine cooling
25337 Climate control compressor disengagement
25340 Compressor on signal
25620 Fuel filter clogged signal
25705 Diagnostics enable
25810 Heated fuel filter circuit control
25811 Advance variator control (KSB)
25818 Heated windscreen switching on
25837 Electric fuel pump switching on
25858 EDC switching on
25926 Suspension raising enable
25927 Suspension lowering enable
25928 Rear-screen heating switching on
61002A Anti-retum from Trinary
61002В Anti-retum from TGC (bus)
66010 Timer for headlamp washer
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
